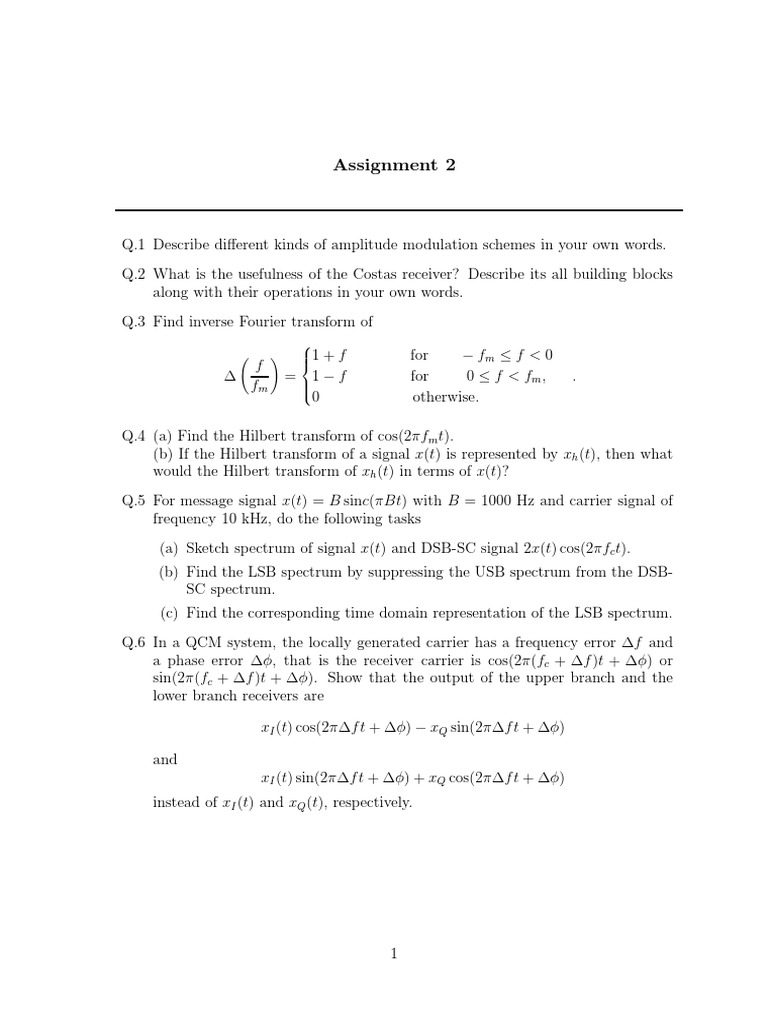

Assignment 2

Q.1 Describe different kinds of amplitude modulation schemes in your own words.

Q.2 What is the usefulness of the Costas receiver? Describe its all building blocks
along with their operations in your own words.

Q.3 Find inverse Fourier transform of


1 + f for − fm ≤ f < 0
! 
f

∆ = 1 − f for 0 ≤ f < fm , .
fm 

0 otherwise.

Q.4 (a) Find the Hilbert transform of cos(2πfm t).

(b) If the Hilbert transform of a signal x(t) is represented by xh (t), then what
would the Hilbert transform of xh (t) in terms of x(t)?

Q.5 For message signal x(t) = B sinc(πBt) with B = 1000 Hz and carrier signal of
frequency 10 kHz, do the following tasks

(a) Sketch spectrum of signal x(t) and DSB-SC signal 2x(t) cos(2πfc t).
(b) Find the LSB spectrum by suppressing the USB spectrum from the DSB-
SC spectrum.
(c) Find the corresponding time domain representation of the LSB spectrum.

Q.6 In a QCM system, the locally generated carrier has a frequency error ∆f and
a phase error ∆φ, that is the receiver carrier is cos(2π(fc + ∆f )t + ∆φ) or
sin(2π(fc + ∆f )t + ∆φ). Show that the output of the upper branch and the
lower branch receivers are

xI (t) cos(2π∆f t + ∆φ) − xQ sin(2π∆f t + ∆φ)

and
xI (t) sin(2π∆f t + ∆φ) + xQ cos(2π∆f t + ∆φ)
instead of xI (t) and xQ (t), respectively.
