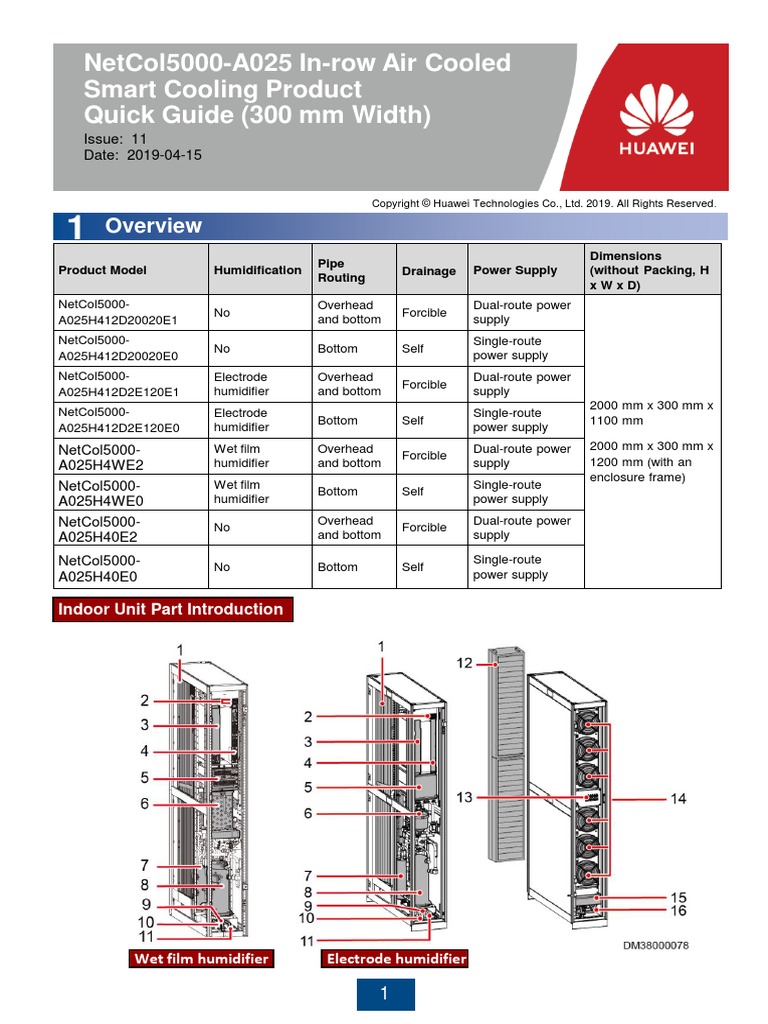

NetCol5000-A025 In-row Air Cooled

Smart Cooling Product

Quick Guide (300 mm Width)
Issue: 11
Date: 2019-04-15

Copyright © Huawei Technologies Co., Ltd. 2019. All Rights Reserved .

1 Overview
Dimensions
Pipe
Product Model Humidification Drainage Power Supply (without Packing, H
Routing
x W x D)
NetCol5000- Overhead Dual-route power
No Forcible
A025H412D20020E1 and bottom supply
NetCol5000- Single-route
No Bottom Self
A025H412D20020E0 power supply
NetCol5000- Electrode Overhead Dual-route power
Forcible
A025H412D2E120E1 humidifier and bottom supply
2000 mm x 300 mm x
NetCol5000- Electrode Single-route
Bottom Self 1100 mm
A025H412D2E120E0 humidifier power supply
NetCol5000- Wet film Overhead Dual-route power 2000 mm x 300 mm x
Forcible 1200 mm (with an
A025H4WE2 humidifier and bottom supply
enclosure frame)
NetCol5000- Wet film Single-route
Bottom Self
A025H4WE0 humidifier power supply
NetCol5000- Overhead Dual-route power
No Forcible
A025H40E2 and bottom supply

NetCol5000- Single-route
No Bottom Self
A025H40E0 power supply

Indoor Unit Part Introduction

Wet film humidifier Electrode humidifier

1
 1 Evaporator 9 Drainpipe
2 External signal port 10 Gas pipe
3 Strong-current box 11 Liquid pipe
4 Weak-current box 12 Air Filter
5 Driver 13 Fan switches
6 Electrode humidifier/Wet film humidifier 14 Fans
7 Oil separator 15 Water pan cover
8 Compressor 16 Water pump

Outdoor Unit Introduction

Outdoor NetCol500-A026 NetCol500-
Unit A032/036
Net NetCol500-A026SC: 91 kg NetCol500-A032:
Weight NetCol500-A0265S: 132 kg 110 kg
(without NetCol500-
legs) A0365C/NetCol500-
A0365S: 130/147 kg

Dimensio NetCol500-A026SC: D = D = 1094 mm，W1 =

ns 1094 mm，W1 = 1110 mm， 1355 mm，W2 =
W2 = 985 mm，H1 = 890 (or 1220 mm，H1 =
1053) mm，H2 = 599 mm 1156 mm，H2 = 702
NetCol500-A0265S: D = mm
1094 mm，W1 = 1120 mm，
W2 = 985 mm，H1 = 922 (or
1077) mm，H2 = 623 mm

2 Material Preparations
Hose clamp, cable ties, snap spring, water detection cable (5 m), liquid leak detection
Delivered sensor modular, water pipe and pipe accessories, anchor baffle plate, connect plate,
materials check valve, combined hexagon head bolts, black self-tapping screw, cord end terminals,
OT terminals
Optional T/H sensors and cables outside cabinets, network cable for teamwork
Refrigerant pipe components (including copper pipes, thermal
Refrigerant
insulation foam, oil traps, and inverted traps) and pipe
pipe
supports
Water Rigid pipe: rigid pipe (1/2-inch BSPT, outer
Purchased Mandat
supply pipe screw thread, made of PP-R or C-PVC)
materials ory
Water pipe Hose: pagoda connector (BSPT, 1/2-inch, outer
thread connector), hose clamp, hose (for
example, Ethylene-Propylene-Diene Monomer
(EPDM))

2
 Drainpipe Rigid pipe 1: rigid pipe (1/2-inch BSPT, outer
screw thread, made of PP-R or C-PVC)
Rigid pipe 2: clamp, hose (inner diameter of 5/8-
Water inch, for example EPDM), rigid pipe conversion
Purchased pipe adapter (5/8-inch outer diameter converting to
Mandatory 1/2-inch BSPP inner screw thread), rigid pipe
materials
Hose: clamp, hose (inner diameter of 5/8-inch,
for example EPDM),
Indoor unit power cable, outdoor unit power cable, outdoor
Cable
unit ON/OFF signal cable
Special tools and materials
1. Vacuum pump: Flow 7.2 m³/h to 14.4 m³/h , absolute vacuum level ≤ 60 Pa.
2. Pressure gauge and leather hose: Dedicated to R410A, pressure gauge measurement range ≥ 4.0
MPa, and the leather hose tolerance range ≥ 4.5 MPa.
3. Welding torch and welding rod: Silver copper welding rod (5% silver).
4. Nitrogen reducing valve: A reducing valve must be installed on the head of the nitrogen cylinder, and
the reducing valve range ≥ 4.0 MPa.
5. Dry nitrogen.

2.1 Refrigerant R410A

Do not use unqualified refrigerant. Huawei will not be liable for any equipment damage caused by
unqualified refrigerant.
Refrigerant from name brands such as DuPont, Daikin, and Honeywell are recommended. You can verify
the refrigerant authenticity in the following ways:
1. Dial the refrigerant manufacturer's hotline to confirm the refrigerant manufacturer authenticity.
2. Place the refrigerant tank indoors for 24 hours. Use a point thermometer to measure the outer surface
temperature of the refrigerant tank (figure 1), and connect a pressure gauge to the tank to measure the
internal pressure (figure 2). Find the saturation pressure corresponding to the measured outer surface
temperature from the table on the next page. If the deviation between the saturation pressure and the
measured internal pressure is greater than 0.2 MPa, the refrigerant does not meet the requirements,
and needs to be replaced.
Mapping Between Saturation Temperatures and Pressure of R410A
Saturation Gauge Saturation Gauge Saturation Gauge (MPa)
temperature (ºC) (MPa) temperature (ºC) (MPa) temperature (ºC)
10 0.99 18 1.27 26 1.60
11 1.02 19 1.31 27 1.65
12 1.05 20 1.35 28 1.69
13 1.09 21 1.39 29 1.74
14 1.12 22 1.43 30 1.79
15 1.16 23 1.47 31 1.84
16 1.19 24 1.51 32 1.89
17 1.23 25 1.56 33 1.94

3
 2.2 Cables
(1) Indoor unit power cables (2) Outdoor unit power cables (applicable to
NetCol500-A032/036/NetCol500-A0265S11E0)

equipment room

the outdoor unit

the indoor unit

Main power to
Main power to

Power to the

wiring terminal
5 x 6 mm2 5 x 2.5 mm2

Indoor unit
Cable outer diameter:

Cable outer diameter:

16.5–18.5 mm
13.0–15.0 mm

(3) Outdoor unit power cables (applicable to NetCol500-A026SC11E0)

Main power to
the outdoor unit
wiring terminal

3 x 2.5 mm2
Indoor unit

Cable outer diameter:

12.0–15.0 mm

(4) (RS485 connection) ON/OFF signal cables for indoor and outdoor units

Indoor unit Outdoor unit

terminal X302.1 terminal 3
3 x 1.5 mm2
Indoor unit Outdoor unit
terminal X302.2 terminal 4
Cable outer diameter:
Indoor unit 7–9 mm Outdoor unit
terminal X302.3 terminal 5

(5) (Dry contact connection) ON/OFF signal cables for indoor and outdoor units

Indoor unit 2 x 1 mm2 Outdoor unit

terminal X301.1 terminal 1

Indoor unit Outdoor unit

terminal X301.2 Cable outer diameter: terminal 2
7–9 mm

2.3 Copper Pipes and Thermal Insulation Foam

Gas pipe 3/4 inch (19.05 mm), 1.0 mm wall thickness, operating pressure ≥ 4.5 MPa.

Liquid pipe 5/8 inch (15.88 mm), 1.0 mm wall thickness, operating pressure ≥ 4.5 MPa.

Thermal
Thickness ≥ 13 mm.
insulation foam

4
2.4 Oil Traps and Inverted Traps (Unit: mm)
Oil trap Gas pipe inverted trap Liquid pipe inverted
trap

2.5 Pipe Supports

1. Height of the U-shaped clamp H = Pipe

diameter (with thermal insulation foam)
– 5 mm.
2. The material for pipe supports and
clamps should meet outdoor application
Pipe requirements.
support 3. When the pipe is straight, add a support
every 1500 mm. When the direction of
the pipe is changed, add a support at
the position that is 500 mm away from
the changing point.

2.6 Bases
For the outdoor concrete base dimensions, see chapter 4.

3 Installing the Indoor Unit

1. Read the instructions for product information before installation.

2. Use fully insulated tools during installation and operation.
3. Only engineers certified by the manufacturer or its agents are allowed to install, commission,
and maintain the smart cooling product. Personal injury or damage to the equipment may occur
in the event of improper handling. Damage incurred in such a manner is beyond the scope of
the equipment's warranty.
4. Keep the equipment upright during transportation. Tilting is forbidden.
5. Qualified electricians and welders are required.
6. Do not use a refrigerant or refrigerant oil of poor quality.
7. The indoor and outdoor units can be installed simultaneously.
8. If the smart cooling product needs to be installed on a rack or an ESD floor, the ESD floor
should be raised at least 250 mm high.
9. If multiple smart cooling products are involved during the process, label cables and copper
pipes to ensure that they are correctly connected between indoor and outdoor units.
10.The humidifier water inlet pipe connects to running water or other water supply systems, and
the drainpipe connects to the drainage system.
11.The figures are for reference only. (The actual products prevail.)
12.This model can have a wet film humidifier or an electrode humidifier, one of which is used as an
example.

5
1. Remove the air filter. 2. Check the air pressure.
Remove the bonnets, and press each bonnet
onto the corresponding valve plug.

Low-pressure
needle valve

Liquid pipe
needle valve

Discharge
pipe needle
valve

3. Remove the cabinet fastener bolts. 4. Install the transport tool.

Cover bolt (removed

before installation)

Cover side hole (aligned

with the cabinet mounting
hole during installation)

a. Remove the tool cover.

6
b. Install the transport tool.
5. Remove transport fasteners from the
compressor.
Loosen the transport fixing bolts, take out the
fasteners under the bolts, and tighten the bolts
using a torque wrench.
7
c. Secure the transport tool.
Secure the transport tool and raise anchor bolts.
After the device is moved to the installation
position, adjust the anchor bolts till they are on
the floor and then remove the transport tool.
6. (Optional) Remove the liquid level detector
transport sheet metal fastener.
NOTE
If no condensate pump is configured for
the smart cooling product, there are no
sheet metal fasteners. Skip this step.
a. Remove a water pan cover and the
sheet metal fastener.
b. Connect the interconnection terminal of 7. Level feet.
the low liquid level detector.
NOTE
• Reinstall the water pan cover to the
previous position after connecting the
interconnection terminal.
• After the float terminals are interconnected, ensure
that cables do not press the float; otherwise, the
float may not rise.

9. (Optional) Combine cabinets.

8. (Optional) Install the enclosure frame on the

front door side. The front and rear doors are combined in the
a. Remove the front door and remove the same way.
ground cable, bolt, connecting kits, and hinge.
b. Install the enclosure frame. After securing
the removed components with the enclosure
frame, install the front door.

8
10.(Optional) Secure the smart cooling product on
the floor.
Before installing the bolts, remove the
rodent-proof rubber plugs in the mounting
holes if there are any.
11.(Optional) Install anchor baffle plates.
NOTE
• Install anchor baffle plates only when you
need to secure the indoor unit to a base.
• Baffle plates for the front and rear doors are
installed in the same way.

4 Installing the Outdoor Unit

Scenario 1: Horizontal Installation 2. (Optional) Concrete base installation diagram for
the Low-Temperature component
1. Dimension requirements for concrete base

Model W1 (mm) D1 (mm) H (mm) W2 (mm) D2 (mm)

NetCol500-A032/036 ≥ 250 ≥ 250 150–250 1047 924
NetCol500-A026 ≥ 250 ≥ 250 150–250 814 924
Low-Temperature component ≥ 600 ≥ 400 150–250 210 130

9
3. Space requirements (top view) 4. Procedure for horizontal installation

NOTE a. Remove the 4 angle brackets.

• The height of the walls within which

outdoor units are installed must not
exceed 1 m, and there are no barriers
above the outdoor units.
• The distance from the Low-
Temperature component to the outdoor
unit cannot exceed 2000 mm.
Unit:
mm

b. Install the 4 legs using 24 M6x16 screws c. Secure the legs to the concrete base using 8
available in the fitting bag. M8x80 screws available in the fitting bag.

10
 Scenario 2: Vertical Installation

1. Concrete base dimensions and vertical installation

Use four M6x16 expansion bolts to secure the 4 angle brackets to the floor.

NetCol500 NetCol500-
Model
-A032/036 A026

W1 (mm) ≥ 250 ≥ 250

D (mm) ≥ 500 ≥ 500

H (mm) 150–250 150–250

W2 (mm) 1263 1024

2. Space requirements (top view)

NOTE

The height of the walls within which

outdoor units are installed must not
exceed 1 m.

Unit:
mm

Scenario 3: Bases Installation

Unit:
mm

(1) Aligning holes (use M10 welding nuts or hexagon nuts)

For the base installation procedure, see the outdoor unit user manual.

11
5 Indoor and Outdoor Unit Connection Diagrams

1. The compressor base is regarded as the baseline of the indoor unit for calculating height
difference.
2. An inverted U-shaped trap must be higher than the top copper pipe of the condenser.
3. is the sign of a tilt. The pipe tilting direction must be consistent with the hypotenuse of the
right triangle. A pipe tilt must be at least 1: 200.
4. When an outdoor unit is installed horizontally, the outdoor unit and the Low-Temperature
component must be placed at the same height of support or concrete base. When an outdoor
unit is installed vertically, the outdoor unit must not be lower than the Low-Temperature
component, and the height difference cannot exceed 1.5 m.
5. H should not exceed 20 m.

(1) Tilted gas pipe (2) Inverted traps (3) Oil traps (4) Tilted liquid pipe

6 Welding Pipes

1. Do not remove the valve plug when exhausting nitrogen.

2. During the welding process, charge a little nitrogen into the pipes to avoid impurity caused by
internal oxidation.
3. During welding, take measures to protect the cables around.
4. No face-down bonding.
5. Do not expose welding positions to the environment for a long time. Seal the welding positions. If
foreign matter exists in a welding position, remove it using absolute alcohol or damp cloth and
wait until the position is dry before welding.
6. When welding pipes, ensure that the pipes are dry. Welding the pipes between the indoor and
outdoor units; then welding the two ends of the pipe to the indoor and outdoor units.
7. Use a rubber hose to connect the nitrogen cylinder which connecting the reducing valve and the
end of the copper pipe, then fill nitrogen at 0.03–0.05 MPa into the copper pipe to avoid internal
oxidation.
8. Each time a pipe in the middle is welded, shock the welding position to remove the clinker and
charge high-pressure nitrogen into the pipe to remove the foreign matter inside.

12
 Requirements for securing the pipe support

Wall

Pipe
Pipe support

6.1 Exhaust Nitrogen

Remove the bonnets of the liquid, low-pressure,

Exhausting nitrogen from the outdoor unit
and needle valve of the discharge pipes in turn.

Low-pressure
needle valve

Liquid pipe
needle
valve

NetCol500-A026

Discharge
pipe
needle
valve

NetCol500-A032 NetCol500-A036

13
 6.2 Welding Pipes
1. Connect refrigerant pipes.
2. Welding Pipes to the Outdoor Unit
a. Use the weld gun to remove the closures
from the refrigerant pipes.
b. Weld the two straight pipes available in the
fitting bag to the gas and liquid pipes.

Liquid pipe

Thermal
insulation
foam

Gas pipe
Gas pipe Liquid NetCol500-A032
pipe

Thermal insulation foam

For certain models, there is only

one protective sheet metal for the
gas and liquid pipes.

Liquid pipe

Gas pipe

NetCol500-A026/036

14
3. (Optional) Connect pipe of Low-Temperature component.
Applicable to NetCol500-A032 and NetCol500- To outdoor unit gas pipe
A0265S11E0.

To
outdoor
unit
liquid
pipe

To indoor unit
To indoor unit
4. (Optional) Install a sunshade for an outdoor unit liquid pipe
gas pipe

Applicable to
NetCol500-A036.

7 Connecting Water Pipes

(Optional) Route of the
7.2
• The following figures show how to Humidifier Water Inlet Pipe
connect pipes. Select a connection
method based on the actual situation.
• A wet film humidifier or electrode
humidifier can be used depending on
site requirements.

(Optional) Connecting the Water

7.1 Supply Pipe to the Humidifier

Top pipe routing Bottom pipe routing

15
7.3 (Optional) Diagrams for the Water Inlet Pipe of the Wet Film Humidifier

Top piping Bottom piping

7.4 Connecting the Drainpipe

7.5 Drainpipe Route

Bottom pipe routing

Use a flat-head screwdriver to remove the

hose clamp from the pipe and take the hose
out of the fitting bag. Secure the hose to the
drainpipe using a hose clamp.

16
Top pipe routing
Remove the water pipe
plug from the top of the
NetCol5000-A and connect
the drainpipe using an
adjustable wrench.

8 Connecting Cables
8.1 Connecting the Indoor Unit Power Cable

• The equipment must be grounded in accordance with local electric regulations.

• Keep cables away from compressors, fans, and copper pipes (if unavoidable, take protective
measures), and connect the cables securely.
• The figure uses dual-input power supply as an example. For the single-input power supply
scenario, only AC1 and one ground screw need to be connected.
• The cables should be routed in from the cable clip.
• The strong-current cables and the weak-current cables must be routed through separate
holes.

Route the cable through the cable

protecting ring at the top or bottom.

Top cabling Bottom cabling

17
8.2 Connecting the Outdoor Unit Power Cable (Indoor)
Connecting the Indoor Unit to
NetCol500-A026SC11E0

Connect one end of the cable to

the AC3 terminal L3 and N
on the electric control box of the
indoor unit (PE cable to the PE
screw on the right of AC3), and
the other end to the outdoor unit
terminal block.
The cable can be routed through
a top or bottom cable hole, as
shown in the figure.

Top cabling Bottom cabling

Connecting the Indoor Unit to

NetCol500 of Another Model

Connect one end of the cable to

the AC3 terminal on the electric
control box of the indoor unit
(PE cable to the PE screw on
the right of AC3), and the other
end to the outdoor unit terminal
block.
The cable can be routed
through a top or bottom cable
hole, as shown in the figure.

Top cabling Bottom cabling

8.3 Connecting the Signal Cables, Water Sensor (Indoor)

1. Outdoor unit signal cables can be connected over RS485 (default) or dry contacts. In RS485
connection mode, the indoor unit can obtain the operating status and alarm information of the
outdoor unit and control the rotational speed and on/off status of the outdoor unit. In dry contact
connection mode, the indoor unit can only control the on/off status of the outdoor unit. If dry
contact connection is used, choose Settings > System Settings > Outdoor Fan and set
Outdoor fan control mode to Dry contact.
2. If signal cables are connected to dry contacts while the Outdoor fan control mode is set to
Communicate, Outdoor fan communication failure will be displayed on the screen.
3. If signal cables are connected to RS485 ports while the Outdoor fan control mode is set to
Dry contact, Comp discharge HP will be displayed on the screen after the compressor starts
working because the indoor unit cannot control the startup of the outdoor fan.

18
1. Connect signal cables.
• (RS485 connection) Connect one end of the signal cable to ports 1, 2 and 3 of the terminal
with the X302 silk screen on the electrical control box, and connect the other end to ports 3, 4
and 5 on the outdoor unit.
• (Dry contact connection) Connect one end of the signal cable to ports 1 and 2 of the terminal
with the X301 silk screen on the electrical control box, and connect the other end to ports 1
and 2 on the outdoor unit.
2. Connect the two terminals of the water sensor cable to ports 7 and 8 of the terminal with the
X301 silk screen on the electric control box.
3. Bind the cables with cable ties.

Dry contact connection RS485 connection

Top cabling Bottom cabling Top cabling Bottom cabling

8.4 Connecting the Outdoor Unit Power Cable and On/Off Signal Cable

For the NetCol500-A026SC11E0, you only need to connect L, N, and PE of the outdoor
unit to the L3, N, and PE of the AC3 terminal of the indoor unit.

Another Model
Dry contact RS485
connection connection

Power Cable Signal Cable

19
 NetCol500-A026SC11E0 Dry contact RS485
connection connection

Power Cable Signal Cable

8.5 Connecting the Heating Cable for the Low-Temperature Component

1. Applicable to a Low-Temperature Outdoor.

2. After crimping the power cable of the Low-Temperature component to terminals, fit it with the
corrugated pipe in the fittings bag, and then connect it to the electric control box of the outdoor unit.
3. All cables must be routed along the pipe direction.
Applicable to NetCol500-A032 and NetCol500-A0265S11E0.
1. Connect the cable of the Low-Temperature
component 2. Connect the cable of the heater

Low-temperature component cable

8.6 Connecting the Humidity and Temperature Sensor Outside the Cabinet

The T/H sensor should be 1.5 m (33U) away from the ground. You can secure a sensor to the
door frame of cabinet using cable ties or two M4 screws together with a sheet metal. After the
sensor is secured, set the sensor address according to the following table.
DIP Switch Instructions
DIP Switch Sequence No.
Name Address
1 2 3 4 5 6
Return air T/H 1 1 ON OFF OFF OFF OFF OFF
Cold aisle T/H 1 11 ON ON OFF ON OFF OFF
Cold aisle T/H 2 12 OFF OFF ON ON OFF OFF
Cold aisle T/H 3 13 ON OFF ON ON OFF OFF
Hot aisle T/H 1 21 ON OFF ON OFF ON OFF
Hot aisle T/H 2 22 OFF ON ON OFF ON OFF
Hot aisle T/H 3 23 ON ON ON OFF ON OFF
20
8.7 (Optional) Operation Guide for Teamwork Connection

Introduction to the Main Control Module

1 FE_1 (Master port)

2 CAN_IN (Input port of the teamwork CAN and northbound RS485 ports)
3 RS485/12V (T/H module port)
4 Main control module handle
5 SW (Reserved)
6 DIP switch
7 COM (Northbound RS485 port)
8 CAN_OUT (Output port of the teamwork CAN and northbound RS485 ports)
9 FE_2 (Spare port)
10 Alarm indicator
11 Run indicator
12 Power indicator

21
FE Teamwork Networking/FE Monitoring

The FE teamwork networking mode is the same as the FE monitoring connection mode.

Smart cooling product Smart ETH

PoE gateway

FE_1

The figure shows how an FE network cable is prepared.

Teamwork Control over a CAN Bus

The teamwork networking mode is CAN networking.

In CAN networking, one teamwork network supports a maximum of 32 smart cooling products. The
following figure shows the teamwork connections between 32 smart cooling products.

22
Set the DIP switches on the main control board as follows.
Toggle Default
Site Operations
Switch Value
• Non-teamwork control: remaining OFF.
• Teamwork control: Flip toggle switch 1 of the first and last precision smart
1 OFF
cooling products in the network to ON, and toggle switch 1 of other smart
cooling products to OFF.
2 ON Northbound RS485 branch switch, for controlling the monitoring of northbound
devices by group. If you need to enable the monitoring of northbound devices
3 ON by group, flip toggle switches 2 and 3 to OFF.
(Applicable to software version V200R001) This toggle switch controls whether
4 OFF
to restore factory defaults. Retain the default value (OFF) of this switch.

The figure shows how a CAN network cable is prepared.

The figure shows how a Northbound RS485 network cable is prepared.

Northbound RS485 Monitoring

When the host monitors smart cooling products using the RS485 protocol, the time needed for
collecting all data from a single smart cooling product is 3 seconds. In the teamwork mode of
cascading using an RS485 bus for monitoring, it takes the host 3 seconds multiplied by N to collect
data from N smart cooling products in the group. If the host needs more time to collect data from all
smart cooling products than what the host performance requires, the smart cooling products can be
grouped for data collection. Assume that the host needs to collect the data from all smart cooling
products within 12 seconds you are advised to incorporate four smart cooling products in one group
and connect the COM port of the first smart cooling product for each group to an RS485 port on the
host. The following figure shows how 32 teamworked smart cooling products, four in each group, to
connect to the hosts.
23
 NOTE

Users can adjust the number of smart cooling products under one group based on the performance
requirements.

1. If 32 smart cooling products are teamworked, every four smart cooling products are included in
one group, which then connects to an independent RS485 port on the host.
2. Set toggle switch 1 for smart cooling products 1 and 32 to ON. Set toggle switches 2 and 3 for
the last smart cooling product of each group (namely, smart cooling product 4, smart cooling
product 8, …, smart cooling product 28) both to OFF, except the smart cooling product in the
end, that is, smart cooling product 32. Retain the default settings of other toggle switches.

24
 9 Verifying the Installation

Item Content Result

Ports are connected properly. The pipeline has oil traps, inverted U-
shaped traps, gradients (for the refrigerant pipes), and pipe supports.
Refrigerant Pipes are securely connected. All pipes are wrapped with thermal □Passed
pipe insulation foam, and the insulation foam is intact. The needle valve plug □Failed
is secured (torque of 0.45±0.05 N•m), and valve bonnet is tightened.
The pipes have no sharp bends.
□Passed
Waterway Water pipe joints have been sealed. The drainpipe is securely connected.
□Failed
Cables are not damaged or over-bent. The power cables and outdoor
unit on/off signal cable, water sensor, the teamwork cable, and the T/H
□Passed
Electricity sensor cable are connected as required. The rated specifications of the
□Failed
upstream switch meet the maximum current requirement. All cable
connectors are secured. Indoor and outdoor units are properly grounded.
The cabinet is installed properly, without any tilt. The cabinet should be
□Passed
Cabinet secured. The foreign matter inside the cabinet such as cable ties and
cable cuts is cleaned up. □Failed

The transport fasteners of the compressor are removed. The bolts on the □Passed
Compressor
compressor are tightened. □Failed

The humidifier water supply pipe and drainpipe are properly connected □Passed
Humidifier and secured, and do not leak. □Failed
The liquid level detector fastener has been removed. The wiring terminal
Liquid level □Passed
has been connected. The liquid level detector is installed securely. The
detector □Failed
low liquid level detector moves smoothly.

The foreign matter inside the water pan is cleaned up, and water pan □Passed
Water pan
filter is not blocked. □Failed
Differential
The pressure tube is secured by cable ties. There is no foreign matter in □Passed
pressure
the pressure tube. The pressure tube shows no obvious bending. □Failed
switch
The air filter is correctly installed according to the airflow direction marked □Passed
Air filter
on the frame. □Failed

□Passed
Fan The fan is secured. There is no foreign matter inside the fan.
□Failed
The fan blades do not interfere and protective cardboard for fins are
removed. Bonnets of needle valves and water-proof connectors are
□Passed
Outdoor unit tightened. Cables are protected by tubes and the cable outlet faces
□Failed
downward. Glue is applied to the waterproof connector when the outdoor
unit is placed vertically and the waterproof connector faces upward.

25
 10 Calculating the Amount of Refrigerant and Refrigerant Oil

1. The recommended refrigerant oil is RL® 32-3MAF/emkarate or RL32H/emkarate.

2. One-way pipe length = Straight pipe equivalent length + Length of straight pipes between
indoor and outdoor units. The maximum one-way pipe length should be 80 m for NetCol500-
A032/036/026 If the requirements cannot be met, contact Huawei technical support.

Type Refrigerant charging amount (kg)

One-way pipe length (m) 0 < L ≤ 10 10 < L ≤ 80

NetCol500-A032 with a Low-Temperature

22 22 + (L – 10) x 0.19
Component

NetCol500-A036 with a Low-Temperature

36 36 + (L – 10) x 0.19
Component

NetCol500-A036 without a Low-Temperature

9.5 9.5 + (L – 10) x 0.19
Component

NetCol500-A026SC11E0 without a Low-Temperature

6.7 6.7 + (L – 10) x 0.19
Component

NetCol500-A0265S11E0 without a Low-Temperature

9 9 + (L – 10) x 0.19
Component

NetCol500-A0265S11E0 with a Low-Temperature

23.5 23.5 + (L – 10) x 0.19
Component

Equivalent Length of Pipe Components

Copper Pipe Outer Diameter 90-degree Bend 180-degree Bend
3/4 inch 0.35 m 0.7 m
5/8 inch 0.3 m 0.6 m

11 Leak Checking, Vacuumizing, and Precharging Refrigerant

Ensure that no combustion-supporting materials (air or additives) enter the smart cooling product
system during commissioning. Huawei shall not be liable for any risks and losses thus incurred.

11.1 Leak Checking

Charge 3.0 MPa nitrogen and preserve the system for 24 hours. If the ambient temperatures
before and after the preservation are similar, the system pressure should not drop. If leaks occur
after the preservation, check them along the pipe, especially at the welding positions, needle valve,
and angle valve.

26
11.2 Vacuumizing
The vacuumizing time should be 80 minutes at least and the final pressure (absolute pressure)
should be 60 Pa at most. After the vacuumization, close all the vacuum pump and valves.
Preserve the system for another 10 minutes and the pressure (absolute pressure) should be 90 Pa
at most. If the pressure gauge cannot be precise at 60 Pa, ensure that the pressure is displayed at
the minimum scale. Extend the preservation time to one hour. Then check whether the pressure
displayed on the pressure gauge increases.

11.3 Precharging Refrigerant

1. Close the high-pressure valve and low-pressure valve of the pressure gauge.
2. Take off the vacuum pump from the vacuumizing equipment, and replace the vacuum pump
with a refrigerant steel vessel.
3. Partially open the refrigerant steel vessel valve and rubber tube nut. Tighten the nut when you
feel cold air coming out from the nut.
4. Put the refrigerant steel vessel upside down on an electric balance. Clear the reading on the
balance.
5. Open pressure gauge valves, and the refrigerant steel vessel valve to charge refrigerant.
6. Refrigerant to be partially charged should be no less than half of total calculated amount, and
no more than the total calculated amount. (When charging refrigerant for a cooling system
without a Low-Temperature component, charge less than 1 kg of refrigerant from the low
pressure side, and charge the rest from the discharge pipe needle valve.)
7. After refrigerant charging, close pressure gauge valves, and the refrigerant steel vessel valve.

Without configuring Low-Temperature component NOTE

Low-pressure needle valve
1. Leak checking
2. Vacuumization
3. Precharging refrigerant
• Left pressure gauge is low
pressure gauge. Right pressure
gauge is high pressure gauge.
• The specification of needle valve
is 7/16-20UNF.

Vacuum pump

Reducing Refrigerant vessel

valve

Valve
Discharge pipe
needle valve
Valve Nitrogen
cylinder
Electric balance
Coupling nut

27
 Configuring Low-Temperature component NOTE
• Left pressure gauge is low pressure
1. Leak checking gauge. Right pressure gauge is high
2. Vacuumization pressure gauge.
3. Precharging refrigerant • The specification of needle valve is
7/16-20UNF.
Low-pressure needle valve
Discharge pipe needle valve
Vacuum pump

Liquid pipe needle valve

Reducing Refrigerant vessel

valve

Pressure Nitrogen
gauge cylinder
Electric balance
Pressure gauge

12 Power-On
NOTE
1. Users are classified as Admin and Operator users. Admin users have more rights than Operator users.
The preset password is 000001 for both types of users. For system security purposes, change the preset
password upon first login.
2. After login to the system using a user name, the user right is valid when you touch the screen all the time.
If you do not touch the screen, the user right is only valid for 3 minutes. To ensure security, manually log
out by tapping at the right corner of the home screen.

12.1 Power-On
1. Switch on the smart cooling product switch in the upstream power distribution cabinet.
2. Check that the AC output switch (outdoor unit/compressor switch) QF3, heater and humidifier switch
QF4 (optional), MD1, and MD2 (optional) are ON.
3. After the device is powered on for the first time, the LCD displays the Quick Settings screen. Set
parameters such as the language, date format, date, time, time zone, and monitoring mode, intelligent
diagnosis function, and altitude. If this is not the first time of power-on, the home screen is displayed.

NOTE
• After powering on, the smart cooling product is in shutdown mode.
• After powering on, the compressor starts preheating, and the system generates an alarm
indicating that the compressor is preheating (for 12 hours). Do not start the smart cooling
product before the preheating ends. Choose Running > Device Details > Compressor to
query the remaining preheating time.

28
Parameter Configuration Guide Default Value
Smart diagnosis Refrigerant leakage detection function. You are advised to set Disable
function this parameter to Enable. This function is available only when
the outdoor unit is NetCol500-A026SC11E0, communicates
with the indoor unit through RS485, and does not contain a low-
temperature component.
Temperature and • When the application scenario is cold or hot aisle Return air
humidity control containment, you are advised to choose Cold aisle if the cold
aisle T/H sensors are configured, and choose Supply air if the
type cold aisle T/H sensors are not configured.
• When the application scenario is non-aisle containment, you
are advised to choose Return air, and choose Cold aisle if the
cold aisle T/H sensors are configured.
• Hot aisle is not recommended.
Outdoor fan • When the indoor and outdoor units are connected using the Communicate
control mode RS485 cable, retain Communicate.
• When the indoor and outdoor units are connected using the
dry contact cable, set it to Dry contact.
Cold aisle sensor If a temperature and humidity sensor outside the cabinet is Disable
installed, set the temperature and humidity sensor in the
Hot aisle sensor corresponding position to Enable. Disable
Altitude Set this parameter according to the following table. 0m
Liquid pipe Total one-way pipe length (L). This parameter is available only NA
length when the smart diagnosis function is enabled.
Height difference If the outdoor unit is higher than the indoor unit, the difference NA
between indoor between the two is a positive value. If the indoor unit is higher
and outdoor than the outdoor unit, the value is negative. For the calculation
units criteria. This parameter is available only when the smart
diagnosis function is enabled.
Low-temperature Select based on the actual scenario. This parameter is NA
component available only when the smart diagnosis function is enabled.

12.2 (Optional) Teamwork Settings

• If teamwork control is required onsite, set relevant parameters by referring to this section. If
teamwork control is not required, skip this section.
• The networking mode set on the screen must be consistent with the actual networking mode.
Otherwise, the teamwork control function will be unavailable. If the networking mode changes,
select the corresponding networking mode on the screen. If the networking mode is changed
on the screen, the software will restart and then run in the new networking mode.

29
 Using 32 smart cooling products in teamwork as an example:
No. Item
Teamwork Total
Teamwork Teamwork Number of
unit Network number of
group no. function running units
address units
1 1 1 32 30 (2 standby)
2 1 2 / /
3 1 3 Networked over / /
Enable CAN or
… … … … …
MAC_CAN
31 1 31 / /
32 1 32 / /

1. Teamwork group NO.: A maximum of four groups are allowed in one teamwork network. The smart
cooling products in the same group must have the same teamwork group number, which can be set
to 1–4 respectively for the groups.
2. smart cooling product address: In a teamwork control group, each smart cooling product address
(1–32) must be unique, and the smart cooling product with minimum address is the master smart
cooling product.
3. Networking mode: The networking mode set on the screen must be consistent with the actual
networking mode.
4. Number of smart cooling products in this group: Indicates the number of precision smart cooling
products in a group. The value is an integer ranging from 1 to 32.
5. Number of running units: Indicates the number of running units in a group. The value is an integer
ranging from 1 to the number of units in a group.

13 Commissioning
13.1 Viewing the Software Version

On the home screen, tap About to view the software version. If the version is V200R001 or
earlier, perform power-on commissioning by referring to section 13.2. If the version is V200R002
or later, download the service expert app and perform startup and wizard startup by referring to
section 13.3.

13.2 Power-On Commissioning (Applicable to ACC V200R001 and Earlier Versions)

• Before starting the compressor, ensure that the crankcase heat tape has worked for over 12
hours. Otherwise, no maintenance operation is allowed.
• If electric heater, humidifier and water pump are not configured, skip the commissioning
procedures for the electric heater, humidifier and water pump.

30
1. Turn on the output power breaker QF3 that controls the compressor and outdoor unit and the
QF4 circuit switch that controls the heater and humidifier.
2. Check that the power indicators of the PSU, auxiliary power supply module, and main control
modules are on.
3. Tap Start and choose Maint > Diagnostic Mode > Enter. (If no manual operation is performed
within 25s after you tap Start, the equipment will automatically run following the preset logic, and
the compressor and indoor and outdoor fans will also run according to the environment.)
4. (This step required only when the signal cable connects to the RS485 port) Modify the input
value of Outdoor fan to 50%. Then modify it to 0% after checking that the outdoor fan runs
properly and no alarm is generated.
5. On the Diagnostic Mode screen, change the value for Indoor fan to 50% and tap ON for the
electric heater.
a. Check whether the indoor fans run properly and no alarm is generated.
b. If hot air blows out from the air exhaust vent of the fan after a period, the electric heater
runs properly. In this case, tap OFF for the electric heater and set the value for Indoor
fan to 0%.
6. Commission the compressor by setting the compressor rotational speed to 3000 rpm.
a. On the home screen, choose Running > Device Details > Compressor and check that
the value of Suction pressure is in a range of 0.7 MPa to 1.2 MPa and the value of
Discharge pressure is in a range listed in the following table.

Outdoor Ambient Temperature Proper Discharge Pressure Range

Below 15°C 1.5–2.5 Mpa
15–35°C 1.5–3.1 MPa
35–45°C 2.5–3.8 MPa

b. On the home screen, choose Running > Device Details > EEV and check that the value
of EEV suction superheat degree is in a range of 8–15°C.
c. Charge the rest of the refrigerant from the low-pressure pipe needle valve in small flow or
intermittently if possible. The total amount of charged refrigerant must meet the
requirements in requirements of refrigerant to be charged.
d. On the Diagnostic Mode screen, Change the input value for the compressor to 0 rpm.

31
 7. (Optional) Commission the humidifier.
a. Choose Maint > Diagnostic Mode > Enter and set Humidifier to 50%.
b. The water supply valve opens and water is charged into the humidifier cylinder
automatically. After the water level reaches a threshold, the water supply valve closes. You
need to check that the water inlet pipe does not leak during the process.
c. After 3 to 10 minutes, choose Running > Device Details > Humidifier and check that the
value of Current in cylinder is greater than 1.2 A and that no alarm is generated, which
means that the humidifier works properly.
d. Choose Maint > Diagnostic Mode > Enter, set Humidifier to 0%, and then click On after
Water inlet solenoid valve. The humidifier cylinder starts to drain water. You need to
check that the drainpipe does not leak during the process.
8. (Optional) Commission the water pump. Open the cover in front of the water pan and lift the low
liquid level detector. The pump starts working after 5s. Then release the liquid level detector and
shut down the pump. (It is normal if a pump alarm is generated during the pump operation when
there is no water in the pan. The pump generates this alarm for self-protection.)
9. After the commissioning is completed, remove the device used for adding the refrigerant, and
install the valve bonnet.
10.On the Diagnostic Mode screen, tap Exit and then Yes to exit the diagnostic mode.
11.Check the teamwork control cables and set the teamwork control parameters by following
instructions in the user manual.

13.3 Startup and Wizard Startup (Applicable to ACC V200R002 and Later Versions)

• Download the Service Expert app from Huawei app store and runs on Android. Apply for
permission after downloading the app.
• Ensure that no combustion-supporting materials (air or additives) enter the smart cooling
product system during commissioning. Huawei shall not be liable for any risks and losses thus
incurred.
• Except that the indoor fan item is mandatory, you can clear other commissioning items that are
not required.
• Before starting the compressor, ensure that the crankcase heat tape has worked for over 12
hours. Otherwise, no maintenance operation is allowed.

32
1. First startup flowchart 2. Wizard startup flowchart

Start

Start No
Precautions
Yes
Tap Start on the home screen. Fail
Select commissioning items
After tapping Yes, the barcode and the Yes
verification code are shown on the screen. Indoor fan commissioning
Commissioning
Success
Fail interrupted
Open the Service Expert app. Electric heater commissioning (Handle the
fault by
Success referring to the
Tap StartUp > Offline Activation on APP Fail
Humidifier commissioning tips displayed
on the home
Enter Bar code and Verification code, and Success screen.
tap Generate PWD. Fail Perform wizard
Condensate pump
commissioning startup after
Enter the generated startup password on the the handling.)
Success
screen of smart cooling product.
Cooling system Fail
commissioning
Tap Enter. The screen turns to Wizard
Startup. Success
End
Yes
Refrigerant is fully charged?

No
Tap No on Wizard Startup screen to exit
wizard startup. Tap Yes on
Wizard Startup
If there is no water supply,
screen to enter clear the humidifier
Tap Start on the home screen and choose wizard startup. commissioning item when
Maint > Diagnostic Mode > Enter. wizard startup
commissioning. After
Set the compressor to 3000 rpm. Wizard startup, lift the low
liquid level detector. After at
least 5 seconds, choose
Charge the remaining amount of refrigerant Running > Device Details
from low-pressure needle valve. > Humidifier to check that
Low liquid level states is
Choose Maint > Diagnostic Mode > Exit Triggered. Choose
and tap Shutdown on the home screen. Running > Device Details
> Humidifier > Advanced
Choose Maint > Wizard Startup to enter to check that Humidifier
wizard startup. pump control states is On.

Go to step 2

33
 14 Checking after Commissioning

Check Item Result

Ensure that there is no reverse or open phase for the input power □Passed □Failed
cable of the smart cooling product.

The controller has exited from the diagnostic mode. □Passed □Failed

The temperature and humidity are correctly set. □Passed □Failed

All other circuit breakers are off. □Passed □Failed

15 Power-Off
1. Tap Shutdown on the home screen of the LCD.
2. Switch off all switches in the electric control box of the smart cooling product.
3. Switch off the smart cooling product circuit breaker in the upstream PDC.

16 Routine Maintenance
Component Item Troubleshooting Period

Water pan filter Check that the water pan Clean the water pan filter. Monthly
filter is clean and not
blocked.

Air filters Check that the filters are not Clean the air filters (water Monthly
blocked. cleaning is
recommended).

Check that the filters are not Replace air filters. Monthly
damaged or distorted.

For routine maintenance, see NetCol5000-A025 In-row Air Cooled Smart Cooling Product User
Manual (300 mm Width).

Huawei Technologies Co., Ltd.

Huawei Industrial Base, Bantian, Longgang
Shenzhen 518129 People's Republic of China
www.huawei.com
34
