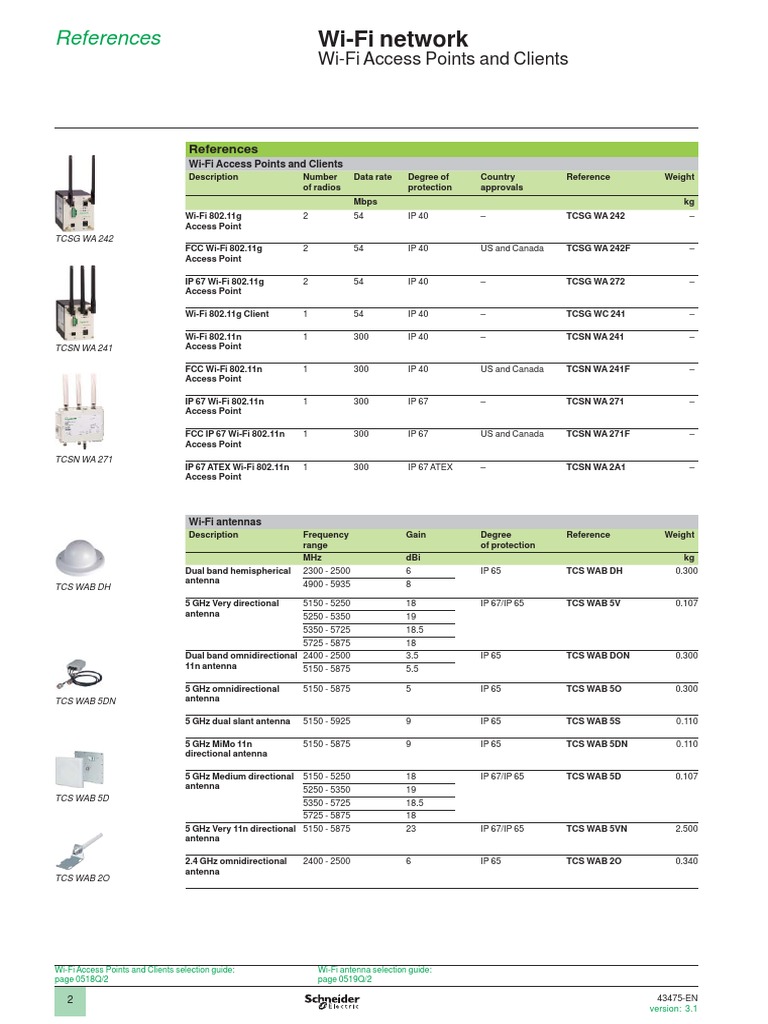

References Wi-Fi network
Wi-Fi Access Points and Clients
References
Wi-Fi Access Points and Clients
Description Number Data rate Degree of Country Reference Weight
of radios protection approvals
Mbps kg
Wi-Fi 802.11g 2 54 IP 40 – TCSG WA 242 –
Access Point
TCSG WA 242
FCC Wi-Fi 802.11g 2 54 IP 40 US and Canada TCSG WA 242F –
Access Point
IP 67 Wi-Fi 802.11g 2 54 IP 40 – TCSG WA 272 –
Access Point
Wi-Fi 802.11g Client 1 54 IP 40 – TCSG WC 241 –
Wi-Fi 802.11n 1 300 IP 40 – TCSN WA 241 –
TCSN WA 241 Access Point
FCC Wi-Fi 802.11n 1 300 IP 40 US and Canada TCSN WA 241F –
Access Point
IP 67 Wi-Fi 802.11n 1 300 IP 67 – TCSN WA 271 –
Access Point
FCC IP 67 Wi-Fi 802.11n 1 300 IP 67 US and Canada TCSN WA 271F –
Access Point
TCSN WA 271
IP 67 ATEX Wi-Fi 802.11n 1 300 IP 67 ATEX – TCSN WA 2A1 –
Access Point
Wi-Fi antennas
Description Frequency Gain Degree Reference Weight
range of protection
MHz dBi kg
Dual band hemispherical 2300 - 2500 6 IP 65 TCS WAB DH 0.300
antenna 4900 - 5935 8
TCS WAB DH
5 GHz Very directional 5150 - 5250 18 IP 67/IP 65 TCS WAB 5V 0.107
antenna 5250 - 5350 19
5350 - 5725 18.5
5725 - 5875 18
Dual band omnidirectional 2400 - 2500 3.5 IP 65 TCS WAB DON 0.300
11n antenna 5150 - 5875 5.5
5 GHz omnidirectional 5150 - 5875 5 IP 65 TCS WAB 5O 0.300
TCS WAB 5DN antenna
5 GHz dual slant antenna 5150 - 5925 9 IP 65 TCS WAB 5S 0.110
5 GHz MiMo 11n 5150 - 5875 9 IP 65 TCS WAB 5DN 0.110
directional antenna
5 GHz Medium directional 5150 - 5250 18 IP 67/IP 65 TCS WAB 5D 0.107
antenna 5250 - 5350 19
TCS WAB 5D
5350 - 5725 18.5
5725 - 5875 18
5 GHz Very 11n directional 5150 - 5875 23 IP 67/IP 65 TCS WAB 5VN 2.500
antenna
2.4 GHz omnidirectional 2400 - 2500 6 IP 65 TCS WAB 2O 0.340
antenna
TCS WAB 2O
Wi-Fi Access Points and Clients selection guide: Wi-Fi antenna selection guide:
page 0518Q/2 page 0519Q/2
2 43475-EN
version: 3.1
References (continued) Wi-Fi network
Wi-Fi antennas,
cables and accessories
Wi-Fi antennas (continued)
Description Frequency range Gain Degree Reference Weight
MHz of protection kg
2.4 GHz directional 2300 - 2500 14 dBi IP 23 TCS WAB 2D 0.110
antenna
2.4 GHz dual slant antenna 2400 - 2485 8 dBi IP 65 TCS WAB 2S 0.110
TCS WAB 2D
2.4 GHz Leaky cable, 50 m 2000 - 2900 0.15 dB IP 65 TCS WAB C5 12.000
at 2.4 GHz
TCS WAB C5
2.4 GHz Leaky cable, 100 m 2000 - 2900 0.15 dB IP 65 TCS WAB C10 24.000
at 2.4 GHz
Cables
Description Type Length Reference Weight
m kg
Adaptor cable 1 RP-SMA male connector 0.520 TCS WAAC 0.340
1 N female connector
TCS WAAC Adaptor cable 1 N female connector 2.000 TCS WABAC2 0.340
N-plug to N-jack, 2 m 1 N male connector
Adaptor cable 1 N female connector 15.000 TCS WABAC15 0.340
N-plug to N-jack, 15 m 1 N male connector
TCS WABAC2
Accessories
Description Degree Type Cable length Reference Weight
of protection m kg
Overvoltage protector for – N female, – TCS WABP 0.080
antennas N male
TCS WABP Overvoltage protector for IP 68 N female, – TCS WABP68 0.080
LAN/PoE N male
Memory card modules IP 40 Mini-DIN 0.315 TCS WAMC67 0.035
(1) connector
IP 67 M12 0.500 TCS WAMCD 0.025
connector
TCS WAMCD
Adaptor kit for pole – – – TCS WABMK –
mounting
(1) Auto-configuration adaptors which are used to save 2 different versions of the configuration and operating program data for
the Wi-Fi access point to which it is connected. They enable managed Wi-Fi access points to be easily commissioned and
TCS WABMK quickly replaced.
Wi-Fi Access Points and Clients selection guide: Wi-Fi antenna selection guide:
page 0518Q/2 page 0519Q/2
43475-EN 3
version: 3.1
