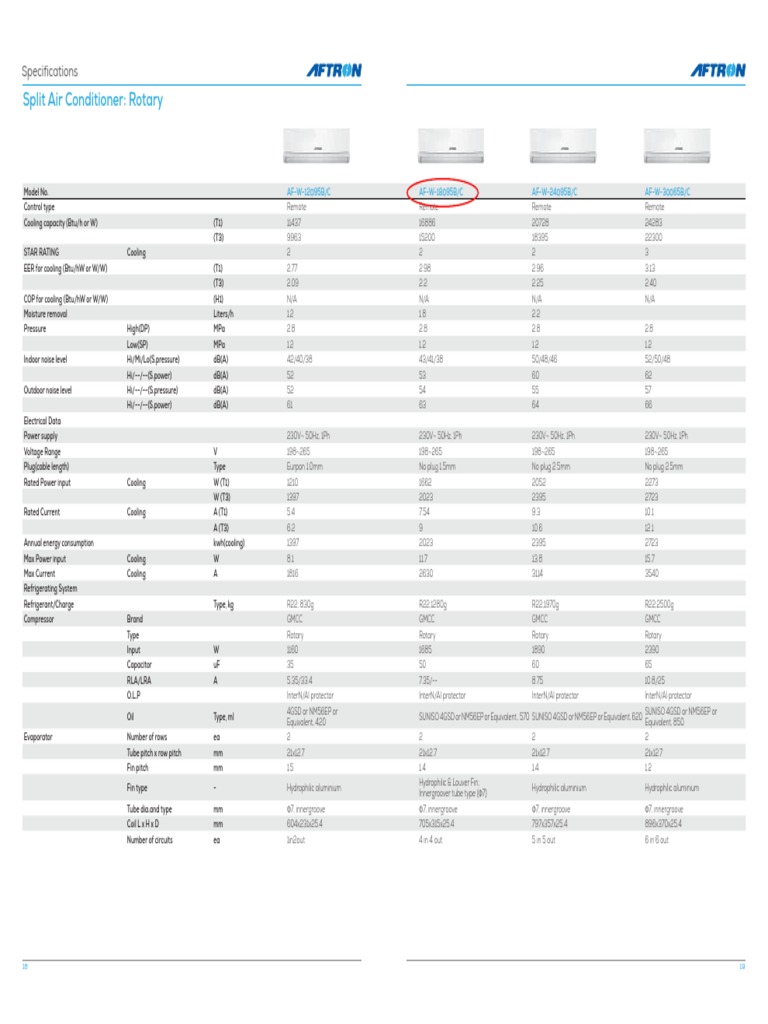

Specifications

Split Air Conditioner: Rotary

Model No. AF-W-12095B/C AF-W-18095B/C AF-W-24095B/C AF-W-30065B/C

Control type Remote Remote Remote Remote
Cooling capacity (Btu/h or W) (T1) 11437 16886 20728 24283
(T3) 9963 15200 18395 22300
STAR RATING Cooling 2 2 2 3
EER for cooling (Btu/hW or W/W) (T1) 2.77 2.98 2.96 3.13
(T3) 2.09 2.2 2.25 2.40
COP for cooling (Btu/hW or W/W) (H1) N/A N/A N/A N/A
Moisture removal Liters/h 1.2 1.8 2.2
Pressure High(DP) MPa 2.8 2.8 2.8 2.8
Low(SP) MPa 1.2 1.2 1.2 1.2
Indoor noise level Hi/Mi/Lo(S.pressure) dB(A) 42/40/38 43/41/38 50/48/46 52/50/48
Hi/--/--(S.power) dB(A) 52 53 60 62
Outdoor noise level Hi/--/--(S.pressure) dB(A) 52 54 55 57
Hi/--/--(S.power) dB(A) 61 63 64 66
Electrical Data
Power supply 230V~ 50Hz, 1Ph 230V~ 50Hz, 1Ph 230V~ 50Hz, 1Ph 230V~ 50Hz, 1Ph
Voltage Range V 198~265 198~265 198~265 198~265
Plug(cable length) Type Eurpon 1.0mm No plug 1.5mm No plug 2.5mm No plug 2.5mm
Rated Power input Cooling W (T1) 1210 1662 2052 2273
W (T3) 1397 2023 2395 2723
Rated Current Cooling A (T1) 5.4 7.54 9.3 10.1
A (T3) 6.2 9 10.6 12.1
Annual energy consumption kwh(cooling) 1397 2023 2395 2723
Max Power input Cooling W 8.1 11.7 13.8 15.7
Max Current Cooling A 1816 2630 3114 3540
Refrigerating System
Refrigerant/Charge Type, kg R22; 830g R22;1280g R22;1970g R22;2500g
Compressor Brand GMCC GMCC GMCC GMCC
Type Rotary Rotary Rotary Rotary
Input W 1160 1685 1890 2390
Capacitor uF 35 50 60 65
RLA/LRA A 5.35/33.4 7.35/-- 8.75 10.8/25
O.L.P InterN/Al protector InterN/Al protector InterN/Al protector InterN/Al protector
4GSD or NM56EP or SUNISO 4GSD or NM56EP or
Oil Type, ml SUNISO 4GSD or NM56EP or Equivalent , 570 SUNISO 4GSD or NM56EP or Equivalent, 620
Equivalent, 420 Equivalent, 850
Evaporator Number of rows ea 2 2 2 2
Tube pitch x row pitch mm 21x12.7 21x12.7 21x12.7 21x12.7
Fin pitch mm 1.5 1.4 1.4 1.2
Hydrophilic & Louver Fin;
Fin type - Hydrophilic aluminium Hydrophilic aluminium Hydrophilic aluminium
Innergroover tube type (Ѐ7)
Tube dia.and type mm Ѐ7, innergroove Ѐ7, innergroove Ѐ7, innergroove Ѐ7, innergroove
Coil L x H x D mm 604x231x25.4 705x315x25.4 797x357x25.4 896x370x25.4
Number of circuits ea 1in2out 4 in 4 out 5 in 5 out 6 in 6 out

18 19
Specifications (Continued)

Split Air Conditioner: Rotary

Model No. AF-W-12095B/C AF-W-18095B/C AF-W-24095B/C AF-W-30065B/C
Condenser Number of rows ea 1 2 2 2
Tube pitch x row pitch mm 25.4x19.05 25.4x12.7 25.4x12.7 25.4x19.05
Fin pitch mm 1.5 1.5 1.5 1.5
Fin type - Louver or Corrugated Fin Louver or Corrugated Fin Louver or Corrugated Fin Louver or Corrugated Fin
Tube dia.and type mm Ѐ9.52, innergroove tube Ѐ7, innergroove tube Ѐ9.52, innergroove tube Ѐ9.52, innergroove tube
Coil L x H x D mm 730x510x19.05 780x570x25.4 806x560x38.1 992x762x38.1
Number of circuits ea 1 in 1 out 2in1out 2in1out 6 in 6 out
Expansion device Capillary Capillary Capillary Capillary
Fan System
Indoor air circulation Cooling m3/h 530 780 1050 1300
Indoor fan Type Cross flow Cross flow Cross flow Cross flow
Indoor fan speed H/M/L Cooling rpm 1350/1250/1150 1300/1200/1050 1330/1230/1150 1270/1100/900
Dry rpm 1150 1050 1150 900
Sleep rpm 1150 1050 1150 900
Indoor fan motor Model GGSDJ-08 1170030065 1170030048 GGSDJ-05 210900519
Insulation grade E E B E
Output W 18 20 35 65
Input W 36 40 70 130
Capacitor uF 1.5 1.5 2 3
Outdoor air circulation Cooling m3/h 2150 2500 2500 4100
Outdoor fan Type Propeller Propeller Propeller Propeller
Outdoor fan speed(H/M/L) rpm 860 840 840 860
Outdoor fan motor Model GZSDJ-03t GZSDJ-09t (Qatar) GZSDJ-09t 210900509
Insulation grade B B B B
Output W 31 68 75 96
Input W 62 136 150 192
Capacitor uF 2 4 4 6
Connections
Connecting Pipe Gas Inches Ѐ9.52(3/8’’) Ѐ12.7(1/2’’) Ѐ15.88(5/8’’) Ѐ15.88(5/8’’)
Liquid Inches Ѐ6(1/4’’) Ѐ6.35(1/4’’) Ѐ9.52(3/8’’) Ѐ9.52(3/8’’)
Pipe length(m) Max.length 15 15 15 15
Max.height 5 5 5 5
Connecting Wiring є x Core No.x length(m) 3*1.5mm2 3*1.5mm2 4*0.75mm2 4*0.75mm2
Drainage Hose O.D(mm) x length(m) 16x600 16x600 16x600 16x600
Others
Suitable area m2 15~23 20~35 20~35 30~50
Net dimensions Indoor(W x H x D) mm 770x240x180 900x280x202 1033x313x202 1186x340x260
Outdoor(W x H x D) mm 760x256x552 820x605x300 820x605x300 900x805x360
Packing dimensions Indoor(W x H x D) mm 855x305x255 985x356x298 1103x400x300 1265x415x338
Outdoor(W x H x D) mm 863x361x590 950x640x426 950x640x426 1059x875x500
Net weight Indoor kg 8 12 14 17
Outdoor kg 29 44 52 62
Gross weight Indoor kg 10 15 17 21
Outdoor kg 34 48 56 68
Stuffing Indoor stage 8 5 5 5
Outdoor stage 4 3 3 2
Loading Capacity 20’/40’/40’HC SET 110/225/264 75/160/175 70/150/166 96
