Samsung TV MCU-WT61P808

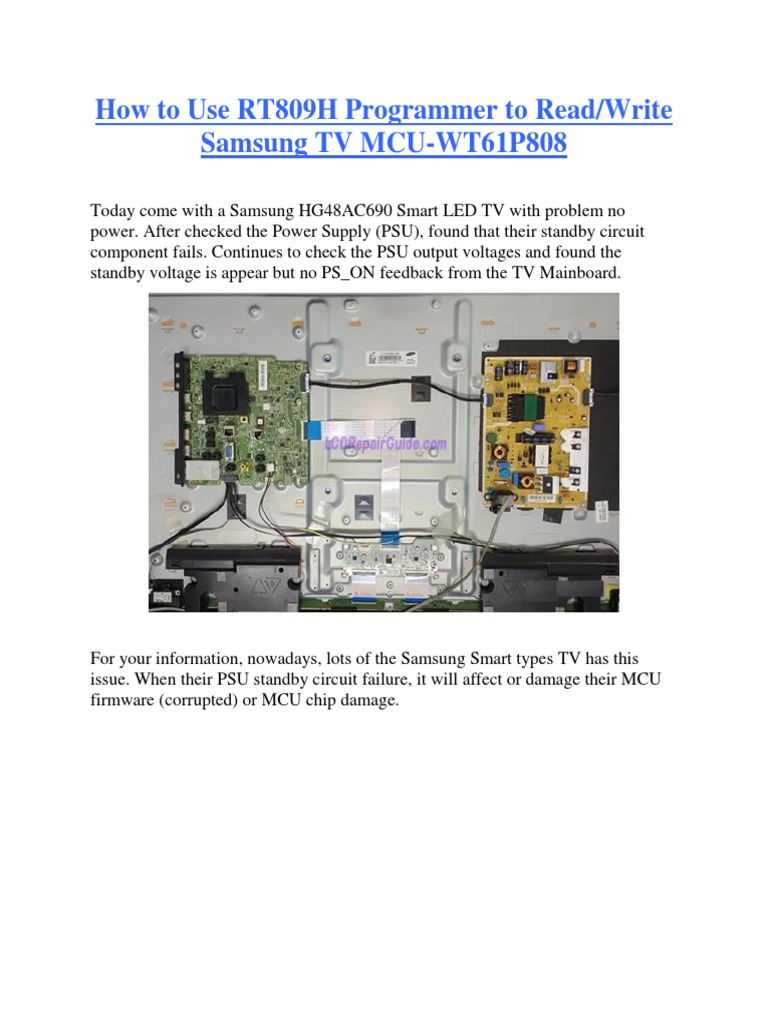

For your information, nowadays, lots of the Samsung Smart types TV has this
issue. When their PSU standby circuit failure, it will affect or damage their MCU
firmware (corrupted) or MCU chip damage.
In this Samsung TV, their Mainboard MCU chip was damage and need to replace
it. Please refer to the above photo for more details of their location, replace the
MCU chip WT61P808. After that use the RT809H programmer to do the
Read/Write steps. Make sure that the RT809H programmer firmware upgraded to
the latest version. You can go to my website to subscribe and get the link
to download the software.
After replaced the MCU WT61P808 chip in Samsung HG48AC690D TV
Mainboard, as photo below:
Use the RT809H programmer VGA cable connect to TV Mainboard VGA port
with ISP VGA connected. Open the RT809H software and select the chip part
number “WT61P808#ISP. Power on the TV Mainboard now, click the “OPEN” to
open the computer file location, and select the correct firmware of WT61P808,
follow by clicking the “WRITE” button and waiting the process complete.
After the finished programming the MCU chip, power off Tv, remove all the
connection in between the programmer and TV Mainboard. Again, power on tv
Samsung Smart Tv, and it is back to normal now! Job done!
