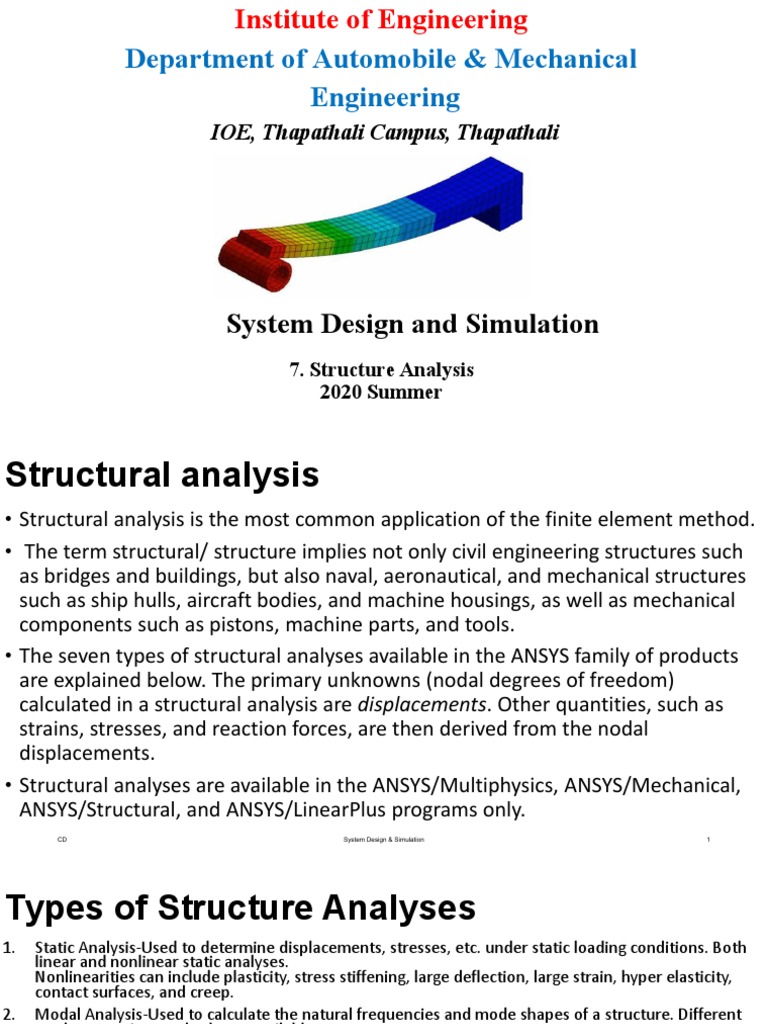

7. Structure Analysis 2020 Summer Structural analysis • Structural analysis is the most common application of the finite element method. • The term structural/ structure implies not only civil engineering structures such as bridges and buildings, but also naval, aeronautical, and mechanical structures such as ship hulls, aircraft bodies, and machine housings, as well as mechanical components such as pistons, machine parts, and tools. • The seven types of structural analyses available in the ANSYS family of products are explained below. The primary unknowns (nodal degrees of freedom) calculated in a structural analysis are displacements. Other quantities, such as strains, stresses, and reaction forces, are then derived from the nodal displacements. • Structural analyses are available in the ANSYS/Multiphysics, ANSYS/Mechanical, ANSYS/Structural, and ANSYS/LinearPlus programs only. CD System Design & Simulation 1 Types of Structure Analyses 1. Static Analysis-Used to determine displacements, stresses, etc. under static loading conditions. Both linear and nonlinear static analyses. Nonlinearities can include plasticity, stress stiffening, large deflection, large strain, hyper elasticity, contact surfaces, and creep. 2. Modal Analysis-Used to calculate the natural frequencies and mode shapes of a structure. Different mode extraction methods are available. 3. Harmonic Analysis-Used to determine the response of a structure to harmonically time-varying loads. 4. Transient Dynamic Analysis-Used to determine the response of a structure to arbitrarily time-varying loads. All nonlinearities mentioned under Static Analysis above are allowed. 5. Spectrum Analysis-An extension of the modal analysis, used to calculate stresses and strains due to a response spectrum or a PSD input (random vibrations). 6. Buckling Analysis-Used to calculate the buckling loads and determine the buckling mode shape. Both linear (eigenvalue) buckling and nonlinear buckling analyses are possible. 7. Explicit Dynamics Analysis-ANSYS provides an interface to the LS-DYNA explicit finite element program and is used to calculate fast solutions for large deformation dynamics and complex contact problems. In addition to the above analysis types, several special-purpose features are available such as; Fracture mechanics, Composites, Fatigue ,P- Method. CD System Design & Simulation 2 Linear Static Analysis • A linear static analysis is an analysis where a linear relation holds between applied forces and displacements. • In practical, this is applicable to structural problems where stresses remain in the linear elastic range of the used material. • In a linear static analysis the model’s stiffness matrix is constant, and the solving process is relatively short compared to a nonlinear analysis on the same model. • For a first estimate, the linear static analysis is often used prior to performing a full nonlinear analysis.
CD System Design & Simulation 3
Nonlinear Static analysis • A nonlinear analysis is an analysis where a nonlinear relation holds between applied forces and displacements. • Nonlinear effects can originate from geometrical nonlinearity’s (i.e. large deformations), material nonlinearity’s (i.e. elasto-plastic material), and contact. • These effects result in a stiffness matrix which is not constant during the load application. This is opposed to the linear static analysis, where the stiffness matrix remained constant. • As a result, a different solving strategy is required for the nonlinear analysis and therefore a different solver. • Modern analysis software makes it possible to obtain solutions to nonlinear problems. However, experienced skill is required to determine their validity and these analyses can easily be inappropriate. • Care should be taken to specify appropriate model and solution parameters. Understanding the problem, the role played by these parameters and a planned and logical approach will do much to ensure a successful solution. • The source of this nonlinearity can be attributed to multiple system properties, for example, materials, geometry, nonlinear loading and constraints. CD System Design & Simulation 4 Types of Solution Methods • Two solution methods are available for solving structural problems in the ANSYS family of products: • h-method and p-method solutions • The h-method can be used for any type of analysis, but the p-method can be used only for linear structural static analyses. • Depending on the problem to be solved, the h-method usually requires a finer mesh than the p-method. • The p-method provides an excellent way to solve a problem to a desired level of accuracy while using a coarse mesh.
CD System Design & Simulation 5
Engineers use 1D, 2D, 3D elements in FEA
CD System Design & Simulation 6
Model and Analysis od 2D and 3D structure elements under different conditions • Shock • Bike shock absorber analysis in ansys workbench
Model and Analysis od 2D and 3D structure elements under different conditions • Impact • Impact between two or more bodies is modeled by the ANSYS structural family of programs, including mechanical, explicit dynamics and rigid body dynamics (RBD). • These programs calculate the forces between two or more colliding bodies and the resultant deformation or damage. • Explicit Dynamics generally is used for high speed interactions or complex contact. RBD is suited for impacts with no deformation, or when deformation can be ignored.
CD System Design & Simulation 8
Model and Analysis od 2D and 3D structure elements under different conditions • Residual stress • Generate during the metal forming process (bending , rolling, welding and many other metal forming process) • Residual stresses can be computed by using a non-linear analysis with material plasticity. You apply the loads on you design and subsequently unload to a loading free condition (with the applicable boundary conditions intact). • The stress state after the unloading cycle are the residual stresses resulting from the plastic deformation. To explain it in simple terms you could consider portions of your model to be compressed or elongated (i.e. local deformation), which results in your residual stresses (minimum of potential energy). The portions of material that are for instance elongated result in compressive residual stresses in the surrounding material. • Ansys workbench tutorials -10: Stress analysis due to shrink fit between cylinders (https://www.youtube.com/watch?v=7RBjUAQM60A) CD System Design & Simulation 9 Temperature and other forces will be analyzed in practical classes.
