TECHNICAL General

INFORMATION

! SAFETY NOTICE - Instructions in the Service Bulletins assume that the Number 127
engineer has a sound knowledge of safety procedures and has been trained in the (G35/N. Am.)
maintenance and repair of JCB equipment. If you are unsure or do not understand
information contained in the Service Bulletins then ask your supervisor or contact Issue 1
JCB SERVICE for advice. Remember SAFETY MUST COME FIRST. Date Nov 2001
THIS BULLETIN REPLACES 061 (G20/N/ AM.) Page 1 of 2

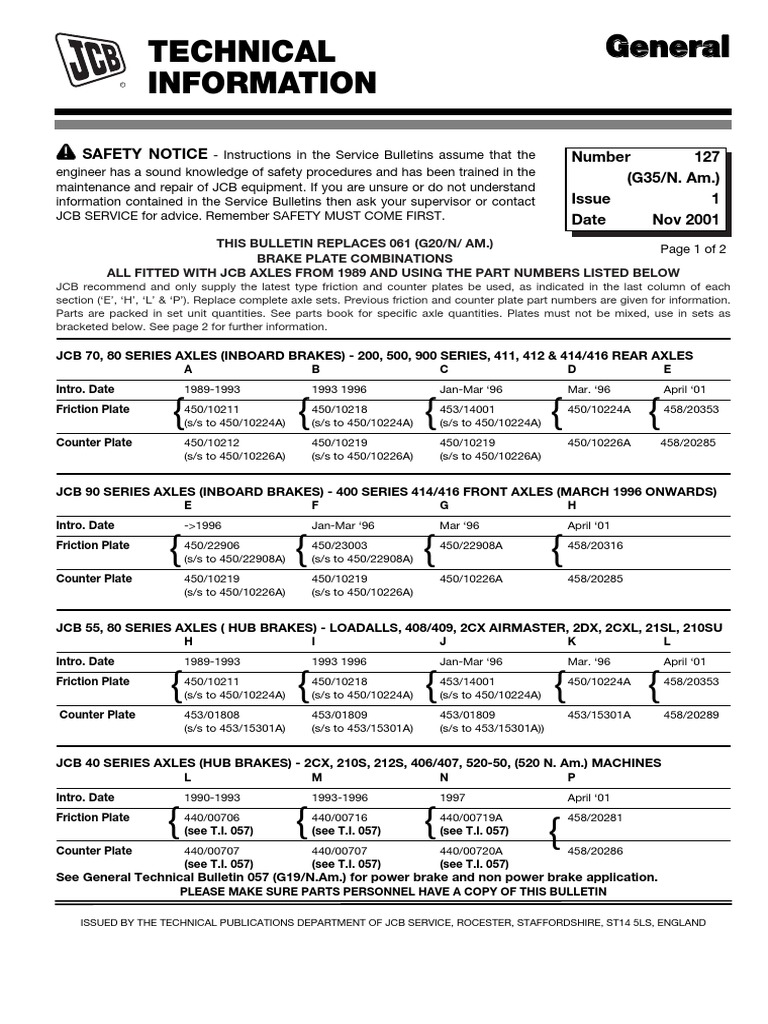

BRAKE PLATE COMBINATIONS
ALL FITTED WITH JCB AXLES FROM 1989 AND USING THE PART NUMBERS LISTED BELOW
JCB recommend and only supply the latest type friction and counter plates be used, as indicated in the last column of each
section (‘E’, ‘H’, ‘L’ & ‘P’). Replace complete axle sets. Previous friction and counter plate part numbers are given for information.
Parts are packed in set unit quantities. See parts book for specific axle quantities. Plates must not be mixed, use in sets as
bracketed below. See page 2 for further information.

JCB 70, 80 SERIES AXLES (INBOARD BRAKES) - 200, 500, 900 SERIES, 411, 412 & 414/416 REAR AXLES
A B C D E
Intro. Date 1989-1993 1993 1996 Jan-Mar ‘96 Mar. ‘96 April ‘01
Friction Plate
{ 450/10211
(s/s to 450/10224A) { 450/10218
(s/s to 450/10224A) { 453/14001
(s/s to 450/10224A) { 450/10224A
{ 458/20353

Counter Plate 450/10212 450/10219 450/10219 450/10226A 458/20285

(s/s to 450/10226A) (s/s to 450/10226A) (s/s to 450/10226A)

JCB 90 SERIES AXLES (INBOARD BRAKES) - 400 SERIES 414/416 FRONT AXLES (MARCH 1996 ONWARDS)
E F G H
Intro. Date ->1996 Jan-Mar ‘96 Mar ‘96 April ‘01
Friction Plate
{ 450/22906
(s/s to 450/22908A) { 450/23003
(s/s to 450/22908A) { 450/22908A
{ 458/20316

Counter Plate 450/10219 450/10219 450/10226A 458/20285

(s/s to 450/10226A) (s/s to 450/10226A)

JCB 55, 80 SERIES AXLES ( HUB BRAKES) - LOADALLS, 408/409, 2CX AIRMASTER, 2DX, 2CXL, 21SL, 210SU
H I J K L
Intro. Date 1989-1993 1993 1996 Jan-Mar ‘96 Mar. ‘96 April ‘01
Friction Plate
{ 450/10211
(s/s to 450/10224A) { 450/10218
(s/s to 450/10224A) { 453/14001
(s/s to 450/10224A) { 450/10224A
{ 458/20353

Counter Plate 453/01808 453/01809 453/01809 453/15301A 458/20289

(s/s to 453/15301A) (s/s to 453/15301A) (s/s to 453/15301A))

JCB 40 SERIES AXLES (HUB BRAKES) - 2CX, 210S, 212S, 406/407, 520-50, (520 N. Am.) MACHINES
L M N P
Intro. Date 1990-1993 1993-1996 1997 April ‘01
Friction Plate
{ 440/00706
(see T.I. 057) { 440/00716
(see T.I. 057) { 440/00719A
(see T.I. 057)
{
458/20281

Counter Plate 440/00707 440/00707 440/00720A 458/20286

(see T.I. 057) (see T.I. 057) (see T.I. 057)
See General Technical Bulletin 057 (G19/N.Am.) for power brake and non power brake application.
PLEASE MAKE SURE PARTS PERSONNEL HAVE A COPY OF THIS BULLETIN

ISSUED BY THE TECHNICAL PUBLICATIONS DEPARTMENT OF JCB SERVICE, ROCESTER, STAFFORDSHIRE, ST14 5LS, ENGLAND
Page 2 of 2 T.I. 127 (G35/N. Am.) Issue 2

1 For machines with inboard brakes dealer stock of A, B and C can be used providing the machine was originally
fitted with these parts and parts are only used in sets as bracketed.

Steps a and b identify the differences between the plates.

X
a Counter plates D, G, K and N can be identified by the deletion of the slots, as shown at
X. The new plates are also thicker, approximately 4 mm (0.160 in) thick compared to 3
mm (0.120 in).
Y
b Friction plates D, G, K and N can be identified by a larger surface area of friction facing,
and thinner steel plate construction Y. The steel plate is now approximately 2.5 mm thick compared to
approximately 3.5 mm with the older plate.
2 For machines with axle hub power brakes it is recommended that only the later type parts L and P are used to
provide optimum service life.

3 Instances have been reported of the new brake plate pack not fitting when the old pack has been discarded.
a To prevent this check that only parts bracketed together are used, plates E, H, L and P and previous D, G,
K and N have thicker friction material and thinner friction core but the overall pack thickness remains the
same.

b Ensure the brake piston is removed, cleaned, new seals fitted and is in the fully retracted position before
the new pack is fitted, see also 5/129 or 2/208 for assembly information only, use this bulletin for part
numbers.

4 The latest type counter plates E, H, L and P can be identified by the part number which is stamped on the side
of each plate, as shown at W. The new plates are the same thickness as the earlier plates D, G, K and N.

5 The latest type friction plates E, H, L and P can be identified by the part number which is stamped on the side of
each plate, as shown at V. The new plates are the same thickness as the earlier plates D, G, K and
N but have a revised friction material pattern as shown
at U.
V W
6 On assembly of brake packs, the oil flow holes Z in the U
new friction plates E, H, L and P must be aligned with
each other when being fitted to the brake plate carrier.

7 Use the correct oil, see MI 587/H, 520/HA, 531/E.
