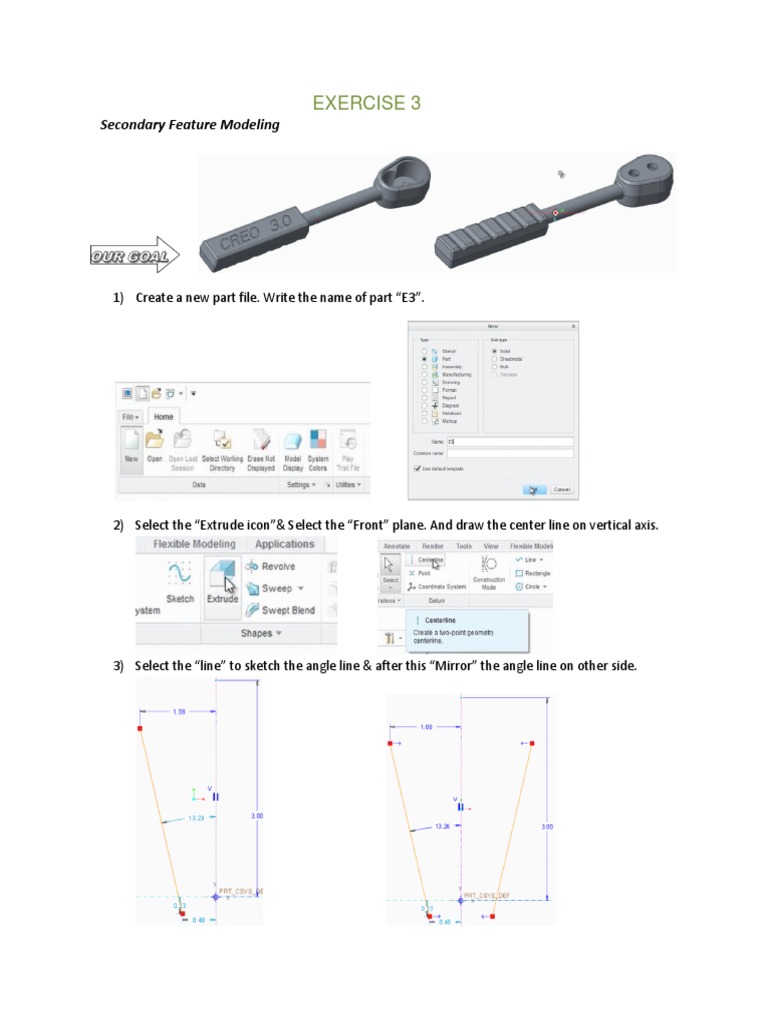

EXERCISE 3

Secondary Feature Modeling

1) Create a new part file. Write the name of part “E3”.

2) Select the “Extrude icon”& Select the “Front” plane. And draw the center line on vertical axis.

3) Select the “line” to sketch the angle line & after this “Mirror” the angle line on other side.
4) Select the “3 Point/Tangent End” Arc & draw two arcs.

5) Make sure you finish adding the dimensions. And click “ok” to complete sketch.

6) Set to the value “0.5 inch” & select the “option” from extrude menu & Add taper “–7.0”. Hit
“Apply” the green check mark to finish.
7) Select the “Mirror” icon & select the back face to mirror the geometry on the other side.

8) Select the “Extrude “, select the top surface by click on the model & select the “Offset” tool and
then select the “Loop”. Enter “0.125” to complete the Offset.
9) Set to “Remove material” and enter the value “0.10” depth. Hit “Apply” the green check mark to
finish.

10) Select the Top surface by click the model & select the “Sketch” icon. Then select the “concentric
circle” from the “circle” icon and draw the two circles, select the “Delete Segment” to delete the
two circle extra lines. Diameter of circles is “0.5” & “0.38” respectively.
11) Select “Extrude” icon & select “Remove” & enter value “0.75 inch” & click “Ok” to complete.

12) Select “Extrude” icon & click the model bottom surface & draw circles by using “concentric”,
enter the value “0.35 inch” for both circles & click “Ok” to complete the sketch.
13) Set the direction “Reverse” & select the “Extrude to intersect with all surfaces”. Hit “Apply” the
green check mark to finish.

14) Select the “Plane” from Datum menu. Then select the “Top” plane from the model tree.

15) Enter the Offset translation value “-4” and click ok.
16) Select the “Extrude” icon & select circle “center point”. Enter “0.5” for diameter & click “OK”.

17) Select the “Extrude up to next surface”. Hit “Apply” the green check mark to finish.
18) Select the “Front” plane & select the “Extrude”, then select the “Rectangle” & draw “center
line” on the Mid of rectangle.

19) Make sure you finish adding the dimensions. And click “coincident” to shift rectangle below.
Then click “OK” to complete the sketch.

20) Set to the value “0.375 inch” & select the “option” from extrude menu & Add taper “–7.0”. Hit
“Apply” the green check mark to finish.
21) Select the “Mirror” icon & select the back face of rectangle to mirror geometry on other side.

22) Select the “Round” tool & enter the value “0.10 inch” to fillet the corners.
23) Select the “Round” tool & enter the value “0.06 inch” to fillet the corners.

24) Select the face & select the “Extrude” & then draw a “construction line”.

25) Select the “Text” icon & then write the name “CREO 3.0” & click ok.
26) Set to the value “0.02 inch”. Hit “Apply” the green check mark to finish.

27) Select the “Right” plane & select “Extrude” icon. Then draw the circle & click “OK” to complete.

28) Set “Extrude both directions” & “Remove material”. Hit “Apply” the green check mark to finish.
29) Select the “Pattern” tool. Select the “Direction” & select the corner line. Then enter “6” & click
“ok” to complete the pattern.
30) Select the “Round” tool & enter the value “0.06 inch” to fillet the corners.

31) Go to file save and save-as “E3”.
