  • Carbon Steel: Describes specifications for carbon steel materials including plates, pipes, forgings, fittings, tubes, and bolts and nuts.
  • Low Temp Carbon Steel: Lists specifications for low temperature carbon steel materials.
  • Austenitic Stainless Steel: Details specifications for austenitic stainless steel types and grades.
  • Duplex & Super Duplex Stainless Steel: Provides specifications for duplex and super duplex stainless steel categories.
  • Alloy Steel: Outlines specifications for various grades of alloy steels used for different applications.
  • Material Requisition: Documents the material requisition information for specific project jobs, detailing job requirements, descriptions, and delivery notes.

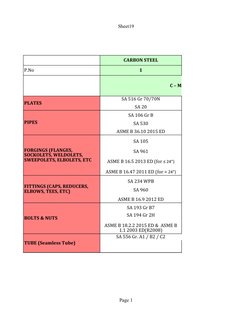

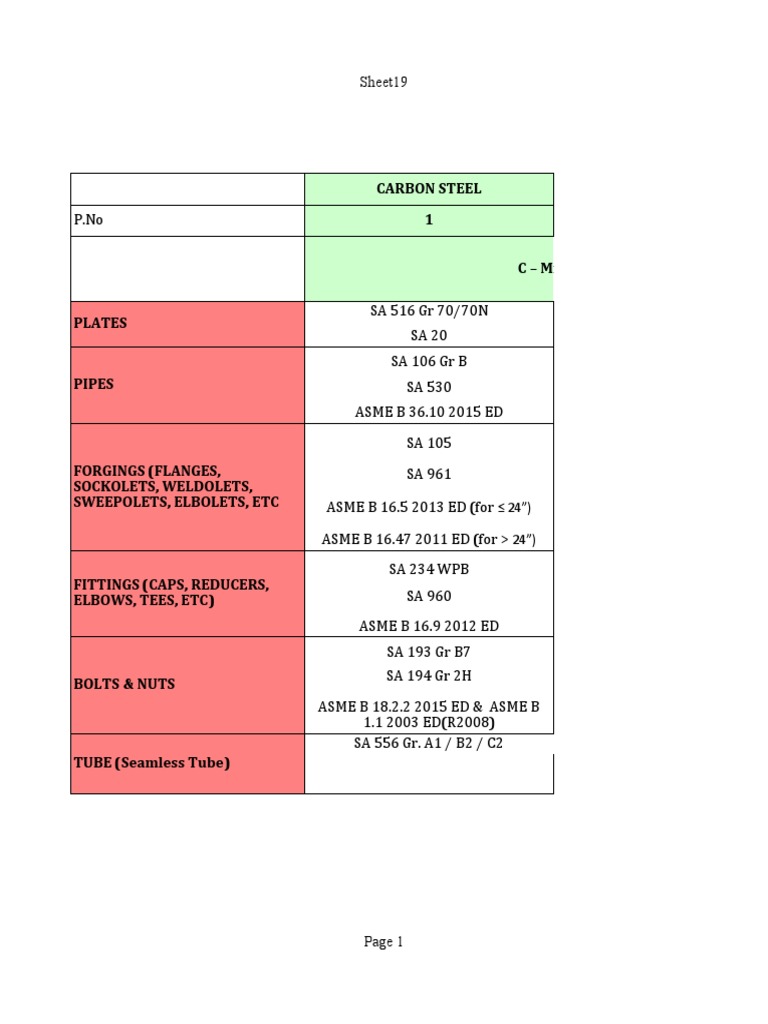

Sheet19

CARBON STEEL

P.No 1

C – Mn – Si

SA 516 Gr 70/70N
PLATES
SA 20
SA 106 Gr B
PIPES SA 530
ASME B 36.10 2015 ED
SA 105
FORGINGS (FLANGES, SA 961
SOCKOLETS, WELDOLETS,
SWEEPOLETS, ELBOLETS, ETC ASME B 16.5 2013 ED (for ≤ 24”)

ASME B 16.47 2011 ED (for > 24”)


SA 234 WPB
FITTINGS (CAPS, REDUCERS,
ELBOWS, TEES, ETC) SA 960
ASME B 16.9 2012 ED
SA 193 Gr B7
SA 194 Gr 2H
BOLTS & NUTS
ASME B 18.2.2 2015 ED & ASME B
1.1 2003 ED(R2008)
SA 556 Gr. A1 / B2 / C2
TUBE (Seamless Tube)

Page 1

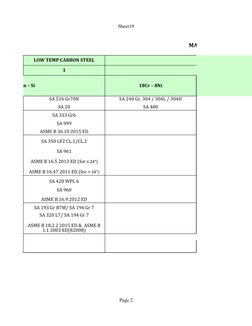

Sheet19

MATERIAL ORDERING IN

LOW TEMP CARBON STEEL AUS

C – Mn – Si 18Cr – 8Ni

SA 516 Gr70N SA 240 Gr. 304 / 304L / 304H


SA 20 SA 480
SA 333 Gr6
SA 999
ASME B 36.10 2015 ED
SA 350 LF2 CL.1/CL.2

SA 961

ASME B 16.5 2013 ED (for ≤ 24”)

ASME B 16.47 2011 ED (for > 24”)


SA 420 WPL 6
SA 960
ASME B 16.9 2012 ED
SA 193 Gr B7M/ SA 194 Gr 7
SA 320 L7/ SA 194 Gr 7

ASME B 18.2.2 2015 ED & ASME B


1.1 2003 ED(R2008)

Page 2

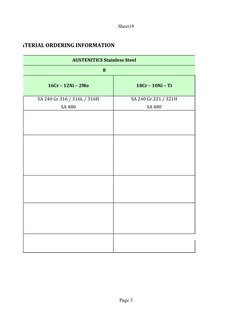

Sheet19

MATERIAL ORDERING INFORMATION

AUSTENITICS Stainless Steel

16Cr – 12Ni – 2Mo 18Cr – 10Ni – Ti

SA 240 Gr.316 / 316L / 316H SA 240 Gr.321 / 321H


SA 480 SA 480

Page 3

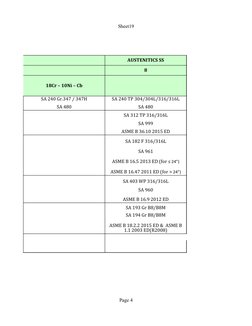

Sheet19

AUSTENITICS SS

18Cr – 10Ni – Cb

SA 240 Gr.347 / 347H SA 240 TP 304/304L/316/316L


SA 480 SA 480
SA 312 TP 316/316L
SA 999
ASME B 36.10 2015 ED
SA 182 F 316/316L

SA 961

ASME B 16.5 2013 ED (for ≤ 24”)

ASME B 16.47 2011 ED (for > 24”)


SA 403 WP 316/316L
SA 960
ASME B 16.9 2012 ED
SA 193 Gr B8/B8M
SA 194 Gr B8/B8M

ASME B 18.2.2 2015 ED & ASME B


1.1 2003 ED(R2008)

Page 4

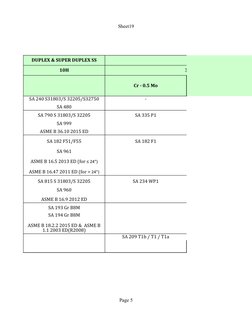

Sheet19

DUPLEX & SUPER DUPLEX SS

10H 3

Cr - 0.5 Mo

SA 240 S31803/S 32205/S32750 -


SA 480
SA 790 S 31803/S 32205 SA 335 P1
SA 999
ASME B 36.10 2015 ED
SA 182 F51/F55 SA 182 F1

SA 961

ASME B 16.5 2013 ED (for ≤ 24”)

ASME B 16.47 2011 ED (for > 24”)


SA 815 S 31803/S 32205 SA 234 WP1
SA 960
ASME B 16.9 2012 ED
SA 193 Gr B8M
SA 194 Gr B8M

ASME B 18.2.2 2015 ED & ASME B


1.1 2003 ED(R2008)
SA 209 T1b / T1 / T1a

Page 5
Sheet19

3 4

0.5 Mo - 0.5 Cr 1 Cr - 0.5 Mo

SA 387 Gr. 2, Cl.1 / Cl.2 SA 387 Gr. 12, Cl1 / Cl2

SA 335 P2 SA 335 Gr.P12

SA 182 F2 SA 182 Gr. F12, Cl.1 / Cl2

- SA 234 Gr. WP12, Cl1 / Cl2

- SA 213 Gr. T12

Page 6
Sheet19

ALLOY STEEL

4 5A

1.25 Cr - 0.5 Mo 2.25 Cr - 1 Mo

SA 387 Gr. 11, Cl1 / Cl2 SA 387 Gr.22 Cl.1 / Cl.2

SA 335 Gr.P11 SA 335 Gr.P22

SA 182 Gr. F11, Cl.1 / Cl2 / Cl3 SA 182 Gr.F22, Cl.1 / Cl.3

SA 234 Gr. WP11, Cl.1 / Cl.3 SA 234 Gr.WP22, Cl.1 / Cl.3

SA 213 Gr. T11 SA 213 Gr.T22

Page 7
Sheet19

5B

9 Cr - 1 Mo 5 Cr - 0.5 Mo

SA 387 Gr.9, Cl.1/Cl.2 SA 387 Gr.5 Cl.1/Cl.2

SA 335 Gr.P9 SA 335 Gr.P5

SA 182 Gr.F9 SA 182 Gr.F5 / F5a

SA 234 Gr.WP9, Cl.1 / Cl.3 SA-234 Gr.WP5, Cl.1/Cl.3

SA 213 Gr.T9 SA 213 Gr.T5

Page 8
Sheet19

5C 15E

2.25Cr -1 Mo - V 9 Cr - 1 Mo - V

SA 542 Gr.D, Cl.4a SA 387 Gr.91, Cl.2

- SA 335 Gr.P91

SA 182 Gr.F22V SA 182 Gr.F91

- SA 234 Gr.WP91

- SA 213 Gr.T91

Page 9

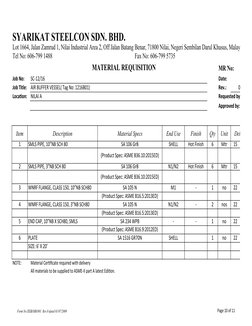

SYARIKAT STEELCON SDN. BHD.
Lot 1664, Jalan Zamrud 1, Nilai Industrial Area 2, Off Jalan Batang Benar, 71800 Nilai, Negeri Sembilan Darul Khusus, Malaysia
Tel No: 606-799 1488 Fax No: 606-799 5735
MATERIAL REQUISITION MR No:
Job No: SC-12/16 Date:
Job Title: AIR BUFFER VESSEL( Tag No: 1216B01) Rev.: 0
Location: NILAI A Requested by:
Approved by:

Item Description Material Specs End Use Finish Qty Unit Delivery Ti
1 SMLS PIPE, 10”NB SCH 80 SA 106 GrB SHELL Hot Finish 6 Mtr 15
(Product Spec: ASME B36.10:2015ED)
2 SMLS PIPE, 3”NB SCH 80 SA 106 GrB N1/N2 Hot Finish 6 Mtr 15
(Product Spec: ASME B36.10:2015ED)
3 WNRF FLANGE, CLASS 150, 10”NB SCH80 SA 105 N M1 - 1 no 22
(Product Spec: ASME B16.5:2013ED)
4 WNRF FLANGE, CLASS 150, 3”NB SCH80 SA 105 N N1/N2 - 2 nos 22
(Product Spec: ASME B16.5:2013ED)
5 END CAP, 10”NB X SCH80, SMLS SA 234 WPB - - 1 no 22
(Product Spec: ASME B16.9:2012ED)
6 PLATE SA 1516 GR70N SHELL 1 no 22
SIZE: 6' X 20'

NOTE: Material Certificate required with delivery


All materials to be supplied to ASME-II part A latest Edition.

Form No SSSB/MR/001 Rev.0 dated 01/07/2009 Page 10 of 11


0 Nilai, Negeri Sembilan Darul Khusus, Malaysia

MR-SC-12/16-01
8. Nov. 2016
0 Date: -
Requested by: ALIYA
Approved by: SAM

Delivery Time Remarks


Nov 2016
Pipe shall be Hydrotest as per ASME Sec II
Part A SA106 & SA530 requirements
Nov 2016
Pipe shall be Hydrotest as per ASME Sec II
Part A SA106 & SA530 requirements
Nov 2016

Nov 2016

Nov 2016

Nov 2016

Form No SSSB/MR/001 Rev.0 dated 01/07/2009 Page 11 of 11
