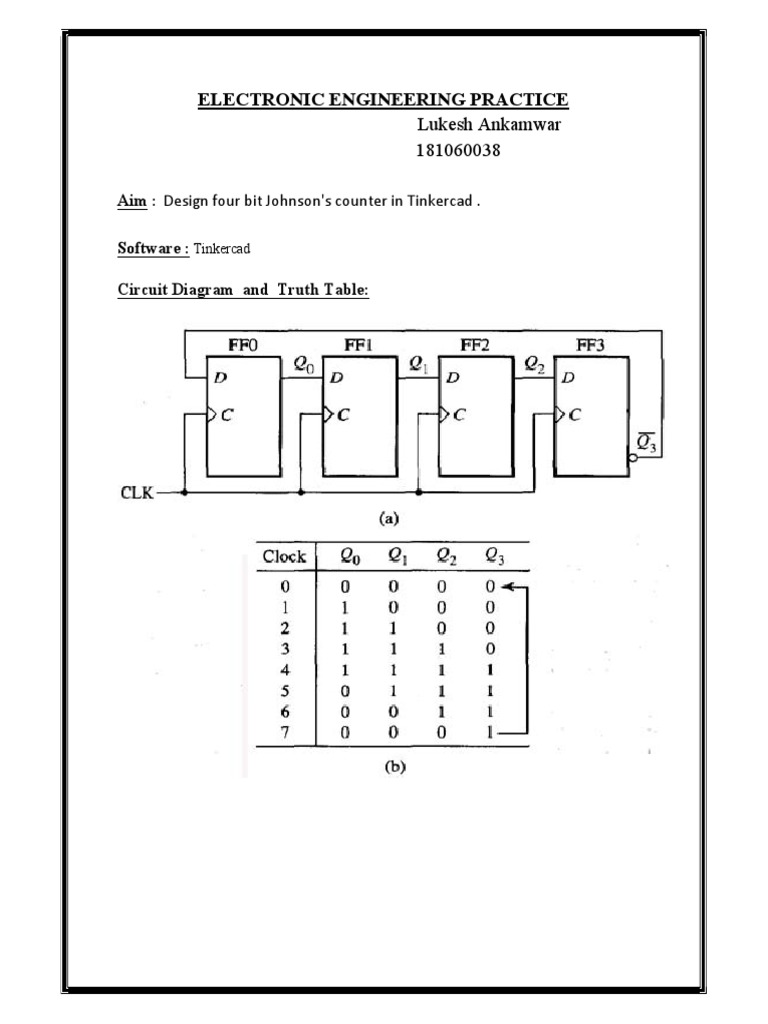

ELECTRONIC ENGINEERING PRACTICE

Lukesh Ankamwar
181060038

Aim : Design four bit Johnson's counter in Tinkercad .

Software : Tinkercad

Circuit Diagram and Truth Table:


Waveform and state diagram of 4 Bit Johnson Counter:

Procedure:

1. For implementing N bit Johnson Counter we need N number of Flipflops.


2. For implementing the circuit in the tinkercad I had used two IC 7474 as per
IC it contains two DFF.
3. In the tinkercad I had connected all clocks of D FFs to a Push Button which is
Pulled up High, to generate a clock pulse we just need to press Tactile Switch.
4. I had connected the preset of First FF to Push button which is also Pulled up
High, so we can insert 1 into Q0
5. All clear signals were shorted and connected to the Push button using which
one can clear the content of the counter.
Tinkercad Implementation:

Before Simulating

After Clock Pulse:


CONCLUSION:
Thus, I have implemented a 4 bit Johnson's counter in a Tinkercad using IC7474. I have also
implemented the same circuit in Logisim for a better understanding purpose. Thus I have
checked the theoretical truth table and state diagram in Tinkercad .
