PTI-Compatible Exciter Models

Power Technologies, Inc. Exciter and Governor Model Data Sheets

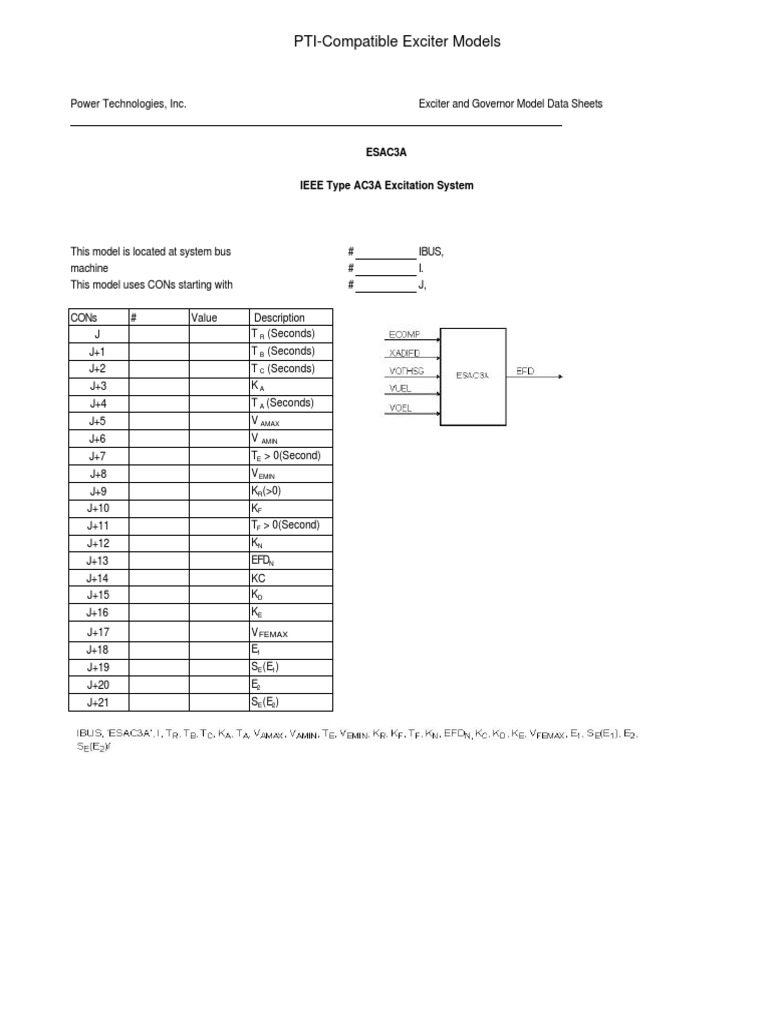

ESAC3A

IEEE Type AC3A Excitation System

This model is located at system bus # IBUS,

machine # I.
This model uses CONs starting with # J,

CONs # Value Description

J T R (Seconds)
J+1 T B (Seconds)
J+2 T C (Seconds)
J+3 KA
J+4 T A (Seconds)
J+5 V AMAX
J+6 V AMIN

J+7 TE > 0(Second)

J+8 V EMIN
J+9 KR(>0)
J+10 KF
J+11 TF > 0(Second)
J+12 KN
J+13 EFDN
J+14 KC
J+15 KD
J+16 KE
J+17 V FEMAX
J+18 E1
J+19 SE(E1)
J+20 E2
J+21 SE(E2)
PTI-Compatible Exciter Models
 PTI-Compatible Exciter Models

Power Technologies, Inc. Exciter and Governor Model Data Sheets

ESAC4A

IEEE Type AC4A Excitation System

This model is located at system bus # IBUS,

machine # I.
This model uses CONs starting with # J,

CONs # Value Description

J TR
J+1 VIMAX
J+2 VIMIN
J+3 TC
J+4 T B (Seconds)
J+5 KA
J+6 TA
J+7 VRMAX
J+8 VRMIN
J+9 KC
 PTI-Compatible Exciter Models

Power Technologies, Inc. Exciter and Governor Model Data Sheets

ESAC5A

IEEE Type AC5A Excitation System

This model is located at system bus # IBUS,

machine # I.
This model uses CONs starting with # J,

CONs # Value Description

J T R (Seconds)
J+1 KA
J+2 T A (Seconds)
J+3 V RMAX Or Zero
J+4 V RMIN

J+5 K E Or Zero
J+6 T E > 0 (Seconds)
J+7 KF
J+8 T F1 > 0 (Seconds)
J+9 T F2 (Seconds)
J+10 T F3 (Seconds)
J+11 E1
J+12 S E (E 1 )
J+13 E2
J+14 S E (E 2 )
 PTI-Compatible Exciter Models

Power Technologies, Inc. Exciter and Governor Model Data Sheets

ESAC6A

IEEE Type AC6A Excitation System

This model is located at system bus # IBUS,

machine # I.
This model uses CONs starting with # J,

CONs # Value Description

J T R (Seconds)
J+1 KA
J+2 T A (Seconds)
J+3 T K (Seconds)
J+4 T B (Seconds)
J+5 T C (Seconds)
J+6 V AMAX

J+7 V AMIN

J+8 V RMAX

J+9 V RMIN
J+10 T E > 0 (Seconds)
J+11 K FELIM
J+12 KH
J+13 V HMAX

J+14 T H (Seconds)
J+15 T J (Seconds)
J+16 KC
J+17 KD
J+18 KE
J+19 E1
J+20 S E (E 1 )
J+21 E2
J+22 S E (E 2 )
PTI-Compatible Exciter Models
 PTI-Compatible Exciter Models

Power Technologies, Inc. Exciter and Governor Model Data Sheets

ESDC2A

IEEE Type DC2A Excitation System

This model is located at system bus # IBUS,

machine # I.
This model uses CONs starting with # J,

CONs # Value Description

J T R (Seconds)
J+1 KA
J+2 T A (Seconds)
J+3 T B (Seconds)
J+4 T C (Seconds)
J+5 V RMAX Or Zero
J+6 V RMIN

J+7 K E Or Zero
J+8 T E > 0 (Seconds)
J+9 KF
J+10 T F1 > 0 (Seconds)
J+11 0 Switch
J+12 E1
J+13 S E (E 1 )
J+14 E2
J+15 S E (E 2 )
 PTI-Compatible Exciter Models

Power Technologies, Inc. Exciter and Governor Model Data Sheets

ESDC1A

IEEE Type DC1A Excitation System

This model is located at system bus # IBUS,

machine # I.
This model uses CONs starting with # J,

CONs # Value Description

J T R (Seconds)
J+1 KA
J+2 T A (Seconds)
J+3 T B (Seconds)
J+4 T C (Seconds)
J+5 V RMAX Or Zero
J+6 V RMIN

J+7 K E Or Zero
J+8 T E > 0 (Seconds)
J+9 KF
J+10 T F1 > 0 (Seconds)
J+11 0 Switch
J+12 E1
J+13 S E (E 1 )
J+14 E2
J+15 S E (E 2 )
 PTI-Compatible Exciter Models

Power Technologies, Inc. Exciter and Governor Model Data Sheets

ESST2A

IEEE Type ST2A Excitation System

This model is located at system bus # IBUS,

machine # I.
This model uses CONs starting with # J,

CONs # Value Description

J T R (Seconds)
J+1 KA
J+2 T A (Seconds)
J+3 V RMAX

J+4 V RMIN
J+5 KE
J+6 T E > 0 (Seconds)
J+7 KF
J+8 T F > 0 (Seconds)
J+9 KP
J+10 KI
J+11 KC
J+12 EFDMAX
 PTI-Compatible Exciter Models

Power Technologies, Inc. Exciter and Governor Model Data Sheets

ESST1A

IEEE Type ST1A Excitation System

This model is located at system bus # IBUS,

machine # I.
This model uses CONs starting with # J,

and ICONs starting with # IC.

ICONs # Value Description

IC UEL (1,2, or 3)
IC+1 VOS (1 or 2)

CONs # Value Description

J T R (Seconds)
J+1 V IMAX

J+2 V IMIN

J+3 T C (Seconds)
J+4 T B (Seconds)
J+5 T C1 (Seconds)
J+6 T B1 (Seconds)
J+7 KA
J+8 T A (Seconds)
J+9 V AMAX

J+10 V AMIN

J+11 V RMAX

J+12 V RMIN

J+13 KC
J+14 KF
J+15 T F > 0 (Seconds)
J+16 K LR
J+17 ILR
PTI-Compatible Exciter Models
 PTI-Compatible Exciter Models

Power Technologies, Inc. Exciter and Governor Model Data Sheets

ESST3A

IEEE Type ST3A Excitation System

This model is located at system bus # IBUS,

machine # I.
This model uses CONs starting with # J,

CONs # Value Description

J T R (Seconds)
J+1 V IMAX
J+2 V IMIN
J+3 KM
J+4 T C (Seconds)
J+5 T B (Seconds)
J+6 KA
J+7 T A (Seconds)
J+8 V RMAX
J+9 V RMIN
J+10 KG
J+11 KP
J+12 KI
J+13 V BMAX
J+14 KC
J+15 XL
J+16 V GMAX
J+17 (Degree)
J+18 T M (Seconds)
J+19 V MMAX
J+20 V MMIN
PTI-Compatible Exciter Models
 PTI-Compatible Exciter Models

Power Technologies, Inc. Exciter and Governor Model Data Sheets

EXAC1

IEEE Type AC1 Excitation System

This model is located at system bus # IBUS,

machine # I.
This model uses CONs starting with # J,

CONs # Value Description

J T R (Seconds)
J+1 T B (Seconds)
J+2 T C (Seconds)
J+3 KA
J+4 T A (Seconds)
J+5 V RMAX

J+6 V RMIN

J+7 T E > 0 (Seconds)

J+8 KF
J+9 T F > 0 (Seconds)
J+10 KC
J+11 KD
J+12 KE
J+13 E1
J+14 S E (E 1 )
J+15 E2
J+16 S E (E 2 )
PTI-Compatible Exciter Models
 PTI-Compatible Exciter Models

Power Technologies, Inc. Exciter and Governor Model Data Sheets

EXAC3

IEEE Type AC3 Excitation System

This model is located at system bus # IBUS,

machine # I.
This model uses CONs starting with # J,

CONs # Value Description

J T R (Seconds)
J+1 T B (Seconds)
J+2 T C (Seconds)
J+3 KA
J+4 T A (Seconds)
J+5 V AMAX

J+6 V AMIN

J+7 T E > 0 (Seconds)

J+8 KLV
J+9 K R>0
J+10 KF
J+11 T F > 0 (Seconds)
J+12 KN
J+13 EFDN
J+14 KC
J+15 KD
J+16 KE
J+17 V LV
J+18 E1
J+19 S E (E 1 )
J+20 E2
J+21 S E (E 2 )
PTI-Compatible Exciter Models
 PTI-Compatible Exciter Models

Power Technologies, Inc. Exciter and Governor Model Data Sheets

EXDC2

IEEE Type DC2 Excitation System

This model is located at system bus # IBUS,

machine # I.
This model uses CONs starting with # J,

CONs # Value Description

J T R (Seconds)
J+1 KA
J+2 T A (Seconds)
J+3 T B (Seconds)
J+4 T C (Seconds)
J+5 V RMAX Or Zero
J+6 V RMIN

J+7 K E Or Zero
J+8 T E > 0 (Seconds)
J+9 KF
J+10 T F1 > 0 (Seconds)
J+11 0 Switch
J+12 E1
J+13 S E (E 1 )
J+14 E2
J+15 S E (E 2 )
 PTI-Compatible Exciter Models

Power Technologies, Inc. Exciter and Governor Model Data Sheets

EXST1

IEEE Type ST1 Excitation System

This model is located at system bus # IBUS,

machine # I.
This model uses CONs starting with # J,

CONs # Value Description

J TR
J+1 V IMAX
J+2 V IMIN
J+3 TC
J+4 T B (Seconds)
J+5 KA
J+6 TA (Seconds)
J+7 V RMAX
J+8 V RMIN
J+9 KC
J+10 KF
J+11 T F > 0 (Seconds)
 PTI-Compatible Exciter Models

Power Technologies, Inc. Exciter and Governor Model Data Sheets

EXST2

IEEE Type ST2 Excitation System

This model is located at system bus # IBUS,

machine # I.
This model uses CONs starting with # J,

CONs # Value Description

J T R (Seconds)
J+1 KA
J+2 T A (Seconds)
J+3 V RMAX

J+4 V RMIN

J+5 KE
J+6 T E > 0 (Seconds)
J+7 KF
J+8 T F > 0 (Seconds)
J+9 KP
J+10 K I Or Zero
J+11 KC
J+12 EFDMAX
PTI-Compatible Exciter Models
 PTI-Compatible Exciter Models

Power Technologies, Inc. Exciter and Governor Model Data Sheets

EXST2A

IEEE Type ST2 Excitation System

This model is located at system bus # IBUS,

machine # I.
This model uses CONs starting with # J,

CONs # Value Description

J T R (Seconds)
J+1 KA
J+2 T A (Seconds)
J+3 V RMAX

J+4 V RMIN

J+5 KE
J+6 T E > 0 (Seconds)
J+7 KF
J+8 T F > 0 (Seconds)
J+9 KP
J+10 KI
J+11 KC
J+12 EFDMAX
PTI-Compatible Exciter Models
 PTI-Compatible Exciter Models

Power Technologies, Inc. Exciter and Governor Model Data Sheets

EXST3

IEEE Type ST3 Excitation System

This model is located at system bus # IBUS,

machine # I.
This model uses CONs starting with # J,

CONs # Value Description

J T R (Seconds)
J+1 V IMAX
J+2 V IMIN
J+3 KJ
J+4 T C (Seconds)
J+5 T B (Seconds)
J+6 KA
J+7 T A (Seconds)
J+8 V RMAX
J+9 V RMIN
J+10 KG
J+11 KP
J+12 KI
J+13 EFD MAX
J+14 KC
J+15 XL
J+16 V GMAX
J+17 (Degree)
PTI-Compatible Exciter Models
 PTI-Compatible Exciter Models

Power Technologies, Inc. Exciter and Governor Model Data Sheets

IEEET1

IEEE Type 1 Excitation System

This model is located at system bus # IBUS,

machine # I.
This model uses CONs starting with # J,

CONs # Value Description

J T R (Seconds)
J+1 KA
J+2 T A (Seconds)
J+3 V RMAX Or Zero
J+4 V RMIN

J+5 KE Or Zero
J+6 T E > 0 (Seconds)
J+7 KF
J+8 T F > 0 (Seconds)
J+9 0 Switch
J+10 E1
J+11 S E (E 1 )
J+12 E2
J+13 S E (E 2 )
 PTI-Compatible Exciter Models

Power Technologies, Inc. Exciter and Governor Model Data Sheets

IEEET2

IEEE Type 2 Excitation System

This model is located at system bus # IBUS,

machine # I.
This model uses CONs starting with # J,

CONs # Value Description

J T R (Seconds)
J+1 KA
J+2 T A (Seconds)
J+3 V RMAX Or Zero
J+4 V RMIN

J+5 KE
J+6 T E > 0 (Seconds)
J+7 KF
J+8 T F1 > 0 (Seconds)
J+9 T F2 > 0 (Seconds)
J+10 E1
J+11 S E (E 1 )
J+12 E2
J+13 S E (E 2 )
 PTI-Compatible Exciter Models

Power Technologies, Inc. Exciter and Governor Model Data Sheets

IEEET3

IEEE Type 3 Excitation System

This model is located at system bus # IBUS,

machine # I.
This model uses CONs starting with # J,

CONs # Value Description

J T R (Seconds)
J+1 KA
J+2 T A (Seconds)
J+3 V RMAX

J+4 V RMIN

J+5 T E > 0 (Seconds)

J+6 KF
J+7 T F > 0 (Seconds)
J+8 KP(>0)
J+9 KI or Zero
J+10 V BMAX (p.u.volt.base)
J+11 KE
 PTI-Compatible Exciter Models

Power Technologies, Inc. Exciter and Governor Model Data Sheets

IEEET4

IEEE Type 4 Excitation System

This model is located at system bus # IBUS,

machine # I.
This model uses CONs starting with # J,

CONs # Value Description

J KR
J+1 T RH > 0 (Seconds)
J+2 KV
J+3 V RMAX

J+4 V RMIN

J+5 T E > 0 (Seconds)

J+6 KE
J+7 E1
J+8 SE(E1)
J+9 E2
J+10 SE(E2)
 PTI-Compatible Exciter Models

Power Technologies, Inc. Exciter and Governor Model Data Sheets

IEEEX1

IEEE Type 1 Excitation System

This model is located at system bus # IBUS,

machine # I.
This model uses CONs starting with # J,

CONs # Value Description

J T R (Seconds)
J+1 KA
J+2 T A (Seconds)
J+3 T B (Seconds)
J+4 T C (Seconds)
J+5 V RMAX Or Zero
J+6 V RMIN

J+7 KE Or Zero
J+8 T E > 0 (Seconds)
J+9 KF
J+10 T F1 > 0 (Seconds)
J+11 0 Switch
J+12 E1
J+13 S E (E 1 )
J+14 E2
J+15 S E (E 2 )
PTI-Compatible Exciter Models
 PTI-Compatible Exciter Models

Power Technologies, Inc. Exciter and Governor Model Data Sheets

IEEEX4

IEEE Type 4 Excitation System

This model is located at system bus # IBUS,

machine # I.
This model uses CONs starting with # J,

CONs # Value Description

J TR(Seconds)
J+1 T RH > 0 (Seconds)
J+2 KV
J+3 V RMAX

J+4 V RMIN

J+5 T E > 0 (Seconds)

J+6 KE
J+7 E1
J+8 SE(E1)
J+9 E2
J+10 SE(E2)
