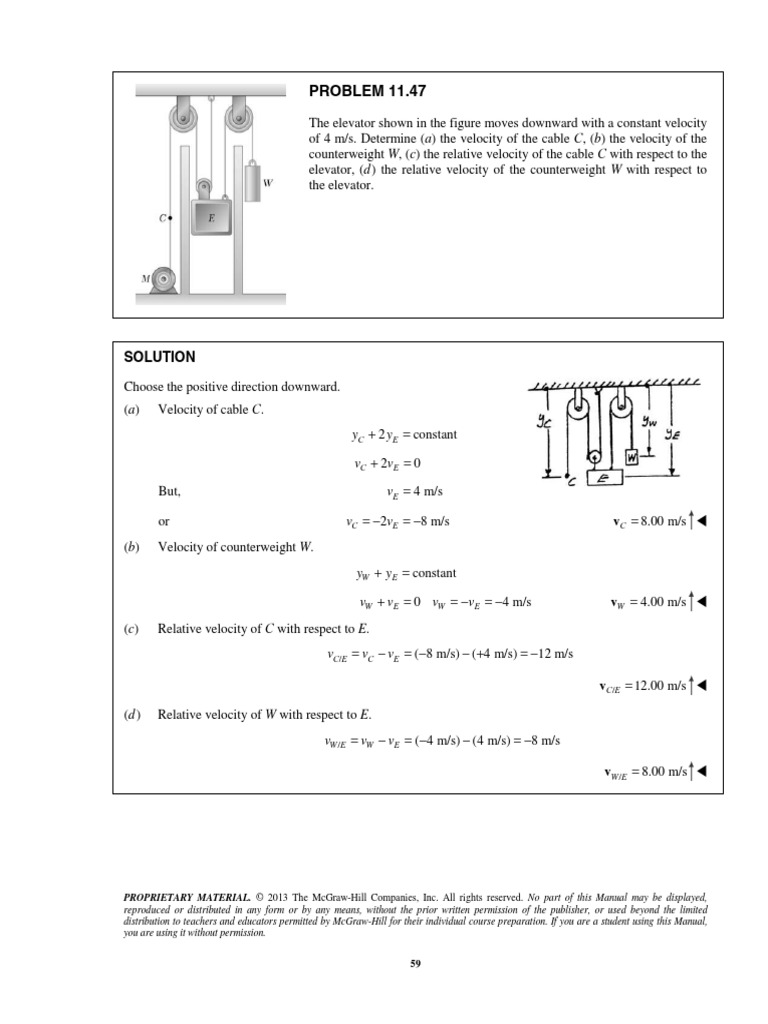

PROBLEM 11.

47

The elevator shown in the figure moves downward with a constant velocity
of 4 m/s. Determine (a) the velocity of the cable C, (b) the velocity of the
counterweight W, (c) the relative velocity of the cable C with respect to the
elevator, (d ) the relative velocity of the counterweight W with respect to
the elevator.

SOLUTION
Choose the positive direction downward.
(a) Velocity of cable C.
yC + 2 yE = constant

vC + 2vE = 0

But, vE = 4 m/s

or vC = −2vE = −8 m/s vC = 8.00 m/s

(b) Velocity of counterweight W.
yW + yE = constant

vW + vE = 0 vW = −vE = −4 m/s vW = 4.00 m/s

(c) Relative velocity of C with respect to E.
vC/E = vC − vE = (−8 m/s) − ( +4 m/s) = −12 m/s

vC/E = 12.00 m/s

(d ) Relative velocity of W with respect to E.

vW /E = vW − vE = (−4 m/s) − (4 m/s) = −8 m/s

vW /E = 8.00 m/s

PROPRIETARY MATERIAL. © 2013 The McGraw-Hill Companies, Inc. All rights reserved. No part of this Manual may be displayed,
reproduced or distributed in any form or by any means, without the prior written permission of the publisher, or used beyond the limited
distribution to teachers and educators permitted by McGraw-Hill for their individual course preparation. If you are a student using this Manual,
you are using it without permission.

59
 PROBLEM 11.48

The elevator shown starts from rest and moves upward with a constant
acceleration. If the counterweight W moves through 30 ft in 5 s, determine
(a) the acceleration of the elevator and the cable C, (b) the velocity of the
elevator after 5 s.

SOLUTION
We choose positive direction downward for motion of counterweight.
1
yW = aW t 2
2
At t = 5 s, yW = 30 ft

1
30 ft = aW (5 s) 2
2

aW = 2.4 ft/s 2 aW = 2.4 ft/s 2

(a) Accelerations of E and C.
Since yW + yE = constant vW + vE = 0, and aW + aE = 0

Thus: aE = − aW = −(2.4 ft/s 2 ), a E = 2.40 ft/s 2

Also, yC + 2 yE = constant, vC + 2vE = 0, and aC + 2aE = 0

Thus: aC = −2aE = −2(−2.4 ft/s 2 ) = +4.8 ft/s 2 , aC = 4.80 ft/s 2

(b) Velocity of elevator after 5 s.

vE = (vE )0 + aE t = 0 + (−2.4 ft/s 2 )(5 s) = −12 ft/s ( v E )5 = 12.00 ft/s

PROPRIETARY MATERIAL. © 2013 The McGraw-Hill Companies, Inc. All rights reserved. No part of this Manual may be displayed,
reproduced or distributed in any form or by any means, without the prior written permission of the publisher, or used beyond the limited
distribution to teachers and educators permitted by McGraw-Hill for their individual course preparation. If you are a student using this Manual,
you are using it without permission.

60
 PROBLEM 11.51

Slider block B moves to the right with a constant

velocity of 300 mm/s. Determine (a) the velocity
of slider block A, (b) the velocity of portion C of
the cable, (c) the velocity of portion D of the
cable, (d ) the relative velocity of portion C of the
cable with respect to slider block A.

SOLUTION

From the diagram xB + ( xB − x A ) − 2 x A = constant

Then 2vB − 3v A = 0 (1)

and 2aB − 3a A = 0 (2)

Also, we have − xD − x A = constant

Then vD + v A = 0 (3)

(a) Substituting into Eq. (1) 2(300 mm/s) − 3v A = 0

or v A = 200 mm/s

(b) From the diagram xB + ( xB − xC ) = constant

Then 2vB − vC = 0

Substituting 2(300 mm/s) − vC = 0

or vC = 600 mm/s

PROPRIETARY MATERIAL. © 2013 The McGraw-Hill Companies, Inc. All rights reserved. No part of this Manual may be displayed,
reproduced or distributed in any form or by any means, without the prior written permission of the publisher, or used beyond the limited
distribution to teachers and educators permitted by McGraw-Hill for their individual course preparation. If you are a student using this Manual,
you are using it without permission.

64
 PROBLEM 11.51 (Continued)

(c) From the diagram ( xC − x A ) + ( xD − x A ) = constant

Then vC − 2v A + vD = 0

Substituting 600 mm/s − 2(200 mm/s) + vD = 0

or v D = 200 mm/s

(d) We have vC/A = vC − v A

= 600 mm/s − 200 mm/s
or vC/A = 400 mm/s

PROPRIETARY MATERIAL. © 2013 The McGraw-Hill Companies, Inc. All rights reserved. No part of this Manual may be displayed,
reproduced or distributed in any form or by any means, without the prior written permission of the publisher, or used beyond the limited
distribution to teachers and educators permitted by McGraw-Hill for their individual course preparation. If you are a student using this Manual,
you are using it without permission.

65
 PROBLEM 11.52

At the instant shown, slider block B is moving

with a constant acceleration, and its speed is
150 mm/s. Knowing that after slider block A
has moved 240 mm to the right its velocity is
60 mm/s, determine (a) the accelerations of A
and B, (b) the acceleration of portion D of the
cable, (c) the velocity and change in position of
slider block B after 4 s.

SOLUTION

From the diagram xB + ( xB − x A ) − 2 x A = constant

Then 2vB − 3v A = 0 (1)

and 2aB − 3a A = 0 (2)

(a) First observe that if block A moves to the right, v A → and Eq. (1) v B → . Then, using
Eq. (1) at t = 0
2(150 mm/s) − 3(v A )0 = 0

or (v A )0 = 100 mm/s

Also, Eq. (2) and aB = constant a A = constant

Then v A2 = (v A )02 + 2a A [ x A − ( x A )0 ]

When x A − ( x A )0 = 240 mm:

(60 mm/s) 2 = (100 mm/s) 2 + 2a A (240 mm)

40
or aA = − mm/s 2
3

or a A = 13.33 mm/s 2

PROPRIETARY MATERIAL. © 2013 The McGraw-Hill Companies, Inc. All rights reserved. No part of this Manual may be displayed,
reproduced or distributed in any form or by any means, without the prior written permission of the publisher, or used beyond the limited
distribution to teachers and educators permitted by McGraw-Hill for their individual course preparation. If you are a student using this Manual,
you are using it without permission.

66
 PROBLEM 11.52 (Continued)

Then, substituting into Eq. (2)

40
2aB − 3 − mm/s 2 = 0
3

or aB = −20 mm/s 2 a B = 20.0 mm/s 2

(b) From the diagram, − xD − x A = constant

vD + v A = 0

Then aD + a A = 0

40
Substituting aD + − mm/s 2 = 0
3

or a D = 13.33 mm/s 2

(c) We have vB = ( vB ) 0 + a B t

At t = 4 s: vB = 150 mm/s + ( −20.0 mm/s 2 )(4 s)

or v B = 70.0 mm/s

1
Also x B = ( xB ) 0 + ( vB ) 0 t + aB t 2
2
At t = 4 s: xB − ( xB )0 = (150 mm/s)(4 s)
1
+ (−20.0 mm/s 2 )(4 s) 2
2
or x B − (x B )0 = 440 mm

PROPRIETARY MATERIAL. © 2013 The McGraw-Hill Companies, Inc. All rights reserved. No part of this Manual may be displayed,
reproduced or distributed in any form or by any means, without the prior written permission of the publisher, or used beyond the limited
distribution to teachers and educators permitted by McGraw-Hill for their individual course preparation. If you are a student using this Manual,
you are using it without permission.

67
 PROBLEM 11.57

Block B starts from rest, block A moves with a constant

acceleration, and slider block C moves to the right with a
constant acceleration of 75 mm/s 2 . Knowing that at t = 2 s the
velocities of B and C are 480 mm/s downward and 280 mm/s to
the right, respectively, determine (a) the accelerations of A and B,
(b) the initial velocities of A and C, (c) the change in position of
slider block C after 3 s.

SOLUTION

From the diagram

3 y A + 4 yB + xC = constant
Then 3v A + 4vB + vC = 0 (1)
and 3a A + 4aB + aC = 0 (2)
Given: (vB ) = 0,
a A = constent
(aC ) = 75 mm/s 2
At t = 2 s, v B = 480 mm/s
vC = 280 mm/s
(a) Eq. (2) and a A = constant and aC = constant aB = constant
Then vB = 0 + a B t
At t = 2 s: 480 mm/s = aB (2 s)
aB = 240 mm/s 2 or a B = 240 mm/s 2
Substituting into Eq. (2)
3a A + 4(240 mm/s 2 ) + (75 mm/s 2 ) = 0
a A = −345 mm/s or a A = 345 mm/s 2

PROPRIETARY MATERIAL. © 2013 The McGraw-Hill Companies, Inc. All rights reserved. No part of this Manual may be displayed,
reproduced or distributed in any form or by any means, without the prior written permission of the publisher, or used beyond the limited
distribution to teachers and educators permitted by McGraw-Hill for their individual course preparation. If you are a student using this Manual,
you are using it without permission.

74
 PROBLEM 11.57 (Continued)

(b) We have vC = (vC )0 + aC t

At t = 2 s: 280 mm/s = (vC )0 + (75 mm/s)(2 s)
vC = 130 mm/s or ( vC )0 = 130.0 mm/s
Then, substituting into Eq. (1) at t = 0
3(v A )0 + 4(0) + (130 mm/s) = 0
v A = −43.3 mm/s or (v A )0 = 43.3 mm/s
1
(c) We have xC = ( xC )0 + (vC )0 t + aC t 2
2
1
At t = 3 s: xC − ( xC )0 = (130 mm/s)(3 s) + (75 mm/s 2 )(3 s) 2
2
= 728 mm or xC − (xC )0 = 728 mm

PROPRIETARY MATERIAL. © 2013 The McGraw-Hill Companies, Inc. All rights reserved. No part of this Manual may be displayed,
reproduced or distributed in any form or by any means, without the prior written permission of the publisher, or used beyond the limited
distribution to teachers and educators permitted by McGraw-Hill for their individual course preparation. If you are a student using this Manual,
you are using it without permission.

75
 PROBLEM 11.58

Block B moves downward with a constant velocity of 20 mm/s.

At t = 0, block A is moving upward with a constant acceleration,
and its velocity is 30 mm/s. Knowing that at t = 3 s slider block C
has moved 57 mm to the right, determine (a) the velocity of slider
block C at t = 0, (b) the accelerations of A and C, (c) the change in
position of block A after 5 s.

SOLUTION

From the diagram

3 y A + 4 yB + xC = constant
Then 3v A + 4vB + vC = 0 (1)
and 3a A + 4aB + aC = 0 (2)
Given: v B = 20 mm/s ;

( v A )0 = 30 mm/s
(a) Substituting into Eq. (1) at t = 0
3(−30 mm/s) + 4(20 mm/s) + (vC )0 = 0
(vC )0 = 10 mm/s or ( vC )0 = 10.00 mm/s
1
(b) We have xC = ( xC )0 + (vC )0 t + aC t 2
2
1
At t = 3 s: 57 mm = (10 mm/s)(3 s) + aC (3 s)2
2
aC = 6 mm/s 2 or aC = 6.00 mm/s 2

Now v B = constant → aB = 0

PROPRIETARY MATERIAL. © 2013 The McGraw-Hill Companies, Inc. All rights reserved. No part of this Manual may be displayed,
reproduced or distributed in any form or by any means, without the prior written permission of the publisher, or used beyond the limited
distribution to teachers and educators permitted by McGraw-Hill for their individual course preparation. If you are a student using this Manual,
you are using it without permission.

76
 PROBLEM 11.58 (Continued)

Then, substituting into Eq. (2)

3a A + 4(0) + (6 mm/s 2 ) = 0

a A = −2 mm/s 2 or a A = 2.00 mm/s 2

1
(c) We have y A = ( y A )0 + (v A )0 t + a At 2
2
1
At t = 5 s: y A − ( y A )0 = (−30 mm/s)(5 s) + (−2 mm/s 2 )(5 s)2
2
= −175 mm
or y A − (y A )0 = 175.0 mm

PROPRIETARY MATERIAL. © 2013 The McGraw-Hill Companies, Inc. All rights reserved. No part of this Manual may be displayed,
reproduced or distributed in any form or by any means, without the prior written permission of the publisher, or used beyond the limited
distribution to teachers and educators permitted by McGraw-Hill for their individual course preparation. If you are a student using this Manual,
you are using it without permission.

77
 PROBLEM 11.134

Determine the maximum speed that the cars of the roller-coaster

can reach along the circular portion AB of the track if ρ is 25 m
and the normal component of their acceleration cannot exceed 3 g.

SOLUTION

v2
We have an =
ρ

Then (vmax ) 2AB = (3 × 9.81 m/s 2 )(25 m)

or (vmax ) AB = 27.124 m/s

or (vmax ) AB = 97.6 km/h

PROPRIETARY MATERIAL. © 2013 The McGraw-Hill Companies, Inc. All rights reserved. No part of this Manual may be displayed,
reproduced or distributed in any form or by any means, without the prior written permission of the publisher, or used beyond the limited
distribution to teachers and educators permitted by McGraw-Hill for their individual course preparation. If you are a student using this Manual,
you are using it without permission.

203
 PROBLEM 11.138

A robot arm moves so that P travels in a circle about Point B, which is not
moving. Knowing that P starts from rest, and its speed increases at a constant
rate of 10 mm/s2, determine (a) the magnitude of the acceleration when t = 4 s,
(b) the time for the magnitude of the acceleration to be 80 mm/s2.

SOLUTION

Tangential acceleration: at = 10 mm/s 2

Speed: v = at t

v2 at2 t 2
Normal acceleration: an = =
ρ ρ
where ρ = 0.8 m = 800 mm
(a) When t = 4 s v = (10)(4) = 40 mm/s

(40)2
an = = 2 mm/s 2
800

Acceleration: a = at2 + an2 = (10) 2 + (2) 2

a = 10.20 mm/s 2

(b) Time when a = 80 mm/s 2

a 2 = an2 + at2
2
2(10) 2 t 2
(80) = + 102 t 4 = 403200 s 4
800

t = 25.2 s
