GSE Model 675: Precision Counting Scale

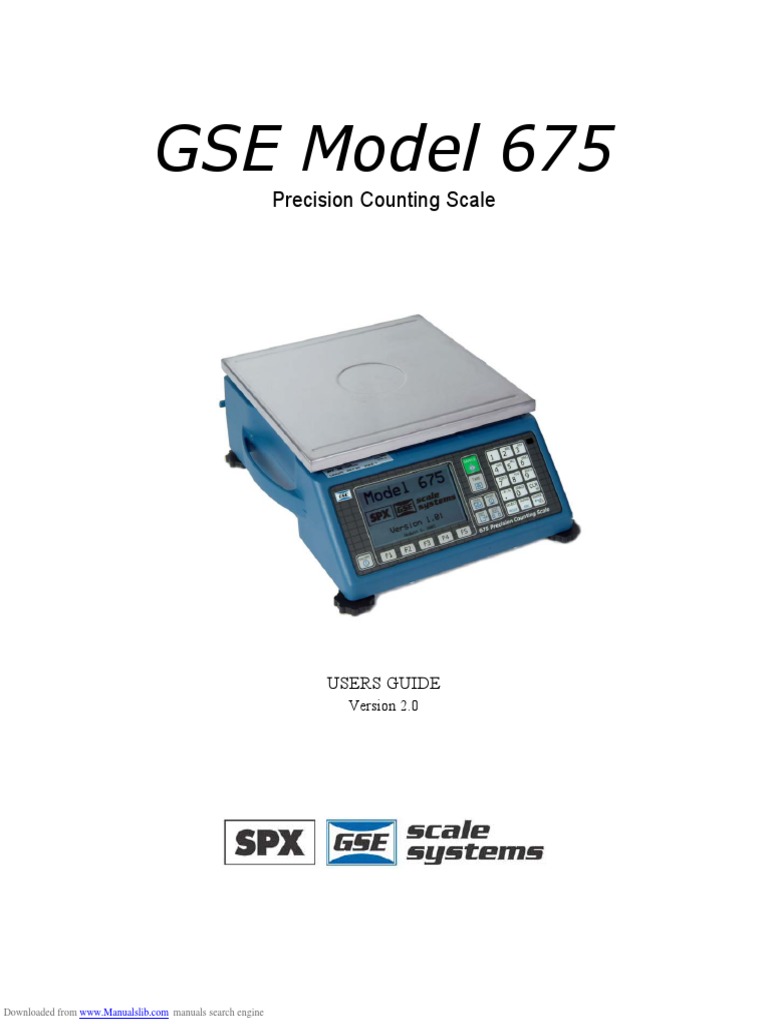

GSE Model 675
Precision Counting Scale
USERS GUIDE
Version 2.0
Downloaded from www.Manualslib.com manuals search engine

Model 675
USERS GUIDE
Version 2.0

GSE 675 Precision Parts Counter Quick Reference Guide
Copyright © 2004 GSE Scale Systems. All rights reserved.
Published by:
GSE Scale Systems

42860 Nine Mile Road
Novi, MI 48375
USA
Information in this Users Guide is subject to change without notice due to correction or
enhancement. The information described in this manual is solely the property of GSE. No
part of this manual may be reproduced or transmitted in any form or by any means,
electronic or mechanical, including photocopying and recording and sold for any
monetary figure without the express written permission of GSE.
GSE Locations
GSE Scale Systems
42860 Nine Mile Road
Novi, MI 48375
U.S.A.
Phone: (800) 755-7875
www.gse-inc.com
GSE Canada, Inc.

617 East Lake Road
Airdrie, Alberta Canada T4B 2B8
Phone:(403) 948-9921
Fax: (403) 948-1449

TABLE OF CONTENTS
CHAPTER 1: REFERENCE ........................................................................................... 1
KEYPAD FUNCTIONS ........................................................................................................ 1
BACK PANEL CONNECTIONS ............................................................................................ 2
CHAPTER 2: CONFIGURATION................................................................................. 4
F1 SOFT KEY- QUICK COUNT .......................................................................................... 4
F2 SOFT KEY- GSE CUSTOM........................................................................................... 5
Apw Lookup ................................................................................................................ 5
F3 SOFT KEY- GSE DEFAULT ......................................................................................... 6
QUICK COUNT CONFIGURATION SETUP MENU ................................................................ 7
Setup............................................................................................................................ 7
Setup Menus ................................................................................................................ 8
CAL (Calibration)....................................................................................................... 8
Display Style ............................................................................................................... 8
Preset Printouts .......................................................................................................... 9
APW LOOKUP CONFIGURATION SETUP MENU .............................................................. 10
Setup.......................................................................................................................... 11
Setup Menus .............................................................................................................. 11
CAL (Calibration)..................................................................................................... 11
Display Style ............................................................................................................. 12
Print Menu ................................................................................................................ 13
Preset Printouts ........................................................................................................ 14
Advanced Setup Menu............................................................................................... 15
Time/Date.................................................................................................................. 16
Setup Mode Access (Setup) ....................................................................................... 16
CHAPTER 3: OPERATION ......................................................................................... 17
QUICK COUNT ................................................................................................................ 17
Without Auto Tare ................................................................................................ 18
APW LOOKUP ............................................................................................................... 19
Sample and Count ..................................................................................................... 19
Store a New Part Number ......................................................................................... 20
Update a Part Number.............................................................................................. 20
Recall a Part Number ............................................................................................... 20
Delete a Part Number ............................................................................................... 21
SIMPLE KEYPAD SAMPLE ............................................................................................... 21
CHAPTER 4: CALIBRATION ..................................................................................... 23
CALIBRATION METHODS ................................................................................................ 23
General Notes on Calibration................................................................................... 23
New Zero .............................................................................................................. 24

Last Zero ............................................................................................................... 25
Temporary Zero .................................................................................................... 26
Only Zero .............................................................................................................. 27
Calibration Reset................................................................................................... 27
Known Loadcell Output........................................................................................ 28
Multi - Scale Calibration....................................................................................... 29
CHAPTER 5: LEGAL FOR TRADE ........................................................................... 30
NTEP REQUIREMENTS .................................................................................................. 30
NTEP Custom Setup.................................................................................................. 31
Accessing the Custom Setup List ......................................................................... 31
Custom Setup Parameters ..................................................................................... 31
Additional Conformance Considerations.............................................................. 32
SEALING AND AUDIT TRAILS......................................................................................... 32
Physical Seal............................................................................................................. 33
Audit Trails ............................................................................................................... 33
OIML Audit Trail ................................................................................................. 34
Calibration Audit Trail.......................................................................................... 34
Setup Audit Trail................................................................................................... 34
Viewing Audit Trail Parameters ........................................................................... 34
OMIL REQUIREMENTS .................................................................................................. 34
Enabling OIML Operation.................................................................................... 35
OTHER REQUIREMENTS.................................................................................................. 35
CHAPTER 6: TROUBLESHOOTING ........................................................................ 36
OPERATIONAL ERRORS .................................................................................................. 36
SETUP MODE ERRORS .................................................................................................... 36
HARDWARE ERRORS ...................................................................................................... 37
CALIBRATION ERRORS ................................................................................................... 38
COMMUNICATION ERRORS ............................................................................................. 38
ii

iii

CHAPTER 1: REFERENCE
This chapter describes the function of the keypad. Also tables show the connections for
the second scale and comm ports.
Keypad Functions
All of the keys perform different functions. Some keys have more than one
function.
34567
Act as soft keys which will perform a specific function. Refer to the text on the
display for the function of each soft key.
:
Subtracts the weight of the tare from the displayed weight. Commonly used for
removing the weight of a container.
<
Performs a gross zero and displays the gross mode.
9
Performs a sample for an accurate parts counting and calculates an average piece
weight.

Toggles the units of measure between lb, kg, g, ounce, etc.

Selects between all enabled scales. Will display current scale number.
=
Print data from a specified communication port.
>
Select among modes such as Gross, Net, Tare, Quantity and Average Piece
Weight.
K
Clear the entry buffer or answer “NO” to a question.

Enter data or answer “YES” to a question.
;
Enter alpha or numeric characters or a combination of both depending on the
ALPHA key parameter configuration..
8
Turn the scale on or off.
J- H, I
Numeric keys used to manually enter a value for tare weight, average piece
weight, sample size etc.
Back Panel Connections

Connections for a second scale, Com1 and Com 2 ports are standard with the Model 675.
Connector pin outs are provided in the tables below. Refer to Table 2 below for the pin of
Com 3 and Com 4 ports (optional).
Table 1: Scale 2 DB 9 Connector Pin Out

DB9 pin designation Function Load Cell Cable
1 + Signal 4 or 6 wire
2 - Signal 4 or 6 wire
3 + Sense 4 wire (connect a wire jumper to pin 8)
4 - Sense 4 wire (connect a wire jumper to pin 9)
5 - Excitation 4 or 6 wire
6 + Excitation 4 or 6 wire
7 Chassis Ground 4 or 6 wire
8 + Excitation 4 wire (connect a wire jumper to pin 3)
9 - Excitation 4 wire (connect a wire jumper to pin 4)
If a load cell with a 4 wire cable is being used jumpers will need to be installed between
the sense and excitation. The jumpers will be installed on the DB9 connector being
installed on the load cell cable. Refer to Table 1 for pin number designation.

Table 2: Communication Ports 1 -4 Pin Out
DB9 pin Function Function Function Function
designation Com 1 Com 2 Com 3 Com 4
1 No connection TTL No connection No connection
2 RXD RXD RXD RXD
3 TXD TXD TXD TXD
4 + 5V + 5V + 5V + 5V
5 ISO Ground Ground Ground Ground
6 Ground Ground Ground Ground
7 RTS RTS No connection No connection
8 CTS CTS CTS No connection
9 Remote Key 1 Remote Key 2 No connection No connection

CHAPTER 2: CONFIGURATION
The GSE 675 Precision Counting Scale comes from the factory with the Application
Menu enabled. This is where you will choose the preferred method of parts counting. See
the explanations of each method below. After each counting method are the instructions
for setting up that method.
Refer to Chapter 3: Operation for operating instructions of each method.
Figure 1: Counting Method Choices
F1 Soft Key- Quick Count

The QUICK COUNT mode is designed for performing a quick sample and count. The
soft keys are used in secession from left to right to increase speed and ease of parts
counting. Basic functionality is offered to simplify operation. Below are the available soft
keys and an explanation of their purpose in the QUICK COUNT mode.
F1 Sample – Uses default sample size and prompts user to add that many pieces
F2 Count – Gives access to the quantity mode.
F3
Accum (accumulate) – Maintains a total of quantity accumulations. The
current quantity is added to this total each time an accumulation is done.
F4 Print – Send specific information to a printer, computer or other peripheral

devices.
F5 Setup – Access setup menus, see page 7 for further details.

Setup the QUICK COUNT Mode
1. Press 3 from the APPLICATION MENU. The display will come up with an
explanation of the QUICK COUNT menu.
2. At this time you can choose the QUICK COUNT mode by pressing the
(YES) or return to the APPLICATION MENU by pressing the 7 softkey
(Exit) or K (NO).
3. The QUICK COUNT file will load automatically and return to the QUICK
COUNT mode.
F2 Soft Key- GSE Custom

Presently APW LOOKUP is the only application offered under GSE Custom. New
modes will be added in the near future. Please check out the GSE website gse-inc.com for
new updates.
The APW LOOKUP offers the flexibility of storing and recalling part numbers. The
average piece weight and part description will be stored and recalled with the part
number.
APW LOOKUP
Sample - Uses default sample size and prompts user to add that many pieces.
F1
F2 Store – Store a part number with average piece weight and description.
F3 Rec/New – Add a new part number or recall a part number from the database.
F4 Desc – Add a part description.
F5 Setup - Access setup menus, see page 10 for further details.

Setup the APW LOOKUP Mode
1. Press the 4 from the APPLICATION MENU. The display will come up with
an explanation of the APW LOOKUP menu.
2. At this time you can choose the APW LOOKUP mode by pressing the
(YES) or return to the menu choices by pressing the 7 softkey (Exit) or K
(NO).
3. The APW LOOKUP file will load and will return to the APW LOOKUP mode.
F3 Soft Key- GSE Default

If the preprogrammed applications are not going to be used, than the Model 675 should
be factory defaulted. This mode will reset the Model 675 to GSE factory default status.
The preset applications will be lost but can be reestablished at parameter 65002 (See
technical reference manual for more details).
The Model 675 can still be used as a parts counter after it is factory defaulted. Refer to
page 21 for more details on simple counting.
Setup the GSE DEFAULT Mode

1. Press 5 from the APPLICATION MENU prompt. The display will give an
explanation of the GSE DEFAULT.
2. Press (YES) to accept the choice of GSE DEFAULT and continue or press
K to cancel the default and return to the APPLICATION MENU.
3. If you chose to continue with the default in step 2 the display will ask ARE YOU
SURE? Either press (YES) to default the unit or press K to cancel the
default and return to the APPLICATION MENU.

Quick Count Configuration Setup Menu
Use the F5 Setup key from the QUICK COUNT screen to gain access to different menus.
Setup Change Clear Key-In Setup Exit

F5 Sample Totals APW Menus
F1 F2 F3 F4 F5
Cal Display Print Advance Exit

Style Formats Setup
F1 F2 F3 F4 F5
See page 15 for complete

details on the Advanced
Setup Menu.
SETUP
This menu was designed for accessing the items that will need to be changed the most
often. Below is an explanation of the choices in the menu. Follow the instructions on the
display for each key.
PARAMETER DESCRIPTION DEFAULT SETTING KEYPRESSES

Change the default 10 Key in new sample size
CHANGE
sample size and press Enter to
SAMPLE accept or F5 to escape
CLEAR Clears the Not applicable Press Enter to clear
accumulation registers totals or Clr to escape
TOTALS
Key in an average 0 Key in new average
KEY-IN APW piece weight for piece weight and press
sample Enter or F5 to escape
Continues on to the Not applicable
SETUP MENUS Setup Menus
The YES key is the NO key is K.

SETUP MENUS
This is the next level of menus, which offer more advanced setup.

Not applicable Key in access code and
Calibration any of the
CAL enabled scales
press Enter or press F5
to escape
Display Style 2 Press either F1 or F2 to
DISPLAY Chose how the display chose the desired
STYLE will appear display style or F5 to
escape
Chose a preformatted Print Style 1 Use F3 and F4 to view
PRINT printout print format choices.
FORMATS Press F5 to save the
format
ADVANCE Continues on to the Not applicable See page 15
SETUP Advanced Setup Menu
CAL (CALIBRATION)
Refer to Chapter 4: Calibration on page 23 for complete instructions on calibrating the
Model 675.
DISPLAY STYLE
Choose one of the display types and press 7 (EXIT) to save the change and return to
the main menu.
STYLE 1 – This is the classic GSE 2x5 display. The weight or quantity will be displayed
in larger font while the prompts will be to the right of the weight display.
STYLE 2 – This style incorporates the classic GSE 2x5 display along with two smaller
displays which will show other parameters. Press the > key from the QUICK COUNT
to toggle through the different parameter choices.
Large display Small Display Small Display

Gross Net Tare
Quantity Net Tare
Quantity Net Piece Weight
Quantity Tare Piece Weight
Quantity Accuracy Piece Weight
Quantity Accuracy Sample Size
Quantity Sample Size Piece Weight
Quantity Quantity Total Number of Accums

PRESET PRINTOUTS
The preset print formats are viewable on the LCD display. Use the 5 left arrow and
6 right arrow keys to view all transmit styles. Chose the desired format by viewing it
on the screen. Press the 7 (EXIT) key to save the format and return to the main menu.
Choice 1 Choice 2
Quantity: 30
Quantity: 30 APW: 0.1234
APW: 0.1234 Tare: 1.515
Tare: 1.515 lb
10:10:00 07/10/2003
Choice 3 Choice 4
Part#:
Quantity: 30 Quantity 55
Tare: 1.515 APW 0.4481
Tare 1.623
Scale # 2
Choice 5 Choice 6
Quantity: 55
10.025 lb Gross QTY Total: 510
2.500 lb Tare Total Accums: 10
7.525 lb Net
Choice 7
Part#:
Quantity 55
APW 0.4481
Tare 1.623
10:10:00 07/10/2003

APW Lookup Configuration Setup Menu
Use the F5 Setup key from the APW LOOKUP screen to gain access to different menus.
Setup
F5
Change Delete Key-In Setup Exit

Sample Part# APW Menus
F1 F2 F3 F4 F5
Cal Display Print Advance Exit

Style Menu Setup
F1 F2 F3 F4 F5
Print D-Load Print Exit See page 15

Part#s Part#s Formats for complete
F1 F2 F3 F4 F5 details.
Comm Comm Display Exit

1 2
F1 F2 F3 F4 F5
Comm Comm Exit

1 2
F1 F2 F3 F4 F5
10

SETUP
This menu was designed for accessing the items that will need to be changed the most
often. Below is an explanation of the choices in the menu. Follow the instructions on the
display for each key.

Change the default 10 Key in new sample size
CHANGE
sample size and press Enter to accept
SAMPLE or F5 to escape
Delete specified part Will not show until a part Key in part # and press
DELETE PART number number is established F3. Press F5 to enter the
# setup. Press F2 to delete
part #.
Key in an average 0 Key in new average piece
KEY-IN APW piece weight for weight and press Enter or
sample F5 to escape
Continues on to the Not applicable Press F4 to continue
SETUP MENUS Setup Menus
The YES key is the NO key is K.
SETUP MENUS
This is the next level of menus, which offer more advanced setup.

Not applicable Key in access code and
Calibration any of the
CAL enabled scales
press Enter or press F5
to escape
Style 2 Press either F1 – F4 to
DISPLAY Chose how the display chose the desired
STYLE will appear display style or F5 to
escape
Choose what Not applicable Continues on to the
PRINT MENU information to print Print Menu selections
out
ADVANCE Continues on to the Not applicable See page 15
SETUP Advanced Setup Menu
CAL (CALIBRATION)
Refer to Chapter 4: Calibration on page 23 for complete instructions on calibrating the
Model 675.
11

DISPLAY STYLE
Different display styles are offered to help customize the Model 675 parts counter to fit
your needs. Choose one of the display types and press 7 (EXIT) to save the change
and return to the main menu. By using the > select key several modes can be viewed
from the APW LOOKUP screen. See the section on Set Modes on page 13.
STYLE 1
The top display will show the weight or quantity in larger font while the second display
will show the part number in medium font. Press the > key from the APW LOOKUP
screen to toggle through the different parameter choices.
Large display Medium display
Gross Part #
Net Part #
Tare Part #
APW (average piece weight) Part #
% Accuracy Part #
Last Sample Part #
Quantity Total Part #
# Accumulations Part #
Quantity Part #
STYLE 2
This style incorporates the classic GSE 2x5 display and a second display, which will
show three other parameters. Press the > key from the APW LOOKUP screen to
toggle through the different parameter choices.
Large display Small display Small display Small Display

Quantity Part# APW Description
Gross Part# APW Description
Net Part# APW Description
Tare Part# APW Description
STYLE 3
This style incorporates the classic GSE 2x5 display along with three smaller displays
which will show four other parameters. Press the > key from the APW LOOKUP
screen to toggle through the different parameter choices.
12

Large display Small display Small display Small display
Quantity Gross Net Tare
Quantity Part# Piece Weight Tare
Quantity Net Tare Gross Total
Gross Part# % Accuracy Piece Weight
Quantity Part# % Accuracy APW x 100
Quantity Piece Weight % Accuracy Tare
SET MODES
After choosing a display style there are several modes of operation (such as Gross and
Quantity) to choose from. These modes are accessible by using the > while viewing
the APW LOOKUP mode. The ability exists to enable or disable each choice.
1. Press 6 to access the SET MODES menu.

2. Use the 3 Next Mode key to toggle through the available modes.
3. Use the 4 Enable Mode key to enable the mode.
4. Use the 5 Disable Mode key to disable the mode.
5. Press 7 to exit back into the APW LOOKUP screen.
PRINT MENU
Print Part#s Print stored part Not applicable Print data to comm. 1, 2
numbers to printer or or display. Use F1, F2
computer or F3
D-Load Part#s Download part Not applicable Print data to comm. 1or
number, description, 2. Use F1 or F2
average piece weight
and tare weight in
comma delimited
format
Print Formats Chose a preformatted Print Style 1 Use F3 and F4 to view
printout style print format choices.
Press F5 to save the
format
13

PRESET PRINTOUTS
The preset print formats are viewable on the LCD display. Use the 5 left arrow and
6 right arrow keys to view all transmit styles. Chose the desired format by viewing it
on the screen. Press the 7 (EXIT) key to save the format and return to the main menu.
Print# 1 Print# 2
P/N: ABCD123WXYZ
P/N: ABCD123WXYZ Qty: 30
Qty: 30 Tare: 1.02 lb
10:10:00 09/13/2003
Print# 3 Print# 4
P/N: ABCD123WXYZ P/N: ABCD123WXYZ
Qty: 30 Qty: 30
Tare: 1.515 lb APW: 0.0123456
10:10:00 09/13/2003 Tare: 1.515 lb
10:10:00 09/13/2003
Print# 5 Print# 6
P/N: ABCD123WXYZ Quantity: 55
Qty: 30 #3 Tot: 165
APW: 0.0123456
Gross 26.456 lb
Tare: 1.515 lb
Net: 24.941 lb
10:10:00 09/13/2003
Print# 7 Print# 8
P/N: ABCD123WXYZ P/N: ABCD123WXYZ
Desc: Red Cable Ties Desc: Red Cable Ties
Qty: 30 APW: 0.0123456
10:10:00 09/13/2003 Sc#:1 Sampled 2
%Accy 98.555
10:10:00 09/13/2003
14

Print# 9
Reserved for future use.
Custom
CREATE A CUSTOM TRANSMIT FORMAT!
Î See the Tech Manual for details
Î Create and load as transmit #130
Î Your custom transmit will appear in place of

this instruction tab.
ADVANCED SETUP MENU

The advanced menu will allow access to the time/date, setup mode and application files.
Use the arrow keys to navigate to the desired tab. This is common on the preprogrammed
methods of counting such as QUICK COUNT and APW LOOKUP.
Figure 2: Advanced Setup Menu
15

TIME/DATE
1. From the time/date tab, press to access the configuration screen. The time
can be changed with the 3 key. The date can be changed with the 4 key.
2. Key in the time or date by following the format on the display and press to
accept the entry.
3. Press 7 (EXIT) to return to the main menu.
SETUP MODE ACCESS (SETUP)

This tab allows access to the setup mode to make changes to parameters such as full
scale, count accuracy and baud rate etc. Please refer to the 675 Series Technical
Reference Manual for details on more advanced setups and configurations. An access
code is required to enter the Model 675 setup mode.
16

CHAPTER 3: OPERATION
This chapter will give detailed operation instructions on how to use each preprogrammed
mode.
The Model 675 is designed to operate from the 5 soft keys or the dedicated keys of the
keypad. The advantage of using the soft keys is they are placed in succession for easy
operation.
TIP Bypass the GSE splash screen on power up by pressing the K key
when the splash screen appears.
Quick Count
Auto Tare Method
1. Sampling Pieces:
(a) If a container is used:
(i) Place an empty container on scale and press the 3 Sample or
9 key. The scale will automatically tare the container.
- or -
(b) If a container is not used:
(i) Press the 3 Sample or 9 key without the sample pieces on the
scale. The scale will tare to establish a net zero reference.
2. Add the sample pieces and press the 3 Accept key to accept the sample.
3. Continue to add pieces to count.
4. Press 5 to accumulate the current quantity to the total quantity.

5. Press 6 to print to a computer, printer or another peripheral device.
17

Without Auto Tare
1. Sampling pieces:
(a) If the sample size is known and a container is used:
(i) Place an empty container on the scale and press : key.
(ii) Place the sample in the container.
(iii) Key in the sample size and then press the 3 Sample or 9
key. The scale will accept the current weights as a sample and will
display the quantity.
-or-
(b) If the sample size is known and no container is used:
(i) Place the sample on the scale.
(ii) Key in the sample size and then press the 3 Sample or 9
key. The scale will accept the current weights as a sample and will
display the quantity.
Example: D J 3 or 9
Use the > key to check other modes such as the Tare weight and Average Piece
Weight. The 4 (Count) can be pressed to return to the count mode at any time.
After accumulating, the weight must return to zero before another accumulation
will be added. The display will show CLEAR WGHT! if the weight is not within
the zero threshold. Remove weight and try again. This feature is necessary to avoid
double accumulations.
18

APW Lookup
Follow the steps below to perform a sample and count parts.
SAMPLE AND COUNT

Auto Tare Method
1. Sampling Pieces:
(a) If a container is used:
(i) Place container on scale and press the 3 Sample or 9 key.
The scale will automatically tare the container.
- or -
(b) If a container is not used:
(i) Press the 3 Sample or 9 key without the sample pieces on the
scale. The scale will tare to establish a net zero reference.
2. Add the sample pieces and press the 3 Accept key to accept the sample.
Without Auto Tare

1) If the sample size is known and a container is used:
a. Place an empty container on the scale and press : key.
b. Place the sample in the container.
c. Key in the sample size and then press the 3 Sample or 9 key. The
scale will accept the current weights as a sample and will display the
quantity.
-or-
19

1) If the sample size is known and no container is used:
a. Place the sample on the scale.
b. Key in the sample size and then press the 3 Sample or 9 key. The
scale will accept the current weights as a sample and will display the
quantity.
Example: D J 3 or 9
STORE A NEW PART NUMBER

Part numbers can be stored in a database and can be recalled later with necessary data
such as the average piece weight and description.
1. Key in the new part number and press the 5 (Rec/New) key. The other data
fields will be cleared.
2. Follow the directions for sample and count above.
3. If you want to add a part description key in the description and press 6
(Desc.). Skip this step if the description is not necessary.
4. Press 4 to store the part number, APW, and description.
UPDATE A PART NUMBER

It is possible to update the data that is stored with a part number.
1. While viewing the part number and data press 4 (Store). The data will be
updated in the database.
RECALL A PART NUMBER

A part number that was stored previously can be recalled to count parts without having to
sample the part.
1. Key in the part number to recall and press 5 (Rec/New).

2. Place pieces on the platform to count.
20

DELETE A PART NUMBER
Any part number that is stored may be deleted.
1. Recall the part number to be deleted by keying in the part number and
pressing 5 (Rec/New). The part number does not have to be recalled if it
already being viewed.
2. Press 7 (Setup).
3. Press 4 (Delete Part#). You will be prompted with the part number to be
deleted and the choice of deleting the part number or aborting the process.
This key will not appear if a part number has not been recalled.
4. Press K to cancel and return to the APW LOOKUP screen or to
continue deleting the part number.
Simple Keypad Sample

Auto Tare Method
1. Sampling Pieces:
(a) If a container is used - Place container on scale and press the 9 key.
The scale will automatically tare the container.
- or -
(b) If a container is not used - Press the 9 key without the sample pieces
on the scale. The scale will tare to establish a net zero reference.
2. Add the sample pieces and press the 9 key to accept the sample.
21

Without Auto Tare
1) If the sample size is known and a container is used:
a. Place an empty container on the scale and press : key.
b. Place the sample in the container.
c. Key in the sample size and then press the 9 key. The scale will accept
the current weights as a sample and will display the quantity.
-or-
1) If the sample size is known and no container is used:
a. Place the sample on the scale.
b. Key in the sample size and then press the 9 key. The scale will accept
the current weights as a sample and will display the quantity.
Example: D J 9
22

CHAPTER 4: CALIBRATION
The calibration mode is accessible through the configuration menu or from the weigh
mode.
Access Calibration from the configuration menu

1. From the main menu press the 7 (Setup) key.
2. Press 6 (Setup Menus) key.
3. Press 3 (CAL) key.
4. Enter the access code and press
Calibration Methods
There are six methods of calibration. Press > to select a calibration method. Press
to begin the calibration method selected. Refer to the appropriate section for calibration
instructions.
• New Zero - Establishes a new zero (no load) and span (test load) calibration
reference.
• Last Zero - Performs a span re-calibration without removing the test load. (This
selection is not available with linearization enabled.)
• Temp Zero - Performs a calibration without removing the current gross weight.
The zero reference determined during the last calibration is maintained. (This
selection is not available with linearization enabled.)
• Only Zero - Establishes a new zero reference without affecting span.
• Cal Reset - Adjusts the zero and gain factors of the A/D amplifier to default
values for maximum sensitivity.
• Known LCOut - Calibrates without the use of test weights. The mV/V value and
full scale capacity of each load cell must be known.
GENERAL NOTES ON CALIBRATION

• Pressing K at any point in the calibration routine moves back one step.
• Pressing K at the New Zero? prompt exits calibration mode.
23

• A calibration weight can be applied before or after entering the calibration weight
value. The display prompts you to Keyin CalWt (key in calibration weight) or
Add CalWT (add calibration weight) at the appropriate time.
• The digital filter is automatically set to 4 seconds during calibration.
• A motion delay is enforced during zero and span calibration.
• New calibration values are not permanently saved until the calibration mode is
exited and changes are saved by pressing at the ENTER=SAVE prompt. If
power is lost during calibration, the previously saved calibration values will be in
effect when power is restored.
• If replacing one indicator with another, it is possible to set the total gain value
(P61108) of the new indicator with that of the original. This will optimize the
coarse and fine gain values, greatly increasing the likelihood of a successful
calibration on the first attempt.
New Zero
The most common calibration procedure, New Zero establishes a new zero (no load) and
span (test load) calibration reference. Use this method for first-time calibration and
complete re-calibration.
TO PERFORM A NEW ZERO CALIBRATION:

1. Remove all weight from the scale.
2. Enter calibration as described on page 23.
3. Select the New Zero calibration method as described in Calibration Methods on
page 23.
4. Press at the New Zero? prompt to establish the new zero reference.
5. After establishing the zero reference, the default calibration units are displayed
momentarily followed by the Keyin CalWt prompt.
6. Apply the calibration weight, key in the calibration weight value in terms of the
default calibration units and press to establish span.
If the calibration weight value was entered before the weight was applied, the
display will prompt Add CalWT. Add the calibration weight and press .
7. After establishing span, CAL OK? is displayed suggesting that the calibration is
acceptable, or ReCal??? is displayed suggesting that the calibration procedure
should be repeated.
8. Accept the calibration by pressing at the CAL OK? prompt or K at the
ReCal??? prompt.
~ or ~
Repeat the calibration by pressing K at the CAL OK? prompt or at the
ReCal??? prompt.
24

9. Once the calibration is accepted in step 6, press at the ENTER=SAVE
prompt and again at the ENTER=EXIT prompt to save the new calibration and
exit the calibration mode.
~ or ~
To exit the calibration mode without saving the new calibration, press K at
theENTER=SAVE prompt. Then press at the ENTER=UNDO prompt and
again at the ENTER=EXIT prompt to exit the calibration mode.
Last Zero
Last Zero allows span re-calibration without removing the applied test weight. The last
zero established by pressing from the weigh mode will be used as the zero reference.
This procedure is especially useful when performing routine tolerance checks on large
capacity scales. A scale found to be out-of-tolerance can be easily calibrated without
having to remove the test weights to reestablish a zero reference.
TO PERFORM A LAST ZERO CALIBRATION:

2. Press < to zero the scale in the weigh mode.
3. Apply the calibration test weight.
4. Access the calibration mode as described on page 23.
5. Select the Last Zero calibration method as described in Calibration Methods on
page 23 .
6. Press at the Last Zero? prompt to display the Keyin CalWT prompt.
7. Key in the calibration weight value in terms of the default calibration units and
press to establish span.
should be repeated.
Accept the calibration by pressing at the CAL OK? prompt or K at the
ReCal??? prompt.
~ or ~
ReCal??? prompt.
~ or ~
To exit the calibration mode without saving the new calibration, press K at the
ENTER=SAVE prompt. Then press at the ENTER=UNDO prompt and
25

If you choose to “undo” the calibration when exiting the setup mode, you
will also undo any unsaved changes made to the setup parameters.
Temporary Zero
Temp Zero is used to calibrate without establishing a new zero. Calibration can
be performed without removing the currently applied gross load. A temporary
zero is established so that test weights can be added during calibration. The
original zero reference determined during the previous calibration is not affected.
This procedure is commonly used to calibrate hopper scales where it is
impractical to empty the product before calibrating.
TO PERFORM A TEMP ZERO CALIBRATION:

2. Select the Temp Zero calibration method as described in Calibration Methods on
page 23.
3. Press at the Temp Zero? prompt to establish a temporary zero reference.
4. After establishing the temporary zero reference, the default calibration units are
displayed momentarily followed by the Keyin CalWT prompt.
5. Apply the calibration weight, key in the calibration weight value in terms of the
default calibration units and press to establish span.
If the calibration weight value was entered before the weight was applied, the
display will prompt Add CalWT. Add the calibration weight and press .
should be repeated.
Accept the calibration by pressing at the CAL OK? prompt or K at the
ReCal??? prompt.
~ or ~
ReCal??? prompt.
~ or ~
26

Only Zero
Only Zero is used for zero calibration only. This calibration procedure is primarily used
for the zero reference after changing a scale’s dead-load, such as adding safety rails to a
scale deck or installing a mixer motor on a hopper scale. Because the full scale capacity
is referenced from the last zero calibration, performing a zero calibration helps to ensure
that the full scale over-load will not occur prematurely due to the additional dead-load.
TO PERFORM AN ONLY ZERO CALIBRATION:

3. Select the Only Zero calibration method as described in Calibration Methods on
page 23.
4. Press at the Only Zero? prompt to establish the new zero reference.
5. After establishing zero, CAL OK? is displayed suggesting that the calibration is
acceptable.
Accept the calibration by pressing at the CAL OK? prompt.
~ or ~
Repeat the calibration by pressing K at the CAL OK? prompt.
~ or ~
If you choose to “undo” the calibration when exiting the setup mode, you will also
undo any unsaved changes made to the setup parameters.
Calibration Reset
Cal Reset sets the gain factors of the A/D amplifier to minimum values and clears the
A/D’s zero offset. These gain values are stored in the Information Parameters at P61104
Æ P61107 (see the Calibration Parameters section). A Cal Reset should be performed
if calibration is not possible due to an over-load condition, or if the displayed weight
value does not change when the test weight is applied.
TO PERFORM A CALIBRATION RESET:

2. Select the Cal Reset calibration method as described in Calibration Methods on
page23.
27

3. Press at the Cal Reset prompt reset the A/D amplifier.
4. The display prompts New Zero?. Proceed with calibration.
If an over-load condition exists at the time of calibration, the calibration method prompts are replaced by an
Over load! message. Press K to proceed directly to the Cal Reset procedure.
Known Loadcell Output

Known LCOut is used to calibrate without test weights. The exact full scale mV/V
rating must be known for each load cell. All load cells must be of the same full scale
capacity. This procedure works best for hopper scales where weight is evenly distributed
and signal trimming is not required.
TO PERFORM A KNOWN LOADCELL OUTPUT CALIBRATION:

2. Select the Known LCOut calibration method as described in Calibration Methods
on page 23.
3. Press at the Known LCOut prompt to display #of LC.
The number of load cells specified during the last calibration will also be
displayed. A value of zero (0) indicates that this calibration method has not yet
been performed.
4. Key in the number of load cells (8 maximum) and press .
~ or ~
Press to accept the displayed value.
5. The display prompts LC#x mVv (where ‘x’ is the load cell number) and then
shows the mV/V value (0.1 Æ 5.0) last entered for this load cell.
6. Key in the load cell’s mV/V value and press .
~ or ~
7. Steps 5-6 will be repeated for as many load cells as specified in step 4.
8. The display prompts LC FS showing the value last entered for the load cell full
scale.
9. Key in the full scale capacity for the load cell(s) and press .
~ or ~
10. The display briefly shows Updtg Gains as it updates the gain values, then
prompts CurWt Zero?.
11. Press to establish the current input signal as the zero reference.
~ or ~
28

Press > to display Zero=0mVv?. Press to use a 0mV/V output as the zero
reference.
~ or ~
Press > to display Keyin CurWt. Key in the known gross weight already
applied to the scale and press .
~ or ~
Press K to bypass the zeroing option.
12. The display shows CAL OK? suggesting that the calibration is acceptable.
Accept the calibration by pressing at the CAL OK? prompt.
~ or ~
Repeat the calibration by pressing K at the CAL OK? prompt.
13. Once the calibration is accepted in step5, press at the ENTER=SAVE prompt
and again at the ENTER=EXIT prompt to save the new calibration and exit the
calibration mode.
~ or ~
ENTER=SAVE prompt. Then press at the ENTER=UNDO prompt and again at
the ENTER=EXIT prompt to exit the calibration mode.
Multi - Scale Calibration

When more than one scale is enabled, the prompt Keyin Scl# appears before accessing
the calibration method selections. Key in the scale number to be calibrated and press .
Proceed with a calibration method as described in Calibration Methods on page 23. After
completing a calibration, the Keyin Scl# appears once again. Enter the next scale
number to be calibrated, or press K to exit the calibration mode and save the new
calibration data.
29

CHAPTER 5: LEGAL FOR TRADE
The Model 675 default parameter setup does not ensure compliance with legal-for-trade
installations as mandated by local weights and measures authorities. This chapter
contains information on NTEP and OIML regulations, sealing and audit trails, and other
requirements.
Since legal-for-trade requirements may vary, you must ensure that the Model 675
installed in accordance with all local regulations.
NTEP Requirements
The National Type Evaluation Program (NTEP) is a widely accepted weights and
measures standard in the United States, with most states abiding by some or all of the
NTEP requirements. A complete list of these regulations is available in the “Handbook
44” publication distributed by the National Institute of Standards and Technology
(NIST). For more information, call (301) 975-3058, or visit http://www.nist.gov.
The Model 675 NTEP Certificate of Conformance (C.O.C.) is pending.

In order to configure the Model 675 to comply with NTEP requirements, parameter P440
(NTEP) must be enabled. This ensures the following:
• Serial data will not be received while in the Setup Mode.
• Weight values that exceed the minimum width specified at P240 will be
transmitted as dashes “-------“.
• Pressing : with a gross weight of zero (0) pressing 0 : will not
automatically switch to the net mode.
• Printing using the = key is only possible from the gross, net or quantity
mode.
• Numeric tare entries cannot be received through the serial port.
• Pressing : with a gross weight of zero (0) will not automatically switch
to the net mode.
• Negative tare values are not accepted regardless of the selection for the
“Negative Tare Enable” parameter (P162).
• Tare values are automatically rounded regardless of the selection for the
“Tare Rounding Enable” parameter (P163).
• Accumulations using the I method can only be performed from the
gross, net or quantity mode.
Where applicable, enabling the restrict parameter will over-ride the current setting of
other parameters.
30

If the counting feature is enabled, NTEP requires a label on the front of the
indicator stating “The counting feature is not legal for trade”. See Other
Requirements on page 35 for other application specific considerations.
NTEP CUSTOM SETUP

The “Custom Setup” parameter, P60205 of the information parameters, displays a list of
parameters which, if configured improperly, could facilitate fraud in a legal-for-trade
installation. A weights & measures inspector might check this parameter and inquire
about the configuration of any parameters that appear in this list.
Accessing the Custom Setup List

DO NOT ATTEMPT TO ACCESS THE CUSTOM SETUP LIST DURING
CRITICAL WEIGHT PROCESSING! It is important to note that all functions of the
operating mode will be suspended immediately upon accessing the information
parameters. This includes suspension of weight conversions, deactivation of all setpoints
and cancellation of custom transmits. The “Custom Setup” list may be accessed from the
weigh mode as shown in the example – Accessing the NTEP Custom Setup List. An
access code is not required to view this list.
To access the custom setup list:
1. From the weigh mode, key in EJBJD >.

2. The Custom Setup list begins scrolling through each parameter to check. If
there are no parameters to check, Std. Setup is displayed.
3. The Custom Setup list may be repeated by pressing at P60205.
4. Press < to return to the weigh mode.
Custom Setup Parameters

A setup parameter that appears in the “Custom Setup” does not imply that it is
improperly configured. Consider the application and refer to the following descriptions
to determine if the parameter is configured appropriately.
P205 – Receive Mode

If the receive mode is enabled for any of the four communication ports, any device
connected to that port should not be used to transmit data to the indicator which could
facilitate fraud.
P205 will appear in the “Custom Setup” list for each receive port enabled. For example,
if the receive mode is enabled for all four ports, the list will display P205—, P205˜,
P205™, and P205š.
31

P240 – Minimum Transmit Width
A weight value that cannot be displayed due to the 6-digit limitation of the standard VF
display may not be printed. To ensure this is not possible, P240 must be set to a width of
not greater than 7 (6 digits and a decimal point). NTEP must also be enabled at P440.
Any weight value that exceeds the minimum width specified will be printed as dashes "--
-----".
P440 – NTEP Enable

P440 appears in the “Custom Setup” list if disabled.
P9990 – Macro Instance Selection

P9990 appears in the “Custom Setup” list if at least one macro is configured. Macro
operation should be checked to verify its conformance to all regulations.
Additional Conformance Considerations

Several parameters must be considered on an individual basis as their configuration may
vary with different applications. These parameters include, but are not limited to those
listed in Table 3.
Table 3: Additional Conformance Parameters
PARAMETER DESCRIPTION COMMENT

P110 Full Scale Capacity Verify proper scale capacity.
P111 Division Size Verify allowable scale divisions.
P112 Zero Track Verify required selection.
P114 Motion Verify required selection.
P118 Zero Range Verify required selection.
P212 Print Stability Verify required selection.
P126 Æ P130 Multi-Range Verify proper configuration.
P131 Æ P134 Unit selection Verify certifiable unit selection. †
P151 Æ P154 Custom Units Verify name and conversion factor.
P600 Æ P646 Rename Parameters Verify acceptable names.
† Custom units must be site approved. Lb/oz is not approved for legal-for-trade
installations.
Sealing And Audit Trails

Most legal-for-trade installations will require the Model 675 to be sealed. A sealed
indicator cannot be accessed for setup or calibration changes without breaking a physical
seal or incrementing an event counter, thus providing evidence of tampering.
The Model 675 has two types of sealing provisions, a physical seal and a three event
audit trail counter. Check with your local weights and measures authority to determine
your requirements.
32

PHYSICAL SEAL
The most common sealing method is a lead-wire seal. The Model 675 provides an easy
means of applying this type of seal as shown in Figure 4.
Before applying a wire seal, move the program jumper to the ‘NO’ position as shown in
Figure 3. This will prevent access to the Setup and Calibration Modes.
Figure 3: Program Jumper
Figure 4: Physical Seal
AUDIT TRAILS
Three separate incrementing, non-resetable audit trail parameters are used by the Model
675 to indicate changes to various parameters, P60201 – OIML, P60203 – Calibration ,
and P60204 – Setup. An audit trail counter will increment only once upon exiting the
Setup Mode and saving changes regardless of how many settings were changed.
33

OIML Audit Trail
Changes to any of the following parameters will increment the OIML (Euro) audit trail at
P60201:
• P109 – P119 (Scale Setup)
• P122 (Return to Zero)
• P131 – P134 (Units)
• P150 – P154 (Calibration and Custom Units)
• P162, P163 (Negative Tare Enable, Tare Rounding Enable)
• P300 – P309 (Selectable Modes)
• P410, P412 (OIML Enable, Preset Enable)
• P420 (Standard VF Display Mode)
• P600 – P646 (Rename Parameters)
• P800 – P820 (Key Functions)
• P989 – P4999 (Custom Transmit)
• P61101 – 61140 (Calibration and Linearization)
• P65001, P65002 (Default All, Default –Cal)
Calibration Audit Trail

Any changes to the existing calibration will increment the Calibration (CAL) audit trail at
P60203. This includes any changes to P60101 – P61140 of the information parameters.
Setup Audit Trail

Changes to any of the Setup Mode parameters will increment the setup audit trail at
P60204.
Viewing Audit Trail Parameters

Audit trail parameters may be viewed at any time.
To view audit trail parameters:
1. Press EJBJ@ !.
DISPLAY READS X Audit ~ Trail~CAL. ~ 00001
2. Press ! again to view the Setup Audit Trail parameter.

DISPLAY READS X Audit ~ Trail~Setup. ~ 00003
3. Press < to return to the Weigh Mode.

DISPLAY READS X 0.00
OMIL Requirements
The International Organization of Legal Metrology is an inter-governmental body which
harmonizes the national metrology regulations of its worldwide members. A list of
34

regulation publications can be obtained from the Bureau International de Métrologie
Légale (BIML) in Paris, France.
In order to configure the indicator to comply with OIML requirements, P410 must be
enabled in the setup mode. Doing this will ensure the following:
• An over-load condition will result when the gross weight exceeds nine (9)
graduations over the full scale capacity.
• Full scale capacity is always referenced from the last zero calibration
reference, not the last zero acquired by pressing <.
• Presettable parameters will give indication that a value has been entered
manually
Most NTEP requirements will also apply. See the NTEP section of this chapter for
additional considerations.
Enabling OIML Operation

See the Model 675 Technical Reference Manual for details on enabling the OIML
parameters.
Other Requirements
Several parameters must be considered on an individual basis as their configuration may
vary with different applications. These parameters include, but are not limited to:
Parameter Description COMMENT

P110 Full Scale Capacity Verify proper scale capacity.
P111 Division Size Verify that the maximum allowable number of scale divisions are not exceeded.
P112 Zero Track Verify required selection.
P114 Stability Verify required selection.
P118 Zero Range Verify required selection.
P212 Print Stability Verify required selection.
35

CHAPTER 6: TROUBLESHOOTING
Operational Errors
MESSAGE DESCRIPTION
Input signal less than negative full scale. If this is due to excessive
loading, reduce the load. Otherwise check the load cell connections. If a
4 wire load cell cable is being used, check that the sense jumpers are in
Code02
Under
Load! place. Verify that the capacity selection P110 is correct. Use the
information parameters, especially P61103 and P61104, to check the
setup and input signal.
Input signal is greater than positive full scale. Use same check as for
CoDE03
Over-
Load! underload.
Number to be displayed will not fit within 6 digits. This will not normally
occur for the Gross, Net or Tare Weights but may result while displaying
CoDE04
#>
Dsply the accumulated totals if the amount exceeds 999,999. Either clear the
totals or settle for only being able to transmit the totals.
An attempt was made to zero out more than allowed per P118 selection.
Use the : key for subtracting off container weights or if large dead-
CoDE05
Zero>
Max.! load is always to be present, apply this dead-load during the No Load?
prompt during calibration to permanently eliminate the offset.
Tare entry was greater than full scale. Most likely the entered tare value
CoDE06
Tare>
F.S.! was incorrect.
Negative tare attempted, but not allowed per P162. For auto-tares, the
CoDE07
Tare<
GROSS Weight must be greater than zero unless P162 is changed to
0!
allow negative tares.
The signal into the A/D is greater than +/- 2 times the expected full scale
signal. For example if the full scale capacity at P110 is 100, then the
CoDE08
Check
error message will be displayed at +/- 208 taking into consideration the
Conn
4% overload. This error usually indicates a defective or incorrectly wired
load cell.
Setup Mode Errors

MESSAGE DESCRIPTION
An entry was made which had more characters than allowed. The most
CoDE10
Entry
likely cause is making an entry for an ID that is longer than the
>Max!
programmed size of that ID.
The incorrect access code was entered, thus preventing changes. In
order to access the Setup Mode, either the proper code must be entered
CoDE11
WRONG
CODE! or the key must be pressed alone (to view selections without making
changes).
The Setup Mode is being accessed, but changes are prevented.
CoDE12
No
Mods!
An entry made for a selection was beyond the range of valid choices.
Also, an out of range error will occur during the execution of a macro
CoDE13
Outof
utilizing the “%m” command. For example, If the command wants to strip
Range
out characters 5 through 8 and the string is only set for 2 characters, this
error will occur.

MESSAGE DESCRIPTION
The choice for the current parameter must be keyed in.
CoDE14
Must
Keyin
The size of one of the input interpreter, macro or custom transmit tables
has exceeded it’s limit. Input interpreter size is limited to 198 for 660
CoDE15
Size
>Max! Series, 98 for all other products; macro size is limited to 9996; custom
transmit size is limited to 3997.
A programming operation was attempted when the program jumper is
CoDE16
CHECK
installed. Installation of this jumper will prohibit any programming
JUMPR
changes.
Hardware Errors
MESSAGE DESCRIPTION
No An attempt was made to abort a macro when no macros were defined.
Macro
Macro An error occurred during macro execution. Check for proper syntax.
error Analyze the macro debug buffer to help determine the cause of the error.
No A serial or A/D database collection command (%’ or %*) was executed
Start prior to the “start collection” command.
Must A serial or database start collection command (S%’ or S%*) was issued
Free without first freeing memory with the F%’ or F%* command.
Wrong The parameter specified for data collection using the %* command was
parm invalid or not of type float.
The maximum number of macros pushed onto the stack has been
exceeded. This error usually indicates that macros are being invoked
CoDE81
Macro
faster than they can be executed (for example, macros invoked by
Stack
continuous, short-interval input setpoints, multiple macro “calls”, etc.)
The maximum number of macros on the stack is 200.
A macro was aborted from within a macro via one of the macro abort
CoDE82
Macro
Abort operations or from the front keypad by pressing K + >
A call or similar reference to an undefined macro occurred. Make sure
CoDE83
Macro
UnDef the intended macro is configured beginning at P9990.
An incorrect math operation has been performed. This could be caused
by trying to divide by zero or any other non-acceptable algebraic
CoDE84
Math
error operation. This message will also occur if trying to take the negative or
zero modulus of a number.
An error occurred during macro execution as the result of invalid syntax.
CoDE85
Syntx
Re-check the macro or analyze the macro debug table to find out where
Error
the error occurred. Refer to Chapter 9 for proper macro syntax.
The number of opening and closing braces within a macro are different.
CoDE86
Macro
When nesting conditional statements or grouping conditional Boolean
Brace
statements, make sure the proper use the %{ and %} brace commands.
An attempt was made to jump to an undefined tag. When using simple
jump-tag commands, make sure the intended tag is properly specified
CoDE87
NoTag and that the tag command is executed before the jump. When using
Found
macro-independent jump-tag commands, make sure the correct macro
number is specified and that the jump text matches that of the tag.

Calibration Errors
MESSAGE DESCRIPTION
A parameter entry is required for a setpoint’s Activation Limit,
Code92
„Stpt
Deactivation Limit, or Compare parameter. Pressing any key will
Setup
automatically select the offending parameter and allow you to correct it.
The EEPROM size is too small to allocate the database requested.
CoDE95
SyErr
NvRam
An error occurred at startup or during operation. Contact GSE.
CoDE95
SyErr
HSR00
An error occurred at startup. Contact GSE.
CoDE95
SyErr
Typ04
An attempt was made to enter an instrument serial number or board
Code96
Erase
Boot! serial number with the flash already programmed.
An attempt to enter a value for a parameter which is not field changeable,
CoDE99
Can't
such as the serial numbers or the audit trail counter results in this
Set!
message.
An attempt was made to access a non-existent parameter. Key in a valid
P___
Invld parameter and press >, or press only > or to proceed to the
Mode!
nearest lower valid parameter.
Mode An attempt was made to access a weigh mode parameter from within the
<100! setup mode. Valid setup mode parameters contain three or more digits.
The > key was pressed at a “pick instance” prompt. You must press
Press
Enter to select an instance, or K to abort the instance entry.
Okay? This is not an error. Press to acknowledge your entry, or K to re-
##### enter.
Upon each power-up, the indicator tests the integrity of its firmware. If the
Cksum
result is not correct this message is displayed and the indicator is not
error
usable. ReFlash the indicator.
MdBus An attempt was made to modify the modbus parameter map past its limit
Max! of P6999.
Communication Errors
MESSAGE DESCRIPTION
The parity of a received character did not match the parity specified
in the setup mode at P202. This could also result if the baud rate
prtyX
(P200) or the number of data bits (P201) are incorrect. The ‘X’ in the
error
error message represents the COMM port number on which the
problem occurred.
An overrun error occurred where additional characters were received
ovrnX while the receive buffer was full. The additional characters will be
error lost. The ‘X’ in the error message represents the COMM port number
on which the problem occurred.
The stop bit of a received character did not occur when it was
expected. This could be the result of an incorrect baud rate (P200),
frmgX
incorrect number of data bits (P201), or incorrect parity setting
error
(P202). The ‘X’ in the error message represents the COMM port
number on which the problem occurred.

MESSAGE DESCRIPTION
The indicator did not check its receive data register in time, thus
portX missing a character. To prevent the problem, try reducing the baud
error rate (P200). The ‘X’ in the error message represents the COMM port
number on which the problem occurred.
Associated with Modbus. This is selected at P205. This message
indicates that a transmission out the specified port was attempted.
NoTxX
This is not acceptable if the port is set for Modbus. The ‘X’ in the
Allow
error message represents the COMM port number on which the
problem occurred.
Occurs if a data transmission is held up for two seconds of more due
tx on
to a deasserted handshake. Refer to the description of parameter
hold
P209 for more information.
Occurs if the K key is pressed when the tx on hold error message
tx
abort is shown or if P209 is set for abort and the transmit buffer becomes
full.
tx Appear briefly when the handshake is re-asserted after the tx on hold
Con'd message occurs.
BadTx Appears briefly after an attempt was made to put a byte in an invalid
Port comm port receive buffer.
Wrong An invalid communication port number was specified.
Comm#

Part Number
39-10-40879

GSE Model 675: Precision Counting Scale

Uploaded by

Document Information

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

GSE Model 675: Precision Counting Scale

Uploaded by

Copyright:

Available Formats

GSE Model 675

Precision Counting Scale

Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

Copyright © 2004 GSE Scale Systems. All rights reserved.

GSE Scale Systems

GSE Canada, Inc.

Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

Back Panel Connections

Table 1: Scale 2 DB 9 Connector Pin Out

Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

Figure 1: Counting Method Choices

F1 Soft Key- Quick Count

F2 Count – Gives access to the quantity mode.

F4 Print – Send specific information to a printer, computer or other peripheral

F5 Setup – Access setup menus, see page 7 for further details.

Downloaded from www.Manualslib.com manuals search engine

F2 Soft Key- GSE Custom

F4 Desc – Add a part description.

F5 Setup - Access setup menus, see page 10 for further details.

Downloaded from www.Manualslib.com manuals search engine

F3 Soft Key- GSE Default

Setup the GSE DEFAULT Mode

Downloaded from www.Manualslib.com manuals search engine

Setup Change Clear Key-In Setup Exit

Cal Display Print Advance Exit

See page 15 for complete

PARAMETER DESCRIPTION DEFAULT SETTING KEYPRESSES

 The YES key is  the NO key is K.

Downloaded from www.Manualslib.com manuals search engine

PARAMETER DESCRIPTION DEFAULT SETTING KEYPRESSES

Large display Small Display Small Display

Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

Change Delete Key-In Setup Exit

Cal Display Print Advance Exit

Print D-Load Print Exit See page 15

Comm Comm Display Exit

Comm Comm Exit

Downloaded from www.Manualslib.com manuals search engine

PARAMETER DESCRIPTION DEFAULT SETTING KEYPRESSES

 The YES key is  the NO key is K.

PARAMETER DESCRIPTION DEFAULT SETTING KEYPRESSES

Downloaded from www.Manualslib.com manuals search engine

Large display Small display Small display Small Display

Downloaded from www.Manualslib.com manuals search engine

1. Press 6 to access the SET MODES menu.

3. Use the 4 Enable Mode key to enable the mode.

4. Use the 5 Disable Mode key to disable the mode.

5. Press 7 to exit back into the APW LOOKUP screen.

Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

Reserved for future use.

Î See the Tech Manual for details

Î Create and load as transmit #130

Î Your custom transmit will appear in place of

ADVANCED SETUP MENU

Figure 2: Advanced Setup Menu

The YES key is the NO key is K.

The YES key is the NO key is K.

4. Enter the access code and press
