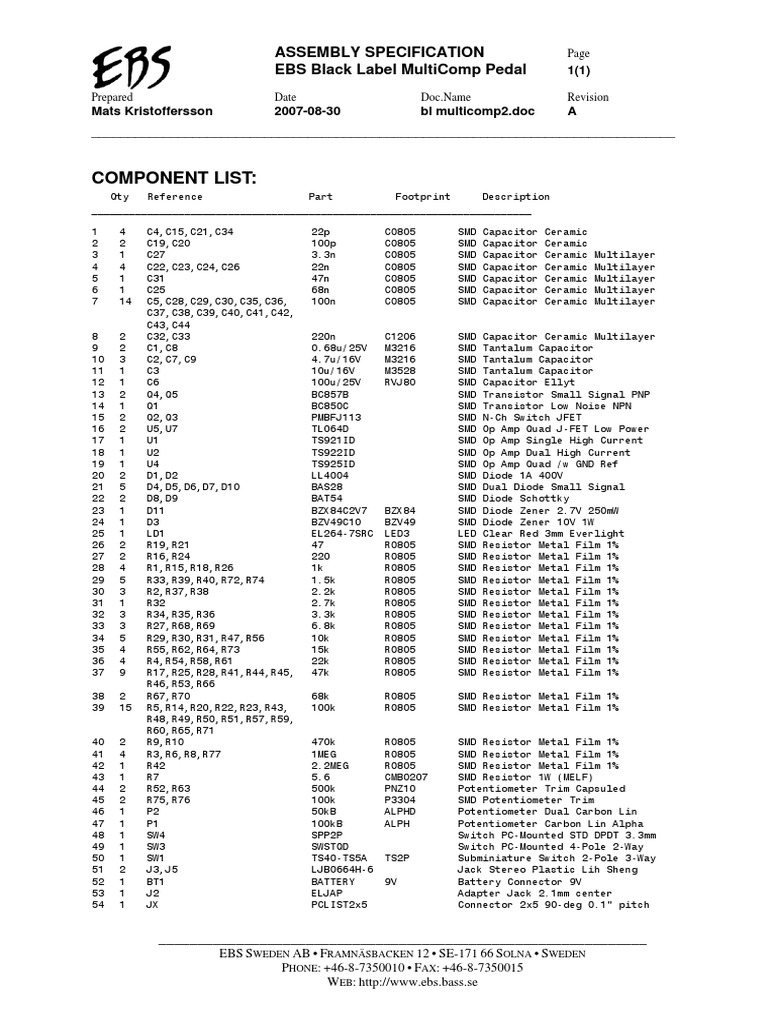

ASSEMBLY SPECIFICATION Page

EBS Black Label MultiComp Pedal 1(1)

Prepared Date Doc.Name Revision

Mats Kristoffersson 2007-08-30 bl multicomp2.doc A
_________________________________________________________________________________

COMPONENT LIST:
Qty Reference Part Footprint Description
_______________________________________________________________________

1 4 C4,C15,C21,C34 22p C0805 SMD Capacitor Ceramic

2 2 C19,C20 100p C0805 SMD Capacitor Ceramic
3 1 C27 3.3n C0805 SMD Capacitor Ceramic Multilayer
4 4 C22,C23,C24,C26 22n C0805 SMD Capacitor Ceramic Multilayer
5 1 C31 47n C0805 SMD Capacitor Ceramic Multilayer
6 1 C25 68n C0805 SMD Capacitor Ceramic Multilayer
7 14 C5,C28,C29,C30,C35,C36, 100n C0805 SMD Capacitor Ceramic Multilayer
C37,C38,C39,C40,C41,C42,
C43,C44
8 2 C32,C33 220n C1206 SMD Capacitor Ceramic Multilayer
9 2 C1,C8 0.68u/25V M3216 SMD Tantalum Capacitor
10 3 C2,C7,C9 4.7u/16V M3216 SMD Tantalum Capacitor
11 1 C3 10u/16V M3528 SMD Tantalum Capacitor
12 1 C6 100u/25V RVJ80 SMD Capacitor Ellyt
13 2 Q4,Q5 BC857B SMD Transistor Small Signal PNP
14 1 Q1 BC850C SMD Transistor Low Noise NPN
15 2 Q2,Q3 PMBFJ113 SMD N-Ch Switch JFET
16 2 U5,U7 TL064D SMD Op Amp Quad J-FET Low Power
17 1 U1 TS921ID SMD Op Amp Single High Current
18 1 U2 TS922ID SMD Op Amp Dual High Current
19 1 U4 TS925ID SMD Op Amp Quad /w GND Ref
20 2 D1,D2 LL4004 SMD Diode 1A 400V
21 5 D4,D5,D6,D7,D10 BAS28 SMD Dual Diode Small Signal
22 2 D8,D9 BAT54 SMD Diode Schottky
23 1 D11 BZX84C2V7 BZX84 SMD Diode Zener 2.7V 250mW
24 1 D3 BZV49C10 BZV49 SMD Diode Zener 10V 1W
25 1 LD1 EL264-7SRC LED3 LED Clear Red 3mm Everlight
26 2 R19,R21 47 R0805 SMD Resistor Metal Film 1%
27 2 R16,R24 220 R0805 SMD Resistor Metal Film 1%
28 4 R1,R15,R18,R26 1k R0805 SMD Resistor Metal Film 1%
29 5 R33,R39,R40,R72,R74 1.5k R0805 SMD Resistor Metal Film 1%
30 3 R2,R37,R38 2.2k R0805 SMD Resistor Metal Film 1%
31 1 R32 2.7k R0805 SMD Resistor Metal Film 1%
32 3 R34,R35,R36 3.3k R0805 SMD Resistor Metal Film 1%
33 3 R27,R68,R69 6.8k R0805 SMD Resistor Metal Film 1%
34 5 R29,R30,R31,R47,R56 10k R0805 SMD Resistor Metal Film 1%
35 4 R55,R62,R64,R73 15k R0805 SMD Resistor Metal Film 1%
36 4 R4,R54,R58,R61 22k R0805 SMD Resistor Metal Film 1%
37 9 R17,R25,R28,R41,R44,R45, 47k R0805 SMD Resistor Metal Film 1%
R46,R53,R66
38 2 R67,R70 68k R0805 SMD Resistor Metal Film 1%
39 15 R5,R14,R20,R22,R23,R43, 100k R0805 SMD Resistor Metal Film 1%
R48,R49,R50,R51,R57,R59,
R60,R65,R71
40 2 R9,R10 470k R0805 SMD Resistor Metal Film 1%
41 4 R3,R6,R8,R77 1MEG R0805 SMD Resistor Metal Film 1%
42 1 R42 2.2MEG R0805 SMD Resistor Metal Film 1%
43 1 R7 5.6 CMB0207 SMD Resistor 1W (MELF)
44 2 R52,R63 500k PNZ10 Potentiometer Trim Capsuled
45 2 R75,R76 100k P3304 SMD Potentiometer Trim
46 1 P2 50kB ALPHD Potentiometer Dual Carbon Lin
47 1 P1 100kB ALPH Potentiometer Carbon Lin Alpha
48 1 SW4 SPP2P Switch PC-Mounted STD DPDT 3.3mm
49 1 SW3 SWSTQD Switch PC-Mounted 4-Pole 2-Way
50 1 SW1 TS40-TS5A TS2P Subminiature Switch 2-Pole 3-Way
51 2 J3,J5 LJB0664H-6 Jack Stereo Plastic Lih Sheng
52 1 BT1 BATTERY 9V Battery Connector 9V
53 1 J2 ELJAP Adapter Jack 2.1mm center
54 1 JX PCLIST2x5 Connector 2x5 90-deg 0.1” pitch
