DC circuit 1

Name:_______________________ Date:___________

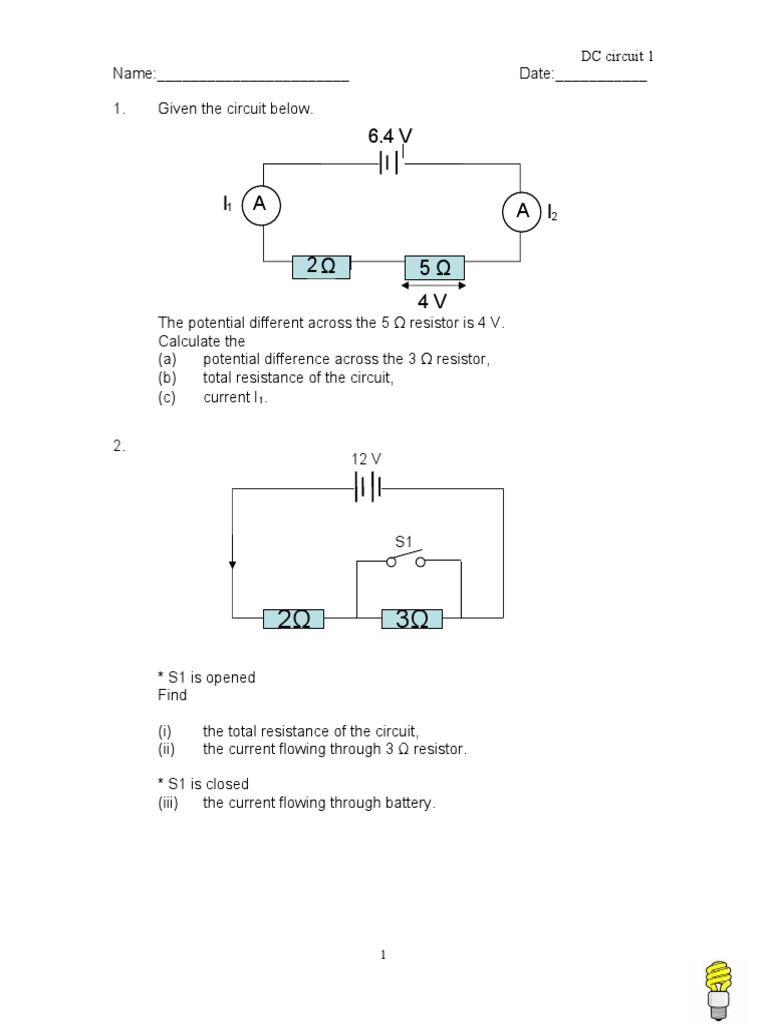

1. Given the circuit below.

6.4 V

I1 A A I2

2Ω
2 3
5ΩΩ
4V
The potential different across the 5 Ω resistor is 4 V.
Calculate the
(a) potential difference across the 3 Ω resistor,
(b) total resistance of the circuit,
(c) current I1.

2.
12 V

S1

2Ω 3Ω

* S1 is opened
Find

(i) the total resistance of the circuit,

(ii) the current flowing through 3 Ω resistor.

* S1 is closed
(iii) the current flowing through battery.

1
 DC circuit 1
3. 8V

I3
I1
3Ω
4

83 Ω

12Ω
3Ω
I2
Find:

(a) the total resistance of the circuit,

(b) the voltage across 4 Ω and 12 Ω resistor respectively,
(c) the current I1, I2 and I3,
(d) the charge through the battery in 2 min.

4. 36 V
A

33ΩΩ
B C
10 Ω S2
A

6Ω
6Ω
* S2 is opened
Find:
(a) the total resistance of the circuit,
(b) the voltage across the 3 Ω resistor.

* S2 is closed
Find:

(c) the total resistance of the circuit,

(d) the current flowing through the circuit,
(e) the charge through 10 Ω resistor in 1 min.
