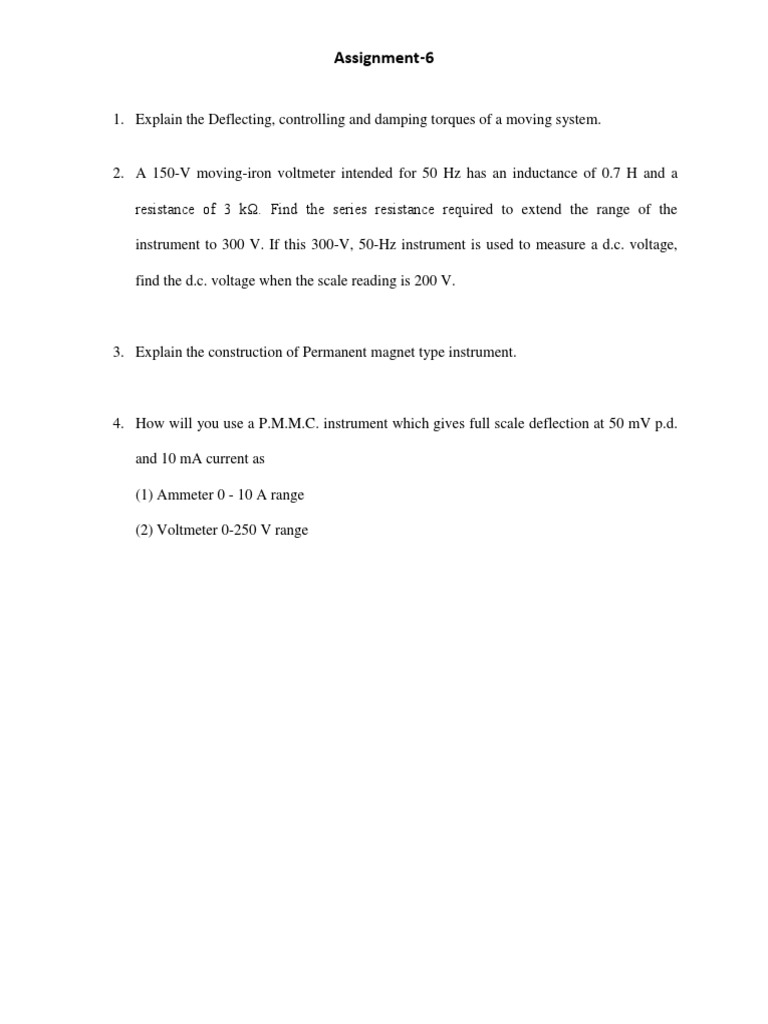

Assignment-6

1. Explain the Deflecting, controlling and damping torques of a moving system.

2. A 150-V moving-iron voltmeter intended for 50 Hz has an inductance of 0.7 H and a

resistance of 3 kΩ. Find the series resistance required to extend the range of the

instrument to 300 V. If this 300-V, 50-Hz instrument is used to measure a d.c. voltage,

find the d.c. voltage when the scale reading is 200 V.

3. Explain the construction of Permanent magnet type instrument.

4. How will you use a P.M.M.C. instrument which gives full scale deflection at 50 mV p.d.

and 10 mA current as

(1) Ammeter 0 - 10 A range

(2) Voltmeter 0-250 V range
