Electrical & Power Control System Overview

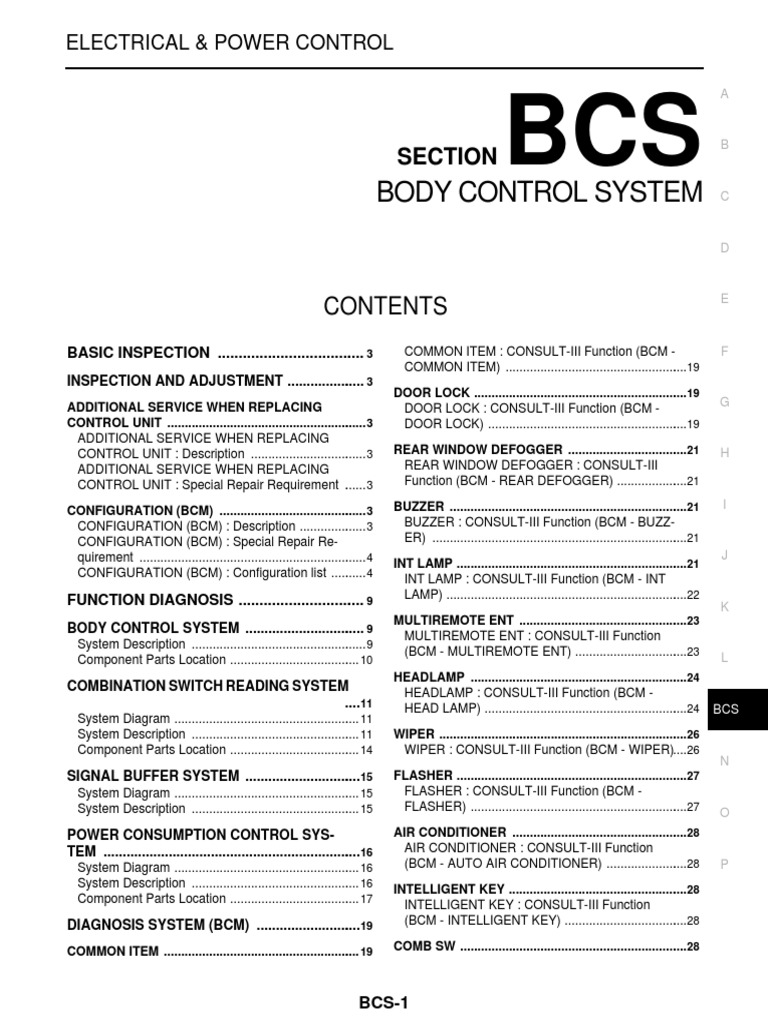

ELECTRICAL & POWER CONTROL
SECTION
BODY CONTROL SYSTEM
BCS B
E
CONTENTS
BASIC INSPECTION .................................... 3 COMMON ITEM : CONSULT-III Function (BCM - F
COMMON ITEM) .....................................................19
INSPECTION AND ADJUSTMENT ..................... 3
DOOR LOCK ..............................................................19
ADDITIONAL SERVICE WHEN REPLACING G
DOOR LOCK : CONSULT-III Function (BCM -
CONTROL UNIT .......................................................... 3 DOOR LOCK) ..........................................................19
ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT : Description .................................. 3 REAR WINDOW DEFOGGER ...................................21 H
ADDITIONAL SERVICE WHEN REPLACING REAR WINDOW DEFOGGER : CONSULT-III
CONTROL UNIT : Special Repair Requirement ...... 3 Function (BCM - REAR DEFOGGER) .....................21
CONFIGURATION (BCM) ........................................... 3 BUZZER .....................................................................21 I

CONFIGURATION (BCM) : Description .................... 3 BUZZER : CONSULT-III Function (BCM - BUZZ-
CONFIGURATION (BCM) : Special Repair Re- ER) ..........................................................................21
quirement .................................................................. 4 J
INT LAMP ...................................................................21
CONFIGURATION (BCM) : Configuration list ........... 4
INT LAMP : CONSULT-III Function (BCM - INT
FUNCTION DIAGNOSIS ............................... 9 LAMP) ......................................................................22
K
MULTIREMOTE ENT .................................................23
BODY CONTROL SYSTEM ................................ 9
MULTIREMOTE ENT : CONSULT-III Function
System Description ................................................... 9
(BCM - MULTIREMOTE ENT) .................................23 L
Component Parts Location ...................................... 10
HEADLAMP ...............................................................24
COMBINATION SWITCH READING SYSTEM HEADLAMP : CONSULT-III Function (BCM -
....11 HEAD LAMP) ...........................................................24 BCS
System Diagram ...................................................... 11
System Description ................................................. 11 WIPER ........................................................................26
Component Parts Location ...................................... 14 WIPER : CONSULT-III Function (BCM - WIPER)....26
N
SIGNAL BUFFER SYSTEM ...............................15 FLASHER ...................................................................27
System Diagram ...................................................... 15 FLASHER : CONSULT-III Function (BCM -
System Description ................................................. 15 FLASHER) ...............................................................27 O
POWER CONSUMPTION CONTROL SYS- AIR CONDITIONER ...................................................28
TEM ....................................................................16 AIR CONDITIONER : CONSULT-III Function
System Diagram ...................................................... 16 (BCM - AUTO AIR CONDITIONER) ........................28 P
System Description ................................................. 16
INTELLIGENT KEY ....................................................28
Component Parts Location ...................................... 17
INTELLIGENT KEY : CONSULT-III Function
DIAGNOSIS SYSTEM (BCM) ............................19 (BCM - INTELLIGENT KEY) ....................................28
COMMON ITEM ......................................................... 19 COMB SW ..................................................................28
BCS-1
COMB SW : CONSULT-III Function (BCM - COMBINATION SWITCH OUTPUT CIRCUIT ... 38
COMB SW) ............................................................. 28 Diagnosis Procedure ............................................... 38
BCM ........................................................................... 29 COMBINATION SWITCH .................................. 39
BCM : CONSULT-III Function (BCM - BCM) .......... 29 Description .............................................................. 39
Diagnosis Procedure ............................................... 39
IMMU ......................................................................... 29
IMMU : CONSULT-III Function (BCM - IMMU) ....... 29 ECU DIAGNOSIS ....................................... 40
BATTERY SAVER .................................................... 30 BCM (BODY CONTROL MODULE) .................. 40
BATTERY SAVER : CONSULT-III Function (BCM
Reference Value ..................................................... 40
- BATTERY SAVER) .............................................. 30
Wiring Diagram - BCM - .......................................... 57
TRUNK ...................................................................... 31 Fail Safe ................................................................. 63
TRUNK : CONSULT-III Function (BCM - TRUNK)... 31 DTC Inspection Priority Chart ............................... 64
DTC Index .............................................................. 65
THEFT ALM .............................................................. 31
THEFT ALM : CONSULT-III Function (BCM - PRECAUTION ............................................ 66
THEFT ALM) .......................................................... 31
PRECAUTIONS ................................................. 66
SIGNAL BUFFER ...................................................... 32 Precaution for Supplemental Restraint System
SIGNAL BUFFER : CONSULT-III Function (BCM (SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
- SIGNAL BUFFER) ................................................ 32 SIONER" ................................................................. 66
COMPONENT DIAGNOSIS ........................ 33 SYMPTOM DIAGNOSIS ............................ 67

U1000 CAN COMM CIRCUIT ............................ 33 COMBINATION SWITCH SYSTEM SYMP-
Description .............................................................. 33 TOMS ................................................................. 67
DTC Logic ............................................................... 33 Symptom Table ....................................................... 67
Diagnosis Procedure .............................................. 33
ON-VEHICLE REPAIR ............................... 68
U1010 CONTROL UNIT (CAN) ......................... 34
DTC Logic ............................................................... 34 BCM (BODY CONTROL MODULE) .................. 68
Diagnosis Procedure .............................................. 34 Exploded View ........................................................ 68
Removal and Installation ......................................... 68
POWER SUPPLY AND GROUND CIRCUIT ..... 35
Diagnosis Procedure .............................................. 35 COMBINATION SWITCH .................................. 69
Exploded View ........................................................ 69
COMBINATION SWITCH INPUT CIRCUIT ....... 36 Removal and Installation ......................................... 69
Diagnosis Procedure .............................................. 36
BCS-2
INSPECTION AND ADJUSTMENT
< BASIC INSPECTION >
BASIC INSPECTION A
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT
B
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Description
INFOID:0000000001451318
C
BEFORE REPLACEMENT
When replacing BCM, save or print current vehicle specification with CONSULT-III configuration before
replacement. D
NOTE:
If “READ CONFIGURATION” can not be used, use the “WRITE CONFIGURATION - Manual selection” after
replacing BCM.
E
AFTER REPLACEMENT
CAUTION:
• When replacing BCM, you must perform “WRITE CONFIGURATION” with CONSULT-III.
- Complete the procedure of “WRITE CONFIGURATION” in order. F
- If you set incorrect “WRITE CONFIGURATION”, incidents might occur.
- Configuration is different for each vehicle model. Confirm configuration of each vehicle model.
• When replacing BCM, perform the system initialization (NATS). G
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Re-
quirement INFOID:0000000001451319
H
1.SAVING VEHICLE SPECIFICATION

CONSULT-III Configuration I
Perform “READ CONFIGURATION” to save or print current vehicle specification. Refer to BCS-3, "CONFIGU-
RATION (BCM) : Description".
NOTE:
J
If “READ CONFIGURATION” can not be used, use the “WRITE CONFIGURATION - Manual selection” after
replacing BCM.
K
>> GO TO 2.
2.REPLACE BCM
Replace BCM. refer to BCS-68, "Exploded View". L
>> GO TO 3.
BCS
3.WRITING VEHICLE SPECIFICATION
CONSULT-III Configuration
Perform “WRITE CONFIGURATION - Config file” or “WRITE CONFIGURATION - Manual selection” to write N
vehicle specification. Refer to BCS-4, "CONFIGURATION (BCM) : Special Repair Requirement".
>> GO TO 4. O
4.INITIALIZE BCM (NATS)
Perform BCM initialization. (NATS)
P
>> WORK END

CONFIGURATION (BCM)
CONFIGURATION (BCM) : Description INFOID:0000000001451320
Vehicle specification needs to be written with CONSULT-III because it is not written after replacing BCM.
BCS-3
Configuration has three functions as follows
Function Description
• Reads the vehicle configuration of current BCM.
READ CONFIGURATION
• Saves the read vehicle configuration.
WRITE CONFIGURATION - Manual selection Writes the vehicle configuration with manual selection.
WRITE CONFIGURATION - Config file Writes the vehicle configuration with saved data.
NOTE:
Manual setting item: Items which need selection by vehicle specifications
Automatic setting item: Items which are written in automatically (Setting can not be changed)
CAUTION:
• When replacing BCM, you must perform “WRITE CONFIGURATION” with CONSULT-III.
• Complete the procedure of “WRITE CONFIGURATION” in order.
• If you set incorrect “WRITE CONFIGURATION”, incidents might occur.
• Configuration is different for each vehicle model. Confirm configuration of each vehicle model.
• Never perform “WRITE CONFIGURATION” except for new BCM.
CONFIGURATION (BCM) : Special Repair Requirement INFOID:0000000001451321
1.WRITING MODE SELECTION

Select “CONFIGURATION” of BCM.
When writing saved data>>GO TO 2.

When writing manually>>GO TO 3.
2.PERFORM “WRITE CONFIGURATION - CONFIG FILE”
Perform “WRITE CONFIGURATION - Config file”.
>> WORK END

3.PERFORM “WRITE CONFIGURATION - MANUAL SELECTION”
1. Select "WRITE CONFIGURATION - Manual selection".
2. Identify the correct model and configuration list. Refer to BCS-4, "CONFIGURATION (BCM) : Configura-
tion list".
3. Confirm and/or change setting value for each item.
4. Select "Setting change".
CAUTION:
Make sure to select “Setting change” even if the indicated configuration of brand new BCM is
same as the desirable configuration. If not, configuration which is set automatically by selecting
vehicle model can not be memorized.
5. When "COMMAND FINISHED", select "END".
>> WORK END

CONFIGURATION (BCM) : Configuration list INFOID:0000000001403874
RHD MODELS WITHOUT I-KEY
MANUAL SETTING ITEM

NOTE
Items Setting value
RAIN SENSOR WITH ⇔ WITHOUT —
H/L BULB H4 HALOGEN H4 HALOGEN: Halogen headlamp
BCS-4
MANUAL SETTING ITEM
NOTE A
Items Setting value
AUTO LIGHT WITH ⇔ WITHOUT —
HANDLE RHD — B
KEYLESS ENTRY WITH —
I-KEY WITHOUT —
DTRL WITHOUT — C
THEFT ALARM WITH —
H/L WASHER WITHOUT —
D
⇔: Items which confirm vehicle specifications
AUTO SETTING ITEM E

NOTE
Items Setting value
H/L WSR SWTRG FR WSR SW —
FR FOG LAMP WITH Even on a vehicle without front fog lamp. it displays “WITH”. F
DONGLE WITH —
SUPER LOCK WITH —
G
DOOR/L SPEED WITH —
KEY WARNING MODE1 —
R LAMP LOGIC MODE2 — H
RR SPEED WIPER MODE1 —
ROOM LAMP TIMER MODE3 —
I
R/L ON TIME MODE2 —
R/L OFF TIME MODE2 —
HLW TIME 1 MODE1 — J
HLW TIME 2 MODE1 —
RAIN SEN TYPE MODE1 —
K
REVERSE LINK WITHOUT —
TRUNK ACT OUTPUT MODE1 —
RR WIPER GND MODE1 — L
HLW ACT STEP MODE1 —
RHD MODELS WITH I-KEY

BCS
MANUAL SETTING ITEM
NOTE
Items Setting value
N
RAIN SENSOR WITH —
• H4 HALOGEN: Halogen headlamp
H/L BULB H4 HALOGEN ⇔ DEFAULT
• DEFAULT: Xenon headlamp O
AUTO LIGHT WITH —
HANDLE RHD —
KEYLESS ENTRY WITHOUT — P
I-KEY WITH —
DTRL WITHOUT —
THEFT ALARM WITH —
H/L WASHER WITH ⇔ WITHOUT H/L WASHER: Headlamp washer system
BCS-5
AUTO SETTING ITEM

NOTE
Items Setting value
FR FOG LAMP WITH Even on a vehicle without front fog lamp. it displays “WITH”.
DONGLE WITH —
SUPER LOCK WITH —
R LAMP LOGIC MODE2 —
RR WIPER GND MODE1 —
LHD MODELS WITHOUT I-KEY
MANUAL SETTING ITEM

NOTE
Items Setting value
RAIN SENSOR WITH ⇔ WITHOUT —
H/L BULB H4 HALOGEN H4 HALOGEN: Halogen headlamp
AUTO LIGHT WITH ⇔ WITHOUT —
HANDLE LHD —
KEYLESS ENTRY WITH —
I-KEY WITHOUT —
DTRL WITH ⇔ WITHOUT DTRL: Daytime running light system
THEFT ALARM WITHOUT —
AUTO SETTING ITEM

NOTE
Items Setting value
DONGLE WITHOUT —
SUPER LOCK WITHOUT —
BCS-6
AUTO SETTING ITEM
NOTE A
Items Setting value
R/L ON TIME MODE2 — B
HLW TIME 2 MODE1 — C
D
HLW ACT STEP MODE1 — E
LHD MODELS WITH I-KEY

F
MANUAL SETTING ITEM
NOTE
Items Setting value
RAIN SENSOR WITH — G
• H4 HALOGEN: Halogen headlamp
H/L BULB H4 HALOGEN ⇔ DEFAULT
• DEFAULT: Xenon headlamp
AUTO LIGHT WITH — H
HANDLE LHD —
KEYLESS ENTRY WITHOUT —
I
I-KEY WITH —
DTRL WITH ⇔ WITHOUT DTRL: Daytime running light system
THEFT ALARM WITHOUT — J
K
AUTO SETTING ITEM
NOTE
Items Setting value
L
DONGLE WITHOUT — BCS
SUPER LOCK WITHOUT —
N
RR SPEED WIPER MODE1 — O
R/L OFF TIME MODE2 — P
BCS-7
AUTO SETTING ITEM
NOTE
Items Setting value
BCS-8
BODY CONTROL SYSTEM
< FUNCTION DIAGNOSIS >
FUNCTION DIAGNOSIS A
BODY CONTROL SYSTEM
System Description INFOID:0000000001158217
B
OUTLINE
• BCM (Body Control Module) controls various electrical components.It receives the information required from C
CAN communication and the signals received from each switch and sensor.
• BCM has a combination switch reading function for reading the status of combination switches (light, turn
signal, wiper and washer) in addition to functions for controlling the operation of various electrical compo-
nents. It also has a signal transmission function, for other systems, and a power consumption control func- D
tion that reduces the power consumption with the ignition switch OFF.
• BCM is equipped with a diagnosis function that operates with CONSULT-III and allows for various settings to
be changed. E
BCM FUNCTION LIST
System Reference page F

Combination switch reading system BCS-11, "System Diagram"
Signal buffer system BCS-15, "System Diagram"
G
Power consumption control system BCS-16, "System Diagram"
Auto light system EXL-19, "System Diagram"
Turn signal and hazard warning lamp system EXL-26, "System Diagram" H
• XENON TYPE: EXL-13, "System Diagram"
Headlamp system
• HALOGEN TYPE: EXL-237, "System Diagram"
Front fog lamp system EXL-24, "System Diagram" I
Rear fog lamp system EXL-32, "System Diagram"
Daytime running light system EXL-16, "System Diagram"
J
Interior room lamp control system INL-5, "System Diagram"
Interior room lamp battery saver system INL-8, "System Diagram"
Front wiper and washer system WW-6, "System Diagram" K
Rear wiper and washer system WW-11, "System Diagram"
Headlamp washer system WW-14, "System Diagram"
L
Warning chime system WCS-4, "WARNING CHIME SYSTEM : System Diagram"
• WITH I-KEY, WITHOUT SUPER LOCK: DLK-26, "DOOR LOCK AND UN-
LOCK SWITCH : System Diagram"
• WITH I-KEY & SUPER LOCK: DLK-307, "DOOR LOCK AND UNLOCK BCS
SWITCH : System Diagram"
Door lock system
• WITHOUT I-KEY & SUPER LOCK: DLK-601, "DOOR LOCK AND UN-
• WITHOUT I-KEY, WITH SUPER LOCK: DLK-760, "DOOR LOCK AND UN-
N
• WITH INTELLIGENT KEY SYSTEM: SEC-16, "System Diagram"
Nissan anti-theft system O
• WITHOUT INTELLIGENT KEY SYSTEM: SEC-235, "System Diagram"
• WITH INTELLIGENT KEY SYSTEM: SEC-21, "System Diagram"
Vehicle security system
• WITHOUT INTELLIGENT KEY SYSTEM: SEC-239, "System Diagram"
Rear window defogger system DEF-4, "System Diagram" P
• WITHOUT I-KEY & SUPER LOCK: DLK-604, "KEYFOB : System Dia-
gram"
Multi-remote control system
• WITHOUT I-KEY, WITHOUT SUPER LOCK: DLK-763, "KEYFOB : System
Diagram"
BCS-9
BODY CONTROL SYSTEM
System Reference page
• WITH I-KEY, WITHOUT SUPER LOCK: DLK-30, "INTELLIGENT KEY :
System Diagram"
Intelligent Key system
• WITH I-KEY & SUPER LOCK: DLK-311, "INTELLIGENT KEY : System Di-
agram"
Power window system PWC-6, "System Diagram"
Component Parts Location INFOID:0000000001158218
JSMIA0033ZZ
1. BCM
A. Over the glove box
BCS-10
COMBINATION SWITCH READING SYSTEM
A
System Diagram INFOID:0000000001158219
JPMIA0120GB
G
OUTLINE H
• BCM reads the status of the combination switch (light, turn signal, wiper and washer) and recognizes the
status of each switch.
• BCM has a combination of 5 output terminals (OUTPUT 1 - 5) and 5 input terminals (INPUT 1 - 5). It reads a I
maximum of 20 switch status.
COMBINATION SWITCH MATRIX
J
Combination switch circuit
BCS
O
JPMIA0121GB
Combination switch INPUT-OUTPUT system list P

System OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4 OUTPUT 5
INPUT 1 — FR WASHER FR WIPER LOW TURN LH TURN RH
INPUT 2 FR WIPER HI — FR WIPER INT PASSING HEADLAMP 1
INPUT 3 INT VOLUME 1 RR WASHER — HEADLAMP 2 HI BEAM
BCS-11
System OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4 OUTPUT 5
INPUT 4 RR WIPER INT INT VOLUME 3 AUTO LIGHT — TAIL LAMP
INPUT 5 INT VOLUME 2 RR WIPER RR FOG FR FOG —
NOTE:
Headlamp has a dual system switch.
COMBINATION SWITCH READING FUNCTION

Description
• BCM reads the status of the combination switch at 10 ms interval normally.
JPMIA0067GB
NOTE:
BCM reads the status of the combination switch at 20 ms interval when BCM is controlled at low power con-
sumption control mode.
• BCM operates as follows and judges the status of the combination switch.
- INPUT 1 - 5 outputs the voltage waveforms of 5 systems simultaneously.
- It operates the transistor on OUTPUT side in the following order: OUTPUT 5 → 4 → 3 → 2 → 1.
- The voltage waveform of INPUT corresponding to the formed circuit changes according to the operation of
the transistor on OUTPUT side if any (1 or more) switches are ON.
- It reads this change of the voltage as the status signal of the combination switch.
JPMIA0068GB
Operation Example
In the following operation example, the combination of the status signals of the combination switch is replaced
as follows: INPUT 1 - 5 to “1 - 5” and OUTPUT 1 - 5 to “A - E”.
Example 1: When a switch (TURN RH switch) is turned ON
BCS-12
• The circuit between INPUT 1 and OUTPUT 5 is formed when the TURN RH switch is turned ON.
A
JPMIA0122GB F
• BCM detects the combination switch status signal “1E” when the signal of OUTPUT 5 is input to INPUT 1.
• BCM judges that the TURN RH switch is ON when the signal “1E” is detected.
Example 2: When some switches (turn RH switch, front wiper LO switch) are turned ON G
• The circuits between INPUT 1 and OUTPUT 5 and between INPUT 1 and OUTPUT 3 are formed when the
TURN RH switch and FR WIPER LOW switch are turned ON.
H
JPMIA0123GB
BCS
• BCM detects the combination switch status signal “1CE” when the signals of OUTPUT 3 and OUTPUT 5 are
input to INPUT 1.
• BCM judges that the TURN RH switch and FR WIPER LOW switch are ON when the signal “1CE” is
detected. N
WIPER INTERMITTENT DIAL POSITION SETTING (FRONT WIPER INTERMITTENT OPERATION)
BCM judges the wiper intermittent dial 1 - 7 by the status of INT VOLUME 1, 2 and 3 switches.
O
BCS-13
Intermittent INT VOLUME switch ON/OFF status

Wiper intermittent
operation delay
dial position INT VOLUME 1 switch INT VOLUME 2 switch INT VOLUME 3 switch
interval
1 ON ON ON
Short
2 ON ON OFF
3 ON OFF OFF
↑
4 OFF OFF OFF
↓
5 OFF OFF ON
6 OFF ON ON
Long
7 OFF ON OFF
JSMIA0034ZZ
1. Combination switch 2. BCM

A. Over the glove box
BCS-14
SIGNAL BUFFER SYSTEM
SIGNAL BUFFER SYSTEM
A
JSMIA0032GB F
G
OUTLINE
BCM has the signal transmission function that outputs/transmits each input/received signal to each unit.
H
SIGNAL TRANSMISSION FUNCTION LIST
Signal name Input Output Description

I
• Combination meter (CAN)
Inputs the door switch signal
• IPDM E/R (CAN)
Door switch signal Any door switch and transmits it with CAN com-
• Intelligent Key unit (CAN)
munication.
• NAVI control unit (CAN) J
Inputs the stop lamp switch sig-
Stop lamp switch signal Stop lamp switch TCM (CAN) nal and transmits it with CAN
communication. K
Transmits the received oil pres-
Oil pressure switch signal IPDM E/R (CAN) Combination meter (CAN) sure switch signal with CAN
communication.
L
Inputs the A/C switch signal and
A/C switch signal transmits it with CAN communi-
cation.
Auto amp. ECM (CAN) BCS
Inputs the Blower fan motor
Blower fan motor switch signal switch signal and transmits it
with CAN communication.
N
BCS-15
POWER CONSUMPTION CONTROL SYSTEM
JPMIA0125GB
OUTLINE
• BCM incorporates a power consumption control function that reduces the power consumption according to
the vehicle status.
• BCM switches the status (control mode) by itself with the power saving control function. It performs the sleep
request to each unit (IPDM E/R, combination meter and Intelligent Key unit) that operates with the ignition
switch OFF.
Normal mode (wake-up)
- CAN communication is normally performed with other units
- Each control with BCM is operating properly
CAN communication sleep mode (CAN sleep)
- CAN transmission is stopped
- Control with BCM only is operating
Low power consumption mode (BCM sleep)
- Low power consumption control is active
- CAN transmission is stopped
LOW POWER CONSUMPTION CONTROL WITH BCM
BCM reduces the power consumption with the following operation in the low power consumption mode.
• The reading interval of the each switches changes from 10 ms interval to 20 ms interval.
SLEEP OPERATION
• BCM receives the sleep-ready signal (ready) from IPDM E/R, combination meter and Intelligent Key unit with
CAN communication.
• BCM transmits the sleep wake up signal (sleep) to each unit when all of the CAN sleep conditions are ful-
filled.
• Each unit stops the transmission of CAN communication with the sleep wake up signal. BCM is in CAN com-
munication sleep mode.
• BCM is in the low power consumption mode and perform the low power consumption control when all of the
BCM sleep conditions are fulfilled with CAN sleep condition.
BCS-16
Sleep condition
CAN sleep condition BCM sleep condition A
• Receiving the sleep-ready signal (ready) from all units
• Ignition switch: OFF
• Vehicle security system alarm: Not operation
B
• Warning lamp: Not operation
• Warning chime: Not operation
• Stop lamp switch: OFF The controls only BCM are completed.
• Key switch status: No change for 2 seconds (Interior room lamp battery saver: Time out etc.) C
• Hazard warning lamp: Not operation
• Exterior lamp: OFF
• Door lock status: No change for 2 seconds
• CONSULT-III communication status: Not communication D
• Door switch status: No change for 2 seconds
WAKE-UP OPERATION
• BCM transmits sleep wake up signal (wake up) to each unit when any condition listed below is established, E
and then goes into normal mode from low power consumption mode.
• Each unit starts transmissions with CAN communication by receiving sleep wake up signals. Each unit trans-
mits wake up signals to BCM with CAN communication to convey the start of CAN communication. F
Wake-up condition
BCM wake-up condition
• Ignition switch: OFF → ACC or ON G
• Stop lamp switch: ON (Depress brake pedal)
• Any door switch: OFF → ON
• Lighting switch: OFF → 1ST or PASS
• Hazard switch: OFF → ON H
• Back door opener switch OFF → ON
• Remote keyless entry receiver: Receiving
I
BCS
JSMIA0035ZZ
BCS-17
1. Combination meter 2. BCM 3. IPDM E/R

4. Intelligent Key unit
A. Over the glove box B. Engine room (left side) C. Over the instrument lower panel
(driver side)
BCS-18
DIAGNOSIS SYSTEM (BCM)
A
COMMON ITEM
COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM) INFOID:0000000001158227
B
APPLICATION ITEM
CONSULT-III can display each diagnostic item using the diagnostic test modes shown following.
C
Diagnosis mode Function description
ECU Identification BCM part number is displayed.
D
Self-Diagnostic Results Displays the diagnosis results judged by BCM. Refer to BCS-65, "DTC Index".
Data Monitor BCM input/output signals are displayed.
Active Test The signals used to activate each device are forcibly supplied from BCM. E
Work Support Changes the setting for each system function.
• Read and save the vehicle specification.
Configuration
• Write the vehicle specification when replacing BCM. F
CAN Diag Support Monitor Monitors the reception status of CAN communication viewed from BCM.
SYSTEM APPLICATION G
BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.
×: Applicable item
H
CONSULT-III Diagnosis mode

System
sub system selection item WORK SUPPORT DATA MONITOR ACTIVE TEST
I
— BCM ×
Door lock DOOR LOCK × × ×
Rear window defogger REAR DEFOGGER × × × J
Warning chime BUZZER × ×
Interior room lamp control INT LAMP × × ×
K
Remote keyless entry system MULTI REMOTE ENT × × ×
Exterior lamp HEAD LAMP × × ×
Wiper and washer WIPER × × × L
Turn signal and hazard warning lamps FLASHER × ×
Air conditioner AIR CONDITONER ×
BCS
Intelligent Key system INTELLIGENT KEY ×
Combination switch COMB SW ×
Immobilizer IMMU × × N
Interior room lamp battery saver BATTERY SAVER × × ×
Back door open TRUNK × ×
O
Vehicle security system THEFT ALM × × ×
Signal buffer system SIGNAL BUFFER × ×
— PTC HEATER* P
*: This item is displayed, but is not function.
DOOR LOCK
DOOR LOCK : CONSULT-III Function (BCM - DOOR LOCK) INFOID:0000000001509115
BCM CONSULT-III FUNCTION

CONSULT-III performs the following functions via CAN communication with BCM.
BCS-19
Diagnosis mode Function Description

WORK SUPPORT Changes the setting for each system function.
DATA MONITOR The BCM input/output signals are displayed.
ACTIVE TEST The signals used to activate each device are forcibly supplied from BCM.
DATA MONITOR
Monitor Item Condition

IGN ON SW Indicates [ON/OFF] condition of ignition switch in ON position.
ACC ON SW Indicates [ON/OFF] condition of ignition switch in ACC position.
PUSH SW*1 Indicates [ON/OFF] condition of ignition knob switch.

KEY ON SW Indicates [ON/OFF] condition of key switch.
CDL LOCK SW Indicates [ON/OFF] condition of door lock and unlock switch.
CDL UNLOCK SW Indicates [ON/OFF] condition of door lock and unlock switch.
DOOR SW-DR Indicates [ON/OFF] condition of front door switch (driver side).
DOOR SW-AS Indicates [ON/OFF] condition of front door switch (passenger side).
DOOR SW-RR Indicates [ON/OFF] condition of rear door switch RH.
DOOR SW-RL Indicates [ON/OFF] condition of rear door switch LH.
BACK DOOR SW Indicates [ON/OFF] condition of back door switch.
KEYLESS LOCK*2 Indicates [ON/OFF] condition of lock signal from key fob.
KEYLESS UNLOCK*2 Indicates [ON/OFF] condition of unlock signal from key fob.
I-KEY LOCK*1 Indicates [ON/OFF] condition of lock signal from Intelligent Key.
I-KEY UNLOCK*1 Indicates [ON/OFF] condition of unlock signal from Intelligent Key.
UNLOCK WITH DR This item is indicated, but not monitored.
Indicates [ON/OFF] condition of signal from air bag diagnosis unit.
UNLOCK SHOCK • ON: During the unlock operation interlock with air bag.
• OFF: Other than above.
Indicates [NOMAL/ON/OFF] condition of circuit between BCM and air bag diagnosis sen-
sor unit.
• NORMAL: Ignition switch ON. (BCM is receiving normal condition signal from air bag di-
SHOCK SENSOR agnosis sensor unit.)
• ON: During the receiving of air bag deployment signal from air bag diagnosis sensor
unit.
• OFF: After the receiving of air bag deployment signal from air bag diagnosis sensor unit.
Displays the vehicle speed signal received from combination meter by numerical value
VEHICLE SPEED
[km/h].
*1
: For the Intelligent key equipped vehicle.
*2: For the multi remote control system equipped vehicle.
ACTIVE TEST
Test item Description
SUPER LOCK*1 This test is able to check super lock operation [LOCK (SET)/UNLOCK (RELEASE)].
This test is able to check door lock indicator (built in door lock and unlock switch on center
DOOR LOCK IND
console) operation [ON/OFF].
This test is able to check door lock operation [ALL LOCK/ALL UNLOCK/DR UNLOCK/
DOOR LOCK
OTHER UNLOCK].
:*1 For the super lock equipped vehicle.
WORK SUPPORT
BCS-20
Test item Description A

Anti hijack function mode can be changed in this mode.
SECURITY DOOR LOCK SET • ON: Anti hijack mode is active.
• OFF: Anti hijack mode is inactive.
B
REAR WINDOW DEFOGGER
REAR WINDOW DEFOGGER : CONSULT-III Function (BCM - REAR DEFOGGER) C
INFOID:0000000001510606
Data monitor
D
Monitor Item Description
REAR DEF SW Displays “Press (ON)/other (OFF)” status determined with the rear window defogger switch.
E
F
ACTIVE TEST
Test Item Description

G
REAR DEFOGGER Give a drive signal to the rear window defogger relay to activate it.
BUZZER
H
BUZZER : CONSULT-III Function (BCM - BUZZER) INFOID:0000000001510620
CONSULT-III FUNCTION (BCM – BUZZER) I
Test item Diagnosis mode Description

Data Monitor Displays BCM input data in real time. J
Buzzer
Active Test Operation of electrical loads can be checked by sending driving signal to them.
DATA MONITOR K
Display item
Description
[Unit]
L
IGN ON SW
Ignition switch (ON) status judged by ignition power supply input.
[On/Off]
KEY ON SW
Key switch status. BCS
[On/Off]
DOOR SW -DR
Front door switch (driver side) status judged by BCM.
[On/Off]
N
TAIL LAMP SW Lighting switch status judged by the lighting switch signal read with combination switch reading func-
[On/Off] tion.
ACTIVE TEST O
Display item Description

LIGHT WARN ALM The light reminder warning operation can be checked by operating the relevant function (On/Off). P
ANTI KEY LOCK IN The anti key lock in warning operation can be checked by operating the relevant function (On/Off).
KEY REMINDER WARN The key reminder warning operation can be checked by operating the relevant function (On/Off).
INT LAMP
BCS-21
INT LAMP : CONSULT-III Function (BCM - INT LAMP) INFOID:0000000001510593
WORK SUPPORT
JPLIA0093GB
Service item Setting item Setting

MODE 2 7.5 sec.
ROOM LAMP TIMER SET MODE 3* 15 sec. Sets the interior room lamp ON time. (Timer operating time)
MODE 4 30 sec.
On* With the interior room lamp timer function
SET I/L D-UNLCK INTCON
Off Without the interior room lamp timer function
MODE 1 0.5 sec.
MODE 2* 1 sec.
MODE 3 2 sec.
MODE 4 3 sec.
ROOM LAMP ON TIME SET MODE 5 4 sec. Sets the interior room lamp gradual brightening time.
MODE 6 5 sec.
MODE 7 0 sec.
1 sec.
MODE 8
linear
MODE 1 0.5 sec.
MODE 2* 1 sec.
MODE 3 2 sec.
MODE 4 3 sec.
ROOM LAMP OFF TIME SET MODE 5 4 sec. Sets the interior room lamp gradual dimming time.
MODE 6 5 sec.
MODE 7 0 sec.
1 sec.
MODE 8
linear
MODE 1* Interior room lamp timer activates with synchronizing all doors.
R LAMP TIMER LOGIC SET Interior room lamp timer activates with synchronizing the driver door
MODE 2
only.
*: Initial setting
DATA MONITOR
BCS-22
Monitor item A
Description
[Unit]
IGN ON SW
Ignition switch (ON) status judges from IGN signal (ignition power supply)
[On/Off]
B
ACC SW
Ignition switch (ACC) status judges from ACC signal (ACC power supply)
[On/Off]
KEY ON SW C
The switch status input from key switch
[On/Off]
PUSH SW
Push switch status received from Intelligent Key unit by CAN communication
[On/Off]
D
DOOR SW-DR
The switch status input from front door switch (driver side)
[On/Off]
DOOR SW-AS
The switch status input from front door switch (passenger side) E
[On/Off]
DOOR SW-RR
The switch status input from rear door switch RH
[On/Off]
F
DOOR SW- RL
The switch status input from rear door switch LH
[On/Off]
BACK DOOR SW
The switch status input from back door switch G
[On/Off]
CDL LOCK SW
Lock switch status input from door lock and unlock switch
[On/Off]
H
CDL UNLOCK SW
Unlock switch status input from door lock and unlock switch
[On/Off]
I-KEY LOCK
Lock signal status received from Intelligent Key unit by CAN communication I
[On/Off]
I-KEY UNLOCK
Unlock signal status received from Intelligent Key unit by CAN communication
[On/Off]
KEYLESS LOCK Lock signal status received from remote keyless entry receiver (integrated in the
J
[On/Off] BCM)
KEYLESS UNLOCK Unlock signal status received from remote keyless entry receiver (integrated in the
[On/Off] BCM) K
ACTIVE TEST
L
Test item Operation Description
Outputs the interior room lamp control signal to turn the interior room lamps ON.
On [Map lamp, personal lamp, room lamp, luggage room lamp (when applicable lamps
INT LAMP BCS
switch is in DOOR position.)]
Off Stops the interior room lamp control signal to turn the interior room lamps.
MULTIREMOTE ENT N
MULTIREMOTE ENT : CONSULT-III Function (BCM - MULTIREMOTE ENT)

INFOID:0000000001509193
O
P
DATA MONITOR
BCS-23

KEYKESS LOCK Indicates [ON/OFF] condition of lock signal from key fob.
KEYLESS UNLOCK Indicates [ON/OFF] condition of unlock signal from key fob.
RKE LOCK AND UNLOCK This item is indicated, but not monitored.
MEMORY 1 Indicates [ON/OFF] condition of remote controller ID code registration.
ACTIVE TEST

This test is able to check warning chime in combination meter operation. [ALL LOCK/ALL UN-
DOOR LOCK
LOCK/DR UNLOCK/OTHER UNLOCK]
INT LAMP This test is able to check interior lamp operation [ON/OFF].
FLASHER This test is able to check flasher operation [LH/RH/OFF].
WORK SUPPORT

Answer back function (hazard) mode can be changed in this mode.
HAZARD LAMP SET
For the detail of the setting, refer to DLK-620, "System Description".
Auto door lock time can be changed in this mode.
• MODE 1: 1 minute
• MODE 2: 2 minutes
AUTO LOCK SET
HEADLAMP
HEADLAMP : CONSULT-III Function (BCM - HEAD LAMP) INFOID:0000000001510591
WORK SUPPORT

MODE 1 10 sec.
HEAD LIGHT TIMER Sets follow me home function activating time.
MODE 2* 30 sec.
*: Initial setting
DATA MONITOR
BCS-24
Monitor item A
Description
[Unit]
IGN ON SW
Ignition switch (ON) status judged from IGN signal (ignition power supply)
[On/Off]
B
ACC SW
Ignition switch (ACC) status judged from ACC signal (ACC power supply)
[On/Off]
HI BEAM SW C
[On/Off]
HEAD LAMP SW1
[On/Off]
D
HEAD LAMP SW2
[On/Off]
TAIL LAMP SW
E
[On/Off]
Each switch status that BCM judges from the combination switch reading function
AUTO LIGHT SW
[On/Off]
F
PASSING SW
[On/Off]
FR FOG SW
[On/Off] G
RR FOG SW
[On/Off]
H
DOOR SW-DR
[On/Off]
DOOR SW-AS
The switch status input from front door switch (passenger side) I
[On/Off]
DOOR SW-RR
[On/Off]
DOOR SW- RL
J
[On/Off]
BACK DOOR SW
The switch status input from back door switch
[On/Off] K
TURN SIGNAL R
[On/Off]
Each switch status that BCM judges from the combination switch reading function
TURN SIGNAL L L
[On/Off]
ENGINE RUNNING
The engine status received from ECM with CAN communication
[On/Off] BCS
LIT-SEN FAIL • The sensor status received from light & rain sensor with serial link
[OK/NOTOK] • The serial link condition that BCM judges
AUT LIGHT SYS N
Auto light system status received from light & rain sensor with serial link
[On/Off]
HD LIGHT TIME
Setting time of the follow me home function set by the work support
[Sec] O
ACTIVE TEST

P
Transmits the position light request signal to IPDM E/R with CAN com-
On
TAIL LAMP munication to turn the tail lamp ON.
Off Stops the tail lamp request signal transmission.
BCS-25
Transmits the high beam request signal with CAN communication to turn
Hi
the headlamp (HI).
HEAD LAMP Transmits the low beam request signal with CAN communication to turn
Lo
the headlamp (LO).
Off Stops the high & low beam request signal transmission.
Transmits the front fog lights request signal to IPDM E/R with CAN com-
On
FR FOG LAMP munication to turn the front fog lamp ON.
Off Stops the front fog lights request signal transmission.
• Outputs the voltage to turn the rear fog lamp ON.
On • Transmits the rear fog lamp status signal to the combination meter with
RR FOG LAMP CAN communication to turn the rear fog lamp indicator lamp ON.
• Stops the voltage to turn the rear fog lamp OFF.
Off
• Stops the rear fog lamp status signal transmission.
Transmits the day time running light request signal to IPDM E/R with
On
DAYTIME RUNNING LIGHT CAN communication to turn the each lamps ON.
Off Stops the day time running light request signal transmission.
WIPER
WIPER : CONSULT-III Function (BCM - WIPER) INFOID:0000000001510603
WORK SUPPORT
Service item Setting item Description

With vehicle speed
ON*
WIPER SPEED (Front wiper intermittent time linked with the vehicle speed and wiper intermittent dial position)
SETTING Without vehicle speed
OFF
(Front wiper intermittent time linked with the wiper intermittent dial position)
*:Factory setting
DATA MONITOR
Monitor Item
Description
[Unit]
VEHICLE SPEED
The value of the vehicle speed signal received from combination meter with CAN communication.
[km/h]
IGN ON SW Ignition switch ON status judged from ignition power supply.
IGN SW CAN Ignition switch ON status received from IPDM E/R with CAN communication.
FR WIPER HI
[OFF/ON]
FR WIPER LOW
[OFF/ON]
Each switch status that BCM judges from the combination switch reading function.
FR WIPER INT
[OFF/ON]
FR WASHER SW
[OFF/ON]
INT VOLUME
[1 − 7]
FR WIPER STOP
Front wiper motor (stop position) status received from IPDM E/R with CAN communication.
[OFF/ON]
BCS-26
Monitor Item
Description
[Unit] A
RR WIPER ON
[OFF/ON]
RR WIPER INT B
[OFF/ON]
RR WASHER SW
[OFF/ON] C
RR WIPER STOP
Rear wiper motor (stop position) status input from the rear wiper motor.
[OFF/ON]
REVERSE SW CAN NOTE: D
[OFF/ON] The item is indicated, but not monitored.
H/L WASH SW
Switch status input from headlamp washer switch.
[OFF/ON] E
ACTIVE TEST

F
Transmits the front wiper request signal (HI) to IPDM E/R with CAN communication to
HI
operate the front wiper HI operation.
G
Transmits the front wiper request signal (LO) to IPDM E/R with CAN communication
LO
FR WIPER to operate the front wiper LO operation.
Transmits the front wiper request signal (INT) to IPDM E/R with CAN communication
INT H
to operate the front wiper INT operation.
OFF Stops transmitting the front wiper request signal to stop the front wiper operation.
ON Outputs the voltage to operate the rear wiper motor.
RR WIPER I
OFF Stops the voltage to stop.
Transmits the headlamp washer request signal to IPDM E/R with CAN communication
HEADLAMP WASHER ON
to operate the headlamp washer operation. J
FLASHER
FLASHER : CONSULT-III Function (BCM - FLASHER) INFOID:0000000001510592 K
DATA MONITOR
L
Monitor item
Description
[Unit]
IGN ON SW BCS
Ignition switch (ON) status judged from IGN signal (ignition power supply)
[On/Off]
HAZARD SW
The switch status input from the hazard switch
[On/Off]
N
TURN SIGNAL R
[On/Off]
Each switch condition that BCM judges from the combination switch reading function
TURN SIGNAL L
O
[On/Off]
BRAKE SW
The switch status input from the stop lamp switch
[On/Off]
P
ACTIVE TEST

RH Outputs the voltage to blink the right side turn signal lamps.
FLASHER LH Outputs the voltage to blink the left side turn signal lamps.
Off Stops the voltage to turn the turn signal lamps OFF.
BCS-27
AIR CONDITIONER
AIR CONDITIONER : CONSULT-III Function (BCM - AUTO AIR CONDITIONER)
INFOID:0000000001510618
DATA MONITOR
Display Item List
Monitor Item [Unit] Contents

Displays [ignition switch position (On)/(Off), ACC position (Off)] status as judged form ignition
IGN SW [On/Off]
switch signal.
FAN ON SIG [On/Off] Displays [FAN (On)/FAN (Off)] status as judged form blower fan motor switch signal.
AIR COND SW [On/Off] Displays [COMP (On)/COMP (Off)] status as judged form air conditioner switch signal.
INTELLIGENT KEY
INTELLIGENT KEY : CONSULT-III Function (BCM - INTELLIGENT KEY) INFOID:0000000001510610


DATA MONITOR

PUSH SW Indicates [ON/OFF] condition of ignition knob switch.
I-KEY LOCK Indicates [ON/OFF] condition of lock signal from Intelligent Key.
I-KEY UNLOCK Indicates [ON/OFF] condition of unlock signal from Intelligent Key.
COMB SW
COMB SW : CONSULT-III Function (BCM - COMB SW) INFOID:0000000001158239
DATA MONITOR
Monitor item [UNIT] Description

TURN SIGNAL R Displays the status of “TURN RH” switch in combination switch judged by the combination switch reading
[Off/On] function.
TURN SIGNAL L Displays the status of the “TURN LH” switch in combination switch judged by the combination switch reading
[Off/On] function.
HI BEAM SW Displays the status of “HI BEAM” switch in combination switch judged by the combination switch reading func-
[Off/On] tion.
HEAD LAMP SW 1 Displays the status of “HEADLAMP 1” switch in combination switch judged by the combination switch reading
[Off/On] function.
HEAD LAMP SW 2 Displays the status of “HEADLAMP 2” switch in combination switch judged by the combination switch reading
[Off/On] function.
TAIL LAMP SW Displays the status of “TAIL LAMP” switch in combination switch judged by the combination switch reading
[Off/On] function.
PASSING SW Displays the status of “PASSING” switch in combination switch judged by the combination switch reading
[Off/On] function.
BCS-28
A
AUTO LIGHT SW Displays the status of “AUTO LIGHT” switch in combination switch judged by the combination switch reading
[Off/On] function.
FR FOG SW Displays the status of “FR FOG” switch in combination switch judged by the combination switch reading func-
[Off/On] tion. B
RR FOG SW Displays the status of “RR FOG” switch in combination switch judged by the combination switch reading func-
[Off/On] tion.
FR WIPER HI Displays the status of “FR WIPER HI” switch in combination switch judged by the combination switch reading C
[Off/On] function.
FR WIPER LOW Displays the status of “ FR WIPER LOW” switch in combination switch judged by the combination switch read-
[Off/On] ing function. D
FR WIPER INT Displays the status of “FR WIPER INT” switch in combination switch judged by the combination switch read-
[Off/On] ing function.
FR WASHER SW Displays the status of “ FR WASHER” switch in combination switch judged by the combination switch reading E
[Off/On] function.
INT VOLUME
Displays the status of wiper intermittent dial position judged by the combination switch reading function.
[1 - 7] F
RR WIPER ON Displays the status of “RR WIPER” switch in combination switch judged by the combination switch reading
[Off/On] function.
RR WIPER INT Displays the status of “RR WIPER INT” switch in combination switch judged by the combination switch read- G
[Off/On] ing function.
RR WASHER SW Displays the status of “RR WASHER” switch in combination switch judged by the combination switch reading
[Off/On] function. H
BCM
BCM : CONSULT-III Function (BCM - BCM) INFOID:0000000001158228 I
WORK SUPPORT
J
Item Description
RESET SETTING VALUE Return a value set with WORK SUPPORT of each system to a default value in factory shipment.
K
IMMU
IMMU : CONSULT-III Function (BCM - IMMU) INFOID:0000000001509194
L
APPLICATION ITEM
BCS
ACTIVE TEST The signals used to activate each device are forcibly supplied from Intelligent Key unit.
N
DATA MONITOR
O
Monitor item Content
KEY ON SW Indicates [ON/OFF] condition of key switch. P

*1: For the vehicle Intelligent key is equipped.
ACTIVE TEST
BCS-29

THEFT IND This test is able to check security indicator operation [ON/OFF].
BATTERY SAVER
BATTERY SAVER : CONSULT-III Function (BCM - BATTERY SAVER) INFOID:0000000001510594
WORK SUPPORT

MODE 1* 30 min. Sets the interior room lamp battery saver timer operating
ROOM LAMP TIMER SET
MODE 2 60 min. time.
*: Initial setting
DATA MONITOR
Monitor item
Description
[Unit]
IGN ON SW
Ignition switch (ON) status judges from IGN signal (ignition power supply)
[On/Off]
ACC SW
Ignition switch (ACC) status judges from ACC signal (ACC power supply)
[On/Off]
KEY ON SW
The switch status input from key switch
[On/Off]
PUSH SW
Push switch status received from Intelligent Key unit by CAN communication
[On/Off]
DOOR SW-DR
[On/Off]
DOOR SW-AS
The switch status input from front door switch (passenger side)
[On/Off]
DOOR SW-RR
[On/Off]
DOOR SW- RL
[On/Off]
BACK DOOR SW
The switch status input from back door switch
[On/Off]
CDL LOCK SW
Lock switch status input from door lock and unlock switch
[On/Off]
CDL UNLOCK SW
Unlock switch status input from door lock and unlock switch
[On/Off]
I-KEY LOCK
Lock signal status received from Intelligent Key unit by CAN communication
[On/Off]
I-KEY UNLOCK
Unlock signal status received from Intelligent Key unit by CAN communication
[On/Off]
KEYLESS LOCK Lock signal status received from remote keyless entry receiver (integrated in the
[On/Off] BCM)
KEYLESS UNLOCK Unlock signal status received from remote keyless entry receiver (integrated in the
[On/Off] BCM)
ACTIVE TEST

Off Cuts the interior room lamp power supply to turn interior room lamps OFF.
BATTERY SAVER
On Outputs the interior room lamp power supply to turn interior room lamps ON.*
BCS-30
*: Each lamp switch is in ON position.
TRUNK A
TRUNK : CONSULT-III Function (BCM - TRUNK) INFOID:0000000001509116
B
APPLICATION ITEM
C
ACTIVE TEST The signals used to activate each device are forcibly supplied from Intelligent Key unit. D
DATA MONITOR
E
KEY ON SW Indicates [ON/OFF] condition of key switch. F
TRNK OPNR SW Indicates [ON/OFF] condition of back door opener switch.
G
Displays the vehicle speed signal received from combination meter by numerical value
VEHICLE SPEED
[km/h].
*1
: For the Intelligent key equipped vehicle.
H
*2: For the remote keyless entry system equipped vehicle.
ACTIVE TEST
I
TRUNK/GLASS HATCH This test is able to check back door opener operation [ON/OFF].
J
THEFT ALM
THEFT ALM : CONSULT-III Function (BCM - THEFT ALM) INFOID:0000000001509195
K
APPLICATION ITEM
L
BCS
DATA MONITOR N

O
KEY ON SW Indicates [ON/OFF] condition of key switch. P
*2 Indicates [ON/OFF] condition of lock signal from key fob.
KEYKESS LOCK
KEYLESS UNLOCK*2 Indicates [ON/OFF] condition of unlock signal from key fob.
I-KEY LOCK*1 Indicates [ON/OFF] condition of lock signal from Intelligent Key.
I-KEY UNLOCK*1 Indicates [ON/OFF] condition of unlock signal from Intelligent Key.
HOOD SW Indicates [ON/OFF] condition of hood switch.
BCS-31
*1: For vehicle equipped with Intelligent Key.
*2
: For the vehicle equipped with remote key less entry system.
ACTIVE TEST

THEFT IND This test is able to check security indicator operation [ON/OFF].
VEHICLE SECURITY HORN This test is able to check horn operation [ON].
FLASHER This test is able to check flasher operation [LH/RH/OFF].
WORK SUPPORT

Vehicle security function mode can be changed in this mode.
SECURITY ALARM SET • ON: Vehicle security function is ON.
• OFF: Vehicle security function is OFF.
The switch which triggered vehicle security system is recorded. This mode can be able to con-
THEFT ALM TRG
firm and erase the record of vehicle security system.
SIGNAL BUFFER
SIGNAL BUFFER : CONSULT-III Function (BCM - SIGNAL BUFFER) INFOID:0000000001158244
DATA MONITOR

OIL PRESS SW
Displays the status of oil pressure switch received from IPDM E/R with CAN communication.
[Off/On]
BRAKE SW
Displays the status of stop lamp switch.
[Off/On]
ACTIVE TEST

Transmits the oil pressure switch signal with CAN communication to illuminate the oil
On
OIL PRESSURE SW pressure warning lamp in the combination meter.
Off Stops the oil pressure switch signal transmission.
BCS-32
U1000 CAN COMM CIRCUIT
< COMPONENT DIAGNOSIS >
COMPONENT DIAGNOSIS A
U1000 CAN COMM CIRCUIT
Description INFOID:0000000001158246
B
CAN (Controller Area Network) is a serial communication line for real time applications. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Modern
vehicle is equipped with many electronic control unit, and each control unit shares information and links with C
other control units during operation (not independent). In CAN communication, control units are connected
with 2 communication lines (CAN-H line, CAN-L line) allowing a high rate of information transmission with less
wiring. Each control unit transmits/receives data but selectively reads required data only. D
CAN Communication Signal Chart. Refer to LAN-25, "CAN Communication Signal Chart".
DTC Logic INFOID:0000000001158247
E
DTC DETECTION LOGIC
DTC DTC Detection Condition Possible cause F

Any item (or items) of the following listed below is
malfunctioning in CAN communication system.
• Transmission G
When BCM cannot communicate CAN com- • Receiving (ECM)
U1000: CAN COMM CIRCUIT munication signal continuously for 2 sec- • Receiving (METER/M&A)
onds or more. • Receiving (TCM)
• Receiving (MULTI AV) H
• Receiving (IPDM E/R)
• Receiving (I-KEY)
Diagnosis Procedure INFOID:0000000001158248

I
1.PERFORM SELF DIAGNOSTIC

J
1. Turn ignition switch ON and wait for 2 seconds or more.
2. Check “Self Diagnostic Result” of BCM.
Is “CAN COMM CIRCUIT” displayed?
K
YES >> Refer to LAN-13, "Trouble Diagnosis Flow Chart".
NO >> Refer to GI-39, "Intermittent Incident".
L
BCS
BCS-33
U1010 CONTROL UNIT (CAN)
U1010 CONTROL UNIT (CAN)
DTC Logic INFOID:0000000001158249
DTC DETECTION LOGIC
DTC DTC Detection Condition Possible cause

When detecting error during the initial diagnosis of CAN control-
U1010: CONTROL UNIT (CAN) BCM
ler of BCM.
1.REPLACE BCM
When “DTC:U1010” is detected, replace BCM.
>> Replace BCM. Refer to BCS-68, "Exploded View".
BCS-34
POWER SUPPLY AND GROUND CIRCUIT
POWER SUPPLY AND GROUND CIRCUIT
A
1.CHECK FUSES AND FUSIBLE LINK B

Check that the following fuses and fusible link are not fusing.
Terminal No. Signal name Fuses and fusible link No.

C
41 10
Battery power supply
57 J D
4 ACC power supply 20
3 Ignition power supply 1
Is the fuse fusing? E
YES >> Replace the blown fuse or fusible link after repairing the affected circuit if a fuse or fusible link is
blown.
NO >> GO TO 2. F
2.CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF. G
2. Disconnect BCM connectors.
3. Check voltage between BCM harness connector and ground.
H
Terminals
Ignition switch position
(+)
BCM (−) I
OFF ACC ON
Connector Terminal
M67 57 Battery Battery Battery
voltage voltage voltage J
M66 41
Ground Approx. Battery Battery

4
0V voltage voltage
M65 K
Approx. Approx. Battery
3
0V 0V voltage
Is the measurement value normal? L
YES >> GO TO 3.
NO >> Repair harness or connector.
3.CHECK GROUND CIRCUIT BCS
Check continuity between BCM harness connector and ground.
BCM
N
Continuity
Connector Terminal Ground
M67 55 Existed
O
Does continuity exist?
YES >> INSPECTION END
NO >> Repair harness or connector. P
BCS-35
COMBINATION SWITCH INPUT CIRCUIT
1.CHECK INPUT 1 - 5 CIRCUIT FOR OPEN

1. Turn ignition switch OFF.
2. Disconnect BCM and combination switch connectors.
3. Check continuity between BCM harness connector and combination switch harness connector.
BCM Combination switch

System Continuity
Connector Terminal Connector Terminal
INPUT 1 8 1
INPUT 2 9 2
INPUT 3 M65 6 M27 3 Existed
INPUT 4 7 4
INPUT 5 10 5
YES >> GO TO 2.
NO >> Repair harnesses or connectors.
2.CHECK INPUT 1 - 5 CIRCUIT FOR SHORT
Check for continuity between BCM harness connector and ground.
BCM
System Continuity
Connector Terminal
INPUT 1 8
INPUT 2 9 Ground
INPUT 3 M65 6 Not existed
INPUT 4 7
INPUT 5 10
YES >> Repair harnesses or connectors.
NO >> GO TO 3.
3.CHECK BCM OUTPUT VOLTAGE
1. Connect BCM connector.
2. Check voltage between BCM harness connector and ground.
Terminals
(+) (−) Voltage
System
BCM (Approx.)
Connector Terminal
INPUT 1 8
Ground
INPUT 2 9
Refer to BCS-
INPUT 3 M65 6 40, "Refer-
ence Value".
INPUT 4 7
INPUT 5 10
Is the measurement value normal?
YES >> GO TO 4.
NO >> Replace BCM. Refer to BCS-68, "Exploded View".
BCS-36
4.CHECK COMBINATION SWITCH A
Check combination switch. Refer to BCS-39, "Description".
Is the check result normal?
YES >> Replace BCM. Refer to BCS-68, "Exploded View". B
NO >> Replace the combination switch (applicable parts).
BCS
BCS-37
COMBINATION SWITCH OUTPUT CIRCUIT
COMBINATION SWITCH OUTPUT CIRCUIT
1.CHECK OUTPUT 1 - 5 CIRCUIT FOR OPEN

2. Disconnect BCM and combination switch connectors.
3. Check continuity between BCM harness connector and combination switch harness connector.
BCM Combination switch

System Continuity
Connector Terminal Connector Terminal
OUTPUT 1 40 6
OUTPUT 2 37 7
OUTPUT 3 M65 38 M27 10 Existed
OUTPUT 4 39 9
OUTPUT 5 36 8
YES >> GO TO 2.
NO >> Repair harnesses or connectors.
2.CHECK OUTPUT 1 - 5 CIRCUIT FOR SHORT
Check for continuity between BCM harness connector and ground.
BCM
System Continuity
Connector Terminal
OUTPUT 1 40
OUTPUT 2 37 Ground
OUTPUT 3 M65 38 Not existed
OUTPUT 4 39
OUTPUT 5 36
YES >> Repair harnesses or connectors.
NO >> GO TO 3.
3.CHECK COMBINATION SWITCH
Check combination switch. Refer to BCS-39, "Description".
Is the check result normal?
YES >> Replace BCM. Refer to BCS-68, "Exploded View".
NO >> Replace combination switch (applicable parts).
BCS-38
COMBINATION SWITCH
COMBINATION SWITCH
A
Description INFOID:0000000001158257
COMBINATION SWITCH MATRIX B

Combination switch consists of INPUT circuit and OUTPUT circuit.
Combination switch circuit
C
JPMIA0121GB
H
Combination switch INPUT-OUTPUT system list

System OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4 OUTPUT 5 I
INPUT 1 — FR WASHER FR WIPER LOW TURN LH TURN RH
INPUT 2 FR WIPER HI — FR WIPER INT PASSING HEADLAMP 1
J
INPUT 3 INT VOLUME 1 RR WASHER — HEADLAMP 2 HI BEAM
INPUT 4 RR WIPER INT INT VOLUME 3 AUTO LIGHT — TAIL LAMP
INPUT 5 INT VOLUME 2 RR WIPER RR FOG FR FOG — K
NOTE:
Headlamp has a dual system switch.
L
1.CHECK LIGHT & TURN SIGNAL SWITCH BCS

Check operation with normal light & turn signal switch installed.
Does it operate normally?
YES >> Replace light & turn signal switch. N
NO >> GO TO 2.
2.CHECK WIPER & WASHER SWITCH
O
Check operation with normal wiper & washer switch installed.
YES >> Replace wiper & washer switch. P
NO >> GO TO 3.
3.CHECK SWITCH BASE (SPIRAL CABLE)
Check operation with normal switch base (spiral cable) installed.
YES >> Replace switch base (spiral cable).
NO >> Combination switch is normal.
BCS-39
BCM (BODY CONTROL MODULE)
< ECU DIAGNOSIS >
ECU DIAGNOSIS
Reference Value INFOID:0000000001158259
VALUES ON THE DIAGNOSIS TOOL
Monitor Item Condition Value/Status

VEHICLE SPEED While driving Equivalent to speedometer reading
Ignition switch OFF or ACC Off
IGN ON SW
Ignition switch ON On
Mechanical key is removed from key cylinder Off
KEY ON SW
Mechanical key is inserted to key cylinder On
Door lock/unlock switch does not operate Off
CDL LOCK SW
Press door lock/unlock switch to the lock side On
Door lock/unlock switch does not operate Off
CDL UNLOCK SW
Press door lock/unlock switch to the unlock side On
Driver's door closed Off
DOOR SW-DR
Driver's door opened On
Passenger door closed Off
DOOR SW-AS
Passenger door opened On
Rear RH door closed Off
DOOR SW-RR
Rear RH door opened On
Rear LH door closed Off
DOOR SW-RL
Rear LH door opened On
Back door closed Off
BACK DOOR SW
Back door opened On
“LOCK” button of Intelligent Key or door request switch are not
Off
I-KEY LOCK pressed
“LOCK” button of Intelligent Key or door request switch are pressed On
“UNLOCK” button of Intelligent Key or door request switch are not
Off
pressed
I-KEY UNLOCK
“UNLOCK” button of Intelligent Key or door request switch are
On
pressed
Return to ignition switch to “LOCK” position Off
PUSH SW
Press ignition switch On
“LOCK” button of key fob is not pressed Off
KEYLESS LOCK
“LOCK” button of key fob is pressed On
“UNLOCK” button of key fob is not pressed Off
KEYLESS UNLOCK
“UNLOCK” button of key fob is pressed On
Ignition switch ON NOMAL
After the reception of air bag deployment signal from air bag diag-
Off
SHOCK SENSOR nosis sensor unit
During the reception of air bag deployment signal from air bag diag-
On
nosis sensor unit
Other than the following Off
UNLOCK SHOCK
During the unlock operation interlocked with air bag On
BCS-40
< ECU DIAGNOSIS >
A
NOTE: On
UNLOCK WITH DR
The item is indicated, but not monitored Off
Vehicle speed sensing auto door lock function does not operate Off B
LOCK WITH SPEED
Vehicle speed sensing auto door lock function is operating On
Ignition switch OFF Off
ACC ON SW
Ignition switch ACC or ON On C
Rear window defogger switch OFF Off
REAR DEF SW
Rear window defogger switch ON On
D
Lighting switch OFF Off
TAIL LAMP SW
Lighting switch 1ST On
Turn signal switch OFF Off E
TURN SIGNAL R
Turn signal switch RH On
Turn signal switch OFF Off
TURN SIGNAL L F
Turn signal switch LH On
HI BEAM SW
Lighting switch HI On G
HEAD LAMP SW 1
Lighting switch 2ND On
H
HEAD LAMP SW 2
Lighting switch 2ND On
Other than lighting switch PASS Off I
PASSING SW
Lighting switch PASS On
AUTO LIGHT SW J
Lighting switch AUTO On
Front fog lamp switch OFF Off
FR FOG SW
Front fog lamp switch ON On
K
Rear fog lamp switch OFF Off
RR FOG SW
Rear fog lamp switch ON On
Engine stopped Off L
ENGINE RUN
Engine running On
Light & rain sensor is in normal condition OK
LIT-SEN FAIL BCS
Light & rain sensor is with error NOTOK
Outside of the room is dark On
AUT LIGHT SYS
Outside of the room is bright Off N
Displays a setting time of the follow
HD LIGHT TIME — me home function set by the work
support O
Ignition switch OFF or ACC Off
IGN SW CAN
Front wiper switch OFF Off P
FR WIPER HI
Front wiper switch HI On
Front wiper switch OFF Off
FR WIPER LOW
Front wiper switch LO On
Front wiper switch OFF Off
FR WIPER INT
Front wiper switch INT On
BCS-41
< ECU DIAGNOSIS >
Front washer switch OFF Off
FR WASHER SW
Front washer switch ON On
INT VOLUME Wiper intermittent dial is in a dial position 1 - 7 1-7
Any position other than front wiper stop position Off
FR WIPER STOP
Front wiper stop position On
Rear wiper switch OFF Off
RR WIPER ON
Rear wiper switch ON On
Rear wiper switch OFF Off
RR WIPER INT
Rear wiper switch INT On
Rear wiper stop position Off
RR WIPER STOP
Other than rear wiper stop position On
Rear washer switch OFF Off
RR WASHER SW
Rear washer switch ON On
NOTE: Off
REVERSE SW CAN
The item is indicated, but not monitored On
When headlamp washer switch is not pressed Off
H/L WASH SW
When headlamp washer switch is pressed On
Blower fan motor switch OFF Off
FAN ON SIG
Blower fan motor switch ON (other than OFF) On
Compressor ON is not requested from auto amp.
Off
(A/C indicator OFF, blower fan motor switch OFF or etc.)
AIR COND SW
Compressor ON is requested from auto amp.
On
(A/C indicator ON and blower fan motor switch ON).
Hazard switch OFF Off
HAZARD SW
Hazard switch ON On
Brake pedal is not depressed Off
BRAKE SW
Brake pedal is depressed On
When back door opener switch is not pressed Off
TRNK OPNR SW
When back door opener switch is pressed On
Close the hood
NOTE: Off
HOOD SW Vehicles without theft warning system are OFF-fixed
Open the hood On
Auto lock function does not operate Off
AUTO RELOCK
Auto lock function is operating On
The vehicle without glass break sensor Off
GLS BREAK SEN
The vehicle with glass break sensor On
• Ignition switch OFF or ACC
Off
OIL PRESS SW • Engine running
BCS-42
< ECU DIAGNOSIS >
TERMINAL LAYOUT
A
BCS
N
JSMIA0031GB
PHYSICAL VALUES O
CAUTION:
• Check combination switch system terminal waveform under the loaded condition with lighting
switch, turn signal switch and wiper switch OFF is not to be fluctuated by being overloaded.
• Turn wiper intermittent dial position to 4 except when checking waveform or voltage of wiper inter- P
mittent dial position. Wiper intermittent dial position can be confirmed on CONSULT-III. Refer to
BCS-28, "COMB SW : CONSULT-III Function (BCM - COMB SW)".
• BCM reads the status of the combination switch at 10 ms internal normally. Refer to BCS-9, "System
Description".
BCS-43
< ECU DIAGNOSIS >
Terminal No. Description

(Wire color) Value
Input/ Condition
Signal name (Approx.)
+ − Output
Just after Insert mechanical key
1 Input/ Insert mechanical key into ignition key cylin-
Ground NATS antenna amp. into ignition key cylinder. Pointer
(W) Output der
of tester should move
Just after Insert mechanical key
2 Input/ Insert mechanical key into ignition key cylin-
Ground NATS antenna amp. into ignition key cylinder. Pointer
(G) Output der
of tester should move
3 Ignition power sup- Ignition switch OFF or ACC 0V

Ground Input
(W) ply Ignition switch ON or START Battery voltage
4 Ignition switch OFF 0V

Ground ACC power supply Input
(SB) Ignition switch ON or ACC Battery voltage
Insert mechanical key into ignition key cylin-
5 Battery voltage
der
*1
(LG) Ground Key switch Input
Remove mechanical key from ignition key
(R)*2 0V
cylinder
BCS-44
< ECU DIAGNOSIS >
(Wire color) Value A
Input/ Condition
+ − Output
All switch OFF

(Wiper intermittent dial 4) C
JPMIA0165GB
1.4 V D
E
Lighting switch HI
(Wiper intermittent dial 4)
F
JPMIA0166GB
1.3 V
G
6 Combination switch Combination Lighting switch 2ND

H
Ground Input
(L) INPUT 3 switch (Wiper intermittent dial 4)
JPMIA0167GB
I
1.3 V
Rear washer switch ON

K
JPMIA0169GB
1.3 V L
Any of the condition below BCS

with all switch OFF
• Wiper intermittent dial 1
• Wiper intermittent dial 3 N
JPMIA0196GB
1.3 V
O
BCS-45
< ECU DIAGNOSIS >
(Wire color) Value
Input/ Condition
+ − Output
All switch OFF

JPMIA0165GB
1.4 V
Lighting switch 1ST

JPMIA0166GB
1.3 V
7 Combination switch Combination Lighting switch AUTO

Ground Input
(GR) INPUT 4 switch (Wiper intermittent dial 4)
JPMIA0168GB
1.3 V
Any of the condition below

with all switch OFF
JPMIA0169GB
1.3 V
Rear wiper INT

JPMIA0196GB
1.3 V
BCS-46
< ECU DIAGNOSIS >
Input/ Condition
+ − Output
All switch OFF C
JPMIA0165GB
1.4 V D
Turn signal switch RH
F
JPMIA0166GB
1.3 V
G
Combination
8 Combination switch switch
H
Ground Input Turn signal switch LH
(V) INPUT 1 (Wiper intermit-
tent dial 4)
JPMIA0167GB
I
1.3 V
Front wiper switch LO

K
JPMIA0168GB
1.3 V L
BCS
Front washer switch ON
N
JPMIA0196GB
1.3 V
O
BCS-47
< ECU DIAGNOSIS >
(Wire color) Value
Input/ Condition
+ − Output
All switch OFF
JPMIA0165GB
1.4 V
Lighting switch 2ND
JPMIA0166GB
1.3 V
9 Combination
Combination switch switch
(G)*3 Ground Input Lighting switch PASS
INPUT 2 (Wiper intermit-
(B)*4 tent dial 4)
JPMIA0167GB
1.3 V
Front wiper switch INT
JPMIA0168GB
1.3 V
Front wiper switch HI
JPMIA0196GB
1.3 V
BCS-48
< ECU DIAGNOSIS >
Input/ Condition
+ − Output
All switch OFF

(Wiper intermittent dial 4) C
JPMIA0165GB
1.3 V D
E
Front fog lamp switch ON
F
JPMIA0167GB
1.3 V
G
10 Combination switch Combination Rear fog lamp switch ON

H
Ground Input
(BR) INPUT 5 switch (Wiper intermittent dial 4)
JPMIA0168GB
I
1.3 V
Rear wiper switch ON

(Wiper intermittent dial 4) K
JPMIA0169GB
1.3 V L

BCS
with all switch OFF
• Wiper intermittent dial 6 N
JPMIA0196GB
1.3 V
11 Input/ O
Ground Audio link — — —
(B) Output
BCS-49
< ECU DIAGNOSIS >
(Wire color) Value
Input/ Condition
+ − Output
OFF
(When rear door RH
12 Rear door closed)
Ground Rear door switch RH Input
(LG) switch RH
PKID0924E
11.2 V
ON
(When rear door RH 0V
opened)
OFF
13 Back door (When back door closed)
Ground Back door switch Input
(V) switch
PKID0924E
11.2 V
ON
0V
(When back door opened)
OFF
(When passenger door
14
Passenger door Passenger door closed)
(P)*3 Ground Input
switch switch
(BR)*4 PKID0924E
11.2 V
ON
(When passenger door 0V
opened)
OFF
15 (When driver door closed)
Driver door
(BR)*3 Ground Driver door switch Input
*4
switch
(P) PKID0924E
11.2 V
ON
(When driver door 0V
opened)
BCS-50
< ECU DIAGNOSIS >
Input/ Condition
+ − Output
OFF
(When rear door LH C
16 Rear door closed)
Ground Rear door switch LH Input
(GR) switch LH
PKID0924E
11.2 V D
ON
(When rear door LH 0V
opened) E
17 Door lock status indi- Door lock status ON 12 V
Ground Output
(L) cator indicator OFF 0V
F
G
20 Rear window defog- Rear window Not pressed
Ground Input
(SB) ger switch defogger switch
H
JPMIA0154GB
1.1 V
While pressing 0V
I
21 Input/
— CAN-L — —
(P) Output
22 Input/
(L)
— CAN-H
Output
— — J
ON 0V
23 Security indica- L
Ground Security indicator Output Blinking
(V) tor
JPMIA0014GB
BCS
10.3 V
OFF 12 V
Ignition switch OFF or ACC 12 V N
24 Light & rain sensor Input/

O
Ground
(GR) serial link Output Ignition switch ON
P
JPMIA0156GB
8.7 V
25
Ground Alarm link Output — —
(G)
BCS-51
< ECU DIAGNOSIS >
(Wire color) Value
Input/ Condition
+ − Output
26
Blower fan motor Blower fan mo- OFF
(GR)*5 Ground Input
switch tor switch
(LG)*6
PKID0924E
11.2 V
ON (other than OFF) 0V
Compressor ON is not re-

quested from auto amp.
(A/C indicator OFF, blow-
er fan motor switch OFF
27
Ignition switch or etc.)
(P)*5 Ground A/C switch Input
*6
ON PKID0924E
(Y) 11.2 V
Compressor ON is re-
quested from auto amp.
(A/C indicator ON and 0V
blower fan motor switch
ON).
Ignition switch OFF or ACC 0V
28
(LG)*7 Ground Shock detect sensor Input
Ignition switch ON
(R)*8
JPMIA0155GB
6.0 V
29
Back door opener Back door Not pressed
(LG)*3 Ground Input
switch opener switch
(O)*4
JPMIA0154GB
1.2 V
Pressed 0V
32 Door lock/unlock Door lock/un- Not pressed

Ground
(BR) switch (Unlock) Input lock switch
JPMIA0154GB
1.2 V
Pressed to the unlock side 0 V
BCS-52
< ECU DIAGNOSIS >
Input/ Condition
+ − Output
33
OFF C
(W)*9 Ground Hazard switch Input Hazard switch
(Y)*10
JPMIA0154GB
1.3 V D
ON 0V
34
Door lock/unlock Door lock/un- Not pressed F
(SB)*3 Ground
switch (Lock) Input lock switch
(P)*4
JPMIA0154GB
1.2 V G
Pressed to the lock side 0V
35 Headlamp washer Headlamp Not pressed I

Ground
(G) switch Input washer switch
JPMIA0154GB
J
1.2 V
Pressed to the lock side 0V
All switch OFF 0V K
Turn signal switch RH
Lighting switch 2ND
Combination
Lighting switch HI
L
36 Combination switch switch
Ground Output
(G) OUTPUT 5 (Wiper intermit-
tent dial 4)
Lighting switch 1ST BCS
JPMIA0164GB
9.1 V
All switch OFF N
0V
Front washer switch ON
O
Rear washer switch ON
37 Combination switch Combination
Ground Output
(R) OUTPUT 2 switch Any of the condition below P
with all switch OFF
• Wiper intermittent dial 6 JPMIA0161GB
9.1 V
Rear wiper switch ON
BCS-53
< ECU DIAGNOSIS >
(Wire color) Value
Input/ Condition
+ − Output
All switch OFF 0V
Front wiper switch LO
Front wiper switch MIST
Combination
38 Combination switch switch Front wiper switch INT
Ground Output
(W) OUTPUT 3 (Wiper intermit- Lighting switch AUTO
tent dial 4)
Rear fog lamp switch ON JPMIA0162GB
9.3 V
All switch OFF 0V
Turn signal switch LH
Lighting switch PASS
Combination
39 Combination switch switch Lighting switch 2ND
Ground Output
(Y) OUTPUT 4 (Wiper intermit-
tent dial 4)
Front fog lamp switch ON
JPMIA0163GB
9.3 V
All switch OFF
0V
Front wiper switch HI
40 Combination switch Combination with all switch OFF
Ground Output • Wiper intermittent dial 1
(P) OUTPUT 1 switch
• Wiper intermittent dial 7 JPMIA0160GB
Rear wiper switch INT 9.1 V

41 Battery power sup-
Ground Input Ignition switch OFF Battery voltage
(LG) ply
42 Interior room lamp Interior room lamp battery saver activation 0V

Ground Output
(V) power supply Interior room lamp battery saver no activation 12 V
43 Rear wiper switch OFF 0V

Ground Rear wiper motor Output
(SB) Rear wiper switch ON 12 V
Rear wiper stop position

44 Ignition switch
Ground Rear wiper auto stop Input
(B) ON
JPMIA0197GB
Any position other than

0V
rear wiper stop position
BCS-54
< ECU DIAGNOSIS >
Input/ Condition
+ − Output
45 Back door lock actu- Back door Pressed

(V)
Ground
ator
Output
opener switch
C
SKIA9232E
D
Not pressed 0V
Turn signal switch OFF 0V
E
47 Ignition switch
Ground Turn signal LH Output
(BR) ON Turn signal switch LH F
PKID0926E G
6.5 V
Turn signal switch OFF 0V
H
48 Ignition switch
Ground Turn signal RH Output I
(GR) ON Turn signal switch RH
PKID0926E J
6.5 V
49 OFF 0V
Ground Rear fog lamp Output Rear fog lamp
(Y) ON 12 V K
50 Unlock 5V
Ground Unlock sensor Input Driver's door
(G) lock 0V
L
51 Depress the brake pedal Battery voltage
Ground Stop lamp switch Input
(R) Release the brake pedal 0V
52 Room lamp timer Interior room OFF 12 V BCS

Ground Output
(R) control lamp ON 0V
53 Power window pow- OFF or ACC 0V

(L)
Ground
er supply (IGN)
Output Ignition switch N
ON 12 V
O
Door unlock Pressed to the unlock side
54 Door lock/un-
Ground (All other than driv- Output
(O) lock switch
er's door) P
SKIA9232E
Not pressed 0V
55
Ground Ground — Ignition switch ON 0V
(B)
BCS-55
< ECU DIAGNOSIS >
(Wire color) Value
Input/ Condition
+ − Output
Not pressed 0V
56 Door lock (All) and Door lock/un-

Ground Output
(V) fuel lid lock lock switch Pressed to the lock side
SKIA9232E
57 Battery power sup-

Ground Input Ignition switch OFF Battery voltage
(Y) ply
58 Power window pow-
Ground Output Ignition switch OFF 12 V
(P) er supply (BAT)
When lock button of key fob or Intelligent Key
0V
59 is not pressed
Ground Super lock Output
(R) When lock button of key fob or Intelligent Key
12 V
is pressed
60 Driver's door unlock Door lock/un- Pressed to the unlock side

Ground Output
(G) and fuel lid unlock lock switch
SKIA9232E
Not pressed 0V
*1: With Intelligent Key
*2: Without Intelligent Key
*3: RHD models
*4: LHD models
*5: With gasoline engine
*6: With diesel engine
*7: RHD models with side air bag
*8: LHD models with side air bag
*9: With xenon headlamp and daytime light system
*10: Except with xenon headlamp and daytime light system
BCS-56
< ECU DIAGNOSIS >
Wiring Diagram - BCM - INFOID:0000000001158260
BCS
JCMWA0500GB
P
BCS-57
< ECU DIAGNOSIS >
JCMWA0501GB
BCS-58
< ECU DIAGNOSIS >
BCS
JCMWA0502GB
BCS-59
< ECU DIAGNOSIS >
JCMWA0503GB
BCS-60
< ECU DIAGNOSIS >
BCS
JCMWA0504GB
BCS-61
< ECU DIAGNOSIS >
JCMWA0505GB
BCS-62
< ECU DIAGNOSIS >
BCS
JCMWA0506GB
P
Fail Safe INFOID:0000000001158261
FAIL-SAFE CONTROL BY DTC

BCM performs fail-safe control when any DTC is detected.
BCS-63
< ECU DIAGNOSIS >
DTC Fail-safe Cancellation

• Inhibits engine cranking
B2190: NATS ANTENNA AMP • Inhibits steering lock unlocking (Intelligent Key unit) Erase DTC
• Fuel cut (ECM)
B2191: DIFFERENCE OF KEY • Inhibits steering lock unlocking (Intelligent Key unit) Erase DTC
• Fuel cut (ECM)
B2192: ID DISCORD BCM-ECM Fuel cut (ECM) Erase DTC
B2193: CHAIN OF BCM-ECM Fuel cut (ECM) Erase DTC
B2194: DISCORD BCM-I-KEY • Inhibits steering lock unlocking (Intelligent Key unit) Erase DTC
• Fuel cut (ECM)
B2195: ANTI SCANNING • Inhibits steering lock unlocking (Intelligent Key unit) Erase DTC
• Fuel cut (ECM)
B2196: DONGLE NG • Inhibits steering lock unlocking (Intelligent Key unit) Erase DTC
• Fuel cut (ECM)
REAR WIPER MOTOR PROTECTION

BCM detects the rear wiper stopping position according to the rear wiper auto stop signal.
When the rear wiper auto stop signal does not change more than 5 seconds while driving the rear wiper, BCM
stops power supply to protect the rear wiper motor.
Condition of cancellation
2. Pass more than 1 minute after the rear wiper stop.
3. Turn ignition switch ON.
4. Operate the rear wiper switch.
HIGH FLASHER OPERATION
BCM detects the turn signal lamp circuit status from the terminal voltage.
BCM increases the turn signal lamp blinking speed if the bulb or harness open is detected with the turn signal
lamp operating.
NOTE:
The blinking speed is normal while activating the hazard warning lamp.
FAIL-SAFE CONTROL BY LIGHT & RAIN SENSOR MALFUNCTION
BCM detects the light & rain sensor serial link error and the light & rain sensor malfunction.
BCM controls the following fail-safe when light & rain sensor has a malfunction.
Fail-safe Control
• Auto light control: Headlamp is turned ON.
• Front wiper control: The condition just before the activation of fail-safe is maintained until the front wiper
switch is turned OFF.
DTC Inspection Priority Chart INFOID:0000000001158262
Priority DTC
• U1000: CAN COMM CIRCUIT
1
• U1010: CONTROL UNIT (CAN)
• B2190: NATS ANTENNA AMP
• B2191: DIFFERNCE OF KEY
• B2192: ID DISCORD BCM-ECM
2 • B2193: CHAIN OF BCM-ECM
• B2194: DISCORD BCM-I-KEY
• B2195: ANTI SCANNING
• B2196: DONGLE NG
BCS-64
< ECU DIAGNOSIS >
DTC Index INFOID:0000000001158263
A
NOTE:
Details of time display
• CRNT: Displays when there is a malfunction now or after returning to the normal condition until turning igni- B
tion switch OFF → ON again.
• PAST: Displays when there is a malfunction that is detected in the past and stored.
• 1 - 39: Displayed if any previous malfunction is present when current condition is normal. It increases like 1
→ 2 → 3...38 → 39 after returning to the normal condition whenever ignition switch OFF → ON. The counter C
remains at 39 even if the number of cycles exceeds it. It is counted from 1 again when turning ignition switch
OFF → ON after returning to the normal condition if the malfunction is detected again.
D
DTC TIME Fail-safe Reference
U1000: CAN COMM CIRCUIT 0 1 - 39 — BCS-33
U1010: CONTROL UNIT (CAN) 0 1 - 39 — BCS-34 E
• With Intelligent Key system: SEC-41
B2190: NATS ANTENNA AMP CRNT PAST × • Without Intelligent Key system: SEC-
254 F
B2191: DIFFERENCE OF KEY CRNT PAST × • Without Intelligent Key system: SEC-
256
G
B2192: ID DISCORD BCM-ECM CRNT PAST × • Without Intelligent Key system: SEC-
251
H
B2193: CHAIN OF BCM-ECM CRNT PAST × • Without Intelligent Key system: SEC-
253
B2194: DISCORD BCM-I-KEY CRNT PAST × SEC-53 I
B2195: ANTI SCANNING CRNT PAST × • Without Intelligent Key system: SEC-
264 J
B2196: DONGLE NG CRNT PAST × • Without Intelligent Key system: SEC-
265 K
BCS
BCS-65
PRECAUTIONS
< PRECAUTION >
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER" INFOID:0000000001559839
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the “SRS AIRBAG” and
“SEAT BELT” of this Service Manual.
WARNING:
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal
injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the “SRS AIRBAG”.
• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.
BCS-66
COMBINATION SWITCH SYSTEM SYMPTOMS
< SYMPTOM DIAGNOSIS >
SYMPTOM DIAGNOSIS A
COMBINATION SWITCH SYSTEM SYMPTOMS
Symptom Table INFOID:0000000001158265
B
1. Perform “Data Monitor” of CONSULT-III to check for any malfunctioning item.

2. Check the malfunction combinations. C
Malfunction item: ×
Data monitor item

D
HEAD LAMP SW 1
HEAD LAMP SW 2
RR WASHER SW
AUTO LIGHT SW
FR WASHER SW
TURN SIGNAL R
TURN SIGNAL L
FR WIPER LOW
TAIL LAMP SW
RR WIPER INT
RR WIPER ON
FR WIPER INT
PASSING SW
FR WIPER HI
INT VOLUME
HI BEAM SW
RR FOG SW
FR FOG SW
Malfunction combi-
nation
E
× × × × A F
× × × × B
× × × × C
G
× × × × D
× × × × E
× × × × F H
× × × G
× × × × H
I
× × × × I
× × × × J
Combinations other than those above K J
All Items L
If only one item is detected or the item is not applicable to the combinations A to L M
K
3. Identify the malfunctioning part from the agreed combination and repair or replace the part.
Malfunction
Malfunctioning part Repair or replace L
combination
A Combination switch “INPUT 1” circuit
B Combination switch “INPUT 2” circuit BCS
Inspect the combination switch input circuit applicable to the malfunctioning
C Combination switch “INPUT 3“ circuit
part. Refer to BCS-36, "Diagnosis Procedure".
D Combination switch “INPUT 4” circuit
E Combination switch “INPUT 5” circuit N
F Combination switch “OUTPUT 1” circuit
G Combination switch “OUTPUT 2” circuit
Inspect the combination switch output circuit applicable to the malfunction- O
H Combination switch “OUTPUT 3” circuit
ing part. Refer to BCS-38, "Diagnosis Procedure".
I Combination switch “OUTPUT 4” circuit
J Combination switch “OUTPUT 5” circuit P
Light & turn signal switch or wiper &
K Inspect the combination switch. Refer to BCS-39, "Description".
washer switch
L BCM Replace BCM.
Light & turn signal switch or wiper &
M Replace the applicable switch that cannot be operated.
washer switch
BCS-67
< ON-VEHICLE REPAIR >
ON-VEHICLE REPAIR
Exploded View INFOID:0000000001158266
CAUTION:
Before replacing BCM, perform “READ CONFIGURATION” to save or print current vehicle specifica-
tion. Refer to BCS-3, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Description".
JSMIA0036ZZ
1. BCM
Removal and Installation INFOID:0000000001158267
CAUTION:
Before replacing BCM, perform “READ CONFIGURATION” to save or print current vehicle specifica-
tion. Refer to BCS-3, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Description".
REMOVAL
1. Remove glove box assembly. Refer to IP-11, "Exploded View".
2. Remove NAVI control unit (if equipped). Refer to AV-257, "Exploded View".
3. Disconnect 4WD control unit connector (if equipped).
4. Remove BCM bracket mounting screws.
5. Remove BCM and disconnect the connector.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
• Be sure to perform “WRITE CONFIGURATION” when replacing BCM.
• Be sure to perform the system initialization (NATS) when replacing BCM.
Refer to BCS-3, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Require-
ment".
BCS-68
COMBINATION SWITCH
< ON-VEHICLE REPAIR >
COMBINATION SWITCH
A
Exploded View INFOID:0000000001158268
JSMIA0037ZZ
1. Wiper & washer switch 2. Switch base (Spiral cable) 3. Light & turn signal switch G
Removal and Installation INFOID:0000000001158269
H
Refer to the spiral cable removal and installation SR-7, "Exploded View".
BCS
BCS-69

Electrical & Power Control System Overview

Uploaded by

Document Information

Original Description:

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Electrical & Power Control System Overview

Uploaded by

Copyright:

Available Formats

ELECTRICAL & POWER CONTROL

CONFIGURATION (BCM) ........................................... 3 BUZZER .....................................................................21 I

COMMON ITEM ......................................................... 19 COMB SW ..................................................................28

COMPONENT DIAGNOSIS ........................ 33 SYMPTOM DIAGNOSIS ............................ 67

1.SAVING VEHICLE SPECIFICATION

>> WORK END

1.WRITING MODE SELECTION

When writing saved data>>GO TO 2.

>> WORK END

>> WORK END

RHD MODELS WITHOUT I-KEY

MANUAL SETTING ITEM

AUTO SETTING ITEM E

RHD MODELS WITH I-KEY

AUTO SETTING ITEM

LHD MODELS WITHOUT I-KEY

MANUAL SETTING ITEM

AUTO SETTING ITEM

LHD MODELS WITH I-KEY

System Reference page F

Component Parts Location INFOID:0000000001158218

Combination switch INPUT-OUTPUT system list P

COMBINATION SWITCH READING FUNCTION

Intermittent INT VOLUME switch ON/OFF status

Component Parts Location INFOID:0000000001158221

1. Combination switch 2. BCM

System Description INFOID:0000000001158223

Signal name Input Output Description

System Description INFOID:0000000001158225

1. Combination meter 2. BCM 3. IPDM E/R

CONSULT-III Diagnosis mode

BCM CONSULT-III FUNCTION

Diagnosis mode Function Description

Monitor Item Condition

PUSH SW*1 Indicates [ON/OFF] condition of ignition knob switch.

Test item Description

:*1 For the super lock equipped vehicle.

Test item Description A

Test Item Description

CONSULT-III FUNCTION (BCM – BUZZER) I

Test item Diagnosis mode Description

Display item Description

Service item Setting item Setting

MULTIREMOTE ENT : CONSULT-III Function (BCM - MULTIREMOTE ENT)

Monitor Item Condition

Test item Description

Test item Description

Service item Setting item Setting

Test item Operation Description

Service item Setting item Description

Test item Operation Description

Test item Operation Description

Monitor Item [Unit] Contents

BCM CONSULT-III FUNCTION

Diagnosis mode Function Description

Monitor Item Condition

Monitor item [UNIT] Description

PUSH SW*1 Indicates [ON/OFF] condition of ignition knob switch.

Test item Description

Service item Setting item Setting

Test item Operation Description

TRUNK : CONSULT-III Function (BCM - TRUNK) INFOID:0000000001509116
