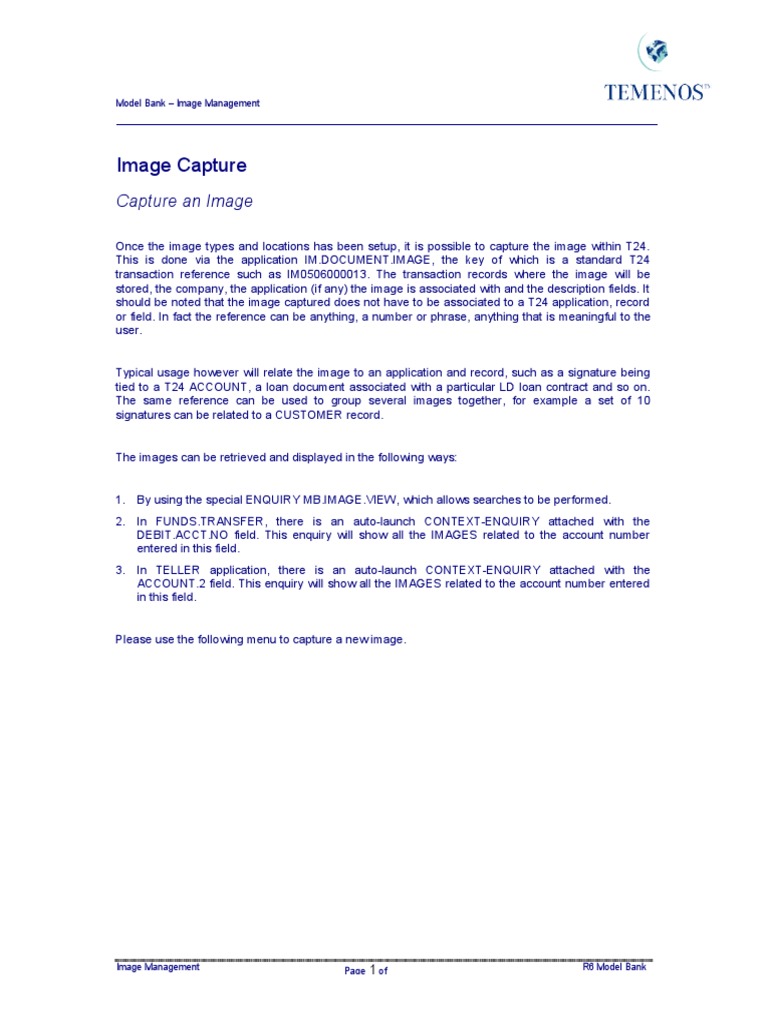

Image Capture
Capture an Image

Once the image types and locations has been setup, it is possible to capture the image within T24.
This is done via the application IM.DOCUMENT.IMAGE, the key of which is a standard T24
transaction reference such as IM0506000013. The transaction records where the image will be
stored, the company, the application (if any) the image is associated with and the description fields. It
should be noted that the image captured does not have to be associated to a T24 application, record
or field. In fact the reference can be anything, a number or phrase, anything that is meaningful to the
user.

Typical usage however will relate the image to an application and record, such as a signature being
tied to a T24 ACCOUNT, a loan document associated with a particular LD loan contract and so on.
The same reference can be used to group several images together, for example a set of 10
signatures can be related to a CUSTOMER record.

The images can be retrieved and displayed in the following ways:

1. By using the special ENQUIRY MB.IMAGE.VIEW, which allows searches to be performed.

2. In FUNDS.TRANSFER, there is an auto-launch CONTEXT-ENQUIRY attached with the
DEBIT.ACCT.NO field. This enquiry will show all the IMAGES related to the account number
entered in this field.
3. In TELLER application, there is an auto-launch CONTEXT-ENQUIRY attached with the
ACCOUNT.2 field. This enquiry will show all the IMAGES related to the account number entered
in this field.

Please use the following menu to capture a new image.

Image Management Page 1 of R6 Model Bank

Retail user menu>Image Capture>Capture an Image

Figure 4 – Capture A New Signature.

Procedure

1. Please enter the account number for which you are capturing the image in the following screen.

2. Enter a brief description in the next two fields and then click the icon.
3. After the commit is successful, the screen will automatically take you to the next level, Image
Upload (IM.DOCUMENT.UPLOAD) wherein we actually link an image to an account.
4. In this screen the ID is auto generated and it is same as IM.DOCUMENT.IMAGE application.
5. Now, click the “CAMERA” icon in the following screen, which in turn will open another window in
order to browse through the windows explorer to upload the correct image for the account.
 Figure 5 – Enter Image Upload Info.

6. Then click the icon and then click the icon in the Image Upload Screen.
7. If the image setup is correct, after the successful commit, the captured image will be opened in a
new window for display purpose.

Image Enquiry

Please use the following menu to view all the images linked to an account.

Image Capture>Image Enquiry

Procedure

1. Please enter the account number for which you want to view the signature and then click the
icon in the following screen.
 Fig – 6 – Viewing the images.
2. You can now see all the images captured for that account.

3. If the selection is successful, then the output of the enquiry will just look like the following screen.

Fig –7 – Signature View On Browser.
