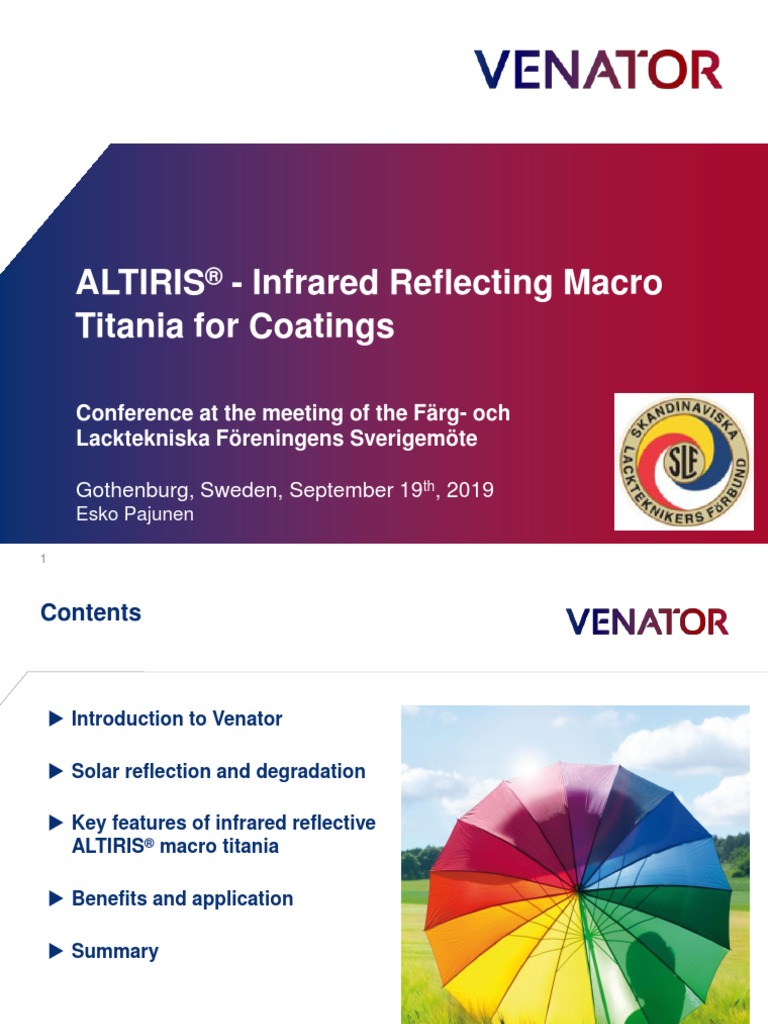

ALTIRIS® - Infrared Reflecting Macro

Titania for Coatings

Conference at the meeting of the Färg- och

Lacktekniska Föreningens Sverigemöte

Gothenburg, Sweden, September 19th, 2019

Esko Pajunen

1
Contents

 Introduction to Venator

 Solar reflection and degradation

 Key features of infrared reflective

ALTIRIS® macro titania

 Benefits and application

 Summary

2
 Introduction to Venator

3
 Venator Business Segments

Revenues of $2,265mm from across a broad range of end markets

Titanium Dioxide Performance Additives

Segment

FY18 FY18

Revenue (mm)1 $1,666 Revenue (mm) 1 $599

Other
Other Agriculture & Water
3%
3% 4%
Fibres & Films Fibres & Films Architectural Coatings
9% 3% 14 %
Personal Care, Food, Architectural Coatings
Pharmaceuticals & Active Personal Care, Food,
Materials
28 % Pharmaceuticals & Active
5% Materials
6%
Inks
End Markets

5%
Plastics Industial Coatings
16 % 12 %

Industial Coatings
14 %

Plastics
36 %
Construction
42 %

4 (1) 2018 Revenues

World-class portfolio
To meet customer needs now and in the future

Titanium Dioxide Functional Additives Color Pigments

Leading global supplier of TiO2 Leading supplier of barium sulfate and Leading global supplier of driers,
pigments and ultrafine effect grades zinc sulfide ultramarine blue and iron oxide pigments

Timber Treatment Water Treatment Eco Products

Leading supplier of timber Major European supplier of water Leading producer of iron based
treatment chemicals treatment chemicals products and synthetic gypsum

5
Our locations
24 sites and over 4,000 associates

Pori
Ibbenburen
Birtley Everberg
Wynyard Duisburg
Greatham Schwarzheide
Harrisburg Kidsgrove Walluf
Augusta Sudbury Uerdingen
Comines Turin Taicang
Huelva Scarlino

Los Angeles
Shanghai
Houston
Freeport

Teluk Kalong

Petaling Jaya
Dandenong

Titanium Dioxide Functional Additives Harrisburg Timber Treatment Corporate Offices and R&D
Duisburg Duisburg Kidsgrove Freeport Duisburg
Greatham Pori Los Angeles Harrisburg Everberg
Huelva Sudbury Houston
Lake Charles Color Pigments Taicang Water Treatment Petaling Jaya
Pori Augusta Turin Duisburg Shanghai
Scarlino Birtley Walluf Ibbenburen Wynyard
Teluk Kalong Comines Schwarzheide
Uerdingen Dandenong

6 24 manufacturing sites and 4 corporate offices

 Solar reflection and degradation

7
Solar Energy
Heat build-up

 The sun provides energy which can be harvested by solar panels and converted to electricity
 In places, daily insolation can reach 7.5 kilowatt hours per square metre
 Unless this energy is reflected, it can contribute to:
► Discomfort
► Air conditioning costs
► Urban heat islands
► Global warming
► Smog
► Surface deterioration

Towns warmer than countryside Solar Radiation and Heat build-up

8 Image By SolarGIS © 2013 GeoModel Solar, CC BY-SA 3.0, https://commons.wikimedia.org/w/index.php?curid=33459572

Solar Reflectance
Heat build-up

Solar Radiation and Heat build-up

 It’s not unusual for the sun’s radiation

to reach 1000 W/m2

 A solar reflectance of 60 % means 600 W of

the 1000 W would be reflected into space
and 400 W would be absorbed to heat the
surface, the neighbourhood and the planet

 As a rule of thumb, a 10 % solar reflectance

increase can equate to a surface
temperature reduction of 5 oC

9
ALTIRIS® infrared reflecting pigments
Managing reflectance to improve product durability

Sunlight is made up of three parts:

UV
 Makes up the smallest part of the spectrum
Solar Spectrum
 Can cause system to break-down and ‘chalking’
or gloss loss can occur (photodegradation)
 Well known methods using UV absorbers both
organic and in-organic to control degradation

Visible
 Less than 50% is the visible part we see
 Causes some heating of the polymer which can
cause warping, micro cracking or embrittlement
(thermal degradation)

Infrared
 Over half the sun’s power is in the infrared
 Invisible but is the cause of the heating problem

10
ALTIRIS® - solar spectrum and durability
Managing reflectance to improve product durability

Energy absorbed from the sun causes:

1) Photo degradation 2) Thermal degradation

Direct and indirect effect of free radicals Temperature affecting the physical and
destroying organic materials chemical structure of a material

Depolymerization • Reduce mechanical integrity

Migration of species • Embrittlement

Stress cycles • Micro cracking

Maximising solar reflectance is key to enhanced performance

in both white and colored exterior systems

11
 Key features of infrared reflective
ALTIRIS® macro titania

12
ALTIRIS® infrared reflecting pigments
Engineered for maximum impact

Dense silica shell

 Ensures that ALTIRIS®
pigment has high durability

Large titanium
dioxide particle Alumina coating
 Optimised to reflect
 Facilitates excellent
near infrared energy
dispersion
helping keep system
cooler
 Has low tint strength
and therefore can be
used to improve the
infrared reflectance
of colored systems
unlike standard
titanium dioxide

13
Pigmentary TiO2 versus ALTIRIS®

Pigmentary TiO2 ALTIRIS®

Designed to scatter visible light – surface Effect TiO2 designed to reflect in Infrared
looks white spectrum (heat) and less visible light (low opacity)

14 Illustrative purposes only – optimum wavelength scattering for the crystal size distribution. Actual scattering for a given crystal size is much wider
ALTIRIS® pigment range-maximizing
solar reflectance

Conventional hiding TiO2 White

TIOXIDE® TR81 pigment 200 nm Conventional
Pure White Coatings TiO2

ALTIRIS® W400 pigment

Total Solar Reflectance

400 nm ALTIRIS®
TRP ca. 85% of conventional TiO2
W400
White alternative for conv. TiO2 in white

Heat build up
and light shades L* 80 – 100%

ALTIRIS® 550 pigment ALTIRIS®

700 nm
TRP ca. 50% of conv. TiO2 550
For medium shades L* 40 – 80%

ALTIRIS® 800 pigment ALTIRIS®

TRP ca. 25% of conv. TiO2 1000 nm
800
For cool dark and vibrant colors
L* less than 40%

Color
15
 Benefits and applications

16
ALTIRIS® technology
Application areas in coatings

Finished Coating
Super durable colored Zinc Primer
coatings
Coil, marine, automotive, metal roofs etc

Substrate

Solar reflective coating to local

standards
ALTIRIS® meets new ASTM D476 class VIII
type for TiO2 used in cool colored coatings

Mineral coatings e.g. facades

17
Lower heat build-up with ALTIRIS®
Example of Green Surface

ALTIRIS® TiO2 greatly increased reflection near IR region while providing exactly the same
color and reflectance in visible light wave lengths

Influence of ALTIRIS® macro titania for IR reflectance in a green paint

18 The paint films shown above are approximately 50 microns thick, measured over a black absorbing substrate
ALTIRIS® pigment range - meeting local
standards

 JG/T235-2014, JIS K 5675

 Code of Australia, California Energy Commission and Title 24
 It is possible to significantly increase the IR reflectance by using ALTIRIS® TiO2 in colored coatings

US Federal Standard 595-30315 US Federal Standard 595-26270

’DESERT SANDRAY’ ’HAZE GRAY’

80 60
Surface temperature
70 reduction of 7 - 9ºC
50
Total Solar Reflectance (% )

Surface temperature

Total Solar Reflectance (%)

60 reduction of 12 – 15ºC
40
50

40 30

30
20
20
10
10

0 0
Non-reflecting coating Current IR reflective ALTIRIS® optimised Non-reflecting coating Current IR reflective ALTIRIS® optimised
coating coating

19 The paint films shown above are approximately 75 microns thick, over a black absorbing substrate
Lower heat build-up with ALTIRIS® 800
Example of Dark shade brown

Solar Reflectance
Brown (L*40, a*15, b*15)
Uplift*

Reference With carbon black 16  Pigment choice influence on

solar reflectance
ALTIRIS® 800
With carbon black +13  Formulation flexibility:
pigment
Different pigments can be used
to increase solar reflectance
With carbon black
Reference 14  Good solar reflectance
& phthalo blue
increase of 5–17 solar
ALTIRIS® 800 With carbon black reflectance % points by usage
+17
pigment & phthalo blue of ALTIRIS® 800 pigment

With inorganic
Reference 25
pigments
ALTIRIS® 800 With inorganic
+5
pigment pigments

20 *Based on limited Huntsman testing, formulations are available on request

ALTIRIS® infrared reflective pigments
5 years Florida weathering - gloss

ALTIRIS® 800 and 550 show very low photoactivity and weathering resistance performance is at high
level even in comparison to so called superdurable TiO2 reference widely used in the markets

Coil coating based on polyester-MF (Uralac SN-804, Cymel 303)

Contains 23 % volume concentration of durable rutile and ALTIRIS ® macro TiO2 products / Exposed in Florida

21
Summary

ALTIRIS® macro titania additive

products for:

 Infrared reflection and heat management

 Cooler surfaces
 Control of interior temperature conditions
 Enhanced life time of exterior surfaces

Applications:

 Exterior coatings such as coated steel, coil,

applied marine coatings, automotive finishes,
hand painted roofs and facades

22
