Installation: Base Transceiver Station Equipment Imn:Btse Bs40

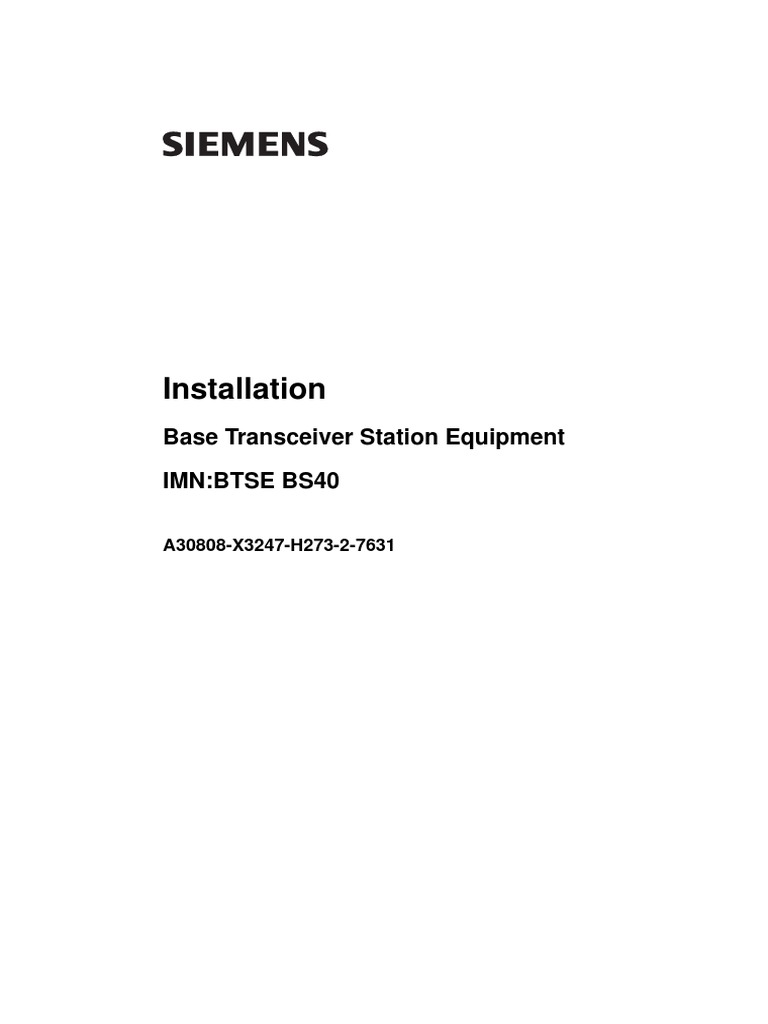

Installation
Base Transceiver Station Equipment
IMN:BTSE BS40
A30808-X3247-H273-2-7631
IMN:BTSE BS40 Installation
Important Notice on Product Safety

!
Elevated voltages are inevitably present at specific points in this electrical equipment. Some of the
parts can also have elevated operating temperatures.
Non-observance of these conditions and the safety instructions can result in personal injury or in prop-
erty damage.
Therefore only trained and qualified personnel may install and maintain the system.
The system complies with the standard EN 60950. All equipment connected has to comply with the
applicable safety standards.
Copyright (C) Siemens AG 2000.
Issued by the Public Communication Network Group

Hofmannstraße 51
D-81359 München
Technical modifications possible.

Technical specifications and features are binding only insofar as
they are specifically and expressly agreed upon in a written contract.
2 A30808-X3247-H273-2-7631
Installation IMN:BTSE BS40
Reason for Update

Summary:
New release BR5.5
Details:
Chapter/Section Reason for Update
2 BS40U for US-marked added
Issue History
Issue Date of issue Reason for Update
Number
1 05/00 New release BR5.0
2 09/00 New release for BR5.5
A30808-X3247-H273-1-7631 3
4 A30808-X3247-H273-1-7631
This document consists of a total of 62 pages. All pages are issue 1.
Contents
1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
1.1 Purpose of the Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
1.2 Tasks of the Base Transceiver Stations . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
1.3 Feature Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
1.4 Other Types of Base Transceiver Stations . . . . . . . . . . . . . . . . . . . . . . . . . 10
1.5 Installation Prerequisites. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
1.6 Handling of the Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
1.7 Installation Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
1.8 Ancillary Material. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2 BS 40 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.1 Position in the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.2 Site Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.3 Site Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
2.4 Construction View of the BS 40 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
2.5 Equipment Delivery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
2.5.1 Preliminary Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
2.5.2 Rack Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
2.5.3 Devices Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
2.5.4 Rack Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
2.6 External Cabling Activities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
2.6.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
2.6.2 Ground and Power Supply Connections BS40E. . . . . . . . . . . . . . . . . . . . . 24
2.6.3 Ground and Power Supply Connections BS40U . . . . . . . . . . . . . . . . . . . . 26
2.6.4 Abis-Interface - PCM Link Terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
2.6.4.1 Abis-Interface for 120 Ohm Cable Impedance . . . . . . . . . . . . . . . . . . . . . . 28
2.6.4.2 Abis-Interface for 75 Ohm Cable Impedance . . . . . . . . . . . . . . . . . . . . . . . 30
2.6.4.3 Abis-Interface without OVPT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
2.6.5 Serial Interface - Signalling Link Terminal . . . . . . . . . . . . . . . . . . . . . . . . . 35
2.6.6 Alarm Collection Terminal - external Signal Sensors . . . . . . . . . . . . . . . . . 36
2.6.7 Local Maintenance Terminal (LMT) Interface . . . . . . . . . . . . . . . . . . . . . . . 42
2.6.8 Antenna Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
2.6.9 Installation of the Tower Mounted Amplifier . . . . . . . . . . . . . . . . . . . . . . . . 45
2.7 Rack Completion. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
2.7.1 DC Cabling, Installation and Cabling of Batteries . . . . . . . . . . . . . . . . . . . . 50
2.7.2 Installation of Link Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
2.8 Setup of System Cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
2.8.1 Configuration 1 Cell with DUAMCO 2:2 (Proposal) . . . . . . . . . . . . . . . . . . 56
2.8.2 Configuration 1 Cell with DUAMCO 4:2 (Proposal) . . . . . . . . . . . . . . . . . . 56
2.8.3 Configuration 2 Cells with DUAMCO 2:2 (Proposal) . . . . . . . . . . . . . . . . . 57
2.8.4 Configuration 2 Cells with DUAMCO 4:2, 2:2 (Proposal) . . . . . . . . . . . . . . 57
2.8.5 Configuration: 1 Cell with FICOM (Proposal) . . . . . . . . . . . . . . . . . . . . . . . 58
2.8.6 HPDU Cabling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
2.8.7 Configuration: 2 Cells with FICOM, max. 2,6,0 (Proposal) . . . . . . . . . . . . . 59
A30808-X3247-H273-1-7631 5
2.9 Post Installation Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
3 Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
6 A30808-X3247-H273-1-7631
Illustrations
Fig. 1.1 ESD Symbol. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Fig. 2.1 Position of the BS40 within the SBS . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Fig. 2.2 Site configuration BS40 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Fig. 2.3 BS40 rack (fully equipped with 4 carriers) . . . . . . . . . . . . . . . . . . . . . . . 15
Fig. 2.4 Configuration of Service2 rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Fig. 2.5 Configuration Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Fig. 2.6 Cabling Configuration List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Fig. 2.7 Removal of top cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Fig. 2.8 Space necessary for installation of BS40 . . . . . . . . . . . . . . . . . . . . . . . 21
Fig. 2.9 Interfaces on top of the BS40 Base Rack . . . . . . . . . . . . . . . . . . . . . . . 22
Fig. 2.10 Locations of connection points for external cables . . . . . . . . . . . . . . . . 23
Fig. 2.11 Ground and AC mains connections of the BS40 (example) . . . . . . . . . 24
Fig. 2.12 Main supply unit of BS40E. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Fig. 2.13 Ground and AC connections of the BS40U . . . . . . . . . . . . . . . . . . . . . . 27
Fig. 2.14 OVPT with terminal block (120 Ohm) . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Fig. 2.15 Pinning Abis interface PCM0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Fig. 2.16 Pinning Abis interface PCM1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Fig. 2.17 OVPT with SMA connectors (75 Ohm) . . . . . . . . . . . . . . . . . . . . . . . . . 30
Fig. 2.18 Preparation of 75 Ohm coaxial cable. . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Fig. 2.19 Terminal numbering of the ACTA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Fig. 2.20 DC panel with ACTC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Fig. 2.21 Connector arrangement at ACTC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Fig. 2.22 ACTC and LMT interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Fig. 2.23 Cell numbering (top view from the antenna pole) . . . . . . . . . . . . . . . . . 43
Fig. 2.24 Max. dimensions of antenna connectors . . . . . . . . . . . . . . . . . . . . . . . . 44
Fig. 2.25 Routing of antenna jumper cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Fig. 2.26 Position of TMA (DUAMCO combiner used) . . . . . . . . . . . . . . . . . . . . . 45
Fig. 2.27 Position of TMA (FICOM combiner used) . . . . . . . . . . . . . . . . . . . . . . . 45
Fig. 2.28 Bottom view of the Tower Mounted Amplifier . . . . . . . . . . . . . . . . . . . . 46
Fig. 2.29 TMA with mounting brackets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Fig. 2.30 Cable routing inside the EMC-protected area . . . . . . . . . . . . . . . . . . . . 48
Fig. 2.31 Top cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Fig. 2.32 Connection of backup batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Fig. 2.33 Overview of Interrack- /Battery Cabling . . . . . . . . . . . . . . . . . . . . . . . . . 51
Fig. 2.34 Cabling for link equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Fig. 2.35 Slot numbering of the BS40 Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Fig. 2.36 System Cabling DUAMCO 2:2, 1 cell . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Fig. 2.39 System Cabling DUAMCO 4:2, 2:2 2 cells. . . . . . . . . . . . . . . . . . . . . . . 57
Fig. 2.40 System Cabling FICOM , 1 cell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Fig. 2.41 HPDU Cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Fig. 2.42 System Cabling FICOM, 2cells . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
A30808-X3247-H273-1-7631 7
Tables
Tab. 2.1 Pinning of the AC input terminal block . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Tab. 2.2 Pinning of Abis interface PCM0, 75 Ohm . . . . . . . . . . . . . . . . . . . . . . . . 31
Tab. 2.3 Pinning of Abis interface PCM1, 75 Ohm . . . . . . . . . . . . . . . . . . . . . . . . 31
Tab. 2.4 Pinning of the PCM0 interface without OVPT (SubD 25 connector) . . . . 32
Tab. 2.5 Pinning of the PCM1 interface without OVPT (SubD 25 connector) . . . . 33
Tab. 2.6 Pinning of the monitoring interfaces PCM0. . . . . . . . . . . . . . . . . . . . . . . 34
Tab. 2.7 Pinning of the monitoring interfaces PCM1. . . . . . . . . . . . . . . . . . . . . . . 34
Tab. 2.8 Pinning of the Serial Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Tab. 2.9 Pinning ACTA Connector X5 - X8 Site Inputs. . . . . . . . . . . . . . . . . . . . . 37
Tab. 2.10 Pinning ACTA Connector X1 - X4 Site Inputs. . . . . . . . . . . . . . . . . . . . . 37
Tab. 2.11 Environmental Alarms at ACTA and ACTC . . . . . . . . . . . . . . . . . . . . . . 39
Tab. 2.12 Pinning of the LMT interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Tab. 2.13 Pinning of the LMT RJ45 interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Tab. 2.14 List of battery cables between the racks. . . . . . . . . . . . . . . . . . . . . . . . . 52
Tab. 2.15 List of tempresistor cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Tab. 2.16 Functionality of system cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
8 A30808-X3247-H273-1-7631
1 Introduction
The CE and UL declaration of conformity for the product will be fulfilled if the setup and
! cabling is undertaken in accordance with the specification in the manual and the docu-
mentation listed there, such as mounting instructions, cable lists etc.Where necessary,
project-specific documentation should be taken into account.
Deviations from the specifications or independent changes during setup, such as use of
cable types with lower screening values, for example, can lead to the CE requirements
being violatad. In such cases the CE declaration of conformity is invalidated and the
responsibility passes to the person who has caused the deviations.
Note for BS41U:

! Before starting installation of Data Circuits and External Interconnection Cables pay
attention to the NEC, section 725-54 c).
Transient voltage surge surpression and primary protectors are not required at the entry
of the wiring to the BS41U if the exposed wiring is limited to less or equal 140 feet.
Refer to NEC Article 725 c) and 800-30 for proper clearence of data wiring from power
and lightning conductors.
The corresponding Canadian Electric Codes (CEC) sections to NEC 800-30 are
CEC 600-20 and 60-202. The corresponding CEC sections to NEC 725 c) are
CEC 16-200 thru 16-256.Refer before starting the installation of the antenna connec-
tions to NEC Article 810.The corresponding CEC Articles to NEC 810 is Section 54.
Further pay attention before the cabling works to NEC 770, 810, 800, 810-57, 400-4,
410-57, and CEC Rules 16-224, 54-802, 4-010, 26-708, and sections 56, 54, 60 .
1.1 Purpose of the Manual

This document is intended to give the information necessary for the installation of the
Base Transceiver Stations in the SBS Base Station System (BSS).
It contains a description of all the necessary steps to install the BTS on site and integrate
it into the required infrastructure:
– Power supply
– PCM - Network
– Grounding
– Receive / transmit antenna system
– Alarm connections
– Base constructions
For installation of equipment not supplied by Siemens (battery chargers, antennas,
power supplies,microwave etc.) refer to site specific documentation or vendor
instructions provided with other equipment.
1.2 Tasks of the Base Transceiver Stations

The Base Transceiver Station performs the following main tasks in accordance with the
requirements of the Primary GSM band 900MHz (D900), Extended GSM band 900 MHz
(D900),the standardised Railway GSM band 900 MHz (D900) or PCS standards
(D1900):
– Provides the RF-link connection to the mobile stations (MS)
– Supports various cell types (omni and sector cells)
A30808-X3247-H273-1-7631 9
– Provides the PCM link connection to the Base Station Controller (BSC) via
a terrestrial line (in this case symmetric pair or coaxial cable is used)
or microwave (additional equipment is therefore required)
– Submultiplexing on the Abis-interface
1.3 Feature Overview

– Rack with 4 carrier units
– Easy extension with additional Service2 Racks of BS240 without interruption
– Duplex Combiners, Filter Combiners
– Full-rate and half-rate channels are supported
– Integrated Abis cross connect
– LMT-operation with full O&M functionality at a transmission rate of 64 kBit
– Integrated NTPM and microwave-equipment, battery backup in service shelter
1.4 Other Types of Base Transceiver Stations

The Base Transceiver Stations are a modular family of BTS-products:
– for indoor operation: BS 240 (D900, D1800, D1900): max. 24 carriers, serves up to
12 cells, max 12 carriers per cell
– for indoor operation: BS 242 (D900, D1800, D1900): Pico BTS Server can serves
up to 24 Agents (single carrier units), max 12 TRX in one cell or up to 24 single TRX
cells
– for indoor operation: BS 60 (D900, D1800, D1900): max 6 carriers per rack, serves
up to 3 cells, max. 6 carriers per cell
– for indoor operation: BS 20 (D900, D1800): max 2carriers per rack, serves up to 2
cells, max. 2 carriers per cell
– for outdoor operation: BS 241 (D900, D1800, D1900): max. 24 carriers, serves up
to 12 cells, max 12 carriers per cell
– for outdoor operation: BS 61 (D900, D1800, D1900): max 6 carriers per rack, serves
– for outdoor operation: BS 41 (D900, D1800, D1900): max 4 carriers per rack, serves
up to 4 cells, max 4 carriers per cell without diversity
– for outdoor operation: BS 21(D900, D1800,D1900): max 2 carriers per rack, serves
– for outdoor operation: BS 22(D900, D1800): max 2 carriers per rack, serves up to 2
cells, max. 2 carriers per cell
– for indoor and outdoor operation: BS 11 (D900, D1800): max 2 carriers per rack,
serves up to 2 cells, max. 2 carriers per cell
1.5 Installation Prerequisites

It is required that the installer pays attention to the valid EMC instructions.
All other equipment on site must be CE designated and must provide interfaces for
connecting of external cables conformable to EMC instructions.
10 A30808-X3247-H273-1-7631
1.6 Handling of the Modules

All boards and modules must be handled with extreme care as each one contains
electrostatically sensitive devices (ESD).
The modules are marked with the ESD-label.
Fig. 1.1 ESD Symbol
These are sensitive to static discharge.
A30808-X3247-H273-1-7631 11
Notice:
– Avoid handling the modules in a high-static environment
– When handling the modules, do not touch connector contacts
– An earthed high-impedance wrist strap must be worn when handling modules.
– Use the socket at the shelters for wrist strap connection.
– The modules must be transported in appropriate packaging
1.7 Installation Tools

The correct installation is carried out with the aid of the following tools:
– Standard toolkit for BSS-installation
– Spirit-level
– Plumb bob
– Torque spanner for SMA connectors (35 N/cm)
– Torque spanner for SMC connectors (100 N/cm)
– Screw driver for torx screws T8, T10, T20, T25, T30, T40, T50 (length 200 mm)
– Long screw driver for torx screws T30 (length 400 mm)
– Engineer‘s wrenches for M12, M42 (SW 19, 65 mm)
– Ratchet with insets for nuts M4, M5, M6, M8, M10 (SW 7, 8, 10, 13, 17 mm)
– Screw drivers for hexagonal socket screw or hexagonal socket screw key SW 4 mm
– Screw driver for slotted screw M3, M4, M5
– Screw driver for pozi drive screws M3,M4, M5
– A pair of scissors
– Stripping knife for RF cables
– 90˚ offset screw driver for torx screws T20
– lift eyes (for crane- or helicopter transports only)
– knee pads (recommended)
For installation of power supply, transmission equipment, antennas, cableways and
other infrastructure equipment, additional tools may be necessary.
For further informations see also tool & testequipment catalogue from Service Depart-
i ment.
1.8 Ancillary Material

The following ancilliary materials are needed :
– plumb line
– colophony
– adhesive tape (yellow/green, green, blue, red, orange, white)
– cable fasteners
– wire end sleeves for 16 mm copper wires
– cable lugs M8
– wire end sleeves
12 A30808-X3247-H273-1-7631
2 BS 40 Installation
2.1 Position in the System

Like all other base stations the BS40 interconnects the MS via the Um interface
with the trunk network via the Abis interface.
Um interface
BTS BSC TRAU MSC

Abis Asub A
interface interface interface
Mobile
Station SBS
Fig. 2.1 Position of the BS40 within the SBS
2.2 Site Requirements

Prior to the commencement of installation, the construction of the room in which the
base transceiver station is to be housed must be complete and the room in
good condition and dry heaters, if necessary, should be put up in the room.
The BS40 is intended to be installed in a restricted access area.
– Doors and windows must already have been installed and must be lockable.
– Openings in wall or ceiling of floor - if required - must be complete.
– The floor coverings must have been laid.
– Room lighting and wall sockets must have been installed.
– Heating or air-conditioning systems should be ready for operation.
– Walls and ceilings should have been painted.The room must be clean.
– A minimum floor space of 1,70 m x 1,10 m must be provided
(later extension not possible).
– optional cable runways must be installed first
– The floor load of the construction room must be not less than 7500 N/m2.
– All installation works off single phase 230 V AC power supply, including a false
current protection switch.
To prevent subsequent accumulation of dust and dirt, the parts and equipment
units to be installed must be unpacked outside the room (if possible).
After that it is advantageous to install the BTS, after all other installation works to
create the required infrastructure (power supply, antenna cabling, PCM line...)
are complete.
A30808-X3247-H273-2-7631 13
2.3 Site Configuration

Operation of the BS 40 requires additional equipment on site:
TX/RX antennas microwave outdoor unit *
external alarms**
PCM30 2 Mbit/s
1 x 230V/50Hz AC
AC-counter/ main breaker

in power distribution box
Service2 rack BS40 ground connection

(optional)
*dependent on type of network integration
**optional
Fig. 2.2 Site configuration BS40
2.4 Construction View of the BS 40

The Base Station equipment is housed in rack with the dimensions
1600 mm x 600 mm x 450 mm (H x W x D).
Because of the flexible configuration, several cable kits will be used for cable
connections between the racks.
The following types of rack exist:
– BS40 rack (contains core modules, up to 4 carrier units and antenna combiners,
ACDC converters and a small backup batterie)
– optional Service2 rack (contains backup batteries and link equipment in flexible
configuration without AC/DC modules)
The configuration with max. 4 carrier units requires one rack. For extension
of link equipment or batterie backup up to 4 additional service2 racks can be added.
One BTSEplus can consequently consist of up to 5 racks.
14 A30808-X3247-H273-2-7631
SIEMENS
LMT DC-PANEL
ETHERNET
ACT-C
FAN #0 FAN #1
ACOM ACOM
#0 #1
MUCO #0
BATTERY
FAN #2 FAN #3
COSA 1
COBA 1
COSA 0
COBA 0
CU CU CU CU
#0 #1 #2 #3
FAN #4 FAN #5
AC/ AC/ AC/ AC/

DC DC DC DC AC-Panel
CTRL 00 01 02
LE 0
LE 1
Fig. 2.3 BS40 rack (fully equipped with 4 carriers)
The Base Rack contains the following modules:

Generic Modules:
Core Basis (COBA; essential components are the Base Core Controller, Advanced
Clock Generation and the Carrier Unit Interfaces
Core Satellite (COSA; can handle additionally 6 PCM lines and up to 16 Carrier units
and the feature cross connect)
Alarm Collection Terminal; collect all alarms for those units having no access to the
CAN-Bus and pass them via CAN-Bus interface to COBA)
Overvoltage Protection and Tracer (OVPT; protect the PMC30 ports of core boards
from overvoltage and provide a monitoring interface for connected Abis-lines)
Carrier related Modules:
Carrier Unit (CU; consists of a receiving and transmitting part with syntheziser and
power amplifier, a signal processing unit as well as a power supply unit)
Antenna System Modules:
Antenna Combiners (ACOM; can be Duplexer Amplifier Multicoupler-DUAMCO or
Filter Combiner-FICOM)
A30808-X3247-H273-2-7631 15
Antenna Multicoupler (MUCO; DIAMCO, called DI-Amplifier Multicoupler )

The types and numbers of modules are subject to modification, it depends on the
cell configuration and the type of antenna combination.
An Base Rack accommodate always following Frames:
Frame: ACOM/BATT
Contains space for 2 Fan Units, one ACOM Backplane to connect 2 ACOMs, one MUCO
Backplane to connect 1 MUCO and one Backup Battery.
Frame: CORECU
Contains a CORE Backplane, two CU Backplanes, each to connect two CUs, and space
for 2 Fan Units.
Frame: AC/DCLE
One frame per Base rack has to be installed always.
The AC/DCLE Frame contains space for 2 Fan Units, 3 AC/DC modules,1 AC/DC
controller, the AC-Panel with AC breakers, DC distribution with DC breakers for protekt
Backup Batteries (guarantees continuous operation for a certain time in case of mains
breakdown or AC/DC failure).
SIEMENS SIEMENS SIEMENS SIEMENS
DC-PANEL DC-PANEL DC-PANEL DC-PANEL

ACT-C ACT-C ACT-C ACT-C
FAN #0 FAN #1 FAN #0 FAN #1 FAN #0 FAN #1
LE 0 LE 0 LE 0
LE 1 LE 1 LE 1
LE 2 LE 2 LE 2
LE 3 LE 3 LE 3
LE 4 LE 4 LE 4
LE 5 LE 5 LE 5
LE 6 FAN #2 FAN #3
LE 7
LE 8 LE 0
LE 9 LE 1
LE 2
LE 10
LE 3
LE 11
LE 4
LE 5
LE 6
LE 7
LE 8
LE 9
LE 10
LE 11
Fig. 2.4 Configuration of Service2 rack
Note: All empty slots in a partial equipped subrack must be closed with cover plates, so
i that the air flow inside the shelter will not be affected.
Plates are not necessary for link equipment and empty battery trays.
16 A30808-X3247-H273-2-7631
2.5 Equipment Delivery

The BS40 racks are shipped vertically in wooden crates (or horizontally in case of trans-
portation by airplane).The crates dimensions are 1800 mm x 800 mm x 650 mm
(HxWxD). Depending on the pre-installed modules inside the racks, the crate can weigh
up to approx. 150 kg.
Depending on customers requirements, the optional Service racks can be delivered
without backup batteries (weight aspects). In this case an additional crate contains
the batteries.
All crates have the following information printed on them for identification of
delivery:
– trade mark
– customer order number
– serial number of rack or other supplied equipment
– destination
– gross and net weight
– overall dimensions (cm)
– symbol or inprint to identify the "Top" and the "Bottom"
For transportation of the crates from the unloading area into the construction room
use handling aids (for example: fork-lift truck, goods elevator), a second person is
needed for help.
The 4 fastening clamps which fixing the rack-feets to the bottom of the crate should be
used for later floor-fixing.
2.5.1 Preliminary Checks

Check that the crates are not damaged. In case of evident damage due to
transport, unpack the equipment in presence of an insurance company
representative and promptly claim any damage and inform the shipper for
specifying the damage.
Check whether the package is actually addressed to the site and complete.
Open it and take the contents out carefully.
After having removed all contents from the packing material, check for
deformation to the devices, of torn or unwelded wiring, of oxidised connectors,
as well as deformed front sides of the units, loose screws,
damage to paint work etc.
2.5.2 Rack Unpacking

During the unpacking steps great care must be taken to ensure that the rack
is not scratched or damaged in any way. Proceed as follows:
– Cut the straps and remove the top of the crate.
– Take out the profiles protecting the rack edges.
– Remove the protection to the head and to the base of the rack.
– Take out the rack from the crate. Use the straps around the rack.
– Lay down the rack and open the tubular PE shrink-wrap protecting the rack
and take it out. Lift the rack in vertical position (if necessary).
– Compare the real rack configuration with configuration overview and
Cable Configuration list (see examples in Fig. 2.5 and Fig. 2.6).
A30808-X3247-H273-2-7631 17
PULL: IDXxxx004097
Rack: Baserack
BTS EQUIPMENT PLUS BS-40 BASE Rack SIEMENS
23. March 2000
AD400S2268D (Sales Unique Name)
FUSE PANEL
FAN 0 FAN 1
F: ACOM
ACOM 0 ACOM 1 ACOM 2
FAN 2 FAN 3
F: CU
CU 2 CU 3 DIAMCO 0 DIAMCO 1 CU 6 CU 7
FAN 4 FAN 5
F: CORE
CORE 0
CORE 1
CORE 2
CORE 3
CU 0 CU 1 CU 4 CU 5
Cell 0 1 2 3
Configuration
ACOM no.
Fig. 2.5 Configuration Overview
18 A30808-X3247-H273-2-7631
BTS Cabling SIEMENS

23. March 2000
PULL: IDXxxx004097
Rack: Baserack
AD400S2268D (Sales Unique Name)
Type of ACOM 0 from RX/TX to CU Type of Cable

C39195-Z80-
Modul 0 RX 0 0 Cxxx
Modul 1 RX 0 div 0 Cxxx
Modul 0 RX 1 1 Cxxx
Modul 0 RX 2 2 Cxxx
Modul 0 RX 3 3 Cxxx
Modul 0 RX 4 Cxxx
Modul 1 RX 4 div Cxxx
Modul 0 RX 5 Cxxx
DUAMCO4G Modul 1 RX 5 div Cxxx
Modul 0 RX 6 Cxxx
Modul 0 RX 7 Cxxx
Modul 0 TX 0 0 Cxxx
Modul 1 TX 0 1 Cxxx
Modul 0 TX 1 2 Cxxx
Modul 1 TX 1 3 Cxxx
Modul 0 TX 2 Cxxx
Modul 1 TX 2 Cxxx
Modul 0 TX 3 Cxxx
Modul 1 TX 3 Cxxx
Type of ACOM 1 from RX/TX to CU Type of Cable
C39195-Z80-
1 of 2
Fig. 2.6 Cabling Configuration List
A30808-X3247-H273-2-7631 19
2.5.3 Devices Unpacking

Proceed as follows:
– Open the PVC wrap protecting the carton and withdraw it.
– Remove the dehydrating material bag from the box.
– Cut with a suitable knife the adhesive tape sealing the box.
– Take the device out.
– Open the PVC wrap protecting the device/board and withdraw it.
The packing material should be preserved for possible future re-packing.
For this purpose, reverse the procedure described above, taking into account the
warnings specified for the packing.
If the packing material is supplied by the customer, special care should be taken
to avoid damage during the transport and storage of the devices.
2.5.4 Rack Installation

Prior to the commencement of rack installation, consult the site documentation
to locate the installation point of the BS40, the PCM 30 network termination,
AC mains and the access of the antenna cables into the construction room.
After that check the proper installation of the earthing bar and the necessary
cable runways.
– Move the rack to the defined installation point.
– Check the correct vertical rack position, using the spirit-level.
– In case, the position is incorrect, equalize differences in the floor height by
adjusting the screwed adjuster feets.
– Push the a fastening clamp on the 4 rack feets and mark the drilling point on the floor.
– Remove the clamps and drill the 4 holes and insert the 4 wallplugs (e.g. Fischer
S8GK) into the holes.
– Push the clamps on the rack feets and fix them. Therefore use a ratchet with a
10 nut.
If the racks stand side by side, they must be screwed together to one common unit
with one nut and screw M8x20. For this purpose the top cover has to be removed
as shown in the following figure.Do not remove the crane eyes !
lift up
unscrew
Fig. 2.7 Removal of top cover
20 A30808-X3247-H273-2-7631
450 mm
minimum room height
1900 mm
600 mm
1200 mm 1100 mm
1600 mm
2200 mm
min. dimensions for 3-rack solution (Base + 2xService2 Rack)
1200 mm
450 mm
1600 mm
min. dimensions for double rack solution (Base + Service2 Rack)
Fig. 2.8 Space necessary for installation of BS40
A30808-X3247-H273-2-7631 21
2.6 External Cabling Activities
2.6.1 Overview
This chapter gives information required for installing the external cables between
the BS 40 and equipment outside the rack.
The rack cannot function without the following cable connections:
– AC mains terminal block - AC distribution of 230 V AC, single phase supply (BS40E)
AC mains terminal block - AC distribution of 120 V AC, 2 phase supply (BS40U)
– ground screws - ground bar
– Abis interface - PCM links via NTPM (BS40E) or CSU (BS40U)
– microwave indoor units - W outdoor units
(if W equipment is used of r transmission)
– transmit / receive antenna connectors - antenna system
– ground strip of antenna cable shields - ground bolt
optional:
– serial interface - signalling link terminal
– alarm collection terminal - external alarm connectors
All interfaces exept the antenna connectors are located at the EMI panel below the
top enclosure.
For cable installation the top enclosure is to be removed. For opening and removing
the roof unsrew the bolts in the top extrusions.
2 2
3
1 5
6
7
1 Abis interface on OVPT 5 -48V output

2 ground bolts 6 Serial Interface
3 AC terminals 7 Lightning Protection Alarms
4 PE plate 8 Alarm Collection Terminal
Fig. 2.9 Interfaces on top of the BS40 Base Rack
22 A30808-X3247-H273-1-7631
Some additional hints for the installation of external cabling:

– The first cable that has to be installed is the ground cable between the main ground
stud on top of the rack and the nearest ground bar on site.
– The second installation step is to connect the ground stud of the different racks
in series.
– After that all other cables like AC mains, RF cabling or alarm wires can be installed.
– The screen of the RF jumpers has to be grounded before entering the BTSE at
the EMI panel.
– If cables are fed through coaxial cable access located at the top of the rack at the
front,the screen has to be grounded like all other coaxial cables.
The following figure shows the location of the external interfaces of a 2-rack solution
of the BS40.
serial interface cable

external alarms / commands
Abis lines (OVPT PCM0, PCM1)
1 x 230 V AC antenna cables
2 x120 V AC
ground cable
Microwave / NTPM -48 V DC
SIEMENS SIEMENS
DC-PANEL LMT DC-PANEL

ETHERNET
ACT-C ACT-C
FAN #0 FAN #1 FAN #0 FAN #1
LE 0 ACOM ACOM
LE 1 #0 #1
MUCO #0
LE 2
LE 3 BATTERY
LE 4
LE 5
FAN #2 FAN #3
COSA 1
COBA 1
COSA 0
COBA 0
CU CU CU CU
#0 #1 #2 #3
FAN #4 FAN #5
AC/ AC/ AC/ AC/

CTRL 00 01 02
LE 0
LE 1
Service2 rack Base rack
Fig. 2.10 Locations of connection points for external cables
A30808-X3247-H273-1-7631 23
2.6.2 Ground and Power Supply Connections BS40E

The BS40 racks has to be connected to the site specific ground system before starting
the connection of AC mains cable.
An external ground wire (16 mm2, copper conductor) has to be connected on the upper
left side grounding bolt of the rack which must be attached to the ground bar on site.
All adjoining racks will be grounded using a prefabricated wire bridge and is connected
to top left and right corners of each rack respectively.
If on site a main ground wire (50 mm2, copper conductor) is installed, it is possible to
connect each rack on the shortest way to the main ground using 16 mm2 copper wires.
Connect the BS40 racks and ground system as follows:
– Use the nearest ground bar on site.
– Ascertain the distances between the connection points of the ground system
and the ground bolt of the rack.
– Cut the cables to the required length.
– Remove the cable covering at the end to connect to the ground bolt
(length approx. 7 mm) and fix a cable lug M8.
– Connect the prepared cable end to the ground bolt.
– Tighten the nut firmly.
alternative solusion for rack grounding 50 mm2 main ground wire

16 mm2 ground wires
ground wire bridge
NYCY 3x1,5 RE/2,5

AC distribution
AC counter
1 x 25 A main breakers
1 x 230 V AC mains
connection to ground
Service2 Rack Base Rack
Fig. 2.11 Ground and AC mains connections of the BS40 (example)
Note, that the connection by screws at the top of racks standing side by side is a
! mechanical connection only. These connection is not a ground connection !
A 3-pole WAGO terminal block, located on the top of Base Rack, is the
connection point for the AC mains cable.
The BS40 will be powered by 1 x 230 V, 50 Hz, 20 A phase.
An easily accessible disconnect device is incorporated into the AC mains supply
wiring. To isolate the mains supply an 40A circuit breaker is connected, and is
installed in the AC distribution box close to the BS40.
24 A30808-X3247-H273-1-7631
The figure above shows the recommended cabling for the power supply and
ground connections. The recommended cable types guarantees the proper function
of the BS40, equipped with up to 4 carriers.
This warning must appear in the original German text:
Vor Anschluß des 1x 230 V Einspeisungskabels ist sicherzustellen, daß das Kabel
spannungsfrei ist. Die Hauptsicherungen sind zu unterbrechen. Es sind geeignete
Maßnahmen gegen unbefugtes Einschalten der Netzspannung zu treffen.
To connect the BS40 with the AC mains connection point proceed with
the following steps:
– Unscrew the bolts in the top extrusions for opening the roof.
– Remove the roof sections carefully, avoid damages to the paint work.
PE
L1
N
Fig. 2.12 Main supply unit of BS40E
– Refer to the site documentation for the required information about type and location
of the AC distribution.
– Check the actual distance between WAGO terminal and AC distribution.
– Remove the insulation of the cable and cut back the wire insulation at the end;
that is to be connected to the terminal block. The wires must be equipped with
wire end sleeves.
– Fix the cables at the strain relief by the clamp.
– Insert the wires into the WAGO terminals. Use a screwdriver for opening the termial
springs.Check that all wires are in fixed position.
– Lead the main cable to the AC distribution.
A30808-X3247-H273-1-7631 25
2.6.3 Ground and Power Supply Connections BS40U

The BS40U provides 2 ground bolts M8, located at the top of the rack for direct
connection to ground according NEC Section 810-58(b). The dimensions of the required
ground conductor has to be not less than 10 AWG (American Wire Gauge).
All other supply conductors should be not less than 12 AWG.
The BS40U has to be connected to the site specific ground system before starting the
installation of power supply wires.
After connection the BS40U to AC or DC power supply sources, in parts of basestation
equipment hazardous energy levels do exist.
The 4pole WAGO-terminal block for the AC mains input is located on the EMI-panel on
the top of rack, accessible after removing the top cover.
Make sure that the AC mains cable is deenergized before connection with the
! BS40.
Take measures against unauthorized “switch on” at the AC distribution panel!
The BS40U rack requires a 2 phase, 3 wire plus ground (PE) connection with the
AC mains (120 V AC, 60Hz), each phase must be protected by UL listed branch circuit
breaker 25 A,long delay.
Install the connection in the following stages:
– Check the actual distance between terminal block and the connection point.
– Cut the cable to the required length.
– Remove the insulation of the cable and cut back the wire insulation at the end;
that is to be connected to the terminal block.
– Lead the prepared cable through the cable entry at the bottom of the rack.
– Insert the wires into the WAGO terminals.
– Lead the main cable to the connection point for 120 V AC.
conductor label terminal colour
120 VAC phase 1 L1 1 black

120 VAC phase 2 L2 3 brown or black
neutral conductor N 2 blue
protection earth PE 4 yellow/green or white
Tab. 2.1 Pinning of the AC input terminal block
Note: Use only copper conductors for power supply and ground connections !
i Install all AC/DC power supply cables protected in grounded metal conduits or
cable raceways.
26 A30808-X3247-H273-1-7631
alternative solusion for rack grounding 50 mm2 main ground wire

16 mm2 ground wires
L1, L2, N, PE
ground wire bridge
NYCY 4x1,5 RE/2,5

AC distribution
AC counter
2 x 25 A main breakers
2 x 120 V AC mains
connection to ground
Service2 Rack Base Rack
Fig. 2.13 Ground and AC connections of the BS40U
2.6.4 Abis-Interface - PCM Link Terminal

The Abis interfaces PCM0 and PCM1,located on EMI panel, provides the communica-
tion links to the neighbouring Base Stations or to the controlling BSC.
The Abis interfaces are terminated with Overvoltage Protections (OVPT) which protects
the boards inside the BS40 against overvoltage (residual voltage < 1 kV).
Two types of OVPT exist: OVPTCOAX for 75 Ohm and OVPT for 120 Ohm cables).
Note for BS40U:
i The PCM ports on OVPT are intended to be connected to an adjacently and nearby
located CSU providing overvoltage protection or microwave connection.
Depending on the different cable impedances it is recommended to:

– Use screened cable containing 8/10 shielded twisted pairs 0,25 mm2 for 120 Ohm
PCM lines, e.g. S-09YS(ST)CY 8x2x0.6/1.2.
– Use coaxial cables for 75 Ohm wiring, e.g. 2YCCY 0.4/2.5.
The outer diameter of the PCM cable must not exeed 8 mm.
The maximum cable length depends on the attenuation of the cable, in order to fulfill
the requirements of minimum voltage levels to be provided at Abis interface according
to PCM standards.
The cable shielding must be connected to the relevant ground pins as close as possible
(in order to avoid EMC/RF interfering effects).
A30808-X3247-H273-1-7631 27
2.6.4.1 Abis-Interface for 120 Ohm Cable Impedance
stress-relieving tracing interfaces

connector 3
6 5
4 3
2 1
connector 2
6 5
4 3
2 1
connector 1
6 5
4 3
2 1
access for external PCM cables
Fig. 2.14 OVPT with terminal block (120 Ohm)
Connect the Abis-interface with twisted pair cable to the PCM link terminal as follows:
– Cut the cable to the required length and cut back the outer insulation
(approx.19 cm). Remove the wire insulation (8 mm).
– Wrap the exposed cable screen, which will be fixed at the stress relieving.
– Insert the wires into the terminals of the OVPT.
– Insert the additional wire (shielding potential) into one of the ground terminals
(e.g. no. 24).
– Lead the additional wire and the uplink and downlink wires on the shortest route
(that means without sleeves) between the stress relieving and the screw terminals.
– All unconnected PCM lines (4 wires per line) must be connected to one of the
ground terminals.
It is advantageous to protect the short part of the cable between stress relieving and
terminal block with a shrink tube or adhesive tape.
28 A30808-X3247-H273-1-7631
EXT SYNC A
EXT SYNC B
Down Link = RX
B A B A B A B A
1 3 5 7 9 11 13 15 17 19 21 23 25 27
2 4 6 8 10 12 14 16 18 20 22 24 26 28
B A B A B A B A
PCM 4 PCM 3 PCM 2 PCM 1
Up Link = TX
Fig. 2.15 Pinning Abis interface PCM0
Down Link = RX
B A B A B A B A
1 3 5 7 9 11 13 15 17 19 21 23 25 27
2 4 6 8 10 12 14 16 18 20 22 24 26 28
B A B A B A B A
PCM 8 PCM 7 PCM 6 PCM 5
Up Link = TX
Fig. 2.16 Pinning Abis interface PCM1
A30808-X3247-H273-1-7631 29
2.6.4.2 Abis-Interface for 75 Ohm Cable Impedance

The Abis interface to the peripheral link equipment is done by use of
9 SMA coaxial connectors, located at the OVPTCOAX.
A strain relief with a ground connection is part of this interface.
connector 3
6 5
4 3
2 1
monitoring interface
connector 2
6 5
4 3
2 1
connector 1
6 5
4 3
2 1
PCM lines
Fig. 2.17 OVPT with SMA connectors (75 Ohm)
For Abis cabling with 75 Ohm impedance use coaxial cable e.g.
S-09YS(ST)CY 8x2x0.6/1.2.The coaxial cables will be prepared as follows:
– Cut back the outer insulation(length approx. 120 mm).
– Unbraid the main cable screen.
– Twist and tinn the screen wires and the additional wire.
– Insulate the screening with insulation sleeve.
– Fix a SMA-female connector for each PCM-up and down line at the end to be
connected to the OVPT.
– Connect the prepared cable to the matching connectors.
– Use a torque spanner for SMA connector (35 N/cm).
– Fix the screening at the strain relief of OVPTCOAX.
30 A30808-X3247-H273-1-7631
signal coax connector signal coax connector
PCM1-ULA 1 PCM3-DLA 6
PCM1-DLA 2 PCM4-ULA 7
PCM2-DLA 4 EXTSYNCA 9
PCM3-ULA 5 --- ---
Tab. 2.2 Pinning of Abis interface PCM0, 75 Ohm
signal coax connector signal coax connector
PCM5-DLA 2 PCM8-ULA 7
PCM6-DLA 4 --- 9
PCM7-ULA 5 --- ---
Tab. 2.3 Pinning of Abis interface PCM1, 75 Ohm
Fig.2.15 shows the handling of the main cable shield.
75 Ohm coaxial cable approx. 120 mm
cable shield
additional wire
coaxial lines
main cable screen
twisted, tinned main cable screen and addition wire
screening with insulation sleeve
Fig. 2.18 Preparation of 75 Ohm coaxial cable
A30808-X3247-H273-1-7631 31
2.6.4.3 Abis-Interface without OVPT

Without OVPT , if this function is not needed, a SUB-D25 female connector is the direct
interface for the PCM links.
Pin no. SubD 25 Signal name Function
1 PCM 1 - ULA PCM Line 1 Up Link A

14 PCM 1 - ULB PCM Line 1 Up Link B
3 GND/G shield pair 1
2 PCM 1 - DLA PCM Line 1 Down Link A
15 PCM 1 - DLB PCM Line 1 Down Link B
12 EXTSYNCA
24 EXTSYNCB
25 GND/G
13 GND/G main cable shield
Tab. 2.4 Pinning of the PCM0 interface without OVPT (SubD 25 connector)
32 A30808-X3247-H273-1-7631
Pin no. SubD 25 Signal name Function

14 PCM 5- ULB PCM Line 5 Up Link B
15 PCM 5 - DLB PCM Line 5Down Link B
12 ---
24 ---
25 GND/G
13 GND/G main cable shield
Tab. 2.5 Pinning of the PCM1 interface without OVPT (SubD 25 connector)
The Overvoltage Protection carries 3 6pin DIN41616 test connectors for monitoring
the PCM lines.
The following tables show the pinning of the tracing interfaces. For location of the
tracing interfaces on the OVPT refer to Fig. 2.17.
A30808-X3247-H273-1-7631 33
connector / pin Signal name Function
1- 1 PCM 1 - ULA PCM Line 1 Up Link A

1- 2 GND/G shield pair 1
1- 3 PCM 1 - DLA PCM Line 1 Down Link A
1- 4 PCM 1 - DLB PCM Line 1 Down Link B
3- 3 PCM 4- DLA PCM Line 4 Down Link A
3- 4 PCM 4- DLB PCM Line 4 Down Link B
3- 5 EXTSYNCA
3- 6 EXTSYNCB
Tab. 2.6 Pinning of the monitoring interfaces PCM0

34 A30808-X3247-H273-1-7631

3- 5 ---
3- 6 ---
2.6.5 Serial Interface - Signalling Link Terminal

The Serial Interface, located on the EMI-panel of Base rack could be connected to the
signalling link terminal on site as follows:
– Determine the actual distance between rack and link terminal and cut the cable to
the required length.
– Fix the SubD 9 male connector at the end to be connected at the
Serial interface of the rack.
– Follow the connector assembly instructions and the handling instructions of
the cable.
– Put up the connector on the Serial Interface.
– Tighten the fastening screws.
– Lead the cable through the cable access forward to the link terminal, fix matching
wires at the required pins. Refer to the site documentation for the pin assignment.
Pin no. SubD 9 Signal name Pin no. SubD 9 Signal name
1 not used 6 not used

2 OASI_RX 7 GND
3 OASI_TX 8 GND
4 not used 9 not used
5 not used ---
Tab. 2.8 Pinning of the Serial Interface
A30808-X3247-H273-1-7631 35
2.6.6 Alarm Collection Terminal - external Signal Sensors

The access for cabling from external signal sensors on site (site inputs) is the
Alarm Collection Terminal for Base Rack (ACTM).
The ACTA (part of the ACTM) provides 8 WAGO terminal blocks with 12 pins each for
connecting of 48 site inputs.
The ACTA is mounted at the EMI panel of the rack.
For connection of wires, the ACTA must be unscrewed from EMI panel for easier access
to the terminal blocks.
On the ACTAa copper bracket exists for strain relieving and cable screen grounding.
The WAGO terminals are labelled X1 ... X10, the terminal blocks X1...X8 are used for
connection of site inputs.
The following tables give information on the pinning of the terminals.
After all wiring works are finished, the ACTA must be screwed at EMI panel in
its original position.
X5
X1
X2
X6
X3 X7
X4 X9 X10 X8
Fig. 2.19 Terminal numbering of the ACTA
36 A30808-X3247-H273-1-7631
Pin no. Signal name Signal name Signal name Signal name
x5 x6 x7 x8
1 AL0P AL6P AL12P AL18P

2 AL0M (GND) AL6M (GND) AL12M (GND) AL18M (GND)
Tab. 2.9 Pinning ACTA Connector X5 - X8 Site Inputs
Pin no. Signal name Signal name Signal name Signal name
x4 x3 x2 x1

Tab. 2.10 Pinning ACTA Connector X1 - X4 Site Inputs
Additionally to the site inputs at ACTA, there exists the ACTC board, used as a connec-
tion board to support single connectors for the internal alarms (FAN, temperatur sensor,
rack in service...) and the DC supply for the FANs,microwave equipment, smoke sensor
and ACT.
The ACTC is located in the DC panel of each rack (see Fig. 2.20).
A30808-X3247-H273-1-7631 37
ACTC
DC panel
Fig. 2.20 DC panel with ACTC

Alarm
Alarm
Alarm
LE0
LE1
LE2
meaning of abbreviations:
LE 0...8: Link Equipment 0...8
SMOKE: smoke sensor
BB0-2: battery fuse 0...2
LE3
LE4
LE5
SMOKE RDO ALARM_IN

24 1
BB0 BB1 BB2

LE6
LE7
LE8
DC panel
Fig. 2.21 Connector arrangement at ACTC
38 A30808-X3247-H273-1-7631
LMT
interface
ACTC
Fig. 2.22 ACTC and LMT interface
The following table gives information on the connecting of enviromental alarms

at ACTA and ACTC.
ENVA Alarms at Indication at LMT Alarm Alarm-Board Connector PIN

WAGO- block
PIN
0 11, 12 Alarm - 0 ACTC HX 0

1 9, 10 Alarm - 1 ACTC HX 1
2 7, 8 Alarm - 2 ACTC HX 2
3 ACTC
4 5, 6 Smoke ACTC SMOKE
5 Battery Fuse 0, 1, 2 ACTC BBO0-2
6 Over Voltage Protection ACTC
7 3, 4 ACTC
8 1, 2 Microwave ACTC MW1-9
9 AL-0 ACTA X5 1,2
10 AL-1 ACTA X5 3,4
11 AL-2 ACTA X5 5,6
Tab. 2.11 Environmental Alarms at ACTA and ACTC
A30808-X3247-H273-1-7631 39

WAGO- block
PIN
12 AL-3 ACTA X5 7,8

13 AL-4 ACTA X5 9,10
14 AL-5 ACTA X5 11,12
15 AL-6 ACTA X6 1,2
16 AL-7 ACTA X6 3,4
17 AL-8 ACTA X6 5,6
18 AL-9 ACTA X6 7,8
19 AL-10 ACTA X6 9,10
20 AL-11 ACTA X6 11,12
21 AL-12 ACTA X7 1,2
22 AL-13 ACTA X7 3,4
23 AL-14 ACTA X7 5,6
24 AL-15 ACTA X7 7,8
25 AL-16 ACTA X7 9,10
26 AL-17 ACTA X7 11,12
27 AL-18 ACTA X8 1,2
28 AL-19 ACTA X8 3,4
29 AL-20 ACTA X8 5,6
30 AL-21 ACTA X8 7,8
31 AL-22 ACTA X8 9,10
32 AL-23 ACTA X8 11,12
33 AL-24 ACTA X4 1,2
34 AL-25 ACTA X4 3,4
35 AL-26 ACTA X4 5,6
36 AL-27 ACTA X4 7,8
37 AL-28 ACTA X4 9,10
38 AL-29 ACTA X4 11,12
39 AL-30 ACTA X3 1,2
40 AL-31 ACTA X3 3,4
41 AL-32 ACTA X3 5,6
42 AL-33 ACTA X3 7,8
43 AL-34 ACTA X3 9,10
44 AL-35 ACTA X3 11,12
40 A30808-X3247-H273-1-7631

WAGO- block
PIN
45 AL-36 ACTA X2 1,2

46 AL-37 ACTA X2 3,4
47 AL-38 ACTA X2 5,6
48 AL-39 ACTA X2 7,8
49 AL-40 ACTA X2 9,10
50 AL-41 ACTA X2 11,12
51 AL-42 ACTA X1 1,2
52 AL-43 ACTA X1 3,4
53 AL-44 ACTA X1 5,6
54 AL-45 ACTA X1 7,8
55 AL-46 ACTA X1 9,10
56 AL-47 ACTA X1 11,12
Note: 1.The Indication at LMT has to be defined by Customer. It will be recommended to use the proposed
Indication.
2.Connector X9 and X10 are not used
A30808-X3247-H273-1-7631 41
2.6.7 Local Maintenance Terminal (LMT) Interface

A SubD 15 female connector, located at the DC panel of the Base rack, is the interface
for connecting a Local Maintenance Terminal (LMT) for commissioning and
maintenance purposes.
SUB-D15 Pin No. Signal Name SUB-D15 Pin No. Signal name
1 --- 2 LMT_TA
3 LMT_CA 4 LMT_RA
5 LMT_IA 6 LMT_SA
7 --- 8 GND
9 LMT_TB 10 LMT_CB
11 LMT_RB 12 LMT_IB
13 LMT_SB 14 ---
Tab. 2.12 Pinning of the LMT interface
RJ45 Pin No. Signal Name RJ45 Pin No. Signal name
1 10BT_TD+ 2 10BT_TD-
3 10BT_RD+ 4 ---
5 --- 6 10BT_RD-
7 --- 8 ---
Tab. 2.13 Pinning of the LMT RJ45 interface
42 A30808-X3247-H273-1-7631
2.6.8 Antenna Connections

The BTSE has to be connected to the transmit and receive antennas. The antenna
configuration and the required cabling are dependent on the site and the type of
combining. For detailed information refer to the site-specific documentation or use the
corresponding customer documents.
For installation and service purposes it is useful to know, which hardware is connected
to which cell. The numbering, seen from the top of the antenna pole, starts at an
azimuth angle of 0˚ (north) and rotates clockwise.
The first existing cell whose beam centre line lies at 0˚ or more is defined as
cell 0 or sector 0. The next one following in the same direction cell is cell 1 etc.
In case of omni cell the cell no. is 0.
0˚
sector 2
sector angle
directional antenna
pole beam centre line
sector width 120˚

sector 0
N
sector 1
Fig. 2.23 Cell numbering (top view from the antenna pole)
Jumper cable superflexible with a max. diameter 1/2” have to be used, because the thick
cables from the antenna are not able to enter the racks.
With regard to overvoltage protection it is recommended to ground the outer
conductor of antenna feeder cables where they are connected with the jumper cables
outside the BS40.
The jumper cables must be routed through the EMI panel forward to the 7-16” front
connectors of DUAMCO/FICOM and to N-type male connectors of DIAMCO.
Note that being able to close the doors means that the depth of the right angle
i connector is not allowed to exeed 45 mm.
A30808-X3247-H273-1-7631 43
max. 45 mm
width across flats 32 max. 1/2” jumper cable
Fig. 2.24 Max. dimensions of antenna connectors
Connect the antenna cables to the combining equipment as follows:

– Unscrew the front parts of the cable feeding module and take them out.
– Route the antenna jumpers to the rack, which has to be connected.
– For grounding remove outer insulation approx. 60 mm for proper contact with the
metal devices of the cable feeding module (see Fig. 2.24).
– Feed the jumpers through the cable feeding module forward to the front
connectors of antenna combiners.
– Fix the jumpers at the connectors TX/RX of combiners.
– Bend the jumpers into the correct position for easy closing of cable feeding module.
– Put the packing material back into the removed front parts of feeding module
and screw them in their original position.
Fig. 2.25 Routing of antenna jumper cables
44 A30808-X3247-H273-1-7631
2.6.9 Installation of the Tower Mounted Amplifier

A Tower Mounted Amplifier will be used to reach a BTS sensivity better than GSM
requirements at the antenna connector and to compensate a high antenna cable loss.
The TMA should placed as close to the antenna as possible. It will be supplied and
supervised by the multicoupling equipment (DIAMCO or DUAMCO) in the rack it is
connected to.
In case of using a DUAMCO as antenna combiner inside the rack, only one feeder cable
is needed between the TMA and the BTS (for both TX and RX signals) due to full duplex
architecture of the TMA.
TMA TMA
Base Rack
DUAMCO CU
Fig. 2.26 Position of TMA (DUAMCO combiner used)
If a FICOM as antenna combiner inside the rack, the TMA is used in conjunction with a
DIAMCO and it only amplifies the overall BTS uplink signal.
TMA TMA
Base Rack
DUBIAS
DIAMCO CU
HPDU
FICOM
EMI Panel
Fig. 2.27 Position of TMA (FICOM combiner used)
A30808-X3247-H273-1-7631 45
Two 7/16 female connectors, located at the bottom of the TMA (lettered ANT and BTS)
are the interfaces for connections to the antenna jumper 1/2” and the feeder cable
towards to the BTS.
The TMA can be pole-or wall mounted in vertical position only.
The following figure shows the location of the external interfaces.
ANT
(input/output
towards TX/RX antenna)
BTS
(input/output
towards BTS)
ground screw
Fig. 2.28 Bottom view of the Tower Mounted Amplifier
For mounting of the TMA may be done as follows in accordance with Fig. 2.28.
– While still on ground, join each of the 2 brackets with one screw M8, but leave the
brackets open.
Be sure not to loose the remaining 2 screws.
– First connect the TMA to the main feeder, then with the jumper cable to the antenna.
Do not forget to consider thermal dimensional changes of the main feeder.
– Position the TMA on the mast/pole and tighten the remaining 2 screws.
– Connect the grounding cable on the ground screw and the nearest grounding facility
at the mast or pole.
The grounding cable‘s eyes must have the right size for the TMA‘s M8 ground screw
and the cable should be have an area of at least of 16 mm2.
The other end should be safely connected to a well grounded point on the mast.
Then the mounting of the TMA is completed.
Note, that the max. diameter of the mast do not exeed 140 mm, if the fixing material will
i be used as shown in the following figure.
46 A30808-X3247-H273-1-7631
Fig. 2.29 TMA with mounting brackets
The TMA may be also mounted on a wall by means of suitable screws (not supplied
with the TMA)
The corresponding holes in the mounting plate have a diameter of 9 mm.
The proper way of mounting the TMA on a wall varies from case to case. The best
method can only be decided by the installer.
Please note, however, that the wall itself does probably not provide adequate grounding,
it may be insulated.
It is absolutely necessary to prepare and connect an adequate grounding cable to the
! TMA‘s grounding point.
Do not consider the thermals dimensional changes of the antenna feeder cable.
A30808-X3247-H273-1-7631 47
2.7 Rack Completion

The BS40 racks are shipped including equipment components, pre-installed by
the manufacturer in accordance with customer configuration:
– sub-rack, which holds several boards and modules
– DC panel
– backplanes (multilayer PC-boards, which are mounted at the rear side of the
subrack)
– the rack internal cabling
– fan units
– core modules
– carrier related modules (Carrier Units, Antenna Combiners)
– AC/DC converters, backup batteries
– semi-rigid cables for setup of the system cabling
The following items are planned for installation after setup of the racks on site:
– backup batteries in (optional Service2 Rack)
– cabling between the racks if Service2 Rack will be used
(battery cabling, DC-cabling)
– link equipment
For cable routing from one rack into another one two ways can be used.
Without leaving the EMC-protected area, a cabling channel is provided.
For this reason holes that are covered by plates for single racks and the end-
racks of a row are provided at both sides of a rack.
These coverplates have to be removed by unscrewing the security screws M3.
Four plug-in seal strips per rack have to be mounted at the cutout.
Racks stand side by side and must be screwed together to one common unit with
one nut and screw M8x20.
unscrew
and remove
Fig. 2.30 Cable routing inside the EMC-protected area
48 A30808-X3247-H273-1-7631
For connections outside the EMC-protected area, the routing of cables directly below
the roof section is possible.
Dependend on the number and diameter of the cables, pieces of the top cover can
be removed in easy manner.
removable pieces
Fig. 2.31 Top cover
A30808-X3247-H273-1-7631 49
2.7.1 DC Cabling, Installation and Cabling of Batteries

The DC cabling is required for routing of the -48V voltage from the DC panel of
service1 rack to the DC panels of all installed racks on site for power supply of
Core-, RF- and transmission equipment.
For further informations refer to “Configuration Rules for System Cabling”.
i
For the BS40 Base Rack exists two types of frame for battery. Either the frame type with
a capacity of 12Ah / 48V or 20Ah / 48V could be used.
To enable easier transportation and setup of Service2 Racks, they can be delivered
without backup batteries.The Service2 Racks can be equipped with up to 3 battery trays.
Install and connect the backup batteries in accordance with in the following steps:
– Switch off the relevant circuit breaker at AC/DC 1-2 (S1) and at mounting kit battery
(S2).
– Put on the battery 2 and 3 into the battery tray.
– Connect the short cable with battery 2 (- pole) and battery 3 (+ pole)
– Connect one of the long cables at battery 2 (+ pole) and battery 3 (- pole)
– Move battery 2 and 3 as far as stop to the rear side of the battery tray.
– Put on battery 1 and 4 into the tray.
– Connect the long cable coming from battery 2 (+ pole) at battery 1 (- pole) and
connect the long cable coming from battery3 (- pole) at battery 4 (+ pole).
– Connect the blue loadcable to battery 4 (- pole) and the black loadcable and the
tempresistorcable to battery 1 (+ pole). Close and tighten both fixing straps .
– Complete and setup the air vent kit.
tempresistor cable
(color as shown not relevant)
+ 0 V (black)
- 48 V (blue)
+ +
2 3
1 4
+ +
air vent tube (routed via EMC-and IP panel outsite the shelter)
Fig. 2.32 Connection of backup batteries
50 A30808-X3247-H273-1-7631
279a/279b
DCP:RSH DCP:RSHS2
FAN FAN
110-2/111-2 MK:BAT
F:ACOM/BATT Battery
Modul 112-2 t
BAT0
FAN FAN
MK:BAT
F:CORE/CU
FAN FAN
MK:BAT
F:AC/DC / LE AC_Panel
BS-40 BS-240 Service2
+0V -48V 111-2
110-2 279a 279b

a a a a a a
a a
9 8 7 6 5 4 3 2 1
b b b b c
b b b b b b b b
b b 14 15 16 17
c c c c c c c
a b c
1 -48V a a a a a
279b 279a 2 0V
DCP:RSHS2 terminal block battery frame DCP:RSH
Fig. 2.33 Overview of Interrack- /Battery Cabling

Tighten the battery nuts with 20 Nm.
i Turn up the protection cap to the end position, during tighten the cables to the battery
poles (avoid contact of metall)
The battery capacity must be adjusted at the AC/DC controller.
A30808-X3247-H273-1-7631 51
battery from BS40 to BS240 length colour

cable no. Service2 Rack
110-2 DCP:RSH - 15b S2/1 MK:BAT1-1a 2850 mm blue

111-2 DCP:RSH - 16b S2/1 MK:BAT1-2a 2850 mm black
279a DCP:RSH - 17b DCP:RSHS2 - 2b 800 mm blue
279a DCP:RSH - 9b DCP:RSHS2 - 5b 800 mm black
Tab. 2.14 List of battery cables between the racks
tempresistor-cable from BS40 to BS240 length

no. Service2 Rack
112-2 F: AC/DC/LE T1 Service2/1/Batt1 (+) 2500 mm
Tab. 2.15 List of tempresistor cables
2.7.2 Installation of Link Equipment

The link equipment acts as a front end, to provide the Abis interface.
Different equipment can be used for wire or radio transmission. Which equipment
will be used depends on customer requirements.
The number of link equipment, which can be installed depends on the height of the units.
For connections between Abis interface in the Base rack and link equipment in
i the Service rack pay attention to the recommendation CCITT G.703. Here it is stated
that the receive level compared with the transmit level should not be lower than 6 dB.
For installation of link equipment a mounting kit, designed for 19” units with up to
2 HU is necessary.
The installation of link equipment in the mounting kit always has to start at the top
of the mounting kit below the fans without a gap.
In case of microwave transmission, the indoor units inside the Service rack must
be connected via the microwave antenna cables with the tower mounted outdoor units.
Connect the microwave antenna cables to the indoor units as follows:
– Unscrew the front part of cable feeding module and take it out.
– Remove the packing material.
– Feed the microwave cable through the cable feeding module forward to the front
connectors of microwave indoor units and fix them at the connectors.
– Bend the cables into the correct position for easy closing of cable feeding module.
– Put the packing material back into the removed front parts of feeding module
and screw them into their original position.
– Fix each cable at the strain reliefs of the feeding module.
– Connect the microwave power supply/alarm cables (S30864-X211-A57) at the front
connectors of ACTC.
– Route the cable bundle forward to the link equipment devices.
– Cut the cables for the matching length and equip the end with device-specific
connectors.
52 A30808-X3247-H273-1-7631
BS40 Base Rack
1 2 3
4 5 6
7 8 9
alarm collection terminal connection board

(ACTC)
cables
S30864-X211-A57
AL15_P µWave (white)
AL15_P AL_GND (black)
frame for DC_µWave... PUE +0 V (red)

link equipment DC_µWave... MUE -48 V (blue)
Fig. 2.34 Cabling for link equipment
Caution:
i The installer has to guarantee the protection of the microwave equipment and the
external DC lines (if not lead in metal, grounded conduit) against lightning surges!
The required lightning protections must be located outside the EMI-shield (EMI-panel).
The outer conductor of the microwave cable must have grounded on the proper ground
contact to the lids of the cable feeding module.
The configurations of system cabling as described in the following sections are

i standard proposals.
For information about the actual configuration refer to the Configuration Overview and
the Cabling Configuration List, which will be delivered with each BS40 and should be
used for checking the correct configuration.
For further general informations refer “Configuration Rules for System Cabling”.
A30808-X3247-H273-1-7631 53
2.8 Setup of System Cabling

For setup of the sytem cabling connections on site in case of installation or later
extension, the cables will be shipped in a box, to avoid twisting and damage.
Before starting the connection procedure, refer to the site documentation and determine
the types and number of cables.
The list of variant numbers (content of the site specific documentation) is needed for
the correct setup of the cabling between the modules.
Pay attention to the minimum bending radius of 10 mm, a bending tool should be used.
The following sections are intended to give an overview about the most interesting
configurations with different combining modules.
For further informations refer to “Configuration Rules for System Cabling”.
i
connection code number length connector cable type
DUAMCO 0/1- C39195-Z80-C114 950 mm SMA,90˚,male/ semi-rigid

CU 0/1/2/3 SMC,90˚,male .141 Al
FICOM- C39195-Z80-C160 1250 mm SMA,90˚,male/ semi-rigid
CU 0/1/2/3 SMA,90˚,male .141 Al
DIAMCO- C39195-Z80-C116 600 mm SMC,90˚,male/ semi-rigid
CU 0/1/2/3 SMC,90˚,male .086 Al
HPDU - C39195-Z80-C174 1250 mm SMA,90˚,male/ semi-rigid
DIAMCO N-Con,90˚,male .141 Al
HPDU- C39195-Z80-C173 400 mm 7/16,90˚,male 1/2”
ACOM 7/16,90˚,male jumper cable
BIAS-T - C39195-Z80-C___ 1400 mm SMA,90˚,male .141 Al
DIAMCO N-Con.,90˚,male
BIAS-T - C39195-Z80-C170 300 mm SMA,90˚,male .141 Al
HPDU N-Con.,90˚,male
Tab. 2.16 Functionality of system cables
54 A30808-X3247-H273-1-7631
HPDU #0 HPDU #1
SIEMENS
LMT DC-PANEL
ETHERNET
ACT-C
FAN #0 FAN #1
ACOM ACOM
#0 #1
MUCO #0
BATTERY
FAN #2 FAN #3
COSA 1
COBA 1
COSA 0
COBA 0
CU CU CU CU
#0 #1 #2 #3
FAN #4 FAN #5
AC/ AC/ AC/ AC/

CTRL 00 01 02
LE 0
LE 1
Fig. 2.35 Slot numbering of the BS40 Rack

The system cabling consists of connections, which are installed on the front side
of the rack. It depends on the different equipping variants (e.g. type of combining,
capacity stage) and the cell configuration of the site.
The following table gives an overview about the types and functionality of the
prefabricated cables which will be used.
A30808-X3247-H273-1-7631 55
2.8.1 Configuration 1 Cell with DUAMCO 2:2 (Proposal)

DUAMCO 0 2:2 DUAMCO 0 2:2
Logical numbering of Carrier (Cell 0)

Carrier 1
RX0 RX
CU 2 TX0
Module 0
Module 0
RX1
RXdiv
SLOT 0
SLOT 0
Carrier 2
RX0
RX1
Module 1
Module 1
TX0
RX
CU 3
RXdiv

CU 0
Carrier 3
RX0 RX TX0
Module 0
Module 0
RX1
RXdiv
SLOT 1
SLOT 1
Carrier 4
RX0
RX1
Module 1
Module 1
TX0
RX
CU 1
RXdiv
Fig. 2.36 System Cabling DUAMCO 2:2, 1 cell
2.8.2 Configuration 1 Cell with DUAMCO 4:2 (Proposal)

RX0 RX CU 2 TX0 Carrier 1
Module 0
Module 0
RX1 RXdiv
RX2 RX CU 3 TX1 Carrier 2
SLOT 0
SLOT 0
RX3 RXdiv
RX0 CU 0 TX0
RX Carrier 3
Module 1
Module 1
RX1 RXdiv
RX2 RX CU 1 TX1
Carrier 4
RX3 RXdiv
SLOT 1
SLOT 1
56 A30808-X3247-H273-1-7631
2.8.3 Configuration 2 Cells with DUAMCO 2:2 (Proposal)


Carrier 1
RX0 RX
CU 2 TX0
Module 0
Module 0
RX1
RXdiv
SLOT 0
SLOT 0
Carrier 2
RX0
RX1
Module 1
Module 1
TX0
RX
CU 3
RXdiv

CU 0
Carrier 3
RX0 RX TX0
Module 0
Module 0
RX1
RXdiv
SLOT 1
SLOT 1
Carrier 4
RX0
RX1
Module 1
Module 1
TX0
RX
CU 1
RXdiv
2.8.4 Configuration 2 Cells with DUAMCO 4:2, 2:2 (Proposal)

RX CU 2 Car. 3 Car. 2 Car. 1
RX0 TX0
Module 0
Module 0
RX1 RXdiv
RX2 RX CU 3 TX1
SLOT0
SLOT 0
RX3 RXdiv
(Cell 0)
RX0
Logical numbering of Carrier
TX0
Module 1
Module 1
RX1
RX2 TX1
RX3

Carrier 2
RX0 RX
CU 0 TX0
Module 0
Module 0
RX1
RXdiv
SLOT 1
(Cell 1)
SLOT 1
Carrier 1
RX0
RX1
Module 1
Module 1
TX0
RX
CU 1
RXdiv
Fig. 2.39 System Cabling DUAMCO 4:2, 2:2 2 cells
A30808-X3247-H273-1-7631 57
2.8.5 Configuration: 1 Cell with FICOM (Proposal)
RX0 CU 0 TX0
Logical numbering of carrier (cell 0)

Carrier 1
RX
RX1 DIAMCO 0 RXdiv
RX2
Module 0
Base
RX3
RX4
Carrier 2
RX5 RX CU 1 TX1
RX6 RXdiv
RX7
RX0
Carrier 3
RX1
RX2 RX CU 2 TX0
Module 1
RX3 RXdiv
Expansion
RX4
Carrier 4
RX5
RX6 RX CU 3
TX1
RX7 RXdiv
Fig. 2.40 System Cabling FICOM , 1 cell
2.8.6 HPDU Cabling
HPDU #0
DIAMCO #0
RX out Ant. 0
SMA N-Conn. Module 0
TX 1
Cell 0
FICOM BASE #0
Fig. 2.41 HPDU Cabling
58 A30808-X3247-H273-1-7631
2.8.7 Configuration: 2 Cells with FICOM, max. 2,6,0 (Proposal)
HPDU #0
DIAMCO #0
SMA
RX out Ant. 0
N-Conn. Module 0
RXin
TX 1
Cell 0
FICOM BASE #0
Fig. 2.42 System Cabling FICOM, 2cells
2.9 Post Installation Notes

After all installation activities are finished, any rubbish must be cleared from site.
Remove all packing material for recycling.
Secure the site against unauthorized access.
A30808-X3247-H273-1-7631 59
60 A30808-X3247-H273-1-7631
3 Abbreviations
AC Alternating Current
ACOM Antenna Combiner
ACTA Alarm Collection Terminal Alarm Board
ACTC Alarm Collection Terminal Connection
Board
ACTM Alarm Collection Terminal for Base/Shelter
AWG American Wire Gauge
BS Base Station
BSC Base Station Controller
BSS Base Station System
BTS Base Transceiver Station
BTSE Base Station Transceiver Equipment
COBA Core Basis
COSA Core Satellite
CU Carrier Unit
DIAMCO Dual Inline Amplifier Multicoupler
DUAMCO Duplexer Amplifier Multiplexer
EMI Electro Magnetic Interference
ESD Electrostatically Sensitive Device
FICOM Filter Combiner
GSM Global System for Mobile Communication
LMT Local Maintenance Terminal
MS Mobile Station
MUCO Antenna Multicoupler
O&M Operation and Maintenance
OVPT over voltage protection
PCM Pulse Code Modulation
RF Radio Frequency
SBS Siemens Base Station System
A30808-X3247-H273-1-7631 61
62 A30808-X3247-H273-1-7631

Installation: Base Transceiver Station Equipment Imn:Btse Bs40

Uploaded by

Document Information

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Installation: Base Transceiver Station Equipment Imn:Btse Bs40

Uploaded by

Copyright:

Available Formats

Installation

Base Transceiver Station Equipment

Important Notice on Product Safety

Copyright (C) Siemens AG 2000.

Issued by the Public Communication Network Group

Technical modifications possible.

Reason for Update

Chapter/Section Reason for Update

2 BS40U for US-marked added

1 05/00 New release BR5.0

2 09/00 New release for BR5.5

This document consists of a total of 62 pages. All pages are issue 1.

2.9 Post Installation Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Note for BS41U:

1.1 Purpose of the Manual

1.2 Tasks of the Base Transceiver Stations

1.3 Feature Overview

1.4 Other Types of Base Transceiver Stations

1.5 Installation Prerequisites

1.6 Handling of the Modules

Fig. 1.1 ESD Symbol

These are sensitive to static discharge.

1.7 Installation Tools

1.8 Ancillary Material

2.1 Position in the System

BTS BSC TRAU MSC

Fig. 2.1 Position of the BS40 within the SBS

2.2 Site Requirements

2.3 Site Configuration

TX/RX antennas microwave outdoor unit *

AC-counter/ main breaker

Service2 rack BS40 ground connection

Fig. 2.2 Site configuration BS40

2.4 Construction View of the BS 40

AC/ AC/ AC/ AC/

Fig. 2.3 BS40 rack (fully equipped with 4 carriers)

The Base Rack contains the following modules:

Antenna Multicoupler (MUCO; DIAMCO, called DI-Amplifier Multicoupler )

SIEMENS SIEMENS SIEMENS SIEMENS

DC-PANEL DC-PANEL DC-PANEL DC-PANEL

FAN #0 FAN #1 FAN #0 FAN #1 FAN #0 FAN #1

Fig. 2.4 Configuration of Service2 rack

2.5 Equipment Delivery

2.5.1 Preliminary Checks

2.5.2 Rack Unpacking

ACOM 0 ACOM 1 ACOM 2

Fig. 2.5 Configuration Overview

BTS Cabling SIEMENS

Type of ACOM 0 from RX/TX to CU Type of Cable

Fig. 2.6 Cabling Configuration List

2.5.3 Devices Unpacking

2.5.4 Rack Installation

Fig. 2.7 Removal of top cover

min. dimensions for 3-rack solution (Base + 2xService2 Rack)

Fig. 2.8 Space necessary for installation of BS40

2.6 External Cabling Activities

1 Abis interface on OVPT 5 -48V output

Fig. 2.9 Interfaces on top of the BS40 Base Rack

Some additional hints for the installation of external cabling:

serial interface cable

DC-PANEL LMT DC-PANEL

FAN #0 FAN #1 FAN #0 FAN #1

AC/ AC/ AC/ AC/
