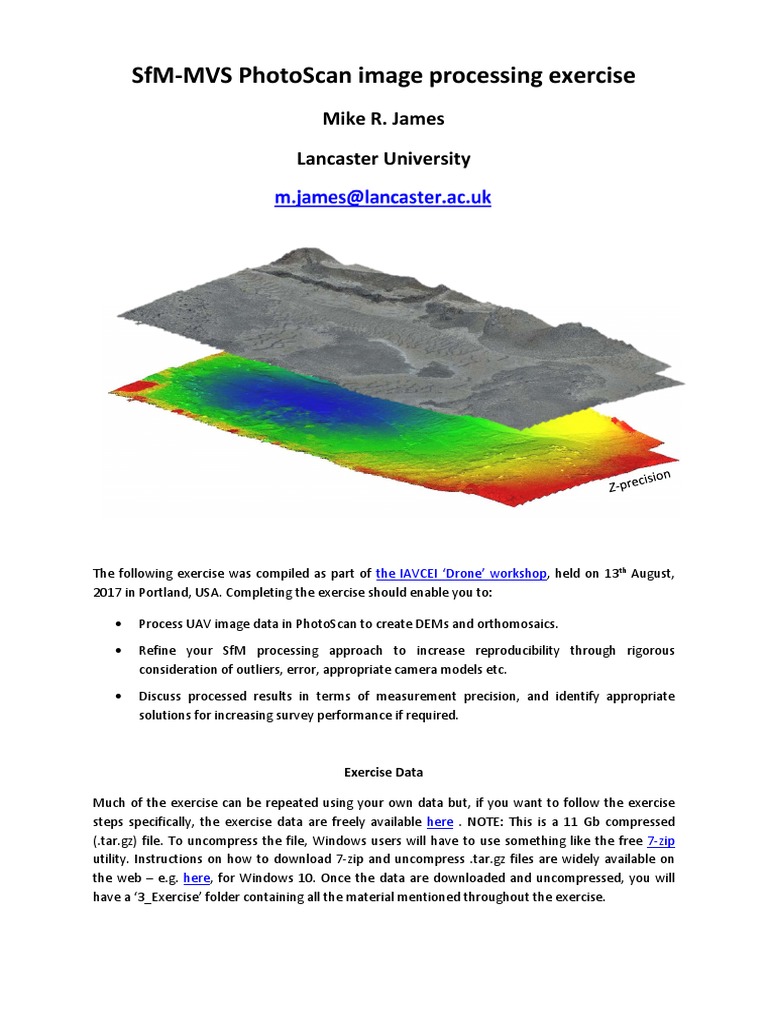

SfM-MVS PhotoScan image processing exercise

Mike R. James

Lancaster University

The following exercise was compiled as part of the IAVCEI ‘Drone’ workshop, held on 13th August,
2017 in Portland, USA. Completing the exercise should enable you to:

• Process UAV image data in PhotoScan to create DEMs and orthomosaics.

• Refine your SfM processing approach to increase reproducibility through rigorous

consideration of outliers, error, appropriate camera models etc.
• Discuss processed results in terms of measurement precision, and identify appropriate
solutions for increasing survey performance if required.

Exercise Data

Much of the exercise can be repeated using your own data but, if you want to follow the exercise
steps specifically, the exercise data are freely available here . NOTE: This is a 11 Gb compressed
(.tar.gz) file. To uncompress the file, Windows users will have to use something like the free 7-zip
utility. Instructions on how to download 7-zip and uncompress .tar.gz files are widely available on
the web – e.g. here, for Windows 10. Once the data are downloaded and uncompressed, you will
have a ‘3_Exercise’ folder containing all the material mentioned throughout the exercise.
 IAVCEI 2017 – The Drone Workshop

SfM-MVS PhotoScan image processing exercise

Mike R. James
Lancaster University

This exercise was constructed using PhotoScan Pro v.1.3.2 and may not work with other versions.

This exercise demonstrates how to process images into a 3-D model using PhotoScan software. It
caters for users who are either unfamiliar with PhotoScan, or who have a reasonable working
knowledge, with a focus on rigorous processing to understand and maximise model precision.

These instructions were written using Agisoft PhotoScan Professional

Edition v.1.3.2, and may not work fully with other versions.
IAVCEI 2017 – The Drone Workshop PhotoScan exercise Mike James

Contents

1 Introduction.................................................................................................................. 1
2 Initial 3-D model building ................................................................................................ 3
2.1 Add photos ............................................................................................................ 3
2.2 Assess image quality and remove poor images ............................................................ 4
2.3 Align photos ........................................................................................................... 5
3 Tie point quality control.................................................................................................. 7
3.1 Refine image selection............................................................................................. 7
3.2 Refine tie points by quality metrics ............................................................................ 7
3.3 Remove tie points manually...................................................................................... 8
4 Adding control data for georeferencing............................................................................. 8
4.1 Importing GCP ground survey data ............................................................................ 9
4.2 Making GCP image observations ..............................................................................10
4.3 Update georeference..............................................................................................10
4.1 Outlier image observations of GCPs ..........................................................................11
5 Bundle adjustment and camera model.............................................................................11
5.1 Weighting observations ..........................................................................................12
5.2 Camera model .......................................................................................................12
6 Dense matching, and DEM and orthomosaic products........................................................13
6.1 Dense matching .....................................................................................................13
6.2 Building a DEM ......................................................................................................14
6.3 Building an orthomosaic image ................................................................................15
7 Precision maps .............................................................................................................16
8 Finish ..........................................................................................................................18
9 References and resources ..............................................................................................19
IAVCEI 2017 – The Drone Workshop PhotoScan exercise Mike James

1 Introduction
This exercise aims to give you experience in processing photographs into a 3-D model (and
associated DEM and orthomosaic products) using PhotoScan software. It is intended to be accessible
without prior experience in PhotoScan and to develop a rigorous approach when using SfM
software, along with an understanding of characteristics such as measurement precision. Although
based on a UAV-acquired dataset, the procedures are equally applicable to ground-based surveys.
The exercise is split into sections, with each rated by the level of detail/complexity. If you just
want a quick and easy 3-D visualisation, then completing only the ‘Basic’ aspects will suffice.
‘Intermediate’ level material will develop a greater insight into the underlying photogrammetric
processing to enhance the repeatability of survey results, and the ‘advanced’ material covers
considerations of measurement precision. Note that the exercise will not cover details specifically
associated with very large projects e.g. >1000 images (such as working with multiple chunks).

Following completion of the exercise, you should be able to:

 Process images in PhotoScan into a georeferenced 3-D model and export associated
point clouds, DEMs and orthomosaic products. [Basic]
 Improve model quality by filtering images and tie points using quality metrics.
[Intermediate]
 Refine your processing by appropriately weighting observations during processing and
checking for issues related to over-parameterisation of camera models. [Intermediate]
 Describe what limits survey precision and, hence, how precision can be improved.
[Advanced]

Survey data:
Data for the exercise are provided on the workshop’s USB, in the Exercise folder (along with a copy
of these instructions). The data are organised into sub-folders associated with the different sections
of this document.

The data are from a survey of aeolian gravel ripples that have formed since the eruption of Laki,
Iceland. The ripples are composed of pumice (light-colored, low density) and basalt (dark-colored,
high density), but the rate of sediment transport of these odd features is not known. An aerial
survey of these ripples was acquired in 2015 using kite aerial photography, and again in 2016 using a
common quadcopter, the DJI Phantom 3 Professional. The exercise is based on the 2016 UAV-
acquired dataset, kindly provided by Stephen Scheidt (Scheidt et al., 2017).

The UAV has a gimbal-stabilized FC300X camera

http://www.dji.com/phantom-3-pro
containing the Sony EXMOR 1/2.3 sensor with a
relatively wide field of view (FOV) of 94° (a 35 mm
equivalent focal length of 20 mm). The JPEG images
are compressed and 12 Megapixels in size (4000 x
3000), geotagged using the quadcopter’s navigational
GPS and contain pointing information. The image
survey was controlled by the Pix4Dapture app
(https://pix4d.com/product/pix4dcapture/).

1
IAVCEI 2017 – The Drone Workshop PhotoScan exercise Mike James

Prior to field deployment, base imagery from Google Earth was downloaded to the app (installed on
an IPad Mini). In the field, a survey area was defined using the app by simply drawing a polygon on
the map where a grid of images was desired. The app automatically estimated the maximum
allowable area of the survey using the quadcopter’s expected flight time as a limiting factor. In this
version of the app, a grid is defined assuming that two sets of orthogonal flights lines will be flown
with the camera pointed slightly off-nadir.

Two orthogonal sets of flight lines were flown (see

left for an example area showing image positions
by blue squares) with a forward-inclined camera to
give a convergent imaging geometry between
overlapping lines (e.g. James et al., 2014). With an
approximate flight height of 30 m above ground,
the camera delivered a nominal ground sampling
distance (ground resolution) of ~1.3 cm. The area
has virtually no vegetation, so the dataset should
50 m
be a strong photogrammetric network revealing
the exact topography of the surface sediments.

Prior to the flight, orange survey cones were placed in the survey area as ground
control points (GCPs), and their coordinates surveyed using a survey-grade R10
differential global positioning system (dGPS) from Trimble.

Example images:

Software and hardware requirements:

The exercise assumes you have PhotoScan Professional Edition v.1.3.2 installed on suitable hardware
(see here for Agisoft’s hardware recommendations, although these are quite generous!). Section 7
of the exercise additionally uses CloudCompare for visualising point clouds and, for an advanced
optional extra, you may want to use sfm_georef to help visualise error. In the exercise, you will
generate DEM and orthomosaic outputs, and you may want to use your favourite GIS/image analysis
software to look at them in detail.

2
IAVCEI 2017 – The Drone Workshop PhotoScan exercise Mike James

2 Initial 3-D model building Level: Basic

Completing this section should allow you to:
Start PhotoScan and familiarise
 Load photographs into PhotoScan.
yourself with the different window
 Assess images for quality and remove poor ones.
panes in the application. If your
 Generate an initial 3D model of sparse points.
window does not have all the panes
illustrated below, you can show them
by using the main menu bar: View → Panes, and selecting any missing ones (e.g. Photos,
Reference…).

2.1 Add photos

To generate an initial 3-D point cloud model from photographs, we will use only a very few images
from the full dataset, to accelerate the processing.

To add photos to a project you can use the main menu bar: Workflow → Add Photos, or,
alternatively, drag/drop the image files directly into the Workspace pane.

Using either method, load the 18 images provided in the Section_2_Initial_model folder. The
images should then appear in a ‘Chunk’ in the Workspace pane (a ‘chunk’ is just a collection of
images that will be processed together, along with the results). Expanding the project tree by
clicking on it will give:

3
IAVCEI 2017 – The Drone Workshop PhotoScan exercise Mike James

At this point, you should save your new project. From the main menu bar: File → Save as. Save the
project wherever you want, ensuring that the ‘Save as type:’ box is ‘PhotoScan Project (*.psx)’.

2.2 Assess image quality and remove poor images

Photographs provide the underpinning data in a photogrammetric project so, to get high quality
output, image quality should also be good – i.e. images should be crisp and not blurred. There are
several ways to check:

 For small surveys (e.g. <100 images), it is practical to check image quality visually. Double-
click on the first image in the Photos pane to load and display the image. In the image pane
that appears, zoom in (mouse wheel) to check focus and blurring. Pressing ‘Page up’ / ‘Page
down’ keys will allow you to quickly navigate through all the images. For the images you
have, there are some small variations in quality, but they are generally very good and
certainly sufficient for processing.
 For large projects, PhotoScan has an image quality metric that can be a useful
guide to highlight the poorest images. To calculate the metric, in the Photo pane,
select an image, then right-click, and Estimate Image Quality… Apply to all
cameras. The results can be viewed by changing the view style of the Photos pane, using the
right-most button in the Panes toolbar to change the view to ‘Details’. Click on the Quality
column header to order the images by quality. Any images with a quality score of <0.5 can
probably be immediately removed, but you will see that yours all score much closer to 1.0
(maximum quality).

To remove any poor images from the project, select them in the Photos pane and click the
‘Remove cameras’ button. Note that this only removes the image from the project, it does
not delete the image file.

4
IAVCEI 2017 – The Drone Workshop PhotoScan exercise Mike James

2.3 Align photos

You now have a set of reasonable-quality (or better) images. Before starting the image processing, it
is worth noticing that PhotoScan already has some information on the positions of the camera in the
survey. This information was extracted from EXIF metadata stored in the image file headers (and was
originally written by the UAV system, which saved its GPS coordinates into each image).

You can see this information in the Reference pane, where the camera position coordinates are
given in the upper table. Camera positions can also be visualised in 3-D within the Model pane, via
the main menu: View → Show/Hide Items → Show Cameras, or via the main toolbar ‘Show
Cameras’ button.

Finally, click on the Settings button in the Reference pane to bring up the Reference
Settings dialog box. You will see that the Coordinate System is currently set to WGS 84,
which appropriately reflects the GPS values for the camera positions. Close the dialog box.

5
IAVCEI 2017 – The Drone Workshop PhotoScan exercise Mike James

To carry out ‘SfM’ processing to align the cameras and generate a sparse 3-D point cloud, use the
main menu: Workflow → Align photos. A dialog box will appear:

For the ‘General’ settings, we’ll use ‘High’ accuracy (which may be inconveniently slow for very large
surveys). Ensure that both Generic preselection and Reference preselection are ticked. Both of these
speed up photo alignment (Reference preselection uses the preliminary camera position data to help
select images to match and will not be available if camera positions are completely unknown).
‘Advanced’ settings can be left at their default values.

Start the processing, and when it is complete (hopefully in less than a few minutes), you should see
something like this, showing the sparse cloud of 3-D tie points (grey) and aligned cameras (blue
squares) in the Model pane:

You may need to zoom in and out (mouse wheel) or scale the blue camera squares (shift-mouse
wheel) to find the most useful visualisation).

Save your project at this point, if you want to return to it.

6
IAVCEI 2017 – The Drone Workshop PhotoScan exercise Mike James

3 Tie point quality control Level: Intermediate

Completing this section should allow you to:
The next processing step is to assess and refine
 Refine your survey by removing weakly
the tie point quality, and will be explored using
matched images.
a fuller subset of the survey, which has been
 Refine your survey by removing weak or
pre-aligned for you to save time. Thus, from
poor-quality tie points.
folder Section_3_Tie_point_quality,
open the project flight1_cropped.psx.

This project provides 362 images for which cameras have been oriented and the sparse point cloud
generated. However, although image quality data have been calculated, they have not yet been used
to remove any poor images.

3.1 Refine image selection

For image quality and other reasons, some images will not match as well as others and they can be
removed from the project. Initially check for any images that might be removed by sorting the
images by quality in the Photos pane and viewing a few of the poorest quality ones.

Note that selecting images in the model Pane also highlights the appropriate rows in the Camera
table of the Reference pane. In the Camera table, scroll to the right and sort the images by the Error
(pix) column that gives the RMS tie point image residual for each image. By selecting poor-quality
images in the Photos pane, you will see that they are often associated with large RMS tie point
residual values (e.g. > 3 pix). Viewing the cameras in the Model pane also demonstrates that many
are at unusual angles, suggesting that they were taken during manoeuvres between flight lines,
where aircraft stability is likely to be reduced, and thus poor quality images more likely. Remove
poor-quality images from the project – I removed 13 with the greatest RMS error, to leave 349.

3.2 Refine tie points by quality metrics

The 3-D sparse point cloud will still contain tie points of varying quality, and overall results will be
improved if low-quality tie points and observations are removed. PhotoScan provides a ‘Gradual
Selection’ tool to help select and remove points based on a number of different quality metrics. In
the Model pane, rotate the view so that you can see all the sparse points as clearly as possible (you
may want to hide the cameras), then open the Gradual Selection tool from the main menu by Edit →
Gradual selection… Change the criterion to ‘Image count’. Move the slider to 3, which selects all the
points that have only been observed in 3 or fewer images. Click ‘OK’, then hit the ‘delete’ key to
remove these points. We have used 3 images here as a threshold due to the generally high overlap;
in other projects you may need to use only 2.

You can repeat this selection and filtering process using some of the other criteria listed below.
Appropriate threshold values will vary and there will not be a ‘right’ one to use. However, gradual
selection is a valuable tool to identify and remove points that are either outliers or at the weakest
end of the quality distribution.

Reprojection error: This metric represents image residuals, but is complicated by the fact that
PhotoScan scales these values based on the image matching, so they don’t directly reflect
values in pixels for each point. Nevertheless, it is useful in order to identify and remove the
worst points (largest values).

7
IAVCEI 2017 – The Drone Workshop PhotoScan exercise Mike James

Reconstruction uncertainty: This is a complex metric that reflects how elongate the precision
ellipse is on any point – large values indicate elongated ellipses (for UAV surveys, this
usually indicates much weaker vertical precision than horizontal precision). Appropriate
values to use as thresholds will vary between projects, and will depend on the number of
images matched per point and the imaging geometry.

Projection accuracy: I’m not entirely clear on this one…! From the PhotoScan manual: “This
criterion allows to filter out points which projections were relatively poorer localised due
to their bigger size”. It might be to do with the scale that points have been matched at.

Following refinements, I had ~80,000 tie points remaining. At this point, it is worth checking that
there are no images for which almost all observations have been removed. In the Reference pane,
view the ‘Projections’ column in the Cameras; images with few observations (e.g. <500) would be
good candidates for removal. Ideally, the distribution of such points, rather than their total number,
should be the criterion for removal. PhotoScan does not currently offer a way to visualise tie point
distributions but, if you are interested, it can be done using sfm_georef (James & Robson, 2012;
James et al. 2017a).

3.3 Remove tie points manually

In some circumstances, refinement through gradual selection can still leave some points which are
clear outliers through being located far from the topographic surface, and these can be manually
removed. To select points manually, in the Model pane, rotate the view so that you can see all the
outlying sparse points as clearly as possible. Locate the selection tool in the main toolbar
and drop down the box to select the tool of choice (I find the ‘Free-form Selection’ the
most useful). Click-drag in the Model pane to select the points you wish, and press the delete key to
remove. Click the Navigation button to return the mouse to a navigation function rather than
selection.

4 Adding control data for Level: Basic-Intermediate

georeferencing Completing this section should allow you to:
 Import GCP data and assign appropriate
If you didn’t complete the previous section, or precision estimates.
want to start afresh, you can open the
 Use image-matching assisted GCP
flight_1_cropped_refined.psx project identification to derive a preliminary
in the Section_4_Adding_GCPs folder. You georeference for your survey.
have seen that PhotoScan has some
georeferencing information for camera
positions from the on-board GPS data. These data have already been automatically used as control
measurements - even without any GCPs in the project, the 3D model appears sensibly oriented and
scaled. However, typically, these GPS data are rather poor precision (e.g. multiple metres) and suited
only to relatively coarse metre-level georeferencing – which may be fine for some requirements, but
not for many. PhotoScan assumes a default camera position precision of 10 m (as seen in the
Reference Settings dialog box, and applied in X, Y and Z directions), which is probably appropriate.

8
IAVCEI 2017 – The Drone Workshop PhotoScan exercise Mike James

Some UAV systems offer much greater precision from dual-frequency on-board receivers and can
deliver centimetre-level survey precision. Detailed analyses of these types of ‘directly
georeferenced’ surveys are out of scope of this exercise.

In using these camera position data, PhotoScan has detected (or assumed) that the camera
coordinate values are in WGS 84 (latitude and longitude). To avoid conflict with GCP data provided in
a different coordinate system, select all the cameras in the Reference pane (click on one row in the
table, then press Control-A) and untick the check boxes. This deselects the camera position data
from being used in any further georeferencing calculations.

4.1 Importing GCP ground survey data

To precisely georeference this project, we will use GCPs which were deployed in the field as red
cones. The coordinates of the NE corner of their bases were determined by survey-grade GPS. These
GCP coordinates are provided in the file gcps_UTM_Zone_28N_WGS84.txt – open the file in a
text editor to see the format (the columns are: label, X, Y, Z, sX, sY, sZ, where sX/Y/Z denotes the
measurement precision in that coordinate). Note: If, in your own surveys, you don’t have precision
information to import with GCP coordinates, the precision columns can be omitted and precision
estimates set globally within PhotoScan later.

To import the GCP data:

1) Click on the Import button in the Reference toolbar and select
gcps_UTM_Zone_28N_WGS84.txt.

2) The GCP coordinates are given in UTM Zone 28N, WGS84 and this needs to be set as the
coordinate system. Find the coordinate system by going to More… in the dropdown box then,
under Projected Coordinate Systems, find ‘World Geodetic System 1984’ and select WGS 84 /
UTM zone 28N (or use the filter box to search for 32628, the EPSG code!). Select the
coordinate system and return to the Import CSV dialog box.

3) Tick the ‘Accuracy’ checkbox and set the accuracy column values to 5, 6 and 7 for Easting,
Northing and Altitude respectively:

4) Click OK. PhotoScan will say it can’t find a match (no existing photo or marker with the same
name as the labels), so click ‘new marker for all’. Note that the orientation of the model will

9
IAVCEI 2017 – The Drone Workshop PhotoScan exercise Mike James

change, which is due to the change in the project’s coordinate system. You will see the
imported GCP coordinates appear in the Markers table of the Reference pane.

4.2 Making GCP image observations

With the ground survey GCP data imported, the GCPs now need to be located within the imagery.
Firstly, to make sure that your manual GCP identifications will be aided by automated image
matching, use the main menu: Tools → Preferences and, in the dialog box that comes up, go to the
Advanced tab. Ensure that ‘Refine marker positions based on image content’ is checked.

Now, identify your first GCP in an image: in image …DJI_0056, look for the red cone of gcp-002 (just
under half way across the image and about three quarters the way up the image). Zoom in to see the
cone clearly, right click on the top right corner of the cone base, then select Place marker…. gcp-002.
A white dot will appear at the point, attached to a green flag, denoting a pinned GCP observation.

In the Reference panel, look on the right hand side of the Markers table, and you should see that a
number of observations have now been automatically made of that GCP (the ‘Projections’ column).
If this has remained at 1, find the same GCP in another image (e.g. …DJI_0057) to make another
manual measurement. This time, you will be guided to its location by a striped line, along which
PhotoScan is expecting the marker to be located. Find the GCP, and place the marker as before.

With multiple observations, PhotoScan has sufficient information to estimate where a marker should
be in other images. In the Reference pane, right click on the table entry for gcp-002, and select
‘Filter Photos by Markers’. The Photos pane will now only list images in which this GCP is expected
to be visible. With the Photos pane showing the image thumbnails, images in which an observation
has been manually set (pinned) will be annotated with a green flag. Images in which the GCP has
been identified by automated image matching are annotated with a blue flag, and grey furled flags
indicate images in which the GCP is expected, but has not been manually identified or successfully
located by image matching. Grey-flagged positions are not used in georeferencing calculations.

Double-click on an image annotated by a grey furled flag in the Photos pane, then drag the marker
into the appropriate position in the image (if you are confident you know where it should go!). This
will pin the observation, as indicated by the green flag annotation in the Photos pane. Note: You
don’t have to convert all (or any) of the grey flags but aim for a minimum of ~5 observations per
marker (easily exceeded in this project). Poor-quality observations are not usually worth it.

Practice this process on two more GCPs before proceeding to Section 4.3:

gcp-004: find it in …DJI_0101, (the cone is located above the centre of the image and, again,
place the marker on top right hand corner of the cone base)

gcp-007: find it in …DJI_0121, (as above, but with the cone located about a third the way
across the image, and three quarters the way up.

4.3 Update georeference

With three (or more) GCPs identified in multiple images, the survey can be georeferenced
using these GCP observations. In the Reference panel, click on the Update button to re-
calculate the georeferencing transform. ‘Update’ determines the best-fit transform of translation,
rotation and scale, which links the 3-D GCP coordinates estimated from the photogrammetry to the

10
IAVCEI 2017 – The Drone Workshop PhotoScan exercise Mike James

control coordinates (provided by the GPS survey). Thus, ‘update’ does not change the shape of the
3-D model, just its size, position and orientation.

You will now see values appear in the ‘error’ column of the Markers table, which represent the misfit
between the photogrammetric and the control data. If any are substantially larger than expected
(e.g. metres in this case), then it is likely that a GCP has been incorrectly identified. The values you
see should be somewhere in the 0.03 – 0.04 m range.

The survey now has a preliminary georeference based on the GCPs identified in the images, and
PhotoScan can estimate the positions of the remaining GCPs in images. For any remaining GCPs with
no observations (except gcp-001), use the ‘Filter photos by marker’ function to enable you to locate
the GCPs in the images. Note – ignore gcp-001 as it does not relate to a cone location!

You might notice that PhotoScan estimated that gcp-005 was rather far from its location in the
image and, having pinned the marker, it shows a much greater error than the others. This suggests
that it is not consistent with all the other GCPs. Click the Update button again to re-calculate the
transform. Error now increases overall (~0.17 m), and particularly on GCPs next to gcp-005 (4 and 6).

Uncheck gcp-005 in the Markers table to remove it from georeferenceing calculations and re-run the
update. RMS error on the control points should decrease to ~0.06 m, but error on gcp-005 (now
used only as a check point) will be high – 0.66 m.

This straightforward exploration of the error distribution on GCPs helps identify potential problems in
the data – here, gcp-005 has been identified as being substantially less consistent with the
photogrammetric model than all the other GCPs.

4.1 Outlier image observations of GCPs

There are fewer options for analysing the image residuals on GCPs than for tie points, but the
Markers table has an Error (pix) column that gives the RMS image residual value for each marker.
Right-clicking on any entry in the Markers table will provide a context menu from which you can
‘Show info…’. This information gives you the image residuals for all observations of that marker, and
enables individual weak observations to be identified. Such observations can either be removed or
adjusted by opening the appropriate image in the Image pane.

5 Bundle adjustment and Level: Intermediate-Advanced

camera model Completing this section should allow you to:
 Fully optimise your project using bundle
If you have not completed all the previous adjustment with ground control.
section, you can use the project  Appropriately weight the observations
flight1_cropped_refined_GCPs.psx, used in the adjustment.
in the Section_5_Bundle_adjustment  Recognise the potential problems with
folder to start this section. over-parameterisation of camera models.
So far, using the ‘Update’ button has
enabled your project to be georeferenced by using the GCP control data to scale and orient the
model. However, the GCPs have not been used to help refine the shape of the model. By including

11
IAVCEI 2017 – The Drone Workshop PhotoScan exercise Mike James

control data within the overall optimisation (the ‘bundle adjustment’), shape and georeferencing can
be optimised simultaneously.

In PhotoScan, bundle adjustment is carried out via the ‘Optimize Cameras’ button on the
Reference pane toolbar. Ensuring that all your GCPs are checked (active), click the Optimize
Cameras button and then, leaving the selection of camera parameters at its default values, click OK.
Following the adjustment, the RMS error on the control points should drop to ~0.13 m.

5.1 Weighting observations

This optimization has been carried out using PhotoScan’s default weighting of tie point and marker
image observations (1.0 and 0.1 pix respectively). For this survey, these are not very good estimates
of the actual image residuals – the RMS image residual on markers is given in the last column of the
Marker table (and should be ~1.4 pix) and the RMS image residual for tie points can be found from
the Workspace pane (right-click on the chunk in the project tree and select ‘Show info’; it should be
~1.3 pix). Thus, markers (GCPs) have been substantially over-weighted by using PhotoScan’s default
values.

1. To change the weightings, in the Reference pane, click on the Settings button, and
edit the values in the ‘Image coordinates accuracy’ box appropriately (e.g. 1.4 pix
for ‘Marker accuracy’ and 1.3 pix for ‘Tie point accuracy’).

2. Re-run the bundle adjustment, and check that RMS image error values have not changed
substantially. Small changes can be used to update the settings values and the adjustment
run again, if required.

3. As you did previously, see how removing gcp-005 from the bundle adjustment (by
unchecking its box) affects the results. Note down the total error values for control and
check points. Do you think gcp-005 should be included in the adjustment?

The importance of appropriate observation weighting will vary with the relative numbers/precisions
/distributions of markers and tie points and, ultimately, with the accuracy requirements of the
survey. If decimetric accuracy or better is required, then appropriate weighting may well be
important. See James et al. (2017a) for more details and the impacts of inappropriate weighting.

5.2 Camera model

We have not yet examined the camera
model. In the main menu, go to Tools →
Camera Calibration… to bring up the
camera Calibration Window (right):

Clicking on the ‘Adjusted’ tab shows the

distortion parameter values that have
been determined during the
optimisation. These include k1-3 (radial
distortion) and p1, p2 (tangential
distortion). In many cameras, tangential
distortion is very small and can often be
neglected.

12
IAVCEI 2017 – The Drone Workshop PhotoScan exercise Mike James

We will now see what the effect of removing tangential distortion from the camera model will be:
1. On the Adjusted tab, edit the p1 and p2 values to 0.0 and click ‘OK’.

2. Run the bundle adjustment again, ensuring that ‘Fit p1’ and ‘Fit p2’ are unchecked so that
they will not be included in the optimisation.
3. When the adjustment is complete, check the RMS on the control points and check points,
which should now be something like 0.07 and 0.14 m respectively. So, the simpler camera
model has resulted in a very slight increase in the overall error on the control points, but a
substantial reduction (from ~0.66 m) on the independent check point. Thus, if the simplified
camera model is used, the fit to the GCPs appears more generic. Nevertheless, the error on
gcp-005 does remain elevated, so it may well still be an outlier. To resolve this, we’d really
need additional GCPs deployed so that more could be used as independent check points.

More advanced analysis of camera models can be carried out using visualisations accessed through
the Camera Calibration window (see the previous image). In the Camera Calibration window, right-
click on the blue-highlighted camera group (top left) and select Distortion Plot…. This provides plots
of the distortion model and the residuals as well as listing parameter values, precisions and
correlations. A detailed discussion is out of scope here (see conventional photogrammetry literature)
but, ideally, residuals should be small and randomly oriented. For more information on assessing
over-parameterisation in SfM projects see James et al. (2017a, b). Here, I’d suggest using the
simplified camera model and leaving gcp-005 as a check point.

6 Dense matching, and DEM and Level: Basic

orthomosaic products Completing this section should allow you to:
 Generate a dense point cloud, and DEM
You have now completed the photogrammetric and orthomosaic products.
and georeferencing processing, which
determines the shape of the survey along with
the camera positions and models. Now these are fixed, then the dense matching can be undertaken
(you can try this with any of your previous georeferenced projects). Dense matching does not
change the survey shape or georeferencing and, if shape is subsequently adjusted (e.g. a further
camera optimization is carried out) then the dense matching output will be discarded automatically.

6.1 Dense matching

Dense matching uses the established survey geometry and camera models to generate many more
3-D points and can take many hours for a large project. Thus, here, we will select only a small region
of the project to work from. To resize the area to be processed, click on the Resize Region
button in the Reference toolbar, and move the corners of the bounding region (identified by
the blue spheres in the Model pane) so that only a small area of the survey is encompassed by
the region box. Click the Navigation button to return to Navigation mode.

Now, from the main menu: Workflow → Build dense cloud. In the dialog box that appears, set the
quality to Medium (higher quality gives more points, but is slower), and click OK.

To view the result, click the ‘Dense Cloud’ button on the main toolbar:

13
IAVCEI 2017 – The Drone Workshop PhotoScan exercise Mike James

6.2 Building a DEM

The dense point cloud provides the detailed topographic data needed for building a DEM. For
maximum flexibility in DEM-building, you can export the dense point cloud (from the main menu,
use File → Export Points…) and process it in the software of your choice (e.g. a GIS package, Surfer
etc.). Alternatively, you can use PhotoScan’s inbuilt DEM tool. This works in two stages, firstly to
construct an underlying DEM, then to resample and export this as required. To build the underlying
DEM, from the main menu, go to Workflow → Build DEM.

Note – it isn’t possible to change most of the

parameters here and your boundaries and total size
(pix) values will vary depending on size of the region
you selected. You get more options when you want
to export the DEM Click OK.

PhotoScan allows you to visualise your DEM (and

make some simple measurements, which we won’t
cover here). To view the DEM, in the Workspace
pane, double-click on the DEM item in the chunk to
bring up the Ortho view tab. If you had generated a
DEM of the full region, it would look like this (and
you can visualise a full DEM in the next section):

To export the DEM, from the main menu: File → Export DEM… and select the export file type that
you want. At this point, you can change the DEM extent and resolution to suit your requirements.

14
IAVCEI 2017 – The Drone Workshop PhotoScan exercise Mike James

6.3 Building an orthomosaic image

Once you have built a DEM, then you can also construct an orthomosaic image. Again, this works in
two stages, building the orthomosaic and exporting it. From the main menu: Workflow → Build
Orthomosaic…, and the dialog box shown on the
left will come up.

Parameters here can be changed as required.

However, orthomosaic processing can be slow, so a
pre-processed project has been prepared for you in
the Section_6_Dense_matching_DEMs_Ortho
folder. Thus, to view a full DEM or orthomosaic
image, open flight1_processed.psx, in which
the dense matching, DEM and orthomosaic
processing has already been carried out for the full
survey (i.e. a larger region than you have been
working on so far).

Just as for DEMs, the orthomosaic can be viewed in

the Ortho tab, by double-clicking on the
orthomosaic item in the Workspace pane:

To export an orthomosaic image from the main menu, use File → Export orthomosaic and select the
export file type you want.

15
IAVCEI 2017 – The Drone Workshop PhotoScan exercise Mike James

7 Precision maps Level: Advanced

A key aspect of all measurement is Completing this section should allow you to:
the uncertainty involved. Some idea  Consider the precision-limiting factors of a survey.
of survey uncertainty can be given  Visualise point precision estimates using
CloudCompare.
by the misfit error on control and
check points. However, these are
often spatially limited and, in the case of control points, error is not independent from the
optimisation.

In rigorous photogrammetric processing, precision estimates are provided for all optimised
parameters, including the sparse point coordinates. Unfortunately, current SfM-based software does
not generally offer this, but point coordinate precision can be estimated using PhotoScan and a
Monte Carlo approach (James et al., 2017b).

This Monte Carlo precision processing has been carried out for you on the full Flight1 survey. For
your interest, the Python script used, precision_estimates.py and a processing output log
_precision_log.txt are provided in the Section_7_Precision_estimates data folder.

The _precision_log.txt file provides a number of statistics that characterise the overall
precision of the survey. Full details are given in James et al. (2017b), but a few interesting ones to
note are the relative precision ratios given at the end of the file. Here, mean point precision is given
in terms of observation distance, overall survey extent and pixels. The values here support the
overall quality of the survey – mean horizontal precision is ~1 pixel and vertical precision is ~2 pixels.

Also in the Section_7_Precision_estimates folder are the two output files from the Monte
Carlo processing which can be used to visualise how the survey precision varies spatially:

_point_precision_and_covars.txt - full point coordinate precision estimates and

covariance information.

_point_precision_and_covars_shape_only.txt - point coordinate precision

estimates and covariance information that exclude the
uncertainty in overall survey georeferencing.

If you have CloudCompare (or a similar point cloud visualisation application), you can import the
data in these text file outputs as point clouds (import the X, Y, Z fields as point coordinates, the sX,
sY, sZ fields as scalars and ignore the other fields – we won’t consider covariance here). By using the
sZ scalar field to colour the point cloud, you can assess the variation in vertical precision across the
survey, effectively generating a ‘precision map’. Such maps give insight into the survey performance,
and indicate what aspects are limiting the precision achievable (James et al. 2017b).

For the full precision estimates (_point_precision_and_covars.txt), you should be able to

see something like this (GCP positions are overlain in black for reference):

16
 IAVCEI 2017 – The Drone Workshop PhotoScan exercise Mike James

_point_precision_and_covars.txt

Precision, Z (mm)
50

Note:

 Precision is shown to generally vary smoothly so, overall, precision is being limited by
the georeferencing. This is because, for the full survey, a large area lies outside the
region covered by the GCPs. As you move away from the weighted centroid of the
control measurements, precision will deteriorate because the effects of uncertainty
in georeferencing scale and angular orientation become amplified.
 There are some localised areas which show poorer precision, and these can be
assessed in more detail with the overall survey georeferencing uncertainty removed:

__point_precision_and_covars_shape_only.txt
Precision, Z (mm)

50

Note:

 The precision associated with survey shape only is generally worst at the survey
edges where the number of overlapping images will be smallest. In the survey centre,
image overlap does not appear to substantially limit precision (e.g. there is only some
evidence of image overlap outlines).
 Other, more discrete areas of weak precision reflect ground features, so changes in
image texture due to surface variations is having some identifiable effects on
precision.

17
IAVCEI 2017 – The Drone Workshop PhotoScan exercise Mike James

8 Finish
Having completed this exercise, you should now be able to:
 Load images into PhotoScan, build a georeferenced 3-D model and export associated
point clouds, DEMs and orthomosaic products.
 Improve your survey quality by identifying and removing weak images and tie points.
 Identify GCPs that may have unacceptable error.
 Appropriately weight observations within the bundle adjustment (optimisation) in
order to maximise the repeatability of a survey’s results.
 Consider the influence of differing camera models and carry out basic tests for over-
parameterisation.
 Interpret precision maps in terms of the precision-limiting factors affecting a survey
and, hence, make suitable recommendations for improving survey precision.

Finally, when reporting your work…

This exercise has focussed on the processing techniques that come after data acquisition but
acquiring appropriate data starts by designing the image acquisition strategy to meet the survey
requirements. Dimensionless estimates of precision can help guide survey design, for example, by
using 1:1000 for mean precision : observation distance (James et al. 2012) as an initial guide. Further
recommendations can be found in Eltner et al. (2016), O’Connor et al. (2017) and Mosbrucker et al.
(2017).

Dimensionless parameters also represent a valuable way to report survey quality, for example,
giving precision ratios or precision expressed in pixels. PhotoScan provides some useful parameters
in a processing report that can be generated from the main menu File → Generate Report… For
more detailed analysis, see the precision processing logs generated along with precision maps
(discussed in Section 7; James et al., 2017b). Such metrics should be used to clearly communicate
the quality of your surveys.

Happy flying!

Any feedback on this exercise is welcome:

18
IAVCEI 2017 – The Drone Workshop PhotoScan exercise Mike James

9 References and resources

Valuable additional information can be obtained from the PhotoScan website and manuals:
PhotoScan: http://www.agisoft.com/
PhotoScan manuals : http://www.agisoft.com/downloads/user-manuals/

There are a wide range of additional resources on the web to get you started with PhotoScan
(including tutorials on the PhotoScan website above), although many have somewhat different
suggestions! Those from UNAVCO are recommended:
Structure from Motion guide - Practical survey considerations.
Structure from Motion AgiSoft processing guide

This exercise was based on

Data:
Scheidt, S. P., Bonnefoy, L. E., Hamilton, C. W., Sutton, S., Whelley, P. and deWet, A. P. (2017)
Remote sensing analysis of Askja pumice megaripples in the Vikursundar, Iceland as an
analog for martian transverse aeolien ridges, Fifth Intl Planetary Dunes Workshop 2017, LPI
Contrib. No. 1961, abstract 3020.
Sfm-georef for visualising error:
James, M. R. and Robson, S. (2012) Straightforward reconstruction of 3D surfaces and topography
with a camera: Accuracy and geoscience application, J. Geophysical Res., 117, F03017, doi:
10.1029/2011JF002289
Survey design for mitigating systematic error (‘doming’):
James, M. R. and Robson, S. (2014) Mitigating systematic error in topographic models derived
from UAV and ground-based image networks, Earth Surf. Proc. Landforms, 39, 1413–1420,
doi: 10.1002/esp.3609
Rigorous processing, detailed GCP analysis and assessment of camera over-parameterisation:
James, M. R., Robson, S., d’Oleire-Oltmanns, S. and Niethammer, U. (2017a) Optimising UAV
topographic surveys processed with structure-from-motion: Ground control quality, quantity
and bundle adjustment, Geomorphology, 280, 51–66, doi: 10.1016/j.geomorph.2016.11.021
‘Precision maps’ and understanding survey precision:
James, M. R., Robson, S., Smith, M. W. (2017b) 3-D uncertainty-based topographic change
detection with structure-from-motion photogrammetry: precision maps for ground control
and directly georeferenced surveys, Earth Surf. Proc. Landforms, accepted, February, doi:
10.1002/esp.4125

19
IAVCEI 2017 – The Drone Workshop PhotoScan exercise Mike James

Photogrammetry books
Ultimately, to improve SfM-MVS results though a deeper understanding of photogrammetric
processing, recourse to standard text books is fully recommended; some excellent example are:
Krauss, K. (1993) Photogrammetry, Vol. 1, Fundamentals and Standard Processes, Dümmlers.
Luhmann ,T., Robson, S., Kyle S. and Harley I. (2006) Close Range Photogrammetry: Principles,
Methods and Applications, Whittles, Caitness.
McGlone, J. C. (2013) Manual of Photogrammetry, American Society for Photogrammetry and
Remote Sensing, Bethesda.
Wolf, P.R., Dewitt., B.A. and Wilkinson, B. E. (2014) Elements of Photogrammetry with
Applications in GIS, McGraw-Hill Education.

Good data collection

Good results are underpinned by good data collection. These papers discuss some of the imaging
issues and also make recommendations for rigorous (and open) reporting of acquisition parameters:
Eltner, A., Kaiser, A., Castillo, C., Rock, G., Neugirg, F. and Abellán, A. (2016) Image-based surface
reconstruction in geomorphometry – merits, limits and developments, Earth Surf. Dynam., 4,
359–389, doi:10.5194/esurf-4-359-2016
Mosbrucker, A. R., Major, J. J., Spicer, K. R. and Pitlick, J. (2017) Camera system considerations for
geomorphic applications of SfM photogrammetry, Earth Surf. Proc. Landforms, 42, 969-986,
doi: 10.1002/esp.4066
O’Connor, J. Smith, M. and James, M. R. (2017) Cameras and settings for aerial surveys in the
geosciences: Optimising image data, Prog. Phys. Geog., doi: 10.1177/0309133317703092

Work using UAVs and SfM-MVS in the geosciences

There is a huge number of relevant papers – here are very a few of the early/interesting
ones as a sample from a range of active groups:
Eltner, A., Baumgart, P., Maas, H.-G., and Faust, D. (2015) Multi-temporal UAV data for automatic
measurement of rill and interrill erosion on loess soil, Earth Surf. Proc. Land., 40, 741–755.
Harwin, S., Lucieer, A., Osborn, J., (2015) The impact of the calibration method on the accuracy of
point clouds derived using unmanned aerial vehicle multi-view stereopsis. Remote Sens., 7,
11933–11953.
Hugenholtz, C. H., Whitehead, K., Brown, O. W., Barchyn, T. E., Moorman, B. J., LeClair, A., Riddell,
K. and Hamilton, T. (2013) Geomorphological mapping with a small unmanned aircraft
system (sUAS): Feature detection and accuracy assessment of a photogrammetrically-
derived digital terrain model, Geomorphology, 194, 16–24
Immerzeel, W. W., Kraaijenbrink, P. D. A., Shea, J. M., Shrestha, A. B., Pellicciotti, F., Bierkens, M.
F. P. and de Jong, S. M. (2014) High-resolution monitoring of Himalayan glacier dynamics
using unmanned aerial vehicles, Remote Sens. Environ., 150, 93–103.
Nakano T., Kamiya I., Tobita M., Iwahashi, J. and Nakajima, H. (2014) Landform monitoring in
active volcano by UAV and SfM-MVS technique. ISPRS-Int. Arch. Photog. Rem. Sens. Spat.
Info. Sci., XL-8, 71–75.
Niethammer, U., James, M. R, Rothmund, S. and Joswig M. (2012) UAV-based remote sensing of
the Super-Sauze landslide: Evaluation and results, Engineering Geology, 128, 2-11,
Turner, D., Lucieer, A. and Wallace, L. (2014) Direct georeferencing of ultrahigh-resolution UAV
imagery. IEEE Trans. Geosci. Remote Sens., 52, 2738–2745.

20
IAVCEI 2017 – The Drone Workshop PhotoScan exercise Mike James

SfM-MVS work by the author on active volcanic systems

The first SfM-MVS work on active lava flows and domes:
James, M. R., Applegarth, L. J. Pinkerton, H. (2012) Lava channel roofing, overflows, breaches and
switching: insights from the 2008-9 eruption of Mt. Etna, Bull. Volc., 74, 107-117, doi:
10.1007/s00445-011-0513-9.
James, M. R. and Varley, N. (2012) Identification of structural controls in an active lava dome with
high resolution DEMs: Volcán de Colima, Mexico, Geophys. Res. Letts., 39, L22303,
doi:10.1029/2012GL054245.

Rhyolite emplacement dynamics:

Tuffen, H., James, M. R., Castro, J. M. & Schipper, C. I. (2013) Exceptional mobility of a rhyolitic
obsidian flow: observations from Cordón Caulle, Chile, 2011-2013, Nat. Comms., 4, 2709,
doi: 10.1038/ncomms3709
Farquharson, J., James, M. R. and Tuffen, H. (2015) Examining rhyolite lava flow dynamics
through photo-based 3-D reconstructions of the 2011-2012 lava flowfield at Cordón Caulle,
Chile, J. Volcanol. Geotherm. Res., 304, 336-348 doi: 10.1016/j.jvolgeores.2015.09.004

Stereo time-lapse DEMs of lava emplacement:

James, M. R. and Robson, H. (2014) Sequential digital elevation models of active lava flows from
ground-based stereo time-lapse imagery, ISPRS J. Photogram. Remote Sens., 97, 160-170,
doi: 10.1016/j.isprsjprs.2014.08.011

3-D models from thermal imagery of lava dome growth:

Thiele S. T., Varley, N. and James, M. R. (2017) Thermal photogrammetric imaging: a new
technique for monitoring dome eruptions, J. Volcanol. Geotherm. Res., doi:
10.1016/j.jvolgeores.2017.03.022

21
