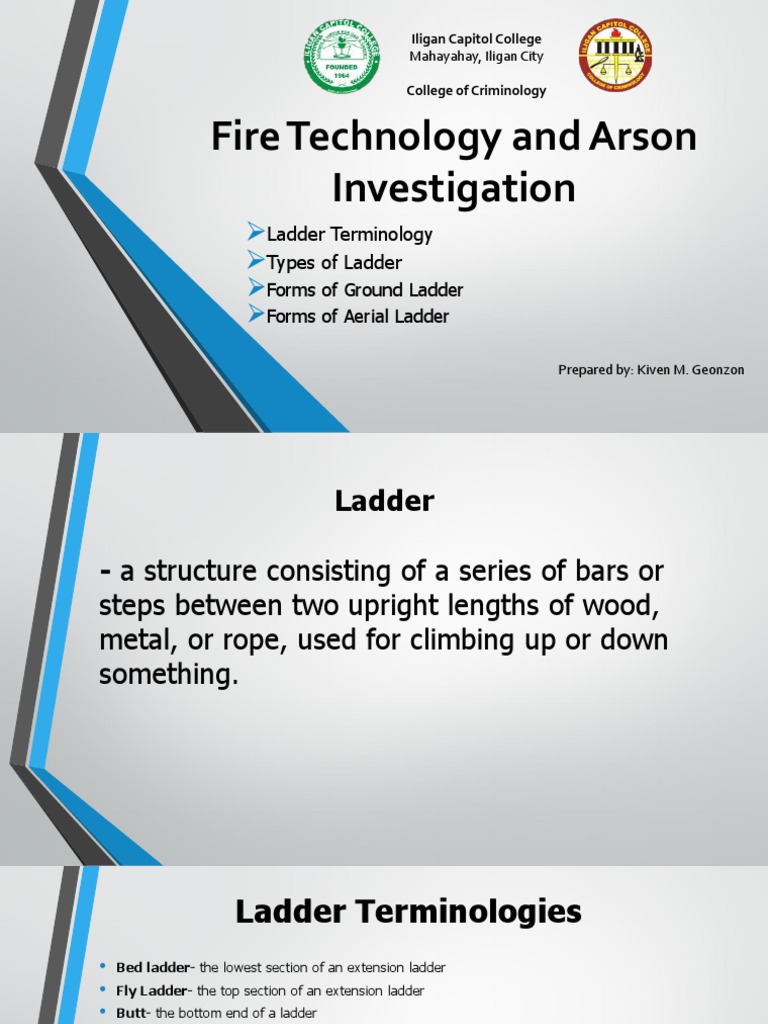

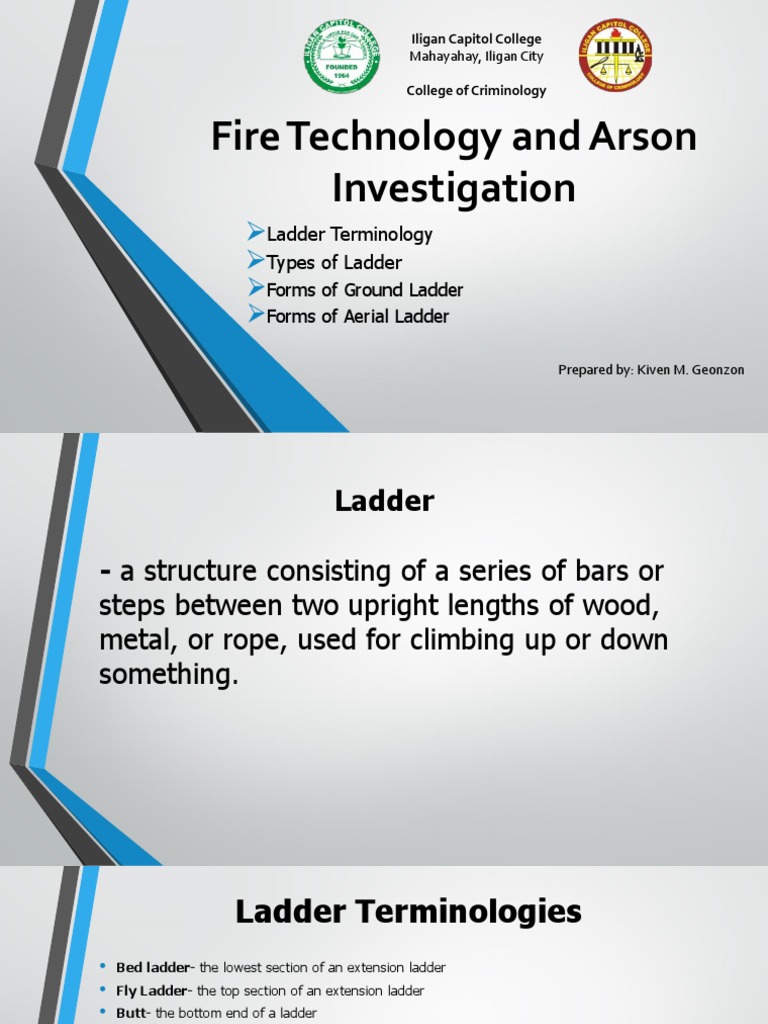

Investigation ➢Ladder Terminology ➢Types of Ladder ➢Forms of Ground Ladder ➢Forms of Aerial Ladder Prepared by: Kiven M. Geonzon Ladder
- a structure consisting of a series of bars or
steps between two upright lengths of wood, metal, or rope, used for climbing up or down something. Ladder Terminologies • Bed ladder- the lowest section of an extension ladder • Fly Ladder- the top section of an extension ladder • Butt- the bottom end of a ladder • Heel- the part of the ladder that touches the ground • Halyard- a rope or cable used to raise the fly ladder • Pawl/Dog- the mechanism located at the end of the fly ladder that locks to the bed ladder • Rung- the cross member of a ladder that is used for climbing • Top/Tip- it is the top part of a ladder • Hooks- part of a ladder that is used to hook over a roof peak, sills, or walls where the heel does not rest on a foundation • Stops- made of metal or wood blocks used to prevent the fly of an extension ladder from extending out further from the ladder • Guides- light metal strips of an extension ladder that guides the fly ladder while it is being raised or lowered Types of Ladder
• Ground Ladders- 3.1m to 17m (10-55ft)
• Aerial Ladders- 30.5m (100ft) Forms of Ground Ladder Straight Ladder - this is a type of ladder that contains only one section - 12ft - 16ft - 14ft (most common size) Extension Ladder - this is consists of a bed and one or more fly ladders * Tormentors- an extension ladder that has a stay poles * Bangor – ladders that are extended to more than 35ft Attic Ladder - it provides means of reaching through an opening into attics, lofts, and other areas that are somewhat difficult to reach without special ladder - Can be folded or collapsed for a small room or closet works - Required to reach only a short distance Wall Ladder - this type of ladder best used in rescue where a ladder in place is already falls short of the endangered person. - It allows the user to climb up or down, one storey at a time Forms Aerial Ladders Hydraulic Aerial Ladder - it is operated by a liquid moving in a confined space under pressure Articulated Boom - it forms a joint
