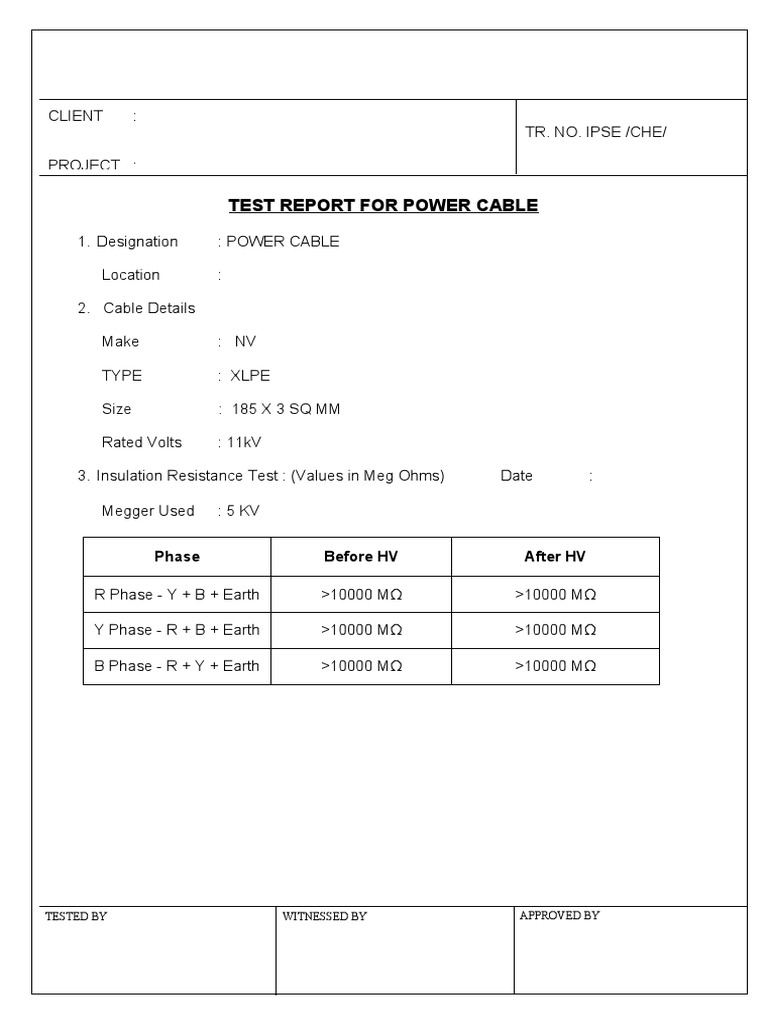

CLIENT :

TR. NO. IPSE /CHE/

PROJECT :

TEST REPORT FOR POWER CABLE

1. Designation : POWER CABLE

Location :

2. Cable Details

Make : NV

TYPE : XLPE

Size : 185 X 3 SQ MM

Rated Volts : 11kV

3. Insulation Resistance Test : (Values in Meg Ohms) Date :

Megger Used : 5 KV

Phase Before HV After HV

R Phase - Y + B + Earth >10000 MΩ >10000 MΩ

Y Phase - R + B + Earth >10000 MΩ >10000 MΩ

B Phase - R + Y + Earth >10000 MΩ >10000 MΩ

TESTED BY WITNESSED BY APPROVED BY

CLIENT :
TR. NO. IPSE /CHE/

PROJECT :

4. DC High Voltage Test : TESTED VOLTAGE : (OLD CABLE): 15kv

(NEW CABLE): 23kv

Cable Leakage Current Result

Voltage Applied Between
Ref. In (mA)

R Phase - Y + B + Earth 0.58 WITHSTAND

Y Phase - R + B + Earth 0.57 WITHSTAND

3C X 185 SQMM

B Phase - R + Y + Earth 0.57 WITHSTAND

5. Remarks : FIT FOR COMMISSIONING

6. Equipments used for Testing:

Equipments Make Sl.No Calibration Due

High Voltage Test Kit ELECYTECH

Multimeter MOTWANE

Insulation Tester CIE

TESTED BY WITNESSED BY APPROVED BY
