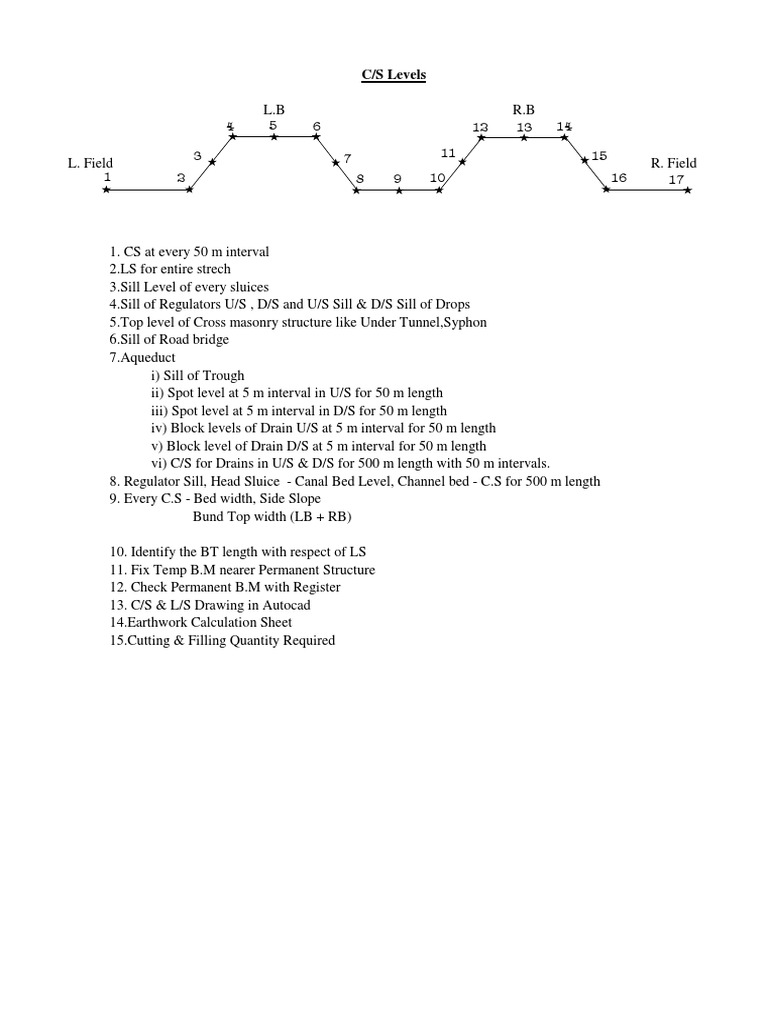

C/S Levels

L.B R.B
4 5 6 12 13 14

3 7 11 15
L. Field R. Field
1 2 8 9 10 16 17

1. CS at every 50 m interval
2.LS for entire strech
3.Sill Level of every sluices
4.Sill of Regulators U/S , D/S and U/S Sill & D/S Sill of Drops
5.Top level of Cross masonry structure like Under Tunnel,Syphon
6.Sill of Road bridge
7.Aqueduct
i) Sill of Trough
ii) Spot level at 5 m interval in U/S for 50 m length
iii) Spot level at 5 m interval in D/S for 50 m length
iv) Block levels of Drain U/S at 5 m interval for 50 m length
v) Block level of Drain D/S at 5 m interval for 50 m length
vi) C/S for Drains in U/S & D/S for 500 m length with 50 m intervals.
8. Regulator Sill, Head Sluice - Canal Bed Level, Channel bed - C.S for 500 m length
9. Every C.S - Bed width, Side Slope
Bund Top width (LB + RB)

10. Identify the BT length with respect of LS

11. Fix Temp B.M nearer Permanent Structure
12. Check Permanent B.M with Register
13. C/S & L/S Drawing in Autocad
14.Earthwork Calculation Sheet
15.Cutting & Filling Quantity Required
