Product: TRACK-TYPE TRACTO R

M odel: D 8R TRACK-TYPE TRACTO R 9EM 03068
Configuration: D 8R TRACK-TYPE TRACTO R 9EM 00001-U P (M ACH IN E) PO W ERED BY 3406C Engine

Operation and Maintenance Manual

D8R Track-Type Tractor
Media Number -SEBU6891-09 Publication Date -01/03/2015 Date Updated -12/10/2016

i05984700

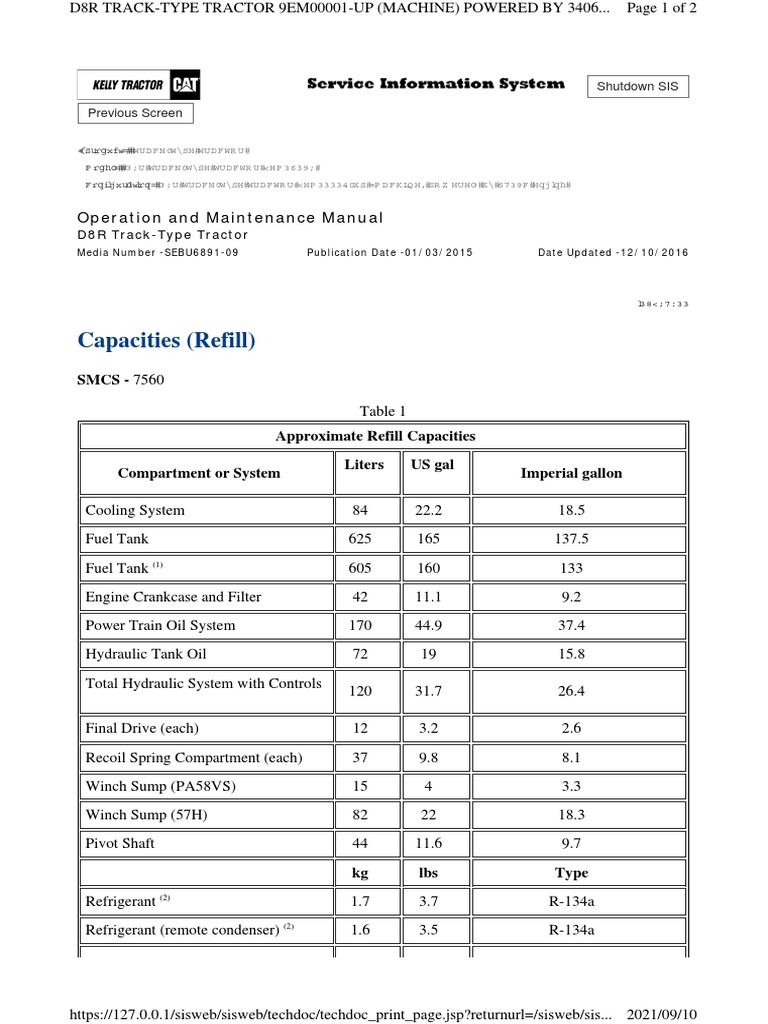

Capacities (Refill)
SMCS - 7560

Table 1
Approximate Refill Capacities
Liters US gal
Compartment or System Imperial gallon

Cooling System 84 22.2 18.5

Fuel Tank 625 165 137.5
Fuel Tank (1) 605 160 133
Engine Crankcase and Filter 42 11.1 9.2
Power Train Oil System 170 44.9 37.4
Hydraulic Tank Oil 72 19 15.8
Total Hydraulic System with Controls
120 31.7 26.4

Final Drive (each) 12 3.2 2.6

Recoil Spring Compartment (each) 37 9.8 8.1
Winch Sump (PA58VS) 15 4 3.3
Winch Sump (57H) 82 22 18.3
Pivot Shaft 44 11.6 9.7
kg lbs Type
Refrigerant (2) 1.7 3.7 R-134a
Refrigerant (remote condenser) (2) 1.6 3.5 R-134a

https://127.0.0.1/sisweb/sisweb/techdoc/techdoc_print_page.jsp?returnurl=/sisweb/sis... 2021/09/10
D8R TRACK-TYPE TRACTOR 9EM00001-UP (MACHINE) POWERED BY 3406... Page 2 of 2

mL oz
Polyalkylene Glycol (PAG) Oil
Refrigerant Oil (2) 300 10

(1)
9EM7400-UP
(2)
Refer to Service Manual, "Air Conditioning and Heating R-134a for All Caterpillar Machines" for additional
information.

Note: When you are operating on severe slopes (greater than 25 degrees or 47 percent), the
quantity of oil in the power train can be increased up to 10 percent. When you are operating with
the increased oil quantity, prolonged operation in some machines can cause high power train oil
temperatures. After the work on the severe slopes has been completed, drain the excessive oil
quantity from the bevel gear case.

Note: For severe slope operation, engine oil should be maintained on the full mark. The engine
should never be overfilled with oil.

Ecology Drains
Table 2
Ecology Drain Components
Drain Location Component Needed
12.7 mm (0.5 inch)
Coolant
pipe with 1/2-14 NPTH thread

Transmission 12.7 mm (0.5 inch)

pipe with 1/2-14 NPTH thread

Torque Converter 12.7 mm (0.5 inch)

pipe with 1/2-14 NPTH thread

Engine Oil
25.4 mm (1 inch) pipe with 1-11 1/2 NPTH thread
126-7914 Hose Swivel
or
Hydraulic Tank
25.4 mm (1 inch) pipe with 1-11 1/2 NPTH thread
4C-8563 Hose Swivel
or
Bevel Gear Case
25.4 mm (1 inch) pipe with 1-11 1/2 NPTH thread
