Product: EXCAVATOR
Model: 330D L EXCAVATOR B6H
Configuration: 330D L Excavator B6H00001-UP (MACHINE) POWERED BY
C9 Engine

Systems Operation
320D, 321C, 323D, 324D, 325D, 328D, 330D, 345C, 365C, 385C, M325D and W345C
Excavators Monitoring System
Media Number -RENR8068-04 Publication Date -01/03/2006 Date Updated -29/03/2006

i02517256

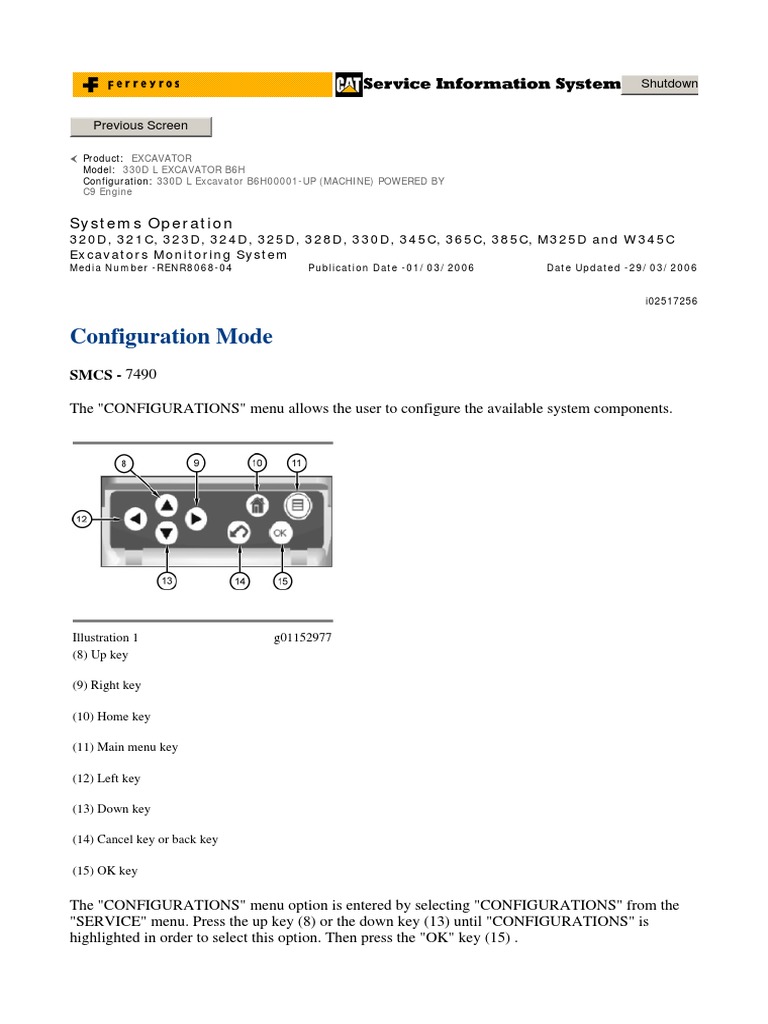

Configuration Mode
SMCS - 7490

The "CONFIGURATIONS" menu allows the user to configure the available system components.

Illustration 1 g01152977
(8) Up key

(9) Right key

(10) Home key

(11) Main menu key

(12) Left key

(13) Down key

(14) Cancel key or back key

(15) OK key

The "CONFIGURATIONS" menu option is entered by selecting "CONFIGURATIONS" from the

"SERVICE" menu. Press the up key (8) or the down key (13) until "CONFIGURATIONS" is
highlighted in order to select this option. Then press the "OK" key (15) .
Note: Refer to Systems Operation, "Service Mode" for instructions to get to the "SERVICE" menu.

Illustration 2 g01156657

Work Mode Config

Illustration 3 g01259433

Perform the following steps in order to get to the "WORK MODE CONFIG" menu:

1. "MAIN MENU"
 2. "SERVICE"

3. Enter the "SERVICE" password.

4. "CONFIGURATIONS"

5. "WORK MODE CONFIG"

The following screen will apear:

Illustration 4 g01261315

Press the up key (8) or the down key (13) in order to highlight the desired setting to change. Press
the "OK" key (15) in order to move a highlight to a data value.

Press the up key (8) or the down key (13) in order to change the value. Press the "OK" key (15) in
order to set the value into memory.

Attachment Parts Installation

Illustration 5 g01157071

Perform the following steps in order to get to the "ATCH PARTS INST" menu:

1. "MAIN MENU"

2. "SERVICE"

3. Enter the "SERVICE" password.

4. "CONFIGURATIONS"

5. "ATCH PARTS INST"

The following screen will appear:

Illustration 6 g01156678

Press the up key (8) or the down key (13) in order to highlight the desired setting to change. Press
the "OK" key (15) in order to move a highlight to a data value.

Illustration 7 g01156680

Press the up key (8) or the down key (13) in order to change the value. After changing the value,
press the "OK" key (15) in order to set the value into memory.

The following is a list of other possible configurations.

Table 1

345C 365C/385C
Display Description

ATCH PARTS INST : Attachment Parts Installation

HYD OIL TYPE X X Hydraulic Oil Type
TRAVEL ALARM X X Travel Alarm Installation Status
WATER SEPARATOR Water Separator Level Switch
X X
SW Configuration
FUEL FILTER SW X X Engine Fuel Filter Configuration
2ND FUEL FILTER SW
X X Secondary Fuel Filter Configuration

ATCH HYD OIL FLTR Attachment Hydraulic Oil Filter Switch

SW X X Configuration
AUTO LUB SYSTEM X Auto Lube System Configuration
Machine Overload Pressure Sensor
OLW SENSOR X
Installation Status
STRAIGHT TRV PEDAL
X Straight Travel Pedal Installation Status

BOOM LOWERING
X Boom Check Valve Configuration
CHECK
STICK LOWERING
X Stick Check Valve Configuration
CHECK
ENG COOLING FAN
X X Engine Cooling Fan Map
MAP
TOP ENG FAN SPEED X Engine Cooling Fan Top Speed
Engine Fan Reversing Feature Installation
REVERSE FAN X X
Status
Advanced Machine Security System
MSS X X
Installation Status
HEAVY LIFT X Heavy Lift System Installation Status
QUICK COUPLER X Quick Coupler Installation Status
FINE SWING X Fine Swing System Installation Status

Tool Installation
Illustration 8 g01157073

Perform the following steps in order to get to the "TOOL INSTALLATION" menu:

1. "MAIN MENU"

2. "SERVICE"

3. Enter the "SERVICE" password.

4. "CONFIGURATIONS"

5. "TOOL INSTALLATION"

The following screen will appear:

Illustration 9 g01156694

Press the up key (8) or the down key (13) in order to highlight the desired setting to change. Press
the "OK" key (15) in order to move a highlight to a data value.
Illustration 10 g01156695

Press the up key (8) or the down key (13) in order to change the value. Press the "OK" key (15) in
order to set the value into memory.

The following is a list of other possible configurations.

Table 2

345C 365C/385C
Display Description

TOOL INSTALLATION : Tool Installation

AUX PEDAL X Auxiliary Pedal Installation Status
MEDIUM PRES Medium Pressure Hydraulic Circuit
X
CIRCUIT Configuration
Auxiliary Hydraulic Circuit #1
AUX CIRCUIT X
Configuration
JOYSTICK HANDLE X Joystick Handle Configuration
MACHINE
X Machine Application Configuration
APPLICATION
ATCH ECM
X Attachment Controller Install Status
INSTALLATION
Main Pump Flow Limitation Control Valve
FLOW LIMIT VALVE X
Installation Status
ATCH VALVE #1 X Attachment Valve #1 Configuration
ATCH VALVE #3 X Attachment Valve #3 Configuration
 Attachment Valve #1 Combiner
COMBINER VALVE X
Configuration
VARIABLE RELIEF #1 X Variable Relief Valve #1 Configuration
VARIABLE RELIEF #2 X Variable Relief Valve #2 Configuration
TOOL LOAD PRES F2 Type Valve Load Sense Pressure Sensor
X
SENSOR Installation Status

Control Installation

Illustration 11 g01157074

Perform the following steps in order to get to the "CONTROL INST" menu:

1. "MAIN MENU"

2. "SERVICE"

3. Enter the "SERVICE" password.

4. "CONFIGURATIONS"

5. "CONTROL INST"

The following screen will appear:

Illustration 12 g01156825

Press the up key (8) or the down key (13) in order to highlight the desired setting to change. Press
the "OK" key (15) in order to move a highlight to a data value.

Illustration 13 g01156827

Press the up key (8) or the down key (13) in order to change the value. Press the "OK" key (15) in
order to set the value into memory.

The following is a list of other possible configurations.

Table 3
 345C 365C/385C
Display Description

CONTROL INST: Control Input Installations

LEFT JOYSTICK SW #1 Left Joystick Switch #1 Installation Status
X X

LEFT JOYSTICK SW #2 Left Joystick Switch #2 Installation Status

X X

RIGHT JOYSTICK SW #1 Right Joystick Switch #1 Installation

X X
Status
RIGHT JOYSTICK SW #2 Right Joystick Switch #2 Installation
X X
Status
Attachment Switch #1 Installation Status
ATCH SW #1 X

Attachment Switch #2 Installation Status

ATCH SW #2 X

Attachment Switch #3 Installation Status

ATCH SW #3 X

Attachment Switch #4 Installation Status

ATCH SW #4 X

Left Joystick Thumbwheel Installation

LEFT THUMBWHEEL X X
Status
RIGHT THUMBWHEEL Right Joystick Thumbwheel Installation
X X
Status
Left Attachment Pedal Installation Status
ATCH LEFT PEDAL X

Right Attachment Pedal Installation Status

ATCH RIGHT PEDAL X

JOYSTICK INPUT #1 X Joystick Input #1 Configuration

JOYSTICK INPUT #2
JOYSTICK INPUT #3
JOYSTICK INPUT #4
AUX PRI FLOW MODE
X Joystick Input #2 Configuration
X Joystick Input #3 Configuration
X Joystick Input #4 Configuration
X Auxiliary Priority Flow Mode Enable

Front Linkage
Illustration 14 g01157075

Perform the following steps in order to get to the "FRONT LINKAGE" menu:

1. "MAIN MENU"

2. "SERVICE"

3. Enter the "SERVICE" password.

4. "CONFIGURATIONS"

5. "FRONT LINKAGE"

The following screen will appear:

Illustration 15 g01156857

Press the up key (8) or the down key (13) in order to highlight the desired setting to change. Press
the "OK" key (15) in order to move a highlight to a data value.

Illustration 16 g01156859

Press the up key (8) or the down key (13) in order to change the value. Press the "OK" key (15) in
order to set the value into memory.

The following is a list of other possible configurations.

Table 4

Display 345C 365C/385C Description

FRONT LINKAGE: Front Linkage Configurations
BUCKET TYPE X Bucket Configuration

Product ID
Illustration 17 g01157076

Perform the following steps in order to get to the "PRODUCT ID" menu:

1. "MAIN MENU"

2. "SERVICE"

3. Enter the "SERVICE" password.

4. "CONFIGURATIONS"

5. "PRODUCT ID"

The following screen will appear:

Illustration 18 g01156862

Press the up key (8) or the down key (13) in order to highlight the desired setting to change. Press
the "OK" key (15) in order to move a highlight to a data value.

Illustration 19 g01156863

Press the up key (8) or the down key (13) in order to change the character. Press the right key (9) or
the left key (12) in order to move the red cursor to the next character. Press the "OK" key (15) in
order to set the value into memory.

The following is a list of other possible configurations.

Table 5

Display 345C 365C/385C Description

PRODUCT ID: Product Identification Number
PRODUCT ID X X Product Identification Number

Parameter Setting
Illustration 20 g01157077

The following is a list of parameter settings that can be configured with the monitoring system.

z Engine Speed

z Dial Torque

z AEC Speed

z Travel Speed Shift Pressure

z Over Load Warning Pressure

z One Touch Low Idle Speed

z Gain/Response

z Auto Lube System

z Ultra High Reach Demolition

z Reverse Fan Operation Time

z Main Pump Load Initial Torque

Engine Speed
Illustration 21 g01157084

Perform the following steps in order to get to the "ENGINE SPEED" menu:

1. "MAIN MENU"

2. "SERVICE"

3. Enter the "SERVICE" password.

4. "CONFIGURATIONS"

5. "PARAMETER SETTING"

6. "ENGINE SPEED"

The following screen will appear:

Illustration 22 g01156871

Press the up key (8) or the down key (13) in order to highlight the desired setting to change. Press
the "OK" key (15) in order to move a highlight to a data value.

Illustration 23 g01156872

Press the up key (8) or the down key (13) in order to change the value. Press the "OK" key (15) in
order to set the value into memory.

The following is a list of other possible configurations.

Table 6
 Display 345C 365C/385C Description
ENGINE SPEED : Throttle Dial Engine Speed
DIAL 1 SPEED X X Throttle Dial Position 1 Engine Speed
DIAL 2 SPEED X X Throttle Dial Position 2 Engine Speed
DIAL 3 SPEED X X Throttle Dial Position 3 Engine Speed
DIAL 4 SPEED X X Throttle Dial Position 4 Engine Speed
DIAL 5 SPEED X X Throttle Dial Position 5 Engine Speed
DIAL 6 SPEED X X Throttle Dial Position 6 Engine Speed
DIAL 7 SPEED X X Throttle Dial Position 7 Engine Speed
DIAL 8 SPEED X X Throttle Dial Position 8 Engine Speed
DIAL 9 SPEED X X Throttle Dial Position 9 Engine Speed
DIAL 10 SPEED X X Throttle Dial Position 10 Engine Speed

Dial Torque

Illustration 24 g01157085

Perform the following steps in order to get to the "DIAL TORQUE" menu:

1. "MAIN MENU"

2. "SERVICE"
 3. Enter the "SERVICE" password.

4. "CONFIGURATIONS"

5. "PARAMETER SETTING"

6. "DIAL TORQUE"

The following screen will appear:

Illustration 25 g01156961

Press the up key (8) or the down key (13) in order to highlight the desired setting to change. Press
the "OK" key (15) in order to move a highlight to a data value.
Illustration 26 g01156963

Press the up key (8) or the down key (13) in order to change the value. Press the "OK" key (15) in
order to set the value into memory.

The following is a list of other possible configurations.

Table 7

345C 365C/385C
Display Description

DIAL TORQUE : Throttle Dial Hydraulic Power Percentage

DIAL 1 TORQUE Throttle Dial Position 1 Hydraulic Power
X X
Percentage
DIAL 2 TORQUE Throttle Dial Position 2 Hydraulic Power
X X
Percentage
DIAL 3 TORQUE Throttle Dial Position 3 Hydraulic Power
X X
Percentage
DIAL 4 TORQUE Throttle Dial Position 4 Hydraulic Power
X X
Percentage
DIAL 5 TORQUE Throttle Dial Position 5 Hydraulic Power
X X
Percentage
DIAL 6 TORQUE Throttle Dial Position 6 Hydraulic Power
X X
Percentage
DIAL 7 TORQUE Throttle Dial Position 7 Hydraulic Power
X X
Percentage
DIAL 8 TORQUE Throttle Dial Position 8 Hydraulic Power
X X
Percentage
DIAL 9 TORQUE Throttle Dial Position 9 Hydraulic Power
X X
Percentage
DIAL 10 TORQUE Throttle Dial Position 10 Hydraulic Power
X X
Percentage

AEC
Illustration 27 g01157086

Perform the following steps in order to get to the "AEC" menu:

1. "MAIN MENU"

2. "SERVICE"

3. Enter the "SERVICE" password.

4. "CONFIGURATIONS"

5. "PARAMETER SETTING"

6. "AEC"

The following screen will appear:

Illustration 28 g01156970

Press the up key (8) or the down key (13) in order to highlight the desired setting to change. Press
the "OK" key (15) in order to move a highlight to a data value.

Illustration 29 g01156971

Press the up key (8) or the down key (13) in order to change the value. Press the "OK" key (15) in
order to set the value into memory.

The following is a list of other possible configurations.

Table 8
 Display 345C 365C/385C Description
AEC : AEC Mode Setting
AEC2 ENG SPEED X X AESC Engine Speed Setting
AEC2 DELAY TIME X X AESC Delay Time

Travel Speed Shift

Illustration 30 g01157087

Perform the following steps in order to get to the "TRV SPEED SHIFT" menu:

1. "MAIN MENU"

2. "SERVICE"

3. Enter the "SERVICE" password.

4. "CONFIGURATIONS"

5. "PARAMETER SETTING"

6. "TRV SPEED SHIFT"

The following screen will appear:

Illustration 31 g01156972

Press the up key (8) or the down key (13) in order to highlight the desired setting to change. Press
the "OK" key (15) in order to move a highlight to a data value.

Illustration 32 g01156973

Press the up key (8) or the down key (13) in order to change the value. Press the "OK" key (15) in
order to set the value into memory.

The following is a list of other possible configurations.

Table 9
 Display 345C 365C/385C Description
TRV SPEED SHIFT : Travel Speed Shift
LOW PRES X Travel Speed Shift Low Delay Time
HIGH PRES X Travel Speed Shift High Delay Time
LOW DELAY X Travel Speed Shift Low Pressure
HIGH DELAY X Travel Speed Shift High Delay Time

Overload Warning

Illustration 33 g01157088

Perform the following steps in order to get to the "OVER LOAD WARNING" menu:

1. "MAIN MENU"

2. "SERVICE"

3. Enter the "SERVICE" password.

4. "CONFIGURATIONS"

5. "PARAMETER SETTING"

6. "OVER LOAD WARNING"

The following screen will appear:

Illustration 34 g01156990

Press the up key (8) or the down key (13) in order to highlight the desired setting to change. Press
the "OK" key (15) in order to move a highlight to a data value.

Illustration 35 g01156994

Press the up key (8) or the down key (13) in order to change the value. Press the "OK" key (15) in
order to set the value into memory.

The following is a list of other possible configurations.

 Table 10

Display 345C 365C/385C Description

OVERLOAD WARNING : Machine Over Load
OLWD THRESH PRES X X Machine Overload Pressure Threshold

One Touch Low Idle

Illustration 36 g01157089

Perform the following steps in order to get to the "ONE TOUCH LOW IDLE" menu:

1. "MAIN MENU"

2. "SERVICE"

3. Enter the "SERVICE" password.

4. "CONFIGURATIONS"

5. "PARAMETER SETTING"

6. "ONE TOUCH LOW IDLE"

The following screen will appear:

Illustration 37 g01157008

Press the up key (8) or the down key (13) in order to highlight the desired setting to change. Press
the "OK" key (15) in order to move a highlight to a data value.

Illustration 38 g01157011

Press the up key (8) or the down key (13) in order to change the value. Press the "OK" key (15) in
order to set the value into memory.

The following is a list of other possible configurations.

Table 11
 Display 345C 365C/385C Description
ONE TOUCH LOW IDLE : One Touch Low Idle Engine Speed
ONE TOUCH ENG SPEED X X One Touche Engine Speed Setting

Gain/Response

Illustration 39 g01157090

Perform the following steps in order to get to the "GAIN/RESPONSE" menu:

1. "MAIN MENU"

2. "SERVICE"

3. Enter the "SERVICE" password.

4. "CONFIGURATIONS"

5. "PARAMETER SETTING"

6. "GAIN/RESPONSE"

The following screen will appear:

Illustration 40 g01156977

Press the up key (8) or the down key (13) in order to highlight the desired setting to change. Press
the "OK" key (15) in order to move a highlight to a data value.

Illustration 41 g01156978

Press the up key (8) or the down key (13) in order to change the value. Press the "OK" key (15) in
order to set the value into memory.

The following is a list of other possible configurations.

Table 12
 Display 345C 365C/385C Description
GAIN/RESPONSE : Gain/Response Setting
SOFT MODE GAIN X Soft Mode Gain Setting
SOFT MODE RESPONSE X Soft Mode Response Setting
NORMAL MODE GAIN X Normal Mode Gain Setting
NORMAL MODE RESPONSE X Normal Mode Response Setting
QUICK MODE GAIN X Quick Mode Gain Setting
QUICK MODE RESPONSE X Quick Mode Response Setting

Auto Lube System

Illustration 42 g01157091

Perform the following steps in order to get to the "AUTO LUB SYSTEM" menu:

1. "MAIN MENU"

2. "SERVICE"

3. Enter the "SERVICE" password.

4. "CONFIGURATIONS"

5. "PARAMETER SETTING"
 6. "AUTO LUB SYSTEM"

The following screen will appear:

Illustration 43 g01156982

Press the up key (8) or the down key (13) in order to highlight the desired setting to change. Press
the "OK" key (15) in order to move a highlight to a data value.

Illustration 44 g01156985

Press the up key (8) or the down key (13) in order to change the value. Press the "OK" key (15) in
order to set the value into memory.
The following is a list of other possible configurations.

Table 13

Display 345C 365C/385C Description

AUTO LUB SYSTEM : Auto Lube System Setting
DURATION TIME X Auto Lube Duration
INTERVAL TIME X Auto Lube Interval

UHD

Illustration 45 g01157092

Perform the following steps in order to get to the "UHD" menu:

1. "MAIN MENU"

2. "SERVICE"

3. Enter the "SERVICE" password.

4. "CONFIGURATIONS"

5. "PARAMETER SETTING"

6. "UHD"

The following screen will appear:

Illustration 46 g01157018

Press the up key (8) or the down key (13) in order to highlight the desired setting to change. Press
the "OK" key (15) in order to move a highlight to a data value.

Illustration 47 g01157024

Press the up key (8) or the down key (13) in order to change the value. Press the "OK" key (15) in
order to set the value into memory.

The following is a list of other possible configurations.

 Table 14

345C 365C/385C
Display Description

UHD: Ultra High Demolition Machine Setting

UHD REQUESTED FLOW High Power Auxiliary Circuit Flow
X
Rate

Reverse Fan

Illustration 48 g01157093

Perform the following steps in order to get to the "REVERSE FAN" menu:

1. "MAIN MENU"

2. "SERVICE"

3. Enter the "SERVICE" password.

4. "CONFIGURATIONS"

5. "PARAMETER SETTING"

6. "REVERSE FAN"

The following screen will appear:

Illustration 49 g01157026

Press the up key (8) or the down key (13) in order to highlight the desired setting to change. Press
the "OK" key (15) in order to move a highlight to a data value.

Illustration 50 g01157027

Press the up key (8) or the down key (13) in order to change the value. Press the "OK" key (15) in
order to set the value into memory.

The following is a list of other possible configurations.

Table 15
 Display 345C 365C/385C Description
REVERSE FAN: Engine Fan Reversing Feature Setting
Operation Time X X Engine Fan Reverse Operation Time

Main Pump Load Initial Torque

Illustration 51 g01157094

Perform the following steps in order to get to the "M-PUMP/LI TORQUE" menu:

1. "MAIN MENU"

2. "SERVICE"

3. Enter the "SERVICE" password.

4. "CONFIGURATIONS"

5. "PARAMETER SETTING"

6. "M-PUMP/LI TORQUE"

The following screen will appear:

Illustration 52 g01157031

Press the up key (8) or the down key (13) in order to highlight the desired setting to change. Press
the "OK" key (15) in order to move a highlight to a data value.

Illustration 53 g01157035

Press the up key (8) or the down key (13) in order to change the value. Press the "OK" key (15) in
order to set the value into memory.

The following is a list of other possible configurations.

Table 16
 Display 345C 365C/385C Description
M-PUMP/LI TORQUE: Main Pump Load Initial Torque Setting
LOAD INIT TORQUE X Main Pump Load Initial Torque

Copyright 1993 - 2007 Caterpillar Inc. Mon Mar 5 14:10:32 EST 2007
All Rights Reserved.
Private Network For SIS Licensees.
