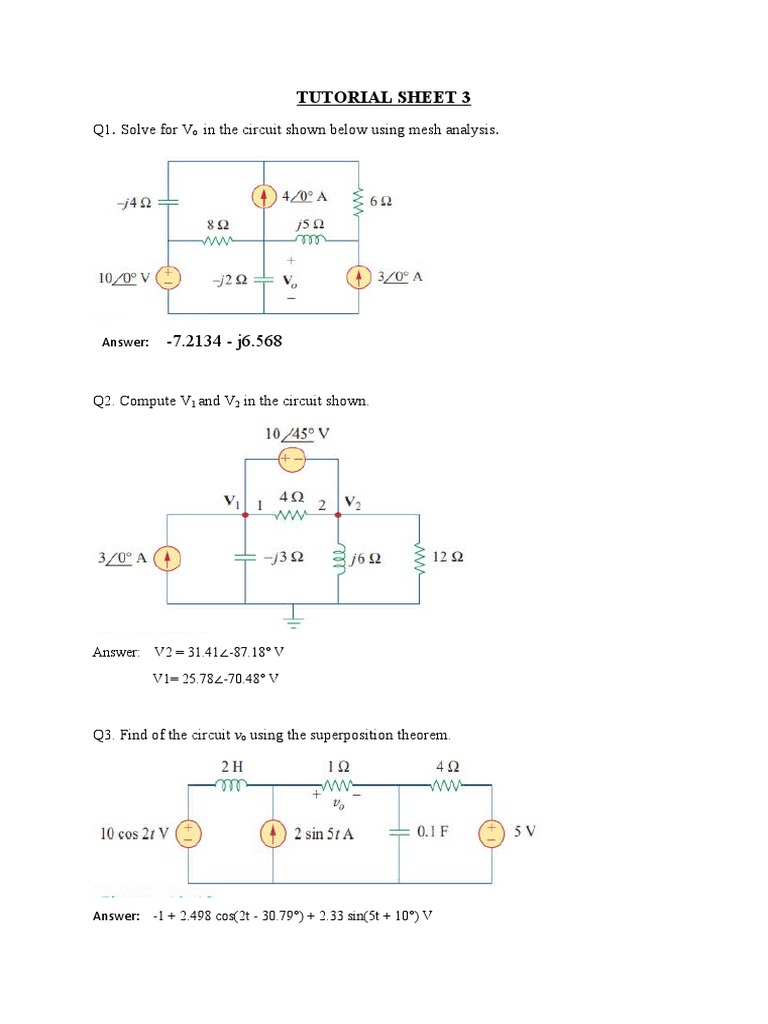

TUTORIAL SHEET 3

Q1. Solve for Vo in the circuit shown below using mesh analysis.

Answer: -7.2134 - j6.568

Q2. Compute V1 and V2 in the circuit shown.

Answer: V2 = 31.41∠-87.18° V
V1= 25.78∠-70.48° V

Q3. Find of the circuit vo using the superposition theorem.

Answer: -1 + 2.498 cos(2t - 30.79°) + 2.33 sin(5t + 10°) V

Q4. Obtain current Io using Norton’s theorem.

Answer: 1.465∠38.48° A

Q5. Find the Thevenin equivalent voltage VTH appearing between the terminals A and B of
the network shown below.

Answer: 16j(3 – 4j)

Q6. For the circuit shown below,

a. Find Zt.
b. Determine the currents I1, I2, and I3.
c. Calculate the total power provided by the voltage source.
d. Determine the average powers P1, P2, and P3 dissipated by each of the impedances.
Verify that the average power delivered to the circuit is the same as the power dissipated by
the impedances.
Ans: a. ZT = 5 k Ω - j2 k Ω = 5.385 k ∠-21.80° Ω
b. I1= 9.285 mA ∠21.80°
I2 = 18.57 mA ∠68.20°
I3 = 20.761 mA ∠ 85.23°
c. PT = (50 V)(9.285 mA)cos 21.80°
=431.0 mW
d. P1 = (9.285 mA)2(1 k) = 86.2 mW
P2 = (18.57 mA)2(1 k) = 344.8 mW

Q7. Find I in the circuit.

Ans: 3.666 ∠−4.204° A

Q8. Calculate the value of Zab in the network

Ans: 7.567 + j0.5946 Ω

Q9. Calculate the equivalent impedance in the network

Ans: 0.3796 + j1.46 Ω

Q10. Use nodal analysis to find vo in the circuit. ω = 2 krad/s.

Ans: Vo = −535.6 + j893.5 = 8951.1∠93.43o

vo (t) = 8.951 sin(2000t +93.43o) kV
