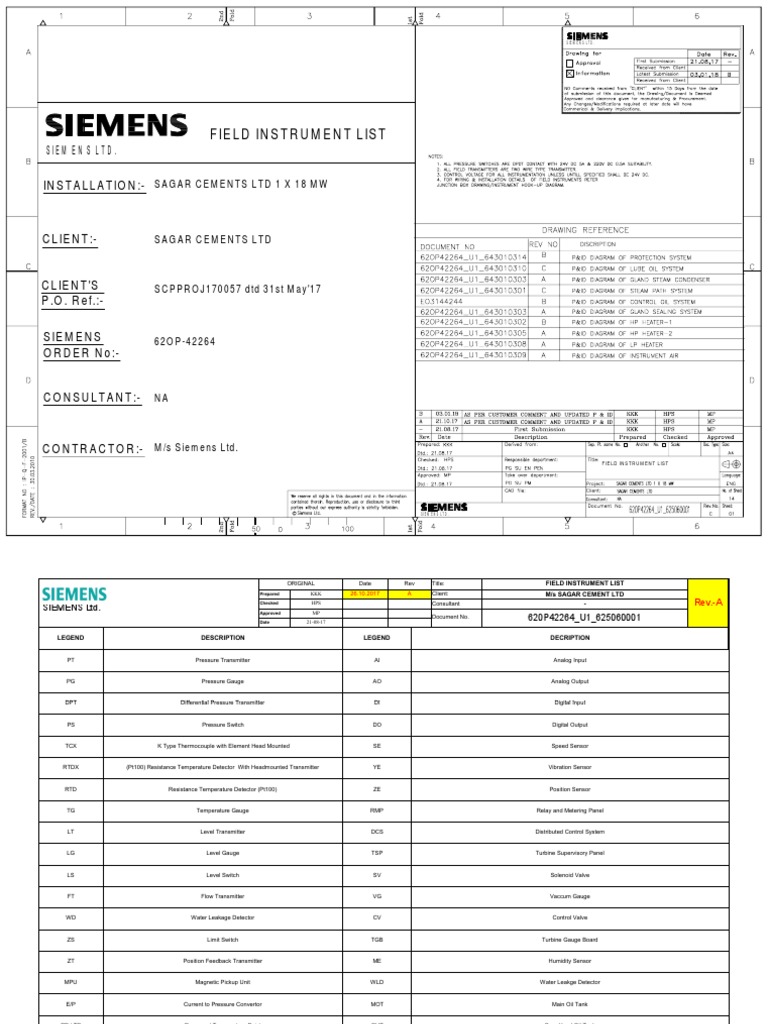

SIEMENS LTD.

FIELD INSTRUMENT LIST

SIEMENS LTD.

INSTALLATION:- SAGAR CEMENTS LTD 1 X 18 MW

CLIENT:- SAGAR CEMENTS LTD

CLIENT'S SCPPROJ170057 dtd 31st May'17

P.O. Ref.:-

SIEMENS 62OP-42264
ORDER No:-

CONSULTANT:- NA

CONTRACTOR:- M/s Siemens Ltd.

FIELD INSTRUMENT LIST

SIEMENS LTD.
 ORIGINAL Date Rev Title: FIELD INSTRUMENT LIST
Prepared KKK 26.10.2017 A Client: M/s SAGAR CEMENT LTD
Checked HPS Consultant - Rev.-A
SIEMENS Ltd. Approved MP
Date 21-08-17
Document No. 620P42264_U1_625060001

LEGEND DESCRIPTION LEGEND DECRIPTION

PT Pressure Transmitter AI Analog Input

PG Pressure Gauge AO Analog Output

DPT Differential Pressure Transmitter DI Digital Input

PS Pressure Switch DO Digital Output

TCX K Type Thermocouple with Element Head Mounted SE Speed Sensor

RTDX (Pt100) Resistance Temperature Detector With Headmounted Transmitter YE Vibration Sensor

RTD Resistance Temperature Detector (Pt100) ZE Position Sensor

TG Temperature Gauge RMP Relay and Metering Panel

LT Level Transmitter DCS Distributed Control System

LG Level Gauge TSP Turbine Supervisory Panel

LS Level Switch SV Solenoid Valve

FT Flow Transmitter VG Vaccum Gauge

WD Water Leakage Detector CV Control Valve

ZS Limit Switch TGB Turbine Gauge Board

ZT Position Feedback Transmitter ME Humidity Sensor

MPU Magnetic Pickup Unit WLD Water Leakge Detector

E/P Current to Pressure Convertor MOT Main Oil Tank

PP / TP Pressure / Temperature Point OHT Over Head Oil Tank

Restricted Format No. IP-Q-F-2010A/B

Rev.Date : 30.03.2010
 ORIGINAL REVISION DATE Title: FIELD INSTRUMENT LIST
PREPARED KKK A 26.10.2017 Client M/s SAGAR CEMENT LTD Rev.B
CHECKED HPS B 04.01.2018 Consultant -
SIEMENS LTD. APPROVED MP
DATE 21-08-17
Document No. 620P42264_U1_625060001
Operating Range Signal Distribution
Sr. Instr. Signal Engg. Processing
Field Tag No. Description Medium Press Temp. P&ID Ref. System Scope Rev. Remarks
No. Type Type Zero Span Unit Location TGB TSP DCS RMP
Kg/cm2 °C

1 200-FT-201 Flow for Main steam line FT AI Steam 104 535 Later Later mmWC MS line - - Y - 62OP42264_U1_623010301 Steam_System SIEMENS A

2 200-PT-201A Pressure for Main steam line PT AI Steam 104 535 0 160 Kg/cm2 MS line - - Y - 62OP42264_U1_623010301 Steam_System SIEMENS A

3 200-PT-201B Pressure for Main steam line PT AI Steam 104 535 0 160 Kg/cm2 MS line - - Y - 62OP42264_U1_623010301 Steam_System SIEMENS A

4 200-PT-201C Pressure for Main steam line PT AI Steam 104 535 0 160 Kg/cm2 MS line - - Y - 62OP42264_U1_623010301 Steam_System SIEMENS A

5 200-TT-201A Temperature for Main steam line TCX AI Steam 104 535 0 700 Deg C MS line - - Y - 62OP42264_U1_623010301 Steam_System SIEMENS A

6 200-TT-201B Temperature for Main steam line TCX AI Steam 104 535 0 700 Deg C MS line - - Y - 62OP42264_U1_623010301 Steam_System SIEMENS A

7 200-TT-201C Temperature for Main steam line TCX AI Steam 104 535 0 700 Deg C MS line - - Y - 62OP42264_U1_623010301 Steam_System SIEMENS A

8 200-PG-201 Pressure for Main steam line PG Local Steam 104 535 0 160 Kg/cm2 MS line - - - - 62OP42264_U1_623010301 Steam_System SIEMENS A

9 200-TG-201 Temperature for Main steam line TG Local Steam 104 535 0 700 Deg C MS line - - - - 62OP42264_U1_623010301 Steam_System SIEMENS A

10 200-PG-202 Pressure for Turbine control valve drain PG Local Steam 104 535 0 160 Kg/cm2 Drain line - - - - 62OP42264_U1_623010301 Steam_System SIEMENS A

11 200-PT-202 Pressure for HP Wheelchamber PT AI Steam 73.49 494 0 100 Kg/cm2 On Turbine - - Y - 62OP42264_U1_623010301 Steam_System SIEMENS A

12 200-PT-203 Pressure for Turbine last stage PT AI Steam 0.639 145.5 -1 3 Kg/cm2 On Turbine - - Y - 62OP42264_U1_623010301 Steam_System SIEMENS A

13 210-TT-201A Temperature for Turbine parting plane -Top TCX AI Metal 73.49 494 0 600 Deg C Casing - - Y - 62OP42264_U1_623010301 Steam_System SIEMENS A

14 210-TT-201B Temperature for Turbine parting plane - Centre TCX AI Metal 73.49 494 0 600 Deg C Casing - - Y - 62OP42264_U1_623010301 Steam_System SIEMENS A

15 210-TT-201C Temperature for Turbine parting plane - Bottom TCX AI Metal 73.49 494 0 600 Deg C Casing - - Y - 62OP42264_U1_623010301 Steam_System SIEMENS A

16 200-TT-202A Temperature for Turbine Exhaust RTDX AI Steam -0.77 61.73 0 300 Deg C Exhaust - - Y - 62OP42264_U1_623010301 Steam_System SIEMENS A

17 200-TT-202B Temperature for Turbine Exhaust RTDX AI Steam -0.77 61.73 0 300 Deg C Exhaust - - Y - 62OP42264_U1_623010301 Steam_System SIEMENS A

18 200-TT-202C Temperature for Turbine Exhaust RTDX AI Steam -0.77 61.73 0 300 Deg C Exhaust - - Y - 62OP42264_U1_623010301 Steam_System SIEMENS A

19 200-TG-202 Temperature for Turbine Exhaust TG Local Steam -0.77 61.73 0 300 Deg C Exhaust - - - - 62OP42264_U1_623010301 Steam_System SIEMENS A

20 200-PT-204A Pressure for Turbine exhaust PT AI Steam -0.77 61.73 -1 1.5 Kg/cm2 Exhaust Line to ACC - - Y - 62OP42264_U1_623010301 Steam_System SIEMENS A

21 200-PT-204B Pressure for Turbine exhaust PT AI Steam -0.77 61.73 -1 1.5 Kg/cm2 Exhaust Line to ACC - - Y - 62OP42264_U1_623010301 Steam_System SIEMENS A

22 200-PT-204C Pressure for Turbine exhaust PT AI Steam -0.77 61.73 -1 1.5 Kg/cm2 Exhaust Line to ACC - - Y - 62OP42264_U1_623010301 Steam_System SIEMENS A

23 200-PG-204 Pressure for Turbine Exhaust PG Local Steam -0.77 61.73 -1 1.5 Kg/cm2 Exhaust Line to ACC - - - - 62OP42264_U1_623010301 Steam_System SIEMENS A

24 200-PG-101 Pressure for Exhaust hood spray PG Local Water 14.5 57.3 0 25 Kg/cm2 Exhaust hood spray line - - - - 62OP42264_U1_623010301 Steam_System SIEMENS A

25 200-UVOP-201 Solenoid Valve for Turbine exhaust hood spray SV DO - - - - - - On TCV 101 - - Y - 62OP42264_U1_623010301 Steam_System SIEMENS A

26 200-ZSO-201 OpenPosition Feedback for Turbine exhaust hood spray ZS DI - - - - - - On TCV 101 - - Y - 62OP42264_U1_623010301 Steam_System SIEMENS A

27 200-ZSC-201 Close Position Feedback for Turbine exhaust hood spray ZS DI - - - - - - On TCV 101 - - Y - 62OP42264_U1_623010301 Steam_System SIEMENS A

28 200-PT-205 Pressure for Turbine bleed to LP heater PT AI Steam 0.34 107.4 -1 3 Kg/cm2 Bleed line to LP heater - - Y - 62OP42264_U1_623010301 Steam_System SIEMENS A

29 200-PG-205 Pressure for Turbine bleed to LP heater PG Local Steam 0.34 107.4 -1 3 Kg/cm2 Bleed line to LP heater - - - - 62OP42264_U1_623010301 Steam_System SIEMENS A

30 200-TT-203 Temperature for Turbine bleed to LP heater RTDX AI Steam 0.34 107.4 0 200 Deg C Bleed line to LP heater - - Y - 62OP42264_U1_623010301 Steam_System SIEMENS A

Restricted Format :IP-Q-F-2010B/B

Rev.Date : 30.03.2010
 ORIGINAL REVISION DATE Title: FIELD INSTRUMENT LIST
PREPARED KKK A 26.10.2017 Client M/s SAGAR CEMENT LTD Rev.B
CHECKED HPS B 04.01.2018 Consultant -
SIEMENS LTD. APPROVED MP
DATE 21-08-17
Document No. 620P42264_U1_625060001
Operating Range Signal Distribution
Sr. Instr. Signal Engg. Processing
Field Tag No. Description Medium Press Temp. P&ID Ref. System Scope Rev. Remarks
No. Type Type Zero Span Unit Location TGB TSP DCS RMP
Kg/cm2 °C

31 200-TG-203 Temperature for Turbine bleed to LP heater TG Local Steam 0.34 107.4 0 200 Deg C Bleed line to LP heater - - - - 62OP42264_U1_623010301 Steam_System SIEMENS A

32 200-PT-206 Pressure for Turbine bleed to deaerator PT AI Steam 5.54 182 0 10 Kg/cm2 Bleed line to deaerator - - Y - 62OP42264_U1_623010301 Steam_System SIEMENS A

33 200-PG-206 Pressure for Turbine bleed to deaerator PG Local Steam 5.54 182 0 16 Kg/cm2 Bleed line to deaerator - - - - 62OP42264_U1_623010301 Steam_System SIEMENS A

34 200-TT-204 Temperature for Turbine bleed to deaerator RTDX AI Steam 5.54 182 0 300 Deg C Bleed line to deaerator - - Y - 62OP42264_U1_623010301 Steam_System SIEMENS A

35 200-TG-204 Temperature for Turbine bleed to deaerator TG Local Steam 5.54 182 0 300 Deg C Bleed line to deaerator - - - - 62OP42264_U1_623010301 Steam_System SIEMENS A

36 200-UVOP-203 Solenoid Valve for Turbine bleed to deaerator QCNRV SV DO - - - - - - On QCNRV 101 - - Y - 62OP42264_U1_623010301 Steam_System SIEMENS A

37 200-UVOP-203A Test Solenoid Valve for Turbine bleed to deaerator QCNRV SV DO - - - - - - On QCNRV 101 - - Y - 62OP42264_U1_623010301 Steam_System SIEMENS A

38 200-ZSO-203 OpenPosition Feedback for Turbine bleed to deaerator QCNRV ZS DI - - - - - - On QCNRV 101 - - Y - 62OP42264_U1_623010301 Steam_System SIEMENS A

39 200-ZSC-203 Close Position Feedback for Turbine bleed to deaerator QCNRV ZS DI - - - - - - On QCNRV 101 - - Y - 62OP42264_U1_623010301 Steam_System SIEMENS A

40 200-FT-202 Flow for Turbine bleed to HP heater-1 FT AI Steam 17.22 296.9 Later Later mmWC Bleed line to HP heater-1 - - Y - 62OP42264_U1_623010301 Steam_System SIEMENS A

41 200-PT-207 Pressure for Turbine bleed to HP heater-1 PT AI Steam 17.22 296.9 0 40 Kg/cm2 Bleed line to HP heater-1 - - Y - 62OP42264_U1_623010301 Steam_System SIEMENS A

42 200-PG-207 Pressure for Turbine bleed to HP heater-1 PG Local Steam 17.22 296.9 0 40 Kg/cm2 Bleed line to HP heater-1 - - - - 62OP42264_U1_623010301 Steam_System SIEMENS A

43 200-TT-205 Temperature for Turbine bleed to HP heater-1 TCX AI Steam 17.22 296.9 0 400 Deg C Bleed line to HP heater-1 - - Y - 62OP42264_U1_623010301 Steam_System SIEMENS A

44 200-TG-205 Temperature for Turbine bleed to HP heater-1 TG Local Steam 17.22 296.9 0 400 Deg C Bleed line to HP heater-1 - - - - 62OP42264_U1_623010301 Steam_System SIEMENS A

45 200-UVOP-204 Solenoid Valve for Turbine bleed to HP heater-1 QCNRV SV DO - - - - - - On QCNRV 102 - - Y - 62OP42264_U1_623010301 Steam_System SIEMENS A

46 200-UVOP-204A Test Solenoid Valve for Turbine bleed to HP heater-1 QCNRV SV DO - - - - - - On QCNRV 102 - - Y - 62OP42264_U1_623010301 Steam_System SIEMENS A

47 200-ZSO-204 Open Position Feedback for Turbine bleed to HP heater-1 QCNRV ZS DI - - - - - - On QCNRV 102 - - Y - 62OP42264_U1_623010301 Steam_System SIEMENS A

48 200-ZSC-204 Close Position Feedback for Turbine bleed to HP heater-1 QCNRV ZS DI - - - - - - On QCNRV 102 - - Y - 62OP42264_U1_623010301 Steam_System SIEMENS A

49 200-FT-203 Flow for Turbine bleed to HP heater-2 FT AI Steam 35.09 383.8 Later Later mmWC Bleed line to HP heater-2 - - Y - 62OP42264_U1_623010301 Steam_System SIEMENS A

50 200-PT-208 Pressure for Turbine bleed to HP heater-2 PT AI Steam 35.09 383.8 0 60 Kg/cm2 Bleed line to HP heater-2 - - Y - 62OP42264_U1_623010301 Steam_System SIEMENS A

51 200-PG-208 Pressure for Turbine bleed to HP heater-2 PG Local Steam 35.09 383.8 0 60 Kg/cm2 Bleed line to HP heater-2 - - - - 62OP42264_U1_623010301 Steam_System SIEMENS A

52 200-TT-206 Temperature for Turbine bleed to HP heater-2 TCX AI Steam 35.09 383.8 0 600 Deg C Bleed line to HP heater-2 - - Y - 62OP42264_U1_623010301 Steam_System SIEMENS A

53 200-TG-206 Temperature for Turbine bleed to HP heater-2 TG Local Steam 35.09 383.8 0 600 Deg C Bleed line to HP heater-2 - - - - 62OP42264_U1_623010301 Steam_System SIEMENS A

54 200-UVOP-205 Solenoid Valve for Turbine bleed to HP heater-2 QCNRV SV DO - - - - - - On QCNRV 103 - - Y - 62OP42264_U1_623010301 Steam_System SIEMENS A

55 200-UVOP-205A Test Solenoid Valve for Turbine bleed to HP heater-2 QCNRV SV DO - - - - - - On QCNRV 103 - - Y - 62OP42264_U1_623010301 Steam_System SIEMENS A

56 200-ZSO-205 Open Position Feedback for Turbine bleed to HP heater-2 QCNRV ZS DI - - - - - - On QCNRV 103 - - Y - 62OP42264_U1_623010301 Steam_System SIEMENS A

57 200-ZSC-205 Close Position Feedback for Turbine bleed to HP heater-2 QCNRV ZS DI - - - - - - On QCNRV 103 - - Y - 62OP42264_U1_623010301 Steam_System SIEMENS A

58 200-UVOP-206 Solenoid Valve for Turbine control drain valve SV DO - - - - - - On CV101 - - Y - 62OP42264_U1_623010301 Steam_System SIEMENS A

59 200-ZSO-206 Open Position Feedback for Turbine control drain valve ZS DI - - - - - - On CV101 - - Y - 62OP42264_U1_623010301 Steam_System SIEMENS A

60 200-ZSC-206 Close Position Feedback for Turbine control drain valve ZS DI - - - - - - On CV101 - - Y - 62OP42264_U1_623010301 Steam_System SIEMENS A

Restricted Format :IP-Q-F-2010B/B

Rev.Date : 30.03.2010
 ORIGINAL REVISION DATE Title: FIELD INSTRUMENT LIST
PREPARED KKK A 26.10.2017 Client M/s SAGAR CEMENT LTD Rev.B
CHECKED HPS B 04.01.2018 Consultant -
SIEMENS LTD. APPROVED MP
DATE 21-08-17
Document No. 620P42264_U1_625060001
Operating Range Signal Distribution
Sr. Instr. Signal Engg. Processing
Field Tag No. Description Medium Press Temp. P&ID Ref. System Scope Rev. Remarks
No. Type Type Zero Span Unit Location TGB TSP DCS RMP
Kg/cm2 °C

61 200-PG-209 Pressure for Aux. Steam PRDS to gland sealing PG Local Steam 9 390 0 25 Kg/cm2 Aux. Steam Line - - - - 62OP42264_U1_643010303 Gland_Sealing_System SIEMENS A

62 200-TG-207 Temperature for Aux. Steam PRDS to gland sealing TG Local Steam 9 390 0 600 Deg C Aux. Steam Line - - - - 62OP42264_U1_643010303 Gland_Sealing_System SIEMENS A

63 200-PCV-201 Current to Pressure converter for Gland Sealing PCV EP AO - - - 4 20 mA On PCV301 - - Y - 62OP42264_U1_643010303 Gland_Sealing_System SIEMENS A

64 200-ZT-201 Position Feedback for Gland Sealing PCV ZT AI - - - 0 100 % On PCV301 - - Y - 62OP42264_U1_643010303 Gland_Sealing_System SIEMENS A

65 200-PG-101 Pressure for CEP discharge spray water to gland sealing PG Local Water 13.5 57.3 0 25 Kg/cm2 Spray Line - - - - 62OP42264_U1_643010303 Gland_Sealing_System SIEMENS B

66 200-TG-101 Temperature for CEP discharge spray water to gland sealing TG Local Water 13.5 57.3 0 100 Deg C Spray Line - - - - 62OP42264_U1_643010303 Gland_Sealing_System SIEMENS A

67 200-TCV-201 Current to Pressure converter for Gland Sealing TCV EP AO - - - 4 20 mA On TCV301 - - Y - 62OP42264_U1_643010303 Gland_Sealing_System SIEMENS A

68 200-ZT-201A Position Feedback for Gland Sealing TCV ZT AI - - - 0 100 % On TCV301 - - Y - 62OP42264_U1_643010303 Gland_Sealing_System SIEMENS A

69 200-PT-209 Pressure for Turbine rear gland sealing PT AI Steam 0.1 383 0 1 Kg/cm2 Rear gland - - Y - 62OP42264_U1_643010303 Gland_Sealing_System SIEMENS A

70 200-PT-210 Pressure for Turbine rear gland sealing PT AI Steam 0.1 383 0 1 Kg/cm2 Rear gland - - Y - 62OP42264_U1_643010303 Gland_Sealing_System SIEMENS A

71 200-TT-207 Temperature for Turbine rear gland sealing TCX AI Steam 0.1 250 0 400 Deg C Rear gland - - Y - 62OP42264_U1_643010303 Gland_Sealing_System SIEMENS A

72 200-PG-210 Pressure for Turbine front gland sealing PG Local Steam 0.1 383 0 1 Kg/cm2 Front gland - - - - 62OP42264_U1_643010303 Gland_Sealing_System SIEMENS A

73 200-TG-207A Temperature for Turbine rear gland sealing TG Local Steam 0.1 250 0 400 Deg C Rear gland - - - - 62OP42264_U1_643010303 Gland_Sealing_System SIEMENS A

74 200-PCV-202 Current to Pressure converter for Gland Sealing PCV to Condenser EP AO - - - 4 20 mA On PCV301 - - Y - 62OP42264_U1_643010303 Gland_Sealing_System SIEMENS A

75 200-ZT-202 Position Feedback for Gland Sealing PCV to Condenser ZT AI - - - 0 100 % On PCV301 - - Y - 62OP42264_U1_643010303 Gland_Sealing_System SIEMENS A

76 200-LG-204 Level for Gland Steam Condensor LG Local Steam - - 0 100 % On GSC - - - - 62OP42264_U1_623010303 Gland_Steam_Condenser SIEMENS A

77 200-PG-211 Pressure for Gland Steam Condensor PG Local Steam -0.05 290 -1 1.5 Kg/cm2 On GSC - - - - 62OP42264_U1_623010303 Gland_Steam_Condenser SIEMENS A

78 200-PG-102 Pressure for Condensate Inlet to GSC PG Local Cooling Water 11 56.31 0 25 Kg/cm2 GSC Piping - - - - 62OP42264_U1_623010303 Gland_Steam_Condenser SIEMENS A

79 200-TG-102 Temperature for Condensate inlet to GSC TG Local Cooling Water 11 56.31 0 100 Deg C GSC Piping - - - - 62OP42264_U1_623010303 Gland_Steam_Condenser SIEMENS A

80 200-PG-103 Pressure for Condensate Outlet from GSC PG Local Cooling Water 10.5 56.31 0 25 Kg/cm2 GSC Piping - - - - 62OP42264_U1_623010303 Gland_Steam_Condenser SIEMENS A

81 200-TG-103 Temperature for Condensate outlet from GSC TG Local Cooling Water 10.5 56.31 0 100 Deg C GSC Piping - - - - 62OP42264_U1_623010303 Gland_Steam_Condenser SIEMENS A

82 200-PT-401A Control oil pressure after trip solenoid-1 PT AI Oil 10 48 0 16 Kg/cm2 Safety Block - - Y - EO3144240 Control Oil System SIEMENS A

83 200-PT-401B Control oil pressure after trip solenoid-2 PT AI Oil 10 48 0 16 Kg/cm2 Safety Block - - Y - EO3144240 Control Oil System SIEMENS A

84 200-PT-401C Control oil pressure after trip solenoid-3 PT AI Oil 10 48 0 16 Kg/cm2 Safety Block - - Y - EO3144240 Control Oil System SIEMENS A

85 200-PT-402 ESV safety block outlet pressure PT AI Oil 10 48 0 16 Kg/cm2 Safety Block - - Y - EO3144240 Control Oil System SIEMENS A

86 200-PT-403 Impulse oil pressure PT AI Oil 2…4 48 0 10 Kg/cm2 Impulse line - - Y - EO3144240 Control Oil System SIEMENS A

87 200-PG-401 Control valve piston pressure PG Local Oil 2…4 48 0 10 Kg/cm2 Turbine control valve - - - - EO3144240 Control Oil System SIEMENS A

88 200-PCV-401 Electro-Hydraulic converter-Governor valve I/H AO Oil 2…4 48 4 20 mA - - Y - - EO3144240 Control Oil System SIEMENS A

89 200-LG-401 Level for Main oil Tank LG Local Oil - - 0 100 % Main Oil Tank - - - - 62OP42264_U1_623010310 Lube Oil System SIEMENS A

90 200-LT-401 Level for Main oil Tank LT AI Oil - - 0 100 % Main Oil Tank - - Y - 62OP42264_U1_623010310 Lube Oil System SIEMENS A

Restricted Format :IP-Q-F-2010B/B

Rev.Date : 30.03.2010
 ORIGINAL REVISION DATE Title: FIELD INSTRUMENT LIST
PREPARED KKK A 26.10.2017 Client M/s SAGAR CEMENT LTD Rev.B
CHECKED HPS B 04.01.2018 Consultant -
SIEMENS LTD. APPROVED MP
DATE 21-08-17
Document No. 620P42264_U1_625060001
Operating Range Signal Distribution
Sr. Instr. Signal Engg. Processing
Field Tag No. Description Medium Press Temp. P&ID Ref. System Scope Rev. Remarks
No. Type Type Zero Span Unit Location TGB TSP DCS RMP
Kg/cm2 °C

91 200-LS-401 Level Low for Main oil Tank LS DI Oil - - - - - Main Oil Tank - - Y - 62OP42264_U1_623010310 Lube Oil System SIEMENS A

92 200-TT-401 Temperature for Main oil Tank RTDX AI Oil - 69 0 100 Deg C Main Oil Tank - - Y - 62OP42264_U1_623010310 Lube Oil System SIEMENS A

93 200-TG-401 Temperature for Main oil Tank TG Local Oil - 69 0 100 Deg C Main Oil Tank - - - - 62OP42264_U1_623010310 Lube Oil System SIEMENS A

94 200-PG-402 Pressure for Main Oil tank VG Local Oil - 69 -200 200 mmWC On Mail Oil Tank - - - - 62OP42264_U1_623010310 Lube Oil System SIEMENS A

95 200-PP-401 Pressure point for MOP suction PP Local Oil - 69 - - - MOP Suction - - - - 62OP42264_U1_623010310 Lube Oil System SIEMENS A

96 200-PG-403 Pressure for MOP discharge PG Local Oil 12 69 0 25 X` MOP discharge - - - - 62OP42264_U1_623010310 Lube Oil System SIEMENS A

97 200-PP-402 Pressure point for MOP discharge PP Local Oil 12 69 - - - MOP discharge - - - - 62OP42264_U1_623010310 Lube Oil System SIEMENS A

98 200-PP-403 Pressure point for AOP suction PP Local Oil - 69 - - - AOP Suction - - - - 62OP42264_U1_623010310 Lube Oil System SIEMENS A

99 200-PG-404 Pressure for AOP discharge PG Local Oil 12 69 0 25 Kg/cm2 AOP discharge - - - - 62OP42264_U1_623010310 Lube Oil System SIEMENS A

100 200-PP-404 Pressure point for AOP discharge PP Local Oil 12 69 - - - AOP discharge - - - - 62OP42264_U1_623010310 Lube Oil System SIEMENS A

101 200-PP-405 Pressure point for EOP suction PP Local Oil - 69 - - - EOP Suction - - - - 62OP42264_U1_623010310 Lube Oil System SIEMENS A

102 200-PG-405 Pressure for EOP discharge PG Local Oil 1.5 69 0 4 Kg/cm2 EOP discharge - - - - 62OP42264_U1_623010310 Lube Oil System SIEMENS A

103 200-PP-406 Pressure point for EOP discharge PP Local Oil 1.5 69 - - - EOP discharge - - - - 62OP42264_U1_623010310 Lube Oil System SIEMENS A

104 200-TT-402 Temperature for Lube oil from MOT to cooler RTDX AI Oil 11.5 69 0 100 Deg C Before cooler - - Y - 62OP42264_U1_623010310 Lube Oil System SIEMENS A

105 200-PG-406 Pressure for Lube oil from MOT to cooler PG Local Oil 11.5 69 0 25 Kg/cm2 Before cooler - - - - 62OP42264_U1_623010310 Lube Oil System SIEMENS A

106 200-PP-407 Pressure point for Lube oil from MOT to cooler PP Local Oil 11.5 69 - - - Before cooler - - - - 62OP42264_U1_623010310 Lube Oil System SIEMENS A

107 200-TG-402 Temperature for Lube oil from MOT to cooler TG Local Oil 11.5 69 0 100 Deg C Before cooler - - - - 62OP42264_U1_623010310 Lube Oil System SIEMENS A

108 200-PG-407 Pressure for Lube oil from cooler to filter PG Local Oil 11 48 0 25 Kg/cm2 After cooler - - - - 62OP42264_U1_623010310 Lube Oil System SIEMENS A

109 200-PP-408 Pressure point for Lube oil from cooler to filter PP Local Oil 11 48 - - - After cooler - - - - 62OP42264_U1_623010310 Lube Oil System SIEMENS A

110 200-TG-403 Temperature for Lube oil from cooler to filter TG Local Oil 11 48 0 100 Deg C After cooler - - - - 62OP42264_U1_623010310 Lube Oil System SIEMENS A

111 200-TT-403 Temperature after Lube Oil Cooler RTDX AI Oil 11 48 0 100 Deg C After cooler - - Y - 62OP42264_U1_623010310 Lube Oil System SIEMENS A

112 200-DPT-401 Differential Pressure for lube oil filter DPT AI Oil 0.16 48 0 1.6 Kg/cm2 Across Filter - - Y - 62OP42264_U1_623010310 Lube Oil System SIEMENS A

113 200-PG-408 Pressure for Control oil supply before accumulator PG Local Oil 10.5 48 0 16 Kg/cm2 Control oil piping - - - - 62OP42264_U1_623010310 Lube Oil System SIEMENS A

114 200-PT-404 Pressure for Control oil supply header PT AI Oil 10.5 48 0 16 Kg/cm2 Control oil header - - Y - 62OP42264_U1_623010310 Lube Oil System SIEMENS A

115 200-PS-404A Pressure Low for Control oil supply header PS DI Oil 10.5 48 1.6 16 Kg/cm2 Control oil header - - Y - 62OP42264_U1_623010310 Lube Oil System SIEMENS A

116 200-PS-404B Pressure Low for Control oil supply header PS DI Oil 10.5 48 1.6 16 Kg/cm2 Control oil header - - Y - 62OP42264_U1_623010310 Lube Oil System SIEMENS A

117 200-PS-404C Pressure Low for Control oil supply header PS DI Oil 10.5 48 1.6 16 Kg/cm2 Control oil header - - Y - 62OP42264_U1_623010310 Lube Oil System SIEMENS A

118 200-PG-409 Pressure for Control oil supply header PG Local Oil 10.5 48 0 16 Kg/cm2 Control oil header - - - - 62OP42264_U1_623010310 Lube Oil System SIEMENS A

119 200-LS-402 Level High for Over Head Oil tank LS DI Oil - - - - - Overhead Oil Tank - - Y - 62OP42264_U1_623010310 Lube Oil System SIEMENS A

120 200-PG-410 Pressure for Lube oil header PG Local Oil 3.5 48 0 6 Kg/cm2 Oil header - - - - 62OP42264_U1_623010310 Lube Oil System SIEMENS A

Restricted Format :IP-Q-F-2010B/B

Rev.Date : 30.03.2010
 ORIGINAL REVISION DATE Title: FIELD INSTRUMENT LIST
PREPARED KKK A 26.10.2017 Client M/s SAGAR CEMENT LTD Rev.B
CHECKED HPS B 04.01.2018 Consultant -
SIEMENS LTD. APPROVED MP
DATE 21-08-17
Document No. 620P42264_U1_625060001
Operating Range Signal Distribution
Sr. Instr. Signal Engg. Processing
Field Tag No. Description Medium Press Temp. P&ID Ref. System Scope Rev. Remarks
No. Type Type Zero Span Unit Location TGB TSP DCS RMP
Kg/cm2 °C

121 200-PT-405 Pressure for Lube oil header PT AI Oil 3.5 48 0 6 Kg/cm2 Oil header - - Y - 62OP42264_U1_623010310 Lube Oil System SIEMENS A

122 200-PS-401 Pressure Low for Lube oil header PS DI Oil 3.5 48 0.6 6 Kg/cm2 Oil header - - Y - 62OP42264_U1_623010310 Lube Oil System SIEMENS A

123 200-PS-405A Pressure Low for Lube oil header PS DI Oil 3.5 48 0.6 6 Kg/cm2 Oil header - - Y - 62OP42264_U1_623010310 Lube Oil System SIEMENS A

124 200-PS-405B Pressure Low Low for Lube oil header PS DI Oil 3.5 48 0.6 6 Kg/cm2 Oil header - - Y - 62OP42264_U1_623010310 Lube Oil System SIEMENS A

125 200-PS-405C Pressure Low Low for Lube oil header PS DI Oil 3.5 48 0.6 6 Kg/cm2 Oil header - - Y - 62OP42264_U1_623010310 Lube Oil System SIEMENS A

126 200-PS-405D Pressure Low Low for Lube oil header PS DI Oil 3.5 48 0.6 6 Kg/cm2 Oil header - - Y - 62OP42264_U1_623010310 Lube Oil System SIEMENS A

127 200-PS-405E Pressure Low Low for Lube oil header PS DI Oil 3.5 48 0.6 6 Kg/cm2 Oil header - - Y - 62OP42264_U1_623010310 Lube Oil System SIEMENS A

128 200-PG-411 Pressure for Lube oil supply to turbine front bearing PG Local Oil 1.5 48 0 4 Kg/cm2 Turbine front Inlet - - - - 62OP42264_U1_623010310 Lube Oil System SIEMENS A

129 200-PG-412 Pressure for Lube oil supply to turbine rear bearing PG Local Oil 1.5 48 0 4 Kg/cm2 Turbine rear Inlet - - - - 62OP42264_U1_623010310 Lube Oil System SIEMENS A

130 200-PG-413 Pressure for Lube oil supply to gear box PG Local Oil 1.5 48 0 4 Kg/cm2 Gearbox Inlet - - - - 62OP42264_U1_623010310 Lube Oil System SIEMENS A

131 200-PG-414 Pressure for Lube oil supply to generator front end PG Local Oil 2 48 0 4 Kg/cm2 Generator front Inlet - - - - 62OP42264_U1_623010310 Lube Oil System SIEMENS A

132 200-PG-415 Pressure for Lube oil supply to generator rear end PG Local Oil 2 48 0 4 Kg/cm2 Generator rear Inlet - - - - 62OP42264_U1_623010310 Lube Oil System SIEMENS A

133 200-ZS-207 Barring Gear Motor Cover Switch ZS DI - - - - - - - - - - - 62OP42264_U1_623010310 Lube Oil System SIEMENS A

134 200-LT-201 Level for HP Heater 1 LT AI Steam - - 0 100 % HP heater 1 stand pipe - - Y - 62OP42264_U1_643010305 HP heater 1 SIEMENS A

135 200-LT-205 Level for HP Heater 1 LT AI Steam - - 0 100 % HP heater 1 stand pipe - - Y - 62OP42264_U1_643010305 HP heater 1 SIEMENS A

136 200-LG-201 Level for HP Heater 1 LG Local Steam - - 0 100 % HP heater 1 stand pipe - - - - 62OP42264_U1_643010305 HP heater 1 SIEMENS A

137 200-PG-212 Pressure for HP Heater-1 PG Local Steam 16.5 296 0 40 Kg/cm2 HP heater 1 & piping - - - - 62OP42264_U1_643010305 HP heater 1 SIEMENS A

138 200-TG-208 Temperature for HP Heater-1 TG Local Steam 16.5 296 0 400 Deg C HP heater 1 & piping - - - - 62OP42264_U1_643010305 HP heater 1 SIEMENS A

139 200-PG-213 Pressure for Bleed steam to HPH 1 PG Local Steam 16.5 296 0 40 Kg/cm2 HP heater 1 & piping - - - - 62OP42264_U1_643010305 HP heater 1 SIEMENS A

140 200-TG-209 Temperature for Bleed steam to HPH 1 TG Local Steam 16.5 296 0 400 Deg C HP heater 1 & piping - - - - 62OP42264_U1_643010305 HP heater 1 SIEMENS A

141 200-TG-210 Temperature for HPH 1 normal drain TG Local Steam 16.5 166 0 300 Deg C HP heater 1 & piping - - - - 62OP42264_U1_643010305 HP heater 1 SIEMENS A

142 200-TT-210 Temperature HPH 1 normal drain RTDX AI Steam 16.5 166 0 300 Deg C HP heater 1 & piping - - Y - 62OP42264_U1_643010305 HP heater 1 SIEMENS A

143 200-TG-211 Temperature for HPH 1 emergency drain TG Local Steam 16.5 204.7 0 400 Deg C HP heater 1 & piping - - - - 62OP42264_U1_643010305 HP heater 1 SIEMENS A

144 200-TT-211 Temperature for HPH 1 emergency drain TCX AI Steam 16.5 204.7 0 400 Deg C HP heater 1 & piping - - Y - 62OP42264_U1_643010305 HP heater 1 SIEMENS A

145 200-TG-104 Temperature for Feedwater inlet to HPH 1 TG Local Feedwater 142 160.4 0 300 Deg C HP heater 1 & piping - - - - 62OP42264_U1_643010305 HP heater 1 SIEMENS A

146 200-PG-104 Pressure for Feedwater inlet to HPH 1 PG Local Feedwater 142 160.4 0 250 Kg/cm2 HP heater 1 & piping - - - - 62OP42264_U1_643010305 HP heater 1 SIEMENS A

147 200-TT-104 Temperature for Feedwater inlet to HPH 1 RTDX AI Feedwater 142 160.4 0 300 Deg C HP heater 1 & piping - - Y - 62OP42264_U1_643010305 HP heater 1 SIEMENS A

148 200-PT-104 Pressure for Feedwater inlet to HPH 1 PT Local Feedwater 142 160.4 0 250 Kg/cm2 HP heater 1 & piping - - - - 62OP42264_U1_643010305 HP heater 1 SIEMENS A

149 200-TG-105 Temperature for Feedwater outlet from HPH 1 TG Local Feedwater 141 201.7 0 400 Deg C HP heater 1 & piping - - - - 62OP42264_U1_643010305 HP heater 1 SIEMENS A

150 200-PG-105 Pressure for Feedwater outlet from HPH 1 PG Local Feedwater 141 201.7 0 250 Kg/cm2 HP heater 1 & piping - - - - 62OP42264_U1_643010305 HP heater 1 SIEMENS A

Restricted Format :IP-Q-F-2010B/B

Rev.Date : 30.03.2010
 ORIGINAL REVISION DATE Title: FIELD INSTRUMENT LIST
PREPARED KKK A 26.10.2017 Client M/s SAGAR CEMENT LTD Rev.B
CHECKED HPS B 04.01.2018 Consultant -
SIEMENS LTD. APPROVED MP
DATE 21-08-17
Document No. 620P42264_U1_625060001
Operating Range Signal Distribution
Sr. Instr. Signal Engg. Processing
Field Tag No. Description Medium Press Temp. P&ID Ref. System Scope Rev. Remarks
No. Type Type Zero Span Unit Location TGB TSP DCS RMP
Kg/cm2 °C

151 200-TT-105 Temperature for Feedwater outlet from HPH 1 TCX AI Feedwater 141 201.7 0 400 Deg C HP heater 1 & piping - - Y - 62OP42264_U1_643010305 HP heater 1 SIEMENS A

152 200-PT-105 Pressure for Feedwater outlet from HPH 1 PT AI Feedwater 141 201.7 0 250 Kg/cm2 HP heater 1 & piping - - Y - 62OP42264_U1_643010305 HP heater 1 SIEMENS A
Current to pressure converter for HPH 1 normal level control valve to
153 200-LCV-201 EP AO - - - 4 20 mA On CV801 - - Y - 62OP42264_U1_643010305 HP heater 1 SIEMENS A
deaerator
154 200-ZT-201B Position Feedback for HPH 1 normal level control valve to deaerator ZT AI - - - 0 100 % On CV801 - - Y - 62OP42264_U1_643010305 HP heater 1 SIEMENS A
Current to pressure converter for HPH 1 Emergency level control valve to
155 200-LCV-202 EP AO - - - 4 20 mA On CV802 - - Y - 62OP42264_U1_643010305 HP heater 1 SIEMENS A
HP Heater drain flash Tank
Position Feedback for HPH 1 Emergency level control valve to HP Heater
156 200-ZT-202A ZT AI - - - 0 100 % On CV802 - - Y - 62OP42264_U1_643010305 HP heater 1 SIEMENS A
drain flash Tank
157 200-LS-403 Level High High for HP heater 1 LS DI Oil - - - - - HP heater 1 stand pipe - - Y - 62OP42264_U1_643010305 Lube Oil System SIEMENS A

158 200-LS-404 Level Low Low for HP heater 1 LS DI Oil - - - - - HP heater 1 stand pipe - - Y - 62OP42264_U1_643010305 Lube Oil System SIEMENS A

159 200-LS-405 Level High for HP heater 1 LS DI Oil - - - - - HP heater 1 stand pipe - - Y - 62OP42264_U1_643010305 Lube Oil System SIEMENS A

160 200-LS-406 Level Low for HP heater 1 LS DI Oil - - - - - HP heater 1 stand pipe - - Y - 62OP42264_U1_643010305 Lube Oil System SIEMENS A

161 200-LT-202 Level for HP heater 2 LT AI Steam - - 0 100 % HP heater 2 stand pipe - - Y - 62OP42264_U1_643010305 HP heater 2 SIEMENS A

162 200-LT-206 Level for HP heater 2 LT AI Steam - - 0 100 % HP heater 2 stand pipe - - Y - 62OP42264_U1_643010305 HP heater 2 SIEMENS A

163 200-LG-202 Level for HP heater 2 LG Local Steam - - 0 100 % HP heater 2 stand pipe - - - - 62OP42264_U1_643010305 HP heater 2 SIEMENS A

164 200-LS-407 Level High High for HP heater 2 LS DI Oil - - - - - HP heater 2 stand pipe - - Y - 62OP42264_U1_643010305 Lube Oil System SIEMENS A

165 200-LS-408 Level Low Low for HP heater 2 LS DI Oil - - - - - HP heater 2 stand pipe - - Y - 62OP42264_U1_643010305 Lube Oil System SIEMENS A

166 200-LS-409 Level High for HP heater 2 LS DI Oil - - - - - HP heater 2 stand pipe - - Y - 62OP42264_U1_643010305 Lube Oil System SIEMENS A

167 200-LS-410 Level Low for HP heater 2 LS DI Oil - - - - - HP heater 2 stand pipe - - Y - 62OP42264_U1_643010305 Lube Oil System SIEMENS A

168 200-PG-214 Pressure for HP heater 2 PG Local Steam 33.65 382.7 0 100 Kg/cm2 HP heater 2 & piping - - - - 62OP42264_U1_643010305 HP heater 2 SIEMENS A

169 200-TG-212 Temperature for HP heater 2 TG Local Steam 33.65 382.7 0 600 Deg C HP heater 2 & piping - - - - 62OP42264_U1_643010305 HP heater 2 SIEMENS A

170 200-PG-215 Pressure for Bleed steam to HPH 2 PG Local Steam 33.65 382.7 0 100 Kg/cm2 HP heater 2 & piping - - - - 62OP42264_U1_643010305 HP heater 2 SIEMENS A

171 200-TG-213 Temperature for Bleed steam to HPH 2 TG Local Steam 33.65 382.7 0 600 Deg C HP heater 2 & piping - - - - 62OP42264_U1_643010305 HP heater 2 SIEMENS A

172 200-TG-106 Temperature for HPH 2 normal drain TG Local Feedwater 33.65 207.3 0 400 Deg C HP heater 2 & piping - - - - 62OP42264_U1_643010305 HP heater 2 SIEMENS A

173 200-TT-106 Temperature HPH 2 normal drain TCX AI Feedwater 33.65 207.3 0 400 Deg C HP heater 2 & piping - - Y - 62OP42264_U1_643010305 HP heater 2 SIEMENS A

174 200-TG-107 Temperature for HPH 2 emergency drain TG Local Feedwater 33.65 240.8 0 400 Deg C HP heater 2 & piping - - - - 62OP42264_U1_643010305 HP heater 2 SIEMENS A

175 200-TT-107 Temperature for HPH 2 emergency drain TCX AI Feedwater 33.65 240.8 0 400 Deg C HP heater 2 & piping - - Y - 62OP42264_U1_643010305 HP heater 2 SIEMENS A

176 200-TG-108 Temperature for Feedwater inlet to HPH 2 TG Local Feedwater 141 201.7 0 400 Deg C HP heater 2 & piping - - - - 62OP42264_U1_643010305 HP heater 2 SIEMENS A

177 200-PG-108 Pressure for Feedwater inlet to HPH 2 PG Local Feedwater 141 201.7 0 250 Kg/cm2 HP heater 2 & piping - - - - 62OP42264_U1_643010305 HP heater 2 SIEMENS A

178 200-TT-108 Temperature for Feedwater inlet to HPH 2 TCX AI Feedwater 141 201.7 0 400 Deg C HP heater 2 & piping - - Y - 62OP42264_U1_643010305 HP heater 2 SIEMENS A

179 200-PT-108 Pressure for Feedwater inlet to HPH 2 PT AI Feedwater 141 201.7 0 250 Kg/cm2 HP heater 2 & piping - - Y - 62OP42264_U1_643010305 HP heater 2 SIEMENS A

180 200-TG-109 Temperature for Feedwater outlet from HPH 2 TG Local Feedwater 140 238.6 0 400 Deg C HP heater 2 & piping - - - - 62OP42264_U1_643010305 HP heater 2 SIEMENS A

Restricted Format :IP-Q-F-2010B/B

Rev.Date : 30.03.2010
 ORIGINAL REVISION DATE Title: FIELD INSTRUMENT LIST
PREPARED KKK A 26.10.2017 Client M/s SAGAR CEMENT LTD Rev.B
CHECKED HPS B 04.01.2018 Consultant -
SIEMENS LTD. APPROVED MP
DATE 21-08-17
Document No. 620P42264_U1_625060001
Operating Range Signal Distribution
Sr. Instr. Signal Engg. Processing
Field Tag No. Description Medium Press Temp. P&ID Ref. System Scope Rev. Remarks
No. Type Type Zero Span Unit Location TGB TSP DCS RMP
Kg/cm2 °C

181 200-PG-109 Pressure for Feedwater outlet from HPH 2 PG Local Feedwater 140 238.6 0 250 Kg/cm2 HP heater 2 & piping - - - - 62OP42264_U1_643010305 HP heater 2 SIEMENS A

182 200-TT-109 Temperature for Feedwater inlet to HPH 2 TCX AI Feedwater 140 238.6 0 400 Deg C HP heater 2 & piping - - Y - 62OP42264_U1_643010305 HP heater 2 SIEMENS A

183 200-PT-109 Pressure for Feedwater inlet to HPH 2 PT AI Feedwater 140 238.6 0 250 Kg/cm2 HP heater 2 & piping - - Y - 62OP42264_U1_643010305 HP heater 2 SIEMENS A
Current to pressure converter for HPH 2 normal level control valve to
184 200-LCV-203 EP AO - - - 4 20 mA On CV851 - - Y - 62OP42264_U1_643010305 HP heater 2 SIEMENS A
HPH 1
185 200-ZT-203 Position Feedback for HPH 2 normal level control valve to HPH 1 ZT AI - - - 0 100 % On CV851 - - Y - 62OP42264_U1_643010305 HP heater 2 SIEMENS A
Current to pressure converter for HPH 2 normal level control valve to
186 200-LCV-204 EP AO - - - 4 20 mA On CV852 - - Y - 62OP42264_U1_643010305 HP heater 2 SIEMENS A
deaerator
187 200-ZT-204 Position Feedback for HPH 2 normal level control valve to deaerator ZT AI - - - 0 100 % On CV852 - - Y - 62OP42264_U1_643010305 HP heater 2 SIEMENS A
Current to pressure converter for HPH 2 Emergency level control valve to
188 200-LCV-205 EP AO - - - 4 20 mA On CV853 - - Y - 62OP42264_U1_643010305 HP heater 2 SIEMENS A
HP Heater drain flash Tank
Position Feedback for HPH 2 Emergency level control valve to HP Heater
189 200-ZT-205 ZT AI - - - 0 100 % On CV853 - - Y - 62OP42264_U1_643010305 HP heater 2 SIEMENS A
drain flash Tank
190 200-LT-203 Level for LP Heater LT AI Steam - - 0 100 % LP Heater stand pipe - - Y - 62OP42264_U1_643010308 LP Heater SIEMENS A

191 200-LT-204 Level for LP Heater LT AI Steam - - 0 100 % LP Heater stand pipe - - Y - 62OP42264_U1_643010308 LP Heater SIEMENS A

192 200-LG-203 Level for LP Heater LG Local Steam - - 0 100 % LP Heater stand pipe - - - - 62OP42264_U1_643010308 LP Heater SIEMENS A

193 200-LS-411 Level High High for LP Heater LS DI Oil - - - - - LP Heater stand pipe - - Y - 62OP42264_U1_643010308 Lube Oil System SIEMENS A

194 200-LS-412 Level Low Low for LP Heater LS DI Oil - - - - - LP Heater stand pipe - - Y - 62OP42264_U1_643010308 Lube Oil System SIEMENS A

195 200-LS-413 Level High for LP Heater LS DI Oil - - - - - LP Heater stand pipe - - Y - 62OP42264_U1_643010308 Lube Oil System SIEMENS A

196 200-LS-414 Level Low for LP Heater LS DI Oil - - - - - LP Heater stand pipe - - Y - 62OP42264_U1_643010308 Lube Oil System SIEMENS A

197 200-PG-216 Pressure for LP Heater PG Local Steam 0.28 106.3 -1 1.5 Kg/cm2 LP Heater & piping - - - - 62OP42264_U1_643010308 LP Heater SIEMENS A

198 200-TG-214 Temperature for LP Heater TG Local Steam 0.28 106.3 0 200 Deg C LP Heater & piping - - - - 62OP42264_U1_643010308 LP Heater SIEMENS A

199 200-PG-217 Pressure for Bleed steam to LPH PG Local Steam 0.28 106.3 -1 1.5 Kg/cm2 LP Heater & piping - - - - 62OP42264_U1_643010308 LP Heater SIEMENS A

200 200-TG-215 Temperature for Bleed steam to LPH TG Local Steam 0.28 106.3 0 200 Deg C LP Heater & piping - - - - 62OP42264_U1_643010308 LP Heater SIEMENS A

201 200-TG-301 Temperature for LPH normal drain TG Local Condensate 0.28 71.4 0 100 Deg C LP Heater & piping - - - - 62OP42264_U1_643010308 LP Heater SIEMENS A

202 200-TT-301 Temperature LPH normal drain RTDx AI Condensate 0.28 71.4 0 100 Deg C LP Heater & piping - - Y - 62OP42264_U1_643010308 LP Heater SIEMENS A

203 200-TG-302 Temperature for LPH emergency drain TG Local Condensate 0.28 106 0 200 Deg C LP Heater & piping - - - - 62OP42264_U1_643010308 LP Heater SIEMENS A

204 200-TT-302 Temperature for LPH emergency drain RTDX AI Condensate 0.28 106 0 200 Deg C LP Heater & piping - - Y - 62OP42264_U1_643010308 LP Heater SIEMENS A

205 200-TG-303 Temperature for Condensate inlet to LPH TG Local Condensate 10.5 65.4 0 100 Deg C LP Heater & piping - - - - 62OP42264_U1_643010308 LP Heater SIEMENS A

206 200-PG-303 Pressure for Condensate inlet to LPH PG Local Condensate 10.5 65.4 0 25 Kg/cm2 LP Heater & piping - - - - 62OP42264_U1_643010308 LP Heater SIEMENS A

207 200-TT-303 Temperature for Condensate inlet to LPH RTDX AI Condensate 10.5 65.4 0 100 Deg C LP Heater & piping - - Y - 62OP42264_U1_643010308 LP Heater SIEMENS A

208 200-PT-303 Pressure for Condensate inlet to LPH PT AI Condensate 10.5 65.4 0 25 Kg/cm2 LP Heater & piping - - Y - 62OP42264_U1_643010308 LP Heater SIEMENS A

209 200-TG-304 Temperature for Condensate outlet from LPH TG Local Condensate 10.6 102.9 0 200 Deg C LP Heater & piping - - - - 62OP42264_U1_643010308 LP Heater SIEMENS A

210 200-PG-304 Pressure for Condensate outlet from LPH PG Local Condensate 10.6 102.9 0 25 Kg/cm2 LP Heater & piping - - - - 62OP42264_U1_643010308 LP Heater SIEMENS A

Restricted Format :IP-Q-F-2010B/B

Rev.Date : 30.03.2010
 ORIGINAL REVISION DATE Title: FIELD INSTRUMENT LIST
PREPARED KKK A 26.10.2017 Client M/s SAGAR CEMENT LTD Rev.B
CHECKED HPS B 04.01.2018 Consultant -
SIEMENS LTD. APPROVED MP
DATE 21-08-17
Document No. 620P42264_U1_625060001
Operating Range Signal Distribution
Sr. Instr. Signal Engg. Processing
Field Tag No. Description Medium Press Temp. P&ID Ref. System Scope Rev. Remarks
No. Type Type Zero Span Unit Location TGB TSP DCS RMP
Kg/cm2 °C

211 200-TT-304 Temperature for Condensate outlet from LPH RTDX AI Condensate 10.6 102.9 0 200 Deg C LP Heater & piping - - Y - 62OP42264_U1_643010308 LP Heater SIEMENS A

212 200-PT-304 Pressure for Condensate outlet from LPH PT AI Condensate 10.6 102.9 0 25 Kg/cm2 LP Heater & piping - - Y - 62OP42264_U1_643010308 LP Heater SIEMENS A
Current to pressure converter for LPH normal level control valve to
213 200-LCV-206 EP AO - - - 4 20 mA On CV901 - - Y - 62OP42264_U1_643010308 LP Heater SIEMENS A
hotwell drain system
Position Feedback for LPH normal level control valve to hotwell drain
214 200-ZT-206 ZT AI - - - 0 100 % On CV901 - - Y - 62OP42264_U1_643010308 LP Heater SIEMENS A
system
Current to pressure converter for LPH Emergency level control valve to
215 200-LCV-207 EP AO - - - 4 20 mA On CV902 - - Y - 62OP42264_U1_643010308 LP Heater SIEMENS A
hotwell drain system
Position Feedback for LPH Emergency level control valve to hotwell drain
216 200-ZT-207 ZT AI - - - 0 100 % On CV902 - - Y - 62OP42264_U1_643010308 LP Heater SIEMENS A
system
217 210-SE-201 Turbine Speed MPU Voltage - - - 0 9999 RPM Turb. front pedestal - Y - - 62OP42264_U1_643010314 Protection_system SIEMENS A

218 210-SE-202 Turbine Speed MPU Voltage - - - 0 9999 RPM Turb. front pedestal - Y - - 62OP42264_U1_643010314 Protection_system SIEMENS A

219 210-SE-203 Turbine Speed MPU Voltage - - - 0 9999 RPM Turb. front pedestal - Y - - 62OP42264_U1_643010314 Protection_system SIEMENS A

220 210-SE-204 Turbine Speed MPU Voltage - - - 0 9999 RPM Turb. front pedestal - Y - - 62OP42264_U1_643010314 Protection_system SIEMENS A

221 210-SE-205 Turbine Speed MPU Voltage - - - 0 9999 RPM Turb. front pedestal - Y - - 62OP42264_U1_643010314 Protection_system SIEMENS A

222 210-TE-201 Turbine Thrust temperature - Non active side top RTD Pt100 Metal - - 0 200 Deg C Turb. front pedestal - Y - - 62OP42264_U1_643010314 Protection_system SIEMENS A

223 210-TE-202 Turbine Thrust temperature - Non active side bottom RTD Pt100 Metal - - 0 200 Deg C Turb. front pedestal - Y - - 62OP42264_U1_643010314 Protection_system SIEMENS A

224 210-TE-203 Turbine Thrust temperature - Active side top RTD Pt100 Metal - - 0 200 Deg C Turb. front pedestal - Y - - 62OP42264_U1_643010314 Protection_system SIEMENS A

225 210-TE-204 Turbine Thrust temperature - Active side bottom RTD Pt100 Metal - - 0 200 Deg C Turb. front pedestal - Y - - 62OP42264_U1_643010314 Protection_system SIEMENS A

226 210-TE-205 Turbine front bearing temperature RTD Pt100 Metal - - 0 200 Deg C Turb. front pedestal - Y - - 62OP42264_U1_643010314 Protection_system SIEMENS A

227 210-TE-206 Turbine rear bearing temperature RTD Pt100 Metal - - 0 200 Deg C Turb. rear pedestal - Y - - 62OP42264_U1_643010314 Protection_system SIEMENS A

228 220-TE-201 Gearbox high speed bearing temperature DE side RTD Pt100 Metal - - 0 200 Deg C GB bearing pedestal - Y - - 62OP42264_U1_643010314 Protection_system SIEMENS A

229 220-TE-202 Gearbox high speed bearing temperature NDE side RTD Pt100 Metal - - 0 200 Deg C GB bearing pedestal - Y - - 62OP42264_U1_643010314 Protection_system SIEMENS A

230 220-TE-203 Gearbox low speed bearing temperature NDE side RTD Pt100 Metal - - 0 200 Deg C GB bearing pedestal - Y - - 62OP42264_U1_643010314 Protection_system SIEMENS A

231 220-TE-204 Gearbox low speed bearing temperature DE side RTD Pt100 Metal - - 0 200 Deg C GB bearing pedestal - Y - - 62OP42264_U1_643010314 Protection_system SIEMENS A

232 230-TE-201 Alternator front bearing temperature RTD Pt100 Metal - - 0 200 Deg C Alt. front pedestal - - - Y 62OP42264_U1_643010314 Protection_system SIEMENS A

233 230-TE-202 Alternator rear bearing temperature RTD Pt100 Metal - - 0 200 Deg C Alt. rear pedestal - - - Y 62OP42264_U1_643010314 Protection_system SIEMENS A

234 230-TE-203 Alternator winding temperature-U1 phase RTD Pt100 Winding - - 0 200 Deg C Alternator - - - Y 62OP42264_U1_643010314 Protection_system SIEMENS A

235 230-TE-204 Alternator winding temperature-V1 phase RTD Pt100 Winding - - 0 200 Deg C Alternator - - - Y 62OP42264_U1_643010314 Protection_system SIEMENS A

236 230-TE-205 Alternator winding temperature-W1 phase RTD Pt100 Winding - - 0 200 Deg C Alternator - - - Y 62OP42264_U1_643010314 Protection_system SIEMENS A

237 230-TE-206 Alternator winding temperature-U2 phase RTD Pt100 Winding - - 0 200 Deg C Alternator - - - Y 62OP42264_U1_643010314 Protection_system SIEMENS A

238 230-TE-207 Alternator winding temperature-V2 phase RTD Pt100 Winding - - 0 200 Deg C Alternator - - - Y 62OP42264_U1_643010314 Protection_system SIEMENS A

239 230-TE-208 Alternator winding temperature-W2 phase RTD Pt100 Winding - - 0 200 Deg C Alternator - - - Y 62OP42264_U1_643010314 Protection_system SIEMENS A

240 230-TE-201A Alternator core temperature-1 RTD Pt100 Core - - 0 200 Deg C Alt. Core - - - Y 62OP42264_U1_643010314 Protection_system SIEMENS A

Restricted Format :IP-Q-F-2010B/B

Rev.Date : 30.03.2010
 ORIGINAL REVISION DATE Title: FIELD INSTRUMENT LIST
PREPARED KKK A 26.10.2017 Client M/s SAGAR CEMENT LTD Rev.B
CHECKED HPS B 04.01.2018 Consultant -
SIEMENS LTD. APPROVED MP
DATE 21-08-17
Document No. 620P42264_U1_625060001
Operating Range Signal Distribution
Sr. Instr. Signal Engg. Processing
Field Tag No. Description Medium Press Temp. P&ID Ref. System Scope Rev. Remarks
No. Type Type Zero Span Unit Location TGB TSP DCS RMP
Kg/cm2 °C

241 230-TE-202A Alternator core temperature-2 RTD Pt100 Core - - 0 200 Deg C Alt. Core - - - Y 62OP42264_U1_643010314 Protection_system SIEMENS A

242 230-TE-203A Alternator core temperature-3 RTD Pt100 Core - - 0 200 Deg C Alt. Core - - - Y 62OP42264_U1_643010314 Protection_system SIEMENS A

243 200-TE-001 Inlet air temperature-1 RTD Pt100 Air - - 0 200 Deg C Alt. Cooler - - - Y 62OP42264_U1_643010314 Protection_system SIEMENS A

244 200-TE-002 Outlet air temperature-1 RTD Pt100 Air - - 0 200 Deg C Alt. Cooler - - - Y 62OP42264_U1_643010314 Protection_system SIEMENS A

245 200-TE-003 Inlet air temperature-2 RTD Pt100 Air - - 0 200 Deg C Alt. Cooler - - - Y 62OP42264_U1_643010314 Protection_system SIEMENS A

246 200-TE-004 Outlet air temperature-2 RTD Pt100 Air - - 0 200 Deg C Alt. Cooler - - - Y 62OP42264_U1_643010314 Protection_system SIEMENS A

247 230-TE-204A Alternator Exciter temperature-1 RTD Pt100 Exciter - - 0 200 Deg C Exciter - - - Y 62OP42264_U1_643010314 Protection_system SIEMENS A

248 220-TG-201 Gearbox high speed bearing temperature DE side TG Local Metal - - 0 150 Deg C GB bearing pedestal - - - - 62OP42264_U1_643010314 Protection_system SIEMENS A

249 220-TG-202 Gearbox high speed bearing temperature NDE side TG Local Metal - - 0 150 Deg C GB bearing pedestal - - - - 62OP42264_U1_643010314 Protection_system SIEMENS A

250 220-TG-203 Gearbox low speed bearing temperature NDE side TG Local Metal - - 0 150 Deg C GB bearing pedestal - - - - 62OP42264_U1_643010314 Protection_system SIEMENS A

251 220-TG-204 Gearbox low speed bearing temperature DE side TG Local Metal - - 0 150 Deg C GB bearing pedestal - - - - 62OP42264_U1_643010314 Protection_system SIEMENS A

252 230-TG-201 Alternator front bearing temperature TG Local Metal - - 0 150 Deg C Alt. front pedestal - - - - 62OP42264_U1_643010314 Protection_system SIEMENS A

253 230-TG-202 Alternator rear bearing temperature TG Local Metal - - 0 150 Deg C Alt. rear pedestal - - - - 62OP42264_U1_643010314 Protection_system SIEMENS A

254 200-WLD-101 Water leakage detector-1 WD DI Water - - - - - Alt. Cooler - - Y - 62OP42264_U1_643010314 Protection_system SIEMENS A

255 200-WLD-102 Water leakage detector-2 WD DI Water - - - - - Alt. Cooler - - Y - 62OP42264_U1_643010314 Protection_system SIEMENS A

256 200-ME-001 Alternator Air Humidity Detector 1 ME AI Air - - - - - Alt. Cooler - - Y - 62OP42264_U1_643010314 Protection_system SIEMENS A

257 200-ME-002 Alternator Air Humidity Detector 2 ME AI Air - - - - - Alt. Cooler - - Y - 62OP42264_U1_643010314 Protection_system SIEMENS A

258 210-YE-201 Turbine front shaft vibration X-position Probe AI - - - 0 200 µ Turb. front pedestal - Y - - 62OP42264_U1_643010314 Protection_system SIEMENS A

259 210-YE-202 Turbine front shaft vibration Y-position Probe AI - - - 0 200 µ Turb. front pedestal - Y - - 62OP42264_U1_643010314 Protection_system SIEMENS A

260 210-YE-203 Turbine rear shaft vibration X-position Probe AI - - - 0 200 µ Turb. rear pedestal - Y - - 62OP42264_U1_643010314 Protection_system SIEMENS A

261 210-YE-204 Turbine rear shaft vibration Y-position Probe AI - - - 0 200 µ Turb. rear pedestal - Y - - 62OP42264_U1_643010314 Protection_system SIEMENS A

262 220-YE-201 Gearbox high speed shaft DE side vibration-X Position Probe AI - - - 0 200 µ GB bearing pedestal - Y - - 62OP42264_U1_643010314 Protection_system SIEMENS A

263 220-YE-202 Gearbox high speed shaft DE side vibration-Y Position Probe AI - - - 0 200 µ GB bearing pedestal - Y - - 62OP42264_U1_643010314 Protection_system SIEMENS A

264 220-YE-203 Gearbox high speed shaft NDE side vibration-X Position Probe AI - - - 0 200 µ GB bearing pedestal - Y - - 62OP42264_U1_643010314 Protection_system SIEMENS A

265 220-YE-204 Gearbox high speed shaft NDE side vibration-Y Position Probe AI - - - 0 200 µ GB bearing pedestal - Y - - 62OP42264_U1_643010314 Protection_system SIEMENS A

266 220-YE-205 Gearbox low speed shaft NDE side vibration-X Position Probe AI - - - 0 400 µ GB bearing pedestal - Y - - 62OP42264_U1_643010314 Protection_system SIEMENS A

267 220-YE-206 Gearbox low speed shaft NDE side vibration-Y Position Probe AI - - - 0 400 µ GB bearing pedestal - Y - - 62OP42264_U1_643010314 Protection_system SIEMENS A

268 220-YE-207 Gearbox low speed shaft DE side vibration-X Position Probe AI - - - 0 400 µ GB bearing pedestal - Y - - 62OP42264_U1_643010314 Protection_system SIEMENS A

269 220-YE-208 Gearbox low speed shaft DE side vibration-Y Position Probe AI - - - 0 400 µ GB bearing pedestal - Y - - 62OP42264_U1_643010314 Protection_system SIEMENS A

270 230-YE-201 Alternator front shaft vibration-X Position Probe AI - - - 0 400 µ Alt. front pedestal - Y - - 62OP42264_U1_643010314 Protection_system SIEMENS A

Restricted Format :IP-Q-F-2010B/B

Rev.Date : 30.03.2010
 ORIGINAL REVISION DATE Title: FIELD INSTRUMENT LIST
PREPARED KKK A 26.10.2017 Client M/s SAGAR CEMENT LTD Rev.B
CHECKED HPS B 04.01.2018 Consultant -
SIEMENS LTD. APPROVED MP
DATE 21-08-17
Document No. 620P42264_U1_625060001
Operating Range Signal Distribution
Sr. Instr. Signal Engg. Processing
Field Tag No. Description Medium Press Temp. P&ID Ref. System Scope Rev. Remarks
No. Type Type Zero Span Unit Location TGB TSP DCS RMP
Kg/cm2 °C

271 230-YE-202 Alternator front shaft vibration-Y Position Probe AI - - - 0 400 µ Alt. front pedestal - Y - - 62OP42264_U1_643010314 Protection_system SIEMENS A

272 230-YE-203 Alternator rear shaft vibration-X Position Probe AI - - - 0 400 µ Alt. rear pedestal - Y - - 62OP42264_U1_643010314 Protection_system SIEMENS A

273 230-YE-204 Alternator rear shaft vibration-Y Position Probe AI - - - 0 400 µ Alt. rear pedestal - Y - - 62OP42264_U1_643010314 Protection_system SIEMENS A

274 210-ZE-201 Rotor Axial Displacement-1 Probe AI - - - -1 1 mm Turb. front pedestal - Y - - 62OP42264_U1_643010314 Protection_system SIEMENS A

275 210-ZE-202 Rotor Axial Displacement-2 Probe AI - - - -1 1 mm Turb. front pedestal - Y - - 62OP42264_U1_643010314 Protection_system SIEMENS A

276 200-PT-001 Pressure for Instrument air line header PT AI Air 6 - 0 16 Kg/cm2 On Air Line - - Y - 62OP42264_U1_643010309 Instrument Air SIEMENS A

277 200-PG-001 Pressure for Instrument air line header PG Local Air 6 - 0 16 Kg/cm2 On Air Line - - - - 62OP42264_U1_643010309 Instrument Air SIEMENS A

278 200-PS-001 Pressure for Instrument air line header PS DI Oil 6 - 0 16 Kg/cm2 On Air Line - - Y - 62OP42264_U1_643010309 Instrument Air SIEMENS A

279

280

281

282

283

284

285

286

287

288

289

290

291

292

293

Restricted Format :IP-Q-F-2010B/B

Rev.Date : 30.03.2010
