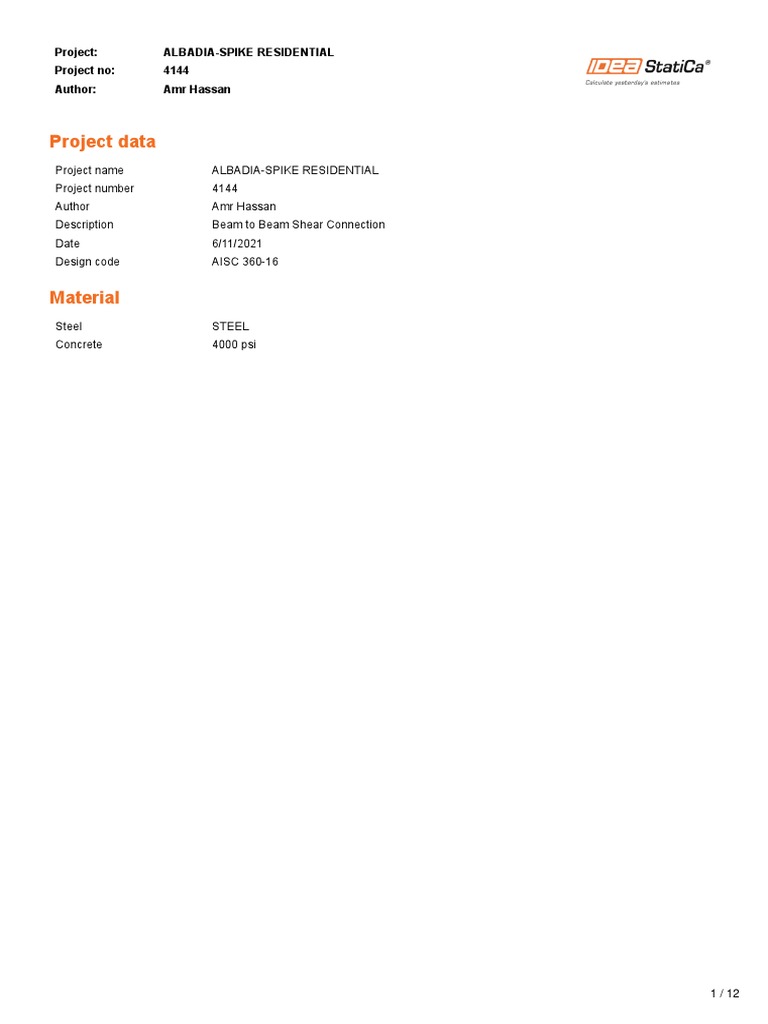

Project: ALBADIA-SPIKE RESIDENTIAL

Project no: 4144

Author: Amr Hassan

Project data
Project name ALBADIA-SPIKE RESIDENTIAL
Project number 4144
Author Amr Hassan
Description Beam to Beam Shear Connection
Date 6/11/2021
Design code AISC 360-16

Material
Steel STEEL
Concrete 4000 psi

1 / 12
Project: ALBADIA-SPIKE RESIDENTIAL
Project no: 4144
Author: Amr Hassan

Project item BBS415

Design
Name BBS415
Description
Analysis Stress, strain/ simplified loading
Design code AISC - LRFD 2016

Beams and columns

β– γ- α- Offset Offset Offset
Forces
Name Cross-section Direction Pitch Rotation ex ey ez
in
[°] [°] [°] [mm] [mm] [mm]
13 -
532 0.0 0.0 0.0 0 0 0 Position
BU450x400x30x16(Iwn450x(400/400))
846 14 - UB 254 x 146 x 43 0.0 0.0 0.0 210 0 97 Position

2 / 12
Project: ALBADIA-SPIKE RESIDENTIAL
Project no: 4144
Author: Amr Hassan

3 / 12
Project: ALBADIA-SPIKE RESIDENTIAL
Project no: 4144
Author: Amr Hassan

Cross-sections
Name Material
13 -
STEEL
BU450x400x30x16(Iwn450x(400/400))
14 - UB 254 x 146 x 43 STEEL

4 / 12
Project: ALBADIA-SPIKE RESIDENTIAL
Project no: 4144
Author: Amr Hassan

Cross-sections
Name Material Drawing

13 -
STEEL
BU450x400x30x16(Iwn450x(400/400))

14 - UB 254 x 146 x 43 STEEL

Bolts
Diameter fu Gross area
Name Bolt assembly
[mm] [MPa] [mm2]
20 A325M 20 A325M 20 830.0 314

Load effects (equilibrium not required)

N Vy Vz Mx My Mz
Name Member
[kN] [kN] [kN] [kNm] [kNm] [kNm]
UDLT(P) 846 97.8 0.0 12.0 0.0 0.0 0.0
UDT(N) 846 -97.3 0.0 6.9 0.0 0.0 0.0
UDLT(N) 846 -97.3 0.0 12.0 0.0 0.0 0.0
UDT(P) 846 97.8 0.0 7.0 0.0 0.0 0.0
UDL 846 0.3 0.0 12.1 0.0 0.0 0.0
UDEY2 846 0.1 0.0 4.3 0.0 0.0 0.0
UD 846 0.3 0.0 8.2 0.0 0.0 0.0
UDEY1 846 0.3 0.0 4.5 0.0 0.0 0.0

5 / 12
Project: ALBADIA-SPIKE RESIDENTIAL
Project no: 4144
Author: Amr Hassan

Check

Summary
Name Value Check status
Analysis 100.0% OK
Plates 0.8 < 5.0% OK
Bolts 92.9 < 100% OK
Welds 38.1 < 100% OK
Buckling Not calculated

Plates
Fy Thickness σEd εPl σcEd
Name Loads Check status
[MPa] [mm] [MPa] [%] [MPa]
532-tfl 1 350.0 30.0 UDLT(N) 57.6 0.0 0.0 OK
532-bfl 1 350.0 30.0 UDLT(P) 24.6 0.0 0.0 OK
532-w 1 350.0 16.0 UDLT(N) 16.3 0.0 0.0 OK
846-bfl 1 350.0 12.7 UDLT(N) 26.6 0.0 0.0 OK
846-tfl 1 350.0 12.7 UDLT(P) 26.9 0.0 0.0 OK
846-w 1 350.0 7.2 UDLT(P) 315.6 0.3 20.9 OK
STIFF1 350.0 12.0 UDLT(N) 316.6 0.8 16.0 OK

Design data

fy εlim
Material
[MPa] [%]
STEEL 350.0 5.0

Symbol explanation
εPl Plastic strain
σcEd Contact stress
σEd Eq. stress
fy Yield strength
εlim Limit of plastic strain

6 / 12
 Project: ALBADIA-SPIKE RESIDENTIAL
Project no: 4144
Author: Amr Hassan

Strain check, UDLT(N)

Equivalent stress, UDLT(N)

7 / 12
 Project: ALBADIA-SPIKE RESIDENTIAL
Project no: 4144
Author: Amr Hassan

Bolts
Ft V ϕRn,bearing Utt Uts Utts
Shape Item Grade Loads Status
[kN] [kN] [kN] [%] [%] [%]

B1 20 A325M - 1 UDT(P) 17.5 35.0 70.3 12.0 49.8 - OK

B2 20 A325M - 1 UDLT(P) 23.0 65.5 70.5 15.7 92.9 - OK

Design data

ϕRn,tension ϕRn,shear
Grade
[kN] [kN]
20 A325M - 1 146.0 87.6

Symbol explanation
Ft Tension force
V Resultant of shear forces Vy, Vz in bolt
ϕRn,bearing Bolt bearing resistance
Utt Utilization in tension
Uts Utilization in shear
Utts Utilization in tension and shear
ϕRn,tension Bolt tension resistance AISC 360-16 J3.6
ϕRn,shear Bolt shear resistance AISC 360-16 – J3.8

Detailed result for B2

Tension resistance check (AISC 360-16: J3-1)

ϕRn = ϕ ⋅ Fnt ⋅ Ab =  146.0 kN ≥ Ft =  23.0 kN

Where:
Fnt = 620.0 MPa – nominal tensile stress from AISC 360-16 Table J3.2
Ab = 314 mm2 – gross bolt cross-sectional area

ϕ = 0.75 – capacity factor

Shear resistance check (AISC 360-16: J3-1)

ϕRn = ϕ ⋅ Fnv ⋅ Ab =  87.6 kN ≥ V =  65.5 kN

Where:
Fnv = 372.0 MPa – nominal shear stress from AISC 360-16 Table J3.2
Ab = 314 mm2 – gross bolt cross-sectional area

ϕ = 0.75 – capacity factor

8 / 12
 Project: ALBADIA-SPIKE RESIDENTIAL
Project no: 4144
Author: Amr Hassan

Bearing resistance check (AISC 360-16: J3-6)

Rn = 1.20 ⋅ lc ⋅ t ⋅ Fu   ≤ 2.40 ⋅ d ⋅ t ⋅ Fu

ϕRn =  70.5 kN ≥ V =  65.5 kN

Where:
lc = 24 mm – clear distance, in the direction of the force, between the edge of the hole and the edge of the
adjacent hole or edge of the material
t = 7 mm – thickness of the plate
d = 20 mm – diameter of a bolt

Fu = 450.0 MPa – tensile strength of the connected material

ϕ = 0.75 – resistance factor for bearing at bolt holes

Interaction of tension and shear check (AISC 360-16: J3-2)

The required stress, in either shear or tension, is less than or equal to 30% of the corresponding available stress and the effects of

combined stresses need not to be investigated.

Welds
Th Ls L Lc Fn ϕRn Ut
Item Edge Xu Loads Status
[mm] [mm] [mm] [mm] [kN] [kN] [%]
532-bfl 1 STIFF1 E70xx ◢4.2◣ ◢6.0◣ 172 43 UDLT(P) 6.1 40.6 15.1 OK
E70xx ◢4.2◣ ◢6.0◣ 172 43 UDLT(P) 5.9 40.9 14.3 OK
532-w 1 STIFF1 E70xx ◢4.2◣ ◢6.0◣ 350 50 UDLT(N) 8.9 50.2 17.8 OK
E70xx ◢4.2◣ ◢6.0◣ 350 50 UDLT(N) 9.8 51.9 19.0 OK
532-tfl 1 STIFF1 E70xx ◢4.2◣ ◢6.0◣ 172 43 UDLT(N) 21.3 56.0 38.1 OK
E70xx ◢4.2◣ ◢6.0◣ 172 43 UDLT(P) 14.2 58.2 24.4 OK

Symbol explanation
Th Throat thickness of weld
Ls Leg size of weld
L Length of weld
Lc Length of weld critical element
Fn Force in weld critical element
ϕRn Weld resistance AISC 360-16 J2.4
Ut Utilization

9 / 12
 Project: ALBADIA-SPIKE RESIDENTIAL
Project no: 4144
Author: Amr Hassan

Detailed result for 532-tfl 1 / STIFF1

Weld resistance check (AISC 360-16: J2-4)

ϕRn = ϕ ⋅ Fnw ⋅ Awe =  56.0 kN ≥ Fn =  21.3 kN

Where:
Fnw = 409.7 MPa – nominal stress of weld material:

Fnw = 0.6 ⋅ FEXX ⋅ (1 + 0.5 ⋅ sin1.5 θ)  , where:

FEXX =  482.6 MPa – electrode classification number, i.e. minimum specified tensile strength
θ =  62.0° – angle of loading measured from the weld longitudinal axis

Awe = 182 mm2 – effective area of weld critical element

ϕ = 0.75 – resistance factor for welded connections

Buckling
Buckling analysis was not calculated.

Bill of material

Manufacturing operations
Plates Welds Length
Name Shape Nr. Bolts Nr.
[mm] [mm] [mm]

STIFF1 P12.0x272.0-390.0 (STEEL) 1 Double fillet: a = 4.2 694.0 20 A325M 2

Welds
Throat thickness Leg size Length
Type Material
[mm] [mm] [mm]
Double fillet E70xx 4.2 6.0 694.0

Bolts
Grip length
Name Count
[mm]
20 A325M 20 2

Drawing

STIFF1

10 / 12
Project: ALBADIA-SPIKE RESIDENTIAL
Project no: 4144
Author: Amr Hassan

P12.0x390-272 (STEEL)

846, UB 254 x 146 x 43 - Web 1:

Code settings

11 / 12
Project: ALBADIA-SPIKE RESIDENTIAL
Project no: 4144
Author: Amr Hassan

Item Value Unit Reference

Friction coefficient - concrete 0.40 - ACI 349 – B.6.1.4
Friction coefficient in slip-resistance 0.30 - AISC 360-16 J3.8
Limit plastic strain 0.05 -
Plastic
Weld stress evaluation
redistribution
Detailing No
Distance between bolts [d] 2.66 - AISC 360-16 – J3.3
Distance between bolts and edge [d] 1.25 - AISC 360-16 – J.3.4
Concrete breakout resistance check Both
Base metal capacity check at weld fusion
No AISC 360-16: J2-2
face
Cracked concrete Yes ACI 318-14 – Chapter 17
Local deformation check No
Local deformation limit 0.03 - CIDECT DG 1, 3 - 1.1
Analysis with large deformations for hollow section
Geometrical nonlinearity (GMNA) Yes
joints

12 / 12
