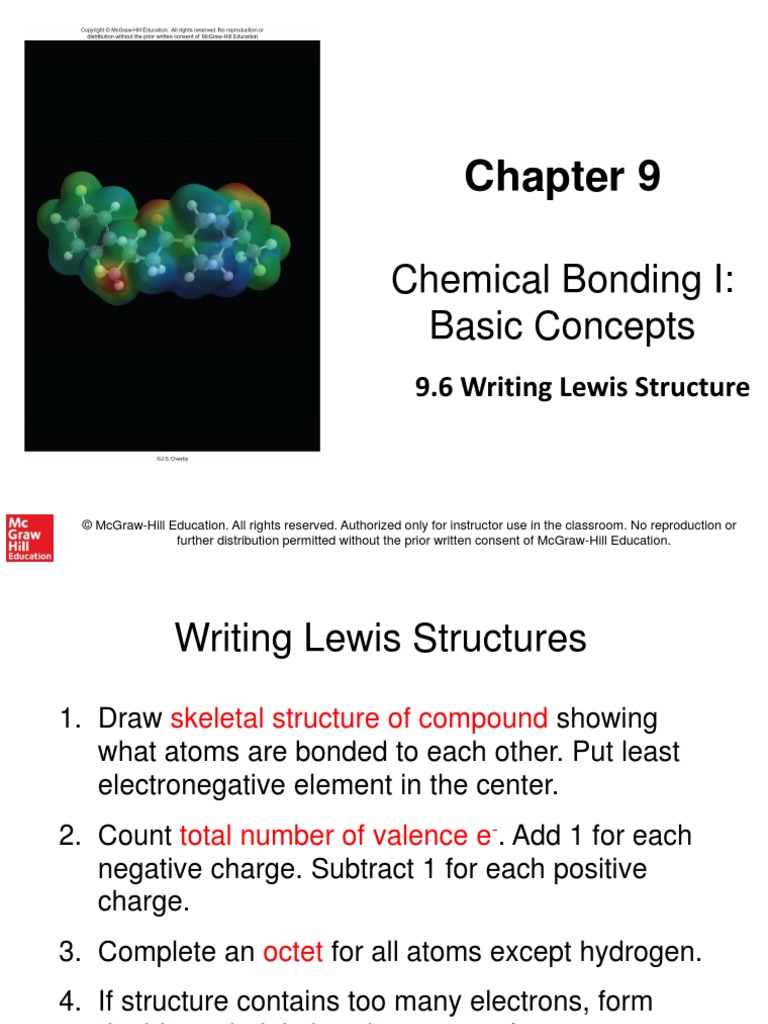

Chapter 9
Chemical Bonding I:
Basic Concepts
9.6 Writing Lewis Structure
© McGraw-Hill Education. All rights reserved. Authorized only for instructor use in the classroom. No reproduction or
further distribution permitted without the prior written consent of McGraw-Hill Education.
Writing Lewis Structures
1. Draw skeletal structure of compound showing
what atoms are bonded to each other. Put least
electronegative element in the center.
2. Count total number of valence e-. Add 1 for each
negative charge. Subtract 1 for each positive
charge.
3. Complete an octet for all atoms except hydrogen.
4. If structure contains too many electrons, form
double and triple bonds on central atom as
needed.
© McGraw-Hill Education. 9-2
Example 9.3
Write the Lewis structure for nitrogen trifluoride (NF3) in
which all three F atoms are bonded to the N atom.
Step 1. Draw skeletal structure of compound showing what
atoms are bonded to each other. Put least electronegative
element in the center.
F N F
F
© McGraw-Hill Education. 9-3
Example 9.3
Step 2. Count total number of valence electrons. Add 1 for
each negative charge. Subtract 1 for each positive charge.
The outer-shell electron
F N F configurations of:
N – 2s22p3 (5 e-)
F F – 2s22p5 (7 e-)
Total valence e- : 5 + (3 x 7) = 26
© McGraw-Hill Education. 9-4
Example 9.3
Step 3. Complete an octet for all atoms except hydrogen
Draw a single covalent bond between N and each F.
Complete the octets for the F atoms by adding e-.
Place the remaining 2 e- on N.
.. . .. ...
Total valence e- : 26 ..F. N .F..
Octet rule for:
N ..F..
F ..
© McGraw-Hill Education. 9-5
Example 9.4
Write the Lewis structure for nitric acid (HNO3) in which
the three O atoms are bonded to the central N atom
and the ionizable H atom is bonded to one of the O
atoms.
Step 1. Draw skeletal structure of compound showing what
atoms are bonded to each other. Put least electronegative
element in the center.
O N O H
O
© McGraw-Hill Education. 9-6
Example 9.4
Step 2. Count total number of valence electrons. Add 1 for
each negative charge. Subtract 1 for each positive charge.
The outer-shell electron
O N O H configurations of:
N – 2s22p3 (5 e-)
O O – 2s22p4 (6 e-)
H – 1s1 (1 e-)
Total valence e- : 5 + (3 x 6) + 1 = 24
© McGraw-Hill Education. 9-7
Example 9.4
Step 3. Complete an octet for all atoms except hydrogen
Draw a single covalent bond between N and each O, and between
O and H.
Complete the octets for the O atoms by adding e-.
..
..O N O H ..
Total valence e- : 24
.. ..
Octet rule for: ..O..
O
X N
..
© McGraw-Hill Education. 9-8
Example 9.4
Step 3. Complete an octet for all atoms except hydrogen
Draw a single covalent bond between N and each O, and O and H.
Complete the octets for the O atoms by adding e-.
.. ..
Total valence e- : 24 O
.. N O
.. H
Octet rule for: ..O..
O
N
..
© McGraw-Hill Education. 9-9
Example 9.5
Write the Lewis structure for the carbonate ion, (CO32- ).
Step 1. Draw skeletal structure of compound showing what
atoms are bonded to each other. Put least electronegative
element in the center.
O C O
O
© McGraw-Hill Education. 9-10
Example 9.4
Step 2. Count total number of valence electrons. Add 1 for
each negative charge. Subtract 1 for each positive charge.
The outer-shell electron
O C O configurations of:
C – 2s22p2 (4 e-)
O O – 2s22p4 (6 e-)
+ 2 negative charges
Total valence e- : 4 + (3 x 6) + 2 = 24
© McGraw-Hill Education. 9-11
Example 9.4
Step 3. Complete an octet for all atoms except hydrogen
Draw a single covalent bond between C and each O.
Complete the octets for the O atoms by adding e-.
..
..O C O.. ..
Total valence e- : 24 .. ..
Octet rule for: ..O..
O
X C
..
© McGraw-Hill Education. 9-12
Example 9.4
Step 3. Complete an octet for all atoms except hydrogen
Draw a single covalent bond between C and each O.
Complete the octets for the O atoms by adding e-.
.. .. . 2-
Total valence e- : 24 O
.. C O
.. .
Octet rule for: ..O..
O
C
..
© McGraw-Hill Education. 9-13
