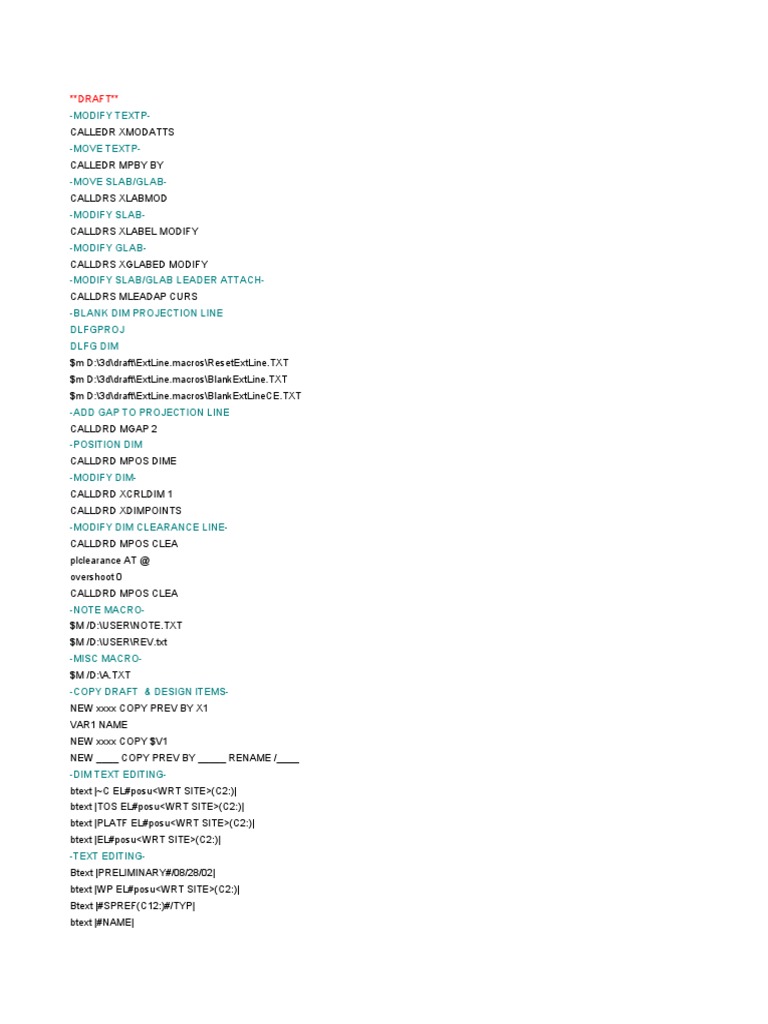

**DRAFT**

-MODIFY TEXTP-
CALLEDR XMODATTS
-MOVE TEXTP-
CALLEDR MPBY BY
-MOVE SLAB/GLAB-
CALLDRS XLABMOD
-MODIFY SLAB-
CALLDRS XLABEL MODIFY
-MODIFY GLAB-
CALLDRS XGLABED MODIFY
-MODIFY SLAB/GLAB LEADER ATTACH-
CALLDRS MLEADAP CURS
-BLANK DIM PROJECTION LINE
DLFGPROJ
DLFG DIM
$m D:\3d\draft\ExtLine.macros\ResetExtLine.TXT
$m D:\3d\draft\ExtLine.macros\BlankExtLine.TXT
$m D:\3d\draft\ExtLine.macros\BlankExtLineCE.TXT
-ADD GAP TO PROJECTION LINE
CALLDRD MGAP 2
-POSITION DIM
CALLDRD MPOS DIME
-MODIFY DIM-
CALLDRD XCRLDIM 1
CALLDRD XDIMPOINTS
-MODIFY DIM CLEARANCE LINE-
CALLDRD MPOS CLEA
plclearance AT @
overshoot 0
CALLDRD MPOS CLEA
-NOTE MACRO-
$M /D:\USER\NOTE.TXT
$M /D:\USER\REV.txt
-MISC MACRO-
$M /D:\A.TXT
-COPY DRAFT & DESIGN ITEMS-
NEW xxxx COPY PREV BY X1
VAR1 NAME
NEW xxxx COPY $V1
NEW ____ COPY PREV BY _____ RENAME /____
-DIM TEXT EDITING-
btext |~C EL#posu<WRT SITE>(C2:)|
btext |TOS EL#posu<WRT SITE>(C2:)|
btext |PLATF EL#posu<WRT SITE>(C2:)|
btext |EL#posu<WRT SITE>(C2:)|
-TEXT EDITING-
Btext |PRELIMINARY#/08/28/02|
btext |WP EL#posu<WRT SITE>(C2:)|
Btext |#SPREF(C12:)#/TYP|
btext |#NAME|
btext |#NAME(C2:)|
Dmtxt |#POSE<WRT /*>|
btext |WP EL#P6posu<WRT SITE>(C2:)|
TOS EL #PKTOS^POSSU(C2:)
**MISC**
$R14
$R

^^ $Q 1-10

ID ADIM @ Q SENS

SENS ANTICLOCKWISE

$M/D:\3d\draft\AddSlabsGlabsC_SPPT,FLOW,WELD-network.txt ATTA SPPT

$M/D:\3d\draft\UpdateSlabsGlabsNamesA_SPPT-network.txt

ALIGN TEXT WITH LEADER LINE

APOFFSET
CPOFFSET
XYPOS

-DB Listing-
D:\filename.txt

/ABS-901-001_AREA LAST MEM NEW ZONE /ABS-901-001_MOD-S$n COPY $!!CE RENAME /ABS-934 /ABS-901 MIRROR
$m d:\aaw-u1-da-drawlist.txt

DELETE item
ID item @ DELETE item

COLESON-COVE-TOWER-DE/REGI1/DWG1/DRAWLIST/S/PLAN_SECTION_13-13

Btext |FOR GENERAL NOTES, ERECTION NOTES, SYMBOL KEY AND CONTRACT DRAWINGS LIST SEE DRAWING 706
Btext |FOR ITEM NUMBER INDEX SEE DWG'S 70696J - 70708J.|

NEW STRA DEF IDP@ IDP@

NEW SYM COPY PREV DEF IDP@

$m I:\Macros_Library\Universal\sort.macro\sort_Variable.txt <WHAT NEEDS SORTED IE: ZONE, SHEET, PIPE>

$M/D:\3d\draft\CopySlabGlabA.txt
Btext |#catref(P,3:)(C2:)(P-:1)" #PIPE(P_2:)(C2:)|
Btext |#PIPE(C6:)(P-:1) #PIPE(P_2:)(C2:)(C:2)|
callibm xelemsel

NEW STRA DEF IDP@ IDP@

MAT (BTEXT,'part of text string') NEQ 0

Q USERMOD
Q LASTMOD
BS-934 /ABS-901 MIRROR PLA N WRT /* THRO /* $!!CE

LIST SEE DRAWING 70692J.|

HEET, PIPE>
NEW ATTA /2-MVS-93 COPY $V1 CONN TO PREV BY D 1'11.3/8
$M /D://A.TXT

$m /I:\Macros_Library\Design\SplitBran.macros\splitbran-ANY.TXT
$m /I:\Macros_Library\Design\SplitBran.macros\splitbran-FLAN.TXT
$m /I:\Macros_Library\Design\SplitBran.macros\splitbran-GASK.TXT
$m /I:\Macros_Library\Design\SplitBran.macros\splitbran-WELD.TXT

**MOVE ALONG **
BY E1' WRT STRU
BY E 1' WRT ID PANE @
BY E 1' WRT CE
MOVE E WRT STRU PLANE E WRT STRU DIST 1'
DISTANCE 20 FROM ID@

** PINS **
PI 1 AT CE
PI 1 OFF

BACK
DIR TOW NEXT
FOR
ORI AND P3 IS N
PI3 COPY P3

back
distance 24

REPRESENTATION HOLES OFF

REPRESENTATION HOLES ON

REPRESENTATION UPDATE
TO ASSIGN ISODRAFT COLUMN/EQUI REFERENCES IN DESIGN FOR PIPING COMPONENTS
Dmtype NORT
Dmtype EAST
Dmtype NORT EAST
Dmtype NORT UP

Dmfarray =8197/3246 =8197/3246

Skey |VST|

ATTY CCNN
ATTY CCCC

TO CHANGE SMALL BORE PIPING FROM FIELD INSTALLED TO SHOP INSTALLED:

Q HSTUBE

Hstube /VT2/PIP,,2,,150PS,,,PRPSARIL (REPRESENTS FIELD PIPE)

Hstube /VT2/PIP,,2,,150PS,,,PRPSARIL:X (REPRESENTS SHOP PIPE)

ADDING BRANCHES INTO PIPE FROM ANOTHER PIPE

INCL BRANCH OF ID@
INCL BRANCH OF ID@ AFTER FIRST MEM

INCL ID BRAN@
Q NAME (of pipe)
NAME /C/B1 @ /A/B1
PI3 COPY P3

ONERROR CONTINUE

BRAN CONN PH TO HREF

CONN PH TO HREF
CONN PT TO TREF

PI1 AT P0 DIR U WRT/*

PI2 COPY PIN 1 PLA U WRT/* THRO ID@
PI2 DIR W WRT/*
PI3 COPY P3
PI4 COPY PIN3 PLA N WRT/* THRO PIN2
AT PIN 4
MOVE W WRT/* PLA W WRT/* THRO NEX

DELETE item type (ie: ZONE, EQUI, STRU, etc…)

$m I:\Macros_Library\Design\AddSteelLines.macro\AddBeamTOSD.txt
$m I:\Macros_Library\Design\AddSteelLines.macro\AddColCTRC.txt

AT ID @
IMPLANT BATCH FILE
Run D:\pdms\implant\GetDirectoryContents.macroGetDirectoryContentsc-mja.txt
This will create D:\pdms\implant\DGNsToConvert.txt
Open the Impant-I 1.5.1 - BATCH MODE
Run D:\pdms\implant\DGNsToConvert.tx

Q NAME (of item whose members need copied)

COPY MEMbers OF <name from above>

FORCES THE BRANCH TO SELECT THE PIPE SPEC

SELECT HSTUBE
SELECT LSTUBE

GOTO SPREF GOTO CATREF Q DESC

Q DESC OF CATREF
TCON DRAN
TCON VENT

Btext |#DESC<FR =30686/993>#19 #CATREF<FR =30686/993>(P,6:)(C2:)"#30 #NAME<FR =30686/993>#50 ~C EL#POSU<

Q USERMODification
Q LASTMODification
Selection: ALL
 with Rule : MATch(NAME, '/NAME') NEQ 0

cate of catref eq /BCJ,VLV,KNIFEGATE/NEWCON-MAN/HWHL

COMPONENTS
ntentsc-mja.txt
P,6:)(C2:)"#30 #NAME<FR =30686/993>#50 ~C EL#POSU<FR =30686/993>(C2:)|
 PDMS standard Design colors
By color name By color number
Aquamarine 38 Grey 1 Black 15
Beige 44 Red 2 White 10
Black 15 Orange 3 Whitesmoke 17
Blue 7 Yellow 4 Ivory 18
Brightorange 28 Green 5 Grey 1
Brightred 22 Cyan 6 Lightgrey 19
Brown 9 Blue 7 Darkgrey 20
Chocolate 49 Violet 8 Darkslate 21
Coralred 23 Brown 9 Red 2
Cyan 6 White 10 Brightred 22
Darkbrown 50 Pink 11 Coralred 23
Darkgreen 37 Mauve 12 Tomato 24
Darkgrey 20 Turquoise 13 Plum 25
Darkslate 21 Indigo 14 Deeppink 26
Deeppink 26 Black 15 Pink 11
Forestgreen 36 Magenta 16 Salmon 27
Gold 31 Whitesmoke 17 Orange 3
Green 5 Ivory 18 Brightorange 28
Grey 1 Lightgrey 19 Orangered 29
Indigo 14 Darkgrey 20 Maroon 30
Ivory 18 Darkslate 21 Yellow 4
Khaki 48 Brightred 22 Gold 31
Lightgold 33 Coralred 23 Lightyellow 32
Lightgrey 19 Tomato 24 Lightgold 33
Lightyellow 32 Plum 25 Yellowgreen 34
Magenta 16 Deeppink 26 Springgreen 35
Maroon 30 Salmon 27 Green 5
Mauve 12 Brightorange 28 Forestgreen 36
Midnight 42 Orangered 29 Darkgreen 37
Navyblue 40 Maroon 30 Cyan 6
Orange 3 Gold 31 Turquoise 13
Orangered 29 Lightyellow 32 Aquamarine 38
Pink 11 Lightgold 33 Blue 7
Plum 25 Yellowgreen 34 Royalblue 39
Powderblue 41 Springgreen 35 Navyblue 40
Red 2 Forestgreen 36 Powderblue 41
Royalblue 39 Darkgreen 37 Midnight 42
Salmon 27 Aquamarine 38 Steelblue 43
Sandybrown 47 Royalblue 39 Indigo 14
Springgreen 35 Navyblue 40 Mauve 12
Steelblue 43 Powderblue 41 Violet 8
Tan 46 Midnight 42 Magenta 16
Tomato 24 Steelblue 43 Beige 44
Turquoise 13 Beige 44 Wheat 45
Violet 8 Wheat 45 Tan 46
Wheat 45 Tan 46 Sandybrown 47
White 10 Sandybrown 47 Brown 9
Whitesmoke 17 Khaki 48 Khaki 48
 Yellow 4 Chocolate 49 Chocolate 49
Yellowgreen 34 Darkbrown 50 Darkbrown 50
To revise a drawing collect all GLAB's, SLAB's into a list w/ (badref (ddna) eq t)
To revise a drawing collect all LDIM MEMB into a list (or any dimension) w/ (badref (ddna) eq t)
AFTER DRAWINGS ARE CREATED -- REUSE DESIGN ITEMS, DO NOT DELETE!!!

If possible use 01 instead of 1 (EX. Pipe support numbers)

Be consistent when naming items.
Use intelligent text [ EX. #OWNER(P/2:)(C2:)(P/:1)#/(#P1BOR DIA) ]
name nozzles ex./ASHE-0-EQ-252-TNK-4030A(LS.TNK-A)DN.CONN
use desc of EQUI ex.LIMESTONE SLURRY#/STORAGE TANK A

Attach GLAB's to elbow/tee (something that probably won't be deleted)

Drawlist for each view
Hold clouds or rev clouds should be on their own layer

Know where vendor equipment origins are located
