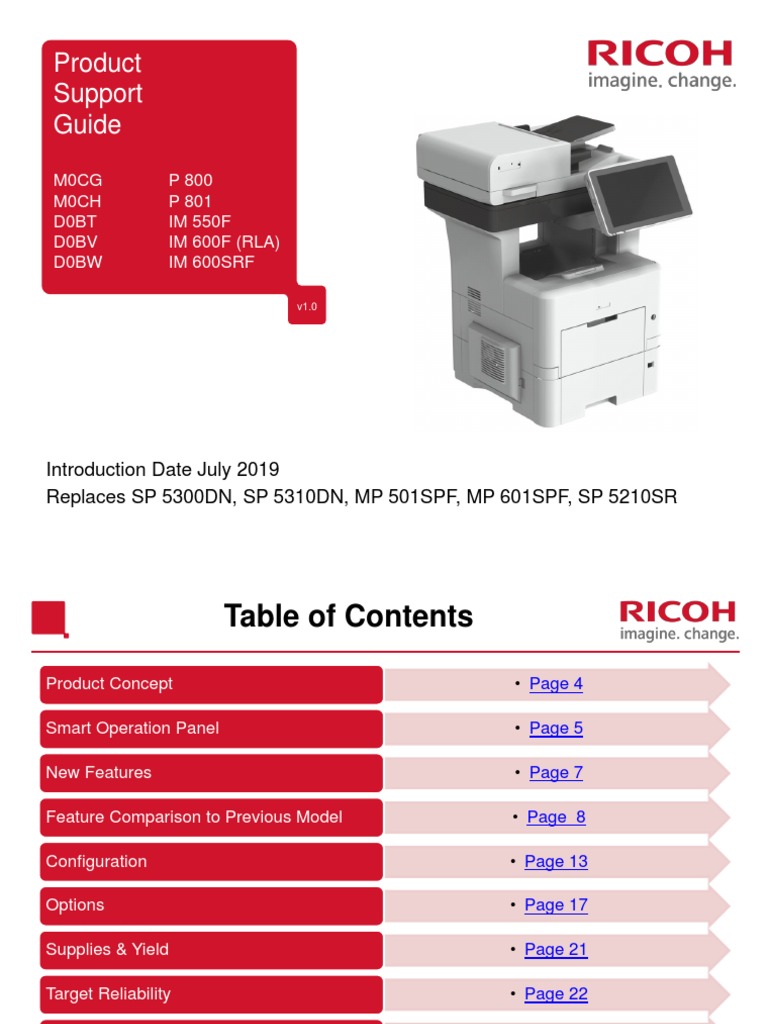

Support
Guide
M0CG P 800
M0CH P 801
D0BT IM 550F
D0BV IM 600F (RLA)
D0BW IM 600SRF
v1.0
Configuration • Page 13
Options • Page 17
Dimensions • Page 29
Documentation • Page 33
Revisions • Page 37
Hardware Options
A 500-sheet Paper Feed Units, Maximum 4-Trays
B Caster Table: Required when configured with 3 or 4 PFUs; includes stabilizers.
Hardware Options
A 500-sheet Paper Feed Units, Maximum 4-Trays
B Caster Table: Required when configured with 3 or 4 PFUs; includes stabilizers.
C NFC Card Reader
Slot Option
Device Server Option Type M37
IEEE 1284 Interface Board Type M19
[A] I/F slot
IEEE 802.11 Interface Unit Type M24
File Format Converter Type M19*
Notes:
1. Maximum of 4 can be installed
2. Required when 4 additional trays are installed (M0CG, M0CH)
3. Required when 3 or 4 Paper Feed Units are installed (D0BT, D0BV & D0BW)
4. Recommended for installation with 3 additional trays in a floor standing configuration (M0CG & M0CH)
5. Recommended for installation with 1 or 2 additional trays in a floor standing configuration (D0BT, D0BV & D0BW)
6. Recommended for installation with 1 or 2 additional trays in a floor standing configuration (M0CG, M0CH)
7. Recommended for installation with base unit in a floor standing configuration (D0BT, D0BV & D0BW)
Versoin 1.0 Subject to Change 17
Options
Product EDP Common /
Item Description
Code Code Unique
File Format Converter File Format
D3BR04 417508 C
Type M19 Converter
IEEE 802.11 Interface Unit
Wireless LAN M50008 407863 C
Type M24
Device Server Option
Second NIC port D3GF10 418398 C
Type M37
Hard Disk Drive Option
HDD Option M50005 407873 C
Type P8
FAX Memory
FAX Memory Unit Type M19 D79209 417006 C
Option 64MB
VM Card Type M37 JAVA VM D3GF32 418410 C
NFC Card Reader Type M24 NFC Card Reader D3CP08 407853 C
Genuine PS3
Postscript3 Unit Type M40 D3FL01 418476 U
Option
Note:
The figures above are calculated based on the following:
▪ A4 (LT) Short edge feed
▪ 6% image coverage ratio
▪ 3 P/J
*Print Cartridge IM 600H for use with M0CH, D0BV & D0BW
Versoin 1.0 Subject to Change 21
Target Reliability
Model AMV Max MV
M0CG 4,000 16,667
M0CH 5,500 16,667
D0BT 5,000 16,667
D0BV 6,500 16,667
D0BW 6,500 16,667
Note:
▪ This model does not have any PM parts so there is no PM cycle.
▪ The figures above are calculated based on the following:
‒ Recommended paper types are used
‒ The machine is installed under operable environmental conditions
‒ A4 (LT) short-edge feed
‒ Image coverage ratio: 6%
‒ 3 P/J
Versoin 1.0 Subject to Change 22
Yield Parts - Mainframe
Expected Yield Unique Or
Part Number Description
(Pages) Common
PCDU
M0CH3050 Drum unit 500,000 U
M2813030 Development unit 500,000 C
Fusing Unit
M0CH4070 Fusing unit 400,000 U
Transfer
M2812838 Transfer roller unit 500,000 C
Paper Feed
M2812821 Paper feed roller 500,000 C
M2812824 Pickup roller 500,000 C
M2812520 Separation roller 500,000 C
SPDF
D0BV1730 Feed roller ass’y 200,000 U
D2555568 Separation pad ass’y 200,000 C
▪ Footprint (W x D x H)
‒ P 800: 16.54” x 16.14 x 13.58”*
‒ P 801: 17.44” x 16.14 x 14.37”*
▪ Space Requirements
‒ Front: 19.7”
‒ Left: 11.9”
‒ Rear: 11.9"
‒ Right: 3.9"
‒ Top: 15.7”
▪ Weight
‒ Less than 40 lbs
▪ Footprint (W x D x H)
‒ IM 550F/IM 600F: 18.9" x 21.3" x 25.4“*
‒ IM 600SRF: 18.9" x 21.3" x 29.2“*
▪ Space Requirements
‒ Front: 19.7”
‒ Left: 11.9”
‒ Rear: 11.9"
‒ Right: 3.9“ (11.9” – D0BW)
‒ Top: 15.7”
▪ Weight
‒ Less than 61.6 lbs
‒ Less than 80 lbs
*Note: Measurements for mainframe only.
Environment
P800 W x D x H
IM 550F/600F W x D x H
16.54” x 16.14 x 13.58”
18.9" x 21.3" x 25.4”
[A]: 16.6"
[A]: 18.9"
[B]: 13.6“
[B]: 25.4"
P801: W x D x H
IM 600SRF W x D x H
17.5” x 16.2” x 14.4”
18.9’’ x21.3’’ x 29.2’’
[A]: 17.5”
[A]: 18.9’’
[B}: 14.4”
[B]: 29.2’’
Materials
▪ Training documents created by RHQ collaborative work
▪ FSM (Field Service Manual)
▪ Parts Catalog
▪ Operating Instructions (when possible)
▪ Global Knowledge Contents (when possible)
▪ Limitation List (if there is and when possible)
Note:
Service preparation for M0CG/M0CH/D0BT/D0BV/D0BW will be handled through the LINK Project, in which RCL will no
longer create the TTP (technical training package), but the training materials will be developed in collaboration by RAC
and RE instead.
Please refer to the www.ricohlearninginstitute.com site for the most up to date training
information.
Please be aware that once a model or series is out of production, the Field Service
Manual, Technical Service Bulletins and Ricoh University should be referenced for the
most current information. Check the TSC website and e-source.
▪ 1.0 Original
