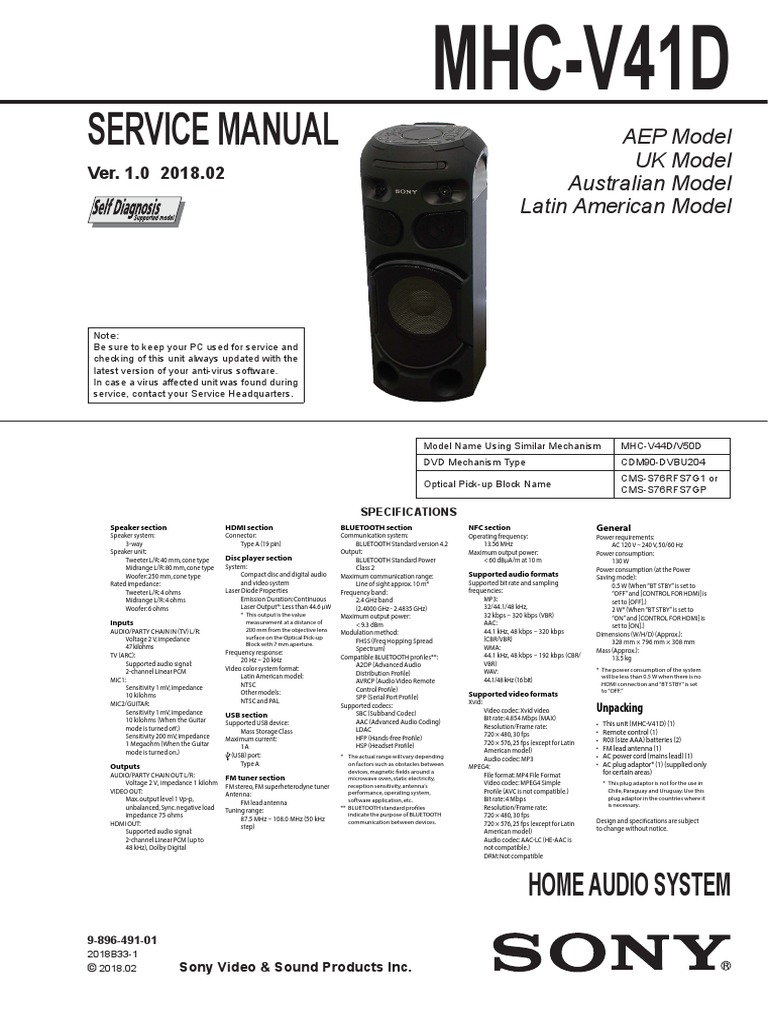

MHC-V41D

SERVICE MANUAL AEP Model

UK Model
Ver. 1.0 2018.02
Australian Model
Latin American Model

Note:
Be sure to keep your PC used for service and
checking of this unit always updated with the
latest version of your anti-virus software.
In case a virus affected unit was found during
service, contact your Service Headquarters.

Model Name Using Similar Mechanism MHC-V44D/V50D

DVD Mechanism Type CDM90-DVBU204
CMS-S76RFS7G1 or
Optical Pick-up Block Name
CMS-S76RFS7GP

Speaker section
Speaker system:
3-way
Speaker unit:
Tweeter L/R: 40 mm, cone type
Midrange L/R: 80 mm, cone type
Woofer: 250 mm, cone type
Rated impedance:
Tweeter L/R: 4 ohms
Midrange L/R: 4 ohms
Woofer: 6 ohms
Inputs
AUDIO/PARTY CHAIN IN (TV) L/R:
Voltage 2 V, impedance
47 kilohms
TV (ARC):
Supported audio signal:
2-channel Linear PCM
MIC1:
Sensitivity 1 mV, impedance
10 kilohms
MIC2/GUITAR:
Sensitivity 1 mV, impedance
10 kilohms (When the Guitar
mode is turned off.)
Sensitivity 200 mV, impedance
1 Megaohm (When the Guitar
mode is turned on.)
Outputs
AUDIO/PARTY CHAIN OUT L/R:
Voltage 2 V, impedance 1 kilohm
VIDEO OUT:
Max. output level 1 Vp-p,
unbalanced, Sync. negative load
impedance 75 ohms
HDMI OUT:
Supported audio signal:
2-channel Linear PCM (up to
48 kHz), Dolby Digital
SPECIFICATIONS
HDMI section BLUETOOTH section
Connector: Communication system:
Type A (19 pin) BLUETOOTH Standard version 4.2
Output:
Disc player section BLUETOOTH Standard Power
System: Class 2
Compact disc and digital audio Maximum communication range:
and video system Line of sight approx. 10 m*
Laser Diode Properties Frequency band:
Emission Duration: Continuous 2.4 GHz band
Laser Output*: Less than 44.6 μW (2.4000 GHz - 2.4835 GHz)
* This output is the value Maximum output power:
measurement at a distance of < 9.3 dBm
200 mm from the objective lens
Modulation method:
surface on the Optical Pick-up
FHSS (Freq Hopping Spread
Block with 7 mm aperture.
Spectrum)
Frequency response:
Compatible BLUETOOTH profiles**:
20 Hz – 20 kHz
A2DP (Advanced Audio
Video color system format:
Distribution Profile)
Latin American model:
AVRCP (Audio Video Remote
NTSC
Control Profile)
Other models:
SPP (Serial Port Profile)
NTSC and PAL
Supported codecs:
USB section SBC (Subband Codec)
Supported USB device: AAC (Advanced Audio Coding)
Mass Storage Class LDAC
Maximum current: HFP (Hands-free Profile)
1A HSP (Headset Profile)
(USB) port: * The actual range will vary depending
Type A on factors such as obstacles between
devices, magnetic fields around a
FM tuner section microwave oven, static electricity,
FM stereo, FM superheterodyne tuner reception sensitivity, antenna’s
performance, operating system,
Antenna:
software application, etc.
FM lead antenna
** BLUETOOTH standard profiles
Tuning range:
indicate the purpose of BLUETOOTH
87.5 MHz – 108.0 MHz (50 kHz communication between devices.
step)
NFC section
Operating frequency:
13.56 MHz
Maximum output power:
< 60 dBμA/m at 10 m
Supported audio formats
Supported bit rate and sampling
frequencies:
MP3:
32/44.1/48 kHz,
32 kbps – 320 kbps (VBR)
AAC:
44.1 kHz, 48 kbps – 320 kbps
(CBR/VBR)
WMA:
44.1 kHz, 48 kbps – 192 kbps (CBR/
VBR)
WAV:
44.1/48 kHz (16 bit)
Supported video formats
Xvid:
Video codec: Xvid video
Bit rate: 4.854 Mbps (MAX)
Resolution/Frame rate:
720 × 480, 30 fps
720 × 576, 25 fps (except for Latin
American model)
Audio codec: MP3
MPEG4:
File format: MP4 File Format
Video codec: MPEG4 Simple
Profile (AVC is not compatible.)
Bit rate: 4 Mbps
Resolution/Frame rate:
720 × 480, 30 fps
720 × 576, 25 fps (except for Latin
American model)
Audio codec: AAC-LC (HE-AAC is
not compatible.)
DRM: Not compatible
General
Power requirements:
AC 120 V – 240 V, 50/60 Hz
Power consumption:
130 W
Power consumption (at the Power
Saving mode):
0.5 W (When “BT STBY” is set to
“OFF” and [CONTROL FOR HDMI] is
set to [OFF].)
2 W* (When “BT STBY” is set to
“ON” and [CONTROL FOR HDMI] is
set to [ON].)
Dimensions (W/H/D) (Approx.):
328 mm × 796 mm × 308 mm
Mass (Approx.):
13.5 kg
* The power consumption of the system
will be less than 0.5 W when there is no
HDMI connection and “BT STBY” is set
to “OFF.”
Unpacking
t This unit (MHC-V41D) (1)
t Remote control (1)
t R03 (size AAA) batteries (2)
t FM lead antenna (1)
t AC power cord (mains lead) (1)
t AC plug adaptor* (1) (supplied only
for certain areas)
* This plug adaptor is not for the use in
Chile, Paraguay and Uruguay. Use this
plug adaptor in the countries where it
is necessary.
Design and specifications are subject
to change without notice.

HOME AUDIO SYSTEM

9-896-491-01
2018B33-1
© 2018.02 Sony Video & Sound Products Inc.
MHC-V41D
License and Trademark Notice
t is a trademark of DVD Format/
Logo Licensing Corporation.
t “DVD+RW,” “DVD-RW,” “DVD+R,”
“DVD-R,” “DVD VIDEO,” and the “CD”
logos are trademarks.
t WALKMAN® and WALKMAN® logo
are registered trademarks of Sony
Corporation.
t MPEG Layer-3 audio coding
technology and patents licensed
from Fraunhofer IIS and Thomson.
t Windows Media is either a
registered trademark or trademark
of Microsoft Corporation in
the United States and/or other
countries.
t This product is protected by
certain intellectual property rights
of Microsoft Corporation. Use or
distribution of such technology
outside of this product is prohibited
without a license from Microsoft or
an authorized Microsoft subsidiary.
t This system incorporates Dolby*
Digital.
* Manufactured under license from
Dolby Laboratories. Dolby, Dolby
Audio, and the double-D symbol are
trademarks of Dolby Laboratories.
t This system incorporates High-
Definition Multimedia Interface
(HDMI™) technology. The terms
HDMI and HDMI High-Definition
Multimedia Interface, and the HDMI
Logo are trademarks or registered
trademarks of HDMI Administrator,
Inc. in the United States and other
countries.
t “BRAVIA” is a trademark of Sony
Corporation.
t LDAC™ and LDAC logo are
trademarks of Sony Corporation.
t The BLUETOOTH® word mark and
logos are registered trademarks
owned by Bluetooth SIG, Inc. and
any use of such marks by Sony
Corporation is under license. Other
trademarks and trade names are
those of their respective owners.
t The N-Mark is a trademark or
registered trademark of NFC Forum,
Inc. in the United States and in other
countries.
CAUTION
The use of optical instruments with
this product will increase eye hazard.
For customers in Europe
NOTES ON CHIP COMPONENT REPLACEMENT
• Never reuse a disconnected chip component.
• Notice that the minus side of a tantalum capacitor may be dam-
aged by heat.
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous radia-
tion exposure.
2
t Android and Google Play are
trademarks of Google LLC.
t Apple, the Apple logo, iPhone, and
iPod touch are trademarks of Apple
Inc., registered in the U.S. and other
countries. App Store is a service
mark of Apple Inc.
t Siri is a trademark of Apple Inc.
t “Made for iPod,” and “Made for
iPhone” mean that an electronic
accessory has been designed
to connect specifically to iPod
or iPhone, respectively, and has
been certified by the developer
to meet Apple performance
standards. Apple is not responsible
for the operation of this device
or its compliance with safety and
regulatory standards. Please note
that the use of this accessory with
iPod or iPhone may affect wireless
performance.
t THIS PRODUCT IS LICENSED UNDER
THE MPEG-4 VISUAL PATENT
PORTFOLIO LICENSE FOR THE
PERSONAL AND NON-COMMERCIAL
USE OF A CONSUMER FOR
(i) ENCODING VIDEO IN
COMPLIANCE WITH THE MPEG-4
VISUAL STANDARD (“MPEG-4
VIDEO”)
AND/OR
(ii) DECODING MPEG-4 VIDEO THAT
WAS ENCODED BY A CONSUMER
ENGAGED IN A PERSONAL AND
NON-COMMERCIAL ACTIVITY
AND/OR WAS OBTAINED FROM
A VIDEO PROVIDER LICENSED TO
PROVIDE MPEG-4 VIDEO.
NO LICENSE IS GRANTED OR SHALL
BE IMPLIED FOR ANY OTHER
USE. ADDITIONAL INFORMATION
INCLUDING THAT RELATING TO
PROMOTIONAL, INTERNAL AND
COMMERCIAL USES AND LICENSING
MAY BE OBTAINED FROM MPEG LA,
L.L.C.
HTTP://WWW.MPEGLA.COM
t All other trademarks are trademarks
of their respective owners.
t In this manual, ™ and ® marks are
not specified.
Self-diagnosis function
When letters/numbers appear
on the TV screen or the display
When the self-diagnosis function
is activated to prevent the system
from malfunctioning, a service
number appears. The service
number consists of an alphabet
and numerals (e.g. C 13 50). See the
following table for the cause and
corrective action.
First 3 Cause and corrective
characters of action
the service
number
C 13 This disc is dirty.
t Clean the disc with a
soft cloth.
C 31 The disc is not inserted
correctly.
t Turn off the system,
then turn it back on
again. Then re-insert the
disc correctly.
E XX To prevent a
(XX is a malfunction, the system
number) has performed the
self-diagnosis function.
t Contact your nearest
Sony dealer or local
authorized Sony service
facility and give the
5-character service
number.
Example: E 61 10
SAFETY-RELATED COMPONENT WARNING!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE
WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
 MHC-V41D

TABLE OF CONTENTS

1. SERVICING NOTES ............................................. 4 6. DIAGRAMS

6-1. Block Diagram - SERVO/USB/VIDEO Section - .......... 43
2. DISASSEMBLY 6-2. Block Diagram - AUDIO Section -................................. 44
2-1. Disassembly Flow ........................................................... 9 6-3. Block Diagram - AMP/PANEL Section - ....................... 45
2-2. Side Panel ....................................................................... 10 6-4. Block Diagram - POWER SUPPLY Section - ................ 46
2-3. Top Panel Block-1........................................................... 11 6-5. Printed Wiring Board - MOTHER Board (Side A) - ...... 48
2-4. Top Panel Block-2........................................................... 12 6-6. Printed Wiring Board - MOTHER Board (Side B) - ...... 49
2-5. Loading Panel Block ....................................................... 13 6-7. Schematic Diagram - MIC Board - ................................. 50
2-6. Loading Panel ................................................................. 14 6-8. Printed Wiring Board - MIC Board - .............................. 51
2-7. CDM Block ..................................................................... 15 6-9. Printed Wiring Board - IR Board -.................................. 51
2-8. FFC Holder ..................................................................... 16 6-10. Schematic Diagram - IR Board - .................................... 51
2-9. Optical Pick-up Block (CMS-S76RFS7G) ..................... 17 6-11. Printed Wiring Board - GESTURE Board -.................... 52
2-10. Rear Panel Block ............................................................ 18 6-12. Schematic Diagram - GESTURE Board - ...................... 53
2-11. PARTY LED Board......................................................... 18 6-13. Printed Wiring Board - PANEL Board - ......................... 54
2-12. DC Fan, Rear Panel ........................................................ 19 6-14. Schematic Diagram - PANEL Board - ............................ 55
2-13. Chassis Block .................................................................. 20 6-15. Printed Wiring Board - SMPS Board - ........................... 56
2-14. SMPS Board ................................................................... 21 6-16. Schematic Diagram - SMPS Board - .............................. 57
2-15. MOTHER Board ............................................................. 22
2-16. MIC Board ...................................................................... 23 7. EXPLODED VIEWS
2-17. PANEL Board ................................................................. 24 7-1. Side Panel Section .......................................................... 59
2-18. Electret Cap Microphone ................................................ 25 7-2. Top Panel Section ........................................................... 60
2-19. NFC Board ...................................................................... 25 7-3. Loading Panel Section .................................................... 61
2-20. GESTURE Board ............................................................ 26 7-4. Rear Panel Section .......................................................... 62
2-21. Front Panel Block-1 ........................................................ 27 7-5. Chassis Section ............................................................... 63
2-22. Front Panel Block-2 ........................................................ 28 7-6. Front Panel Section ......................................................... 64
2-23. SW LED Board, IR Board .............................................. 29 7-7. Speaker Cabinet Section ................................................. 65
2-24. Loudspeaker (Tweeter) ................................................... 30 7-8. CDM Block Section ........................................................ 66
2-25. Loudspeaker (Midrange)................................................. 31 7-9. DVD Mechanism Deck Section
2-26. Loudspeaker (Subwoofer)............................................... 32 (CDM90-DVBU204) ...................................................... 67
2-27. Chassis Block Service Position....................................... 33
2-28. Top Panel Block Service Position ................................... 33 8. ELECTRICAL PARTS LIST .............................. 68

3. TEST MODE ............................................................ 34

Accessories are given in the last of the electrical parts list.

4. ELECTRICAL CHECKS ...................................... 37

5. TROUBLESHOOTING .......................................... 38

3
MHC-V41D
SECTION 1
SERVICING NOTES
The SERVICING NOTES contains important information for servicing. Be sure to read this section before repairing the unit.

IMPORTANT NOTE OF PERFORMING THE OPERA-

NOTES ON HANDLING THE OPTICAL PICK-UP
BLOCK OR BASE UNIT
The laser diode in the optical pick-up block may suffer electro-
static break-down because of the potential difference generated by
the charged electrostatic load, etc. on clothing and the human body.
During repair, pay attention to electrostatic break-down and also
use the procedure in the printed matter which is included in the
repair parts.
The flexible board is easily damaged and should be handled with
care.
NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to be focused
on the disc reflective surface by the objective lens in the optical
pickup block. Therefore, when checking the laser diode emission,
observe from more than 30 cm away from the objective lens.
TION CHECK
When performing the operation check of this unit, be sure to per-
form the operation check after checking that it is in the following
state.
• Heat sink is installed to MOTHER board
• Fan motor is connected to MOTHER board
Note: If turn the power on in the state that heat sink is not installed, there is
a possibility of damage.
Also, be sure to perform the operation check in the connect the fan
motor to the MOTHER board, and the fan motor is rotating state.
If it is necessary to perform the operation check with the heat sink
removed or the fan motor removed, set the volume to 10 or less and
perform the operation check within 1 minute.
fan motor

UNLEADED SOLDER
Boards requiring use of unleaded solder are printed with the lead-
free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with heat sink
the lead free mark due to their particular size)

: LEAD FREE MARK

Unleaded solder has the following characteristics.
• Unleaded solder melts at a temperature about 40 °C higher MOTHER board
than ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
If “PROTECTX” (X is a number) APPEARS ON THE
applied to the solder joint for a slightly longer time.
DISPLAY, THEN “CHECK MANUAL” FLASHES ON
Soldering irons using a temperature regulator should be set to
THE DISPLAY.
about 350 °C.
Caution: The printed pattern (copper foil) may peel away if Immediately unplug the AC
power cord (mains lead), and
the heated tip is applied for too long, so be careful! check if anything is blocking the
• Strong viscosity ventilation openings of the unit.
Unleaded solder is more viscous (sticky, less prone to flow)
After you have checked and
than ordinary solder so use caution not to let solder bridges found no problems, reconnect
occur such as on IC pins, etc. the AC power cord (mains lead),
• Usable with ordinary solder and turn on the system.
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder. Protect Type Description:
Protect
Contents
No.
There is possibility of over current happen at speak-
er output.
1 or
Unusual heat up of AMP IC by improper assembly of
heat sink.
Defect of thermistor IC or charging circuit used by
2
SPM (Sound Pressure Management) system.
3 Power supply over current.
4 DC appears in SP terminal by defect of AMP IC.
6 Defect of DC FAN and DC FAN driver circuit.

4
 MHC-V41D

CAPACITOR ELECTRICAL DISCHARGE PROCESSING MODEL IDENTIFICATION

When removing the MOTHER board and SMPS board after check- Distinguish by destination code on the rear side of the main unit.
ing the operation of this unit, be sure to perform the discharge pro-
cessing of C2076 on the MOTHER board and C6302 on the SMPS
AEP, UK
board before removing the boards.
When it is removed the boards without performing the discharge
processing and it is shorted the both end of C2076 on the MOTH- Serial label
ER board, it might be damaged the DAMP IC.
Perform the discharge processing with referring the figure below. Destination code
Note: Be sure to discharge using a resistor of 800  or higher.
AUS, LA
– Top view –
MOTHER board SMPS board Serial label
Perform the discharge
processing with
Destination code
connecting the resistor
to the hole of C6301
that is not mounted
the part.

– Rear view –

Destination code Destination

C2076 C6302 AU1 AUS model
CEK UK model
Perform the discharge processing 800 :/2 W
CEL AEP model
with connecting the resistor between
LA9 LA model
PVDD (any one 6 to 9 pin) and PGND
(any one 1 to 5 pin) of CN2007. Note: For detail about the destination, refer to “DESTINATION ABBRE-
VIATIONS” below.

800 :/2 W DESTINATION ABBREVIATIONS

The following abbreviations for model destinations are used in this
service manual.

• Abbreviations
AEP : European area (Except for Ireland, UK), East European
area, CIS area (Moldova) and Middle East area (Jordan)
models
AUS : Australian and New Zealand models
LA : Latin American area (Except for Argentina, Brazil) model
UK : UK and Ireland models

5
MHC-V41D

IMPORTANT 4. Press the [ +]/[– ] buttons to select target destination, and

press the [ ] button on the remote commander.
DESTINATION SETTING METHOD 5. The message “RESET” is displayed on the vacuum fluorescent
The destination information isn’t written in the MOTHER board for display, then start the initialization (power off (demonstration
the service. mode) → power on → power off (demonstration mode)) auto-
Therefore, when the MOTHER board is replaced, be sure to per- matically.
Note 5: Don’t disconnect the power supply cord during the initializa-
form the destination setting (Important work).
tion.
Note 1: The initial setting destination of the MOTHER board for the
service is “LA”. The message “D LATIN” is displayed on the Screen display
vacuum fluorescent display.
Note 2: When distinguishing the destination of the product, refer to the
“MODEL IDENTIFICATION” on page 5. 6. When the initialization is completed, the destination change is
Note 3: If destination setting isn’t performed, it is possibility to occur the completed.
defect to each operation of this unit. 7. When checking the setting destination, refer to the “PANEL TEST
MODE” on page 35.
Procedure:
1. Press two buttons of the [SOUND FIELD] and [TUNING +
>] simultaneously for 3 seconds during the demonstration NFC OPERATION CHECKING METHOD
mode. When the MOTHER board is replaced, it is necessary to check that
2. It enters the destination setting mode, the message “D LATIN” pairing is normally performed.
is displayed on the vacuum fluorescent display. Perform the operation check according to the following procedure.
Note 4: If the message “DEST LOCK” is displayed on the vacuum
fluorescent display, press the [ ] button on the remote com-
Note: Be sure to delete paring information after checking the pairing.
mander to release from this mode. Because the destination is
locked, and it cannot change the destination.
1. Necessary Equipment
Initial screen display • NFC-compatible smartphone
Note 1: Smartphones with a built-in NFC function (OS: Android
2.3.3 or later, excluding Android 3.x).
Note 2: If the NFC-compatible smartphone has an OS version that
3. Press the [ +]/[– ] buttons, destination is displayed on the
is older than Android 4.1.x, download and install the “NFC
vacuum fluorescent display in following order. Easy Connect” application.
Screen display
2. Connection Method
Procedure:
[ +] [– ] [ +] [– ]
1. Turn on the NFC function of the smartphone.
If the NFC-compatible smartphone has an OS version that is
[ +] [– ] [ +] [– ] older than Android 4.1.x, start the “NFC Easy Connect” ap-
plication.
[ +] [– ] [ +] [– ] 2. Press the [1] button to turn the power on.
3. Touch the smartphone to the N-Mark on this unit.

[ +] [– ] [ +] [– ]

[ +] [– ] [ +] [– ]

Setting destination by display:

Screen Destination
Model area
display code 4. When the NFC connection is completed, connected smart-
D ASIA ─ ─ phone name is displayed on the vacuum fluorescent display.
5. Start the playback of an audio source on the smartphone.
D INDIA ─ ─
Note 3: For details, refer to the operating instructions of smartphone.
D ME AFC ─ ─
D OCEANI AU1 Australia, New Zealand 3. Connection Releasing Method
D JAPAN Not used ─ Touch the smartphone to the N-Mark on this unit again.
D BRAZIL Not used ─ 4. Deletion of Pairing Information
D N AME Not used ─ Perform the “COLD RESET” on page 34.
Latin America (Except for Argen-
D LATIN LA9
tina, Brazil)
D RUSSIA ─ ─
Europe (Including Ireland, UK),
D EUROPE CEL, CEK
East Europe, Moldova, Jordan

– Continued to the upper right –

6
 MHC-V41D

CHECKING THE OPERATION AFTER REPAIR SPREADING OF COMPOUND

After repair completion, connect the “iPhone/iPod”, “Walkman”, When the IC2002 on the MOTHER board is replaced, spread the
“smartphone” etc. corresponding to this unit, and check the opera- compound to the touching portion between the IC2002 and the
tion of playback, recording, charge, etc. heat sink.

NOTE OF REPLACING THE ELECTRICAL PARTS ON – MOTHER Board (Side A) –

EACH BOARD FOR REPAIRING
Among mounted electrical parts on each board, only parts that are IC2002
described in the electrical parts list can be replaced for repairing.
The parts that are not described in the electrical parts list cannot be
replaced with single for repairing. compound

NOTE OF REPLACING THE MOTHER BOARD FOR

REPAIRING
Among mounted parts on the MOTHER board, only parts that are
described in the electrical parts list can be replaced for repairing.
When the parts that are not described in the electrical parts list are
defective, replace the complete mounted board.
In this service manual, the block diagram and printed wiring board
of the MOTHER board are described for reference.
TEST DISCS
Also, when the MOTHER board is replaced, be sure to refer to
Use following TEST DISC when this unit confirms the operation
“DESTINATION SETTING METHOD” and “NFC OPERATION
and checks it.
CHECKING METHOD” on page 6.
• For CD
NOTE OF REPLACING THE PARTY LED, SW LED
Part No. Description
NFC AND MS-476 BOARDS FOR REPAIRING
3-702-101-01 DISC (YEDS-18), TEST
When the PARTY LED, SW LED, NFC and MS-476 boards are
4-225-203-01 DISC (PATD-012), TEST
defective, replace the complete mounted board or the whole parts
J-2501-307-A DISC (HLX-A1), TEST
including the applicable board.
The mounted parts cannot be replaced with single for repairing.
• For DVD SL (Single Layer)
In this service manual, the schematic diagram and printed wiring
Part No. Description
board of the PARTY LED, SW LED, NFC and MS-476 boards are
J-6090-069-A DISC (HLX-503), TEST (NTSC)
not described.
J-6090-088-A DISC (HLX-504), TEST (NTSC)
Also, when the NFC board is replaced, be sure to refer to “NFC
J-2501-305-A DISC (HLX-513), TEST (NTSC)
OPERATION CHECKING METHOD” on page 6.
J-6090-077-A DISC (HLX-506), TEST (PAL)
NOTE OF REPLACING THE SMPS BOARD FOR RE-
• For DVD DL (Double Layer)
PAIRING
Part No. Description
When the SMPS board is defective, replace the complete mounted
J-6090-071-A DISC (HLX-501), TEST (NTSC)
board.
J-6090-089-A DISC (HLX-505), TEST (NTSC)
The mounted parts cannot be replaced with single for repairing.
J-2501-306-A DISC (HLX-514), TEST (NTSC)
However, in this service manual, the block diagram, schematic dia-
J-6090-078-A DISC (HLX-507), TEST (PAL)
gram and printed wiring board of the SMPS board are described
for reference.
RELEASING THE DISC TRAY LOCK
The disc tray lock function for the antitheft of sample disc in the
shop is equipped.
It can release the lock function in the following procedure.

Releasing Procedure:
1. Press the [1] button to turn the power on.
2. Press the [FUNCTION] button to select the “DVD/CD” func-
tion.
3. Press two buttons of the [MEGA BASS] and [VOCAL FAD-
ER] simultaneously for 3 seconds.
4. The message “UNLOCKED” is displayed on the vacuum fluo-
rescent display and the disc tray is unlocked.
Note: When “LOCKED” is displayed on the vacuum fluorescent display,
the disc tray lock is not released by turning the power on/off with
the [1] button.

7
MHC-V41D

HOW TO OPEN THE TRAY WHEN POWER SWITCH TURN OFF

Note 1: Refer to “2. DISASSEMBLY” on page 9 or later, after the top panel block is removed, do this work.
Note 2: Please prepare the thin wire (clip etc. processed to the length of 8 cm or more).

– Left view –
hole

front side

2 Pull out the tray in the

direction of the arrow.
1 Insert the clip etc. in the hole,
and push the lever in the direction
– Top view – of the arrow.
thin wire (clip etc. )
DVD mechanism deck

8 cm or more

front side

hole

tray

8
 MHC-V41D
SECTION 2
DISASSEMBLY
• This set can be disassembled in the order shown below.

2-1. DISASSEMBLY FLOW

SET
‡ JIG
When disassembling the unit, use the following
jig for speaker removal.
2-2. SIDE PANEL
(Page 10) Part No. Description
J-2501-238-A JIG FOR SPEAKER REMOVAL

2-3. TOP PANEL BLOCK-1

(Page 11)

2-4. TOP PANEL BLOCK-2

(Page 12)
2-16. MIC BOARD
(Page 23)

2-17. PANEL BOARD 2-18. ELECTRET CAP MICROPHONE

(Page 24) (Page 25)

2-19. NFC BOARD 2-20. GESTURE BOARD

(Page 25) (Page 26)

2-5. LOADING PANEL BLOCK 2-7. CDM BLOCK 2-8. FFC HOLDER
(Page 13) (Page 15) (Page 16)

2-6. LOADING PANEL 2-10. REAR PANEL BLOCK 2-9. OPTICAL PICK-UP BLOCK
(Page 14) (Page 18) (CMS-S76RFS7G)
(Page 17)

2-11. PARTY LED BOARD 2-13. CHASSIS BLOCK 2-14. SMPS BOARD
(Page 18) (Page 20) (Page 21)

2-12. DC FAN, 2-21. FRONT PANEL BLOCK-1 2-15. MOTHER BOARD

REAR PANEL (Page 27) (Page 22)
(Page 19)

2-22. FRONT PANEL BLOCK-2 2-24. LOUDSPEAKER (TWEETER)

(Page 28) (Page 30)

2-23. SW LED BOARD, 2-25. LOUDSPEAKER (MIDRANGE)

IR BOARD (Page 31)
(Page 29)

2-26. LOUDSPEAKER
(SUBWOOFER)
2-27. CHASSIS BLOCK SERVICE POSITION
(Page 32)
(Page 33)

2-28. TOP PANEL BLOCK SERVICE POSITION

(Page 33)

9
MHC-V41D

Note: Follow the disassembly procedure in the numerical order given.

2-2. SIDE PANEL

1 two screws
(BVTP3 u 8) 3 claw

1 two screws 3 claw

(BVTP3 u 8) 1 screw top side
(BVTP3 u 8)
3 claw

rear side

4 side panel (L)

3 claw 3 claw
left side
3 claw
1 two screws
(BVTP3 u 8)

front side 4 side panel (R)

right side

1 three screws
(BVTP3 u 8)

10
 MHC-V41D

2-3. TOP PANEL BLOCK-1

• Continued on 2-4 (page 12).
top side

front side

Note: During reassembly, use new insulock ties

to fasten the wires back in place as they
were before disassembly.

1 Cut the insulock tie.

$(38.$86

rear side

4 MIC board wire

2 screw $(38.$86
(BVTP3 u 8) 3 PANEL board wire

0 flexible flat cable (7P) (CN120)

(from GESTURE board)
9 flexible flat cable (7P) (CN601)
(from MIC board)

‡:LUHVHWWLQJ
2. NG
front side

right side

5 microphone wire connector

(CN3001)
8 PANEL board cable
6 flexible flat cable (6P) (CN105) connector (CN451)
(from NFC board)
microphone microphone 7 flexible flat cable (19P) (CN103) $(38.$86 rear side
wire wire (from PANEL board)

‡WireVHWWLQJ
$(38.$86
front side –5LJKWYLHZ– rear side MIC board wire
PANEL board PANEL board wire
cable

The opposite side

is terminal side. MOTHER
board
CN601

CN451
The opposite side
is terminal side.
CN103 terminal side
CN3001 CN105
CN120 The opposite side –5LJKWYLHZ–
is terminal side. insulock tie

11
MHC-V41D

2-4. TOP PANEL BLOCK-2

top side
rear side
1 screw
(BVTP3 u 8) 2 three screws
(BVTP3 u 8)

(AEP, UK, AUS)

1 screw
front side
(BVTP3 u 8)

3 Lift up rear side of the top

panel block in the direction
of the arrow.
4 two claws

top panel block

7 top panel block

(AEP, UK, AUS)

(AEP, UK,
5 Remove the top panel block AUS)
in the direction of the arrow.
6 PANEL board cable
connector (CN7600)

12
 MHC-V41D

2-5. LOADING PANEL BLOCK

DVD mechanism deck top side

hole

front side

– Left view –

top side

rear side DVD mechanism deck

4 Remove the loading

panel block in the
direction of the arrow.

tray
hole 3 claw

1 Insert the clip etc. in the hole, and

push the lever in the direction of 3 claw
the arrow.
front side
left side lever
clip etc. 5 loading panel block
(8 cm or more) (See Fig. A)
2 Pull out the tray in the
direction of the arrow.

‡Note about installing the loading panel block

< Fig. A >
OK NG
The gaps at both ends are equal. The gaps at both ends are not equal.
(installed horizontally) (installed at an angle)
tray tray

narrow
wide
loading panel block – Top view – loading panel block – Top view –

13
MHC-V41D

2-6. LOADING PANEL

0 loading panel

9 hemilon cushion front side

(See Fig. C)
3 Draw the spring (LP)
7 loading cushion out of the two holes.
5 claw
(See Fig. D)
5 claw
8 base loading

1 hemilon
(See Fig. E) 9 hemilon cushion
(See Fig. C)

2 hemilon cushion
(See Fig. B)
4 spring (LP) 6 Remove the base loading
block in the direction of
rear side 1 hemilon the arrow.
(See Fig. E)

‡1RWHDERXWLQVWDOOLQJWKHVSULQJ/3

OK NG
The spring loading has good balance. The spring loading has poor balance.
rear side rear side
(the center of the spring is centered) (the center of the spring is shifted to
the left or right)

–%RWWRPYLHZ– spring (LP) –%RWWRPYLHZ–

spring (LP)
front side front side

‡3DVWLQJSRVLWLRQRIWKHKHPLORQFXVKLRQ ‡3DVWLQJSRVLWLRQRIWKHORDGLQJFXVKLRQ
)LJ%! )LJ'! top side
rear side loading panel block guide line –)URQWYLHZ–
hemilon cushion

loading cushion
base loading
bottom side
–%RWWRPYLHZ– guide line
front side
‡3DVWLQJSRVLWLRQRIWKHKHPLORQ
)LJ&! rear side )LJ(!
loading panel guide line
–%RWWRPYLHZ–

hemilon cushion guide line Bend.

Bend.

hemilon hemilon hemilon

guide line –,QQHUYLHZ– front side
cushion front side loading panel block

14
 MHC-V41D

2-7. CDM BLOCK

top side 9 CDM block

7 two screws Note 1: When installing the CDM block,
(BVTP3 u 8) boss align the two bosses and two holes.
5 Remove the DC fan cable
from the groove.

‡'&IDQFDEOHVHWWLQJ boss 4 Remove the DC fan cable

from the coating clip.
Note 2: The DC fan cable must not touch
the heat sink.
–&'0EORFNERWWRPYLHZ–
groove
DC fan cable
2 flexible flat cable (5P)
1 OP cable
(CN303) (from MS-476 board)
connector
(See Fig. F)
(CN402)
(See Fig. F) 3 flexible flat cable (24P) (CN302)
(from optical pick-up block)
front side
(See Fig. F)
hole
8 Remove the CDM block
in the direction of the arrow.
hole

heat sink 6 two screws

MOTHER board
(BVTP3 u 8)
coating clip

right side
rear side

‡:LUHVHWWLQJ
)LJ)! –5LJKWYLHZ– heat sink

front side rear side

flexible flat cable (24P)

(from optical pick-up block)

flexible flat cable (5P)

(from MS-476 board) terminal side

CN303

OP cable CN302

CN402 terminal side MOTHER board

15
MHC-V41D

2-8. FFC HOLDER

top side

1 two screws 1 two screws

(BVTP3 u 8) (BVTP3 u 8)

4 DVD mechanism deck block

‡3DVWLQJSRVLWLRQRIILODPHQWWDSHVXEPDWHULDO
)LJ*!
flexible flat cable
(24P) filament tape
2 (sub material)
rear side

Turn over.

DVD mechanism
deck block
front side

3 CDM bracket block

8 FFC holder (See Fig. H)

Note: When installing the FFC holder,
check that installed firmly
two bosses and claw. 5 filament tape –BRWWRPYLHZ–
(sub material)
(See Fig.G)
flexible flat cable filament tape
hole (5P) (sub material)

6 Remove the FFC holder

7 Draw the flexible flat cable in the direction of the arrow.
out of the hole.
‡1RWHDERXWLQVWDOOLQJWKH))&KROGHU
5 filament tape boss )LJ+!
(sub material)
(See Fig.G) boss OK NG
rear side

top side
front side claw

DVD mechanism deck block There is no gap. There is a gap.

16
 MHC-V41D

2-9. OPTICAL PICK-UP BLOCK (CMS-S76RFS7G)

2 chuck holder block top side

5 insulator screw

0 insulator
5 insulator screw
qa optical pick-up block 7 connector
(CMS-S76RFS7G)
0 insulator
5 insulator screw

0 insulator
9 MOTHER board connection
5 insulator screw cable connector

‡Wire setting
0 insulator < Fig. J > rear side

8 flexible flat cable

(24P)
6 Remove the optical pick-up block
in the direction of the arrow. rear side
1 claw
4 three claws
(See Fig. J)
1 claw

1 claw

1 claw

– Bottom view –
front side
1 claw

1 claw
The opposite side rear side
< Fig. K > is terminal side.
front side

3 Draw out the tray.

Note: When you can not draw out the tray,
please refer to “HOW TO OPEN THE
TRAY WHEN POWER SWITCH
TURN OFF” on page 8.

– Top view – MOTHER board

connection cable front side

17
MHC-V41D

2-10. REAR PANEL BLOCK

front side

3 DC fan cable connector

(CN2001)

6
rear side

5 three screws
(BVTP3 u 8)
right side
4 tapping screw
7 rear panel block (3.5 u 14)
Note: When installing the rear panel block, 5 four screws
be careful not to pinch the DC fan cable. (BVTP3 u 8)
4 tapping screw
(3.5 u 14)
5 screw 2 service connector cap
4 tapping screw (BVTP3 u 8)
(3.5 u 14)
1 screw
(BVTP3 u 8)

2-11. PARTY LED BOARD

2 party lens block
4 PARTY LED board block
‡,QVWDOODWLRQSRVLWLRQRIWKHSDUW\OLJKWFXVKLRQ
Note 1: When installing the
PARTY LED board top side
boss PARTY LED board LED
block, align the two
bosses and two holes. 1 claw
1 claw
rear side
party light cushion

boss
7 party light cushion

hole 5 screw
(BVTP2.6 u 8)
5 screw
(BVTP2.6 u 8) 8 PARTY LED board
Note 2: When installing the
hole PARTY LED board,
align the three bosses
hole
and three holes.
hole
3 two screws front side
(BVTP2.6 u 8) hole

rear panel block

boss
boss
boss

Turn over. 6 party LED bracket

18
 MHC-V41D

2-12. DC FAN, REAR PANEL

‡3DVWLQJSRVLWLRQRIWKHKHPLORQ

hemilon Fold. Fold.

top side hemilon top side

–2XWHUYLHZ– –2XWHUYLHZ–
guide line rear panel guide line rear panel

hemilon hemilon
top side
rear panel

–,QQHUYLHZ–

1 two screws
(BVTP3 u 8) 4 hemilon
4 hemilon

1 screw
(BVTP3 u 8)
‡,QVWDOODWLRQSRVLWLRQRIWKHIDQFXVKLRQ
3 fan cushion
guide line fan cushion
3 fan cushion
1 screw
(BVTP3 u 8)

5 rear panel

3 two fan
cushions

2 DC fan
Note: When installing the DC fan,
be careful not to pinch the
DC fan cable.

19
MHC-V41D

2-13. CHASSIS BLOCK

front side

left side

1 IR board cable connector

(CN127)

2 SW LED board cable connector rear side

(CN104)

3 speaker cable connector

5 claw 5 claw (CN2021)

4 three tapping screws

(3.5 u 14)

4 tapping screw
(3.5 u 14)
– Right view – – Left view –

4 tapping screw
(3.5 u 14) 7 chassis block

20
 MHC-V41D

2-14. SMPS BOARD

Note 1: Make sure perform discharge processing before removing the

SMPS board. For the discharge processing method, refer to
“CAPACITOR ELECTRICAL DISCHARGE PROCESS-
ING” on page 5.

2 SMPS board cable 3 MOTHER board cable

connector (CN001) connector (CN6500)
(See Note 1) (See Note 1)

1 Remove the two cables

from the coating clip.
(See Fig. L)
front side

Installation direction for

chassis block
the coating clip.

rear side

4 screw
(BVTP3 u 8)
‡:LUHVHWWLQJ
< Fig. L > 4 five screws
5 coating clip (BVTP3 u 8)
CN001 –7RSYLHZ– front side

hole

CN6500 6 SMPS board

Note 2: When installing the SMPS
board, align the two ribs
and two holes.
MOTHER SMPS board
board hole
SMPS board cable
MOTHER board cable rib

rib

coating clip

21
MHC-V41D

2-15. MOTHER BOARD

Note 1: Make sure perform discharge processing before removing the Note 2: When the MOTHER board is replaced, refer to “DESTI-
MOTHER board. For the discharge processing method, refer NATION SETTING METHOD” and “NFC OPERATION
to “CAPACITOR ELECTRICAL DISCHARGE PROCESS- CHECKING METHOD” on page 6.
ING” on page 5.

3 MOTHER board cable ‡:LUHVHWWLQJ

2 SMPS board cable connector (CN6500) < Fig. M >
connector (CN001) (See Note 1)
CN001 – Top view – front side
(See Note 1)

1 Remove the two cables

6 six screws from the coating clip.
(BVTP3 u 8) (See Fig. M)

CN6500

front side MOTHER SMPS board

board
SMPS board cable
chassis block MOTHER board cable

rear side

5 screw
4 filament tape
(P3 u 8)
(sub material)
(See Fig. N)

4 filament tape
(sub material) coating clip
(See Fig. N)
qa MOTHER board (See Note 2)
Note 3: When installing the MOTHER board,
‡:LUHVHWWLQJ align the two ribs and two holes.
< Fig. N > hole
MOTHER board 0 MOTHER board cable
connector (CN2007)

SMPS board

hole

7
MOTHER board
–5HDUYLHZ– cable
hole
MOTHER board
– Bottom view –
cable
8 Draw the connector
and jack out of the
hole in chassis.
rib

front side
9 Draw the MOTHER
filament tape filament tape rib
board cable out of
(sub material) (sub material) the hole in chassis.
(See Fig. N)
hole

22
 MHC-V41D

2-16. MIC BOARD

2 three screws
(BVTP2.6 u 8)

4 MIC board block

Note: When installing the MIC board block,
align the two bosses and two holes.
7 MIC board
6 flexible flat cable (7P)
(CN7701)
hole
3 Draw the jack hole 3 Draw the jack
out of the hole.
out of the hole.

1 Remove the wire from

the coating clip.

front side
5 filament tape
(sub material)

‡)OH[LEOHIODWFDEOHVHWWLQJ
The opposite side filament tape
rear side CN7701 is terminal side. (sub material)

top panel block

two bosses

two holes
top side
MIC board
flexible flat cable
$(38.$86 (7P)

‡:LUHVHWWLQJ
$(38.$86 (LA)
PANEL board PANEL board
cable PANEL board
–%RWWRPYLHZ– wire –%RWWRPYLHZ– MIC board
cable

MIC
board coating
clip

front side front side

coating clip PANEL board PANEL board

23
MHC-V41D

2-17. PANEL BOARD

3 flexible flat cable (7P)

(CN7500)
2 filament tape
terminal side (sub material)
(See Fig. O)

‡)OH[LEOHIODWFDEOHVHWWLQJ
front side
flexible flat cable flexible flat cable
(7P) (19P)
1 Remove the flexible
flat cable from the
coating clip.
PANEL
board
rear side

front side
coating clip –%RWWRPYLHZ–
top side top panel block

7 PANEL board block

Note: When installing the PANEL board block,
align the two bosses and two holes. 9 flexible flat cable (19P)
(CN7007)
4 eight screws
(BVTP2.6 u 8) 4 eight screws
(BVTP2.6 u 8)
0 hemilon
4 screw
(BVTP2.6 u 8)

Turn over. hole

hole
5 coating
hole clip

6
5 coating clip
4 screw
(BVTP2.6 u 8) qa PANEL board
8 Draw the flexible flat
cable out of the hole.

boss ‡)OH[LEOHIODWFDEOHVHWWLQJ Pass the flexible flat cable

flexible flat cable (19P) into the hole.
–7RSYLHZ–

boss rear side

‡3DVWLQJSRVLWLRQRIWKHILODPHQWWDSHVXEPDWHULDO
)LJ2!
–%RWWRPYLHZ– PANEL board

hole
flexible flat cable
(7P) PANEL board
CN7007 Bend.
terminal side

GESTURE board

front side filament tape

(sub material)

24
 MHC-V41D

2-18. ELECTRET CAP MICROPHONE

1 screw
(BVTP2.6 u 8) ‡0LFURSKRQHZLUHVHWWLQJ
electret cap
microphone microphone wire
2 MIC COVER board
Note: When installing the MIC COVER front side
board, align the boss and hole.
hole
4 electret cap
microphone

MIC COVER
3
board
front side

–%RWWRPYLHZ–

boss
rear side

top side
top panel block

2-19. NFC BOARD

Note: When the NFC board is replaced, refer to “NFC OPERATION

CHECKING METHOD” on page 6.

1 screw ‡3DVWLQJSRVLWLRQRIWKHILODPHQWWDSHVXEPDWHULDO

(BVTP2.6 u 8) filament tape
NFC board (sub material)

2 guitar button assy 3 filament tape

(sub material)
flexible flat cable
(6P)

0 mm (+ 2, - 0 mm)
rear side
–,QQHUYLHZ–
NFC tape
7 NFC board (See Note)
top panel block
5 flexible flat cable (6P)
(CN001)

front side

6 NFC tape
terminal side

4 Peel the NFC board block

off of the top panel block.

rear side
top side

25
MHC-V41D

2-20. GESTURE BOARD

2 start button

6 DJ button
hole Note 1: When installing the DJ button,
align the four bosses and four
holes.

hole

hole
hole
hole
3 screw
5
(BVTP2.6 u 8)
hole hole 8 GESTURE board
Note 2: When installing the GESTURE
1 hole board, align the six bosses and
4 fiesta button assy six holes.
hole
hole
boss
7 boss
boss

boss
front side

boss rear side

top side boss

top panel block

26
 MHC-V41D

2-21. FRONT PANEL BLOCK-1

• Continued on 2-22 (page 28).

‡,QVWDOODWLRQGLUHFWLRQIRUWKHVSHDNHUFDEOHWHUPLQDO
Note 1: When connecting the speaker cable terminal to
the tweeter (L-ch), take care for the direction of
the terminal and connect it.

OK
OK

NG NG

tweeter
(L-ch)

top side
1 terminal
(wide side) top side
1 terminal
[yellow] (narrow side)
1 terminal [black]
(narrow side)
[black]

tweeter
1 terminal (L-ch)
(wide side)
[yellow]
–,QQHUYLHZ–
[yellow] [black]

front side
‡,QVWDOODWLRQGLUHFWLRQIRUWKHVSHDNHUFDEOHWHUPLQDO
Note 2: When connecting the speaker cable terminal to
the tweeter (R-ch), take care for the direction of
the terminal and connect it.

OK
OK

NG NG
rear side
tweeter tweeter
(R-ch) (R-ch)

top side

–,QQHUYLHZ–
[yellow] [black]

27
MHC-V41D

2-22. FRONT PANEL BLOCK-2

3
6

front panel block

4
2 While moving the jig
in the direction of the
arrow, remove nine top side
bosses.

soft cloth, etc.

front side

qf

Turn over.
qs
bottom side

speaker total nine bosses 0

qd
cabinet

1 Insert the jig into the space and slowly qa

remove the front panel block. top side
Note 1: When using a jig, please work
carefully so as not to damage 9 While moving the jig
the front panel block and in the direction of the
speaker cabinet. arrow, remove nine
bosses.

front side
qh front panel block
Note 2: When installing the front panel block,
peel off the used bond and apply a new
bond, then install the front panel assy.

bottom side
total nine bosses
8 Insert the jig into the space and slowly
remove the front panel block.
Note 1: When using a jig, please work
carefully so as not to damage
the front panel block and
speaker cabinet.

total eighteen bosses

qg Remove the front panel block
in the direction of the arrow.

28
 MHC-V41D

2-23. SW LED BOARD, IR BOARD

0 IR board
Note 2: When installing the IR board,
‡6:/('ERDUGFDEOHVHWWLQJ align the two bosses and two
holes.
‡3DVWLQJSRVLWLRQRIWKHKHPLORQ qa IR window
)LJ3! Note 3: When installing the IR window,
top side align the two bosses and two
SW LED board hole holes.
cable hole total thirteen
9 two screws grooves
hemilon (BVTP2.6 u 8)
hole
boss
hole boss

top side front panel block

top side 1 hemilon

(See Fig. P) front side

2 Draw the SW LED

board cable out of
the groove.
total thirteen
grooves

SW LED
board
cable

boss

rear side
boss

hole
4

bottom hole
side 3 two screws
–)URQWSDQHOEORFNLQQHUYLHZ– (BVTP2.6 u 8)
8 SW LED
board
6 screw
(BVTP2.6 u 8)
5 SW LED board 7 SPK LED bracket
cable connector Note 1: When installing the SPK LED
(CN7651) bracket, align the two bosses
and two holes.

29
MHC-V41D

2-24. LOUDSPEAKER (TWEETER)

top side

front side

3 loudspeaker
2
(tweeter: R-ch)
(See Fig. Q)

1 two screws rear side

(BVTP3.5 u 10) 3 loudspeaker
(tweeter: L-ch)
(See Fig. Q)
2

1 two screws
(BVTP3.5 u 10)

‡,QVWDOODWLRQGLUHFWLRQIRUWKHWZHHWHU
)LJ4!
Note: When installing the tweeter, make the position
of terminals as shown in the figure below.

top side

terminals position terminals position

front panel block

tweeter (R-ch) tweeter (L-ch)

–)URQWSDQHOEORFNLQQHUYLHZ–

30
 MHC-V41D

2-25. LOUDSPEAKER (MIDRANGE)

Note 1: The left and right loudspeakers can be removed using the same procedure.
This explanation uses illustrations from the left side.

loudspeaker
(midrange: R-ch)
top side
rear side

3 terminal
2 Remove the midrange (narrow side)
(L-ch) in the direction [black]
of the arrow.

terminal

1 four tapping screws

(3.5 u 14) 3 terminal
(wide side)
[red]

4 loudspeaker
(midrange: L-ch)

‡,QVWDOODWLRQGLUHFWLRQIRUWKHPLGUDQJH front side

Note 2: When installing the midrange, make the position
of terminals as shown in the figure below.

top side

midrange midrange
(L-ch) (R-ch)
speaker cabinet block

terminals terminals
position position ‡,QVWDOODWLRQGLUHFWLRQIRUWKHVSHDNHUFDEOHWHUPLQDO
Note 3: When connecting the speaker cable terminal to the midrange (L-ch),
take care for the direction of the terminal and connect it.
midrange (L-ch)

OK NG OK NG
top side

– Front view – terminal

(narrow side)
[black] terminal
(wide side)
[red]

31
MHC-V41D

2-26. LOUDSPEAKER (SUBWOOFER)

bottom side

rear side

speaker cabinet block

2 Remove the subwoofer
in the direction of the arrow.

1 tapping screw
(BVTP4 u 20)

1 tapping screw
(BVTP4 u 20)

4 loudspeaker top side

(subwoofer)

3 terminal
1 four screws
(narrow side)
(BVTP4 u 20)
[black]
3 terminal soft cloth, etc.
(wide side)
[gray]

1 tapping screw
1 tapping screw (BVTP4 u 20)
(BVTP4 u 20)

‡,QVWDOODWLRQGLUHFWLRQIRUWKHVXEZRRIHU ‡Installation direction for the speaker cable terminal

Note 1: When installing the subwoofer, make the position Note 2: When connecting the speaker cable terminal to the subwoofer,
of terminals as shown in the figure below. take care for the direction of the terminal and connect it.
subwoofer
OK NG
top side

terminals position OK NG
terminal
(wide side)
[gray]

terminal
(narrow side)
subwoofer
[black] top side

– Front view –

32
 MHC-V41D

2-27. CHASSIS BLOCK SERVICE POSITION

top panel block

IR board
(AEP, UK, AUS)
insulating sheet

CDM block

stand

stand

DC fan

MOTHER board

SMPS board

2-28. TOP PANEL BLOCK SERVICE POSITION

MIC board
insulating sheet

rear side

GESTURE board

PARTY LED board

PANEL board

front side
stand

33
MHC-V41D
SECTION 3
TEST MODE
USER RESET VERSION DISPLAY
It can reset all preset data back to initial conditions excluding DVD It can check the software version.
setup menu settings.
Procedure (For the main unit operation):
Procedure: 1. Press the [1] button to turn the power on.
1. Set to the demonstration mode or press the [1] button to turn 2. Press two buttons of the [MEGA BASS] and [– TUNING .]
the power on. simultaneously for 3 seconds.
2. Press two buttons of the [MEGA BASS] and [GUITAR] simul- 3. The SC micom/BT micom software version, DVD micom
taneously for 3 seconds. software version are displayed on the vacuum fluorescent dis-
3. The message “RESET” is displayed on the vacuum fluorescent play, then becomes the demonstration mode.
display, then becomes the demonstration mode.
SC micom/BT micom software version
Screen display
SC BT

demonstration mode DVD micom software version

DISC THEFT PREVENTION

It can be unable to take sample disc out of disc tray in the shop.
Procedure:
1. Press the [1] button to turn the power on.
2. Press the [FUNCTION] button to turn the “DVD/CD” func-
tion.
3. Press the [Z] button to open the disc tray and set the disc.
4. Press the [Z] button to close the disc tray.
5. Press two buttons of the [MEGA BASS] and [VOCAL FAD-
ER] simultaneously for 3 seconds.
6. The message “LOCKED” is displayed on the vacuum fluores-
cent display and the disc tray is locked.
(Even if pressing the [Z] button, the message “LOCKED” is
displayed on the vacuum fluorescent display and the disc tray
is locked)
demonstration mode
(Displayed values in the above figure are example)
Procedure (For the remote commander operation):
1. Press the [1] button to turn the power on.
2. Press the [OPTIONS] button to display the options menu.
3. Press the [v]/[V] buttons to select the “SYSTEM”, and press
the [ ] button.
4. Press the [v]/[V] buttons to select the “VERSION”, and press
the [ ] button.
5. The SC micom/BT micom software version are displayed on
the vacuum fluorescent display.
Screen display

Screen display SC BT
(Displayed values in the above figure are example)

6. Press the [V] button.

Releasing method:
7. The DVD micom software version is displayed on the vacuum
1. Press two buttons of the [MEGA BASS] and [VOCAL FAD-
fluorescent display.
ER] simultaneously for 3 seconds.
2. The message “UNLOCKED” is displayed on the vacuum fluo- Screen display
rescent display and the disc tray is unlocked.

(Displayed values in the above figure are example)

Releasing method (For the remote commander operation):

Press the [OPTIONS] button, and return to the normal mode.

COLD RESET
It can reset all preset data back to initial conditions included DVD
firmware initialization. Execute this mode when returning the this
unit to the customer.

Procedure:
1. Set to the demonstration mode or press the [1] button to turn
the power on.
2. Press two buttons of the [x] and [MIC/GUITAR LEVEL +]
simultaneously for 3 seconds.
3. The message “COLD RST” is displayed on the vacuum fluo-
rescent display, then becomes the demonstration mode.

Screen display

demonstration mode

34
 MHC-V41D

PANEL TEST MODE 6. Each time [ +] button is pressed, the display changes destina-
It can check the vacuum fluorescent display, LEDs, model name, tion → serial number → SC version → MTK version → BT
destination, buttons and gesture control sensor. version → BTE version → PF version → SUB version this
order, and returns to the model name display.
Procedure:
1. Set to the demonstration mode or press the [1] button to turn
the power on. Model name MTK version
2. Press two buttons of the [x] and [MIC/GUITAR LEVEL –]
simultaneously for 3 seconds.
3. It enters the panel test mode, and all segments on the vacuum Destination BT version
fluorescent display and all LEDs light up.

Screen display Serial number BTE version

NTSC VIDEO WIRED P.CHAIN
FLDR SHUF ST L R SCORE
DD 1 BASS DJ
NX HDMI SLEEP 2 # %

4. Each time the [ ] button on the remote commander is pressed, SC version PF version
the screen display is changed in order as follows.
NTSC VIDEO
FLDR SHUF
WIRED P.CHAIN
ST L R SCORE
All segments and all SUB version
DD 1 BASS DJ
NX HDMI SLEEP 2 # % LEDs turn on

NTSC VIDEO
FLDR SHUF 1st half of segments, (Displayed values in the above figure are example)
DD 1
NX HDMI
[MEGA BASS] indicator
and Subwoofer light
(red) turn on Destination Display
WIRED P.CHAIN 2nd half of segments, AEP model (CEL) EUROPE
ST L R SCORE
BASS DJ
SLEEP 2 # % [GUITAR]/[GESTURE ON/ UK model (CEK) EUROPE
OFF] indicators and Party/
AUS model (AU1) OCEANIA
Subwoofer lights (green)
turn on LA model (LA9) LATIN
NTSC VIDEO
FLDR SHUF
WIRED P.CHAIN
ST L R SCORE
All segments,
DD 1 BASS DJ
NX HDMI SLEEP 2 # % [BLUETOOTH] indicator
7. When pressing the [x] button while the each version is dis-
and Party/Subwoofer
lights (blue) turn on played, month and day of the software creation is displayed on
the vacuum fluorescent display. When pressing the [x] button
All segments and all
again, the display returns to the each version display.
LEDs turn off
Screen display
5. When pressing the [ +] button, the model name is displayed
on the vacuum fluorescent display.

Screen display
(Displayed values in the above figure are example)

8. When pressing the [– ] button, “K 0” is displayed on the

vacuum fluorescent display.

Screen display

9. Each time a button is touched, “K 0” value increases. Buttons

once pressed are not counted.
When pressing the all buttons, “K30” and “OK” are alternately
displayed on the vacuum fluorescent display.
Screen display

– Continued on next page –

35
MHC-V41D

10. When the operation of swiping on the gesture control sensor, SHOP FRONT DEMO
shown in the following figure, will appear display correspond- The demo mode can be performed.
ing to the operation. (This mode is used by shop front)
Note: Do not touch or contact to the gesture control sensor when you per-
form the swiping motion. Procedure:
1. Press the [1] button to turn the power on.
2. Press the [FUNCTION] button to select the “DVD/CD” or
“USB” function, and set the media according to the function.
3. Press two buttons of the [x] and [MIC ECHO] simultaneously
for 5 seconds.
4. The message “AutoPLAY” is displayed on the vacuum fluo-
Screen display (Right to left) Screen display (Left to right) rescent display.

Screen display

5. Press the [– TUNING .] or [TUNING + >] button to

select either “AutoPLAY” or “AutoSTOP” in the demo mode,
then press the [N] button to decision.

Screen display (Bottom to top) Screen display (Bottom to top) Screen display

or
(Displayed characters in the above figure are example)

Releasing method:
Press two buttons of the [x] and [MIC/GUITAR LEVEL –] simul- 6. The message “10 MIN” is displayed on the vacuum fluorescent
taneously for 3 seconds, and return to the normal mode. display.

Screen display

7. Press the [– TUNING .] or [TUNING + >] button to

auto play or auto stop timer value (01 MIN to 20 MIN) setting,
then press the [N] button to decision.
8. This unit is rebooted. It enters the demo mode, “* DEMO *”
and current function state are alternately displayed on the vac-
uum fluorescent display.
(When the “AutoPLAY” has been selected in step 5, playback
starts automatically)

Screen display

current function state display

9. When the “AutoPLAY” has been selected in step 5, even if

stopping the playback, playback starts automatically after the
setting time.
When the “AutoSTOP” has been selected in step 5, even if
starting the playback, playback stops automatically after the
setting time.
(Even if pressing the [Z] button, the disc tray is locked and
cannot be opened)

Releasing method:
Press two buttons of the [x] and [MIC ECHO] simultaneously for
5 seconds.
Note: The demo mode does not release by unplug the power supply cord.

36
 MHC-V41D
SECTION 4
ELECTRICAL CHECKS
TUNER SECTION 0 dB = 1 V DVD/CD SECTION

FM AUTO STOP CHECK Note:

1. DVD/CD block is basically constructed to operate without adjustment.
2. Use YEDS-18 disc (Part No. 3-702-101-01) unless otherwise indicat-
signal
generator ed.
unit 3. Use an oscilloscope with more than 10 M impedance.
4. Clean the object lens by an applicator with neutral detergent when the
signal level is low than specified value with the following check.
Procedure:
1. Press the [1] button to turn the power on. RF SIGNAL CHECK
2. Input the following signal from signal generator to FM antenna
input directly. oscilloscope
(DC range)

Carrier frequency : A = 87.5 MHz, B = 98 MHz, C = 108 MHz MOTHER board

Deviation : 75 kHz
CN302 pin 17 (RF) +
Modulation : 1 kHz CN302 pin 1 (GND) –
ANT input : 35 dBu (EMF)

Note: Use 75 ohm coaxial cable to connect signal generator and the unit.
You cannot use video cable for checking.
Use signal generator whose output impedance is 75 ohm.
3. Press the [FUNCTION] button to select the “TUNER FM”
function and scan the input FM signal with automatic scan-
ning.
4. Confirm that input frequency of A, B and C detected and auto-
matic scanning stops.
When the station signal is received in good condition, automatic
scanning stops.
Procedure:
1. Connect the oscilloscope to CN302 pin 17 (RF) and CN302
pin 1 (GND) on the MOTHER board.
2. Press the [1] button to turn the power on.
3. Press the [FUNCTION] button to select the “DVD/CD” func-
tion.
4. Press the [Z] button to open the disc tray and set the disc
(YEDS-18).
5. Press the [Z] button to close the disc tray.
6. Press the [N] button to playback.
7. Confirm that oscilloscope waveform is as shown in the figure
below. (eye pattern)
A good eye pattern means that the diamond shape () in the
center of the waveform can be clearly distinguished.

VOLT/DIV: 200 mV
TIME/DIV: 500 ns

level: 1.0 ± 0.25 Vp-p

Connection Location:
– MOTHER Board (Side A) –

IC2001

CN302 pin 1 (GND)

IC109 pin 17 (RF)

37
MHC-V41D
SECTION 5
TROUBLESHOOTING
1. Optical Pick-up Block (CMS-S76RFS7G1/S76RFS7GP) (OP1) Diagnosis Flow

Remove the top panel, turn the

power on, close the disc tray and
set in the state that optical pick-up
block can see.

The optical pick-up block moves to No No

The voltage of the following is 3.3 V. The voltage of the following is 3.3 V.
the inner circumference.
MOTHER board: JL049 MOTHER board: JL071 (IC009: pin 14)
(Visual check)
Yes
Yes
Check the circuit of area surrounding
IC401 pin 17 (VOLD+), pin 18 (VOLDí)
The SL+/SLí signal is outputted to the No on the MOTHER board.
CN402 pin 4 (SL+), pin 3 (SLí) on the
Check the circuit of area surrounding
MOTHER board.
IC301 pin 13 (FMO) on the MOTHER
Yes board.

Replace the optical pick-up block because

sled motor has the problem.

Check the circuit of area surrounding

IC401 pin 11 (VOSL+), pin 12 (VOSLí)
The SP+/SPí signal is outputted to the No
The spindle motor rotates. No on the MOTHER board.
CN402 pin 2 (SP+), pin 1 (SPí) on the
(Visual check) Check the circuit of area surrounding
MOTHER board.
IC301 pin 12 (DMO) on the MOTHER
Yes Yes board.

Replace the optical pick-up block because

spindle motor has the problem.

Check the circuit of area surrounding

IC401 pin 14 (VOFC+), pin 13 (VOFCí)
The optical pick-up block does the The FCS+/FCSí signal is outputted to the No
No on the MOTHER board.
focus search. CN302 pin 23 (FCS+), pin 24 (FCSí) on
Check the circuit of area surrounding
(Visual check) the MOTHER board.
IC301 pin 17 (FOO) on the MOTHER
Yes Yes board.

Replace the optical pick-up block because

optical pick-up block has the problem.

– Continued on page 39 –

38
 MHC-V41D

– From page 38 –

Check the circuit of area surrounding

No It is outputted 2 V to the CN302 pin 6 No Q402 on the MOTHER board.
The laser diode emits the light.
(FE_LD_CD (780)) on the MOTHER Check the circuit of area surrounding
(Visual check)
board. IC301 pin 9 (LDO1) on the MOTHER
Yes board.
Yes

Set the test disc (YEDS-18) on the

Replace the optical pick-up block.
disc tray and playback it.

Yes

The following standard value of RF

signal is outputted to the CN302 No
Perform the lens cleaning.
pin 17 (RF) on the MOTHER board.
RF level = 1.0 ± 0.25 Vp-p
Yes
Yes

The following standard value of RF signal

is outputted to the CN302 pin 17 (RF) on No
Replace the optical pick-up block.
the MOTHER board.
RF level = 1.0 ± 0.25 Vp-p

Yes

There is no problem when

No
performing the playback test of long Replace the optical pick-up block.
time (60 minutes).
The sound skip does not happen.
Yes

End

39
MHC-V41D

2. MOTHER Board Mount Amplifier Diagnosis Flow

2-1. “PROTECT3” is displayed on the vacuum fluorescent display after turning the power on

“PROTECT3” is displayed on the vacuum

fluorescent display after turning the
power on.

Yes

“PROTECT3” is not displayed on the

No
vacuum fluorescent display, when
removing the speaker (SP1 to SP5)
and turning the power on.
Yes
IC2002 pin 27, 28 (OUT_D), 32 (OUT_C), No
MOTHER board has been damaged.
35 (OUT_B) and 39, 40 (OUT_A) on the
Replace the MOTHER board.
MOTHER board is short to GND.
Yes

Check and replace the speaker Replace the IC2002 on the MOTHER
(SP1 to SP5). board.

2-2. The sound is not outputted

The sound is not outputted.

Yes

The audio signal is inputted to IC2001 pin 24 No MOTHER board has been damaged.
(SDIN1) and 25 (SDIN2) on the MOTHER board. Replace the MOTHER board.

Yes

The PWM signal is outputted from IC2001 No

pin 39 (PWM_P_1), 41 (PWM_P_2), Replace the IC2001 on the MOTHER board.
48 (PWM_M_ 4), 49 (PWM_P_ 4).

Yes

The audio signal is outputted from IC2002

pin 32 (for L-ch speaker), pin 27, 28 (for R-ch No
Replace the IC2002 on the MOTHER board.
speaker) and pin 35, 39, 40 (for subwoofer) on
the MOTHER board.

Yes

MOTHER board has been damaged.

Replace the MOTHER board.

40
 MHC-V41D

3. MOTHER Board Mount Diagnosis Flow (Except Amplifier)

Connect the power supply cord.

The voltage of the following is outputted. No Check the connection of connector

(CN001). When there is not problem to
Standby Demo mode Power on the connection, check the SMPS board.
CN001:
pin 1, (AUDIO_+13V/+16V) 17.4 V ± 5 % 17.4 V ± 5 % 17.4 V ± 5 %
pin 3, 4 (M/D_+13V/+16V)

Yes

The voltage of the following is outputted between the each terminal of IC. No When there is problem, replace the
problematic IC.
IC Voltage Pin name Pin number Test point
SW1 3 JL069
5V
PGND1 4
IC001
SW2 14 JL070
5.2 V
PGND2 13
SW1 3 JL072
1.2 V
PGND1 4
IC009
SW2 14 JL071
3.3 V
PGND2 13
VOUT 2 JL073
IC008 12 V
GND 3
VOUT 2 JL047
IC004 9V
GND 3
VOUT 2 JL048
IC006 5V
GND 3
OUT 1 JL137
IC002 12 V
GND 3
VOUT 4 JL1003
IC1000 5V
GND 2
VOUT 3 CL395
IC305 3.3 V
GND 2

Yes

End

41
MHC-V41D

4 SMPS Board Mount Diagnosis Flow

Connect the power supply cord.

The voltage of the following is outputted. No Check whether the state of the power
supply cord and AC outlet are normal.
Standby Demo mode Power on If there are no problems, check the
NO6501: pin 9 (MAIN ON) Low (0 V) Hi (3.3 V) Hi (3.3 V) surrounding circuit for MAIN ON signal
output on the MOTHER board.
Yes

The voltage of the following is outputted. No Check the following 2 points. No

‡)XVHV))KDYHEHHQQRW
Standby Demo mode Power on opened.
NO6501: ‡$&SRZHUVXSSO\YROWDJHKDVEHHQ
pin 1 (A-supply), 17.4 V ± 5 % 17.4 V ± 5 % 17.4 V ± 5 % applied to the varistor (VR6000).
pin 4, 5 (M-supply) Yes
CN6500: pin 6 to 9 (V1) 58.5 V ± 5 % 58.5 V ± 5 % 58.5 V ± 5 %
5HSODFHWKHIXVHV))DQG
Yes varistor (VR6000), and check the voltage
again.
End

Replace the SMPS board.

42
 MHC-V41D
SECTION 6
DIAGRAMS
6-1. BLOCK DIAGRAM - SERVO/USB/VIDEO Section -
OP1
OPTICAL PICK-UP BLOCK RF AMP, SERVO/AUDIO/VIDEO PROCESSOR
(CMS-S76RFS7G1/S76RFS7GP) IC301 ASDATA0, MTK-BCK, MTK-LRCK,
MTK-MCK, ARC_SPDIF
ASDATA0
RF 119 RFIP ASDATA0 115
MTK-BCK
>001B

ARC_SPDIF
ABCK 110
VOA/A 125 RFC MTK-LRCK (Page 44)
ALRCK 114
VOB/B 124 RFB MTK-MCK
ACLK 109
VOC/C 123 RFA
VOD/D 126 RFD
128 FE_DVD_IOP-RFF
127 FE_CD_IOP-RFE
TX0P 88 7 DATA0+
VC 5 V20
TX0N 87 9 DATA0–
PD 8 MDI1
TX1P 91 4 DATA1+
AUTOMATIC POWER TX1N 90 6 DATA1–
FE_LD_CD (780) CONTROL (FOR CD) DVDD_3.3V
Q402 TX2P 94 1 DATA2+
TX2N 93 3 DATA2– CN1000
9 LDO1 (TV)
TXCP 85 10 CLOCK+
ARC
AUTOMATIC POWER TXCN 84 12 CLOCK– HDIM OUT
FE_LD_DVD (650) CONTROL (FOR DVD)
Q401 BUFFER
14 ARC
IC1001
10 LDO2
HDMI_SDA 29 16 SDA (5V)
MSW 18 MSW HDMI_SCL 28 15 SCL (5V)

CD_VR (780) 14 CD_VR HPLG 81 19 HOT PLUG DET

DVD_VR (650) 15 DVD_VR
13 CEC
NC 120 RFIN/OPOUT/GPI36

J601 (1/3)
CVBS 98 VIDEO
OUT

USB SWITCH
IC453
3 CN7801
USB_DP 19 5 HSD1+ D+ 1 D+ REC/PLAY
2 5V 1A
USB_DM 20 4 HSD1– D– 2 D–
4 XTALO
X301
SERIAL FLASH 7 HSD2+
27MHz
3 XTALI IC302
6 HSD2D–
SF_DO 25 2 DO (IO1)
S
SF_DI 26 5 DI (IO0)
10
FOCUS/TRACKING COIL DRIVE, SF_CK 27 6 CLK
SPINDLE/SLED/LOADING MOTOR DRIVE SF_CS_ 24 1 CS
IC401 SIGNAL PATH
: AUDIO
SP+ 11 VOSL+
VINSL+ 4 12 DMO SD-RAM : DISC PLAY
SP– 12 VOSL–
IC305
SL+ 17 VOLD+ : VIDEO
VINLD 23 13 FMO RD0 – RD15 DQ0 – DQ15
SL– 18 VOLD–
: USB
TRK+ 16 VOTK– RA0 – RA11 A0 – A11
VINTK 26 16 TRO
TRK– 15 VOTK+
BA0 72 20 BA0
FCS+ 14 VOFC+ BA1 73 21 BA1
VINFC 1 17 FOO
FCS– 13 VOFC– RCLK 60 38 CLK
RWE# 68 16 WE
MUTE 28 108 PAPLLCAP/GPIO35
CAS# 69 17 CAS
BIAS 27 6 V14 RAS# 70 18 RAS
GPIO13

DQM0 49 15 LDQM
PRST_
IFSDO
IFSCK
IFCS_
IFSDI

DQM1 59 39 UDQM

35 38 37 34 36 32

22 20 17 19 104 14
MTK-BUSY
MTK-RESET
MTK-SDO
MTK-SDI
MTK-CLK
MTK-XIFCS

CEC-IN 10 CEC DATA SWITCH

MS-476 BOARD CEC-OUT 15 Q1000 – 1002, 1005

LOAD+ 10 VOTR+ FWD 6 8 CD-MOTOR+ DP0 151

LOAD– 9 VOTR– REV 7 3 CD-MOTOR– DM0 150
USB-HOST-SEL 106

TRAY-IN 12 CDM-LOAD-SW
TRAY-OUT 13 CDM-UNLOAD-SW

AUDIO DSP, SYSTEM CONTROLLER

IC109 (1/4)

MHC-V41D
43 43
MHC-V41D

6-2. BLOCK DIAGRAM - AUDIO Section -

A/D CONVERTER
ASDATA0, MTK-BCK, MTK-ALRCK, IC606
MTK-MCK, ARC_SPDIF
MTK-MCK
>001B 6 SCK
DIGITAL AUDIO INTERFACE RECEIVER
(Page 43)
IC904

ALRCK_I1 9 7 LRCK
ASDATA0 AUDIO DSP, SYSTEM CONTROLLER
28 RXIN7 ABCK_I1 8 8 BCK VINR 14 R-CH
MTK-BCK IC109 (2/4) DOUT1, DOUT2, ARAGON-BCK3,
30 ABCK_IO ADIN_1 10 9 DOUT
FM TUNER TUNER/BLUETOOTH SELECTOR MTK-LRCK VINL 13 ARAGON-LRCK3, ARAGON-MCK
29 ALRCK_IO ARAGON-BCK3
CN9000
IC902 IC905 ARC_SPDIF
32 RXIN3
>002B
DOUT2
FM 2 DOUT 17 28 SSI3-DI SSI2-DO (FR) 40 (Page 45)
RF 1 FRF1 IISD 14 11 3A
ANTENNA 3Y 9 14 ADIN_2 BCK 19 24 SSI3_BCKO
10 3B DOUT1
LRCK 18 26 SSI3_LRCKO SSI1_DO (TW) 54
17 X2 BCLK 12 5 2A
X900 2Y 7 12 ABCK_I2 ARAGON-LRCK3
6 2B SDA 24
12MHz
16 X1 LRCK 13 2 1A SCL 25
1Y 4 13 ALRCK_I2
3 1B INT0 1 42 DIR-INT0
DA 11 40 XTO INT1 2 41 DIR-INT1
SELECT X602
CK 8 RST 34 38 DIR-RESET
1 24.576MHz
IIC/RDSI 6 39 XTI

4 MPIO_A1

108 BT-TUNER-SEL

126 DIR-CP-TUNER-SDA
CP3000
125 DIR-CP-TUNER-SCL
BLUETOOTH MODULE
45 ST-RDS

MIC1 10 MIC_BIAS DT0 4

SCLK0 3
RFS0 2
BUS BUFFER
HCI_TXD 19 65 BT-RxD
IC102 (1/2)
RESET
>003B
MFI HCI_RXD 18 133 BT-TxD
(Page 46)
IC3000 MFB 26 164 MFB
EAN 32 165 EAN
SDA 2 16 CP_SDA P2_0 41 124 P20
SCL 6 15 CP_SCL P2_7 42 131 P27
RST 7 29 CP_RST RST_N 13 113 BT-RESET

RESET SIGNAL
GENERATOR BT_3.3V
IC3001 A/D CONVERTER
IC605
J7700
MIC 1 14 VINR
DOUT 9 33 SSI0_DI (MIC)
13 VINL
MIC AMP BCK 8 29 SSI0_BCKO
IC7700 LRCK 7 30 SSI0_LRCKO
J7701 SCKI 6 43 AUDIO-CLK-OUT
MIC 2 ARAGON-MCK
GUITAR
D/A CONVERTER
GAIN IC604
MUTING CONTROL LOW-PASS
Q7708 Q7707 FILTER 7 VOUTL
IC603 DATA 2 32 SSI0_DO (PARTY CHAIN)
R-CH 8 VOUTR XTAL 71
X105
13.333MHz
BCK 1 EXTAL 70
LRCK 3
ANALOG AUDIO SELECTOR SCK 16 AUDIO-X2 92
IC602 X103
12.288MHz
AUDIO-X1 91
1 Y0
LINE AMP J601 (3/3)
Y 3 L SERIAL FLASH USB-X2 140
J601 (2/3) IC601 AUDIO/PARTY CHAIN X104
L 5 Y1 IC105
AUDIO/PARTY CHAIN OUT 48MHz
R-CH R USB-X1 139
IN (TV) A
R R-CH DI (IO0) 5 170 Q-Flash-SIO0
10
MUTING DO (IO1) 2 172 Q-Flash-SIO1
Q602 IO2 3 166 Q-Flash-SIO2
AUDIO LINK Q612
IO3 7 167 Q-Flash-SIO3 SIGNAL PATH
DETECT MUTING AUDIO LINK CLK 6 168 Q-Flash-CLK
Q605, 607 CONTROL SET CS 1 169 Q-Flash-CS
: AUDIO
Q606 Q603
: TUNER
: DISC PLAY
120 52 114 47 48 175
: AUDIO/PARTY CHAIN IN
MODE-SEL

LINK-DET

LINK-SET
MIC_DET2
MIC-DET1

/LIME-MUTE

: BLUETOOTH
: MIC
MHC-V41D
44 44
 MHC-V41D

6-3. BLOCK DIAGRAM - AMP/PANEL Section -

STREAM PROCESSOR DIGITAL POWER AMP AUDIO DSP, SYSTEM CONTROLLER
DOUT1, DOUT2, ARAGON-BCK3, IC2001 IC2002 IC109 (3/4)
ARAGON-LRCK3, ARAGON-MCK REMOTE CONTROL
DOUT1 SP1
>002B 24 SDIN1 PWM_P_2 41 14 INPUT_C OUT_C 32
(MIDRANGE)
SIRCS 135 RECEIVER
DOUT2 IC7450
(Page 44) 25 SDIN2 (L-CH)

ARAGON-BCK3 SP2
23 SCLK (TWEETER) ND7000
ARAGON-LRCK3 (L-CH) VACUUM FLUORESCENT
22 LRCLK DISPLAY
ARAGON-MCK
11 MCLK
PWM_P_1 39 15 INPUT_D OUT_D 27 SP3
(MIDRANGE) FL-SOUT 4 DIN
(R-CH) FL-CLK 2 CLK
OUT_D 28
SP4 FL_LATCH 176 STB
(TWEETER)
(R-CH)

S7000
PWM_P_4 49 5 INPUT_A OUT_A 39 SP5
POWER-KEY 6 1
(SUBWOOFER)
OUT_A 40
S7001 – 7003, 7005, 7007, 7009
PWM_M_4 48 6 INPUT_B OUT_B 35 S7011, 7013, 7015, 7017, 7019,
AD-KEY0 84
S7022, 7024, 7026, 7028
(TOP PANEL KEYS)

RESET
FAULT
4 16 S7004, 7006, 7008, 7010, 7012,
S7014, 7015, 7018, 7020, 7021,
AD-KEY1 85
S7023, 7025, 7027, 7029
VALID 37 (TOP PANEL KEYS)
FAN MOTOR
RESET
MUTE

DRIVE
SDA
SCL

Q2000 NFC BOARD

D2001
20 21 19 16
FAN MOTOR TOUCH-NFC_SDA 130 DATA
FAN MOTOR D2000, 2002
CONTROL M1 TOUCH-NFC_SCL 129 SCL
Q2005 DRIVE M (FAN) NFC-INT 110 IRQ
Q2006
NFC-RF-DET 137 RF-DET

FAN LOCK
PROTECT
Q2002 LED DRIVER
IC7000

D7000
RGB-SOUT 117 2 SIN OUT14 19
MEGA BASS
RGB-SCLK 134 3 SCK
RGB-PWM-CLK 136 21 PWMCLK
RGB-TRANS-PNL-LED/SPK-LED 115 4 TRANS
TOP PANEL GESTURE GESTURE CONTROLLER
CONTROL SENSOR IC7500 D7001
OUT13 18
GUITAR
15 TXD EIO4/SI0 9
EAST
21 RX0 EIO5/S11 10
ELECTRODE
EIO0 1 111 3D-DETECT
D7002
MCLR 13 103 3D-RESET
SOUTH OUT12 17 GESTURE
23 RX2
ELECTRODE ON/OFF

WEST
24 RX3
ELECTRODE D7003
OUT11 16 PAIRING
TH571 NORTH BLUETOOTH
25 RX4
ELECTRODE

PARTY LED BOARD

128 127 57 53 49 80 78 OUT4 9
OUT5 10 GREEN_HILED
SIGNAL PATH
3D (GESTURE)-PWM-SDA
3D (GESTURE)-PWM-SCL

/AMP-RESET

/SD-FAST

AMP-PROTECT
SPM-AMBIENT-TEMP
DAMP-MUTE

OUT6 11 BLUE_HILED
: AUDIO OUT7 12

SW LED BOARD

OUT10 15 SW-LED-GREEN
OUT9 14 SW-LED-BLUE
SW-LED-RED

MHC-V41D
45 45
 MHC-V41D

6-4. BLOCK DIAGRAM - POWER SUPPLY Section -

AUDIO DSP, SYSTEM CONTROLLER
IC109 (4/4) +3.3V REGULATOR
TUNER+3.3V
IC903

ST-CE 44

B+ SWITCH
DVDD5V
Q006, 007
+3.3V REGULATOR
SERVO+3.3V
IC305
+5V REGULATOR
AVDD+5V
IC006

+5V REGULATOR
HDMI+5V
IC1000

MTK-POWER-CTRL 59
+12V REGULATOR
SW_12V
IC2000

+9V REGULATOR +12V REGULATOR B+ SWITCH

A+9V
IC004 IC008 Q004, 461

+12 REGULATOR
FAN+12V
IC2003
+12V REGULATOR B+ SWITCH
SW+12V
IC002 Q011, 012

PCONT-PSAVE-PROTECT 60

B+ SWITCH B+ SWITCH
FL+5.2V
Q7001, 7002 IC003

M+5.2V_PNL DC/DC CONVERTER

B+ SWITCH IC001
M+5.2V
IC010
B+ SWITCH
FE_5.2V 14 SW2 VIN2 16
Q457 (1/2), 459
3 SW1 VIN1 1

PG1
PG2
EN1
EN2
USB+5V
5 12 6 11
VBUS SWITCH
VBUS
IC452

VBUS-OE 112

USB-OC 35
PROTECTOR 82
E+1.2V
DC/DC CONVERTER
B+ SWITCH IC009
DVDD3.3V
Q005, 457 (2/2)
B+ SWITCH
AVDD3.3V 3 SW1 VIN1 1
Q302, 303
14 SW2 VIN2 16

PG1
PG2
B+ SWITCH
E+3.3V
IC007 6 11
+1.2 REGULATOR
SERVO+1.2V
IC303

POWER CONTROL
B+ SWITCH IC6300
SERIAL FLASH B+
Q304, 305
D6516 D6511 D6306
LATCH SWITCH ISOLATOR LATCH SWITCH
LATCH-ON 27 1 LATCH
Q6506, 6507 PH6302 Q6305
B+ SWITCH
+3.3V
Q110, 111 SHUNT
ISOLATOR
REGULATOR 3 FB
PH6301
B+ SWITCH IC6500
BT3.3V T6300
Q103, 104
POWER
BT-ON 16 TRANSFORMER

B+ SWITCH D6312
D+3.3V RECT REGULATOR
Q008, 009 POWER AMP B+ 6
D6604 Q6304
VCC
PCONT-BTSTBY 122
POWER POWER
B+ SWITCH B+ SWITCH
SPM-C-MON 79 CONTROL CONTROL
Q574 – 576 Q571, 572 F6500
Q6501 Q6504 RECT POWER
C-CONT 55 D6501 RECT SWITCH 5 DRV
PCONT-DAMP 118 D6000 Q6300 – 6303

RESET SIGNAL 1 HV
RES 76 GENERATOR
IC103
TH6000 F6000
BUS BUFFER AC DETECT ISOLATOR AC DETECT RECT LINE FILTER LINE FILTER CN6001
AC-CUT 63
IC102 (2/2) Q6500 PH6300 Q6307 D6001 LF6000 LF6001 - AC IN
(Page 44)
RESET
>003B

MHC-V41D
46 46
 MHC-V41D

THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is printed in each block.)
For Printed Wiring Boards.
Note:
• X : Parts extracted from the component side.
• Y : Parts extracted from the conductor side.
• : Pattern from the side which enables seeing.
(The other layers’ patterns are not indicated.)
Caution:
Pattern face side: Parts on the pattern face side seen
(SIDE B) from the pattern face are indicated.
Parts face side: Parts on the parts face side seen from
(SIDE A) the parts face are indicated.
• MOTHER board is multi-layer printed board. However,
the patterns of intermediate layers have not been includ-
ed in diagrams.
• Indication of transistor.
C • Voltages are taken with VOM (Input impedance 10 M).
Q These are omitted.
B E
Q
B C E be replaced for repairing.
These are omitted.
Note 1: Among mounted electrical parts on each board, only
parts that are described in the electrical parts list can
be replaced for repairing.
The parts that are not described in the electrical parts
list cannot be replaced with single for repairing.
Note 2: Among mounted parts on the MOTHER board, only
parts that are described in the electrical parts list can
be replaced for repairing.
When the parts that are not described in the electrical
parts list are defective, replace the complete mounted
board.
In this service manual, the block diagram and printed
wiring board of the MOTHER board are described
for reference.
Also, when the MOTHER board is replaced, be sure
to refer to “DESTINATION SETTING METHOD”
and “NFC OPERATION CHECKING METHOD”
on page 6.
Note 3: When the PARTY LED, SW LED, NFC and MS-476
boards are defective, replace the complete mounted
board or the whole parts including the applicable
board.
The mounted parts cannot be replaced with single for
repairing.
In this service manual, the schematic diagram and
printed wiring board of the PARTY LED, SW LED,
NFC and MS-476 boards are not described.
Also, when the NFC board is replaced, be sure to re-
fer to “NFC OPERATION CHECKING METHOD”
on page 6.
Note 4: When the SMPS board is defective, replace the com-
plete mounted board.
The mounted parts cannot be replaced with single for
repairing.
However, in this service manual, the block diagram,
schematic diagram and printed wiring board of the
SMPS board are described for reference.
• Circuit Boards Location
GESTURE board
For Schematic Diagrams. PANEL board PARTY LED board
Note:
• All capacitors are in μF unless otherwise noted. (p: pF)
50 WV or less are not indicated except for electrolytics
MIC board
and tantalums.
• All resistors are in Ω and 1/4 W or less unless otherwise
specified. SMPS board
• 2 : Nonflammable resistor.
• C : Panel designation.
NFC board
Note: The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
MS-476 board
Replace only with part number specified.
• A : B+ Line.
• Voltages are dc with respect to ground under no-signal
MOTHER board
(detuned) conditions.
no mark : TUNER (FM)
* : Impossible to measure IR board
Voltage variations may be noted due to normal production
tolerances.
• Signal path.
d : USB
N : MIC
Note 1: Among mounted electrical parts on each board, only
parts that are described in the electrical parts list can
The parts that are not described in the electrical parts
list cannot be replaced with single for repairing.
Note 2: Among mounted parts on the MOTHER board, only
parts that are described in the electrical parts list can
be replaced for repairing.
When the parts that are not described in the electrical
parts list are defective, replace the complete mounted
SW-LED board
board.
In this service manual, the block diagram and printed
wiring board of the MOTHER board are described
for reference.
Also, when the MOTHER board is replaced, be sure
to refer to “DESTINATION SETTING METHOD”
and “NFC OPERATION CHECKING METHOD”
on page 6.
Note 3: When the PARTY LED, SW LED, NFC and MS-476
boards are defective, replace the complete mounted
board or the whole parts including the applicable
board.
The mounted parts cannot be replaced with single for
repairing.
In this service manual, the schematic diagram and
printed wiring board of the PARTY LED, SW LED,
NFC and MS-476 boards are not described.
Also, when the NFC board is replaced, be sure to re-
fer to “NFC OPERATION CHECKING METHOD”
on page 6.
Note 4: When the SMPS board is defective, replace the com-
plete mounted board.
The mounted parts cannot be replaced with single for
repairing.
However, in this service manual, the block diagram,
schematic diagram and printed wiring board of the
SMPS board are described for reference.

MHC-V41D
47 47
MHC-V41D

6-5. PRINTED WIRING BOARD - MOTHER Board (Side A) - • See page 47 for Circuit Boards Location. • : Uses unleaded solder.

1 2 3 4 5 6 7 8 9 10 11 12
M1
(FAN)
M

A >06P SMPS BOARD

NO6501
(Page 56)
MOTHER BOARD (SIDE A)

D2002
Q2000 C2018 R2040 3
C2017 C2079 C2084

Q2006
A CN2001
E
D2000
R2015
E R2039
R2036
1
C2004
IC2000 C2063
R2085 R2037 2 1 2
K R2035
R2087 A C2115 C2022 C2068
CN001 1 6 R2014 R2013 C2012
JL057 1 10 E

C2014
R2020
6
R2051

R2019
C2013
3 4 R2084 C2024

C2054
C2051
C048 Q2002
C2025

C2098
Q2005
B
C2058

R2025
A C2038
L006 R2078
K/A C2067

D2001
C2023 R2026 C2009 R2042
C010 C092 R086 K C2006 C2007 C2097
L009 C037 R2046
C011 C091 C2003 28 56 R2152 1 44
C2016 R2049
C039 C2020 C2042
R001
E R2024 R2076 C2008 C2032
C2026
IC2002
R023 Q575 R2142
L008 C053 R025 R024 C055 R2023 R2003 C2045

C2021
R2006 R2143
C093 C024
C026 16 9 C030
R483
R491
R2007 C2108
R2008 R2004 IC2001 C2028 C2027

C052

JL2042
IC001 C577
JL2041 R2118 C2046

Q574
L003 C574 Q576 G D R2136 R2093
1 8 R2137
E S C2010 R2116
C017 E R2009 C2043 R2053 C2060

C013
Q571 C573 R485 R2096
C R2031 22 23
R013

R087 R487 R2011 28 29

R012
L002 C015 C054 R572 K A
C105
D102 C104
R099 R2034 R2088 C2036 C2039 C2100
C004 D572 K A

Q572
C016 R2150 R2010

C2099
C096 K A
R014 C003 R571 E

C2055
C2052
C006 3 2 C103 C2015
L004 R051
IC103 4 R2101 C2071
C014

C019 16 D571 E R128 Q107 R117 R2151

9 C050 L001 C005 1 R2052
C107 R115 R2044
C040 R2077
R113 R577 C2069 C2095 C2090
C150 C110 R116 C2135
R088
IC009
C049

R127
C109
C028 C106
C2150
R114 C127
1 8 C038
C162

R159
R158
R026 C2059
R032 C041
C149 C126

R511

R172
C047

R160 X105

R521
C116

R173
R168
C029

C057 FB101 1
C084 RB109 RB108
D L007 C161
C128
C129
C130 X103 R190
R186
R151 R169
R247
R519
R164
R323 JL331
L1001

C337

R365
R367
1 R188 R181
C085 E R061 C366 1 R434 R349 (TV)
Q009 2 2 L1002
R299 R150 R424 R351 JL332 R368
Q008

C083 E R196 E R378 X301 CN1000 ARC

88 45 R450
R193 C341

Q401
89 44 R322 R989 C322 R1010 HDMI OUT
R062 C132 R301 C421 R334 128 R1014
C072 R201 R988 97
C068
R108
R109 E R200
R205 D103
CN302
C302
C420
IC305
2 1 R987
C958 C323
R332 1 96
CL328
R1015
R1011 19
CN113 C303 R421

R1000
E Q104 R198 R517 K A JL363 R422 CL329 R1019
FFC3 C167 R295 C356 C1006
Q103 (NC) R520 3 4

R371
C353
R211 E C073 R1020
RB107
R213 R1012
>03P Q006 C307
GESTURE
JL053 R077
R509 R218
24
23
C071 R470 IC301
BOARD
15
R223 IC109 R219 R221 R040
C468
R472
C308
R331
RB303

E CN7500 R225
16 R227 C141 C139 R048 1 8
(Page 52) R228 R224 10 8 R335 R327 RB305

Q007
R039 R340
R233
R236 R166
C142
C143
R226
R229 5 1 E
1
2
7
6
R329 IC302 R342
R238
>02P R241 CN303 35 4 5 32
33 64
65 RB302
IR
1
R547
R548
R232
R171
4 2
IC453 C324
R356
R354
R355 RB307
BOARD R549 R344 RB308 RB301
2 R550 R535 C467
CN7451 R345 R380
R121 R242
(Page 51) FB601
R716 R130 132 1 R251
RB309
R369
R379 RB304 R692 C629 R756
FB602 R132 133 176 R257 RB306 C656
6 R192 Q607 C659
CN127

R700
R531

FB603 R998 R189 5 1 1 6

7 R285 R291 R261 C658

C626
R275
R288
R289

MIC BOARD R208 R270 3 4

CN7701 >01P CN601
1 3 R510 R271
54 28
R280

C297 CN451 C917

R267

C151
R278
C152

(Page 51) 2 6 C298 R752

F

R624
CN120
R264

R292
R290

FFC6 E

Q606
1 7 X104
R540 E
E R653

FB321
NFC

C627
JL296 JL295 1

R625
Q110
BOARD R781
IC306 6
CL3046 CL3047

Q111

Q602
R782 FL301
R3018

9 8
FL601
R3030

R3016

3 1
FFC5 C628

R753
4 3
IC905
CL3043
CL3042
CL3041
CL3054

CL3050

CL3049
CL3048
CL3056

CL3052
CL3051

CL3040

CL3045
CL3055

6 2 C654 R779 Q603

CN105 R923
CL3057

5 1 16 1 4 6

FB320
R650
R167 R784 1 27 R641
43 27

C362
R101
CL3030 FB104
26 R3019 FB102 C664

R619
R618
R820 R126
CL3029 C608

C602
C766 R644

C604
C067 C632 6
CL3024 R630 R617 C610 R605 R604 R602 R915 R124
C601
CL3022 R631

C630
R607
G CP3000 C3004 16 9 R642

C603
R620 R614

C620
19 1 R632 R609 R613 R610 C607 CN108
BLUETOOTH MODULE R3035 CL3023 R626 4 1
CN103 1 R608
CL3028
18 2
3 1
IC604 C613
4 1 8
(NC)

R616
CL3027 R750

R615
C614
R030 C943
Q457
IC601

C605
C618
CL3026 R628

R622
IC603 IC602

C938
18 4 6 D401 1 8 C624
CL3020 FB103 FB105 A K C606 4 3
R162 C616 5 8 IC9031 C941
R141

R165 A K C615
CL3036
CL3037
CL3038
CL3039
CL3012
CL3013
CL3035

CL3016

CL3031
CL3032
CL3019
CL3014
CL3015

CL3033

1 17 R163 C619 5 8 9 16 2 1
D402 R415 R649 R916

R652
R648
CL3011

CN402 R635 R646 R634 R627

R446

C621
C3006 4 C411 R638 FB610
R3021 R3022
C418

R600
R3020 R656
CL3034

C3005 C767

C612
R751
IC3000

R655
C635

C633
R640
R3027 R002 4 1 R647 C631
R3028 R447 C625

R654

C634
R3025 5 4 JL055 R448
VR3001 R3029
C419

C3001 8 CN104 C076

1 1
CL3062 R449 R404 R401 C403
R027 R408
R3033 R410 R409 R402 C402
H 2 1
JL056
CN3001 11
C3503
1-983-576- (11)
FFC4 FFC1 FFC2
>04P SW LED OP1 MS-476 >05P
BOARD OPTICAL PICK-UP BLOCK BOARD
PANEL BOARD PANEL BOARD
(CMS-S76RFS7G1/S76RFS7GP)
CN7007 CN7800
MIC1
(Page 54) (Page 54)
Note: When the IC2002 on the MOTHER board is replaced,
refer to “SPREADING OF COMPOUND” on page 7.

MHC-V41D
48 48
 MHC-V41D

6-6. PRINTED WIRING BOARD - MOTHER Board (Side B) - • See page 47 for Circuit Boards Location. • : Uses unleaded solder.

1 2 3 4 5 6 7 8 9 10 11 12 13

A >07P SMPS BOARD

CN6500
(Page 56)
MOTHER BOARD (SIDE B)
CN2007
1 3 9 JL2006 C2128
C2116 CL2010 CL2038
R2147

2 CL2004
CL2039
JL2030 JL2033

CL2042
JL2021
CL2040
IC2003 3 CL2011 JL068

CL2049 JL2018 JL2003 CL2024 1 JL2031

CL2041

CL2046

CL2047

CL2045

CL2044
SP5 6 C062 R031
(SUBWOOFER) JL045
B L2002 JL2011 R2146
C2127 JL001 R053
JL004

R046
R045

R068
SP4 CL2048 R019
CL2043 CL2026
(TWEETER) C2076
(R-CH) JL2012
R050 4 3 IC010 E
R064
R020

Q461
R049 R035

R2022
1 C060

Q011
R069

R2021
C2019
R2068
R2069
6 R066 E
SP3 R060
CN2021 C061 R007 E JL005
R033

Q012
(MIDRANGE) R047 JL059
CL2050 CL2023
(R-CH) R065 C078
JL2008 R2067 R029
JL2020 JL2036 JL2037
JL2034 C051
SP2 CL2025
(TWEETER) JL008 JL046
CL2052 R2066 JL2040 JL2039
(L-CH) R006 JL012 E 1
CL2021
JL2015 JL071
CL2022 Q004
C SP1
JL2016
CL2020 JL269 JL150
R008 3 IC008
(MIDRANGE)
(L-CH)
1 CL2051
JL2038 CL2035
IC0074 3 R044
2
JL2009 R2070 CL2036 JL069 C031
R018 6 1

R098
L2003 C080
C2131 JL044 R009
JL2029 8 7 C032 R004
C2132 JL073 C079
R129 R131 R017

C2151
R120
IC102 R123
1

R015
JL2005
R528
C102 14
RB105
1
JL148 JL176
JL175
R005 JL047 3 IC004
R529 R143 R249 JL174 2
JL072
JL2026 JL2035 CL415 E R139 JL289 JL173
L601 IC1000 C424 R170 R107 R137TH571 R144 1
R1017

JL110 C638 Q402 R429 R176

R102 R104
C1003

R522
R191
D CL309 CL310

R318
R310
R145 JL049

R184
JL111
JL905
C636 3 1 Q303 JL330 R316 R255 R533 R140
R524
C118
R149
JL172
JL196 3 IC006
R358
JL361 JL171

R222
R435 C367 R177
E R360 JL313 CL414 C2000
C1005

C350 JL303 JL302 C123 2

R1024 C1004

C112 C114 R175 JL198

CL307 JL304 JL306 JL197
IC1001 C111

R103
4 1 CL315 R637 C280

R412
4 5 R319 CL316 C950 R959 R957 C423 R300 C115 C281 JL011
JL631 R370 JL309 R513 JL199 JL200 JL048

C328
R1025 R328 C331 C316 C960 JL312 C503 C131
JL1003 CL395 JL308 R512 C117 JL195

C282
C120
C122
C306 36 25 CL413 R431 C504 JL201
CL311 CL313
C1013
R1026

5 8 R432 JL310 C133 C134

C1009 C330 R326 R389
C1011 C352 C338 JL301 JL216
C1010 Q302 37 24 JL215
JL307 JL315 JL316 RB101
C343

X602
R321

C340
C339

E C347 JL314 C135 JL113

R1022
R1023

C334 C951 JL305 JL318 JL202 JL114

C319 C949 JL311 JL319 R273
R1027 CL380
IC904 JL317 JL169

R953
R359 C375 R330 C952 R215 C136

R518
C299
C963 JL203 JL217
R174

RF
C351 C325 JL321
JL320 JL324 R220

R955
R309 R339 JL356 48 13 JL235
VIDEO R451 C465 C137 R152 JL204
C346 C326 C954 R453 R498
OUT JL357 R664 JL322 JL325 C138 JL205
E C348
JL359 R657 R658C981 1 12 4 3
JL326 C140 R532 JL109
JL206
IC452 6 R274

C462
R984
R985
R986
C344 C342 C985 JL328 JL327 R514 R237 C502 R298

C144
R981
R982
JL619 R348 1 R792

R195
R284

R546
R230 R534

C463
L C466 C311 R515 R256 JL613

C147
JL358 R665 R148 C501 R722 R723 R720
CL308 C336 R660 C671
RB310 C663 E C146 JL116 JL227
JL620 FB455 JL115 R545
OUT R352 R983
C662 JL463 Q1002 JL294 C148 C168 R544 8 7 JL615 JL614
JL355 JL362 JL360 JL117
R
C321
C372 JL462
C153 C283 R134 R719
R106 IC609 C678
C369

C315 JL209 R119 C160 R543 JL910

E JL119 JL118 C675 C669

Q304
L301 C674

FB109
JL461 C157 JL120 C986
J601 R302 1 6 R1007 C155 C158 C159 R283 R135 14 1 JL616
JL635 R950 JL212 R711
C181 3 4 R293 JL121 JL134 C673
R478 JL525 R709 JL908
R303
IC303 R276

C670
AUDIO/PARTY CHAIN Q1000 C154 C156 C672
R952 Q305 JL122 R122 JL909
C373

R686 JL460 E JL528 JL529 C667 R917

R708
C666
E R1001 C1001 R254 JL155 JL135
R651 R381 C358 C357 R951 RB104 JL601
C665

F L 6 4 JL604 JL323 JL329 K

D1001
A
RB106
JL527 JL154
JL132
JL131 JL617
JL125
Q605 R1005
IN (TV) 1 3 R778 R783 R1006

Q1005
C660

R689 C164 JL526 JL152

JL605 E 8 5 JL530
R
R382
R685 C364 C360
C365 Q1001
JL524
IC106 JL151 JL153
C363 R690 R687
JL618 C359 E
R691 R688 JL144 1 4 JL194
R1004
C653

8 7 R1003
JL101 C655 C1000 JL521 JL297
JL102
C180
C695 R785 IC606 R1002
FB106
JL138
JL147 JL287 JL107
JL106
X900 R677 C987 E R037 R3009
R1008 14 1 JL143 R187 JL231 JL523
C649

Q005
R911 FB108
G
C644 C646 JL140 R185 CL3003
CN900 C657 R913 R663 C648 R674
C645 R411 JL024
C647 R661 C642 CL412 FB107 JL142 JL145
1
R937

FM C934 R662 C641 C711 R034 JL139 JL124 JL105

L605
IC902 R857 JL230 R240 JL522
C609

ANTENNA JL901 R671 C640 C407 C413 R313 CL411 R003 R3015

C065
L900

2 20 16 R669 R314 JL136

C933 C650 C409 R183 R3004
1 15 R945 R418 C408 JL146 JL137 JL123
C931

R914 C643

R3039 R3003
C652 CL408 CL410 C008 JL232 R3014
JL900 K/A C930 R946 CL409 C405 JL023 JL021
C622

R912 R794 CL3002

5 11 R947 C726 JL022 R3005
D900 L901C932 JL108
6 10 R943
C617
28 22
30
21 15
C406
JL149
4 1
JL002
JL141JL520
IC3001 R3044
A K L902 JL401 1 4
R639 E C3019
Q612

C936 JL130 2 3 R3040 R3041

R940 R939 JL402 IC002 C087
IC401

C012
R944 JL603 C3018 CL3059 R3043
JL405 5 8 R3042
JL2200 R3032
CL3058 CL3001 CL3000
JL2222 JL2203 JL406 JL070 CL3007
H JL2221 JL2206 JL2207
1 7 8 14 C064 C3000 R3045
R3048 CL3005

CL3006
29 R096

R3049
C097 CL3004
JL2223 C404 R091 R094 R3046
JL2224 CL401 CL403 CL405 Q459
JL050 C066 1 6 CL3063 CL3064
C095

R095
E CL3008
CL402 3 4 CL3009
11
R028 R097 R3047
IC003
R406
R407

CL404 1-983-576- (11)

MHC-V41D
49 49
 MHC-V41D

6-7. SCHEMATIC DIAGRAM - MIC Board -

1 2 3 4 5 6 7 8 9 10 11 12

MIC BOARD
A C7710
100p
R7722
1.2k
CL7709
CL7708 CL7737

R7716 C7713
22k 22p

C7709 C7724
10 10
50V 50V
CL7713 CL7721
CL7714
CL7719
R7707 C7718
B 10k 1 J7700
CL7724 MIC 1
C7715 C7716 R7725 C7719 C7720 R7729 R7734
0.1 220 10k 220 0.1 100k 10k
16V 16V
CL7711

4.4

4.4
4.4
C7727
0.001

1
2
3
4
VEE
C IC7700 D7704 CL7718
MIC AMP BAV99-215

IC7700
BA4558F-E2
W7700

CL7717
CN7701 (CHASSIS)

VCC
7P R7701
CL7700 0
D7705 CL7738

8
7
6
5
A+9V 1
CL7701 BAV99-215

D FFC6 SIGNAL1 MIC 2

8.8

4.4

4.4
4.4
CL7702 R7704
MIC GND 3 0
MOTHER CL7703
BOARD SIGNAL2 MIC/GUITAR 4 R7726 C7721 R7730
(1/5) CL7704 R7705 10k 0.1 2.2M
MIC DET2 5 0
CL7705
MIC DET1 6 R7703
CL7706 0 CL7722
MODE SEL 7 C7723
CL7720
R7717 C7714 10
C7702 22p 50V J7701
22k CL7715
0.1 MIC 2
CL7712 CL7725 GUITAR
R7733
E C7701
0.1
C7704
100p
C7706
100p
10k C7728
0.001
CL7726
CL7710
R7708
FB7700 FB7701 10k C7711 R7728
100p 1.2k CL7727
CL7707
C7708
10
50V

R7718 C7722
18k 1
F CL7729 CL7728

0 0
CL7716
3.3 3.3

Q7707 Q7708
C7712 LTC014EUBFS8TL LTC014EUBFS8TL R7732
0.1 2.2M
GAIN CONTROL MUTING

MHC-V41D
50 50
 MHC-V41D

6-8. PRINTED WIRING BOARD - MIC Board - • See page 47 for Circuit Boards Location. 6-9. PRINTED WIRING BOARD - IR Board - • See page 47 for Circuit Boards Location.

• : Uses unleaded solder. • : Uses unleaded solder.

1 2 3 1 2
MIC BOARD IR BOARD

R7704
CL7705 C7701

A CL7719
FB7701
R7701
R7707
1 CL7701 FFC6
A
2
C7706
CL7700 R7450
JW7705 C7702
CL7703
>01P CL7454
CL7720
FB7700
JW7704 CL7704
6
MOTHER
BOARD
IC7450 R7451

7 C7704 1
CL7702 CN601

R7705

R7708
JW7706 CL7706 CN7701 (Page 48)
CL7723 3
R7703 CL7452 C7451 CL7455
CL7450 CL7453
C7716 C7708
C7709 R7725 R7726 B >02P 3
B C7720
CL7707
C7721 MOTHER
CN7451

CL7711 CL7730 BOARD 1

CL7732 11
CN127 CL7451
R7716 C7719
CL7733 (Page 48) 1-982-787- (11)
C7710 C7715
CL7708 CL7734
CL7736 1 8 C7711
CL7709 R7717
CL7731
CL7735 4 5
JW7702 IC7700
R7722 C7713 CL7712 C7714
CL7737
R7730 R7718
CL7713
C C7712
CL7729
CL7727 C7722
C7718
R7729

C7724 C7723
R7728 CL7728
E
JW7703

E
CL7710 R7733 CL7726 CL7716
Q7708 Q7707
CL7715 R7732 R7734 CL7714 CL7738 6-10. SCHEMATIC DIAGRAM - IR Board -

CL7724
JR7701
1 2 3 4 5
CL7725 CL7722
CL7717 CL7721

W7700

D IR BOARD
(CHASSIS) A
C7727 C7728
IC7450
D7704 CL7718 D7705
A A/K K REMOTE CONTROL RECEIVER
K/A CN7451
K A 3P IC7450
PNA4823M03S0
R7451
DGND 1
MOTHER CL7450 0 CL7454 2.9 1
11 BOARD SIRCS 2 VO
(2/5) CL7451 CL7453 2
1-982-786- (11) E+3.3V 3 GND
CL7455 3.3 3
C7451
B 0.22 VCC
CL7452
E R7450
22

J7701 J7700
MIC 2 MIC 1
GUITAR

MHC-V41D
51 51
MHC-V41D

6-11. PRINTED WIRING BOARD - GESTURE Board - • See page 47 for Circuit Boards Location. • : Uses unleaded solder.

1 2 3 4 5 6 7 8 9 10

GESTURE BOARD (SIDE A) GESTURE BOARD (SIDE B)

A

NORTH FFC3
ELECTRODE
>03P
MOTHER CL7515
BOARD
CN120
(Page 48)
B
(GESTURE CONTROL SENSOR)

K A K A JL7503
JL7504

R7501
D7501 D7503
JL7501 A/K
D7506 A K K A/K D7507
D7505 A A K C7500
A K/A

D7502
2 6 R7500
K CN7500 JL7505
C JL7502
R7507
1 7
JL7500R7502

CL7510
R7519

R7514
R7503 R7506

R7504
K

D7500
WEST EAST R7508 C7505

CL7511
C7504 A

K/A
ELECTRODE ELECTRODE R7509
R7505 14 1 D7504
K A

CL7500
CL7502
CL7504
CL7506
CL7508
C7509

CL7507
R7516
IC7500

C7518
CL7501 15 28
CL7512
CL7505
R7510 CL7509
CL7514 C7508
CL7503 C7511
TRANSMITTER C7506

C7515
C7516
C7503

R7511
R7512
R7515
R7517
D CL7517 CL7513

SOUTH
ELECTRODE
CL7516

11 11
1-982-788- (11) 1-982-788- (11)

MHC-V41D
52 52
 MHC-V41D

6-12. SCHEMATIC DIAGRAM - GESTURE Board - • See page 58 for IC Block Diagrams.

1 2 3 4 5 6 7 8 9

GESTURE BOARD
A R7502 R7516
C7509
100p
C7504
100p
R7514
10k
R7519
10k
0 100
D7503
BAV99-215
R7503 R7508
0 100

D7502
BAV99-215 R7504 R7506
100 100

R7505 R7509 C7518

D7501 100p
BAV99-215 100 100

CL7502

CL7507

CL7508

CL7511
D7500
BAV99-215

CL7500

CL7504
CL7506

CL7510
3.3

3.3
3.3

3.3
0

0
14

13
12

10
11

8
7

6
5

4
3

2
1
C

NC_14
MCLR

EIO7/S13
EIO6/S12

EIO5/S11

EIO4/SI0
EIO3

NC_7

NC_6
NC_5

IS2
EIO2
EIO1

EIO0
IC7500
GESTURE CONTROLLER
IC7500
MGC3030

VCAPD
VCAPS

VCAPA
VINDS
VSS1

VSS2

VSS3
VDD
TXD

RX0

RX1
RX2
RX3

RX4
CN7500
7P
D JL7500

15
16

17

18

19

20

21
22
23

24

25
26

27

28
RB520SM-30T2R

RB520SM-30T2R

RB520SM-30T2R

RB520SM-30T2R
3D-INT 1
JL7501

1.4

3.3

3.3

1.4

1.4

1.4

1.4
3

1.8
D7504

D7505

D7506

D7507
FFC3 3D-RESET 2
DGND 3
MOTHER JL7502 C7505
BOARD R7501
3D-DATA 4 0 100p
(3/5) JL7503
C7516
DGND 5 4.7
JL7504

CL7501
CL7503

CL7505

CL7509

CL7512
R7500 C7500 C7503 C7506 C7508 C7511 R7507
3D-CLK 6 0 0.22
JL7505 0.1 2.2 0.1 2.2 10k
D+3.3V 7

E C7515
4.7

R7510 R7511 R7512 R7515 R7517

4.7 10k 10k 10k 10k

CL7514 CL7517 CL7516 CL7513 CL7515

F
TRANSMITTER EAST ELECTRODE SOUTH ELECTRODE WEST ELECTRODE NORTH ELECTRODE

(GESTURE CONTROL SENSOR)

MHC-V41D
53 53
MHC-V41D

6-13. PRINTED WIRING BOARD - PANEL Board - • See page 47 for Circuit Boards Location. • : Uses unleaded solder.

1 2 3 4 5 6 7 8
(AEP, UK, AUS) CN7801
PARTY LED
BOARD REC/PLAY
PANEL BOARD (CHASSIS)
5V 1A

A CL7804
D7803
K/A
CL7807
1 3 4
A K CL7805
CN7002

C7804
W7800

CL7801
6
CL7128 CL7129 CL7170 CL7168 CL7137 CN7801
R7099
R7095

R7064
R7065
R7066
R7067

R7069
JW7806 CL7127 CL7139
E Q7002 K >05P

R7093
CL7806 1 4 3
ND7000 Q7001 D7005 MOTHER

CL7800
K/A K/A
VACUUM FLUORESCENT DISPLAY CL7117 E CL7130 CL7140 C7806 D7801 BOARD
R7097 CL7135 A

R7068
JW7001 1

CL7112

CL7114
CL7169 CL7126

CL7119
D7802 A KA K K CN451
C7027 C7042
(Page 48) MOTHER BOARD
>04P CL7121 CL7124 CL7132 CL7134 CL7138 JR7800 CL7802 CN7800 (Page

C7800
CN103 CL7079 A
CL7097
48)

JW7807

CL7118

D7800
C7041
FFC4 CL7803
CL7123 C7801

C7031
B

CL7113

JW7829
JW7828
45 44 R7061 16 CL7116 4 2 1

JW7809
CL7153 CL7147 CL7131

JW7805
CL7125

CL7115
JW7804 C7036 CL7120 C7028

JW7810

CL7122
CL7143

JW7803
JW7811
CL7136

JW7825
CL7149

R7058
JW7815 C7040

C7032
CL7155 CL7145 C7038 C7039

C7034
R7060
C7033
R7059
JW7816
JW7808
CL7144 CL7160 CL7133

JW7817
S7016 S7014 19 1 S7013
CN7007

JW7813
MIC ECHO VOICE CHANGER 18 2 C7002 SOUND FIELD
CL7156
CL7158 CL7152 CL7150 CL7148 CL7030

R7072
R7073
R7074
R7075

R7021
C7004
R7020
C7005
R7018
C7006
R7023 CL7033 R7017

JW7838
JW7837
CL7022 CL7146
CL7047 CL7161 CL7141 S7011

CL7052
CL7048
CL7044
CL7142 C7043 PARTY LIGHT
CL7059 CL7039

JW7836
CL7038 CL7159 C7044
CL7067 CL7042 R7013
C

CL7163

CL7036
CL7034
R7028 R7019
R7016 JW7800 JW7824 12 1 CL7027
CL7069

CL7162
JW7814 CL7029
S7012 R7036 S7015
D7001 VOCAL FADER CL7068 C7003 FIESTA
D7001, S7018 CL7157 R7082 13 24 CL7032 D7000
GUITAR
CL7064
IC7000 D7000, S7007

CL7041
CL7031 R7033
C7011 MEGA BASS
JW7833 C7008
S7018 S7007

CL7060
CL7057
CL7053
CL7049
CL7045
CL7043
CL7040
CL7037
CL7035
CL7055
CL7025

CL7065
R7014 R7024

C7012
R7032
C7009
R7030
C7013
R7027
C7010
R7026
C7014
R7025
C7007
R7022
R7015
R7012
CL7151

CL7061

CL7058

CL7054

CL7050

CL7046

CL7164
R7031 CL7028
CL7051

R7009
R7010
S7020 S7010 JW7818
D + MIC/GUITAR LEVEL –
S7017 S7009
W.PARTY CHAIN PARTY CHAIN

CL7066 R7011

R7035 CL7026
S7021 S7008
+ –
R7029 D7003, S7005 D7003
CL7062 PAIRING

E BLUETOOTH

S7019
FUNCTION S7005
CL7070 R7008

R7037 CL7024
R7034

S7023 S7006 D7002, S7022

JW7834
+ VOLUME – GESTURE
CL7154 ON/OFF CL7023
JW7802
R7006

JW7822
CL7072
R7007
D7002
F R7039 CL7021

CL7071 S7022
S7003
S7004
KARAOKE R7038

R7040
CL7075 CL7073

S7000

S7024
PLAYBACK
G
S7025 S7028 S7026
SAMPLER DJ

JW7812 R7042
CL7077

S7027 S7029
H +
TUNING
–
> .

CL7074 S7001 S7002

R7041
R7043 R7004 R7005
CL7076 CL7078 CL7019 CL7020 11
1-982-785- (11)

MHC-V41D
54 54
 MHC-V41D

6-14. SCHEMATIC DIAGRAM - PANEL Board - • See page 58 for IC Block Diagrams.
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

PANEL BOARD
A NFC CN7800
CL7806 CL7802 1 VBUS
CN7801
CL7800 D–
BOARD 6P
CL7801 D+ REC/PLAY
VBUS 1 5V 1A
CL7803 4 GND
FFC5
NC 2
D– 3 D7803

DZ2J068M0L
D7801 D7802 BAV99-215

D7800
D+ 4
BAV99-215 BAV99-215
USB_GND 5
CL7805 C7800 C7801 C7806 C7804
0.1 100 0.01 0.1
B
SHIELD 6 10V

CL7804 CL7807

CL7079 JW7001 CL7097 (AEP, UK, AUS)

W7800
R7097 C7027 C7028
10k 0.1 1
(CHASSIS)

C7031 R7058 C7032 C7033 C7034 C7036 C7038

R7064 100
R7065 100
R7066 100
R7067 100
R7068 100
R7069 330

R7093 330
R7060 0.1 56k 0.1 100p 100p 100p 2.2

C7041 0.1
C7042 1
100 50V

UDZVTE-172.0B
CL7141 R7059

D7005
MOTHER
BOARD 100
(4/5) CL7142

R7061
CN7007 R7075 R7074 R7073 R7072 C7044 C7043 100
19P 56 56 56 56 0.01 0.01
CL7143 C7004 C7005 C7006 Q7001
M+5.2V 1 47p 47p 47p NSS40200LT1G
CL7144 5.1 5.1
LED_GND 2
CL7145
C7002 C7003 R7099
D
FL_CLK 3

CL7029
CL7034
CL7036
CL7039

CL7163
CL7059
CL7162
CL7067
CL7146 10 0.22 10k
SW+12V 4 16V
4.4
R7021 100

R7020 100
R7018 100
CL7147
FL_SOUT 5
CL7148 CL7170
FL_LATCH 6 R7095

CL7042
CL7044
CL7048
CL7052
CL7149 680
POWER_KEY 7
CL7150 Q7001, 7002
FFC4 AD_KEY0 8 B+ SWITCH

3.2

1.1
1.1
1.4
1.4
CL7151

0
0
DGND 9 CL7168
CL7152

10

12
11
1
2
3
4
5
6

7
8
9
SW_LED_BLUE 10
CL7153

GND
SIN
SCK
TRANS
OUT0

OUT1
OUT2
OUT3
OUT4
OUT5

OUT6
OUT7
0

E
SW_LED_RED 11
IC7000

C7039 2.2 50V

C7040 2.2 50V

CL7154 6.1
AD_KEY1 12
CL7155
DGND 13 LED DRIVER Q7002 CL7169
CL7156 LTC014EUBFS8TL

CL7123
CL7130

CL7137
CL7139
CL7118
CL7117
CL7116

CL7115
SW LED IC7000
SW_LED_GREEN 14

CL7113
BOARD CL7157 TC62D723FNG
D+3.3V 15
CL7158

PWMCLK
RGB_SD 16
CL7159

OUT15
OUT14
OUT13
OUT12

OUT10
OUT11

CL7120
CL7121
CL7122
CL7124
CL7125
CL7126
CL7131
CL7132
CL7133
CL7134
CL7135
CL7136

CL7138

CL7140
SOUT

CL7119
REXT

OUT9
OUT8
VDD
RGB_SCLK 17

CL7112
CL7114
CL7160
RGB_TRANS_PNL_LED 18
CL7161
24
23
22
21
20
19
18
17

16
15
14
13
F
RGB_PWM 19 3.3

1.6

2.1
2.3
1.2

1.2
1.1
2.3
1.3

C2P
C1P
F+
F+

STB
CLK

DIN
OSC
VDD
VH
VIN
C2N

C1N
LGND
PGND

F–
F–
CL7037

CL7043
ND7000
VACUUM FLUORESCENT DISPLAY
CL7032
CL7035

CL7040

CL7045
CL7049
CL7053
CL7057
CL7060
CL7064
CL7068
C7011 0.01
C7008 0.01
R7022
100 C7012 0.01

G C7009 0.01
C7013 0.01
R7015
820 C7010 0.01

C7014 0.01

CL7164
R7025 47
R7026 47

R7027 47

R7030 47

R7032 47
R7033 47

R7036 47

R7012 C7007
H 82 47p

CN7002
CL7046
CL7050
CL7054
CL7058
CL7061
CL7065
CL7069

4P
CL7127
R7082 1 M+5.2V
0
2 NC PARTY
CL7128 LED
3 GREEN HILED BOARD
CL7129
4 BLUE HILED

I
D7000 D7001 D7002 D7003
HL-364V620MZ-JS HL-3TES22OD-BF-SN HL-3TMH234WW-3.7-HK-BF-SN-J HL-364B460MZ-JS

MEGA BASS GUITAR GESTURE PAIRING

ON/OFF BLUETOOTH

CL7019 CL7020 CL7021 CL7023 CL7025 CL7027 CL7030 CL7033 CL7041 CL7051 CL7062 CL7071 CL7073 CL7075 CL7077

J R7004 R7005 R7007 R7009 R7010 R7013 R7017 R7019 R7024 R7029 R7034 R7038 R7040 R7042
680 1k 1.5k 1.5k 2.2k 3.3k 4.7k 6.8k 10k 15k 22k 33k 68k 150k

S7001 S7002 S7003 S7005 S7007 S7009 S7011 S7013 S7015 S7017 S7019 S7022 S7024 S7026 S7028
PAIRING MEGA BASS PARTY CHAIN PARTY LIGHT SOUND FIELD FIESTA W.PARTY CHAIN FUNCTION GESTURE PLAYBACK DJ SAMPLER
BLUETOOTH ON/OFF

K CL7022 CL7024 CL7026 CL7028 CL7031 CL7038 CL7047 CL7055 CL7066 CL7070 CL7072 CL7074 CL7076 CL7078

R7006 R7008 R7011 R7014 R7016 R7023 R7028 R7031 R7035 R7037 R7039 R7041 R7043
680 1k 1.5k 1.5k 2.2k 3.3k 4.7k 6.8k 10k 15k 22k 33k 68k

L
S7000 S7004 S7006 S7008 S7010 S7012 S7014 S7016 S7018 S7020 S7021 S7023 S7025 S7027 S7029
KARAOKE – VOLUME MIC/CUITAR LEVEL VOCAL FADER VOICE CHANGER MIC ECHO GUITAR MIC/CUITAR LEVEL VOLUME + TUNING + – TUNING
– +

MHC-V41D
55 55
 MHC-V41D

6-15. PRINTED WIRING BOARD - SMPS Board - • See page 47 for Circuit Boards Location. • : Uses unleaded solder.

1 2 3 4 5 6 7 8 9 10 11 12 13
SMPS BOARD

A JL6300 R6338 JL6306 Q6507 JL6527

C6305 A C6309 JL6500 R6503 R6512 R6544 E R6541
F6000 R6313 (AEP, UK, AUS)
R6320 1 3 R6500
G C6522 R6540

Q6307
D6341 C6315 D PH6300 C6502 E
K D6303 C6521

JW6001
Q6500

JW6015
A K R6327 S 2 4 R6542
R6341 D6300 D6516 Q6506 ET6501
C6340 JL6529 R6543 E JL6525
K A R6551 K A
JL6307 K R6518 R6517
JL6000 C6312 R6546

JW6000
R6501 D6515 R6516 (CHASSIS)
IC6300 IC6500

D6511
D6306 4 2 A A K
R6328 R6545

C6307 JW6004
JW6016
K A PH6302 2 1

D6510
4 1
C6007 C6300 3 1 A JL6522 JL6523 C6511
JW6025 C6313

R6339
D6500 K R6537 3 4
R6321 A K
R6336 A JL6521 R6515
B JL6001 5 8
A
C6317
JR6004
JL6308
K

JL6530 K A
D6509
R6507 R6509
C6509 C6510
VR6000 D6308 4 2 R6508 JL6524
D6505

Q6305
JW6003 R6502 A
2 E PH6301
CN6001 K R6514
LN6002 D6311 3 1 D6503
JL6305 Q6304
- AC IN PATTERN D6340 R6520
A K
A K R6334 K

JW6005
SPARK-GAP A K JL6528

JW6024
R6310 R6340 R6307 C6504
D6313 R6330 C6319
TH6300 D A
R6333 JW6012 JL6303 R6504 R6505 R6525
JL6538 D6502
K D6312 A JL6535
K
R6315
R6335 JL6536 JW6019
1 JL6309 JL6304 R6312 JL6534
C LF6001
LINE FILTER
R6316 JL6526
JS6505 JW6017
Q6302
JL6002
Q6301 9 10
C6311 E JL6508 JR6005
G
FB6301 T6300 JW6029

JW6027
POWER TRANSFORMER
D
E
C6310
C6501 (AEP, UK, AUS)

Q6303
C6524

JS6300
R6306 S

JW6006
R6554

JW6026
D6501
JW6008

JW6023

JW6022
JL6301 C6303 7
C6000 R6304

C6006 C6503
D R6309
Q6300
G JL6509
R6302
A6931 F6500 JL6507
LN6001 JL6302
FB6300 D
C6003 PATTERN SPARK-GAP
A6933
5
JW6020

S
JL6517 JL6504 JL6512
R6301 R6319
11

JS6504
R6305
C6320

JW6030
JW6007
LF6000

JW6013
LINE FILTER
D6504
JL6542

C6507

C6529
R6300 R6318 D6307
E

JS6503
C6523
LN6000 C6314 >06P
PATTERN SPARK-GAP MOTHER
JL6516
BOARD
4 3 CN001
JL6506
JW6002 D6001 C6500
3
(Page
R6326 1 18 JL6503 C6515 48)
JS6000

TH6000 2 1
1
JL6541
R6322 C6505 NO6501

F JW6009 JL6514
JW6021
R6550

JS6501
JS6302
Q6504 E (AEP, UK, AUS)
JL6510
C6321 R6538 JL6520 JW6011
JL6515
R6555
R6549
JL6518
JL6511
A6932
C6302
3 JL6533
C6506
1 JL6531
JL6519
2 Q6501
G 4 D6000 E
R6539

JW6018
ET6000 R6535 ET6500
R6548
JW6010 R6533
JW6028
JL6532 R6536 (AEP, UK, AUS)

R6521 R6523
9 3 1
JW6014 JL6513 CN6500

H 11
1-982-604- (11)

(CHASSIS) >07P
MOTHER BOARD
CN2007
(Page 49) (CHASSIS)

MHC-V41D
56 56
 MHC-V41D

6-16. SCHEMATIC DIAGRAM - SMPS Board - • See page 58 for IC Block Diagrams.
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

SMPS BOARD CN6500

A JL6513
8P

9 V1
JL6514
R6548 8 V1
2.7k JL6515
3W 7 V1
JL6516
6 V1
R6549 JL6517
2.7k 5 V1_GND
3W JL6518
4 V1_GND
JL6519
R6550 3 V1_GND
R6322 R6326 C6314 2.7k
B 3
D6000
D15JAB80
47k
3W
47k
3W
0.0047
800V
JL6542 3W
JL6520
2 NC
1 V1_GND
+ D6504
1 2 C6500 C6529 C6507 C6505 C6506
FCF10A40 470p 0.1 0.1 470 470 R6555
~ ~ ET6500
2kV 250V 250V 80V 80V 0
– D6001

E
2 LB10S D6307
T6300 R6533
4 R6318 R6319 SARS10
R6536 1000p R6554
~ 3.3k 3.3k POWER TRANSFORMER 630V ET6501 (CHASSIS) MOTHER
4 3 47k 0
– + 1 18 BOARD

E
~ (5/5)
C6302 C6321 R6535
TH6000 1 390 0.001 47k (CHASSIS)

C 250V 2 17
450V JS6302 JS6501
C6501 NO6501 (AEP, UK, AUS)
470p 11P
2kV
LN6000 3 16 JS6503 JL6503
PATTERN 1 A-Supply
SPARK-GAP
C6515 2 NC
4 15 0.1 JL6504
3 AGND
C6311 JS6504
ET6000 LF6000 47p 4 M-Supply
R6315 1kV JL6506
LINE FILTER 4.7
5 14
C6523
23.2 5 M-Supply
E

Q6300 - 6303 F6500 0.1 JL6507

C6310 6.3A JL6531
POWER SWITCH 0.9 47p 6 M/DGND
(CHASSIS) 250V JL6508
D 1kV 13
7 M/DGND
JS6000 Q6302 JL6509
145.2 Q6301 2SCR543RTL R6335 0.3 R6539
1 JL6533 8 AC-DET
TK10A80W 0.47 7 12 0.7 1k JL6510
FB6301

JL6309
0.9 9 MAIN ON
Q6504 JL6511
C6003 C6006
0.1 R6312 PZTA42G 10 Network ON

JL6304

JL6302
0.0022 D6501 JL6512
250V 310V 100 JS6300
8 11
FCH08A15 0 POWER
S JL6532 R6523 11 Latch ON
0.7 CONTROL 1k
C6000
0.0022 LN6001 145.2 Q6300 R6309 Q6303 R6333 D6312 C6319 9 10 Q6501
250V PATTERN TK10A80W 100 1 2SAR543RTL 3.3k RF101LP4S 47 C6524 C6503 PZTA42G R6521 R6538
SPARK-GAP 100V 1 1200 POWER
0.9 0.9 10k 10k
35V CONTROL
E FB6300

DZ2J27000L
C6303 R6306 C6320 R6305 R6330 PH6301
LF6001 220p 4.7k 220p
S
4.7k 30.5 4.7k EL816S1(B)(TA)(DTE-S)

D6313
LINE FILTER 2kV 2kV R6316 23.9 ISOLATOR
2.2
1.5 3 1 57.8 R6502 D6502 R6525 R6537 D6515 R6542 R6540
Q6304 1.8k DA2J10100L 0 2.2k DZ2J24000L 47k 1k
JL6303 23.2 2SC2655L-Y 56.8
4 2
REGULATOR
VR6000

DZ2J220M0L
R6514 R6520 D6509 R6545
D6503 68k 33k 100k

D6311
DA2J10100L DZ2J220M0L
JL6530
C6007

DZ2J220M0L
R6321 C6307 C6313 D6308 C6317
F 0.33 100k 0.47 100 DZ2J24000L 470p R6515 C6510 R6546 R6543

D6510
310V D6500
35V 68k 0.001 100 8.2k
23.2

110

DZ2J120M0L
0.9

JL6521
JL6000 R6334
5

1k D6505 R6516 C6511 D6516

47k 0.001 DA2J10100L
DRV
VCC

HV

DZ2J120M0L
F6000

IC6300
10A
250V
Q6506

JL6528

JL6525
R6508 LSCR523UBFS8TL
JL6001 JL6002 POWER CONTROL 270
0 LATCH SWITCH
CN6001
IC6300
- AC IN LN6002 NCP1240AD100R2G
0.6
PATTERN R6507 R6517
G 2
SPARK-GAP 270 JL6524 1k
0.6
Q6507
LSCR523UBFS8TL
LATCH SWITCH
LATCH

R6336 R6551
GND

JL6527
23.2 R6509 0

JL6523
100k 10k C6509 R6504
CS

FB

1 120k
Q6305 23.7 0.047 15k
2PB709ART
4

3
2

LATCH SWITCH JL6522

R6339 R6338

JL6526
0

1.5

1.1

-1.6 1k 10k

C6522 R6544 C6521 R6541 R6512

0.001 22k 0.001 10k 100

D6340 R6340
H DA2J10100L 39k

JS6505
0 0
JL6305

D6341
DA2J10100L

32.3
JL6500 0.6

JL6536

3 4 Q6500
R6341 R6500 C6502 R6503 LSCR523UBFS8TL
R6310 R6313 12k
IC6500 100k 0.01 220k

Vref
R6300 AC DETECT
0 1.5k
2M D6306
R6328
DA2J10100L
4.7k SHUNT REGULATOR
IC6500
I R6301 MM1431CURE

A
DZ2J300M0L

2M TH6300 R6505
15k
D6303

2 1
R6302 R6304 R6307 C6305 C6340 C6309 C6312
2M 0.05 330k 470p 0.001 0.0047 0.01 PH6302
5W EL816S1(B)(TA)(DTE-S) R6518 C6504
D6511 8.2k 2.2
ISOLATOR DZ2J220M0L 100V
JL6308 23.9 3 1 -0.1

0 4 2
0
R6501
R6320 100k
JL6300
470k Q6307
3.1 RHK005N03T146
JL6301
J AC DETECT PH6300
EL816S1(B)(TA)(DTE-S)
ISOLATOR
S JL6306
C6300 R6327 C6315 1 1 3 15.6
D6300
DZ2J100M0L 0.22 220k 0.01
JL6307 0 15.6
2 4 JL6529

MHC-V41D
57 57
 MHC-V41D

• IC Block Diagrams – SMPS Board –

IC6300 NCP1240AD100R2G
– GESTURE Board – VCC MIN
VDD
IC7500 MGC3030 VCC ON VHV DC
SAMPLE
VCC OVP
OVP CMP 8 HV
CMP BROWN OUT +
28 VCAPD + 50 us OVP VCC OVP 10 us +
AC OFF
27 VSS3  FILTER FILTER

VCC OVP
26 VCAPA

V OVP
A/D SIGNAL UVLO
LOW POWER POWER MANAGEMENT 25 RX4 OTP CMP CMP
CONVERTER CONDITIONING LATCH 1
WAKE-UP UNIT (PMU) UVLO + DUAL HV
350 us OTP
EIO0/TS 1 +  SG & X2 & VCC START-UP
FILTER

V CLAMP
A/D SIGNAL CURRENT

VCC OFF
CONTROL
EIO1 2 FLASH 24 RX3

V OTP
CONVERTER CONDITIONING TSD SOURCE
EIO2 3 MEMORY
INTERNAL BUS

IS2 4
A/D SIGNAL LATCH ON CMP VCC INT
NC 5 GESTURE PORT 23 RX2 S Q + 6 VCC
CONVERTER CONDITIONING

SS END
NC 6 AND INTERFACE BROWN OUT
VCC VCC REGULATOR
NC 7 SELECTION VDD REG

VCC ON
RESET R +

IC START B
A/D SIGNAL
EIO3 8 22 RX1
CONVERTER CONDITIONING STOP
SIGNAL OFF MODE VDD

VCC (REG)
CMP1 CMP
PROCESSING
A/D SIGNAL + IC START +
UNIT (SPU) 21 RX0 S Q
CONVERTER CONDITIONING

VCC MIN

COMMUNICATION RESET +

V ON
EIO4/SI0 9 20 VSS2 R
CONTROL (I2C) VOLTAGE REFERENCE
EIO5/SI1 10 19 VINDS OFF MODE

VCC RESET
(VREF) OSC 65kHz POWER ON
EIO6/SI2 11 18 VCAPS CMP2 RESET CMP
EIO7/SI3 12 17 VDD VFB (REG)  GO TO OFF MODE JITTERING FM INPUT SQUARE OUTPUT
16 VSS1 + TIMER 500 ms
TON MAX OUTPUT

V OFF
MCLR 13 RESET BLOCK INTERNAL
TX SIGNAL GENERATION 15 TXD FREQ FOLBACK PFM INPUT SAW OUTPUT
NC 14 CLOCK

FB BUFFER CS REF RAMP OTA

FB 2 +
 +

OFFSET
V RAMP
MAX TON
SKIP CMP

SAMPLE
VHV DC
+ SKIP B
VCC


V SKIP
+
V to I  CLAMP
– PANEL Board –
PWM CMP
PWM

VFB (OPC)
VDD
IC7000 TC62D723FNG +
IC STOP B
S Q 5 DRV

R
SOFT START CMP
24 VDD

BROWN OUT B
CS 3 LEB 250ns +
POR

LATCH B
23 REXT

FAULT B
GND 1 ENABLE
CIRCUIT SOFT START
TIMER SS END
ITRAN CMP
+ ITRAN
SOUT S Q TRANSIENT TIMER UP/DOWN
F/F

VCS (TRAN)
SELECTION 22 SOUT
SIN 2
CIRCUIT R
16-bit SHIFT REGISTER
SCK 3
ILIMIT CMP MAX TON
Q FAULT
+ ILIMIT S FAULT TIMER RESET


LATCH MANAGEMENT
COMMAND 16-bit ×2 IC STOP
DATA TRANSFER
TRANS 4 CONTROL STATE SETTING R LATCH

V ILIM
CONTROL CIRCUIT AUTO RECOVERY
CIRCUIT REGISTER CS STOP CMP
TIMER
GND 4 LEB 120ns +
4 EVENTS TIMER


VCS STOP
BROWN OUT

TSD
TSD
PWM DATA
REGISTER

COMPARATOR PWM
21 PWMCLK
COUNTER

OUTPUT ON/OFF POD

SETTING DATA CIRCUIT
REGISTER

OUTPUT
DELAY
CIRCUIT

CONSTANT TSD
8-bit DAC
CURRENT CIRCUIT
OUTPUT
CIRCUIT
REFERENCE
VOLTAGE

ERROR
DETECTION
RESULT DATA
REGISTER

OUT0 5 OUTPUT 20 OUT15

OUT1 6 OPEN/SHORT 19 OUT14
OUT2 7 DETECTION 18 OUT13
CIRCUIT
OUT3 8 17 OUT12
OUT4 9 16 OUT11
OUT5 10 15 OUT10
OUT6 11 14 OUT9
OUT7 12 13 OUT8

MHC-V41D
58 58

Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
MHC-V41D
SECTION 7
EXPLODED VIEWS
• The mechanical parts with no reference
The components identified by mark 0
number in the exploded views are not sup-
or dotted line with mark 0 are critical for
plied.
safety.
• Color Indication of Appearance Parts Ex-
Replace only with part number specified.
ample:
KNOB, BALANCE (WHITE) . . . (RED)
  The components identified by mark 9 con-
Parts Color Cabinet’s Color tain confidential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.

7-1. SIDE PANEL SECTION

#2 top panel section

(AEP, UK, AUS)

not supplied
(Included Ref. No. 60
: page 60)
#1 #1
C
#1 F
#2 E
G
#1 B A
#1
#1
#1

2 #1 D

F
loading panel section E G #1

D not supplied
B C A

#2
#1 #1

#1 #1

#1

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
1 4-726-160-01 PANEL, SIDE (R) (for Right side) #1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
2 4-726-159-01 PANEL, SIDE (L) (for Left side) #2 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3

59
MHC-V41D

7-2. TOP PANEL SECTION

56

55

51
54 51
51

FFC6
not supplied 57
MIC1
51 58
not supplied
(MIC COVER board) FFC5
59
51
53
not supplied
(GESTURE board)

(AEP, UK, AUS) 52 51

FFC4

51
51
51
51
51
not supplied 60
51

not supplied
51 51
51 51
51 51 51
51 not supplied
51
51

FFC3

Note: When the complete NFC board (Ref. No. 58) is replaced, refer
to “NFC OPERATION CHECKING METHOD” on page 6.

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 4-951-620-51 SCREW (2.6), +BVTP (L = 8.0 mm) 59 X-2595-701-1 BUTTON, GUITAR ASSY (VOICE CHANGER,
52 4-726-149-01 BUTTON, DJ MIC ECHO, VOCAL FADER, GUITER,
(PLAYBACK, DJ, SAMPLER, KARAOKE) MIC/GUITER LEVEL - +, - +, - VOLUME +, Z)
53 4-726-148-01 BUTTON, START (N, x, ., >) 60 A-2192-235-A PANEL BOARD, COMPLETE (LA)
54 X-2595-700-1 BUTTON, FIESTA ASSY(PARTY LIGHT,
SOUND FIELD, MEGA BASS, FIESTA, 60 A-2218-978-A PANEL BOARD, COMPLETE (AEP, UK, AUS)
PARTY CHAIN, W.PARTY CHAIN, BLUE TOOTH, FFC3 1-972-242-11 FLEXIBLE FLAT CABLE (7P) (L = 260 mm)
FUNCTION, , GESTURE ON/OFF, 1) FFC4 1-972-241-11 FLEXIBLE FLAT CABLE (19P) (L = 270 mm)
55 4-725-453-02 PANEL, TOP FFC5 1-972-246-11 FLEXIBLE FLAT CABLE (6P) (L = 210 mm)
FFC6 1-972-244-11 FLEXIBLE FLAT CABLE (7P) (L = 240 mm)
56 4-723-058-01 WINDOW, DISPLAY
57 A-2192-236-A MIC BOARD, COMPLETE MIC1 1-852-158-11 MICROPHONE, ELECTRET CAP
58 A-2194-756-A NFC BOARD, COMPLETE (See Note)

60
 MHC-V41D

7-3. LOADING PANEL SECTION

#2
H
#2
CDM block section

#1

#1
H

rear panel section

103

not supplied
not supplied not supplied

not supplied
102
101
not supplied
not supplied

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 4-726-162-01 PANEL, LOADING #1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
102 4-536-754-01 SPRING (LP) #2 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
103 4-588-651-01 LOADING, BASE

61
MHC-V41D

7-4. REAR PANEL SECTION

152
not supplied
153
152
not supplied

152 not supplied not supplied

not supplied 152 #1

not not supplied
M1 #1 not supplied
supplied
#1
#1 not supplied
not
supplied #1
#1
#1
not supplied
#1 #1
chassis section

#1 154
#1
151 #1

151
151

#1 #1 #1 #1 #1 #1 #1

151 #1 #1 #1 151 #1 #1 151

– Rear view –

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
151 4-874-614-12 SCREW (1) (3.5X14), TAPPING 0 M1 1-855-006-41 FAN, DC
152 4-951-620-51 SCREW (2.6), +BVTP (L = 8.0 mm)
153 A-2192-239-A PARTY LED BOARD, COMPLETE #1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
154 4-726-156-01 PANEL, REAR

62
 MHC-V41D

7-5. CHASSIS SECTION

#2
#2 K
#2 #2
#2 #2
#2 #2 J #2
L
#2 203 M
#2
not supplied
202 N
204
201
#2 not supplied 201
201 201
not supplied

not supplied

#2
front panel section K N #2 201

not supplied

Note 1: Make sure perform discharge processing before

removing the complete SMPS board (Ref.
No. 202) or complete MOTHER board (Ref.
No. 203). For the discharge processing meth-
od, refer to “CAPACITOR ELECTRICAL
DISCHARGE PROCESSING” on page 5.

Note 2: When the complete MOTHER board (Ref.

No. 203) is replaced, refer to “DESTINA-
TION SETTING METHOD” and “NFC OP-
ERATION CHECKING METHOD” on page
6.

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
201 4-874-614-02 SCREW (1) (3.5X14), TAPPING 204 3-252-833-01 SCREW (M3), (+) P (L = 8.0 mm)
202 A-2203-074-A SMPS BOARD, COMPLETE (LA) (See Note 1)
202 A-2218-781-A SMPS BOARD, COMPLETE (AEP, UK, AUS) #2 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
(See Note 1)
9 203 A-2201-879-A MOTHER BOARD, COMPLETE (SV)
(See Note 1, 2)

63
MHC-V41D

7-6. FRONT PANEL SECTION

not supplied
255 (IR board) O
SP2 P
255 253
253
not
supplied
not supplied

251 255 O
P
255

SP4

not supplied

not supplied
253

253

speaker cabinet section

254

253

252

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
251 X-2595-366-1 PANEL, FRONT ASSY 255 4-986-971-12 +BV TAPPING SCREW TYPE-2 3.5 (L = 10.0 mm)
252 4-592-164-01 FOOT, RUBBER
253 4-951-620-51 SCREW (2.6), +BVTP (L = 8.0 mm) SP2 1-859-277-11 LOUDSPEAKER (34 mm) (Tweeter: L-ch)
254 A-2192-240-A SW LED BOARD, COMPLETE SP4 1-859-277-11 LOUDSPEAKER (34 mm) (Tweeter: R-ch)

64
 MHC-V41D

7-7. SPEAKER CABINET SECTION

not supplied

302
SP1
302

302

302 302
SP3
302

302
302

301
301
SP5

301
303
301
303 303
301
301
303
301 301

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
301 4-238-407-12 SCREW (1) (4X20), +BV TAPPING SP3 1-859-278-11 LOUDSPEAKER (69 mm) (Midrange: R-ch)
302 4-874-614-02 SCREW (1) (3.5X14), TAPPING
303 4-592-164-01 FOOT, RUBBER SP5 1-859-276-11 LOUDSPEAKER (260 mm) (Subwoofer)
SP1 1-859-278-11 LOUDSPEAKER (69 mm) (Midrange: L-ch)

65
MHC-V41D

7-8. CDM BLOCK SECTION

#2

#2
#2

DVD mechanism deck section

(CDM90-DVBU204)
#2
353
352
353
354
354

352 354 not supplied

354 353

not supplied
352
353
355 352

355
351

not supplied

#2
not supplied
351

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
351 4-533-939-01 SPRING, INSULATOR (F) (for Front side) 355 4-533-940-01 SPRING, INSULATOR (R) (for Rear side)
352 4-533-382-01 INSULATOR
353 4-533-702-01 STEP SCREW #2 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
354 2-345-115-01 SCREW (S), FLOAT (L = 7.0 mm)

66
 MHC-V41D

7-9. DVD MECHANISM DECK SECTION (CDM90-DVBU204)

CDM1

402
OP1
401
403 402
402

401
401

402 not supplied

401

MS-476
board

FFC2

FFC1

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
401 2-634-618-21 INSULATOR FFC2 1-972-243-11 FLEXIBLE FLAT CABLE (5P) (L = 230 mm)
402 3-087-599-01 INSULATOR SCREW 0 OP1 A-2046-956-A OPTICAL PICK-UP BLOCK (CMS-S76RFS7G) (SV)
403 4-418-987-01 SHEET (S76) (Including Sled motor, Spindle motor, Sheet)
CDM1 A-1937-669-C CDM90 ASSY (Including MS-476 board)
FFC1 1-972-245-11 FLEXIBLE FLAT CABLE (24P) (L = 200 mm)

67
MHC-V41D
SECTION 8
GESTURE IR MIC
ELECTRICAL PARTS LIST
MOTHER MS-476 NFC
Note:
• Due to standardization, replacements in • CAPACITORS When indicating parts by reference num-
the parts list may be different from the uF: μF ber, please include the board name.
parts specified in the diagrams or the com- • COILS
ponents used on the set. uH: μH The components identified by mark 0
• -XX and -X mean standardized parts, so • SEMICONDUCTORS or dotted line with mark 0 are critical for
they may have some difference from the In each case, u: μ, for example: safety.
original one. uA. . : μA. . , uPA. . , μPA. . , Replace only with part number specified.
• Items marked “*” are not stocked since uPB. . : μPB. . , uPC. . , μPC. . ,
they are seldom required for routine ser- uPD. . : μPD. . The components identified by mark 9 con-
vice. Some delay should be anticipated Among mounted electrical parts on each tain confidential information.
when ordering these items. board, only parts that are described in the Strictly follow the instructions whenever the
• RESISTORS electrical parts list can be replaced for re- components are repaired and/or replaced.
All resistors are in ohms. pairing.
METAL: Metal-film resistor. The parts that are not described in the
METAL OXIDE: Metal oxide-film resistor. electrical parts list cannot be replaced with
F: nonflammable single for repairing.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
GESTURE BOARD < JACK >
**************
J7700 1-822-967-12 JACK (MIC 1)
< CONNECTOR > J7701 1-822-967-12 JACK (MIC 2 GUITAR)

CN7500 1-785-466-41 CONNECTOR, FFC/FPC 7P < JUMPER RESISTOR >

< DIODE > JR7701 1-216-296-11 SHORT CHIP 0

D7500 6-500-400-01 DIODE BAV99-215 < TRANSISTOR >

D7501 6-500-400-01 DIODE BAV99-215
D7502 6-500-400-01 DIODE BAV99-215 Q7707 6-552-936-01 TRANSISTOR LTC014EUBFS8TL
D7503 6-500-400-01 DIODE BAV99-215 Q7708 6-552-936-01 TRANSISTOR LTC014EUBFS8TL
* D7504 6-503-578-01 DIODE RB520SM-30T2R *************************************************************

* D7505 6-503-578-01 DIODE RB520SM-30T2R 9 A-2201-879-A MOTHER BOARD, COMPLETE (SV) (See Note 1)
* D7506 6-503-578-01 DIODE RB520SM-30T2R ***********************
* D7507 6-503-578-01 DIODE RB520SM-30T2R
< IC >
< IC >
IC001 6-721-079-01 IC TPS542941PWPR
IC7500 6-722-772-01 IC MGC3030 IC002 6-722-439-01 IC BDJ2FC0WEFJ-E2
************************************************************* IC004 6-721-872-01 IC 78D09AG-TN3-R
IC006 6-721-766-01 IC 78D05AG-TN3-R
IR BOARD IC008 6-722-001-01 IC 78D12AG-TN3-R
********
IC009 6-721-079-01 IC TPS542941PWPR
< IC > IC305 6-719-198-01 IC MM3411A33URE
IC1000 6-718-999-01 IC MM1839A50NRE
IC7450 6-600-768-01 IC PNA4823M03S0 ( ) IC2001 6-723-247-01 IC TAS5534DGGR-S
************************************************************* IC2002 6-723-793-01 IC TAS5634 (See Note 2)
*************************************************************
A-2192-236-A MIC BOARD, COMPLETE
******************* MS-476 BOARD
************
< CONNECTOR >
When the MS-476 board is defective, replace the CDM90 ASSY (Ref. No. CDM1).
CN7701 1-779-275-11 CONNECTOR, FFC (LIF (NON-ZIF)) 7P *************************************************************

< DIODE > A-2194-756-A NFC BOARD, COMPLETE (See Note 3)

********************
D7704 6-500-400-01 DIODE BAV99-215
D7705 6-500-400-01 DIODE BAV99-215 When the NFC board is defective, replace the complete mounted board.
*************************************************************
< FERRITE BEAD >

FB7700 1-414-813-11 FERRITE, EMI (SMD) (2012)

FB7701 1-414-813-11 FERRITE, EMI (SMD) (2012)

< IC >

IC7700 8-759-909-71 IC BA4558F

Note 1: When the MOTHER board is replaced, be sure to refer
to “DESTINATION SETTING METHOD” and “NFC
OPERATION CHECKING METHOD” on page 6.
Note 2: When the IC2002 on the MOTHER board is replaced,
refer to “SPREADING OF COMPOUND” on page 7.
Note 3: When the NFC board is replaced, be sure to refer to “NFC
OPERATION CHECKING METHOD” on page 6.

68
 MHC-V41D
PANEL PARTY LED SMPS SW LED

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
A-2192-235-A PANEL BOARD, COMPLETE (LA) S7027 1-762-875-21 SWITCH, KEYBOARD (TUNING + >)
A-2218-978-A PANEL BOARD, COMPLETE (AEP, UK, AUS) S7028 1-762-875-21 SWITCH, KEYBOARD (SAMPLER)
********************* S7029 1-762-875-21 SWITCH, KEYBOARD (– TUNING .)
*************************************************************
< CONNECTOR >
A-2192-239-A PARTY LED BOARD, COMPLETE
CN7801 1-819-866-11 USB CONNECTOR (A) ( REC/PLAY 5V 1A) *************************

< DIODE > When the PARTY LED board is defective, replace the complete mounted board.
*************************************************************
D7000 6-504-215-11 LED HL-364V620MZ-JS (MEGA BASS)
D7002 6-504-214-21 LED HL-3TMH234WW-3.7-HK-BF-SN-J A-2203-074-A SMPS BOARD, COMPLETE (LA)
(GESTURE ON/OFF) A-2218-781-A SMPS BOARD, COMPLETE (AEP, UK, AUS)
D7003 6-504-213-11 LED HL-364B460MZ-JS *********************
( PAIRING BLUETOOTH)
D7005 6-503-605-01 DIODE UDZVTE-172.0B When the SMPS board is defective, replace the complete mounted board.
D7800 6-502-970-01 DIODE DZ2J068M0L *************************************************************

D7801 6-500-400-01 DIODE BAV99-215 A-2192-240-A SW LED BOARD, COMPLETE

D7802 6-500-400-01 DIODE BAV99-215 ***********************
D7803 6-500-400-01 DIODE BAV99-215
When the SW LED board is defective, replace the complete mounted board.
< IC > *************************************************************

IC7000 6-719-142-01 IC TC62D723FNG MISCELLANEOUS

**************
< JUMPER RESISTOR >
CDM1 A-1937-669-C CDM90 ASSY (Including MS-476 board)
JR7800 1-216-296-11 SHORT CHIP 0 FFC1 1-972-245-11 FLEXIBLE FLAT CABLE (24P) (L = 200 mm)
FFC2 1-972-243-11 FLEXIBLE FLAT CABLE (5P) (L = 230 mm)
< FLUORESCENT INDICATOR TUBE > FFC3 1-972-242-11 FLEXIBLE FLAT CABLE (7P) (L = 260 mm)
FFC4 1-972-241-11 FLEXIBLE FLAT CABLE (19P) (L = 270 mm)
ND7000 1-483-549-11 VACUUM FLUORESCENT DISPLAY
FFC5 1-972-246-11 FLEXIBLE FLAT CABLE (6P) (L = 210 mm)
< TRANSISTOR > FFC6 1-972-244-11 FLEXIBLE FLAT CABLE (7P) (L = 240 mm)
0 M1 1-855-006-41 FAN, DC
Q7002 6-552-936-01 TRANSISTOR LTC014EUBFS8TL MIC1 1-852-158-11 MICROPHONE, ELECTRET CAP
0 OP1 A-2046-956-A OPTICAL PICK-UP BLOCK (CMS-S76RFS7G) (SV)
< SWITCH > (Including Sled motor, Spindle motor, Sheet)

S7000 1-762-875-21 SWITCH, KEYBOARD (1) SP1 1-859-278-11 LOUDSPEAKER (69 mm) (Midrange: L-ch)
S7001 1-762-875-21 SWITCH, KEYBOARD (x) SP2 1-859-277-11 LOUDSPEAKER (34 mm) (Tweeter: L-ch)
S7002 1-762-875-21 SWITCH, KEYBOARD (N) SP3 1-859-278-11 LOUDSPEAKER (69 mm) (Midrange: R-ch)
S7003 1-762-875-21 SWITCH, KEYBOARD ( ) SP4 1-859-277-11 LOUDSPEAKER (34 mm) (Tweeter: R-ch)
S7004 1-762-875-21 SWITCH, KEYBOARD (KARAOKE) SP5 1-859-276-11 LOUDSPEAKER (260 mm) (Subwoofer)
*************************************************************
S7005 1-762-875-21 SWITCH, KEYBOARD ( PAIRING BLUETOOTH)
S7006 1-762-875-21 SWITCH, KEYBOARD (– VOLUME) ACCESSORIES
S7007 1-762-875-21 SWITCH, KEYBOARD (MEGA BASS) ************
S7008 1-762-875-21 SWITCH, KEYBOARD (– )
S7009 1-762-875-21 SWITCH, KEYBOARD (PARTY CHAIN) 4-729-484-13 MANUAL, INSTRUCTION (Operating Instructions)
(ENGLISH) (UK, AUS, LA)
S7010 1-762-875-21 SWITCH, KEYBOARD (MIC/GUITAR LEVEL –) 4-729-484-23 MANUAL, INSTRUCTION (Operating Instructions)
S7011 1-762-875-21 SWITCH, KEYBOARD (PARTY LIGHT) (SPANISH) (LA)
S7012 1-762-875-21 SWITCH, KEYBOARD (VOCAL FADER) 4-729-484-32 MANUAL, INSTRUCTION (Operating Instructions)
S7013 1-762-875-21 SWITCH, KEYBOARD (SOUND FIELD) (FRENCH) (AEP)
S7014 1-762-875-21 SWITCH, KEYBOARD (VOICE CHANGER) 4-729-484-42 MANUAL, INSTRUCTION (Operating Instructions)
(GERMAN) (AEP)
S7015 1-762-875-21 SWITCH, KEYBOARD (FIESTA) 4-729-484-52 MANUAL, INSTRUCTION (Operating Instructions)
S7016 1-762-875-21 SWITCH, KEYBOARD (MIC ECHO) (DUTCH) (AEP)
S7017 1-762-875-21 SWITCH, KEYBOARD (W.PARTY CHAIN)
S7018 1-762-875-21 SWITCH, KEYBOARD (GUITAR) 4-729-484-62 MANUAL, INSTRUCTION (Operating Instructions)
S7019 1-762-875-21 SWITCH, KEYBOARD (FUNCTION) (ITALIAN) (AEP)
4-729-484-72 MANUAL, INSTRUCTION (Operating Instructions)
S7020 1-762-875-21 SWITCH, KEYBOARD (MIC/GUITAR LEVEL +) (POLISH) (AEP)
S7021 1-762-875-21 SWITCH, KEYBOARD ( +) 4-729-485-62 MANUAL, INSTRUCTION (Operating Instructions)
S7022 1-762-875-21 SWITCH, KEYBOARD (GESTURE ON/OFF) (SPANISH) (AEP)
S7023 1-762-875-21 SWITCH, KEYBOARD (VOLUME +)
S7024 1-762-875-21 SWITCH, KEYBOARD (PLAYBACK)

S7025 1-762-875-21 SWITCH, KEYBOARD (Z)

S7026 1-762-875-21 SWITCH, KEYBOARD (DJ)

69
MHC-V41D

Ref. No. Part No. Description Remark

501 1-493-448-11 REMOTE COMMANDER (RMT-AM420U)
(Remote control)
502 1-754-852-11 ANTENNA (FM) (FM lead antenna)
0 503 1-785-504-21 ADAPTOR, CONVERSION (AC plug adaptor) (LA)
0 504 1-912-312-51 POWER SUPPLY CORD SET
(AC power cord (mains lead)) (LA)
0 504 1-912-499-21 POWER-SUPPLY CORD WITH FILTER
(AC power cord (mains lead)) (AEP)

0 504 1-912-501-21 POWER-SUPPLY CORD WITH FILTER

(AC power cord (mains lead)) (AUS)
0 504 1-912-502-21 POWER-SUPPLY CORD WITH FILTER
(AC power cord (mains lead)) (UK)

501 502
Remote control (1) FM lead antenna (1)

503 (LA)
AC plug adaptor (1)

504
AC power cord (mains lead) (1)

70
 MHC-V41D

MEMO

71
MHC-V41D

REVISION HISTORY

Ver. Date Description of Revision

1.0 2018.02 New

How to search for a contact point of signal lines or the like in DIAGRAMS SECTION
If a contact point of a BLOCK DIAGRAM, PRINTED WIRING BOARD or SCHEMATIC DIAGRAM is shown in a different page, use
the PDF file search function to find one.

e.g.) If a contact point is shown as , follow the procedure below.

Procedure:
1. Press the [F] key while pressing the [Ctrl] key.
2. Input “>001Z” in the search box and press the [Enter] key.
3. The relevant part (page), where the contact point is shown, appears.
Note: If you still see the original page, press the [Enter] key again.
