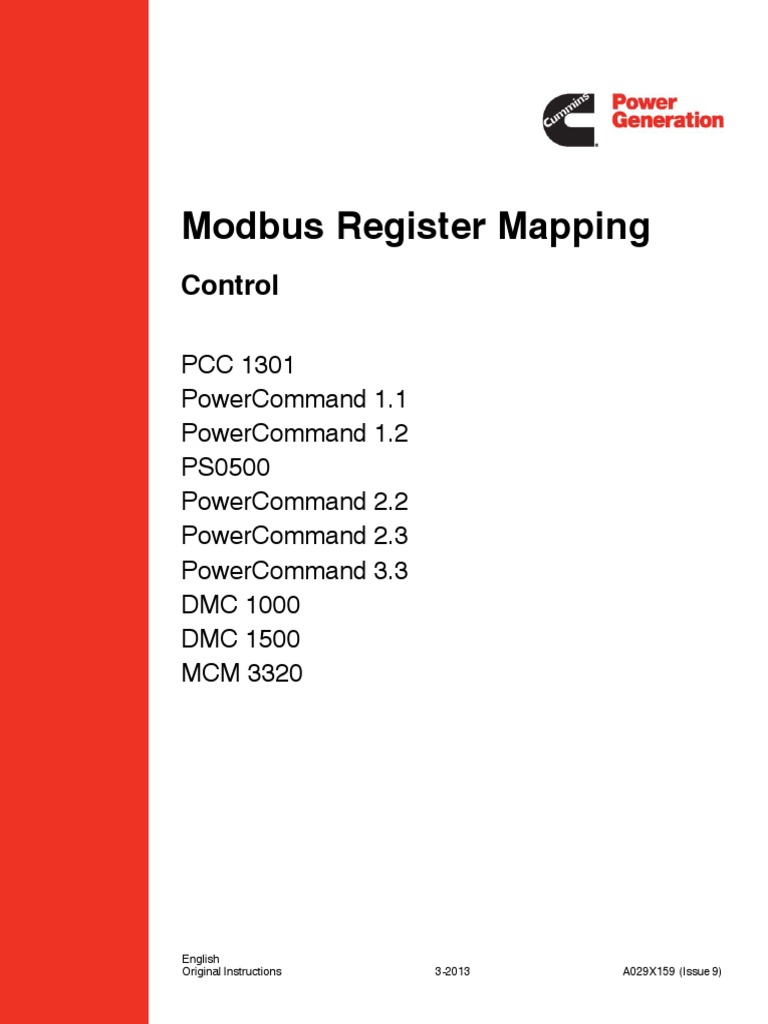

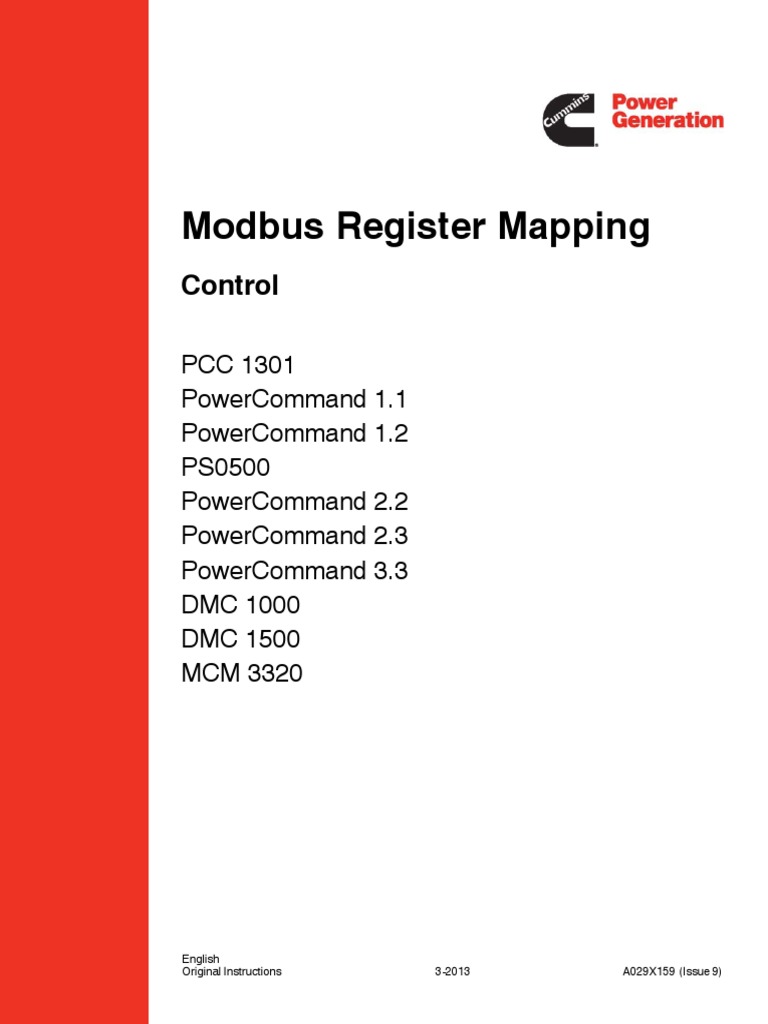

Modbus Mapping

Modbus Register Mapping
Control
PCC 1301
PowerCommand 1.1
PowerCommand 1.2
PS0500
PowerCommand 2.2
PowerCommand 2.3
PowerCommand 3.3
DMC 1000
DMC 1500
MCM 3320
English
Original Instructions 3-2013 A029X159 (Issue 9)
Table of Contents
SECTION TITLE PAGE
SAFETY PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . II
1. PCC 1301/POWERCOMMAND 1.X/PS0500 MODBUS REGISTER MAP . . . . . . . . . . . . . . . . . . . . 1
Multi-Drop Network Mode Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Table 1-1 PCC1301 Modbus Mapping for Parameters Having Different Limits as
Compared to PC1.x and PS0500 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
2. POWERCOMMAND 2.X/3.X MODBUS REGISTER MAP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
3. POWERCOMMAND 2.X/3.X MODBUS FAULT STATUS BITMAPS . . . . . . . . . . . . . . . . . . . . . . . . . 324
4. NFPA 110 & EXTENDED ANNUNCIATION BITMAP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 381
5. DMC 1000 MODBUS PARAMETRIC DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 383
6 DMC 1000 MODBUS ENUMERATED DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 413
7 DMC 1000 MODBUS BITMAP DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 433
8. DMC 1500 COMMUNICATION SERVER 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 437
Modbus Address: 2 (Slave). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 437
Generator Set Bus Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 439
Utility Bus Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 441
ATS 1−5 DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 442
Word Data (Reference Tables ATS 1-5 and 6-10) . . . . . . . . . . . . . . . . . . . . . . . . . 443
ATS 6−10 DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 444
9. DMC 1500 COMMUNICATION SERVER 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 447
Modbus Address: 1 (Slave). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 447
Generator Raw Data Gen 1-5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 450
Modbus Register Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 399
10. MCM3320 MODBUS REGISTER MAP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 455
Modbus Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 455
Reference Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 455
Serial Port Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 455
Device Addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 455
Power-Up Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 455
Response Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 455
Data Formatting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 455
Modbus Activity LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 455
Supported Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 455
Holding Register Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 456
Preset Single/Preset Multiple Registers Function . . . . . . . . . . . . . . . . . . . . . . . . . 456
Diagnostic Counters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 456
Register Maps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 456
Application Layer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 456
Read Hold Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 456
Set Single Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 456
Modbus Loopback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 456
i
Set Multiple Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 457
Modbus Register Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 457
11. MCM3320 MODBUS FAULT STATUS BITMAPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 539
12. MCM3320 MODBUS ADDRESS 42506, 42507 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 543
ii
Safety Precautions
SAVE THESE INSTRUCTIONS − This manual contains important instructions that should be followed during
installation and maintenance of the generator set and batteries.
Before operating the generator set (genset), read the Operator’s Manual and become familiar with it and
the equipment. Safe and efficient operation can be achieved only if the equipment is properly operated
and maintained. Many accidents are caused by failure to follow fundamental rules and precautions.
The following symbols, found throughout this manual, alert you to potentially dangerous conditions to the op-
erator, service personnel, or the equipment.
DANGER This symbol warns of immediate hazards which will result in severe personal injury or
death.
WARNING This symbol refers to a hazard or unsafe practice which can result in severe personal in-
jury or death.
CAUTION This symbol refers to a hazard or unsafe practice which can result in personal injury or
product or property damage.
FUEL AND FUMES ARE FLAMMABLE

Fire, explosion, and personal injury or death can result from improper practices.
 DO NOT fill fuel tanks while engine is running, unless tanks are outside the engine compartment. Fuel
contact with hot engine or exhaust is a potential fire hazard.
 DO NOT permit any flame, cigarette, pilot light, spark, arcing equipment, or other ignition source near the
generator set or fuel tank.
 Fuel lines must be adequately secured and free of leaks. Fuel connection at the engine should be made
with an approved flexible line. Do not use zinc coated or copper fuel lines with diesel fuel.
 Natural gas is lighter than air, and will tend to gather under hoods. Propane is heavier than air, and will
tend to gather in sumps or low areas. NFPA code requires all persons handling propane to be trained and
qualified.
 Be sure all fuel supplies have a positive shutoff valve.
 Be sure battery area has been well-ventilated prior to servicing near it. Lead-acid batteries emit a highly
explosive hydrogen gas that can be ignited by arcing, sparking, smoking, etc.
EXHAUST GASES ARE DEADLY

 Provide an adequate exhaust system to properly expel discharged gases away from enclosed or shel-
tered areas and areas where individuals are likely to congregate. Visually and audibly inspect the exhaust
for leaks daily or per the maintenance schedule. Make sure that exhaust manifolds are secured and not
warped. Do not use exhaust gases to heat a compartment.
 The exhaust vent should be high enough to help clear gases, avoid accumulation of snow, and in accor-
dance with local mechanical codes.
 Be sure the unit is well ventilated.
 Engine exhaust and some of its constituents are known to the state of California to cause cancer, birth
defects, and other reproductive harm.
MOVING PARTS CAN CAUSE SEVERE PERSONAL INJURY OR DEATH

 Keep your hands, clothing, and jewelry away from moving parts.
iii
 Before starting work on the generator set, disconnect battery charger from its AC source, then disconnect
starting batteries, negative (−) cable first. In lean-burn natural gas (LBNG) gensets, also make sure the
starter’s air supply line is disconnected or completely vented until the generator set is ready to start. This
will prevent accidental starting.
 Make sure that fasteners on the generator set are secure. Tighten supports and clamps, keep guards
in position over fans, drive belts, etc.
 Do not wear loose clothing or jewelry in the vicinity of moving parts, or while working on electrical equip-
ment. Loose clothing and jewelry can become caught in moving parts.
 If adjustment must be made while the unit is running, use extreme caution around hot manifolds, moving
parts, etc.
DO NOT OPERATE IN FLAMMABLE AND EXPLOSIVE ENVIRONMENTS
Flammable vapor can cause an engine to overspeed and become difficult to stop, resulting in possible fire,
explosion, severe personal injury and death. Do not operate a genset where a flammable vapor environment
can be created by fuel spill, leak, etc., unless the genset is equipped with an automatic safety device to block
the air intake and stop the engine. The owners and operators of the genset are solely responsible for operating
the genset safely. Contact your authorized Cummins Power Generation distributor for more information.
ELECTRICAL SHOCK CAN CAUSE SEVERE PERSONAL INJURY OR DEATH
 Remove electric power before removing protective shields or touching electrical equipment. Use rubber
insulative mats placed on dry wood platforms over floors that are metal or concrete when around electrical
equipment. Do not wear damp clothing (particularly wet shoes) or allow skin surface to be damp when
handling electrical equipment. Do not wear jewelry. Jewelry can short out electrical contacts and cause
shock or burning.
 Use extreme caution when working on electrical components. High voltages can cause injury or death.
DO NOT tamper with interlocks.
 Follow all applicable state and local electrical codes. Have all electrical installations performed by a quali-
fied licensed electrician. Tag and lock open switches to avoid accidental closure.
 DO NOT CONNECT GENERATOR SET DIRECTLY TO ANY BUILDING ELECTRICAL SYSTEM. Haz-
ardous voltages can flow from the generator set into the utility line. This creates a potential for electrocu-
tion or property damage. Connect only through an approved isolation switch or an approved paralleling
device.
MEDIUM VOLTAGE GENERATOR SETS (601V to 15kV)
 Medium voltage acts differently than low voltage. Special equipment and training is required to work on
or around medium voltage equipment. Operation and maintenance must be done only by persons trained
and qualified to work on such devices. Improper use or procedures will result in severe personal injury
or death.
 Do not work on energized equipment. Unauthorized personnel must not be permitted near energized
equipment. Due to the nature of medium voltage electrical equipment, induced voltage remains even af-
ter the equipment is disconnected from the power source. Plan the time for maintenance with authorized
personnel so that the equipment can be de-energized and safely grounded.
GENERAL SAFETY PRECAUTIONS
 Coolants under pressure have a higher boiling point than water. DO NOT open a radiator or heat ex-
changer pressure cap while the engine is running. To prevent severe scalding, let engine cool down be-
fore removing coolant pressure cap. Turn cap slowly, and do not open it fully until the pressure has been
relieved.
 Used engine oils have been identified by some state or federal agencies as causing cancer or reproduc-
tive toxicity. When checking or changing engine oil, take care not to ingest, breathe the fumes, or contact
used oil.
iv
 Keep multi-class ABC fire extinguishers handy. Class A fires involve ordinary combustible materials such
as wood and cloth; Class B fires, combustible and flammable liquid fuels and gaseous fuels; Class C fires,
live electrical equipment. (ref. NFPA No. 10).
 Make sure that rags or combustible material are not left on or near the generator set.
 Make sure generator set is mounted in a manner to prevent combustible materials from accumulating
under or near the unit.
 Remove all unnecessary grease and oil from the unit. Accumulated grease and oil can cause overheating
and engine damage which present a potential fire hazard.
 Keep the generator set and the surrounding area clean and free from obstructions. Remove any debris
from the set and keep the floor clean and dry.
 Do not work on this equipment when mentally or physically fatigued, or after consuming any alcohol or
drug that makes the operation of equipment unsafe.
 Substances in exhaust gases have been identified by some state or federal agencies as causing cancer
or reproductive toxicity. Take care not to breath or ingest or come into contact with exhaust gases.
 Do not store any flammable liquids, such as fuel, cleaners, oil, etc., near the generator set. A fire or explo-
sion could result.
 Wear hearing protection when near an operating generator set.
 To prevent serious burns, avoid contact with hot metal parts such as radiator system, turbo charger sys-
tem and exhaust system.
DISPOSE OF THIS UNIT PROPERLY
v
THIS PAGE LEFT INTENTIONALLY BLANK
vi
1. PCC 1301/PowerCommand 1.x/PS0500 Modbus Register Map
The controller contains data that can be read by a re- bus Serial Line Implementation Guide v1.0, both
mote device communicating via Modbus RTU proto- available at www.modbus.org.
col on a two-wire RS−485 master/slave multi−drop
bus. In this arrangement the remote device is the Multi-Drop Network Mode Pins
master and the controller is the slave.
 Hi (+) TB2-3
 Lo (−) TB2-4
For more information about the Modbus protocol, re-
fer to Modbus Application Protocol v1.1a and Mod-  Shield TB2-1
Note: Earlier versions of software may not support all of the Modbus registers in the following table. If a particu-
lar register is not available in your installation, it is possible that the Modbus connection is working but the con-
troller software does not support that particular register.
Note: For the PS0500 control, Modbus functionality is ONLY available from software version 6.02 and later.
Note: If an address or bit is not listed in this table it is not used.
Note: The external device can read 1−40 contiguous registers, write 1−40 contiguous registers, or read diagnos-
tic counters.
Addr. Parameter Access Specifications Description Control

40004 Save Trims Read and 0: No action Save adjustments PC1.x,
Write 1: Save Unconditional saves to non volatile PS0500,
memory all the write PCC1301
parameters listed in
this table
40009 Controller Read Only Multiplier: 1 Device type of Con- PC1.x,
Type Size(Bits): 8 troller PS0500,
Sign: U PCC1301
Lower Limit: 0
Upper Limit: 255
40010 Operation Read Only 0: Off Current position of PC1.x,
Mode Switch 1: Auto the generator set PS0500,
Position 2: Manual switch panel off− PCC1301
Run−Auto switch as
seen by the genera-
tor set control
40011 Genset Read Only 0: Stop The parameter re- PC1.x,
State 1: Ready flects current state PS0500,
2: Preheat of genset PCC1301
3: Precrank
4: Crank
5: Disconnect
40012 Active Fault Read Only Multiplier: 1 This register con- PC1.x,
Offset: 0 tains the fault code PS0500,
Size(Bits) 16 number of currently PCC1301
Sign: U active fault. See ser-
Units: NA vice manual for list
Lower Limit: 0 of supported fault
Upper Limit: 65535 codes.
Default: 0
1
40013 Active Fault Read Only 0: Normal Fault TypeThis reg- PC1.x,
Type 1: Warning ister contains the PS0500,
4: Shutdown fault type of current- PCC1301
ly active fault
40016 NFPA 110 Read Only Multiplier: 1 16 bit number to PC1.x,
fault register Offset: 0 represent the status PS0500,
Size(Bits): 16 of the NFPA110 log- PCC1301
Sign: U ical. (See Section 4
Units: NA Table 4−1)
Lower Limit: NA
Upper Limit: NA
Default: NA
40017 Extended Read Only Multiplier: 1 16 bit number to PC1.x,
Annunci- Offset: 0 represent the status PS0500,
ation fault Size(Bits): 16 of the NFPA110 log- PCC1301
register Sign: U ical. (See Section 4
Units: NA Table 4−1)
Lower Limit: NA
Upper Limit: NA
Default: NA
40018 Alternator Read Only Multiplier: 1 Generator set L1−N PC1.x,
L1−N Volt- Offset: 0 Voltage PS0500,
age Size(Bits): 16 PCC1301
Sign: U
Units: Vac
Lower Limit: 0
Upper Limit: 65535
Default: NA
Sign: U
Units: Vac
Lower Limit: 0
Upper Limit: 65535
Default: NA
Sign: U
Units: Vac
Lower Limit: 0
Upper Limit: 65535
Default: NA
2
40022 Alternator Read Only Multiplier: 1 Generator set PC1.x,
L1−L2 Volt- Offset: 0 L1−L2 Voltage PS0500,
Sign: U
Units: Vac
Lower Limit: 0
Upper Limit: 65535
Default: NA

Sign: U
Units: Vac
Lower Limit: 0
Upper Limit: 65535
Default: NA

Sign: U
Units: Vac
Lower Limit: 0
Upper Limit: 65535
Default: NA
40025 Alt Voltage Read Only Multiplier: 1 Generator set line to PC1.x,
Offset: 0 line average voltage PS0500,
Size(Bits): 16 PCC1301
Sign: U
Units: Vac
Lower Limit: 0
Upper Limit: 65535
Default: NA
40026 Alternator L1 Read Only Multiplier: 0.1 Monitors the gener- PC1.x,
Current Offset: 0 ator set L1 current PS0500,
Size(Bits): 16 value PCC1301
Sign: U
Units: amps
Lower Limit: 0
Upper Limit: 65535
Default: NA
Sign: U
Units: amps
Lower Limit: 0
Upper Limit: 65535
Default: NA
3
Sign: U
Units: amps
Lower Limit: 0
Upper Limit: 65535
Default: NA
40029 Genset av- Read Only Multiplier: 0.1 Generator set aver- PC1.x,
erage cur- Offset: 0 age current PS0500,
rent Size(Bits): 16 PCC1301
Sign: U
Units: amps
Lower Limit: 0
Upper Limit: 65535
Default: NA
40040 Alternator Read Only Multiplier: 1 Alternator output PC1.x,

output volt− Offset: 0 volt−amperes PS0500,
amperes Size(Bits): 16 (phase a) PCC1301
(phase a) Sign: U
Units: kVa
Lower Limit: 0
Upper Limit: 65535
Default: NA

amperes Size(Bits): 16 (phase b) PCC1301
(phase b) Sign: U
Units: kVa
Lower Limit: 0
Upper Limit: 65535
Default: NA

amperes Size(Bits): 16 (phase c) PCC1301
(phase c) Sign: U
Units: kVa
Lower Limit: 0
Upper Limit: 65535
Default: NA

output volt− Offset: 0 volt−amperes (total) PS0500,
amperes (to- Size(Bits): 16 PCC1301
tal) Sign: U
Units: kVa
Lower Limit: 0
Upper Limit: 65535
Default: NA
4
40044 Average Alt Read Only Multiplier: 0.1 Average alternator PC1.x,
Line Fre- Offset: 0 line frequency PS0500,
quency Size(Bits): 16 PCC1301
Sign: U
Units: %
Lower Limit: 0
Upper Limit: 65535
Default: NA
40058 Rated Alter- Read Only Multiplier: 0.1 Monitors the gener- PC1.x,
nator L1 Offset: 0 ator set stand by L1 PS0500,
Current (%) Size(Bits): 16 current percentage PCC1301
Sign: U output.
Units: %
Lower Limit: 0
Upper Limit: 65535
Default: NA
Sign: U output.
Units: %
Lower Limit: 0
Upper Limit: 65535
Default: NA
Sign: U output.
Units: %
Lower Limit: 0
Upper Limit: 65535
Default: NA
40061 Battery Volt- Read Only Multiplier: 0.1 Value of battery vol- PC1.x,
age Offset: 0 tage PS0500,
Sign: U
Units: Vdc
Lower Limit: 0
Upper Limit: 65535
Default: NA
40062 Oil Pressure Read Only Multiplier: 1 Monitor point for oil PC1.x,
Offset: 0 pressure PS0500,
Sign: U
Units: kPa
Lower Limit: 0
Upper Limit: 65535
Default: NA
5
40064 Coolant Read Only Multiplier: 0.1 Monitor point for PC1.x,
Temperature Offset: 0 Coolant Temperatu- PS0500,
Size(Bits): 16 re PCC1301
Sign: U
Units: degc
Lower Limit: 0
Upper Limit: 65535
Default: NA
40068 Engine Read Only Multiplier: 1 Monitor point for Av- PC1.x,
Speed Offset: 0 erage Engine Speed PS0500,
Sign: U
Units: Rpm
Lower Limit: 0
Upper Limit: 65535
Default: NA
40069 Total Runs Read Only Multiplier: 1 Parameter reflects PC1.x,

Offset: 0 total number of PS0500,
Size(Bits): 16 starts PCC1301
Sign: U
Units: NA
Lower Limit: 0
Upper Limit: 65535
Default: 0
40070 Engine Run Read Only Multiplier: 1 Total Engine Run PC1.x,
Time (High Offset: 0 Time PS0500,
byte) (No Size(Bits): 16 PCC1301
logical Sign: U
found) Units: Sec
Lower Limit: 0
Upper Limit: 65535
Default: NA
40071 Engine Run Read Only Multiplier: 1 Total Engine Run PC1.x,
Time (Low Offset: 0 time PS0500,
byte) (No Size(Bits): 16 PCC1301
logical Sign: U
found) Units: Sec
Lower Limit: 0
Upper Limit: 65535
Default: NA
40210 AUX101 Read Only Multiplier: 0.01 AUX101 Speed Bias PCC1301
Speed Bias Offset: 0
Size(Bits): 16
Sign: S
Units: RPM
Lower Limit: −100
Upper Limit: 100
Default: NA
6
40211 AUX101 Read Only Multiplier: 0.01 AUX101 Voltage PCC1301
Voltage Bias Offset: 0 Bias
Size(Bits): 16
Sign: S
Units: Volt
Lower Limit: −100
Upper Limit: 100
Default: NA
40300 Genset start Read and 0: Stop Remote start via PC1.x,
stop control Write 1: Start Modbus PS0500,
via Modbus PCC1301
(No logical)
40301 Fault reset Read and 0: Inactive Fault reset PC1.x,
via Modbus Write 1: Active PCC1301
(No logical)
40302 Genset E− Read and 0: E−stop Inactive Status of E−stop PC1.x,
stop switch Write 1: E−stop active switch PS0500,
via Modbus PCC1301
(No logical)
43000 Alternator Read and Multiplier: 1 This register repre- PC1.x,
Nominal Write Offset: 0 sents Alternator PS0500,
Voltage Size(Bits): 16 nominal voltage PCC1301
Sign: U
Units: Vac
Lower Limit: 190
Upper Limit: 600
Default: 208
43001 Generator Read and 0: 60 Hz Nominal alternator PC1.x,
Frequency Write 1: 50 Hz voltage setting PS0500,
Select PCC1301
43002 Number of Read and 0: Single Phase Alternator phase PC1.x,
Phases Write 1: Three Phase setting PS0500,
PCC1301
43003 Connection Read and 0: Delta Alternator connec- PC1.x,
Type Write 1: Wye tion type PS0500,
PCC1301
43004 Glow Plug Read and 0: Disable Glow plug driver PC1.x,
Enable Write 1: Enable feature enable PS0500,
PCC1301
43005 Charging Al- Read and 0: Disable Used to disable the PC1.x,
ternator Write 1: Enable controller related PS0500,
Functions charging alt func- PCC1301
Disable tions.
7
43006 Start Time Read and Multiplier: 1 Remote start time PC1.x,
Delay Write Offset: 0 delay setting PS0500,
Sign: U
Units: Sec
Lower Limit: 0
Upper Limit: 300
Default: 0
43007 Stop Time Read and Multiplier: 1 Remote stop time PC1.x,
Delay Write Offset: 0 delay setting PS0500,
Sign: U
Units: Sec
Lower Limit: 0
Upper Limit: 600
Default: 0
43008 Cycle Crank Read and Multiplier: 1 Maximum number of PC1.x,
Attempts Write Offset: 0 start attempts for PS0500,
Size(Bits): 16 cycle crank mode PCC1301
Sign: U
Units: NA
Lower Limit: 1
Upper Limit: 7
Default: 3
43009 Cycle Crank Read and Multiplier: 1 Maximum starter PC1.x,
Engage Write Offset: 0 engage time for PS0500,
Time Size(Bits): 16 cycle crank mode PCC1301
Sign: U
Units: sec
Lower Limit: 3
Upper Limit: 30
Default: 15
43010 Cycle Crank Read and Multiplier: 1 Engine starting PC1.x,
Reset Time Write Offset: 0 cycle crank attempts PS0500,
Size(Bits): 16 setting PCC1301
Sign: U
Units: sec
Lower Limit: 0
Upper Limit: 60
Default: 30
43011 Fault bypass Read and 0: Disable Operator panel En- PC1.x,
(battle short) Write 1: Enable able for Battle Short PCC1301
feature en-
able
8
43012 Battle Short Read and 0: None, Switch Input for PC1.x
Switch Input Write 1: Configurable Input #1, Battle Short.
2: Configurable Input #2, 0= None
3: Configurable Input #3, 1=Customer Input 1
4: Configurable Input #4, 2=Customer Input 2
5: Operator Panel 3 =Customer Input 3
4 =Customer Input 4
5=Operator Panel
PCC1301 Modbus
mapping for param-
eters having differ-
ent limits as
compare to PC1.x
and PS0500 See
Table 1-1
NOTE: For PC1.x

SW versions <2.73,
’Battle Short Switch
Input’ range is 0 to
3. For PC1.x SW
versions 2.73 and
greater ’Battle Short
Switch Input’ range
is 0 to 5
43013 AVR Enable Read and 0: Disable Automatic voltage PC1.x,

Write 1: Enable regulation Enable PCC1301
43014 V/Hz Knee Read and Multiplier: 0.1 Automatic voltage PC1.x,
Frequency Write Offset: 0 regulator volts per PCC1301
Size(Bits): 16 hertz roll off knee
Sign: S setting
Units: Hz
Lower Limit: 0
Upper Limit: 1000
Default: 500
43015 V/Hz Rolloff Read and Multiplier: 0.1 Automatic voltage PC1.x,
Slope Write Offset: 0 regulator volts per PCC1301
Size(Bits): 16 hertz roll off slope
Sign: U setting
Units: %v/Hz
Lower Limit: 0
Upper Limit: 50
Default: 22
9
43016 AVR Gain Read and Multiplier: 1 Automatic voltage PC1.x,
Adjust Write Offset: 0 regulator gain set- PCC1301
Size(Bits): 16 ting
Sign: U
Units: %
Lower Limit: 5
Upper Limit: 1000
Default: 100
43017 AVR K2 Read and Multiplier: 1 Automatic voltage PC1.x,
Gain Adjust Write Offset: 0 regulator K2 gain PCC1301
Size(Bits): 16 setting
Sign: U
Units: %
Lower Limit: 5
Upper Limit: 1000
Default: 100
43018 AVR D Gain Read and Multiplier: 1 Automatic voltage PC1.x,
Adjust Write Offset: 0 regulator K2 gain PCC1301
Size(Bits): 16 setting
Sign: U
Units: %
Lower Limit: 95
Upper Limit: 105
Default: 100
43019 Electronic Read and 0: Disable Electronic governor PC1.x,
Governor Write 1: Enable enable feature PCC1301
Enable
43020 Initial Crank Read and Multiplier: 0.1 Electronic governing PC1.x,
Fueling Write Offset: 0 initial duty cycle set- PCC1301
Command Size(Bits): 16 ting
Sign: U
Units: %
Lower Limit: 0
Upper Limit: 500
Default: 250
43021 Initial Crank Read and Multiplier: 0.1 Time spent at Initial PC1.x,
Fueling Peri- Write Offset: 0 Crank Fueling Com- PCC1301
od Size(Bits): 8 mand
Sign: U
Units: %
Lower Limit: 0
Upper Limit: 100
Default: 20
10
43022 Crank Fuel- Read and Multiplier: 0.1 Electronic governing PC1.x,
ing Ramp Write Offset: 0 start ramp duty PCC1301
Rate Size(Bits): 16 cycle setting
Sign: U
Units: %/sec
Lower Limit: 50
Upper Limit: 1000
Default: 250
43023 Maximum Read and Multiplier: 0.1 Electronic governing PC1.x,

Crank Fuel- Write Offset: 0 maximum duty cycle PCC1301
ing Size(Bits): 16 setting
Sign: U
Units: %
Lower Limit: 500
Upper Limit: 1000
Default: 1000
43024 Governor Read and Multiplier: 1 Electronic governing PC1.x,

Gain Adjust Write Offset: 0 gain setting PCC1301
Size(Bits): 16
Sign: U
Units: %
Lower Limit: 5
Upper Limit: 1000
Default: 100
43025 Gov K2 Gain Read and Multiplier: 1 Electronic governor PC1.x,

Adjust Write Offset: 0 K2 gain setting PCC1301
Size(Bits): 16
Sign: U
Units: %
Lower Limit: 5
Upper Limit: 1000
Default: 100
43026 Gov D Gian Read and Multiplier: 1 Electronic governor PC1.x,

Adjust Write Offset: 0 damping adjustment PCC1301
Size(Bits): 16
Sign: U
Units: %
Lower Limit: 95
Upper Limit: 105
Default: 100
43027 Crank Exit Read and Multiplier: 0.1 Electronic governing PC1.x,
Fueling Write Offset: 0 crank exit fuel duty PCC1301
Command Size(Bits): 16 cycle setting
Sign: U
Units: %
Lower Limit: 0
Upper Limit: 1000
Default: 250
11
43028 Dither Fac- Read and Multiplier: 1 Electronic governing PC1.x,
tor Write Offset: 0 dither factor setting PCC1301
Size(Bits): 16
Sign: U
Units: %
Lower Limit: 0
Upper Limit: 30
Default: 25
43029 Governor Read and Multiplier: 1 Electronic governing PC1.x,

Ramp Time Write Offset: 0 start ramp time set- PCC1301
Size(Bits): 16 ting
Sign: U
Units: sec
Lower Limit: 0
Upper Limit: 15000
Default: 25
43030 Governor Read and Multiplier: 1 Engine speed at PC1.x,

Enable Write Offset: 0 which governor is PS0500,
Speed Size(Bits): 16 enabled PCC1301
Sign: U
Units: RPM
Lower Limit: 0
Upper Limit: 1400
Default: 1100
43031 Minimum Read and Multiplier: 1 Setting for electronic PC1.x,

Governor Write Offset: 0 governor minimum PCC1301
Duty Cycle Size(Bits): 8 duty cycle
Sign: U
Units: %
Lower Limit: 0
Upper Limit: 100
Default: 20
43032 Maximum Read and Multiplier: 1 Setting for electronic PC1.x,

Governor Write Offset: 0 governor maximum PCC1301
Duty Cycle Size(Bits): 8 duty cycle
Sign: U
Units: %
Lower Limit: 0
Upper Limit: 100
Default: 95
43033 Model num- Read and Multiplier: 1 Byte 1 for model PC1.x,
ber charac- Write Offset: 0 number PS0500,
ter #1 Size(Bits): 8 PCC1301
Sign: Char
Units: NA
Lower Limit: 0
Upper Limit: 255
Default: NA
12
Sign: Char
Units: NA
Lower Limit: 0
Upper Limit: 255
Default: NA
Sign: Char
Units: NA
Lower Limit: 0
Upper Limit: 255
Default: NA
Sign: Char
Units: NA
Lower Limit: 0
Upper Limit: 255
Default: NA
Sign: Char
Units: NA
Lower Limit: 0
Upper Limit: 255
Default: NA
Sign: Char
Units: NA
Lower Limit: 0
Upper Limit: 255
Default: NA
Sign: Char
Units: NA
Lower Limit: 0
Upper Limit: 255
Default: NA
13
Sign: Char
Units: NA
Lower Limit: 0
Upper Limit: 255
Default: NA
Sign: Char
Units: NA
Lower Limit: 0
Upper Limit: 255
Default: NA
Sign: Char
Units: NA
Lower Limit: 0
Upper Limit: 255
Default: NA
Sign: Char
Units: NA
Lower Limit: 0
Upper Limit: 255
Default: NA
Sign: Char
Units: NA
Lower Limit: 0
Upper Limit: 255
Default: NA
Sign: Char
Units: NA
Lower Limit: 0
Upper Limit: 255
Default: NA
14
Sign: Char
Units: NA
Lower Limit: 0
Upper Limit: 255
Default: NA
Sign: Char
Units: NA
Lower Limit: 0
Upper Limit: 255
Default: NA
Sign: Char
Units: NA
Lower Limit: 0
Upper Limit: 255
Default: NA
43049 Serial num- Read and Multiplier: 1 Byte 1 for serial PC1.x,
Sign: Char
Units: NA
Lower Limit: 0
Upper Limit: 255
Default: NA
Sign: Char
Units: NA
Lower Limit: 0
Upper Limit: 255
Default: NA
Sign: Char
Units: NA
Lower Limit: 0
Upper Limit: 255
Default: NA
15
Sign: Char
Units: NA
Lower Limit: 0
Upper Limit: 255
Default: NA
Sign: Char
Units: NA
Lower Limit: 0
Upper Limit: 255
Default: NA
Sign: Char
Units: NA
Lower Limit: 0
Upper Limit: 255
Default: NA
Sign: Char
Units: NA
Lower Limit: 0
Upper Limit: 255
Default: NA
Sign: Char
Units: NA
Lower Limit: 0
Upper Limit: 255
Default: NA
Sign: Char
Units: NA
Lower Limit: 0
Upper Limit: 255
Default: NA
16
Sign: Char
Units: NA
Lower Limit: 0
Upper Limit: 255
Default: NA
Sign: Char
Units: NA
Lower Limit: 0
Upper Limit: 255
Default: NA
Sign: Char
Units: NA
Lower Limit: 0
Upper Limit: 255
Default: NA
Sign: Char
Units: NA
Lower Limit: 0
Upper Limit: 255
Default: NA
Sign: Char
Units: NA
Lower Limit: 0
Upper Limit: 255
Default: NA
Sign: Char
Units: NA
Lower Limit: 0
Upper Limit: 255
Default: NA
17
Sign: Char
Units: NA
Lower Limit: 0
Upper Limit: 255
Default: NA
43065 Configurable Read and 0: None Configurable Input PC1.x,
Input #1 Write 1: Warning #1 Fault Level Re- PS0500,
Fault Level 2: Shutdown sponse PCC1301
Response
43066 Configurable Read and 0: None Configurable Input PC1.x,
Input #2 Write 1: Warning #2 Fault Level Re- PS0500,
Fault Level 2: Shutdown sponse PCC1301
Response
43067 Configurable Read and Multiplier: 1 Configurable cus- PC1.x,
Customer Write Offset: 0 tomer output 1. De- PS0500,
Output 1 Size(Bits): 16 fault set for FC 1540 PCC1301
Sign: U which is COMMON
Units: NA WARNING fault.
Lower Limit: 0
Upper Limit: 65535
Default: 1540
43068 Configurable Read and Multiplier: 1 Configurable cus- PC1.x,
Customer Write Offset: 0 tomer output 2. De- PS0500,
Output 2 Size(Bits): 16 fault set for FC 1541 PCC1301
Sign: U which is COMMON
Units: NA SHUTDOWN fault.
Lower Limit: 0
Upper Limit: 65535
Default: 1541
43069 Voltage Read and Multiplier: 0.0001 Make actual voltage PC1.x
Regulator Write Offset: 0 match Nominals
Calibration Size(Bits): 16 60Hz when Set
60Hz Sign: U point = 100%.
Units: % PCC1301 Modbus
Lower Limit: 9000 mapping for param-
Upper Limit: 11000 eters having differ-
Default: 10000 ent limits as
compare to PC1.x
See table 1-1.
18
43070 Voltage Read and Multiplier: 0.0001 Make actual voltage PC1.x
Regulator Write Offset: 0 match Nominals
Units: % PCC1301 Modbus
Lower Limit: 9000 mapping for param-
Upper Limit: 11000 eters having differ-
Default: 10000 ent limits as
compare to PC1.x
See table 1-1.
43071 Frequency Read and Multiplier: 0.1 PC1.x,

Adjust Trim Write Offset: 0 PCC1301
Size(Bits): 16
Sign: S
Units: Hz
Lower Limit: −600
Upper Limit: 600
Default: 0
43072 Alternator Read and Multiplier: 0.0001 60 Hz line 1 to neu- PC1.x,

L1−N 60Hz Write Offset: 0 tral metering voltage PS0500
Voltage Dis- Size(Bits): 16 calibration.
play Adjust Sign: U PCC1301 Modbus
Units: % mapping for param-
Lower Limit: 9000* eters having differ-
Upper Limit: 11000* ent limits as
Default: 10000 compare to PC1.x
and PS0500 See
Table 1-1
*NOTE: For PS0500

control, SW ver-
sions <6.03 the
range is 6000 to
14000. For PS0500
control, SW ver-
sions >6.03 the
range is 9000 to
11000.

Voltage Dis- Size(Bits): 16 calibration
play Adjust Sign: U *NOTE: For PS0500
Units: % control, SW ver-
Lower Limit: 9000* sions <6.03 the
Upper Limit: 11000* range is 6000 to
Default: 10000 14000. For PS0500
control, SW ver-
sions >6.03 the
range is 9000 to
11000.
19
Default: 10000 14000. For PS0500
control, SW ver-
sions >6.03 the
range is 9000 to
11000.

Default: 10000 14000. For PS0500
control, SW ver-
sions >6.03 the
range is 9000 to
11000.

Default: 10000 14000. For PS0500
control, SW ver-
sions >6.03 the
range is 9000 to
11000.

Default: 10000 14000. For PS0500
control, SW ver-
sions >6.03 the
range is 9000 to
11000.
20
43078 Alternator L1 Read and Multiplier: 0.001 60 Hz line 1 meter- PC1.x,
60Hz Cur- Write Offset: 0 ing current calibra- PS0500,
rent Adjust Size(Bits): 16 tion PCC1301
Sign: U
Units: %
Lower Limit: 8000
Upper Limit: 12000*
Default: 1000

Sign: U
Units: %
Lower Limit: 8000
Upper Limit: 12000*
Default: 1000

Sign: U
Units: %
Lower Limit: 8000
Upper Limit: 12000*
Default: 1000

Sign: U
Units: %
Lower Limit: 8000
Upper Limit: 12000*
Default: 1000

Sign: U
Units: %
Lower Limit: 8000
Upper Limit: 12000*
Default: 1000

Sign: U
Units: %
Lower Limit: 8000
Upper Limit: 12000*
Default: 1000
21
43084 Annunciator Read and 0: None Sets the genset re- PC1.x,
#1 Switch Write 1: Warning sponse to an active PCC1301
Fault Re- 2: Shutdown Annunciator #1
sponse switch input.
43087 Annunciator Read and Multiplier: 1 Annunciator confi- PC1.x,
Output 1 Write Offset: 0 gurable output #1 PCC1301
Event Size(Bits): 16 event code number
Sign: U
Units: NA
Lower Limit: 0
Upper Limit: 65535
Default: 0
Sign: U
Units: NA
Lower Limit: 0
Upper Limit: 65535
Default: 0
Sign: U
Units: NA
Lower Limit: 0
Upper Limit: 65535
Default: 0
Sign: U
Units: NA
Lower Limit: 0
Upper Limit: 65535
Default: 0
22
43719 AUX101 Al- Read Only Multiplier: 1 AUX101 input as al- PCC1301
ternator Offset: 0 ternator temperature
Temp Size(Bits): 16
Sign: U
Units: NA
Lower Limit: 0
Upper Limit: 65535
Default: 0
43722 AUX101 Read Only Multiplier: 1 AUX101 input as PCC1301

Ambient Offset: 0 ambient tempera-
Temp Size(Bits): 16 ture
Sign: U
Units: NA
Lower Limit: 0
Upper Limit: 65535
Default: 0
43723 AUX101 in- Read Only Multiplier: 1 AUX101 input 1 PCC1301

put 1 voltage Offset: 0 voltage
Size(Bits): 16
Sign: U
Units: NA
Lower Limit: 0
Upper Limit: 65535
Default: 0

Size(Bits): 16
Sign: U
Units: NA
Lower Limit: 0
Upper Limit: 65535
Default: 0

Size(Bits): 16
Sign: U
Units: NA
Lower Limit: 0
Upper Limit: 65535
Default: 0

Size(Bits): 16
Sign: U
Units: NA
Lower Limit: 0
Upper Limit: 65535
Default: 0
23
Size(Bits): 16
Sign: U
Units: NA
Lower Limit: 0
Upper Limit: 65535
Default: 0

Size(Bits): 16
Sign: U
Units: NA
Lower Limit: 0
Upper Limit: 65535
Default: 0
43729 AUX101 in- Read Only Multiplier: 1 AUX101 input PCC1301

put 67volt- Offset: 0 67voltage
age Size(Bits): 16
Sign: U
Units: NA
Lower Limit: 0
Upper Limit: 65535
Default: 0

Size(Bits): 16
Sign: U
Units: NA
Lower Limit: 0
Upper Limit: 65535
Default: 0
43741 AUX101 Ex- Read Only Multiplier: 1 AUX101 input as PCC1301

haust Temp Offset: 0 Exhaust tempera-
Size(Bits): 16 ture
Sign: U
Units: NA
Lower Limit: 0
Upper Limit: 65535
Default: 0
43745 AUX101 Read Only Multiplier: 1 AUX101 input as PCC1301

Fuel Level Offset: 0 Fuel level
Size(Bits): 16
Sign: U
Units: NA
Lower Limit: 0
Upper Limit: 65535
Default: 0
24
43750 AUX101 In- Read Only Multiplier: 1 AUX101 input as In- PCC1301
take Man- Offset: 0 take Manifold Temp
ifold Temp Size(Bits): 16
Sign: U
Units: NA
Lower Limit: 0
Upper Limit: 65535
Default: 0
43757 AUX101 Oil Read Only Multiplier: 1 AUX101 input as oil PCC1301
Temp Offset: 0 Temp
Size(Bits): 16
Sign: U
Units: NA
Lower Limit: 0
Upper Limit: 65535
Default: 0
43905 Network Read and 0: Normal If ’0’, engine speed PC1.x
Speed Ad- Write 1: Active should stay at nor-
just Com- mal speed. If ’1’, en-
mand gine speed should
increase by 0.5Hz.
25
Table 1-1 PCC1301 Modbus Mapping for Parameters Having
Different Limits as Compared to PC1.x and PS05000
43012 Battle Short Read and 0: None, Switch Input for PCC1301
Switch Input Write 1: Configurable Input #1, Battle Short ONLY
2: Configurable Input #2,
3: Configurable Input #3
43069 Voltage Read and Multiplier: 0.0001 Make actual voltage PCC1301
Regulator Write Offset: 0 match Nominals ONLY
Units: %
Lower Limit: 6000
Upper Limit: 14000
Default: 10000
43070 Voltage Read and Multiplier: 0.0001 Make actual voltage PCC1301
Regulator Write Offset: 0 match Nominals ONLY
Units: %
Lower Limit: 6000
Upper Limit: 14000
Default: 10000
43072 Alternator Read and Multiplier: 0.0001 60 Hz line 1 to neu- PCC1301
L1−N 60Hz Write Offset: 0 tral metering voltage ONLY
Voltage Dis- Size(Bits): 16 calibration.
play Adjust Sign: U
Units: %
Lower Limit: 6000
Upper Limit: 14000
Default: 10000
play Adjust Sign: U
Units: %
Lower Limit: 6000
Upper Limit: 14000
Default: 10000
play Adjust Sign: U
Units: %
Lower Limit: 6000
Upper Limit: 14000
Default: 10000
26
play Adjust Sign: U
Units: %
Lower Limit: 6000
Upper Limit: 14000
Default: 10000
play Adjust Sign: U
Units: %
Lower Limit: 6000
Upper Limit: 14000
Default: 10000
play Adjust Sign: U
Units: %
Lower Limit: 6000
Upper Limit: 14000
Default: 10000
27
28
2. PowerCommand 2.x/3.x Modbus Register Map
Use the following equation to calculate the value of To write a 32−bit value to 2 modbus registers, calcu-
32-bit parameters. late the value for each register as follows:
A = high register value A (High register value) = INT ((Parameter / Multiplier)
B = low register value / 65536))
parameter = (A * 65536 * multiplier) + (B * multiplier) B (Low register value) = INT ((Parameter / Multiplier)
% (65536))
For example, Engine Running Time is a 32-bit pa- % = Modulus (the remainder of integer division)
rameter in registers 40070 and 40071.
Register 40070 has 322 (high register value = A). For example:
Register 40071 has 15637 (low register value = B). To write Load Demand Genset Run Hours = 80000.5
Register 40769 (high register value A) should be writ-
ten to INT ((80000.5/0.1)/65536) = 12
Engine Running Time = (322 * 65536 * 0.1) + (15637 * Register 40770 (low register value B) should be writ-
0.1) ten to INT ((80000.5/.01)%65536) = 13573
The engine run-time is 2111823 seconds, or 586.6 To write 32−bit values to 2 modbus addresses always
hours. write the high register value followed by the low regis-
ter value. Both registers must be written to change
the 32−bit value in the control.
tic counters.
Note: The Lowest modbus register value is considered as the High Register Value and the highest modbus reg-
ister value is considered as the low Reister Value.
Addr. Parameter Ac- Specifications Description Func- Control
cess tion
40010 Control Read 0: Off Current position of the gen- PC 2.x,
Switch Posi- Only 1: Auto erator set switch panel Off− PC 3.x
tion 2: Manual Run−Auto switch as seen
by the generator set control.
SEE ALSO ADDRESS
40580.
NOTE: Both address 40580
and 40010 show the same
information however the
specification for each is dif-
ferent.
40012 Most Recent Read Multiplier: 1 Unit: Fault Code This Modbus Register dis- PC 2.x,
Fault or Only plays most recent Fault or PC 3.x
Warning Warning. It is not mapped
with any logical.
Offset: 0 Lower Limit:
Size (bits): Upper Limit:
16 65530
29
cess tion
Sign: U
40013 Modbus reg- Read 0: None This register returns the PC 2.x,
ister 40013 Only Fault Type of the Fault PC 3.x
Code. This is not associated
with any logical.
1: Warning
2: Shutdown
40014 Genset % Read Multiplier: Unit: % Monitors the total generator PC 2.x,
Standby To- Only 0.01 set standby KW percentage PC 3.x
tal kW output.
16
Sign: S
40016 NFPA 110 Read Multiplier: Unit: 16−bit number to represent PC 2.x,
Logical Sta- Only 1.0 the status of the NFPA 110 PC 3.x
tus logical. See NFPA 110 bit-
map.
16
Sign: U
40017 Extended Read Multiplier: Unit: 16−bit number to represent PC 2.x,
NFPA 110 Only 1.0 the status of the NFPA 110 PC 3.x
Logical Sta- logical. See NFPA 110 bit-
tus map.
16
Sign: U
40018 Genset L1N Read Multiplier: 1 Unit: Vac Generator set L1N voltage PC 2.x,
Voltage Only PC 3.x
16
Sign: U
Voltage Only PC 3.x
16
Sign: U
Voltage Only PC 3.x
30
cess tion
16
Sign: U
40022 Genset L1L2 Read Multiplier: 1 Unit: Vac Generator set L1L2 voltage PC 2.x,
Voltage Only PC 3.x
16
Sign: U
Voltage Only PC 3.x
16
Sign: U
Voltage Only PC 3.x
16
Sign: U
40025 Genset LL Read Multiplier: 1 Unit: Vac Generator set Line to Line PC 2.x,
Average Only average voltage PC 3.x
Voltage
16
Sign: U
40026 Genset L1 Read Multiplier: 1 Unit: Amps Monitors the generator set PC 2.x,
Current Only L1 current value. PC 3.x
16
Sign: U
40027 Genset L2 Read Multiplier: 1 Unit: Amps Generator set L2 current PC 2.x,
Current Only PC 3.x
16
Sign: U
40028 Genset L3 Read Multiplier: 1 Unit: Amps Generator set L3 current PC 2.x,
Current Only PC 3.x
31
cess tion
16
Sign: U
40029 Genset Av- Read Multiplier: 1 Unit: Amps Generator set average cur- PC 2.x,
erage Cur- Only rent PC 3.x
rent
16
Sign: U
40030 Genset Neu- Read Multiplier: 1 Unit: Amps Generator set neutral cur- PC 3.x
tral Current Only rent
16
Sign: U
40031 Genset L1 Read Multiplier: 1 Unit: kW Generator set L1 kW PC 2.x,
kW Only PC 3.x
16
Sign: S
kW Only PC 3.x
−32768
16 32762
Sign: S
kW Only PC 3.x
−32768
16 32762
Sign: S
40034 Genset Total Read Multiplier: 1 Unit: kW Generator set total kW PC 2.x,
kW Only PC 3.x
16
Sign: S
32
cess tion
40035 Genset L1 Read Multiplier: 1 Unit: kVAR Generator set L1 KVAR PC 2.x,
kVAR Only PC 3.x
16
Sign: S
40036 Genset L2 Read Multiplier: 1 Unit: kVAR Generator set L2 Kvar PC 2.x,
kVAR Only PC 3.x
−32768
16 32762
Sign: S
40037 Genset L3 Read Multiplier: 1 Unit: kVAR Generator set L3 Kvar PC 2.x,
kVAR Only PC 3.x
16
Sign: S
40038 Genset Total Read Multiplier: 1 Unit: kVAR Generator set total kVAR PC 2.x,
kVAR Only PC 3.x
16
Sign: S
40039 Genset Total Read Multiplier: Unit: PF Generator set total power PC 2.x,
Power Fac- Only 0.01 factor (L1+L2+L3) PC 3.x
tor
Size (bits): 8 Upper Limit:
Sign: S
40040 Genset L1 Read Multiplier: 1 Unit: kVA Generator set L1 kVA PC 2.x,
kVA Only PC 3.x
16
Sign: U
kVA Only PC 3.x
16
Sign: U
33
cess tion
kVA Only PC 3.x
16
Sign: U
40043 Genset Total Read Multiplier: 1 Unit: kVA Generator set total kVA PC 2.x,
kVA Only PC 3.x
16
Sign: U
40046 Genset Total Read Multiplier: 1 Unit: kWh Generator set total negative PC 2.x,
Negative Only kWh accumulation PC 3.x
kWh
32
Sign: U
40047 Genset Total Read Multiplier: 1 Unit: kWh Generator set total negative PC 2.x,
Negative Only kWh accumulation PC 3.x
kWh
32
Sign: U
40048 Genset Total Read Multiplier: 1 Unit: kWh Generator set total positive PC 2.x,
Positive kWh Only kWh accumulation PC 3.x
Offset: 0 Lower Limit: 0
32 4294967290
Sign: U
40049 Genset Total Read Multiplier: 1 Unit: kWh Generator set total positive PC 2.x,
Positive kWh Only kWh accumulation PC 3.x
32 4294967290
Sign: U
40050 Genset Total Read Multiplier: 1 Unit: kWh Generator set total net kWh PC 2.x,
Net kWh Only accumulation PC 3.x
−2147483648
34
cess tion
32 2147483643
Sign: S
40051 Genset Total Read Multiplier: 1 Unit: kWh Generator set total net kWh PC 2.x,
Net kWh Only accumulation PC 3.x
−2147483648
32 2147483643
Sign: S
40052 Genset Total Read Multiplier: 1 Unit: kVARh Generator set total negative PC 2.x,
Negative Only kVARh accumulation PC 3.x
kVARh
32
Sign: U
40053 Genset Total Read Multiplier: 1 Unit: kVARh Generator set total negative PC 2.x,
Negative Only kVARh accumulation PC 3.x
kVARh
32
Sign: U
40054 Genset Total Read Multiplier: 1 Unit: kVARh Generator set total positive PC 2.x,
Positive Only kVARh accumulation PC 3.x
kVARh
32 4294967290
Sign: U
40055 Genset Total Read Multiplier: 1 Unit: kVARh Generator set total positive PC 2.x,
Positive Only kVARh accumulation PC 3.x
kVARh
32 4294967290
Sign: U
40056 Genset Total Read Multiplier: 1 Unit: kVARh Generator set total net PC 2.x,
Net kVARh Only kVARh accumulation PC 3.x
−2147483648
32 2147483643
35
cess tion
Sign: S
40057 Generator Read Multiplier: 1 Unit: kVARh Generator set total net PC 2.x,
set Total Net Only kVARh accumulation PC 3.x
kVARh
−2147483648
32 2147483643
Sign: S
40058 Genset % Read Multiplier: Unit: % Monitors the generator set PC 2.x,
Standby L1 Only 0.1 standby L1 current percent- PC 3.x
Current age output.
16
Sign: U
Current age output.
16
Sign: U
Current age output.
16
Sign: U
40061 Battery Volt- Read Multiplier: Unit: Vdc Battery voltage value. Mod- PC 2.x,
age Only 0.1 bus and PCCnet has differ- PC 3.x
ent multiplier value. For
Modbus use only, multiplier/
units = 0.1 volts
16
Sign: U
40062 Oil Pressure Read Multiplier: 1 Unit: kPa Monitor point for the Oil PC 2.x,
Only Pressure. Modbus and PC 3.x
PCCnet have different multi-
plier value. For Modbus use
only, Multiplier/Units = 1kPa
36
cess tion
16
Sign: U
40063 Oil Tempera- Read Multiplier: Unit: degF Monitor point for the Oil PC 2.x,
ture Only 0.1 Temperature PC 3.x
16
Sign: S
40064 Coolant Read Multiplier: Unit: degC Monitor point for the Cool- PC 2.x,
Temperature Only 0.1 ant Temperature. Modbus PC 3.x
mapping shall be to both
46126 and 40064 address-
es. For Modbus use only,
Multiplier/Units = 0.1C
16
Sign: S
40065 Intake Man- Read Multiplier: Unit: degF To monitor Intake Manifold PC 2.x,
ifold Temper- Only 0.1 Temperature. This parame- PC 3.x
ature ter represents ”Intake Man-
ifold Temperature 1”.
Offset: 0 Lower Limit: −40
Size (bits): Upper Limit: 410
16
Sign: S
40065 Intake Man- Read Multiplier: Unit: degF To monitor Intake Manifold PC 2.x,
ifold Temper- Only 0.1 Temperature. This parame- PC 3.x
ature ter represents ”Intake Man-
ifold Temperature 1”.
16
Sign: S
40066 Fuel Tem- Read Multiplier: Unit: degF Monitor point for the Fuel PC 2.x,
perature Only 0.1 Temperature PC 3.x
16
Sign: S
40067 Fuel Rate Read Multiplier: Unit: gal/hr Monitor point for the Fuel PC 2.x,
Only 0.05 Rate PC 3.x
37
cess tion
16
Sign: U
40068 Average En- Read Multiplier: 1 Unit: RPM Monitor point for the Aver- PC 2.x,
gine Speed Only age Engine Speed. Modbus PC 3.x
and PCCnet have different
multiplier value. For Modbus
use only, Multiplier/Units = 1
RPM
16
Sign: U
40070 Engine Run- Read Multiplier: Unit: seconds Total engine run time. Mod- PC 2.x,
ning Time Only 0.1 bus has different multiplier PC 3.x
than PCCnet. For Modbus
use only, multiplier/units =
0.1 Sec
32
Sign: U
40071 Engine Run- Read Multiplier: Unit: seconds Total engine run time. Mod- PC 2.x,
ning Time Only 0.1 bus has different multiplier PC 3.x
than PCCnet. For Modbus
use only, multiplier/units =
0.1 Sec
32
Sign: U
40072 Total Fuel Read Multiplier: Unit: gallons Total fuel consumption since PC 2.x,
Consump- Only 0.1 start of engine. PC 3.x
tion
32
Sign: U
40073 Total Fuel Read Multiplier: Unit: gallons Total fuel consumption since PC 2.x,
Consump- Only 0.1 start of engine. PC 3.x
tion
32
Sign: U
38
cess tion
40074 Total Num- Read Multiplier: 1 Unit: Total number of generator PC 2.x,
ber of Runs Only set runs. PC 3.x
32 4294967295
Sign: U
40075 Total Num- Read Multiplier: 1 Unit: Total number of generator PC 2.x,
ber of Runs Only set runs. PC 3.x
32 4294967295
Sign: U
40076 Runs Reset Read Multiplier: 1 Unit: Real Time Clock stamp re- PC 2.x,
Time Only cord of the last time the Run PC 3.x
Attempts were reset. This
parameter is READ/WRITE
for Mon and PCCNet and
READ ONLY for Modbus.
Modbus implementation or
the Real time stamp will use
40076−40092 for 17 char of
this string.
144
Sign: C
40076−40092 for 17 char of
this string.
144
Sign: C
39
cess tion
40076 − 40092 for 17 char
of this string.
144
Sign: C
40076−40092 for 17 char of
this string.
144
Sign: C
40076−40092 for 17 char of
this string.
144
Sign: C
40
cess tion
40076−40092 for 17 char of
this string.
144
Sign: C
40076−40092 for 17 char of
this string.
144
Sign: C
40076−40092 for 17 char of
this string.
144
Sign: C
41
cess tion
40076−40092 for 17 char of
this string.
144
Sign: C
40076−40092 for 17 char of
this string.
144
Sign: C
40076−40092 for 17 char of
this string.
144
Sign: C
42
cess tion
40076−40092 for 17 char of
this string.
144
Sign: C
40076−40092 for 17 char of
this string.
144
Sign: C
40076−40092 for 17 char of
this string.
144
Sign: C
43
cess tion
40076−40092 for 17 char of
this string.
144
Sign: C
40076−40092 for 17 char of
this string.
144
Sign: C
40076−40092 for 17 char of
this string.
144
Sign: C
44
cess tion
40096 Start At- Read Multiplier: 1 Unit: Real Time Clock stamp re- PC 2.x,
tempts Re- Only cord of the last time the PC 3.x
set Time Start Attempts were reset.
This parameter is READ/
WRITE for Mon and
PCCNet and READ ONLY
for Modbus. Modbus imple-
mentation or the Real time
stamp will use 40096−0112
for 17 char of this string.
144
Sign: C
WRITE for Mon and
144
Sign: C
WRITE for Mon and
144
Sign: C
45
cess tion
WRITE for Mon and
144
Sign: C
WRITE for Mon and
144
Sign: C
WRITE for Mon and
144
Sign: C
46
cess tion
WRITE for Mon and
144
Sign: C
WRITE for Mon and
144
Sign: C
WRITE for Mon and
144
Sign: C
47
cess tion
WRITE for Mon and
144
Sign: C
WRITE for Mon and
144
Sign: C
WRITE for Mon and
144
Sign: C
48
cess tion
WRITE for Mon and
144
Sign: C
WRITE for Mon and
144
Sign: C
WRITE for Mon and
144
Sign: C
49
cess tion
WRITE for Mon and
144
Sign: C
WRITE for Mon and
144
Sign: C
40118 Utility L1N Read Multiplier: 1 Unit: Vac Utility L1N voltage PC 3.x
Voltage Only
16
Sign: U
Voltage Only
16
Sign: U
Voltage Only
16
Sign: U
50
cess tion
40122 Utility L1L2 Read Multiplier: 1 Unit: Vac Utility L1L2 voltage PC 3.x
Voltage Only
16
Sign: U
Voltage Only
16
Sign: U
Voltage Only
16
Sign: U
40125 Utility LL Av- Read Multiplier: 1 Unit: Vac Utility Line to Line average PC 3.x
erage Volt- Only voltage
age
16
Sign: U
40126 Utility L1 Read Multiplier: 1 Unit: Amps Utility L1 current PC 3.x
Current Only
16
Sign: U
Current Only
16
Sign: U
Current Only
16
Sign: U
51
cess tion
40131 Utility L1 kW Read Multiplier: 1 Unit: kW Utility L1 kW PC 3.x
Only
16
Sign: S
Only
16
Sign: S
Only
16
Sign: S
40134 Utility Total Read Multiplier: 1 Unit: kW Utility total kW PC 3.x
kW Only
16
Sign: S
40135 Utility L1 Read Multiplier: 1 Unit: kVAR Utility L1 Kvar PC 3.x
kVAR Only
16
Sign: S
kVAR Only
16
Sign: S
kVAR Only
16
Sign: S
52
cess tion
40138 Utility Total Read Multiplier: 1 Unit: kVAR Utility total kVAR PC 3.x
kVAR Only
16
Sign: S
40139 Utility Total Read Multiplier: Unit: PF Utility total power factor PC 3.x
Power Fac- Only 0.01
tor
Sign: S
40140 Utility L1 Read Multiplier: 1 Unit: kVA Utility L1 kVA PC 3.x
kVA Only
16
Sign: U
kVA Only
16
Sign: U
kVA Only
16
Sign: U
40143 Utility Total Read Multiplier: 1 Unit: kVA Utility total kVA PC 3.x
kVA Only
16
Sign: U
40144 Utility Fre- Read Multiplier: Unit: Hz Utility line frequency PC 3.x
quency Only 0.001
32
Sign: U
53
cess tion
40145 Utility Fre- Read Multiplier: Unit: Hz Utility line frequency PC 3.x
quency Only 0.001
32
Sign: U
40146 Utility Total Read Multiplier: 1 Unit: kWh Utility total negative kWh PC 3.x
Negative Only accumulation
kWh
32
Sign: U
40147 Utility Total Read Multiplier: 1 Unit: kWh Utility total negative kWh PC 3.x
kWh
32
Sign: U
40148 Utility Total Read Multiplier: 1 Unit: kWh Utility total positive kWh ac- PC 3.x
Positive kWh Only cumulation
32
Sign: U
40149 Utility Total Read Multiplier: 1 Unit: kWh Utility total positive kWh ac- PC 3.x
Positive kWh Only cumulation
32
Sign: U
40150 Utility Total Read Multiplier: 1 Unit: kWh Utility total net kWh accu- PC 3.x
Net kWh Only mulation
32
Sign: S
40151 Utility Total Read Multiplier: 1 Unit: kWh Utility total net kWh accu- PC 3.x
Net kWh Only mulation
32
54
cess tion
Sign: S
40152 Utility Total Read Multiplier: 1 Unit: kVARh Utility total negative kVARh PC 3.x
kVARh
32
Sign: U
40153 Utility Total Read Multiplier: 1 Unit: kVARh Utility total negative kVARh PC 3.x
kVARh
32
Sign: U
40154 Utility Total Read Multiplier: 1 Unit: kVARh Utility total positive kVARh PC 3.x
Positive Only accumulation
kVARh
32
Sign: U
40155 Utility Total Read Multiplier: 1 Unit: kVARh Utility total positive kVARh PC 3.x
Positive Only accumulation
kVARh
32
Sign: U
40156 Utility Total Read Multiplier: 1 Unit: kVARh Utility total net kVARh accu- PC 3.x
Net kVARh Only mulation
32
Sign: S
40157 Utility Total Read Multiplier: 1 Unit: kVARh Utility total net kVARh accu- PC 3.x
Net kVARh Only mulation
32
Sign: S
40158 Genset Bus Read Multiplier: 1 Unit: Vac Generator set Bus L1N volt- PC 3.x
L1N Voltage Only age
55
cess tion
16
Sign: U
16
Sign: U
16
Sign: U
40162 Genset Bus Read Multiplier: 1 Unit: Vac Generator set Bus L1L2 PC 3.x
L1L2 Voltage Only voltage
16
Sign: U
16
Sign: U
16
Sign: U
40165 Genset Bus Read Multiplier: 1 Unit: Vac Generator set Bus Line to PC 3.x
LL Average Only Line average voltage
Voltage
16
Sign: U
40166 Genset Bus Read Multiplier: 1 Unit: Amps Generator set Bus L1 cur- PC 3.x
L1 Current Only rent
56
cess tion
16 65530
Sign: U
16
Sign: U
16
Sign: U
40171 Genset Bus Read Multiplier: 1 Unit: kW Generator set Bus L1 kW PC 3.x
L1 kW Only
−32768
16 32762
Sign: S
L2 kW Only
−32768
16 32762
Sign: S
L3 kW Only
16
Sign: S
40174 Genset Bus Read Multiplier: 1 Unit: kW Generator set Bus total kW PC 3.x
Total kW Only
16
Sign: S
57
cess tion
40175 Genset Bus Read Multiplier: 1 Unit: kVAR Generator set bus L1 Kvar PC 3.x
L1 kVAR Only
−32678
16 32672
Sign: S
L2 kVAR Only
−32768
16 32762
Sign: S
L3 kVAR Only
16
Sign: S
40178 Genset Bus Read Multiplier: 1 Unit: kVAR Generator set bus total PC 3.x
Total kVAR Only kVAR
16
Sign: S
40179 Genset Bus Read Multiplier: Unit: PF Generator set Bus Total PC 3.x
Total Power Only 0.01 power factor
Factor
Sign: S
40180 Genset Bus Read Multiplier: 1 Unit: kVA Generator set Bus L1 kVA PC 3.x
L1 kVA Only
16
Sign: U
L2 kVA Only
16
58
cess tion
Sign: U
L3 kVA Only
16
Sign: U
40183 Genset Bus Read Multiplier: 1 Unit: kVA Generator set bus total kVA PC 3.x
Total kVA Only
16
Sign: U
40184 Genset Bus Read Multiplier: Unit: Hz Generator set bus line fre- PC 3.x
Frequency Only 0.001 quency
32
Sign: U
40185 Genset Bus Read Multiplier: Unit: Hz Generator set bus line fre- PC 3.x
Frequency Only 0.001 quency
32
Sign: U
40186 Genset Bus Read Multiplier: 1 Unit: kWh Generator set bus total neg- PC 3.x
Total Nega- Only ative kWh accumulation
tive kWh
32
Sign: U
40187 Genset Bus Read Multiplier: 1 Unit: kWh Generator set bus total neg- PC 3.x
Total Nega- Only ative kWh accumulation
tive kWh
32
Sign: U
40188 Genset Bus Read Multiplier: 1 Unit: kWh Generator set bus total pos- PC 3.x
Total Posi- Only itive kWh accumulation
tive kWh
59
cess tion
32
Sign: U
40189 Genset Bus Read Multiplier: 1 Unit: kWh Generator set bus total pos- PC 3.x
Total Posi- Only itive kWh accumulation
tive kWh
32
Sign: U
40190 Genset Bus Read Multiplier: 1 Unit: kWh Generator set bus total net PC 3.x
Total Net Only kWh accumulation
kWh
32
Sign: S
40191 Genset Bus Read Multiplier: 1 Unit: kWh Generator set bus total net PC 3.x
Total Net Only kWh accumulation
kWh
32
Sign: S
40192 Genset Bus Read Multiplier: 1 Unit: kVARh Generator set bus total neg- PC 3.x
Total Nega- Only ative kVARh accumulation
tive kVARh
32
Sign: U
40193 Genset Bus Read Multiplier: 1 Unit: kVARh Generator set bus total neg- PC 3.x
Total Nega- Only ative kVARh accumulation
tive kVARh
32
Sign: U
40194 Genset Bus Read Multiplier: 1 Unit: kVARh Generator set bus total pos- PC 3.x
Total Posi- Only itive kVARh accumulation
tive kVARh
32
60
cess tion
Sign: U
40195 Genset Bus Read Multiplier: 1 Unit: kVARh Generator set bus total pos- PC 3.x
Total Posi- Only itive kVARh accumulation
tive kVARh
32
Sign: U
40196 Genset Bus Read Multiplier: 1 Unit: kVARh Generator set Bus total net PC 3.x
Total Net Only kVARh accumulation
kVARh
32
Sign: S
40197 Genset Bus Read Multiplier: 1 Unit: kVARh Generator set Bus total net PC 3.x
Total Net Only kVARh accumulation
kVARh
32
Sign: S
40198 Ground Cur- Read Multiplier: Unit: amps Ground current PC 3.x
rent Only 0.1
16
Sign: U
40199 Genset Neg- Read Multiplier: Unit: % Generator set Negative Se- PC 3.x
ative Se- Only 0.01 quence Current as Percent
quence Cur- of Standby Current Rating
rent %
16
Sign: U
40201 Coolant Read 0: PGBU Either PGBU(Onan) or PC 2.x,
Temperature Only EBU(Cummins) sensor. PC 3.x
Sensor Type MODBUS Access: Read
Only
1: EBU
61
cess tion
40207 Battery Read Multiplier: Unit: Vdc The Battery Charger Alter- PC 2.x,
Charger Al- Only 0.001 nator Flash Voltage after all PC 3.x
ternator scaling and validity checks.
Flash Volt-
age
16
Sign: U
40210 External Read Multiplier: Unit: % Monitor point for the exter- PC 2.x,
Speed Bias Only 0.01 nal speed bias input. PC 3.x
Input
16
Sign: S
40211 External Read Multiplier: Unit: % Monitor point for the exter- PC 2.x,
Voltage Bias Only 0.01 nal voltage bias input. PC 3.x
Input
16
Sign: S
40226 Speed Bias Read Multiplier: Unit: Vdc Configurable analog output PC 3.x
Output / Only 0.01 voltage output value (pre-
Configurable dicted)
Analog out-
put #1 Out-
put Predictor
16
Sign: S
40227 Voltage Bias Read Multiplier: Unit: Vdc Configurable analog output PC 3.x
Output / Only 0.01 voltage output value (pre-
Configurable dicted)
Analog out-
put #2 Out-
put Predictor
16
Sign: S
62
cess tion
40228 Amber Read 0: Inactive Engine Control System indi- PC 2.x,
Warning Only cates a warning condition. PC 3.x
Lamp Status
1: Active
40229 Barometric Read Multiplier: Unit: psi Monitor point for the Baro- PC 2.x,
Absolutee Only 0.1 metric Absolutee Pressure. PC 3.x
Pressure Displayed as ”Ambient
Pressure” in the HMI.
16
Sign: U
40230 Boost Pres- Read Multiplier: Unit: psi Monitor point for the Boost PC 2.x,
sure Only 0.1 Absolutee Pressure PC 3.x
16
Sign: U
40231 CAN Datal- Read 0: Inactive Indicates the status of the PC 2.x,
ink Status Only CAN datalink PC 3.x
1: Active
2: Failed
40232 Crankcase Read Multiplier: Unit: psi Monitor point for the Crank- PC 2.x,
Pressure Only 0.1 case Pressure. PC 3.x
−35.67
16
Sign: S
40235 ECM Derate Read 0: No Derate Request Request made by the ECS PC 2.x,
Request Only for a reduction in load PC 3.x
1: Derate Request
2: Error
3: Don’t Care
40236 Engine Ap- Read 0: ECM Monitor point for the output PC 2.x,
plication Only of the Engine application PC 3.x
Type type. Either ECM (CAN) or
Hydro−Mechanical.
1: Hydro−Mechanical
40242 Aftercooler Read Multiplier: Unit: degF Monitor point for the After- PC 2.x,
Temperature Only 0.1 cooler Temperature. PC 3.x
16
63
cess tion
Sign: S
40254 Fuel Supply Read Multiplier: Unit: psi Monitor point for the Fuel PC 2.x,
Pressure Only 0.1 Supply Pressure. Displayed PC 3.x
as ”Fuel Supply Pressure”
in the HMI.
16
Sign: U
40258 Fuel Outlet Read Multiplier: Unit: psi Monitor point for the Fuel PC 2.x,
Pressure Only 0.1 Outlet Pressure Pressure. PC 3.x
Displayed as ”Fuel Rail
32 36404
Sign: U
40259 Fuel Outlet Read Multiplier: Unit: psi Monitor point for the Fuel PC 2.x,
Pressure Only 0.1 Outlet Pressure Pressure. PC 3.x
Displayed as ”Fuel Rail
32 36404
Sign: U
40260 Intake Man- Read Multiplier: Unit: degF Monitor point for the Intake PC 2.x,
ifold 2 Tem- Only 0.1 Manifold 2 Temperature PC 3.x
perature
16
Sign: S
40261 Intake Man- Read Multiplier: Unit: degF Monitor point for the Intake PC 2.x,
ifold 3 Tem- Only 0.1 Manifold 3 Temperature PC 3.x
perature
16
Sign: S
40264 Percent En- Read Multiplier: 1 Unit: % Monitor point for the percent PC 2.x,
gine Torque/ Only engine torque output and PC 3.x
Duty Cycle the governor percent duty
cycle output when used with
the HM ECM
64
cess tion
16
Sign: S
40276 Post−Filter Read Multiplier: Unit: psi Monitor point for the Post− PC 2.x,
Oil Pressure Only 0.1 Filter Oil Pressure PC 3.x
16
Sign: U
40277 Pre−Filter Oil Read Multiplier: Unit: psi Monitor point for the Pre− PC 2.x,
Pressure Only 0.1 Filter Oil Pressure PC 3.x
16
Sign: U
40278 Configurable Read 0: Inactive Configurable Input #14 input PC 2.x,
Input #14 Only software state status. Gives PC 3.x
Switch software Inactive/Active
state
1: Active
40279 Turbochar- Read Multiplier: 1 Unit: RPM Monitor point for the Turbo- PC 2.x,
ger 1 Speed Only charger 1 Speed PC 3.x
32 257000
Sign: U
40280 Turbochar- Read Multiplier: 1 Unit: RPM Monitor point for the Turbo- PC 2.x,
ger 1 Speed Only charger 1 Speed PC 3.x
32 257000
Sign: U
40281 Turbochar- Read Multiplier: Unit: psi Monitor point for the Turbo- PC 2.x,
ger 2 Boost Only 0.1 charger 2 Boost Pressure PC 3.x
Pressure
16
Sign: U
40282 Water in Read 0: No Water in Fuel Indication PC 2.x,
Fuel Indica- Only PC 3.x
tor
1: Yes
65
cess tion
40283 Controller Read 0: Off The controller mode PC 2.x,
Mode Only PC 3.x
1: Ready
2: Setup
3: Starting
4: Idle
5: Rated
6: Stop Normal
7: Stop Emergency
8: Factory Test
9: Wait to Power Down
40285 Power Down Read Multiplier: 1 Unit: seconds Timer to count down the PC 2.x,
Mode Timer Only time before the control goes PC 3.x
to sleep
16
Sign: U
40298 Runs Since Read Multiplier: 1 Unit: Number of runs since the PC 2.x,
Reset Only last reset. Upper limit is PC 3.x
2^32 −1.
32 4294967290
Sign: U
40299 Runs Since Read Multiplier: 1 Unit: Number of runs since the PC 2.x,
Reset Only last reset. Upper limit is PC 3.x
2^32 −1.
32 4294967290
Sign: U
40300 Remote Read/ 0: Inactive Modbus Remote Start PC 2.x,
Start Write PC 3.x
Switch(Mod-
bus)
1: Active
40301 Fault Reset Read/ 0: Inactive Modbus fault reset. PC 2.x,
(Modbus) Write PC 3.x
1: Active
40320 Start Inhibit Read/ Multiplier: 1 Unit: Trim to define the 20 char- PC 3.x
No1 Fault Write acter string for use by the
Text operator panel when this
fault becomes active
66
cess tion
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
67
cess tion
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
68
cess tion
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
69
cess tion
168
Sign: C
168
Sign: C
168
Sign: C
fault becomes active.
168
Sign: C
168
Sign: C
70
cess tion
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
71
cess tion
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
72
cess tion
168
Sign: C
168
Sign: C
Text Operator panel when this
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
73
cess tion
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
74
cess tion
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
75
cess tion
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
76
cess tion
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
40500 Low Fuel Read 0: Inactive Low Fuel input software PC 2.x,
Switch Only state status. Gives software PC 3.x
Inactive/Active state
1: Active
40501 Low Fuel/ Read 0: Inactive This is the status of the PC 2.x,
Configurable Only Configurable Input #6. PC 3.x
Input #6
Switch
1: Active
77
cess tion
40509 PTC Mode Read 0: Inactive PTC Mode Switch function PC 3.x
Switch Only output status. Gives soft-
ware Inactive/Active state
1: Active
40510 Extended Read 0: Inactive This is the status of the PC 3.x
Parallel/Con- Only Configurable Input #32.
figurable In-
put #32
Switch
1: Active
40512 Remote E− Read 0: Inactive Remote E-stop input soft- PC 2.x,
stop Switch Only ware state status. Gives PC 3.x
software Inactive/Active
state
1: Active
40513 Remote Read 0: Inactive Remote Start input software PC 2.x,
Start Switch Only state status. Gives software PC 3.x
1: Active
40515 Retransfer Read 0: Inactive This is the status of the PC 3.x
Inhibit/Confi- Only Configurable Input #21.
gurable Input
#21 Switch
1: Active
40516 Rupture Ba- Read 0: Inactive Rupture Basin input soft- PC 2.x,
sin Switch Only ware state status. Gives PC 3.x
state
1: Active
40517 Rupture Ba- Read 0: Inactive This is the status of the PC 2.x,
sin/Configur- Only Configurable Input #12. PC 3.x
able Input
#12 Switch
1: Active
40519 Start Type Read 0: Inactive Start Type input software PC 2.x,
1: Active
40521 Sync En- Read 0: Inactive This is the status of the PC 3.x
able/Confi- Only Configurable Input #30.
gurable Input
#30 Switch
1: Active
40524 Transfer In- Read 0: Inactive This is the status of the PC 3.x
hibit/Confi- Only Configurable Input #20.
gurable Input
#20 Switch
78
cess tion
1: Active
40525 Utility CB In- Read 0: Inactive This is the status of the PC 3.x
hibit/Confi- Only Configurable Input #25.
gurable Input
#25 Switch
1: Active
40526 Utility CB Read 0: Inactive This is the status of the PC 3.x
Pos B/Confi- Only Configurable Input #23.
gurable Input
#23 Switch
1: Active
40527 Utility CB Read 0: Inactive This is the status of the PC 3.x
Tripped/Con- Only Configurable Input #24.
figurable In-
put #24
Switch
1: Active
40528 Utility Single Read 0: Inactive This is the status of the PC 3.x
Mode Verify/ Only Configurable Input #29.
Configurable
Input #29
Switch
1: Active
40535 Configurable Read 0: Inactive Indicates if the output’s sta- PC 2.x,
Output #1 Only tus is Inactive or Active PC 3.x
Status
1: Active
Status
1: Active
40537 Configurable Read 0: Inactive Indicates if the output’s sta- PC 3.x
Output #20 Only tus is Inactive or Active
Status
1: Active
Status
1: Active
Status
1: Active
Status
79
cess tion
1: Active
Status
1: Active
40542 Delayed Off / Read 0: Inactive Indicates if the output’s sta- PC 2.x,
Configurable Only tus is Inactive or Active PC 3.x
Output #10
Status
1: Active
40543 Fuel Shutoff Read 0: Inactive Indicates if the output’s sta- PC 2.x,
Status Only tus is Inactive or Active PC 3.x
1: Active
40547 Keyswitch Read 0: Inactive Indicates if the output’s sta- PC 2.x,
Status Only tus is Inactive or Active PC 3.x
1: Active
40549 Load Dump / Read 0: Inactive Indicates if the output’s sta- PC 2.x,
Configurable Only tus is Inactive or Active PC 3.x
Output #11
Status
1: Active
40550 Local Status Read 0: Inactive Indicates if the output’s sta- PC 2.x,
/ Configur- Only tus is Inactive or Active PC 3.x
able Output
#7 Status
1: Active
40552 Oil Priming Read 0: Inactive Indicates if the output’s sta- PC 2.x,
Pump / Con- Only tus is Inactive or Active PC 3.x
figurable
Output #6
Status
1: Active
40553 Ready To Read 0: Inactive Indicates if the output’s sta- PC 2.x,
Load /Confi- Only tus is Inactive or Active PC 3.x
gurable Out-
put #5 Sta-
tus
1: Active
40554 Run Relay Read 0: Inactive Indicates if the output’s sta- PC 2.x,
#1 Status Only tus is Inactive or Active PC 3.x
1: Active
40555 Run Relay Read 0: Inactive Indicates if the output’s sta- PC 2.x,
#2 Status Only tus is Inactive or Active PC 3.x
1: Active
80
cess tion
40556 Speed/Volt- Read 0: Inactive Indicates if the output’s sta- PC 3.x
age Bias Only tus is Inactive or Active
Relay Status
1: Active
40561 Common Read 0: Inactive The status of the Common PC 2.x,
Alarm Fault Only Alarm Fault PC 3.x
Status
1: Active
40562 Common Read 0: Inactive The status of the common PC 2.x,
Shutdown Only shutdown command PC 3.x
Command
1: Active
Shutdown Only Shutdown Event PC 3.x
Event Status
1: Active
Warning Only Warning Event PC 3.x
Event Status
1: Active
40570 Fault Reset Read 0: Inactive One shot due to fault reset PC 2.x,
Command Only switch being active. PC 3.x
1: Active
40577 Base Fre- Read Multiplier: Unit: Hz Provides a point to monitor PC 2.x,
quency Only 0.001 the base frequency PC 3.x
32
Sign: U
40578 Base Fre- Read Multiplier: Unit: Hz Provides a point to monitor PC 2.x,
quency Only 0.001 the base frequency PC 3.x
32
Sign: U
40580 Control Read 0: Off Current position of the gen- PC 2.x,
Switch Posi- Only 1: Manual erator set switch panel Off− PC 3.x
tion 2: Auto Run−Auto switch as seen
by the generator set control.
SEE ALSO ADDRESS
40010.
NOTE: Both address 40580
and 40010 show the same
information however the
specification for each is dif-
ferent.
81
cess tion
40586 Excitation Read 0: Disabled Shows the enable status of PC 2.x,
State Only the excitation enabled = PC 3.x
regulator on.
1: Enabled
40587 Exercise Read 0: Inactive The output of the Exercise PC 2.x,
Command Only Command OR logic PC 3.x
1: Active
2: Reserved
3: Not Available
40589 Exercise Read Multiplier: Unit: hours Time remaining until exer- PC 2.x,
Time Re- Only 0.1 cise stop sequence begins PC 3.x
maining
16
Sign: U
40592 Battle Short Read 0: Inactive Indicates status of battle PC 2.x,
Command Only short inputs PC 3.x
1: Active
40595 Final Fre- Read Multiplier: Unit: Hz The frequency scaled ver- PC 2.x,
quency Ref- Only 0.001 sion of the final speed refer- PC 3.x
erence ence
32
Sign: U
40596 Final Fre- Read Multiplier: Unit: Hz The frequency scaled ver- PC 2.x,
quency Ref- Only 0.001 sion of the final speed refer- PC 3.x
erence ence
32
Sign: U
40600 Configurable Read/ Multiplier: 1 Unit: Trim to define the 16 char- PC 2.x,
Input #1 Write acter string for use by the PC 3.x
Fault Text Operator panel when this
136
Sign: C
82
cess tion
136
Sign: C
136
Sign: C
136
Sign: C
136
Sign: C
136
Sign: C
83
cess tion
136
Sign: C
136
Sign: C
136
Sign: C
136
Sign: C
136
Sign: C
136
Sign: C
84
cess tion
136
Sign: C
136
Sign: C
136
Sign: C
136
Sign: C
136
Sign: C
85
cess tion
136
Sign: C
136
Sign: C
136
Sign: C
136
Sign: C
136
Sign: C
136
Sign: C
86
cess tion
136
Sign: C
136
Sign: C
136
Sign: C
136
Sign: C
136
Sign: C
87
cess tion
136
Sign: C
136
Sign: C
136
Sign: C
136
Sign: C
136
Sign: C
136
Sign: C
88
cess tion
136
Sign: C
136
Sign: C
136
Sign: C
136
Sign: C
136
Sign: C
89
cess tion
136
Sign: C
136
Sign: C
136
Sign: C
136
Sign: C
136
Sign: C
136
Sign: C
90
cess tion
136
Sign: C
136
Sign: C
136
Sign: C
136
Sign: C
136
Sign: C
91
cess tion
136
Sign: C
136
Sign: C
136
Sign: C
136
Sign: C
136
Sign: C
136
Sign: C
92
cess tion
136
Sign: C
136
Sign: C
136
Sign: C
136
Sign: C
136
Sign: C
93
cess tion
136
Sign: C
136
Sign: C
136
Sign: C
40709 Device Type Read Multiplier: 1 Unit: This Modbus register is PC 3.x
(Modlon) Only created for Modlon register
mapping. This parameter is
not associated with any log-
ical.
Sign: U
40710 Control Read 0: Off This Modbus register is PC 3.x
Switch Posi- Only created for Modlon register
tion (Modlon) mapping.
1: Manual
2: Auto
40711 Genset Run Read 0: Stop This Modbus register is PC 3.x
Sequence Only created for Modlon register
State (Mod- mapping.
lon)
1: Time Delay to Start
2: Warmup at Idle
3: Rated Freq and Voltage
4: Cooldown / Stop Delay
5: Cooldown at Idle
6: Rated to Idle Transition Delay
94
cess tion
40712 Most Recent Read Multiplier: 1 Unit: Fault Code This Modbus register is PC 3.x
Fault or Only created for Modlon register
Warning mapping. This Modbus reg-
(Modlon) ister is not associated with
any logical Address
16
Sign: U
40713 Fault Type Read 0: None This Modbus register is PC 3.x
(Modlon) Only created for modlon register
mapping. This Modbus reg-
ister is not associated with
any logical address.
1: Warning
2: Derate
3: Shutdown with cooldown
4: Shutdown
40714 Genset % Read Multiplier: Unit: % This Modbus register is PC 3.x
Standby To- Only 0.5 created for modlon register
tal kW (Mod- mapping. Monitors the total
lon) generator set standby KW
percentage output. Modbus
has different multiplier than
PCCnet. For Modlon use
only, use multiplier 0.5 %
16
Sign: U
40715 Genset Total Read Multiplier: 1 Unit: kW This Modbus register is PC 3.x
kW (Modlon Only created for modlon register
GenStatus) mapping. Generator set to-
tal kW.
16
Sign: S
40716 NFPA 110 Read Multiplier: 1 Unit: This Modbus register is PC 3.x
Logical Sta- Only created for modlon register
tus (Modlon) mapping. 32-bit number to
represent the status of the
NFPA 110 logical. See
NFPA110 bitmap. (See Sec-
tion 4 Table 1-1 page 26).
95
cess tion
32
Sign: U
40717 NFPA 110 Read Multiplier: 1 Unit: This Modbus register is PC 3.x
Logical Sta- Only created for modlon register
tus (Modlon) mapping. 32−bit number to
represent the status of the
NFPA 110 logical. (See Sec-
tion 4 Table 1-1 page 26).
32
Sign: U
40718 Genset Fre- Read Multiplier: Unit: Hz This Modbus register is PC 3.x
quency OP Only 0.1 created for modlon register
(Modlon) mapping. Generator set
Frequency OP. Modbus has
different multiplier than
PCCnet. For Modlon use
only, Multiplier/Units = 0.1
Hz
16
Sign: U
40719 Genset Total Read Multiplier: Unit: PF This Modbus register is PC 3.x
Power Fac- Only 0.00005 created for modlon register
tor (Modlon) mapping. Generator set to-
tal power factor (L1+L2+L3).
Modbus and PCCnet has
different multiplier value.
For Modlon, use 0.00005
PF.
16
Sign: S
40720 Genset Total Read Multiplier: 1 Unit: kVA This Modbus register is PC 3.x
kVA (Mod- Only created for modlon register
lon) mapping.Generator set total
kVA
16
Sign: U
96
cess tion
40721 Genset Total Read Multiplier: 1 Unit: kW This Modbus register is PC 3.x
kW (Modlon Only created for modlon register
GenACData) mapping. Generator set to-
tal kW in Gen AC Data.
16
Sign: S
40722 Genset Total Read Multiplier: 1 Unit: kVAR This Modbus register is PC 3.x
kVAR (Mod- Only created for modlon register
lon) mapping. Generator set to-
tal kVAR
16
Sign: S
40723 Genset L1L2 Read Multiplier: 1 Unit: Vac This Modbus register is PC 3.x
Voltage Only created for modlon register
L1L2 voltage
16
Sign: U
L2L3 voltage
16
Sign: U
L3L1 voltage
16
Sign: U
40726 Genset L1N Read Multiplier: 1 Unit: Vac This Modbus register is PC 3.x
L1N voltage
97
cess tion
16
Sign: U
L2N voltage
16
Sign: U
L3N voltage
16
Sign: U
40729 Genset L1 Read Multiplier: 1 Unit: Amps This Modbus register is PC 3.x
Current Only created for modlon register
(Modlon) mapping. Monitors the gen-
erator set L1 current value.
16
Sign: U
(Modlon) mapping. Generator set L2
current
16
Sign: U
(Modlon) mapping. Generator set L3
current
16
Sign: U
98
cess tion
Standby L1 Only 0.5 created for modlon register
Current mapping. Monitors the gen-
(Modlon) erator set standby L1 cur-
rent percentage output.
Modbus and PCCnet have
For modlon use 0.5 %
16
Sign: U
For Modlon, use 0.5 %
16
Sign: U
For Modlon use 0.5 %
16
Sign: U
40735 Battery Volt- Read Multiplier: Unit: Vdc This Modbus register is PC 3.x
age (Mod- Only 0.1 created for modlon register
lon) mapping. Battery voltage
value. Modbus and PCCnet
has different multiplier val-
ue. For Modlon use 0.1volts
16
Sign: U
99
cess tion
40736 Oil Pressure Read Multiplier: Unit: kPa This Modbus register is PC 3.x
(Modlon) Only 0.1 created for modlon register
mapping. Monitor point for
the Oil Pressure. Modbus
and PCCnet have different
multiplier value. For modlon,
use 0.1 KPA
16
Sign: U
40737 Oil Tempera- Read Multiplier: Unit: degK This Modbus register is PC 3.x
ture (Mod- Only 0.1 created for modlon register
lon) mapping. Monitor point for
the Oil Temperature. Mod-
bus and PCCnet has differ-
Modlon use 0.1 deg Kelvin
16
Sign: S
40738 Coolant Read Multiplier: Unit: degK This Modbus register is PC 3.x
Temperature Only 0.1 created for modlon register
(Modlon) mapping. Monitor point for
the Coolant Temperature.
For Modlon, use 0.1deg
Kelvin.
16
Sign: S
40739 Intake Man- Read Multiplier: Unit: degK This Modbus register is PC 3.x
ifold Temper- Only 0.1 created for modlon register
ature (Mod- mapping. To monitor Intake
lon) Manifold Temperature. Mod-
Modlon, use 0.1 deg Kelvin
16
Sign: S
100
cess tion
40740 Fuel Tem- Read Multiplier: Unit: degK This Modbus register is PC 3.x
perature Only 0.1 created for modlon register
the Fuel Temperature. Mod-
Modlon, use 0.1 deg Kelvin.
16
Sign: S
40741 Fuel Rate Read Multiplier: Unit: gal/hr This Modbus register is PC 3.x
(Modlon) Only 0.01 created for modlon register
mapping. Monitor point for
the Fuel Rate. Modbus and
PCCnet has different multi-
plier value. For Modlon, use
0.01 gph
16
Sign: U
40742 Average En- Read Multiplier: 1 Unit: RPM This Modbus register is PC 3.x
gine Speed Only created for modlon register
the Average Engine Speed.
Modbus and PCCnet have
For Modlon, use 1 RPM.
16
Sign: U
40743 Total Num- Read Multiplier: 1 Unit: This Modbus register is PC 3.x
ber of Runs Only created for modlon register
(Modlon) mapping. Total number of
generator set runs.
32 4294967295
Sign: U
40744 Engine Run- Read Multiplier: Unit: seconds This Modbus register is PC 3.x
ning Time Only 0.1 created for modlon register
(Modlon) mapping. Total engine run
time. Modbus has different
multiplier than PCCnet. For
Modbus, use 0.1 sec
101
cess tion
16
Sign: U
40745 Engine Run- Read Multiplier: Unit: seconds This Modbus register is PC 3.x
ning Time Only 0.1 created for modlon register
(Modlon) mapping. Total engine run
time. Modbus has different
multiplier than PCCnet. For
Modbus, use 0.1 sec
16
Sign: U
40746 Genset Total Read Multiplier: 1 Unit: kWh This Modbus register is PC 3.x
Net kWh Only created for modlon register
(Modlon) mapping. Generator set to-
tal net kWh accumulation
−2147483648
32 2147483643
Sign: S
40747 Genset Total Read Multiplier: 1 Unit: kWh This Modbus register is PC 3.x
Net kWh Only created for modlon register
(Modlon) mapping. Generator set to-
tal net kWh accumulation
−2147483648
32 2147483643
Sign: S
40748 Total Fuel Read Multiplier: Unit: gallons This Modbus register is PC 3.x
Consump- Only 0.01 created for modlon register
tion (Modlon) mapping. Total fuel con-
sumption since start of en-
gine. Modbus and PCCnet
ue. For Modlon, use 0.01
Gallons
32
Sign: U
102
cess tion
40749 Total Fuel Read Multiplier: Unit: gallons This Modbus register is PC 3.x
Consump- Only 0.01 created for modlon register
tion (Modlon) mapping. Total fuel con-
sumption since start of en-
gine. Modbus and PCCnet
ue. For Modlon, use 0.01
Gallons
32
Sign: U
40750 Utility/Gen- Read Multiplier: Unit: Hz This Modbus register is PC 3.x
set Bus Fre- Only 0.1 created for modlon register
quency mapping. Utility line fre-
(Modlon) quency or Generator set
Bus Frequency depending
on Paralleling Application.
For Modlon, use 0.1 Hz.
16
Sign: U
40751 Utility/Gen- Read Multiplier: 1 Unit: Vac This Modbus register is PC 3.x
set Bus L1L2 Only created for modlon register
Voltage mapping. Utility L1L2 Volt-
(Modlon) age or Generator set Bus
L1L2 voltage depending on
paralleling application.
16
Sign: U
Voltage mapping. Utility L2L3 volt-
(Modlon) age
16
Sign: U
103
cess tion
Voltage mapping. Utility L3L1 volt-
(Modlon) age or Generator set Bus
L3L1 voltage depending on
paralleling application.
16
Sign: U
set Bus L1N Only created for modlon register
Voltage mapping. Utility L1N voltage
(Modlon) or Generator set Bus L1N
voltage depending on paral-
leling application.
16
Sign: U
leling application.
16
Sign: U
leling application.
16
Sign: U
40757 Customer Read Multiplier: 1 Unit: This Modbus register is PC 3.x
Faults (Mod- Only created for modlon register
lon) mapping. 16 bit fault bitmap
for Modbus interface.
104
cess tion
16 65530
Sign: S
40760 ES State Read 0: Standby This Modbus register is PC 3.x
(Modlon) Only created for modlon register
mapping. Internal paralleling
status variable
1: Dead Bus
2: Synchronize
3: Load Share
4: Load Govern
40761 Load De- Read 0: Inactive This Modbus register is PC 3.x
mand Stop Only created for modlon register
Command mapping. Modbus input for
(Modlon) load demand stop com-
mand.
1: Active
40764 Genset CB Read 0: Open This Modbus register is PC 3.x
Position Sta- Only created for modlon register
tus (Modlon) mapping. indicates genera-
tor set breaker position
1: Closed
2: Not Available
40765 Utility CB Read 0: Open This Modbus register is PC 3.x
Position Sta- Only 1: Closed created for modlon register
tus (Modlon) 2: Not Available mapping. indicates utility
breaker position
40766 Remote Read/ 0: Inactive This Modbus register is PC 3.x
Start Write 1: Active created for modlon register
Switch(Mod- mapping. Modbus Remote
lon) Start
40767 Fault Reset Read/ 0: Inactive This Modbus register is PC 3.x
(Modlon) Write 1: Active created for modlon register
mapping. Modbus fault re-
set.
40768 System Net- Read 0: Inactive Indicates communication MLD PC 3.x
work Datal- Only 1: Active status of the local genset on Paral-
ink Status 2: Failed System Network (used for leling
load demand). Available on Status
PCC3300MLD controls only.
105
cess tion
40769 Load Read/ Multiplier: 1 Run hour accumulator used MLD PC 3.x
Demand Write Offset: 0 for load demand run hour parallel-
Genset Run Size: 32 equalization. This is writ- ing set-
Hours (Up- Sign: U able. Available on up and
per Register Units: Hours PCC3300MLD controls only. status
value) Lower Limit: 0
Upper Limit: 999999.9
Default: 0
40770 Load Read/ Multiplier: 1 Run hour accumulator used MLD PC 3.x
Demand Write Offset: 0 for load demand run hour parallel-
Genset Run Size: 32 equalization. This is writ- ing set-
Hours (Low- Sign: U able. Available on up and
er Register Units: Hours PCC3300MLD controls only. status
value) Lower Limit: 0
Upper Limit: 999999.9
Default: 0
40771 Load De- Read 0: Inactive Indicates the status of the MLD PC 3.x
mand Spare Only 1: Active spare capacity request in- Paral-
Capacity Re- put. When ACTIVE addition- leling
quest Status al spare capacity (set by Status
Load Demand Spare Ca-
pacity Request Value) is re-
quested. Available on
40772 System Net- Read 0: On Indicates the status of the MLD PC 3.x
work Ter- Only 1: Off on−board CAN termination Paral-
mination Re- resistor switch (S1). Avail- leling
sistor Switch able on PCC3300MLD con- Status
Status trols only.
40773 Genset ID Read/ 0: Gen1 9: Gen10 Genset identifier. All load MLD PC 3.x
Write 1: Gen2 10: Gen11 demand gensets must have Paral-
2: Gen3 11: Gen12 a unique Genset ID. Avail- leling
3: Gen4 12: Gen13 able on PCC3300MLD con- Setup
4: Gen5 13: Gen14 trols only. Setup Mode must and
5: Gen6 14: Gen15 be enabled to modify the Status
6: Gen7 15: Gen16 value. See Modbus Ad-
7: Gen8 dress 43343.
8: Gen9
40774 Load De- Read/ Multiplier: 1 Sets the kW value of addi- MLD PC 3.x
mand Spare Write Offset: 0 tional capacity to be re- Paral-
Capacity Re- Size(Bits): 32 quested from the system leling
quest Value Sign: U when the Load Demand Setup
(Upper Reg- Units: kW Spare Capacity Request
ister value) Lower Limit: 0 Status is YES. Available on
Upper Limit: 80000 PCC3300MLD controls only.
Default: 0 Setup Mode must be en-
abled to modify the value.
See Modbus Address
43343.
106
cess tion
40775 Load De- Read/ Multiplier: 1 Sets the kW value of addi- MLD PC 3.x
mand Spare Write Offset: 0 tional capacity to be re- Paral-
Capacity Re- Size(Bits): 32 quested from the system leling
quest Value Sign: U when the Load Demand Setup
(Lower Reg- Units: kW Spare Capacity Request
ister value) Lower Limit: 0 Status is YES. Available on
Default: 0 Setup Mode must be en-
abled to modify the value.
See Modbus Address
43343.
40776 Load De- Read/ 0: Disable Disables or Enables load MLD PC 3.x
mand Gen- Write 1: Enable demand on this genset only. Paral-
set Enable When set to disable the leling
genset is not included in Setup
the load demand system
and can be removed without
triggering a com error. Avail-
able on PCC3300MLD con-
trols only. Setup Mode must
be enabled to modify the
value. See Modbus Ad-
dress 43343.
40777 System Set- Read 0: Out of Sync Indicates whether the sys- MLD PC 3.x
tings Status Only 1: In Sync tem settings on the local Paral-
genset are in sync with leling
ones from other genset in Setup
the network. Available on
40800 Aux101 1 In- Read/ Multiplier: 1 Unit: Twenty (20) character text PC 2.x,
put 8 Fault Write field to allow for the entry of PC 3.x
Text the displayed configurable
fault text.
168
Sign: C
fault text.
168
Sign: C
107
cess tion
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
108
cess tion
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
109
cess tion
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
110
cess tion
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
111
cess tion
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
112
cess tion
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
113
cess tion
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
40840 Aux102 0 Read/ Multiplier: 1 Unit: Twenty (20) character text PC 2.x,
Fault 9 Text Write string to enter the configur- PC 3.x
able fault text for this fault.
114
cess tion
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
115
cess tion
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
116
cess tion
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
117
cess tion
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
118
cess tion
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
119
cess tion
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
120
cess tion
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
121
cess tion
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
122
cess tion
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
123
cess tion
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
124
cess tion
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
125
cess tion
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
126
cess tion
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
127
cess tion
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
128
cess tion
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
129
cess tion
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
130
cess tion
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
131
cess tion
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
132
cess tion
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
133
cess tion
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
134
cess tion
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
135
cess tion
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
136
cess tion
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
137
cess tion
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
138
cess tion
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
139
cess tion
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
140
cess tion
168
Sign: C
168
Sign: C
168
Sign: C
41000 Load Read/ 0: Disable Disables or Enables load MLD PC 3.x
Demand Write 1: Enable demand operation of all Paral-
System connected gensets. Avail- leling
Enable able on PCC3300MLD con- Setup
trols only.
41001 Load Read/ 0: Run Hours Equalization (Run Sets the sequencing priority MLD PC 3.x
Demand Write Hr Eql) for load demand. Available Paral-
Type 1: Fixed Sequence (Fixed Seq) on PCC3300MLD controls leling
only. Setup
41002 Load Read/ 0: kW Sets whether the load de- MLD PC 3.x
Demand Write 1: %kW mand start/stop control is Paral-
Threshold based on a relative (%) or leling
Method absolute (kW) threshold. Setup
Available on PCC3300MLD
controls only.
41003 Load De- Read/ Multiplier: 1 When the ratio of load to ca- MLD PC 3.x
mand Start Write Offset: 0 pacity is greater than this Paral-
Threshold Size(Bits): 8 value the next genset will leling
(%kW) Sign: U start. Must be greater than Setup
Units: % Load Demand Stop Thresh-
Lower Limit: 25 old by at least 5%. Available
Upper Limit: 100 on PCC3300MLD controls
Default: 80 only.
141
cess tion
41004 Load De- Read/ Multiplier: 1 When surplus capacity is MLD PC 3.x
mand Start Write Offset: 0 less than this value the next Paral-
Threshold Size(Bits): 16 genset will start. Must be leling
(kW) Sign: U less than Load Demand Setup
Units: kW Stop Threshold (kW). Avail-
Lower Limit: 5 able on PCC3300MLD con-
Upper Limit: 5000 trols only.
Default: 500
41005 Load De- Read/ Multiplier: 1 When the ratio of load to ca- MLD PC 3.x
mand Stop Write Offset: 0 pacity is less than this value Paral-
Threshold Size(Bits): 8 the next genset will stop. leling
(%kW) Sign: U Must be less than Load De- Setup
Units: % mand Start Threshold by at
Lower Limit: 20 least 5%. Available on
Default: 60
41006 Load De- Read/ Multiplier: 1 When surplus capacity is MLD PC 3.x
mand Stop Write Offset: 0 greater than this value the Paral-
Threshold Size(Bits): 16 next genset will stop. Must leling
(kW) Sign: U be greater than Load De- Setup
Units: kW mand Start Threshold (kW).
Lower Limit: 5 Available on PCC3300MLD
Upper Limit: 5000 controls only.
Default: 1000
41007 Load De- Read/ Multiplier: 1 When the difference be- MLD PC 3.x
mand Run Write Offset: 0 tween Load Demand Gen- Paral-
Hours Differ- Size(Bits): 16 set Run Hours between any leling
ential Sign: U running genset and any Setup
Units: Hours stopped genset reaches this
Lower Limit: 1 value the stopped genset
Upper Limit: 250 will be started. Available on
Default: 50 PCC3300MLD controls only.
41008 Load De- Read/ Multiplier: 1 Sets the time delay that the MLD PC 3.x
mand Gen- Write Offset: 0 system waits for a genset to Paral-
set Fail De- Size(Bits): 16 come online before declar- leling
lay Sign: U ing it as failed. Available on Setup
Units: seconds PCC3300MLD controls only.
Lower Limit: 10
Upper Limit: 900
Default: 60
41009 Load De- Read/ Multiplier: 1 Sets the time delay before MLD PC 3.x
mand Initial Write Offset: 0 gensets are allowed to stop Paral-
Delay Size(Bits): 16 after initial start or after re- leling
Sign: U suming halted load demand. Setup
Units: seconds Available on PCC3300MLD
Lower Limit: 60 controls only.
Upper Limit: 1500
Default: 300
142
cess tion
mand Start Write Offset: 0 next genset is allowed to Paral-
Delay Size(Bits): 16 start. Available on leling
Sign: U PCC3300MLD controls only. Setup
Units: seconds
Lower Limit: 0
Upper Limit: 1500
Default: 10
mand Stop Write Offset: 0 next genset is allowed to Paral-
Delay Size(Bits): 16 stop. Available on leling
Sign: U PCC3300MLD controls only. Setup
Units: seconds
Lower Limit: 60
Upper Limit: 1500
Default: 300
41012 Clear Lost Read/ 0: No When set to YES all gen- MLD PC 3.x
Gensets Lo- Write 1: Yes sets in state ”Lost” will Paral-
cal change to state ”Gen Does leling
Not Exist” in order to clear Setup
Lost Genset Warning. Avail-
trols only.
41013 Load Read/ 0: Gen1 9: Gen10 Assigns a genset to fixed MLD PC 3.x
Demand Write 1: Gen2 10: Gen11 priority 1. Used when Load Paral-
Fixed Priority 2: Gen3 11: Gen12 Demand Type is set to leling
1 3: Gen4 12: Gen13 Fixed Sequence. Available Setup
4: Gen5 13: Gen14 on PCC3300MLD controls
5: Gen6 14: Gen15 only.
6: Gen7 15: Gen16
7: Gen8
8: Gen9
6: Gen7 15: Gen16
7: Gen8
8: Gen9
6: Gen7 15: Gen16
7: Gen8
8: Gen9
143
cess tion
6: Gen7 15: Gen16
7: Gen8
8: Gen9
6: Gen7 15: Gen16
7: Gen8
8: Gen9
6: Gen7 15: Gen16
7: Gen8
8: Gen9
6: Gen7 15: Gen16
7: Gen8
8: Gen9
6: Gen7 15: Gen16
7: Gen8
8: Gen9
144
cess tion
6: Gen7 15: Gen16
7: Gen8
8: Gen9
6: Gen7 15: Gen16
7: Gen8
8: Gen9
6: Gen7 15: Gen16
7: Gen8
8: Gen9
6: Gen7 15: Gen16
7: Gen8
8: Gen9
6: Gen7 15: Gen16
7: Gen8
8: Gen9
145
cess tion
6: Gen7 15: Gen16
7: Gen8
8: Gen9
6: Gen7 15: Gen16
7: Gen8
8: Gen9
6: Gen7 15: Gen16
7: Gen8
8: Gen9
41029 System Net- Read/ 0: Inactive When set to YES all the PC 3.x
work Re- Write 1: Active system network faults in the
mote Fault system would be reset.
Reset Available on PCC3300MLD
controls only.
41030 Synchronize Read/ 0: No When set to YES system MLD PC 3.x
System Set- Write 1: Yes settings from the genset will Paral-
tings be broadcasted and syn- leling
chronized to all other gen- Setup
sets in the network. Avail-
trols only.
42000 Load Read 0: Off Indicates the status of Load MLD PC 3.x
Demand Only 1: Halted Demand operation.. Avail- Paral-
State 2: Initial Delay able on PCC3300MLD con- leling
3: Load Monitor trols only. Status
146
cess tion
42001 Load De- Read Multiplier: 1.0 Indicates the total load of MLD PC 3.x
mand Gen- Only Offset: 0 System Network connected Paral-
set Bus Total Size (bits): 32 gensets. Available on leling
kW (Upper Sign: U PCC3300MLD controls only. Status
Register val- Units: kW
ue) Lower Limit: 0
Upper Limit: 80000
Default: 0
mand Gen- Only Offset: 0 System Network connected Paral-
set Bus Total Size (bits): 32 gensets. Available on leling
kW (Lower Sign: U PCC3300MLD controls only. Status
ue) Lower Limit: 0
Upper Limit: 80000
Default: 0
mand Sur- Only Offset: 0 System Network connected Paral-
plus Capaci- Size (bits): 32 gensets. Available on leling
ty (Upper Sign: U PCC3300MLD controls only. Status
ue) Lower Limit: 0
Upper Limit: 80000
Default: 0
mand Sur- Only Offset: 0 System Network connected Paral-
plus Capaci- Size (bits): 32 gensets. Available on leling
ty (Lower Sign: U PCC3300MLD controls only. Status
ue) Lower Limit: 0
Upper Limit: 80000
Default: 0
147
cess tion
42005 Load De- Read Multiplier: 1.0 Indicates the total amount of MLD PC 3.x
mand Online Only Offset: 0 online kW bus capacity for Paral-
Capacity Size (bits): 32 load demand. Only gensets leling
(Upper Reg- Sign: U which are eligible for load Status
ister value) Units: kW demand are counted. Avail-
Lower Limit: 0 able on PCC3300MLD con-
Upper Limit: 80000 trols only.
Default: 0
42006 Load De- Read Multiplier: 1.0 Indicates the total amount of MLD PC 3.x
mand Online Only Offset: 0 online kW bus capacity for Paral-
Capacity Size (bits): 32 load demand. Only gensets leling
(Lower Reg- Sign: U which are eligible for load Status
ister value) Units: kW demand count. Available on
Lower Limit: 0 PCC3300MLD controls only.
Upper Limit: 80000
Default: 0
42007 Load Read Multiplier: 1.0 Indicates the time remaining MLD PC 3.x
Demand Only Offset: 0 before gensets are allowed Paral-
Initial Delay Size (bits): 16 to stop after initial start or leling
Timer Sign: U after resuming halted load Status
Units: Seconds demand. This timer is set by
Lower Limit: 0 Load Demand Initial Delay.
Upper Limit: 1500 Available on PCC3300MLD
Default: 0 controls only.
Demand Only Offset: 0 before next genset is al- Paral-
Start Delay Size (bits): 16 lowed to start. This timer is leling
Timer Sign: U set by Load Demand Start Status
Units: Seconds Delay. Available on
Upper Limit: 1500
Default: 0
148
cess tion
Demand Only Offset: 0 before next genset is al- Paral-
Stop Delay Size (bits): 16 lowed to stop. This timer is leling
Timer Sign: U set by Load Demand Stop Status
Units: Seconds Delay. Available on
Upper Limit: 1500
Default: 0
42010 Load Read 0: No Indicates when the current MLD PC 3.x

Demand Only 1: Yes load and spare capacity re- Paral-
Spare quirements are satisfied. leling
Capacity Available on PCC3300MLD Status
Available controls only.
42011 Load Read Multiplier: 1.0 Indicates the total kW value MLD PC 3.x
Demand Only Offset: 0 of all currently active spare Paral-
Total Spare Size (bits): 32 capacity requests in the leling
Capacity Sign: U system. Available on Status
Requested Units: kW PCC3300MLD controls only.
(Upper Reg- Lower Limit: 0
ister value) Upper Limit: 80000
Default: 0
42012 Load Read Multiplier: 1.0 Indicates the total kW value MLD PC 3.x
Demand Only Offset: 0 of all currently active spare Paral-
Total Spare Size (bits): 32 capacity requests in the leling
Capacity Sign: U system. Available on Status
Requested Units: kW PCC3300MLD controls only.
(Lower Reg- Lower Limit: 0
ister value) Upper Limit: 80000
Default: 0
42013 Load De- Read Multiplier: 1.0 The kW load at which the MLD PC 3.x
mand Next Only Offset: 0 next genset will be started. Paral-
Start Thresh- Size (bits): 32 Available on PCC3300MLD leling
old (kW) Sign: U controls only. Status
(Upper Reg- Units: kW
ister value) Lower Limit: 0
Upper Limit: 80000
Default: 0
149
cess tion
mand Next Only Offset: 0 next genset will be started. Paral-
Start Thresh- Size (bits): 32 Available on PCC3300MLD leling
old (kW) Sign: U controls only. Status
(Lower Reg- Units: kW
ister value) Lower Limit: 0
Upper Limit: 80000
Default: 0
mand Next Only Offset: 0 next genset will be stopped. Paral-
Stop Thre- Size (bits): 32 Available on PCC3300MLD leling
shold (Upper Sign: U controls only. Status
ue) Lower Limit: 0
Upper Limit: 80000
Default: 0
mand Next Only Offset: 0 next genset will be stopped. Paral-
Stop Thre- Size (bits): 32 Available on PCC3300MLD leling
shold (Lower Sign: U controls only. Status
ue) Lower Limit: 0
Upper Limit: 80000
Default: 0
42017 Load De- Read 0: Gen1 9: Gen10 Indicates the next genset to MLD PC 3.x
mand Next Only 1: Gen2 10: Gen11 start by ID. Available on Paral-
Gen to start 2: Gen3 11: Gen12 PCC3300MLD controls only. leling
(kW) 3: Gen4 12: Gen13 Status
4: Gen5 13: Gen14
5: Gen6 14: Gen15
6: Gen7 15: Gen16
7: Gen8
8: Gen9
42018 Load De- Read 0: Gen1 9: Gen10 Indicates the next genset to MLD PC 3.x
mand Next Only 1: Gen2 10: Gen11 stop by ID. Available on Paral-
Gen to Stop 2: Gen3 11: Gen12 PCC3300MLD controls only. leling
3: Gen4 12: Gen13 Status
4: Gen5 13: Gen14
5: Gen6 14: Gen15
6: Gen7 15: Gen16
7: Gen8
8: Gen9
150
cess tion
42019 Load De- Read 0: Inactive Indicates the status of the MLD PC 3.x
mand Inhibit Only 1: Active Load Demand Inhibit input. Paral-
Local When ACTIVE all the gen- leling
sets will start. Available on Status
Application Only 0.1 application L1 current per- PC 3.x
L1 Current centage output.
16
Sign: U
16
Sign: U
Application Only 0.1 application L1 KVA percent- PC 3.x
L1 kVA age output.
16
Sign: U
16
Sign: U
L2 kVA age output.
16
Sign: U
L3 kVA age output.
151
cess tion
16
Sign: U
Application Only 0.1 application L1 KW percent- PC 3.x
L1 kW age output.
16
Sign: S
L2 kW age output.
16
Sign: S
L3 kW age output.
16
Sign: S
Application Only 0.1 set application KVA percent- PC 3.x
Total kVA age output.
16
Sign: U
Application Only 0.1 set application KW percent- PC 3.x
Total kW age output.
16
Sign: S
Standby To- Only 0.1 set standby KVA percent- PC 3.x
tal kVA age output.
16
152
cess tion
Sign: U
43018 Genset Ap- Read Multiplier: Unit: kVA The generator set KVA rat- PC 2.x,
plication kVA Only 0.1 ing. PC 3.x
rating
16
Sign: U
43019 Genset Ap- Read Multiplier: Unit: kW The generator set KW rat- PC 2.x,
plication kW Only 0.1 ing. PC 3.x
rating
16
Sign: U
43020 Genset Ap- Read Multiplier: 1 Unit: Amps The value of the generator PC 2.x,
plication Only set application nominal cur- PC 3.x
Nominal rent. Displayed as ”Genera-
Current tor set Application Rated
Current” in HMI
16
Sign: U
43021 Genset Av- Read Multiplier: Unit: % Generator set average volt- PC 2.x,
erage Volt- Only 0.01 age percentage. PC 3.x
age%
16
Sign: U
43030 Genset L1 Read Multiplier: Unit: PF Generator set L1 power fac- PC 2.x,
Power Fac- Only 0.01 tor PC 3.x
tor
Sign: S
43031 Genset L1L2 Read Multiplier: Unit: Degrees Generator set L1L2 voltage PC 2.x,
Phase Differ- Only 0.01 phase angle PC 3.x
ence
16
Sign: U
153
cess tion
43032 Genset L1L2 Read Multiplier: Unit: % Generator set L1L2 volt- PC 2.x,
Voltage% Only 0.01 age% PC 3.x
16
Sign: U
43033 Genset L1N Read Multiplier: Unit: % Generator set L1N volt- PC 2.x,
16
Sign: U
tor
−1.28
Size (bits): 8 Upper Limit: 1.27
Sign: S
ence
16 655.3
Sign: U
16
Sign: U
16 655.3
Sign: U
tor
−1.28
154
cess tion
Sign: S
ence
16 655.3
Sign: U
16 655.3
Sign: U
16
Sign: U
43062 Genset Read Multiplier: Unit: kVA KVA rating for the generator PC 2.x,
Standby kVA Only 0.1 set in Standby configura- PC 3.x
rating tion.
16
Sign: U
43063 Genset Read Multiplier: Unit: kW KW rating for the generator PC 2.x,
Standby kW Only 0.1 set in Standby configura- PC 3.x
rating tion.
16
Sign: U
43064 Genset Read Multiplier: 1 Unit: Amps The value of the generator PC 2.x,
Standby Only set standby nominal current. PC 3.x
Nominal Displayed as ”Generator set
Current Standby Rated Current” in
HMI
16
Sign: U
155
cess tion
43065 Genset Total Read Multiplier: 1 Unit: kVAh Generator set total kVAh ac- PC 2.x,
kVAh Only cumulation PC 3.x
32
Sign: U
43066 Genset Total Read Multiplier: 1 Unit: kVAh Generator set total kVAh ac- PC 2.x,
kVAh Only cumulation PC 3.x
32
Sign: U
43067 Genset Total Read Multiplier: Unit: % Total KVAR’s per Standby PC 2.x,
kVARs per Only 0.01 KVA. PC 3.x
Standby kVA
16
Sign: S
43111 Genset Bus Read Multiplier: Unit: PF Generator set Bus L1 power PC 3.x
L1 Power Only 0.01 factor
Factor
−1.28
Sign: S
43112 Genset Bus Read Multiplier: Unit: Degrees Generator set bus L1L2 PC 3.x
L1L2 Phase Only 0.01 voltage phase angle
Difference
16
Sign: U
Factor
Sign: S
Difference
156
cess tion
16
Sign: U
Factor
−1.28
Sign: S
Difference
16
Sign: U
43143 Genset Bus Read Multiplier: 1 Unit: kVAh Generator set bus total PC 3.x
Total kVAh Only kVAh accumulation
32
Sign: U
43144 Genset Bus Read Multiplier: 1 Unit: kVAh Generator set bus total PC 3.x
Total kVAh Only kVAh accumulation
32
Sign: U
43146 Paralleling Read/ 0: None Determines what the func- PC 3.x
Application Write tion of the Other Meter is.
1: Utility
2: Genset Bus
43162 Utility L1 Read Multiplier: Unit: PF Utility L1 power factor PC 3.x
tor
Sign: S
43163 Utility L1L2 Read Multiplier: Unit: Degrees Utility L1L2 voltage phase PC 3.x
Phase Differ- Only 0.01 angle
ence
157
cess tion
16
Sign: U
tor
Sign: S
ence
16
Sign: U
tor
Sign: S
ence
16
Sign: U
43194 Utility Total Read Multiplier: 1 Unit: kVAh Utility total kVAh accumula- PC 3.x
kVAh Only tion
32
Sign: U
43195 Utility Total Read Multiplier: 1 Unit: kVAh Utility total kVAh accumula- PC 3.x
kVAh Only tion
32
Sign: U
158
cess tion
43200 Genset Mod- Read Multiplier: 1 Unit: Number indentifying the PC 2.x,
el Number Only model of this generator set. PC 3.x
Modbus uses addresses
43200−43219 for the 20
characters of this string.
Uses logical numbers 2064
− 2083 to hold each of the
20 characters.
168
Sign: C
43200−43219 for the 20
Uses logical numbers
2064−2083 to hold each of
the 20 characters.
168
Sign: C
43200−43219 for the 20
the 20 characters.
168
Sign: C
43200−43219 for the 20
the 20 characters.
168
159
cess tion
Sign: C
43200−43219 for the 20
the 20 characters.
168
Sign: C
43200−43219 for the 20
the 20 characters.
168
Sign: C
43200−43219 for the 20
the 20 characters.
168
Sign: C
43200−43219 for the 20
the 20 characters.
160
cess tion
168
Sign: C
43200−43219 for the 20
the 20 characters.
168
Sign: C
43200 − 43219 for the 20
Uses logical numbers 2064
− 2083 to hold each of the
20 characters.
168
Sign: C
43200−43219 for the 20
the 20 characters.
168
Sign: C
43200−43219 for the 20
the 20 characters.
161
cess tion
168
Sign: C
43200−43219 for the 20
the 20 characters.
168
Sign: C
43200−43219 for the 20
the 20 characters.
168
Sign: C
43200−43219 for the 20
the 20 characters.
168
Sign: C
162
cess tion
43200−43219 for the 20
the 20 characters.
168
Sign: C
43200−43219 for the 20
the 20 characters.
168
Sign: C
43200−43219 for the 20
the 20 characters.
168
Sign: C
43200−43219 for the 20
the 20 characters.
168
163
cess tion
Sign: C
43200−43219 for the 20
the 20 characters.
168
Sign: C
43220 Genset Seri- Read Multiplier: 1 Unit: Serial number of identifying PC 2.x,
al Number Only this generator set. Modbus PC 3.x
uses addresses
43220−43239 for the 20
Uses logical addresses
2048−6063 to store the first
16 characters. The last 4
are stored in 691−694.
168
Sign: C
uses addresses
43220−43239 for the 20
168
Sign: C
164
cess tion
uses addresses
43220−43239 for the 20
2048 − 6063 to store the
first 16 characters. The last
4 are stored in 691−694.
168
Sign: C
uses addresses
43220−43239 for the 20
2048 − 6063 to store the
first 16 characters. The last
4 are stored in 691−694.
168
Sign: C
uses addresses
43220−43239 for the 20
168
Sign: C
uses addresses
43220−43239 for the 20
165
cess tion
168
Sign: C
uses addresses
43220−43239 for the 20
168
Sign: C
uses addresses
43220−43239 for the 20
168
Sign: C
uses addresses
43220−43239 for the 20
168
Sign: C
166
cess tion
uses addresses
43220−43239 for the 20
168
Sign: C
uses addresses
43220−43239 for the 20
168
Sign: C
uses addresses
43220−43239 for the 20
168
Sign: C
uses addresses
43220−43239 for the 20
167
cess tion
168
Sign: C
uses addresses
43220−43239 for the 20
168
Sign: C
uses addresses
43220−43239 for the 20
168
Sign: C
uses addresses
43220−43239 for the 20
168
Sign: C
168
cess tion
uses addresses
43220−43239 for the 20
168
Sign: C
uses addresses
43220−43239 for the 20
168
Sign: C
uses addresses
43220−43239 for the 20
168
Sign: C
uses addresses
43220−43239 for the 20
169
cess tion
168
Sign: C
43240 Alternator Read Multiplier: 1 Unit: Number indentifying this PC 2.x,
Model Num- Only generator sets alternator PC 3.x
ber model number. Modbus
uses addresses
43240−43259 for the 20
characters text string.
168
Sign: C
uses addresses
43240−43259 for the 20
168
Sign: C
uses addresses
43240−43259 for the 20
168
Sign: C
uses addresses
43240−43259 for the 20
168
Sign: C
170
cess tion
uses addresses
43240−43259 for the 20
168
Sign: C
uses addresses
43240−43259 for the 20
168
Sign: C
uses addresses
43240−43259 for the 20
168
Sign: C
uses addresses
43240−43259 for the 20
168
Sign: C
uses addresses
43240−43259 for the 20
171
cess tion
168
Sign: C
uses addresses
43240−43259 for the 20
168
Sign: C
uses addresses
43240−43259 for the 20
168
Sign: C
uses addresses
43240−43259 for the 20
168
Sign: C
uses addresses
43240−43259 for the 20
168
Sign: C
172
cess tion
uses addresses
43240−43259 for the 20
168
Sign: C
uses addresses
43240−43259 for the 20
168
Sign: C
uses addresses
43240−43259 for the 20
168
Sign: C
uses addresses
43240−43259 for the 20
168
Sign: C
uses addresses
43240−43259 for the 20
173
cess tion
168
Sign: C
uses addresses
43240−43259 for the 20
168
Sign: C
uses addresses
43240−43259 for the 20
168
Sign: C
43260 Alternator Read Multiplier: 1 Unit: Unique number indentifying PC 2.x,
Serial Num- Only this generator sets alterna- PC 3.x
ber tor serial number.Modbus
uses addresses
43260−43279 for the 20
168
Sign: C
uses addresses
43260−43279 for the 20
168
Sign: C
174
cess tion
uses addresses
43260−43279 for the 20
168
Sign: C
uses addresses
43260−43279 for the 20
168
Sign: C
uses addresses
43260−43279 for the 20
168
Sign: C
uses addresses
43260−43279 for the 20
168
Sign: C
uses addresses
43260−43279 for the 20
175
cess tion
168
Sign: C
uses addresses
43260−43279 for the 20
168
Sign: C
uses addresses
43260−43279 for the 20
168
Sign: C
uses addresses
43260−43279 for the 20
168
Sign: C
uses addresses
43260−43279 for the 20
168
Sign: C
176
cess tion
uses addresses
43260−43279 for the 20
168
Sign: C
uses addresses
43260−43279 for the 20
168
Sign: C
uses addresses
43260−43279 for the 20
168
Sign: C
uses addresses
43260−43279 for the 20
168
Sign: C
uses addresses
43260−43279 for the 20
177
cess tion
168
Sign: C
uses addresses
43260−43279 for the 20
168
Sign: C
uses addresses
43260−43279 for the 20
168
Sign: C
uses addresses
43260−43279 for the 20
168
Sign: C
uses addresses
43260−43279 for the 20
168
Sign: C
178
cess tion
43280 Coolant Lev- Read 0: Inactive Coolant Level input soft- PC 2.x,
el Switch Only ware state status. Gives PC 3.x
state
1: Active
43281 Coolant Lev- Read 0: Inactive This is the status of the PC 2.x,
el/Configur- Only Configurable Input #5. PC 3.x
able Input #5
Switch
1: Active
43283 Fault Reset Read 0: Inactive Fault Reset input software PC 2.x,
1: Active
43284 Fault Reset/ Read 0: Inactive This is the status of the PC 2.x,
Input #10
Switch
1: Active
43285 Genset CB Read 0: Inactive This is the status of the PC 3.x
Inhibit/Confi- Only Configurable Input #28.
gurable Input
#28 Switch
1: Active
Pos B/Confi- Only Configurable Input #26.
gurable Input
#26 Switch
1: Active
Tripped/Con- Only Configurable Input #27.
figurable In-
put #27
Switch
1: Active
43292 Ground Fault Read 0: Inactive Ground Fault Switch func- PC 2.x,
Switch Only tion output status. Gives PC 3.x
state
1: Active
43293 High Alt Read 0: Inactive High Alt Temperature PC 2.x,
Temp Switch Only Switch function output sta- PC 3.x
tus. Gives software Inactive/
Active state
1: Active
179
cess tion
43295 Load De- Read 0: Inactive This is the status of the PC 3.x
mand Stop/ Only Configurable Input #31.
Configurable
Input #31
Switch
1: Active
43296 Local E−stop Read 0: Inactive Monitors the E-Stop switch. PC 2.x,
Switch Only PC 3.x
1: Active
43297 Low Coolant Read 0: Inactive Low Coolant #2 Switch PC 2.x,
#2 Switch Only function output status. PC 3.x
Gives software Inactive/Ac-
tive state
1: Active
43298 Low Engine Read 0: Inactive Low Engine Temperature PC 2.x,
Temperature Only Switch function output sta- PC 3.x
Switch tus. Gives software Inactive/
Active state
1: Active
43299 Low Fuel In Read 0: Inactive Low Fuel In Day Tank PC 2.x,
Day Tank Only Switch function output sta- PC 3.x
Switch tus. Gives software Inactive/
Active state
1: Active
43300 Genset Bus Read/ 0: Delta Delta or Wye for Utility con- PC 3.x
Delta/Wye Write nection
Connection
1: Wye
43301 Genset Bus Read Multiplier: 1 Unit: Vac Generator set Bus nominal PC 3.x
Nominal Only voltage
Voltage
16 45000
Sign: U
43302 Genset Del- Read 0: Delta Delta or Wye for Generator PC 2.x,
ta/Wye Con- Only set connection PC 3.x
nection
1: Wye
43303 Genset Read Multiplier: 1 Unit: Vac Generator set nominal line− PC 2.x,
Nominal Only line voltage PC 3.x
Voltage
16 45000
180
cess tion
Sign: U
43304 Single/3 Read 0: Single Phase Setup mode interlocked. PC 2.x,
Phase Con- Only Generator set’s single PC 3.x
nection phase/3 phase metering
setup configuration.
1: Three Phase
43306 Utility Delta/ Read/ 0: Delta Delta or Wye for Utility con- PC 3.x
Wye Con- Write nection
nection
1: Wye
43307 Utility Nomi- Read Multiplier: 1 Unit: Vac Utility nominal voltage PC 3.x
nal Voltage Only
16 45000
Sign: U
43309 Overfre- Read/ 0: Disabled Enables over frequency PC 2.x,
quency En- Write diagnostic witness test. PC 3.x
able
1: Enabled
43310 Overload Read/ Multiplier: 1 Unit: seconds The time delay until an PC 2.x,
Warning Set Write overload condition is re- PC 3.x
Time ported as a fault
Size (bits): 8 Upper Limit: 120
Sign: U
43311 Overload Read/ Multiplier: Unit: % Sets the Overload Warning PC 2.x,
Warning Write 0.01 fault trip threshold as per- PC 3.x
Threshold centage of generator set ap-
plication kW rating.
16
Sign: U
43338 CAN Failure Read/ Multiplier: 1 Unit: Sets the maximum number PC 2.x,
Retries Write of CAN communication re- PC 3.x
tries
Sign: U
43339 Auto Sleep Read/ 0: Awake in Auto Trim that determines if the PC 2.x,
Enable Write control will stay awake in PC 3.x
Auto mode or Fall asleep in
Auto mode.
181
cess tion
1: Sleep in Auto
43340 Max Setup Read/ Multiplier: 1 Unit: Seconds Max time allowed in Setup PC 2.x,
Mode Time Write Mode. PC 3.x
16
Sign: U
43341 Power Down Read/ 0: Disable Trim to enable Sleep Mode PC 2.x,
Mode En- Write PC 3.x
able
1: Enable
43342 Power Down Read/ Multiplier: 1 Unit: seconds Timer setting for the Power PC 2.x,
Mode Time Write Down delay feature PC 3.x
Delay
16
Sign: U
43343 Setup Mode Read/ 0: Disable Volatile to allow entry into PC 2.x,
Enable Write Setup Mode PC 3.x
1: Enable
43344 Clock Date Read/ Multiplier: 1 Unit: Use to set or read the cur- PC 2.x,
Write rent date. PC 3.x
Sign: U
43345 Clock Hour Read/ Multiplier: 1 Unit: Use to set or read the cur- PC 2.x,
Write rent hour. PC 3.x
Sign: U
43346 Clock Minute Read/ Multiplier: 1 Unit: Use to set or read the cur- PC 2.x,
Write rent minute. PC 3.x
Sign: U
43347 Clock Mode Read/ 0: Normal Use to set the real time PC 2.x,
Write clock and save settings. PC 3.x
1: Set Clock
2: Save Clock
43348 Clock Month Read/ Multiplier: 1 Unit: Use to set or read the cur- PC 2.x,
Write rent month. PC 3.x
182
cess tion
Sign: U
43349 Clock Sec- Read/ Multiplier: 1 Unit: Use to set or read the cur- PC 2.x,
ond Write rent second. PC 3.x
Sign: U
43350 Clock Year Read/ Multiplier: 1 Unit: Use to set or read the cur- PC 2.x,
Write rent year. PC 3.x
Sign: U
43351 Daylight Read/ Multiplier: 1 Unit: Use to set the hour of the PC 2.x,
Savings End Write day when daylight savings PC 3.x
Hour time ends.
Sign: U
43352 Daylight Read/ Multiplier: 1 Unit: Use to set the month when PC 2.x,
Savings End Write daylight savings time ends. PC 3.x
Month
Sign: U
43353 Daylight Read/ 0: First Occurrence Use to set the week of the PC 2.x,
Savings End Write month when daylight sav- PC 3.x
Week Occur- ings time ends.
rence in
Month
1: Second Occurrence
2: Third Occurrence
3: Fourth Occurrence
4: Last Occurrence
43354 Daylight Read/ 0: Sunday Use to set the day of the PC 2.x,
Savings Write week when daylight savings PC 3.x
Start Day time starts.
1: Monday
2: Tuesday
3: Wednesday
4: Thursday
5: Friday
6: Saturday
183
cess tion
43355 Daylight Read/ Multiplier: 1 Unit: Use to set the hour of the PC 2.x,
Savings Write day when daylight savings PC 3.x
Start Hour time starts.
Sign: U
43356 Daylight Read/ Multiplier: 1 Unit: Use to set the month when PC 2.x,
Savings Write daylight savings time starts. PC 3.x
Start Month
Sign: U
43357 Daylight Read/ 0: First Occurrence Use to set the week of the PC 2.x,
Savings Write month when daylight sav- PC 3.x
Start Week ings time starts.
Occurrence
in Month
1: Second Occurrence
2: Third Occurrence
3: Fourth Occurrence
4: Last Occurrence
43358 Daylight Read/ Multiplier: 1 Unit: Minutes Use to set the amount of PC 2.x,
Savings Write daylight savings time adjust- PC 3.x
Time Adjust- ment applied.
ment
Sign: U
43359 Daylight Read/ 0: Disabled Use to enable the daylight PC 2.x,
Savings Write savings time feature. PC 3.x
Time Enable
1: Enabled
43360 Exercise Read/ 0: Disabled Enables the exercise sched- PC 2.x,
Scheduler Write uler. PC 3.x
Enable
1: Enabled
43361 Reset Fuel Read/ 0: Inactive The reset trip fuel consump- PC 2.x,
Consump- Write tion command. PC 3.x
tion
1: Active
43362 Reset Runs Read/ 0: Inactive The reset runs command. PC 2.x,
Write PC 3.x
1: Active
184
cess tion
43363 Reset Start Read/ 0: Inactive The reset start attempts PC 2.x,
Attempts Write command. PC 3.x
1: Active
43364 Scheduler Read/ Multiplier: 1 Unit: Used to select an exception PC 2.x,
Exception Write to adjust. PC 3.x
Select
Sign: U
43374 Scheduler Read/ Multiplier: 1 Unit: Used to select a program to PC 2.x,
Program Se- Write adjust. PC 3.x
lect
Sign: U
43377 Scheduler Read/ 0: Disable Used to enable or disable PC 2.x,
Program x Write the selected program. PC 3.x
Enable
1: Enable
43379 Scheduler Read/ 0: No Load Used to adjust the run mode PC 3.x
Program x Write for the selected program.
Run Mode
1: With Load
2: Extended Parallel
43383 Daylight Read/ 0: Sunday Use to set the day of the PC 2.x,
Savings End Write week when daylight savings PC 3.x
Day time ends.
1: Monday
2: Tuesday
3: Wednesday
4: Thursday
5: Friday
6: Saturday
43502 Idle Rated Read 0: Idle The output command of the PC 2.x,
Command Only Idle/Rated Logic PC 3.x
1: Rated
43507 Load Dump Read 0: Inactive Monitors the state of the PC 2.x,
Overload Only load dump overload detec- PC 3.x
Condition tion algorithm
1: Active
2: Reserved
3: Not Available
185
cess tion
43508 Load Dump Read 0: Inactive The state of the load dump PC 2.x,
Underfre- Only underfrequency detection PC 3.x
quency Con- algorithm
dition
1: Active
2: Reserved
3: Not Available
43509 Low Battery Read Multiplier: Unit: Vdc The low battery voltage PC 2.x,
Voltage Run- Only 0.1 threshold when the genera- PC 3.x
ning Thresh- tor set is in rated mode
old
16
Sign: U
43510 Low Battery Read Multiplier: Unit: Vdc The low battery voltage PC 2.x,
Voltage Only 0.1 threshold when the genera- PC 3.x
Stopped tor set is not in rated mode
Threshold
16
Sign: U
43511 Low Battery Read Multiplier: Unit: Vdc The selection of the running PC 2.x,
Voltage Only 0.1 or stopped threshold PC 3.x
Threshold
16
Sign: U
43516 Prelube Read 0: Crank After Prelube Set to a required mode PC 2.x,
Mode Only based on the type of start- PC 3.x
ing requirement
1: Crank With Prelube
2: Prelube Only
43517 Prelube Read 0: Complete The monitor point for the PC 2.x,
State Only prelube state. PC 3.x
1: Armed
2: Prelube Output ON
3: Prelube Output OFF
4: Enable Crank
43524 Remote Read 0: Stop The output of the Remote PC 2.x,
Start Com- Only Start Command OR logic PC 3.x
mand
186
cess tion
1: Start
43530 Speed and Read 0: Inactive Monitor point for the com- PC 3.x
Voltage Bias Only mand which closes the on−
Relay Com- board relay enabling the
mand voltage and speed bias out-
puts.
1: Active
43533 Start Count- Read Multiplier: 1 Unit: seconds Time remaining until start is PC 2.x,
down Only initiated PC 3.x
16
Sign: U
43538 Starter Com- Read 0: Inactive State of hardware output. PC 2.x,
mand Only PC 3.x
1: Active
2: Reserved
3: Not Available
43539 Stop Count- Read Multiplier: 1 Unit: seconds Time remaining until gener- PC 2.x,
down Only ator set stops PC 3.x
16
Sign: U
43543 Time At No Read Multiplier: 1 Unit: seconds Amount of time the genera- PC 2.x,
Load Only tor set has run at no load PC 3.x
16
Sign: U
43544 Time at Read Multiplier: 1 Unit: seconds Amount of time spend in PC 2.x,
Rated Cool- Only Rated Cooldown PC 3.x
down
16
Sign: U
43547 Voltage Set- Read Multiplier: Unit: % The voltage setpoint com- PC 2.x,
point Only 0.01 mand PC 3.x
16
Sign: U
187
cess tion
43550 Weak Bat- Read Multiplier: Unit: Vdc Monitor point for the weak PC 2.x,
tery Thresh- Only 0.1 battery voltage threshold PC 3.x
old
16
Sign: U
43551 Weak Bat- Read/ Multiplier: 1 Unit: seconds The time delay until a weak PC 2.x,
tery Voltage Write battery condition is reported PC 3.x
Set Time as a fault
16
Sign: U
43553 Synchronizer Read 0: Synchronizer Off Indicates whether synchro- PC 3.x
Status Only nizer is on or off
1: Synchronizer On
43554 Active Tran- Read Multiplier: Unit: seconds Countdown value of the ac- PC 3.x
sition Timer Only 0.1 tive transition timer
16
Sign: U
43555 Active Tran- Read 0: None Indicates the active transi- PC 3.x
sition Type Only tion type for PTC
1: Programmed Transition
2: Transfer
3: Retransfer
4: Max Parallel
43558 ES State Read 0: Standby Internal paralleling status PC 3.x
Only variable
1: Dead Bus
2: Synchronize
3: Load Share
4: Load Govern
43560 Genset CB Read 0: Inactive Generator set cb close com- PC 3.x
Close Com- Only mand status
mand
1: Active
43562 Genset CB Read 0: Open Indicates generator set PC 3.x
Position Sta- Only breaker position
tus
1: Closed
188
cess tion
2: Not Available
43563 Genset Read 0: Not Available Indicates status of the gen- PC 3.x
Availability Only erator set source
Status
1: Available
2: Unknown
43564 Bus Status Read 0: Unavailable Indicates status of the bus PC 3.x
Only
1: Dead
2: Live
43565 Genset CB Read 0: Inactive Generator set cb inhibit PC 3.x
Inhibit Com- Only command
mand
1: Active
43566 Genset CB Read 0: Inactive Generator set cb tripped PC 3.x
Tripped Only command
Command
1: Active
43568 Genset Fre- Read Multiplier: Unit: Hz Indicates the lower drop−out PC 3.x
quency Low- Only 0.1 threshold in Hz for genera-
er Drop−Out tor set frequency sensor
Threshold
16
Sign: U
43569 Genset Fre- Read Multiplier: Unit: Hz Indicates the lower pick−up PC 3.x
quency Low- Only 0.1 threshold in Hz for genera-
er Pick−Up tor set frequency sensor
Threshold
16
Sign: U
43570 Genset Fre- Read 0: Unknown Indicates generator set fre- PC 3.x
quency Sen- Only quency sensor status
sor Status
1: Picked Up
2: Dropped Out
43571 Genset Fre- Read Multiplier: Unit: Hz Indicates the upper drop− PC 3.x
quency Up- Only 0.1 out threshold in Hz for gen-
per Drop− erator set frequency sensor
Out Thresh-
old
189
cess tion
16
Sign: U
43572 Genset Fre- Read Multiplier: Unit: Hz Indicates the upper pick−up PC 3.x
quency Up- Only 0.1 threshold in Hz for genera-
per Pick−Up tor set frequency sensor
Threshold
16
Sign: U
43573 Genset Loss Read 0: Unknown Indicates generator set loss PC 3.x
of Phase Only of phase sensor status
Sensor Sta-
tus
1: Picked Up
2: Dropped Out
43574 Genset Read Multiplier: 1 Unit: Vac Indicates the drop−out PC 3.x
Overvoltage Only threshold in volts for gener-
Drop−Out ator set over voltage sensor
Threshold
16
Sign: U
43575 Genset Read Multiplier: 1 Unit: Vac Indicates the pick−up PC 3.x
Overvoltage Only threshold in volts for gener-
Pick−Up ator set over voltage sensor
Threshold
16
Sign: U
43576 Genset Read 0: Unknown Indicates generator set over PC 3.x
Overvoltage Only voltage sensor status
Sensor Sta-
tus
1: Picked Up
2: Dropped Out
43577 Genset Read 0: Unknown Indicates generator set PC 3.x
Phase Rota- Only phase rotation sensor status
tion Sensor
Status
1: Picked Up
2: Dropped Out
190
cess tion
43578 Genset Un- Read Multiplier: 1 Unit: Vac Indicates the drop−out PC 3.x
dervoltage Only threshold in volts for gener-
Drop−Out ator set under voltage sen-
Threshold sor
16
Sign: U
43579 Genset Un- Read Multiplier: 1 Unit: Vac Indicates the pick−up PC 3.x
dervoltage Only threshold in volts for gener-
Pick−Up ator set under voltage sen-
Threshold sor
16
Sign: U
43580 Genset Un- Read 0: Unknown Indicates generator set un- PC 3.x
dervoltage Only der voltage sensor status
Sensor Sta-
tus
1: Picked Up
2: Dropped Out
43584 Paralleling Read 0: Isochronous Indicates which speed con- PC 2.x,
Speed Con- Only trol algorithm is in effect PC 3.x
trol Mode
1: Droop
2: Synchronize
3: Load Share
4: Load Govern
43585 Paralleling Read 0: Isochronous Indicates which voltage con- PC 2.x,
Voltage Con- Only trol algorithm is in effect PC 3.x
trol Mode
1: Droop
2: Synchronize
3: Load Share
4: Load Govern
43589 PTC Operat- Read 0: Open Transition Indicates the transition type PC 3.x
ing Transi- Only currently in effect
tion Type
1: Hard Closed Transition
2: Soft Closed Transition
43590 PTC State Read 0: PTC Not Enabled Indicates the connected PC 3.x
Only state of the Power Transfer
Control
191
cess tion
1: No Source Connected
2: Utility Connected
3: Genset Connected
4: Paralleled
43597 Utility CB Read 0: Inactive Utility cb close command PC 3.x
Close Com- Only status
mand
1: Active
43598 Utility CB Read 0: Inactive Utility cb open command PC 3.x
Open Com- Only status
mand
1: Active
43599 Utility CB Read 0: Open Indicates utility breaker PC 3.x
Position Sta- Only position
tus
1: Closed
2: Not Available
43600 Load Govern Read/ 0: Genset kW Use to select how generator PC 3.x
kW Method Write set kW output will be con-
trolled when paralleled to
utility.
1: Genset kW w/Utility Constraint
2: Utility kW
43608 Configurable Read/ Multiplier: 1 Unit: The event code for this out- PC 2.x,
Output #1 Write put. PC 3.x
Event Code
16 65530
Sign: U
Event Code
16 65530
Sign: U
43613 Configurable Read/ Multiplier: 1 Unit: The event code for this out- PC 3.x
Output #20 Write put.
Event Code
16 65530
Sign: U
192
cess tion
Event Code
16 65530
Sign: U
Event Code
16 65530
Sign: U
Event Code
16 65530
Sign: U
Event Code
16 65530
Sign: U
43641 Delayed Read/ 0: Disabled Enables the Delayed Shut- PC 2.x,
Shutdown Write down feature. PC 3.x
Enable
1: Enabled
43642 Delayed Read/ Multiplier: Unit: seconds Sets the shutdown fault PC 2.x,
Shutdown Write 0.1 delayed time delay for the PC 3.x
Time Delay Delayed Shutdown feature.
16
Sign: U
43643 Remote Read/ 0: Disable Trim to enable Remote PC 2.x,
Fault Reset Write Fault Reset. Can only reset PC 3.x
Enabled Warning Faults
1: Enable
193
cess tion
43644 Fail To Shut- Read/ Multiplier: 1 Unit: seconds Trim to set the time for a PC 2.x,
down Delay Write shutdown fault to be active PC 3.x
and the generator set not
shutting down before the
Fail to Shutdown fault oc-
curs.
16
Sign: U
43645 LCL Detec- Read/ 0: None Sets low coolant level fault PC 2.x,
tion Re- Write response to None, Warning, PC 3.x
sponse or Shutdown.
1: Warning
2: Shutdown
43646 LCT Warning Read/ Multiplier: 1 Unit: Minutes Sets time to clear the low PC 2.x,
Clear Time Write coolant temperature fault. PC 3.x
Sign: U
43647 LCT Warning Read/ Multiplier: 1 Unit: Minutes Sets time to set the low PC 2.x,
Set Time Write coolant temperature fault. PC 3.x
Sign: U
43648 LCT Warning Read/ Multiplier: 1 Unit: degF Sets threshold for the low PC 2.x,
Threshold Write coolant temperature fault PC 3.x
warning.
16
Sign: S
43649 V/Hz Knee Read/ Multiplier: Unit: Hz The voltage will roll off (de- PC 2.x,
Frequency Write 0.1 crease) proportionally to the PC 3.x
V/Hz setup, once the fre-
quency drops below the set
point in the V/Hz Knee Fre-
quency. This allows the
generator set to recover
faster when the frequency
drops.
16
Sign: U
194
cess tion
43650 V/Hz Rolloff Read/ Multiplier: Unit: % / Hz The amount of voltage roll PC 2.x,
Slope Write 0.1 off when the frequency is PC 3.x
below the knee frequency
16
Sign: U
43651 12 V High Read Multiplier: Unit: Vdc Sets 12V high battery volt- PC 2.x,
Battery Volt- Only 0.1 age fault threshold. PC 3.x
age Thresh-
old
16
Sign: U
43652 12 V Low Read Multiplier: Unit: Vdc Sets 12V low battery volt- PC 2.x,
Battery Volt- Only 0.1 age fault threshold for gen- PC 3.x
age Running erator set operation while in
Threshold rated mode
16
Sign: U
age Stopped erator set operation in all
Threshold modes except rated
16
Sign: U
43654 12 V Weak Read/ Multiplier: Unit: Vdc Sets 12V weak battery volt- PC 2.x,
Battery Volt- Write 0.1 age fault threshold PC 3.x
age Thresh-
old
16
Sign: U
43655 24 V High Read Multiplier: Unit: Vdc Sets 24V high battery volt- PC 2.x,
Battery Volt- Only 0.1 age fault threshold PC 3.x
age Thresh-
old
195
cess tion
16
Sign: U
age Running erator set operation while in
Threshold rated mode
16
Sign: U
age Stopped erator set operation in all
Threshold modes except rated
16
Sign: U
43658 24 V Weak Read/ Multiplier: Unit: Vdc Sets 24V weak battery volt- PC 2.x,
Battery Volt- Write 0.1 age fault threshold PC 3.x
age Thresh-
old
16
Sign: U
43659 Adjustable Read/ Multiplier: Unit: RPM/Hz Sets the RPM/Hz conver- PC 2.x,
Freq/Speed Write 0.01 sion factor when the Freq to PC 3.x
Gain Speed Gain Select trim is
set to this trim
16
Sign: U
43660 Alternate Read 0: 50 Hz Sets the generator set nom- PC 2.x,
Frequency Only inal frequency. PC 3.x
Switch
1: 60 Hz
43661 AVR Gain Read/ Multiplier: Unit: A trim that allows the user PC 2.x,
Adjust Trim Write 0.01 to modify the overall gains PC 3.x
of the AVR.
Offset: 0 Lower Limit: 0.05
16
196
cess tion
Sign: U
43662 Charging Al- Read/ Multiplier: Unit: seconds Sets the time delay for the PC 2.x,
ternator Write 0.1 charging alt failure fault PC 3.x
Fault Time
Delay
16
Sign: U
43663 Continuous Read/ Multiplier: 1 Unit: seconds Sets the maximum amount PC 2.x,
Crank En- Write of time to engage the starter PC 3.x
gage Time when using the continuous
cranking method
16
Sign: U
43664 Controlled Read/ Multiplier: 1 Unit: seconds Delay allowed for a shut- PC 3.x
Shutdown Write down with cooldown fault
Advance No- prior to shutting down the
tice Delay generator set
16
Sign: U
43665 Crank At- Read/ Multiplier: 1 Unit: Sets the maximum number PC 2.x,
tempts Write of times to engage the start- PC 3.x
er when attempting to start
engine using the cycle
cranking method
16
Sign: U
43666 Cycle / Cont Read 0: Cycle Selects whether to use con- PC 2.x,
Crank Select Only tinuous cranking or cycle PC 3.x
cranking when attempting to
start engine
1: Continuous
43667 Cycle Crank Read/ Multiplier: 1 Unit: seconds Sets the maximum amount PC 2.x,
Engage Write of time to engage the starter PC 3.x
Time during a single crank at-
tempt when using the cycle
cranking method
197
cess tion
16
Sign: U
43668 Cycle Crank Read/ Multiplier: 1 Unit: seconds Sets the amount of time to PC 2.x,
Rest Time Write wait between crank at- PC 3.x
tempts
16
Sign: U
43669 Delayed Off Read/ Multiplier: Unit: seconds Time delay between when PC 2.x,
FSO Relay Write 0.1 the Delayed Off Command PC 3.x
Time turns off and Run Command
turns off
16
Sign: U
43671 External Read/ 0: Disabled Enables the external bias PC 3.x
Bias Com- Write (speed and voltage com-
mands En- mands) to the hardware out-
able puts.
1: Enabled
43672 Frequency Read/ Multiplier: Unit: Hz A method of adding in a fre- PC 2.x,
Adjust Write 0.01 quency offset to the base PC 3.x
frequency subject to high
and low limit calibrations
16
Sign: S
43673 Genset Ex- Read/ Multiplier: Unit: hours Sets the total exercise time PC 2.x,
ercise Time Write 0.1 not including warmup at idle PC 3.x
or idle cooldown time
16
Sign: U
43674 Governor Read Multiplier: Unit: A trim that allows the user PC 2.x,
Gain Adjust Only 0.01 to modify the overall gain of PC 3.x
the governor
16
Sign: U
198
cess tion
43675 High Battery Read Multiplier: 1 Unit: seconds The time delay until a high PC 2.x,
Voltage Set Only battery voltage condition is PC 3.x
Time reported as a fault.
16
Sign: U
43676 High Battery Read Multiplier: Unit: Vdc The high battery voltage PC 2.x,
Voltage Only 0.1 threshold PC 3.x
Threshold
16
Sign: U
43677 Idle Cool- Read/ Multiplier: Unit: minutes Sets time to run at idle be- PC 2.x,
down Time Write 0.25 fore shutting down genera- PC 3.x
tor set on normal stops
16
Sign: U
43678 Idle Speed Read Multiplier: 1 Unit: RPM Sets the speed at which the PC 2.x,
Only engine will idle subject to PC 3.x
high and low limit calibra-
tions
16
Sign: U
43679 Idle to Rated Read/ Multiplier: Unit: seconds The time over which the PC 2.x,
Ramp Time Write 0.1 speed reference is to ramp PC 3.x
from idle speed to rated
speed
16
Sign: U
43680 Idle Warmup Read/ Multiplier: 1 Unit: degF Coolant temperature thresh- PC 2.x,
Coolant Write old to end idle warmup time PC 3.x
Temp
16
Sign: S
199
cess tion
43681 Idle Warmup Read/ Multiplier: 1 Unit: seconds Sets maximum idle warmup PC 2.x,
Time Write time. Warmup time may be PC 3.x
less if coolant temperature
exceeds threshold
16
Sign: U
43682 Load Dump Read/ 0: Overload Enables the load dump out- PC 2.x,
Activation Write put as a function of the PC 3.x
Method overload and underfrequen-
cy conditions
1: Underfrequency
2: Overload or Underfrequency
3: Disabled
43683 Load Dump Read/ Multiplier: 1 Unit: seconds The time delay until the load PC 2.x,
Overload Set Write dump overload condition is PC 3.x
Time set active
16
Sign: U
43684 Load Dump Read/ Multiplier: 1 Unit: % The load dump overload PC 2.x,
Overload Write threshold as a percentage PC 3.x
Threshold of the generator set applica-
tion rating
16
Sign: U
43685 Load Dump Read/ Multiplier: 1 Unit: Hz The frequency amount PC 2.x,
Underfre- Write which the load dump under- PC 3.x
quency Off- frequency threshold is be-
set low the final frequency ref-
erence
16
Sign: S
43686 Load Dump Read/ Multiplier: 1 Unit: seconds The time delay until the load PC 2.x,
Underfre- Write dump underfrequency con- PC 3.x
quency Set dition is set active
Time
200
cess tion
16
Sign: U
43687 Load Dump Read Multiplier: Unit: Hz The frequency trip threshold PC 2.x,
Underfre- Only 0.1 for the load dump underfre- PC 3.x
quency quency condition
Threshold
16
Sign: U
43688 Low Battery Read Multiplier: 1 Unit: seconds The time delay until a low PC 2.x,
Voltage Set Only battery voltage condition is PC 3.x
Time reported as a fault
16
Sign: U
43689 Low Fuel in Read/ Multiplier: 1 Unit: seconds Low Fuel in Day Tank Fault PC 2.x,
Day Tank Write time delay from switch in- PC 3.x
Time put.
16
Sign: U
43690 Low Fuel Read/ Multiplier: 1 Unit: seconds A trim that sets the delay PC 2.x,
Set/Clear Write time for generating the inac- PC 3.x
Time tive and active faults.
16
Sign: U
43691 Manual War- Read/ 0: Normal Use to command idle speed PC 2.x,
mup Bypass Write or to bypass idle warmup PC 3.x
during a manual run
1: Bypass Warmup
43692 Max Idle Read/ Multiplier: Unit: minutes Sets the fault time for the PC 2.x,
Time Write 0.1 Too Long in Idle fault. PC 3.x
16
Sign: U
201
cess tion
43693 Nominal Bat- Read 0: 12V Selects the generator set’s PC 2.x,
tery Voltage Only nominal battery operating PC 3.x
voltage
1: 24V
43694 Prelube Read/ 0: Disabled Enables Or Disables the cy- PC 2.x,
Cycle En- Write clic mode of prelube opera- PC 3.x
able tion
1: Enabled
43695 Prelube Read/ Multiplier: Unit: hours Sets the period of the Pre- PC 2.x,
Cycle Time Write 0.1 lube Cycle Iteration PC 3.x
16
Sign: U
43696 Prelube Read/ 0: Disabled Selects whether the Prelube PC 2.x,
Function En- Write function is enabled or dis- PC 3.x
able abled. This is Setup mode
interlocked
1: Enabled
43697 Prelube Oil Read/ Multiplier: Unit: psig The oil pressure value PC 2.x,
Pressure Write 0.1 which when reached the PC 3.x
Threshold prelube driver will turn off
16
Sign: U
43698 Prelube Read/ Multiplier: Unit: seconds Sets the maximum time for PC 2.x,
Timeout Pe- Write 0.1 which the Prelube Driver will PC 3.x
riod Remain ON
16
Sign: U
43699 Rated to Idle Read/ Multiplier: Unit: seconds The time over which the PC 2.x,
Ramp Time Write 0.1 speed reference is to ramp PC 3.x
from rated speed to idle
speed
16
Sign: U
43700 Utility Avail- Read 0: Not Available Indicates status of the utility PC 3.x
ability Status Only source
1: Available
202
cess tion
2: Unknown
43701 Utility CB In- Read 0: Inactive Utility cb inhibit command PC 3.x
hibit Com- Only
mand
1: Active
43702 Utility CB Read 0: Inactive Utility cb tripped command PC 3.x
Tripped Only
Command
1: Active
43703 Utility Cur- Read 0: Unknown Indicates utility breaker PC 3.x
rent Based Only position based on current
Breaker
Position
1: Closed
43704 Utility Fre- Read Multiplier: Unit: Hz Indicates the lower drop−out PC 3.x
quency Low- Only 0.1 threshold in Hz for utility fre-
er Drop−Out quency sensor
Threshold
16
Sign: U
43705 Utility Fre- Read Multiplier: Unit: Hz Indicates the lower pick−up PC 3.x
quency Low- Only 0.1 threshold in Hz for utility fre-
er Pick−Up quency sensor
Threshold
16
Sign: U
43706 Utility Fre- Read 0: Unknown Indicates utility frequency PC 3.x
quency Sen- Only sensor status
sor Status
1: Picked Up
2: Dropped Out
43707 Utility Fre- Read Multiplier: Unit: Hz Indicates the upper drop− PC 3.x
quency Up- Only 0.1 out threshold in Hz for utility
per Drop− frequency sensor
Out Thresh-
old
16
Sign: U
203
cess tion
43708 Utility Fre- Read Multiplier: Unit: Hz Indicates the upper pick−up PC 3.x
quency Up- Only 0.1 threshold in Hz for utility fre-
per Pick−Up quency sensor
Threshold
16
Sign: U
43709 Utility Loss Read 0: Unknown Indicates utility loss of PC 3.x
of Phase Only phase sensor status
Sensor Sta-
tus
1: Picked Up
2: Dropped Out
43710 Utility Over- Read Multiplier: 1 Unit: Vac Indicates the drop−out PC 3.x
voltage Only threshold in volts for utility
Drop−Out over voltage sensor
Threshold
16
Sign: U
43711 Utility Over- Read Multiplier: 1 Unit: Vac Indicates the pick−up PC 3.x
Pick−Up over voltage sensor
Threshold
16
Sign: U
43712 Utility Over- Read 0: Unknown Indicates utility over voltage PC 3.x
voltage Sen- Only sensor status
sor Status
1: Picked Up
2: Dropped Out
43713 Utility Phase Read 0: Unknown Indicates utility phase rota- PC 3.x
Rotation Only tion sensor status
Sensor Sta-
tus
1: Picked Up
2: Dropped Out
43714 Utility Under- Read Multiplier: 1 Unit: Vac Indicates the drop−out PC 3.x
Drop−Out under voltage sensor
Threshold
204
cess tion
16
Sign: U
43715 Utility Under- Read Multiplier: 1 Unit: Vac Indicates the pick−up PC 3.x
Pick−Up under voltage sensor
Threshold
16
Sign: U
43716 Utility Under- Read 0: Unknown Indicates utility under volt- PC 3.x
voltage Sen- Only age sensor status
sor Status
1: Picked Up
2: Dropped Out
43719 Alternator Read Multiplier: 1 Unit: degF Monitor point for the Alter- PC 2.x,
Temperature Only nator Temperature 1 input PC 3.x
1 (Aux101) from the Aux 101 I/O mod-
ule.
−32767
16 32762
Sign: S
ule.
−32767
16 32762
Sign: S
ule.
−32767
16 32762
Sign: S
205
cess tion
43722 Ambient Read Multiplier: 1 Unit: degF Monitor point for the Ambi- PC 2.x,
Temperature Only ent Temperature input from PC 3.x
(Aux101) the Aux 101 I/O module.
−32767
16 32762
Sign: S
43723 Aux101 0 Read Multiplier: Unit: Vdc Monitor point for the module PC 2.x,
Analog Input Only 0.01 0 analog input 1 in volts PC 3.x
1 Voltage
16
Sign: S
2 Voltage
16
Sign: S
3 Voltage
16
Sign: S
4 Voltage
16
Sign: S
5 Voltage
16
Sign: S
206
cess tion
6 Voltage
16
Sign: S
7 Voltage
16
Sign: S
8 Voltage
16
Sign: S
1 Voltage
16
Sign: S
2 Voltage
16
Sign: S
3 Voltage
16
Sign: S
207
cess tion
4 Voltage
16
Sign: S
5 Voltage
16
Sign: S
6 Voltage
16
Sign: S
7 Voltage
16
Sign: S
8 Voltage
16
Sign: S
43739 Battery Read 0: Inactive Monitor point for the battery PC 2.x,
Charger AC Only charger failure input from PC 3.x
Failure the PCCNET annunciator.
(HMI113)
1: Active
43740 Drive End Read Multiplier: 1 Unit: degF Monitor point for the Drive PC 2.x,
Bearing Only End Bearing Temperature PC 3.x
Temperature input from the I/O module.
(Aux101)
208
cess tion
−32767
16 32762
Sign: S
43741 Exhaust Read Multiplier: 1 Unit: degF Monitor point for the Ex- PC 2.x,
Stack Tem- Only haust Stack Temperature1 PC 3.x
perature 1 input from the I/O module.
(Aux101)
−32767
16 32762
Sign: S
43742 Exhaust Read Multiplier: 1 Unit: degF Monitor point for the Ex- PC 2.x,
Stack Tem- Only haust Stack Temperature2 PC 3.x
perature 2 input from the I/O module.
(Aux101)
−32768
16 32762
Sign: S
43745 Fuel Level % Read Multiplier: Unit: % Monitor point for the % fuel PC 2.x,
(PCCnet) Only 0.1 level input from the I/O PC 3.x
module.
16
Sign: S
43746 Fuel Level Read Multiplier: 1 Unit: Monitor point for the fuel PC 2.x,
(PCCnet) Only level (in gallons) input from PC 3.x
the I/O module.
16
Sign: S
43747 HMI113 Read 0: Inactive Monitor point for input #1 PC 2.x,
Fault 1 Sta- Only from the annunciator. PC 3.x
tus
1: Active
43748 HMI113 Read 0: Inactive Monitor point for input #2 PC 2.x,
Fault 2 Sta- Only from the annunciator. PC 3.x
tus
1: Active
209
cess tion
43749 HMI113 Read 0: Inactive Monitor point for the input PC 2.x,
Fault 3 Sta- Only #3 from the annunciator. PC 3.x
tus
1: Active
43750 Intake Man- Read Multiplier: 1 Unit: degF Monitor point for the Intake PC 2.x,
ifold Temper- Only Manifold Temperature 1 in- PC 3.x
ature 1 put from the I/O module.
(Aux101)
−32768
16 32762
Sign: S
43751 Low Coolant Read 0: Inactive Monitor point for the Low PC 2.x,
Level Only Coolant Level input from the PC 3.x
(HMI113) PCCnet annunciator.
1: Active
43752 Low Fuel Read 0: Inactive Monitor point for the Low PC 2.x,
Level Only Fuel Level input from the PC 3.x
(HMI113) PCCnet annunciator.
1: Active
43755 Non−Drive Read Multiplier: 1 Unit: degF Monitor point for the Non− PC 2.x,
End Bearing Only Drive End Bearing Temper- PC 3.x
Temperature ature input from the I/O
(Aux101) module.
−65534
16 65535
Sign: S
43756 Number of Read Multiplier: 1 Unit: Used to monitor the amount PC 2.x,
Connected Only of connected bargraph mod- PC 3.x
Bargraph ules.
Modules
Sign: U
43757 Oil Tempera- Read Multiplier: 1 Unit: degF Monitor point for the Oil PC 2.x,
ture Only Temperature input from the PC 3.x
(Aux101) I/O Module.
−65534
16 65535
Sign: S
210
cess tion
43758 Modbus Bus Read Multiplier: 1 Unit: Modbus bus message count PC 2.x,
Message Only PC 3.x
Count
16
Sign: U
43759 Modbus Read Multiplier: 1 Unit: Modbus CRC errors count PC 2.x,
CRC Errors Only PC 3.x
Count
16
Sign: U
43760 Modbus Ex- Read Multiplier: 1 Unit: Modbus exception count PC 2.x,
ception Only PC 3.x
Count
16
Sign: U
43761 Modbus No Read Multiplier: 1 Unit: Modbus no response count PC 2.x,
Response Only PC 3.x
Count
16
Sign: U
43762 Modbus Read Multiplier: 1 Unit: Modbus slave message PC 2.x,
Slave Mes- Only count PC 3.x
sage Count
16
Sign: U
43763 Frequency Read Multiplier: Unit: Hz frequency match error value PC 3.x
Match Error Only 0.001 used by frequency match PI
loop
16
Sign: S
211
cess tion
43767 Load Govern Read Multiplier: Unit: % Indicates the final target set- PC 3.x
kVAR Target Only 0.01 point for generator set kVAR
output when paralleled to
utility
16
Sign: S
43769 Load Govern Read Multiplier: Unit: % Indicates the final target set- PC 3.x
kW Target Only 0.01 point for generator set kW
output when paralleled to
utility
16
Sign: S
43770 Permissive Read 0: Not Allowed Indicates when permissive PC 3.x
Close Al- Only sync check conditions have
lowed been met
1: Allowed
43773 Phase Match Read Multiplier: Unit: deg Phase error signal for the PC 3.x
Error Only 0.01 synchronizer control algo-
rithm
16
Sign: S
43777 Start Type/ Read 0: Inactive This is the status of the PC 2.x,
Input #11
Switch
1: Active
43778 Scheduler Read 0: Off Indicates the current run PC 2.x,
Run Com- Only command coming from the PC 3.x
mand scheduler.
1: No Load
2: With Load
43785 Start At- Read Multiplier: 1 Unit: Number of start attempts PC 2.x,
tempts Since Only since the last reset. PC 3.x
Reset
32 4294967290
Sign: U
212
cess tion
43786 Start At- Read Multiplier: 1 Unit: Number of start attempts PC 2.x,
tempts Since Only since the last reset. PC 3.x
Reset
32 4294967290
Sign: U
43787 Total Start Read Multiplier: 1 Unit: Total number of start at- PC 2.x,
Attempts Only tempts. PC 3.x
32 4294967295
Sign: U
43788 Total Start Read Multiplier: 1 Unit: Total number of start at- PC 2.x,
Attempts Only tempts. PC 3.x
32 4294967295
Sign: U
43789 Backup Start Read 0: Inactive This is the status of the PC 3.x
Disconnect/ Only Configurable Input #33.
Configurable
Input #33
Switch
1: Active
43791 Battery Read 0: Inactive Battery Charger Failed PC 2.x,
Charger Only Switch function output sta- PC 3.x
Failed tus; gives software Inactive/
Switch Active state
1: Active
43792 Battle Short Read 0: Inactive Battle Short Switch function PC 2.x,
Switch Only output status (Active or In- PC 3.x
active).
1: Active
state
1: Active
state
1: Active
213
cess tion
state
1: Active
43796 Genset CB Read 0: Inactive generator set cb open com- PC 3.x
Open Com- Only mand status
mand
1: Active
43800 Rated Cool- Read/ Multiplier: 1 Unit: seconds Minimum time to spend at PC 2.x,
down Time Write rated speed less than 10% PC 3.x
load before normal shut-
down is allowed
16
Sign: U
43801 Rated to Idle Read/ Multiplier: Unit: seconds Sets the delay time for tran- PC 2.x,
Transition Write 0.1 sitioning from Rated to Idle PC 3.x
Delay speed. 0 seconds = feature
is disabled.
16
Sign: U
43802 Rupture Ba- Read/ Multiplier: Unit: seconds Rupture Basin fault time PC 2.x,
sin Time Write 0.1 delay PC 3.x
16
Sign: U
43803 Start Time Read/ Multiplier: 1 Unit: seconds Sets the time to wait from PC 2.x,
Delay Write receiving a valid remote PC 3.x
start signal until starting the
generator set
16
Sign: U
43804 Starting to Read/ Multiplier: Unit: seconds The time over which the PC 2.x,
Rated Ramp Write 0.1 speed reference is to ramp PC 3.x
Time from starting speed to rated
speed
214
cess tion
16
Sign: U
43805 Time Delay Read/ Multiplier: 1 Unit: seconds Sets time to run at rated PC 2.x,
to Stop Write speed before going to cool- PC 3.x
down at idle. Does not apply
to manual runs
16
Sign: U
43806 Voltage Ad- Read/ Multiplier: Unit: % A trim that allows the user PC 2.x,
just Write 0.01 to add/subtract an offset to PC 3.x
the nominal voltage when
calculating the voltage set-
point
16
Sign: S
43807 Voltage Read/ Multiplier: Unit: seconds The time period over which PC 2.x,
Ramp Time Write 0.01 the voltage setpoint com- PC 3.x
mand should rise from 0%
to the target voltage
16
Sign: U
43808 Commit to Read 0: Not Committed PTC − Indicates if system is PC 3.x
Transfer Only committed to transferring to
State generator set
1: Committed
43810 Battle Short Read/ 0: Inactive Trim to enable Battle Short PC 2.x,
Switch (Mod- Write via Modbus. PC 3.x
bus)
1: Active
43811 Exercise Read/ 0: Inactive Modbus exercise switch PC 2.x,
Switch (Mod- Write PC 3.x
bus)
1: Active
43813 Extended Read/ 0: Inactive Modbus extended parallel PC 2.x,
Parallel Write switch PC 3.x
Switch (Mod-
bus)
1: Active
215
cess tion
43814 PTC Mode Read/ 0: Inactive Modbus PTC Mode switch PC 3.x
Switch (Mod- Write
bus)
1: Active
43815 Start Type Read/ 0: Emergency Modbus start type switch PC 2.x,
(Modbus) Write PC 3.x
1: Non Emergency
43817 Genset Cir- Read/ 0: Inactive Identical operation to the Confi- PC 3.x
cuit Breaker Write 1: Active configurable input of the gurable
Inhibit same name. Opens genset Input
breaker if closed; inhibits
closure if genset breaker is
open.
43818 Isolated Bus Read/ 0: Constant Sets the speed control PC 2.x,
Speed Con- Write method for isolated bus par- PC 3.x
trol Method alleling. Parameter is also
known as Load Share
Speed Droop Control Meth-
od
1: Droop
43819 Isolated Bus Read/ 0: Constant Sets the voltage control PC 2.x,
Voltage Con- Write method for isolated bus par- PC 3.x
trol Method alleling.
1: Droop
43820 Maximum Read/ Multiplier: Unit: seconds Sets the maximum time that PC 3.x
Parallel Time Write 0.1 the generator set can re-
(TDMP) main paralleled to the utility
during closed transition
transfers.
16
Sign: U
43821 Programmed Read/ Multiplier: Unit: seconds Sets the time delay from PC 3.x
Transition Write 0.1 when one source opens un-
Delay til the other closes during
(TDPT) open transition transfers.
16
Sign: U
43822 Retransfer Read/ Multiplier: Unit: seconds Sets the amount of time that PC 3.x
Delay Write 0.1 the utility source must be
(TDEN) available before the control
will retransfer to that source.
216
cess tion
16
Sign: U
43823 Synchronizer Read/ 0: Phase Match Sets the speed control PC 3.x
Speed Con- Write method for synchronizing.
trol Method
1: Slip Frequency
2: External
43824 Synchronizer Read/ 0: Voltage Match Sets the voltage control PC 3.x
Voltage Con- Write method for synchronizing.
trol Method
1: External
43825 Transfer Read/ Multiplier: Unit: seconds Sets the amount of time that PC 3.x
Delay Write 0.1 the generator set source
(TDNE) must be available before the
control will transfer to that
source.
16
Sign: U
43826 Transition Read/ 0: Open Transition Sets the load transfer transi- PC 3.x
Type Write tion type for use when Gen-
erator set Application Type
= Power Transfer Control.
1: Hard Closed Transition
2: Soft Closed Transition
43827 Retransfer Read/ 0: Inactive Identical operation to the Confi- PC 3.x
Inhibit Write 1: Active configurable input of the gurable
same name. Normally inhib- Input
its retransfer to the utility;
under some conditions it is
ignored; not the same as
utility circuit breaker inhibit.
43828 Utility Circuit Read/ 0: Inactive Identical operation to the Confi- PC 3.x
Breaker In- Write 1: Active configurable input of the gurable
hibit same name. Opens utility Input
main if closed; inhibits clo-
sure if utility main is open.
43829 Utility Paral- Read/ 0: Load Govern Sets the speed control PC 3.x
lel Speed Write method for utility paralleling.
Control
Method
1: Droop
217
cess tion
43830 Utility Paral- Read/ 0: Load Govern Sets the voltage control PC 3.x
lel Voltage Write method for utility paralleling.
Control
Method
1: Droop
2: Load Govern with Droop Feed
Forward
43831 Aux101 De- Read/ 0: Critical Device Response Selects the generator set PC 2.x,
vice 0 Write reaction to a loss of a De- PC 3.x
PCCnet Fail- vice 0 I/O module as critical
ure Re- (Shutdown) or non−critical
sponse Type (Warning).
1: Non−Critical Device Response
43832 Aux101 De- Read/ 0: Critical Device Response Selects the generator set PC 2.x,
vice 1 Write reaction to a loss of a De- PC 3.x
PCCnet Fail- vice 1 I/O module as critical
ure Re- (Shutdown) or non−critical
sponse Type (Warning).
43834 HMI113 An- Read/ 0: Critical Device Response Selects the generator set PC 2.x,
nunciator Write reaction to a loss of an an- PC 3.x
PCCnet Fail- nunciator as critical or non−
ure Re- critical. Selecting critical will
sponse Type cause a shutdown when the
annunciator looses commu-
nication.
43836 HMI220 Read/ 0: Critical Device Response Selects the generator set PC 2.x,
PCCnet Fail- Write reaction to a loss of an PC 3.x
ure Re- HMI220 operator panel as
sponse Type critical or non−critical.. A
critical response will shut-
down the generator set
when PCCnet communica-
tion is lost.
43837 HMI320 Read/ 0: Critical Device Response Selects the generator set PC 2.x,
PCCnet Fail- Write reaction to a loss of an PC 3.x
ure Re- HMI320 operator panel as
sponse Type critical or non−critical.. A
critical response will shut-
down the generator set
when PCCnet communica-
tion is lost.
218
cess tion
43839 PCCnet De- Read/ Multiplier: 1 Unit: seconds Selects the time allowed for PC 2.x,
vice Failure Write arbitration to occur before a PC 3.x
Time Delay PCCnet failure fault is gen-
erated.
Sign: U
43840 Test With Read/ 0: Disabled Use to choose whether a PC 3.x
Load Enable Write test is with load or without
load.
1: Enabled
43841 Transfer In- Read/ 0: Inactive Identical operation to the Confi- PC 3.x
hibit Write 1: Active configurable input of the gurable
same name. Normally inhib- Input
its transfer to the genset;
under some conditions it is
ignored; not the same as
genset circuit breaker inhib-
it.
43842 Commit to Read/ 0: Utility Disconnect PTC − sets point at which PC 3.x
Transfer Write system commits to transfer
Method to generator set
1: Genset Start
2: No Commit
43843 Commit to Read/ Multiplier: 1 Unit: seconds PTC − sets time system will PC 3.x
Transfer Write wait for generator set when
Timeout committed to transfer
16
Sign: U
43844 Commit to Read Multiplier: Unit: sec PTC − remaining time sys- PC 3.x
Transfer Only 0.05 tem to wait for generator set
Timer when committed to transfer
16
Sign: U
43845 Modbus Fail- Read/ Multiplier: 1 Unit: seconds Time delay before the con- PC 2.x,
ure Time Write trol activates the Modbus PC 3.x
Delay failure fault after the master
is sensed as no longer pres-
ent.
16
219
cess tion
Sign: U
43846 Modbus Read/ 0: Do Nothing When set to Reset Com- PC 2.x,
Communica- Write mands will reset the Mod- PC 3.x
tions Lost bus control logicals to an in-
Response active state when Modbus
Method communications are lost
1: Reset Commands
43847 Modbus Read/ 0: Do Nothing Resets all Modbus count- PC 2.x,
Clear Count- Write ers, including J14 if applica- PC 3.x
ers ble.
1: Clear Counters
43848 Controlled Read/ Multiplier: 1 Unit: seconds maximum ramp unload time PC 3.x
Shutdown Write during a shutdown with
Max Ramp cooldown
Unload Time
16
Sign: U
43849 Genset Read/ Multiplier: 1 Unit: kVAR Sets the generator set load PC 3.x
kVAR Set- Write govern kVAR base load in-
point ternal operating setpoint in
units of kVAR. Requires that
Load Govern kVAR Setpoint
Source = Internal and Load
Govern kVAR Method =
generator set kVAR.
16 20000
Sign: S
43850 Genset Read/ Multiplier: Unit: % Sets the generator set load PC 3.x
kVAR Set- Write 0.01 govern kVAR base load in-
point Per- ternal operating setpoint in
cent % of standby kVA rating.
Requires that Load Govern
kVAR Setpoint Source = In-
ternal and Load Govern
kVAR Method = generator
set kVAR.
16
Sign: S
220
cess tion
43851 Genset kW Read/ Multiplier: 1 Unit: kW Sets the generator set load PC 3.x
Setpoint Write govern kW base load inter-
nal operating setpoint in
units of kW. Requires that
Load Govern kW Setpoint
Govern kW Method = Gen-
set kW.
16 20000
Sign: S
43852 Genset kW Read/ Multiplier: Unit: % Sets the generator set load PC 3.x
Setpoint Per- Write 0.01 govern kW base load inter-
cent nal operating setpoint in %
of standby rating. Requires
that Load Govern kW Set-
point Source = Internal and
Load Govern kW Method =
Genset kW.
16
Sign: S
43853 Genset Pow- Read/ Multiplier: Unit: PF Sets the load govern set- PC 3.x
er Factor Write 0.01 point for generator set pow-
Setpoint er factor control. Requires
that Load Govern kVAR
Setpoint Source = Internal
and Load Govern kVAR
Method = Genset Power
Factor.
Sign: S
43854 Load De- Read/ 0: Inactive Modbus input for activating PC 3.x
mand Stop Write load demand stop on the
(Modbus) generator set
1: Active
43855 Load Govern Read/ 0: Genset kVAR Use to select how generator PC 3.x
kVAR Meth- Write set kVAR output will be con-
od trolled when paralleled to
utility.
1: Genset Power Factor
2: Utility kVAR
3: Utility Power Factor
221
cess tion
43856 Load Govern Read/ Multiplier: 1 Unit: seconds Sets load govern kVAR PC 3.x
kVAR Ramp Write ramp load rate = Genset
Load Time Standby kVA * 0.6/ this time.
16
Sign: U
43857 Load Govern Read/ Multiplier: 1 Unit: seconds Sets load govern kVAR PC 3.x
kVAR Ramp Write ramp unload rate = Genset
Unload Time Standby KVA * 0.6/ this
time.
16
Sign: U
43858 Utility Break- Read/ 0: After Transfer Delay PTC − point in time at which PC 3.x
er Opening Write system opens utility breaker
Point
1: Upon Utility Failure
43859 Load Govern Read/ Multiplier: 1 Unit: seconds Sets load govern kW ramp PC 3.x
kW Ramp Write load rate = Genset Standby
Load Time kW rating/ this time.
16
Sign: U
43860 Load Govern Read/ Multiplier: 1 Unit: seconds Sets load govern kW ramp PC 3.x
kW Ramp Write unload rate = Genset
Unload Time Standby kW rating/ this
time.
16
Sign: U
43862 Slip Fre- Read/ Multiplier: Unit: Hz Sets the synchronizer slip PC 3.x
quency Write 0.001 frequency. Requires that
Sync Speed Control Method
= Slip Frequency.
16
Sign: S
222
cess tion
43863 Utility kVAR Read/ Multiplier: 1 Unit: kVAR Sets the utility kVAR peak PC 3.x
Setpoint Write shave internal operating
setpoint in units of kVAR.
Requires that Load Govern
kVAR Method = Utility kVAR
−20000
16 20000
Sign: S
43864 Utility kVAR Read/ Multiplier: Unit: % Sets the utility kVAR peak PC 3.x
Setpoint Per- Write 0.01 shave internal operating
cent setpoint in % of generator
set standby kVA rating. Re-
quires that Load Govern
kVAR Method = Utility
kVAR.
16
Sign: S
43865 Utility kW Read/ Multiplier: 1 Unit: kW Sets the utility kW minimum PC 3.x
Constraint Write load level for constrained
base load mode of opera-
tion. Requires that Load
Govern kW Setpoint Source
= Internal and Load Govern
kW Method = Genset kW w/
Utility Constraint.
−20000
16 20000
Sign: S
43866 Utility kW Read/ Multiplier: Unit: % Sets utility kW minimum PC 3.x
Constraint Write 0.01 load level for constrained
Percent base load mode in % of
generator set standby rat-
ing. Requires that Load
Govern kW Setpoint Source
= Internal and Load Govern
kW Method = Genset kW w/
Utility Constraint.
223
cess tion
16
Sign: S
43867 Utility kW Read/ Multiplier: 1 Unit: kW Sets the utility kW peak PC 3.x
Setpoint Write shave internal operating
setpoint in units of kW. Re-
quires that Load Govern kW
Setpoint Source = Internal
and Load Govern kW Meth-
od = Utility kW.
−20000
16 20000
Sign: S
43868 Utility kW Read/ Multiplier: Unit: % Sets the utility kW peak PC 3.x
Setpoint Per- Write 0.01 shave internal operating
cent setpoint in % of generator
set standby rating. Requires
that Load Govern kW Set-
point Source = Internal and
Load Govern kW Method =
Utility kW.
16
Sign: S
43869 Utility Power Read/ Multiplier: Unit: PF Sets the internal setpoint for PC 3.x
Factor Set- Write 0.01 utility power factor control
point mode when paralleled to
utility. Requires that Load
Govern kVAR Setpoint
Govern kVAR Method = Util-
ity Power Factor.
Sign: S
43870 Aux101 0 Read/ Multiplier: 1 Unit: Parameter to allow for the PC 2.x,
Output 2 Write entry of the fault/event code PC 3.x
Fault/Event which will turn the output
relay on and off.
16 65530
224
cess tion
Sign: U
relay on and off.
16 65530
Sign: U
relay on and off.
16 65530
Sign: U
relay on and off.
16 65530
Sign: U
relay on and off.
16 65530
Sign: U
relay on and off.
16 65530
Sign: U
relay on and off.
225
cess tion
16 65530
Sign: U
relay on and off.
16 65530
Sign: U
relay on and off.
16 65530
Sign: U
relay on and off.
16 65530
Sign: U
relay on and off.
16 65530
Sign: U
relay on and off.
16 65530
Sign: U
226
cess tion
relay on and off.
16 65530
Sign: U
relay on and off.
16 65530
Sign: U
relay on and off.
16 65530
Sign: U
relay on and off.
16 65530
Sign: U
relay on and off.
16 65530
Sign: U
relay on and off.
227
cess tion
16 65530
Sign: U
relay on and off.
16 65530
Sign: U
relay on and off.
16 65530
Sign: U
relay on and off.
16 65530
Sign: U
relay on and off.
16 65530
Sign: U
relay on and off.
16 65530
Sign: U
228
cess tion
relay on and off.
16 65530
Sign: U
relay on and off.
16 65530
Sign: U
relay on and off.
16 65530
Sign: U
relay on and off.
16 65530
Sign: U
relay on and off.
16 65530
Sign: U
relay on and off.
229
cess tion
16 65530
Sign: U
43900 HMI113 Out- Read/ Multiplier: 1 Unit: Parameter to allow for the PC 2.x,
put 1 Fault/ Write entry of the fault/event code PC 3.x
Event which will turn the output
relay on and off.
16 65530
Sign: U
relay on and off.
16 65530
Sign: U
relay on and off.
16 65530
Sign: U
relay on and off.
16 65530
Sign: U
relay on and off.
16 65530
Sign: U
230
cess tion
relay on and off.
16 65530
Sign: U
relay on and off.
16 65530
Sign: U
43915 Extended Read/ 0: Disabled use to enable the extended PC 3.x
Parallel En- Write paralleling mode of PTC
able
1: Enabled
43916 V/Hz Knee Read Multiplier: Unit: Hz The voltage will roll off (de- PC 2.x,
Frequency Only 0.1 crease) proportionally to the PC 3.x
50Hz V/Hz setup, once the fre-
drops. This is for 50Hz fre-
quency.
16
Sign: U
43917 V/Hz Knee Read Multiplier: Unit: Hz The voltage will roll off (de- PC 2.x,
Frequency Only 0.1 crease) proportionally to the PC 3.x
60Hz V/Hz setup, once the fre-
drops. This is for 60Hz fre-
quency.
16
231
cess tion
Sign: U
43918 V/Hz Rolloff Read Multiplier: Unit: % / Hz The amount of voltage roll PC 2.x,
Slope 50Hz Only 0.1 off when the frequency is PC 3.x
16
Sign: U
43919 V/Hz Rolloff Read Multiplier: Unit: % / Hz The amount of voltage roll PC 2.x,
Slope 60Hz Only 0.1 off when the frequency is PC 3.x
16
Sign: U
43920 Genset Read/ Multiplier: 1 Unit: Name for the generator set PC 2.x,
Source Write source. PC 3.x
Name
136
Sign: C
Name
136
Sign: C
Name
136
Sign: C
Name
136
Sign: C
232
cess tion
Name
136
Sign: C
Name
136
Sign: C
Name
136
Sign: C
Name
136
Sign: C
Name
136
Sign: C
Name
136
Sign: C
233
cess tion
Name
136
Sign: C
Name
136
Sign: C
Name
136
Sign: C
Name
136
Sign: C
Name
136
Sign: C
Name
136
Sign: C
234
cess tion
43952 Speed/Fre- Read/ Multiplier: Unit: seconds Sets the delay time for gen- PC 2.x,
quency Write 0.1 erating the Speed/Frequen- PC 3.x
Delay cy mismatch fault
16
Sign: U
43953 Speed/Fre- Read/ Multiplier: Unit: Hz Sets the threshold for gen- PC 2.x,
quency Write 0.1 erating the Speed/Frequen- PC 3.x
Threshold cy mismatch fault
16
Sign: U
43955 Genset Idle Read 0: Disabled Enables or Disable idling of PC 2.x,
Enable Only generator set with external PC 3.x
governor.
1: Enabled
43959 Utility Un- Read/ Multiplier: 1 Unit: kW Sets threshold at which util- PC 3.x
loaded Level Write ity source is considered as
unloaded.
−32768
16 32762
Sign: S
43960 HMI113 Read/ Multiplier: 1 Unit: Twenty (20) character text PC 2.x,
168
Sign: C
168
Sign: C
235
cess tion
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
236
cess tion
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
237
cess tion
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
238
cess tion
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
239
cess tion
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
240
cess tion
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
241
cess tion
168
Sign: C
45999 Unrecog- Read 0: All Pairs Recognized Indicates whether or not all PC 2.x,
nized SPN/ Only pairs in current DM1 are PC 3.x
FMI Status recognized
1: Pair Not Recognized
46000 Genset Read 0: L1−L2−L3 Generator set phase rota- PC 2.x,
Phase Rota- Only tion PC 3.x
tion
1: L1−L3−L2
2: Not Available
46001 Utility Phase Read 0: L1−L2−L3 Utility phase rotation PC 3.x
Rotation Only
1: L1−L3−L2
2: Not Available
46002 Genset Bus Read 0: L1−L2−L3 Generator set bus phase PC 3.x
Phase Rota- Only rotation
tion
1: L1−L3−L2
2: Not Available
46003 Base Speed Read Multiplier: Unit: RPM Provides a point to monitor PC 2.x,
Only 0.0625 the base speed PC 3.x
32
Sign: U
46004 Base Speed Read Multiplier: Unit: RPM Provides a point to monitor PC 2.x,
Only 0.0625 the base speed PC 3.x
32
Sign: U
46005 Final Speed Read Multiplier: Unit: RPM Provides a point to monitor PC 2.x,
Reference Only 0.0625 the final speed reference PC 3.x
32
Sign: U
242
cess tion
46006 Final Speed Read Multiplier: Unit: RPM Provides a point to monitor PC 2.x,
Reference Only 0.0625 the final speed reference PC 3.x
32
Sign: U
46008 Exhaust Port Read Multiplier: Unit: degF Monitor point for the Ex- PC 2.x,
1 Tempera- Only 0.1 haust Port 1 Temperature PC 3.x
ture
16
Sign: S
ture
16
Sign: S
ture
16
Sign: S
ture
16
Sign: S
ture
16
Sign: S
ture
243
cess tion
16
Sign: S
ture
16
Sign: S
ture
16
Sign: S
ture
16
Sign: S
ture
16
Sign: S
ture
16
Sign: S
ture
244
cess tion
16
Sign: S
ture
16
Sign: S
ture
16
Sign: S
ture
16
Sign: S
ture
16
Sign: S
ture
16
Sign: S
ture
16
245
cess tion
Sign: S
ture
16
Sign: S
ture
16
Sign: S
46028 Knock Level Read Multiplier: 1 Unit: % Knock Level for cylinder 1 PC 3.x
Cylinder 1 Only
Sign: U
Cylinder 2 Only
Sign: U
Cylinder 3 Only
Sign: U
Cylinder 4 Only
Sign: U
Cylinder 5 Only
Sign: U
Cylinder 6 Only
246
cess tion
Sign: U
Cylinder 7 Only
Sign: U
Cylinder 8 Only
Sign: U
Cylinder 9 Only
Sign: U
Cylinder 10 Only
Sign: U
Cylinder 11 Only
Sign: U
Cylinder 12 Only
Sign: U
Cylinder 13 Only
Sign: U
Cylinder 14 Only
247
cess tion
Sign: U
Cylinder 15 Only
Sign: U
Cylinder 16 Only
Sign: U
Cylinder 17 Only
Sign: U
Cylinder 18 Only
Sign: U
46048 Knock Count Read Multiplier: 1 Unit: Knock count value for Cylin- PC 3.x
Cyl 1 Only der 1
16 65530
Sign: U
Cyl 2 Only der 2
16 65530
Sign: U
Cyl 3 Only der 3
16 65530
Sign: U
Cyl 4 Only der 4
248
cess tion
16 65530
Sign: U
Cyl 5 Only der 5
16 65530
Sign: U
Cyl 6 Only der 6
16 65530
Sign: U
Cyl 7 Only der 7
16 65530
Sign: U
Cyl 8 Only der 8
16 65530
Sign: U
Cyl 9 Only der 9
16 65530
Sign: U
Cyl 10 Only der 10
16 65530
Sign: U
Cyl 11 Only der 11
249
cess tion
16 65530
Sign: U
Cyl 12 Only der 12
16 65530
Sign: U
Cyl 13 Only der 13
16 65530
Sign: U
Cyl 14 Only der 14
16 65530
Sign: U
Cyl 15 Only der 15
16 65530
Sign: U
Cyl 16 Only der 16
16 65530
Sign: U
Cyl 17 Only der 17
16 65530
Sign: U
Cyl 18 Only der 18
250
cess tion
16 65530
Sign: U
46068 Spark Timing Read Multiplier: Unit: Degrees Spark timing degrees for PC 3.x
Cyl 1 Only 0.1 cylinder 1
16
Sign: S
16
Sign: S
16
Sign: S
16
Sign: S
16
Sign: S
16
Sign: S
251
cess tion
16
Sign: S
16
Sign: S
16
Sign: S
16
Sign: S
16
Sign: S
16
Sign: S
16
Sign: S
252
cess tion
16
Sign: S
16
Sign: S
16
Sign: S
16
Sign: S
16
Sign: S
46088 Internal Read Multiplier: Unit: degF Temperature of the engine PC 3.x
SSM558 1 Only 0.1 electronic control unit
Temperature SSM558 1
16
Sign: S
SSM558 2 Only 0.1 electronic control unit
Temperature SSM558 2
16
Sign: S
253
cess tion
MCM700 Only 0.1 electronic control unit
Temperature MCM700
16
Sign: S
46091 Derate Au- Read 0: NO Derate authorization re- PC 3.x
thorization Only quest from customer.
1: YES
2: Reserved
3: N/A
46093 Ventilator Read 0: OFF Vent Fan status monitor PC 3.x
Fan Status Only point.
1: ON
2: TRIPPED
3: N/A
46096 GIB Isolator Read 0: Close GIB Isolator Open monitor PC 3.x
Open Only point.
(Aux101)
1: Open
2: Reserved
3: N/A
46097 Alternator Read 0: OFF Alternator Heater status PC 3.x
Heater Sta- Only monitor point.
tus
1: ON
2: TRIPPED
3: N/A
46101 Start Inhibit Read 0: Inactive Start Inhibit No1 monitor PC 3.x
No1 Only point.
(Aux101)
1: Active
2: Reserved
3: N/A
No2 Only point.
(Aux101)
1: Active
2: Reserved
3: N/A
No3 Only point.
(Aux101)
254
cess tion
1: Active
2: Reserved
3: N/A
46104 DC PSU Un- Read 0: No Engine PSU Not Available PC 3.x
available Only monitor point.
(Aux101)
1: Yes
46105 Ventilator Read 0: No Ventilator Fan Trip monitor PC 3.x
Fan Trip Only point.
(Aux101)
1: Yes
46106 Aux101−3 Read Multiplier: Unit: Software version of the firm- PC 3.x
Software Only 0.01 ware for the Aux101−3
Version
16
Sign: U
Version
16
Sign: U
Version
16
Sign: U
46113 Downstream Read 0: Open The result of the FSO driver PC 3.x
Valve Com- Only output command logic for
mand Status fuel shutoff valve 1
1: Closed
2: Reserved
3: N/A
46117 Engine Oil Read 0: OFF Engine Oil pre heater com- PC 3.x
PreHeater Only mand status
Ctrl Status
1: ON
2: Reserved
3: N/A
255
cess tion
46120 Engine Cool- Read 0: OFF Engine coolant circulating PC 3.x
ant Pump Only pump status
Ctrl Status
1: ON
2: Reserved
3: N/A
46124 Coolant Read Multiplier: Unit: psi Monitor point for the Cool- PC 2.x,
Pressure Only 0.1 ant Pressure. PC 3.x
16
Sign: U
46125 Coolant 2 Read Multiplier: Unit: psi Monitor point for the Cool- PC 3.x
Pressure Only 0.1 ant 2 Pressure.
16
Sign: U
46127 Coolant 2 Read Multiplier: Unit: degF Monitor point for the Cool- PC 3.x
Temperature Only 0.1 ant 2 Temperature
16
Sign: S
46128 Compressor Read Multiplier: Unit: % Engine turbocharger com- PC 3.x
Bypass Posi- Only 0.1 pressor bypass actuator
tion position
16
Sign: U
46130 Oil Priming Read 0: OFF Status for the priming pump PC 3.x
Pump Con- Only (ON or OFF)
trol Status
1: ON
2: Reserved
3: N/A
46131 Oil Priming Read 0: Low Status of the engine before PC 3.x
State Only start (Pre−Lubed or Not)
1: Optimum
2: Reserved
3: N/A
256
cess tion
46133 Coolant Pre− Read 0: Cold Status of the engine coolant PC 3.x
Heated State Only before start (Pre−Heated or
Not)
1: Heated
2: Reserved
3: N/A
46135 Intake Man- Read Multiplier: Unit: psi Intake Manifold Pressure 1 PC 3.x
ifold Pres- Only 0.1
sure 1
16
Sign: U
46136 Compressor Read Multiplier: Unit: kPa Absolute Pressure at the PC 3.x
Outlet Pres- Only 0.1 outlet of the compressor.
sure
16
Sign: U
46139 Fuel Valve 1 Read Multiplier: Unit: psi Absolute Pressure of Gas PC 3.x
Inlet Absolu- Only 0.1 on the inlet side of the first
tee Pressure system control valve
16
Sign: U
Outlet Abso- Only 0.1 on the outlet side of the first
lutee Pres- system control valve
sure
16
Sign: U
46141 Fuel Valve 1 Read Multiplier: Unit: % PC 3.x
Position Only 0.1
16
Sign: U
Inlet Absolu- Only 0.1 on the inlet side of the sec-
tee Pressure ond system control valve
257
cess tion
16
Sign: U
Outlet Abso- Only 0.1 on the outlet side of the sec-
lutee Pres- ond system control valve
sure
16
Sign: U
46144 Fuel Valve 2 Read Multiplier: Unit: % PC 3.x
Position Only 0.1
16
Sign: U
46145 Gas Mass Read Multiplier: Unit: Pounds per Gas Mass Flow value of the PC 3.x
Flow Only 0.1 hour engine.
32
Sign: U
46146 Gas Mass Read Multiplier: Unit: Pounds per Gas Mass Flow value of the PC 3.x
Flow Only 0.1 hour engine.
32
Sign: U
46147 Throttle 1 Read Multiplier: Unit: % Position of the throttle 1. PC 3.x
Position Only 0.1
16
Sign: U
46148 Throttle 2 Read Multiplier: Unit: % Position of the throttle 2. PC 3.x
Position Only 0.1
16
Sign: U
258
cess tion
46155 MCM700 Read Multiplier: Unit: Vdc Engine Control Module Bat- PC 3.x
Battery Volt- Only 0.1 tery Voltage.
age
16 65535
Sign: U
46161 SSM558 1 Read Multiplier: Unit: Vdc SSM558 1 Engine Control PC 3.x
Isolated Bat- Only 0.1 Module Isolated Battery
tery Voltage Voltage.
16 65535
Sign: U
46163 SSM558 2 Read Multiplier: Unit: Vdc SSM558 2 Engine Control PC 3.x
Isolated Bat- Only 0.1 Module Isolated Battery
tery Voltage Voltage.
16 65535
Sign: U
46164 Intake Man- Read Multiplier: Unit: psi Intake Manifold Pressure 2 PC 3.x
ifold Pres- Only 0.1
sure 2
16
Sign: U
46166 Exhaust Read Multiplier: Unit: psi Monitor point for exhaust PC 3.x
Back Pres- Only 0.1 back pressure value
sure
16
Sign: U
46170 Gas Mass Read Multiplier: Unit: Pounds per Gas Mass Flow 2 value of PC 3.x
Flow 2 Only 0.1 hour the engine.
32
Sign: U
46171 Gas Mass Read Multiplier: Unit: Pounds per Gas Mass Flow 2 value of PC 3.x
Flow 2 Only 0.1 hour the engine.
259
cess tion
32
Sign: U
46182 Radiator Fan Read 0: Inactive Radiator fan control com- PC 3.x
control Only mand
1: Active
46183 Ventilator Read/ 0: Limited Vent fan control mode, limit- PC 3.x
Fan mode Write ed or continuous
1: Continuous
46184 Louvre Con- Read 0: Inactive Louvre control PC 3.x
trol Only
1: Active
46191 Ventilator Read 0: Inactive Ventilator fan control com- PC 3.x
Fan control Only mand
1: Active
46288 DE/NDE Cyl- Read/ 0: Drive End Gives reference point for PC 3.x
inder View- Write engine cylinder numbering
point Refer-
ence
1: Non−Drive End
2: Reserved
3: N/A
46289 Start System Read 0: Not Tripped Start system trip monitor PC 3.x
Trip (Aux Only point.
101)
1: Tripped
2: Reserved
3: N/A
46290 Louvres Read 0: Open Louvres Closed monitor PC 3.x
Closed (Aux Only point.
101)
1: Closed
2: Reserved
3: N/A
46291 Radiator Fan Read 0: Not Tripped Radiator Fan Trip monitor PC 3.x
Trip (Aux Only point.
101)
1: Tripped
2: Reserved
3: N/A
46300 LBNG Gen- Read/ 0: Disable Switch to enable or disable PC 3.x
set Enable Write the gas specific features
and parameters
1: Enable
260
cess tion
46301 Aux101−3 Read/ 0: Disable Enable the processing for PC 3.x
Enable Write Aux101−3 messages
1: Enable
1: Enable
1: Enable
1: Enable
46308 Aux101−3 Read Multiplier: 1 Unit: Input Port configuration bye PC 3.x
Input Port Only for the Aux101−3
Config
16
Sign: U
Config
16
Sign: U
Config
16
Sign: U
46311 Aux101−3 DI Read Multiplier: 1 Unit: Digital Input Port configura- PC 3.x
Active High/ Only tion active High or active
Low Selec- low for the Aux101−3
tion
16
Sign: U
261
cess tion
tion
16
Sign: U
tion
16
Sign: U
46314 Aux101−3 DI Read Multiplier: 1 Unit: Discrete Input configuration PC 3.x
Config Mask Only bit mask for the Aux101−3
16
Sign: U
16
Sign: U
16
Sign: U
46323 Vehicle Elec- Read/ 0: Disabled A trim that enables the Ve- PC 3.x
trical Power Write hicle Electrical Power 2
2 PGN65165 message
Enable
1: Enabled
46326 Gaseous Read/ 0: Disabled A trim that enables the Gas- PC 3.x
Fuel Pres- Write eous Fuel Pressure mes-
sure sage
PGN65163
Enable
1: Enabled
262
cess tion
46327 Fuel Infor- Read/ 0: Disabled A trim that enables the Fuel PC 3.x
mation 3 − Write Information 3 − Gaseous
Gaseous message
PGN64930
Enable
1: Enabled
46328 Fuel Infor- Read/ 0: Disabled A trim that enables the Fuel PC 3.x
mation 2 − Write Information 2 − Gaseous
Gaseous message
PGN65153
Enable
1: Enabled
46332 Inlet/Exhaust Read/ 0: Disabled A trim that enables the Inlet/ PC 3.x
Conditions Write Exhaust Conditions mes-
PGN65270 sage
Enable
1: Enabled
46333 Knock Count Read/ 0: Disabled A trim that enables Knock PC 3.x
1 PGN65336 Write Count 1 message
Enable
1: Enabled
Enable
1: Enabled
Enable
1: Enabled
Enable
1: Enabled
Enable
1: Enabled
46338 Ignition Tim- Read/ 0: Disabled A trim that enables the Igni- PC 3.x
ing 1 Write tion Timing 1 message
PGN65154
Enable
1: Enabled
PGN65155
Enable
263
cess tion
1: Enabled
PGN65156
Enable
1: Enabled
PGN65157
Enable
1: Enabled
PGN65158
Enable
1: Enabled
46344 Start−Enable Read/ 0: Disable Remote MODBUS Start− PC 3.x
(MODBUS Write Enable input.
Input)
1: Enable
46366 Modbus Read/ 0:01 Sets the Modbus number of PC 3.x
Stop Bits Write stop bits for this node Limit-
(J14) ed to 1 bit if parity = Odd or
Even
1:02
46367 Modbus Bus Read Multiplier: 1 Unit: The number of Modbus PC 3.x
Message Only messages with no re-
Count (J14) sponse, for J14 port only
16
Sign: U
46368 Modbus Read Multiplier: 1 Unit: The number of Modbus PC 3.x
CRC Error Only CRC errors, for J14 only.
Count (J14)
16
Sign: U
46369 Modbus Ex- Read Multiplier: 1 Unit: Modbus exception count, for PC 3.x
ception Only J14 only.
Count (J14)
16
264
cess tion
Sign: U
46370 Modbus No Read Multiplier: 1 Unit: Modbus no response count, PC 3.x
Response Only for J14 only.
Count (J14)
16
Sign: U
46371 Modbus Read Multiplier: 1 Unit: The number of Modbus PC 3.x
Slave Mes- Only slave messages, for J14
sage Count only.
(J14)
16
Sign: U
46372 Modbus Read/ Multiplier: 1 Unit: Sets the Modbus address PC 3.x
Node Ad- Write for this node, for J14 only.
dress (J14)
Sign: U
46373 Modbus Read/ 1.6666667 Sets the baud rate for Mod- PC 3.x
Baud Rate Write bus communications, for
(J14) J14 only.
3.375
6.75
3: 19200
46374 Modbus Par- Read/ 0: Even Sets the Modbus parity for PC 3.x
ity (J14) Write this node, for J14 only.
1: Odd
2: None
46376 Modbus Read/ 0: 2400 Baud Sets the Modbus baud rate. PC 2.x,
Baud Rate Write PC 3.x
1: 4800 Baud
2: 9600 Baud
3: 19200 Baud
4: 38400 Baud
46377 Modbus Par- Read/ 0: Even Sets the Modbus parity for PC 2.x,
ity Write this node PC 3.x
1: Odd
2: None
265
cess tion
46378 Modbus Read/ Multiplier: 1 Unit: Sets the Modbus address PC 2.x,
Node Ad- Write for this node PC 3.x
dress
Sign: U
46379 Modbus Read/ 0:01 Sets the Modbus number of PC 2.x,
Stop Bits Write stop bits for this node Limit- PC 3.x
ed to 1 bit if parity = Odd or
Even
1:02
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
266
cess tion
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
267
cess tion
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
168
Sign: C
268
cess tion
168
Sign: C
168
Sign: C
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
269
cess tion
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
270
cess tion
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
271
cess tion
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
272
cess tion
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
273
cess tion
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
274
cess tion
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
275
cess tion
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
276
cess tion
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
277
cess tion
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
278
cess tion
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
279
cess tion
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
280
cess tion
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
281
cess tion
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
282
cess tion
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
283
cess tion
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
284
cess tion
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
285
cess tion
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
286
cess tion
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
287
cess tion
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
288
cess tion
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
289
cess tion
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
290
cess tion
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
291
cess tion
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
292
cess tion
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
293
cess tion
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
294
cess tion
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
295
cess tion
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
296
cess tion
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
297
cess tion
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
298
cess tion
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
299
cess tion
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
300
cess tion
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
301
cess tion
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
302
cess tion
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
303
cess tion
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
304
cess tion
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
305
cess tion
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
306
cess tion
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
307
cess tion
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
308
cess tion
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
309
cess tion
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
310
cess tion
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
311
cess tion
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
312
cess tion
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
313
cess tion
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
314
cess tion
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
315
cess tion
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
316
cess tion
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
317
cess tion
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
318
cess tion
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
fault text.
168
Sign: C
319
cess tion
fault text.
168
Sign: C
fault text.
168
Sign: C
47002 GK1 (60Hz) Read Multiplier: 1 Unit: The governor 60Hz K1 gain PC 2.x,
Only adjust. MODBUS Access: PC 3.x
Read Only
16 65530
Sign: U
47003 GK2 (60Hz) Read Multiplier: 1 Unit: The governor 60Hz integral PC 2.x,
Only gain adjust. MODBUS Ac- PC 3.x
cess: Read Only
16 65530
Sign: U
Read Only
16 65530
Sign: U
47005 Governor Read Multiplier: Unit: The governor 60Hz damp- PC 2.x,
Damping Ef- Only 1.52587890 ing adjust. MODBUS Ac- PC 3.x
fect (60Hz) 625E−05 cess: Read Only
Size (bits): Upper Limit: 0.95
16
Sign: U
320
cess tion
Read Only
16 65530
Sign: U
47007 GK2 (50Hz) Read Multiplier: 1 Unit: The governor 50Hz integral PC 2.x,
Only gain adjust. MODBUS Ac- PC 3.x
cess: Read Only
16 65530
Sign: U
Read Only
16 65530
Sign: U
47009 Governor Read Multiplier: Unit: The governor 50Hz damp- PC 2.x,
Damping Ef- Only 1.52587890 ing adjust. MODBUS Ac- PC 3.x
fect (50Hz) 625E-05 cess: Read Only
Size (bits): Upper Limit: 0.95
16
Sign: U
47010 GK1(Idle) Read Multiplier: 1 Unit: This trim is used to adjust PC 2.x,
Only gk1 in idle mode. MODBUS PC 3.x
Access: Read Only
16 65530
Sign: U
47011 GK2(Idle) Read Multiplier: 1 Unit: This trim is used to adjust PC 2.x,
Only gk2 in idle mode. MODBUS PC 3.x
Access: Read Only
16 65530
Sign: U
321
cess tion
47014 Gain Win- Read 0: Disable Either enables or disables PC 2.x,
dowing En- Only Gain Windowing feature. PC 3.x
able MODBUS Access: Read
Only
1: Enable
47015 GK1 Read Multiplier: 1 Unit: The governor 50Hz K1 low PC 2.x,
Low(50Hz) Only gain adjust. MODBUS Ac- PC 3.x
cess: Read Only
16 65530
Sign: U
47016 GK1 Read Multiplier: 1 Unit: The governor 60Hz K1 low PC 2.x,
Low(60Hz) Only gain adjust. MODBUS Ac- PC 3.x
cess: Read Only
16 65530
Sign: U
47017 GK1 Read Multiplier: 1 Unit: The governor 50Hz K1 high PC 2.x,
High(50Hz) Only gain adjust. MODBUS Ac- PC 3.x
cess: Read Only
16 65530
Sign: U
47018 GK1 Read Multiplier: 1 Unit: The governor 60Hz K1 high PC 2.x,
High(60Hz) Only gain adjust. MODBUS Ac- PC 3.x
cess: Read Only
16 65530
Sign: U
47019 Governor Read Multiplier: 1 Unit: The speed error higher limit. PC 2.x,
Speed Delta Only MODBUS Access: Read PC 3.x
High Only
16
Sign: U
47020 Governor Read Multiplier: 1 Unit: The speed error lower limit. PC 2.x,
Speed Delta Only MODBUS Access: Read PC 3.x
Low Only
322
cess tion
16
Sign: U
47021 Intake Man- Read 0: PGBU Either PGBU(Onan) or PC 2.x,
ifold Temper- Only EBU(Cummins) sensor. PC 3.x
ature Sensor Modbus Access : Read
Type Only
1: EBU
47022 Intake Man- Read 0: Disable Intake Manifold Tempera- PC 2.x,
ifold Temper- Only ture Sensor available or not. PC 3.x
ature Sensor MODBUS Access : Read
Enable Only
1: Enable
47023 Oil Tempera- Read 0: PGBU Either PGBU(Onan) or PC 2.x,
ture Sensor Only EBU(Cummins) sensor. PC 3.x
Type
1: EBU
47024 Oil Tempera- Read 0: Disable High Oil Temperature Sen- PC 2.x,
ture Sensor Only sor available or not. PC 3.x
Enable
1: Enable
47025 AVR PWM Read Multiplier: Unit: % The AVR PWM software PC 2.x,
Command Only 0.01 command. Linear relation- PC 3.x
ship between counts and %
duty cycle with 10000
counts=100% duty cycle.
MODBUS Access : Read
Only
16
Sign: U
323
324
3. PowerCommand 2.x/3.x Modbus Fault Status Bitmaps
tic counters.
Addr. Bit# Name Fault Event Name Response Control

Code
40400 0 Fault Status 115 Engine Magnetic Crankshaft Speed/ Shutdown PC 2.x,
Bitmap 1 Position PC 3.x
40400 1 Fault Status 122 Intake Manifold 1 Pressure: Vtg Above Warning PC 2.x,
Bitmap 1 Normal PC 3.x
40400 2 Fault Status 123 Intake Manifold 1 Pressure: Vtg Below Warning PC 2.x,
40400 3 Fault Status 124 Intake Manifold 1 Pressure: Moderately Warning PC 2.x,
Bitmap 1 Severe PC 3.x
40400 4 Fault Status 135 Engine Oil Rifle Pressure 1: Vtg Above Warning PC 2.x,
40400 5 Fault Status 141 Engine Oil Rifle Pressure 1: Vtg Below Warning PC 2.x,
40400 6 Fault Status 143 Engine Oil Rifle Pressure −Moderately Warning PC 2.x,
40400 7 Fault Status 144 Engine Coolant Temp 1: Vtg Above Warning PC 2.x,
40400 8 Fault Status 145 Engine Coolant Temp 1: Vtg Below Warning PC 2.x,
40400 9 Fault Status 146 Engine Coolant Temp: Moderately Derate PC 2.x,
Bitmap 1 Above Normal PC 3.x
40400 10 Fault Status 151 Engine Coolant Temp: Severely Above Shutdown PC 2.x,
40400 11 Fault Status 153 Intake Manifold 1 Temp: Vtg Above Warning PC 2.x,
40400 12 Fault Status 154 Intake Manifold 1 Temp: Vtg Below Warning PC 2.x,
40400 13 Fault Status 155 Intake Manifold 1 Temp: Severely Shutdown PC 2.x,
40400 14 Fault Status 187 Sensor Supply 2: Vtg Below Normal Warning PC 2.x,
Bitmap 1 PC 3.x
40400 15 Fault Status 195 Coolant Level Sensor 1: Vtg Above Warning PC 2.x,
325
Code
40401 0 Fault Status 196 Coolant Level Sensor 1: Vtg Below Warning PC 2.x,
40401 1 Fault Status 197 Coolant Level: Below Normal − Moder- Warning PC 2.x,
Bitmap 2 ately Severe PC 3.x
40401 2 Fault Status 212 Engine Oil Temp Sensor 1: Vtg Above Warning PC 2.x,
40401 3 Fault Status 213 Engine Oil Temp Sensor 1: Vtg below Warning PC 2.x,
40401 4 Fault Status 214 Engine Oil Temp: Above Normal − Most Shutdown PC 2.x,
Bitmap 2 severe PC 3.x
40401 5 Fault Status 221 Barometric Pressure: Vtg Above Nor- Warning PC 2.x,
Bitmap 2 mal PC 3.x
40401 6 Fault Status 222 Barometric Pressure Sensor: Vtg Be- Warning PC 2.x,
Bitmap 2 low Normal PC 3.x
40401 7 Fault Status 223 Eng Oil Burn Valve Solenoid: Vtg Be- Warning PC 2.x,
40401 8 Fault Status 224 Engine Oil Burn Valve Solenoid: Vtg Warning PC 2.x,
40401 9 Fault Status 227 Sensor Supply 2: Vtg Above Normal Warning PC 2.x,
Bitmap 2 PC 3.x
40401 10 Fault Status 228 Coolant Pressure: Below Normal−Most Shutdown PC 2.x,
40401 11 Fault Status 231 Coolant Pressure Sensor: Vtg Above Warning PC 2.x,
40401 12 Fault Status 232 Coolant Pressure Sensor: Vtg Below Warning PC 2.x,
40401 13 Fault Status 234 Engine Crankshaft Speed/Posn: Above Shutdown PC 2.x,
40401 14 Fault Status 235 Coolant Level: Below Normal−Most Se- Shutdown PC 2.x,
Bitmap 2 vere PC 3.x
Bitmap 2 PC 3.x
40402 0 Fault Status 239 Voltage Supply C High Error Warning PC 2.x,
Bitmap 3 PC 3.x
40402 1 Fault Status 245 Radiator Fan Control Driver Low Error Warning PC 2.x,
Bitmap 3 PC 3.x
40402 2 Fault Status 261 Engine Fuel Temp: Above Normal− Warning PC 2.x,
Bitmap 3 Moderately Severe PC 3.x
40402 3 Fault Status 263 Engine Fuel Temp Sensor 1: Vtg Above Warning PC 2.x,
40402 4 Fault Status 265 Engine Fuel Temp Sensor 1: Vtg Below Warning PC 2.x,
326
Code
40402 5 Fault Status 266 Engine Fuel Temp: Above Normal− Shutdown PC 2.x,
Bitmap 3 Most severe PC 3.x
40402 6 Fault Status 271 Fuel Pump Pressurizing Assembly 1: Warning PC 2.x,
Bitmap 3 Vtg Below Normal PC 3.x
40402 7 Fault Status 272 Fuel Pump Pressurizing Assembly 1: Warning PC 2.x,
Bitmap 3 Vtg Above Normal PC 3.x
40402 8 Fault Status 281 APC_DIESEL_CYL_PRS_IMBAL_ER- Warning PC 2.x,
Bitmap 3 ROR PC 3.x
40402 9 Fault Status 285 SAE J1939 Muxing PGN Timeout: Ab- Warning PC 2.x,
Bitmap 3 normal Update Rate PC 3.x
40402 10 Fault Status 286 SAE J1939 Muxing Config: Out of Cal- Warning PC 2.x,
Bitmap 3 ibration PC 3.x
40402 13 Fault Status 295 AMBIENT_AIR_PRESS_KEYON_ER- Warning PC 2.x,
Bitmap 3 ROR PC 3.x
40402 14 Fault Status 319 RTC PWR Intr: Data Erratic Intermittent Warning PC 2.x,
Bitmap 3 or Wrong PC 3.x
40402 15 Fault Status 322 Injector Solenoid Driver Cylinder 1: Un- Warning PC 2.x,
Bitmap 3 derCurrent PC 3.x
40403 6 Fault Status 342 Electronic Calibration Code: Out of Cal- Shutdown PC 2.x,
Bitmap 4 ibration PC 3.x
40403 7 Fault Status 343 Eng Ctrl: internal h/w failure−Bad De- Warning PC 2.x,
Bitmap 4 vice/Component PC 3.x
40403 8 Fault Status 351 Injector Power Supply: Bad Device/ Warning PC 2.x,
Bitmap 4 Component PC 3.x
Bitmap 4 PC 3.x
40403 10 Fault Status 359 Fail To Start Fault Shutdown PC 2.x,
Bitmap 4 PC 3.x
Bitmap 4 PC 3.x
40403 12 Fault Status 415 Eng Oil Rifle Pressure: Below Normal− Shutdown PC 2.x,
Bitmap 4 Most Severe PC 3.x
327
Code
40403 13 Fault Status 418 Water in Fuel Indicator: Above Normal− Warning PC 2.x,
Bitmap 4 Least Severe PC 3.x
40403 14 Fault Status 421 Eng Oil Temp: Above Normal−Moder- Warning PC 2.x,
Bitmap 4 ately Severe PC 3.x
40403 15 Fault Status 422 COOLANT_LEVEL_READING_IN- Warning PC 2.x,
Bitmap 4 CORRECT PC 3.x
40404 0 Fault Status 425 OIL_TEMPERA- Warning PC 2.x,
Bitmap 5 TURE_IN_RANGE_ERROR PC 3.x
40404 1 Fault Status 426 J1939 Datalink: Data Erratic/Intermit- NONE PC 2.x,
Bitmap 5 tent/Wrong PC 3.x
40404 2 Fault Status 427 CAN Datalink Degraded Warning PC 2.x,
Bitmap 5 PC 3.x
40404 3 Fault Status 435 OIL_PRESSURE_SWITCH_ERROR Warning PC 2.x,
Bitmap 5 PC 3.x
40404 4 Fault Status 441 Low Battery Voltage Warning PC 2.x,
Bitmap 5 PC 3.x
40404 5 Fault Status 442 High Battery Voltage Warning PC 2.x,
Bitmap 5 PC 3.x
40404 6 Fault Status 449 Injector Metering Rail 1 Pressure: Shutdown PC 2.x,
40404 7 Fault Status 451 Injector Metering Rail 1 Pressure: Vtg Warning PC 2.x,
40404 8 Fault Status 452 Injector Metering Rail 1 Pressure: Vtg Warning PC 2.x,
Bitmap 5 Below Normal PC 3.x
40404 9 Fault Status 488 Intake Manifold 1 Temp: Above Nor- Derate PC 2.x,
Bitmap 5 mal−Moderate PC 3.x
40404 10 Fault Status 546 Fuel Delivery Pressure: Vtg Above Nor- Warning PC 2.x,
Bitmap 5 mal PC 3.x
40404 11 Fault Status 547 Fuel Delivery Pressure: Vtg Below Nor- Warning PC 2.x,
Bitmap 5 mal PC 3.x
40404 12 Fault Status 553 APC_DIESEL_HIGH_PRS_ERROR Warning PC 2.x,
Bitmap 5 PC 3.x
40404 13 Fault Status 554 APC_DIESEL_PRS_SIR_ERROR Warning PC 2.x,
Bitmap 5 PC 3.x
40404 15 Fault Status 559 Injector Metering Rail 1 Pressure: Be- Warning PC 2.x,
40405 1 Fault Status 611 Engine Shut Down Hot Condition Ex- Warning PC 2.x,
Bitmap 6 ists PC 3.x
40405 2 Fault Status 698 ECM Internal Temperature Low Error Warning PC 2.x,
Bitmap 6 PC 3.x
40405 3 Fault Status 689 Eng Crankshaft Speed/Pos Warning Warning PC 2.x,
Bitmap 6 PC 3.x
328
Code
40405 4 Fault Status 731 Eng Speed: Cam/Crankshaft Misalign- Warning PC 2.x,
Bitmap 6 ment PC 3.x
40405 5 Fault Status 2661 At Least One ACK: Most Severe Fault Shutdown PC 2.x,
Bitmap 6 PC 3.x
40405 6 Fault Status 781 CAN Datalink Failed Shutdown PC 2.x,
Bitmap 6 PC 3.x
40405 7 Fault Status 1117 Power Lost With Ignition On Warning PC 2.x,
Bitmap 6 PC 3.x
40405 8 Fault Status 1122 Rated to Idle Transition NONE PC 2.x,
Bitmap 6 PC 3.x
40405 9 Fault Status 1124 Delayed Shutdown Fault Warning PC 2.x,
Bitmap 6 PC 3.x
40405 10 Fault Status 1131 Battle Short Mode Active Warning PC 2.x,
Bitmap 6 PC 3.x
40405 11 Fault Status 1132 Controlled Shutdown In Process Warning PC 3.x
Bitmap 6
40405 13 Fault Status 1243 Engine Derate Derate PC 2.x,
Bitmap 6 PC 3.x
40405 14 Fault Status 1244 Engine Normal Shutdown Shutdown PC 2.x,
Bitmap 6 w/Cooldown PC 3.x
40405 15 Fault Status 1245 Engine Shutdown Shutdown PC 2.x,
Bitmap 6 PC 3.x
40406 0 Fault Status 1246 Unrecognized Engine Fault Warning PC 2.x,
Bitmap 7 PC 3.x
40406 1 Fault Status 1247 Engine Shutdown – Unannounced Shutdown PC 2.x,
Bitmap 7 PC 3.x
40406 2 Fault Status 1248 Engine Warning Warning PC 2.x,
Bitmap 7 PC 3.x
40406 3 Fault Status 1256 Ctrl Module ID Input State Warning Er- Warning PC 2.x,
Bitmap 7 ror PC 3.x
40406 4 Fault Status 1257 Ctrl Module ID I/P State shutdown Er- Shutdown PC 2.x,
Bitmap 7 ror PC 3.x
40406 5 Fault Status 1322 kW Load Setpoint OOR High Warning PC 3.x
Bitmap 7
40406 6 Fault Status 1323 kW Load Setpoint OOR Low Warning PC 3.x
Bitmap 7
40406 7 Fault Status 1324 kVAR Load Setpoint OOR High Warning PC 3.x
Bitmap 7
40406 8 Fault Status 1325 kVAR Load Setpoint OOR Low Warning PC 3.x
Bitmap 7
40406 9 Fault Status 1336 Cooldown Completed Fault Shutdown PC 2.x,
Bitmap 7 PC 3.x
329
Code
40406 10 Fault Status 1357 Eng Oil Lvl Remote Reservoir: Below Warning PC 2.x,
40406 11 Fault Status 219 Eng Oil Level Remote Reservoir: Least Warning PC 2.x,
Bitmap 7 Severe Level PC 3.x
40406 12 Fault Status 233 HT Coolant Pressure Moderate Low Warning PC 2.x,
Bitmap 7 PC 3.x
40406 13 Fault Status 254 FSO NON Low Control Error Shutdown PC 2.x,
Bitmap 7 PC 3.x
40406 14 Fault Status 686 Turbo 1 Speed Incorrect Warning PC 2.x,
Bitmap 7 PC 3.x
40406 15 Fault Status 697 ECM Internal Temperature High Error Warning PC 2.x,
Bitmap 7 PC 3.x
40407 0 Fault Status 1376 Eng Camshaft Speed/Pos Warning Warning PC 2.x,
Bitmap 8 PC 3.x
40407 1 Fault Status 3611 Custom Overcurrent Fault Warning PC 3.x
Bitmap 8
40407 2 Fault Status 3513 Negative Sequence Overcurrent Warning PC 3.x
Bitmap 8
40407 3 Fault Status 1416 Fail to Shutdown Warning PC 2.x,
Bitmap 8 PC 3.x
40407 4 Fault Status 1417 Power Down Failure Warning PC 2.x,
Bitmap 8 PC 3.x
40407 5 Fault Status 1433 Local E−Stop Shutdown PC 2.x,
Bitmap 8 PC 3.x
40407 6 Fault Status 1434 Remote E−Stop Shutdown PC 2.x,
Bitmap 8 PC 3.x
40407 7 Fault Status 1435 Low Coolant Temperature Warning PC 2.x,
Bitmap 8 PC 3.x
40407 8 Fault Status 1438 Fail To Crank Fault Shutdown PC 2.x,
Bitmap 8 PC 3.x
40407 9 Fault Status 1439 Low Fuel in Day Tank Warning PC 2.x,
Bitmap 8 PC 3.x
40407 10 Fault Status 1441 Low Fuel Level Warning PC 2.x,
Bitmap 8 PC 3.x
40407 11 Fault Status 1442 Weak Battery Warning PC 2.x,
Bitmap 8 PC 3.x
40407 12 Fault Status 1443 Dead Battery Shutdown PC 2.x,
Bitmap 8 PC 3.x
40407 13 Fault Status 1444 Overload Warning PC 2.x,
Bitmap 8 PC 3.x
40407 14 Fault Status 1445 Short Circuit Shutdown PC 2.x,
Bitmap 8 PC 3.x
330
Code
40407 15 Fault Status 1446 High AC Voltage Shutdown PC 2.x,
Bitmap 8 PC 3.x
40408 0 Fault Status 1447 Low AC Voltage Shutdown PC 2.x,
Bitmap 9 PC 3.x
40408 1 Fault Status 1448 Underfrequency Shutdown PC 2.x,
Bitmap 9 PC 3.x
40408 2 Fault Status 1449 Overfrequency Warning PC 2.x,
Bitmap 9 PC 3.x
40408 3 Fault Status 1459 Reverse kW Shutdown PC 2.x,
Bitmap 9 PC 3.x
40408 4 Fault Status 1461 Loss of Field Shutdown PC 2.x,
Bitmap 9 PC 3.x
40408 5 Fault Status 1463 Not In Auto NONE PC 2.x,
Bitmap 9 PC 3.x
40408 6 Fault Status 1464 Load Dump Warning PC 2.x,
Bitmap 9 PC 3.x
40408 7 Fault Status 1465 Ready To Load NONE PC 2.x,
Bitmap 9 PC 3.x
40408 8 Fault Status 1469 Speed/Frequency Mismatch Fault Shutdown PC 2.x,
Bitmap 9 PC 3.x
40408 9 Fault Status 1471 High Current Warning Warning PC 2.x,
Bitmap 9 PC 3.x
40408 10 Fault Status 1472 Overcurrent Shutdown Shutdown PC 2.x,
Bitmap 9 PC 3.x
40408 11 Fault Status 1483 Common Alarm None PC 2.x,
Bitmap 9 PC 3.x
40408 14 Fault Status 1551 Injector Solenoid Driver Cylinder 10: Warning PC 2.x,
Bitmap 9 UnderCurrent PC 3.x
331
Code
40409 8 Fault Status 1689 Real Time Clock Power Interrupt Fault Warning PC 2.x,
Bitmap 10 PC 3.x
40409 9 Fault Status 1695 SENSOR_SUPPLY_5_VOLT- Warning PC 2.x,
Bitmap 10 AGE_HIGH_ERROR PC 3.x
40409 10 Fault Status 1696 SENSOR_SUPPLY_5_VOLT- Warning PC 2.x,
Bitmap 10 AGE_LOW_ERROR PC 3.x
40409 11 Fault Status 1843 Crankcase Pressure: Vtg Above Nor- Warning PC 2.x,
Bitmap 10 mal PC 3.x
40409 12 Fault Status 1844 Crankcase Pressure: Vtg Below Nor- Warning PC 2.x,
40409 13 Fault Status 1845 Water in Fuel Indicator: Vtg Above Nor- Warning PC 2.x,
40409 14 Fault Status 1846 Water in Fuel Indicator: Vtg Below Nor- Warning PC 2.x,
40409 15 Fault Status 1847 Eng Coolant Temp − Shutdown w/Cool Shutdown PC 2.x,
Bitmap 10 w/Cooldown PC 3.x
40410 0 Fault Status 1852 Water in Fuel Indicator: Above Normal− Warning PC 2.x,
Bitmap 11 Moderate PC 3.x
40410 1 Fault Status 1853 HMI113 Fault 1 NONE PC 2.x,
Bitmap 11 PC 3.x
Bitmap 11 PC 3.x
Bitmap 11 PC 3.x
40410 5 Fault Status 1891 Eng Oil Change Interval Warning PC 2.x,
Bitmap 11 PC 3.x
40410 6 Fault Status 1893 J39_EGR_VALVE_COMM_TIME- Warning PC 2.x,
Bitmap 11 OUT_ERROR PC 3.x
40410 7 Fault Status 1894 J39_VGT_COMM_TIMEOUT_ERROR Warning PC 2.x,
Bitmap 11 PC 3.x
40410 8 Fault Status 1896 EGR_DL_VALVE_STUCK_ERROR Warning PC 2.x,
Bitmap 11 PC 3.x
40410 9 Fault Status 1899 EGR_DELTA_P_IR_LOW_ERROR Warning PC 2.x,
Bitmap 11 PC 3.x
40410 11 Fault Status 1912 Utility Loss Of Phase Warning PC 3.x
Bitmap 11
40410 12 Fault Status 1913 Genset Loss Of Phase Warning PC 3.x
Bitmap 11
332
Code
40410 13 Fault Status 1914 Utility Phase Rotation Warning PC 3.x
Bitmap 11
40410 14 Fault Status 1915 Genset Phase Rotation Warning PC 3.x
Bitmap 11
40410 15 Fault Status 1916 Sync Check OK NONE PC 3.x
Bitmap 11
40411 0 Fault Status 1917 High Fuel Level Warning PC 2.x,
Bitmap 12 PC 3.x
40411 1 Fault Status 1918 Very Low Fuel Level Shutdown PC 2.x,
Bitmap 12 PC 3.x
40411 2 Fault Status 1933 EGR_DL_VOLTAGE_HIGH_ERROR Warning PC 2.x,
Bitmap 12 PC 3.x
40411 3 Fault Status 1934 EGR_DL_VOLTAGE_LOW_ERROR Warning PC 2.x,
Bitmap 12 PC 3.x
40411 4 Fault Status 1935 EGR_DL_COMMAND_SOURCE_ER- Warning PC 2.x,
Bitmap 12 ROR PC 3.x
40411 5 Fault Status 1942 BEYOND_THD_AZ_ERROR Warning PC 2.x,
Bitmap 12 PC 3.x
40411 6 Fault Status 1943 CBR_DENSITY_DERATE_ERROR_ID NONE PC 2.x,
Bitmap 12 PC 3.x
40411 7 Fault Status 1944 HMI113 Output Configuration Fault Warning PC 2.x,
Bitmap 12 PC 3.x
40411 8 Fault Status 1961 EGR_DL_EDU_TMPTR_HIGH_ER- Warning PC 2.x,
Bitmap 12 ROR PC 3.x
40411 9 Fault Status 1974 CRANKCASE_PRES- Warning PC 2.x,
Bitmap 12 SURE_LEAST_SEV_HIGH PC 3.x
40411 10 Fault Status 1992 Eng Crankshaft Speed/Posn: Above Shutdown PC 2.x,
40411 11 Fault Status 1999 Maximum Parallel Time Warning PC 3.x
Bitmap 12
Bitmap 12 PC 3.x
Bitmap 12 PC 3.x
40411 14 Fault Status 2215 Fuel Pump Delivery Pressure: Below Warning PC 2.x,
40411 15 Fault Status 2249 APC_DIESEL_LOW2_PRS_ERROR Warning PC 2.x,
Bitmap 12 PC 3.x
40412 0 Fault Status 2261 Fuel Pump Delivery Pressure: Above Warning PC 2.x,
40412 1 Fault Status 2262 Fuel Pump Delivery−Below Normal Warning PC 2.x,
Bitmap 13 PC 3.x
333
Code
40412 2 Fault Status 2265 Electric Lift Pump for Eng Fuel: Vtg Warning PC 2.x,
40412 3 Fault Status 2266 Electric Lift Pump for Eng Fuel: Vtg Be- Warning PC 2.x,
40412 4 Fault Status 2292 APC_DIESEL_FLOW_HIGH_ERROR Warning PC 2.x,
Bitmap 13 PC 3.x
40412 5 Fault Status 2293 APC_DIESEL_FLOW_LOW_ERROR Warning PC 2.x,
Bitmap 13 PC 3.x
40412 6 Fault Status 2311 Electronic Fuel Injection Control Valve Warning PC 2.x,
Bitmap 13 PC 3.x
40412 7 Fault Status 2328 Utility Available NONE PC 3.x
Bitmap 13
40412 8 Fault Status 2331 Utility Undervoltage Warning PC 3.x
Bitmap 13
40412 9 Fault Status 2332 Utility Connected NONE PC 3.x
Bitmap 13
40412 10 Fault Status 2333 Genset Connected NONE PC 3.x
Bitmap 13
40412 11 Fault Status 2335 Excitation/Loss of AC Voltage Sensing Shutdown PC 2.x,
Bitmap 13 PC 3.x
40412 13 Fault Status 2342 Too Long in Idle Warning PC 2.x,
Bitmap 13 PC 3.x
40412 14 Fault Status 2358 Utility Overvoltage Warning PC 3.x
Bitmap 13
40412 15 Fault Status 2377 Fan Control: Vtg Above Normal Warning PC 2.x,
Bitmap 13 PC 3.x
40413 0 Fault Status 2396 Utility Breaker Fail To Close Warning PC 3.x
Bitmap 14
40413 1 Fault Status 2397 Utility Breaker Fail To Open Warning PC 3.x
Bitmap 14
40413 2 Fault Status 3226 Base Load NONE PC 3.x
Bitmap 14
40413 3 Fault Status 3227 Peak Shave NONE PC 3.x
Bitmap 14
40413 4 Fault Status 2555 GHC_LOW_VOLTAGE_ERROR_1 Warning PC 2.x,
Bitmap 14 PC 3.x
40413 5 Fault Status 2556 GHC_HIGH_VOLTAGE_ERROR_1 Warning PC 2.x,
Bitmap 14 PC 3.x
40413 6 Fault Status 2678 Charging Alternator Failure Fault Warning PC 2.x,
Bitmap 14 PC 3.x
40413 7 Fault Status 2965 Genset Available NONE PC 3.x
Bitmap 14
334
Code
40413 8 Fault Status 2971 Test/Exercise is Active Fault NONE PC 2.x,
Bitmap 14 PC 3.x
40413 9 Fault Status 2972 Field Overload Shutdown PC 2.x,
Bitmap 14 PC 3.x
40413 10 Fault Status 2973 CHARGE_PRESS_IR_ERROR Warning PC 2.x,
Bitmap 14 PC 3.x
40413 11 Fault Status 2943 Manual Switch Configuration Fault Warning PC 2.x,
Bitmap 14 PC 3.x
40413 12 Fault Status 2944 Auto Switch Configuration Fault Warning PC 2.x,
Bitmap 14 PC 3.x
40413 13 Fault Status 2914 Genset AC Meter Failed Shutdown PC 2.x,
Bitmap 14 PC 3.x
40413 14 Fault Status 2915 Genset Bus AC Meter Failed Warning PC 3.x
Bitmap 14
40413 15 Fault Status 2916 Utility AC Meter Failed Warning PC 3.x
Bitmap 14
40414 0 Fault Status 2814 Genset CT Ratio Too Small Shutdown PC 2.x,
Bitmap 15 PC 3.x
40414 1 Fault Status 2815 Genset CT Ratio Too Large Warning PC 2.x,
Bitmap 15 PC 3.x
40414 2 Fault Status 2816 Genset PT Ratio Too Small Shutdown PC 2.x,
Bitmap 15 PC 3.x
40414 3 Fault Status 2817 Genset PT Ratio Too Large Warning PC 2.x,
Bitmap 15 PC 3.x
40414 4 Fault Status 2818 Genset Bus PT Ratio Too Small Shutdown PC 3.x
Bitmap 15
40414 5 Fault Status 2819 Genset Bus PT Ratio Too Large Warning PC 3.x
Bitmap 15
40414 6 Fault Status 2821 Utility PT Ratio Too Small Shutdown PC 3.x
Bitmap 15
40414 7 Fault Status 2822 Utility PT Ratio Too Large Warning PC 3.x
Bitmap 15
40414 8 Fault Status 2619 Aux101 0 Input 1 Fault Warning PC 2.x,
Bitmap 15 PC 3.x
Bitmap 15 PC 3.x
Bitmap 15 PC 3.x
Bitmap 15 PC 3.x
Bitmap 15 PC 3.x
335
Code
Bitmap 15 PC 3.x
Bitmap 15 PC 3.x
Bitmap 15 PC 3.x
Bitmap 16 PC 3.x
Bitmap 16 PC 3.x
Bitmap 16 PC 3.x
Bitmap 16 PC 3.x
Bitmap 16 PC 3.x
Bitmap 16 PC 3.x
Bitmap 16 PC 3.x
Bitmap 16 PC 3.x
40415 8 Fault Status 2628 Aux102 0 Expansion Input 9 Fault Warning PC 2.x,
Bitmap 16 PC 3.x
Bitmap 16 PC 3.x
Bitmap 16 PC 3.x
Bitmap 16 PC 3.x
Bitmap 16 PC 3.x
Bitmap 16 PC 3.x
Bitmap 16 PC 3.x
Bitmap 16 PC 3.x
40416 0 Fault Status 2895 PCCnet Device Failed Warning Warning PC 2.x,
Bitmap 17 PC 3.x
40416 1 Fault Status 2896 PCCnet Device Failed Shutdown Shutdown PC 2.x,
Bitmap 17 PC 3.x
336
Code
40416 2 Fault Status 2917 Genset Bus Voltage OOR Warning Warning PC 3.x
Bitmap 17
40416 3 Fault Status 2918 Utility Voltage OOR Warning Warning PC 3.x
Bitmap 17
40416 4 Fault Status 2919 Utility Current OOR Warning Warning PC 3.x
Bitmap 17
40416 5 Fault Status 2921 Genset Bus Current OOR Warning Warning PC 3.x
Bitmap 17
40416 6 Fault Status 2922 Genset Neutral Current OOR Warning Warning PC 3.x
Bitmap 17
40416 7 Fault Status 2923 Genset Bus kW OOR Warning Warning PC 3.x
Bitmap 17
40416 8 Fault Status 2924 Genset Bus kVAR OOR Warning Warning PC 3.x
Bitmap 17
40416 9 Fault Status 2925 Genset Bus kVA OOR Warning Warning PC 3.x
Bitmap 17
40416 10 Fault Status 2926 Utility kW OOR Warning Warning PC 3.x
Bitmap 17
40416 11 Fault Status 2927 Utility kVAR OOR Warning Warning PC 3.x
Bitmap 17
40416 12 Fault Status 2928 Utility kVA OOR Warning Warning PC 3.x
Bitmap 17
40416 13 Fault Status 3599 Ground Current OOR Warning Warning PC 3.x
Bitmap 17
40416 14 Fault Status 2931 AUX101 Device ID Fault Shutdown PC 2.x,
Bitmap 17 PC 3.x
40416 15 Fault Status 2779 Utility Unloaded Event NONE PC 3.x
Bitmap 17
40417 3 Fault Status 2932 AUX101 Oil Temp OOR Hi Warning PC 2.x,
Bitmap 18 PC 3.x
40417 4 Fault Status 2933 AUX101 Oil Temp OOR Low Warning PC 2.x,
Bitmap 18 PC 3.x
40417 5 Fault Status 2657 Exhaust Stack Temp 1 OOR High Warning PC 2.x,
Bitmap 18 PC 3.x
40417 6 Fault Status 2947 Exhaust Stack Temp 1 OOR Low Warning PC 2.x,
Bitmap 18 PC 3.x
40417 7 Fault Status 2949 High Exhaust Stack Temperature 1 Warning PC 2.x,
Bitmap 18 PC 3.x
40417 8 Fault Status 2653 Exhaust Stack Temp 2 OOR High Warning PC 2.x,
Bitmap 18 PC 3.x
40417 9 Fault Status 2946 Exhaust Stack Temp 2 OOR Low Warning PC 2.x,
Bitmap 18 PC 3.x
337
Code
40417 10 Fault Status 2948 High Exhaust Stack Temperature 2 Warning PC 2.x,
Bitmap 18 PC 3.x
40417 11 Fault Status 2934 Ambient Temp OOR High Warning PC 2.x,
Bitmap 18 PC 3.x
40417 12 Fault Status 2935 Ambient Temp OOR Low Warning PC 2.x,
Bitmap 18 PC 3.x
40417 13 Fault Status 2936 Fuel Level OOR High Warning PC 2.x,
Bitmap 18 PC 3.x
40417 14 Fault Status 2937 Fuel Level OOR Low Warning PC 2.x,
Bitmap 18 PC 3.x
40417 15 Fault Status 2951 Alternator Temp 1 OOR High Warning PC 2.x,
Bitmap 18 PC 3.x
40418 0 Fault Status 2952 Alternator Temp 1 OOR Low Warning PC 2.x,
Bitmap 19 PC 3.x
40418 1 Fault Status 2953 High Alternator Temp 1 Warning PC 2.x,
Bitmap 19 PC 3.x
Bitmap 19 PC 3.x
Bitmap 19 PC 3.x
Bitmap 19 PC 3.x
Bitmap 19 PC 3.x
Bitmap 19 PC 3.x
Bitmap 19 PC 3.x
40418 8 Fault Status 2992 Intake Manifold Temp 1 OOR High Warning PC 2.x,
Bitmap 19 PC 3.x
40418 9 Fault Status 2978 Intake Manifold Temp 1 OOR Low Warning PC 2.x,
Bitmap 19 PC 3.x
40418 10 Fault Status 2981 Drive End Bearing Temp OOR High Warning PC 2.x,
Bitmap 19 PC 3.x
40418 11 Fault Status 2982 Drive End Bearing Temp OOR Low Warning PC 2.x,
Bitmap 19 PC 3.x
40418 12 Fault Status 2983 High Drive End Bearing Temperature Warning PC 2.x,
Bitmap 19 PC 3.x
40418 13 Fault Status 2984 Non−Drive End Bearing Temp OOR Warning PC 2.x,
Bitmap 19 High PC 3.x
40418 14 Fault Status 2985 Non−Drive End Bearing Temp OOR Warning PC 2.x,
Bitmap 19 Low PC 3.x
338
Code
40418 15 Fault Status 2986 High Non−Drive End Bearing Tempera- Warning PC 2.x,
Bitmap 19 ture PC 3.x
40419 0 Fault Status 2945 Rupture Basin Warning PC 2.x,
Bitmap 20 PC 3.x
40419 1 Fault Status 2979 High Alternator Temp Switch fault Warning PC 2.x,
Bitmap 20 PC 3.x
40419 2 Fault Status 2993 Battery Charger Failed Fault Warning PC 2.x,
Bitmap 20 PC 3.x
40419 3 Fault Status 2938 Earth/Ground Fault Warning PC 2.x,
Bitmap 20 PC 3.x
40419 4 Fault Status 2939 Modbus Failure Fault Warning PC 2.x,
Bitmap 20 PC 3.x
40419 5 Fault Status 2977 Low Coolant Level #2 Warning PC 2.x,
Bitmap 20 PC 3.x
40419 6 Fault Status 1978 Speed Bias OOR High Warning PC 2.x,
Bitmap 20 PC 3.x
40419 7 Fault Status 2541 Voltage Bias OOR Low Warning PC 2.x,
Bitmap 20 PC 3.x
40419 8 Fault Status 2539 Voltage Bias OOR High Warning PC 2.x,
Bitmap 20 PC 3.x
40419 9 Fault Status 1573 Configurable Input #1 NONE PC 2.x,
Bitmap 20 PC 3.x
Bitmap 20 PC 3.x
Bitmap 20 PC 3.x
Bitmap 20 PC 3.x
40419 13 Fault Status 1979 Speed Bias OOR Low Warning PC 2.x,
Bitmap 20 PC 3.x
40419 14 Fault Status 236 Both Engine Speed Signals Lost: Most Shutdown PC 2.x,
Bitmap 20 Severe Level PC 3.x
40419 15 Fault Status 3629 Less Severe Response−Warning Warning PC 3.x
Bitmap 20
40420 0 Fault Status 3631 Most Severe−Shutdown Shutdown PC 3.x
Bitmap 21
40427 1 Fault Status 4872 System Network Failure Warning PC 3.x
Bitmap 26
40427 2 Fault Status 4873 Genset Failed to Come Online Warning PC 3.x
Bitmap 26
40427 3 Fault Status 4874 Load Demand SW Version Incompati- Warning PC 3.x
Bitmap 26 bility
339
Code
40427 4 Fault Status 4875 Genset Ineligible for Load Demand None PC 3.x
Bitmap 26
40427 5 Fault Status 4876 Genset Lost on System Network Warning PC 3.x
Bitmap 26
40427 6 Fault Status 4877 System Settings Not Synchronized Warning PC 3.x
Bitmap 26
40427 7 Fault Status 4878 Check System Network Installation Warning PC 3.x
Bitmap 26
40427 8 Fault Status 4879 Load Demand Setup Error Warning PC 3.x
Bitmap 26
40427 9 Fault Status 4881 System Genset ID Conflict Warning PC 3.x
Bitmap 26
40427 10 Fault Status 4882 Genset Bus Overload Warning PC 3.x
Bitmap 26
40427 11 Fault Status 5145 Load Demand Genset Bus Failure Warning PC 3.x
Bitmap 26
40430 0 Event Status 1540 Common Warning NONE PC 2.x,
Bitmap 1 PC 3.x
40430 1 Event Status 1541 Common Shutdown NONE PC 2.x,
Bitmap 1 PC 3.x
40431 0 Fault Status 121 EPS Main Channel Lost Error Warning PC 3.x
Gas Bitmap 1
40431 1 Fault Status 136 Oil Inlet Pressure High Error Warning PC 3.x
Gas Bitmap 1
40431 2 Fault Status 137 Oil Inlet Pressure Low Error Warning PC 3.x
Gas Bitmap 1
40431 3 Fault Status 142 Oil Overpressure Error Warning PC 3.x
Gas Bitmap 1
40431 4 Fault Status 156 Intake Manifold Temp 2 OORH Warning PC 3.x
Gas Bitmap 1
40431 5 Fault Status 157 Intake Manifold Temp 2 OORL Warning PC 3.x
Gas Bitmap 1
40431 6 Fault Status 158 Intake Manifold Temp 2 High Shutdown PC 3.x
Gas Bitmap 1
40431 7 Fault Status 159 Intake Manifold 3 Temp OORH Warning PC 3.x
Gas Bitmap 1
40431 8 Fault Status 161 Intake Manifold 3 Temp OORL Warning PC 3.x
Gas Bitmap 1
40431 9 Fault Status 162 Intake Manifold 3 Temp High Shutdown PC 3.x
Gas Bitmap 1
40431 10 Fault Status 163 Intake Manifold 4 Temp OORH Warning PC 3.x
Gas Bitmap 1
340
Code
40431 11 Fault Status 164 Intake Manifold 4 Temp OORL Warning PC 3.x
Gas Bitmap 1
40431 12 Fault Status 165 Intake Manifold 4 Temp High Shutdown PC 3.x
Gas Bitmap 1
40431 13 Fault Status 175 Throttle_Driver_Feedback_High_Error Shutdown PC 3.x
Gas Bitmap 1 w/Cooldown
40431 14 Fault Status 176 Throttle_Driver_Feedback_Low_Error Shutdown PC 3.x
40431 15 Fault Status 177 Throttle_Actuator_Error Shutdown PC 3.x
40432 2 Fault Status 244 Red Stop Lamp Driver OORL Warning PC 3.x
Gas Bitmap 2
40432 3 Fault Status 246 Exhaust Gas Temp Sensor 1 OORH Warning PC 3.x
Gas Bitmap 2
40432 4 Fault Status 247 Exhaust Gas Temp Sensor 1 OORL Warning PC 3.x
Gas Bitmap 2
40432 5 Fault Status 248 Exhaust Gas Temp Sensor 1 High Warning PC 3.x
Gas Bitmap 2
40432 6 Fault Status 253 Oil Level Low Error Shutdown PC 3.x
40432 8 Fault Status 277 Fuel Control Valve Out of Adj Warning PC 3.x
Gas Bitmap 2
40432 9 Fault Status 346 Powerdown Data Lost Error Warning PC 3.x
Gas Bitmap 2
40432 10 Fault Status 354 Manifold_Absolute_Pres- Warning PC 3.x
Gas Bitmap 2 sure_1_High_Error
Gas Bitmap 2 sure_1_Low_Error
40432 12 Fault Status 412 J1708 Link Cannot Transmit Error NONE PC 3.x
Gas Bitmap 2
40432 13 Fault Status 414 J1708 Link Not Fast Enough Error NONE PC 3.x
Gas Bitmap 2
40432 14 Fault Status 453 Gas_Mass_Flow_High_Error Warning PC 3.x
Gas Bitmap 2
40432 15 Fault Status 454 Gas_Mass_Flow_Low_Error Warning PC 3.x
Gas Bitmap 2
40433 0 Fault Status 458 Spark_Timing_B_Error Shutdown PC 3.x
40433 1 Fault Status 459 Spark_Timing_A_Error Shutdown PC 3.x
40433 2 Fault Status 461 Spark_Reference_B_Error Shutdown PC 3.x
341
Code
40433 3 Fault Status 462 Spark_Reference_A_Error Shutdown PC 3.x
40433 4 Fault Status 477 Isolated Battery Voltage Low Error Warning PC 3.x
Gas Bitmap 3
40433 5 Fault Status 478 Isolated Battery Voltage High Error Warning PC 3.x
Gas Bitmap 3
40433 6 Fault Status 512 Throttle Pos 1 Feedback OOR High Warning PC 3.x
Gas Bitmap 3
40433 7 Fault Status 513 Throttle Pos 1 Feedback OOR Low Warning PC 3.x
Gas Bitmap 3
40433 8 Fault Status 557 Fuel Control Valve 2 OORH Shutdown PC 3.x
40433 9 Fault Status 558 Fuel Control Valve 2 OORL Warning PC 3.x
Gas Bitmap 3
40433 10 Fault Status 561 Heavy_Knock_Error_1_(A1) Shutdown PC 3.x
40433 11 Fault Status 562 Heavy_Knock_Error_2_(B1) Shutdown PC 3.x
40434 3 Fault Status 571 Knock Cyl 1 (A1) OORL Warning PC 3.x
Gas Bitmap 4
40434 4 Fault Status 572 Knock Cyl 2 (B1) OORL Warning PC 3.x
Gas Bitmap 4
Gas Bitmap 4
Gas Bitmap 4
Gas Bitmap 4
342
Code
Gas Bitmap 4
Gas Bitmap 4
Gas Bitmap 4
Gas Bitmap 4
40434 12 Fault Status 584 High Side DRV3 High Control Error Warning PC 3.x
Gas Bitmap 4
40434 13 Fault Status 585 High Side DRV3 Low Control Error Warning PC 3.x
Gas Bitmap 4
40434 14 Fault Status 591 Exhaust_Backpressure_High_Error Warning PC 3.x
Gas Bitmap 4
40434 15 Fault Status 592 Exhaust_Backpressure_Low_Error Warning PC 3.x
Gas Bitmap 4
40435 0 Fault Status 595 Turbo 1 Overspeed Warning Error Warning PC 3.x
Gas Bitmap 5
40435 1 Fault Status 618 Turbo 1 Inlet Pressure High Warning PC 3.x
Gas Bitmap 5
40435 2 Fault Status 619 Turbo 2 Inlet Press High Warning PC 3.x
Gas Bitmap 5
40435 3 Fault Status 641 Exhaust Temp 1 (A1) High Serious Er- Shutdown PC 3.x
Gas Bitmap 5 ror w/Cooldown
40435 9 Fault Status 647 Exhaust Temp 13 (A7) High Serious Shutdown PC 3.x
Gas Bitmap 5 Error w/Cooldown
40435 12 Fault Status 652 Exhaust Temp 2 (B1) High Serious Er- Shutdown PC 3.x
343
Code
40436 0 Fault Status 656 Exhaust Temp 10 (B5) High Serious Shutdown PC 3.x
40436 3 Fault Status 671 Exhaust Gas Temp Cyl 1 (A1) OORL Warning PC 3.x
Gas Bitmap 6
Gas Bitmap 6
Gas Bitmap 6
Gas Bitmap 6
Gas Bitmap 6
Gas Bitmap 6
Gas Bitmap 6
Gas Bitmap 6
40436 11 Fault Status 683 Turbo 2 Speed Moderate High Warning PC 3.x
Gas Bitmap 6
40436 12 Fault Status 684 Turbo 2 Speed Moderate Low Warning PC 3.x
Gas Bitmap 6
40436 13 Fault Status 685 Turbo 2 Speed Incorrect Warning PC 3.x
Gas Bitmap 6
40436 15 Fault Status 687 Turbo 1 Speed Low Warning PC 3.x
Gas Bitmap 6
40437 2 Fault Status 721 Exhaust Gas Temp 2 (B1) OORL Warning PC 3.x
Gas Bitmap 7
Gas Bitmap 7
Gas Bitmap 7
344
Code
Gas Bitmap 7
Gas Bitmap 7
Gas Bitmap 7
Gas Bitmap 7
Gas Bitmap 7
40437 10 Fault Status 736 Starter Air Pressure OORL Warning PC 3.x
Gas Bitmap 7
40437 11 Fault Status 737 Starter Air Pressure OORH Warning PC 3.x
Gas Bitmap 7
40437 12 Fault Status 738 Starter Air Press Underpressure Error Warning PC 3.x
Gas Bitmap 7
40437 13 Fault Status 741 Air Filter Restriction Pressure High Er- Warning PC 3.x
Gas Bitmap 7 ror
40437 14 Fault Status 742 Air Filter Restriction Pressure Low Er- Warning PC 3.x
Gas Bitmap 7 ror
40437 15 Fault Status 751 Gas_Mass_Flow_In_Range_Error Warning PC 3.x
Gas Bitmap 7
40438 0 Fault Status 752 Exhaust_Gas_Oxygen_In_Range_Er- Warning PC 3.x
Gas Bitmap 8 ror
40438 1 Fault Status 783 Intake Manifold 1 Temp Abnormal Shutdown PC 3.x
40438 2 Fault Status 1213 COP_Overboost_Error Shutdown PC 3.x
40438 5 Fault Status 1285 Continuous_Light_Knock_Er- Shutdown PC 3.x
Gas Bitmap 8 ror_13_(A7) w/Cooldown
Gas Bitmap 8 ror_15_(A8) w/Cooldown
345
Code
40438 11 Fault Status 1362 Oil Filter Restriction Error Warning PC 3.x
Gas Bitmap 8
40438 12 Fault Status 1452 Genset Breaker Fail To Close Shutdown PC 3.x
Gas Bitmap 8
40438 13 Fault Status 1457 Fail To Synchronize Warning PC 3.x
Gas Bitmap 8
40438 14 Fault Status 1458 Sync Phase Rotation Mismatch Warning PC 3.x
Gas Bitmap 8
40438 15 Fault Status 1474 ECM Software mismatch Shutdown PC 3.x
40439 0 Fault Status 1521 Exhaust Gas Temp 3 (A2) OORH Warning PC 3.x
Gas Bitmap 9
Gas Bitmap 9
Gas Bitmap 9
Gas Bitmap 9
Gas Bitmap 9
Gas Bitmap 9
Gas Bitmap 9
Gas Bitmap 9
40439 8 Fault Status 1529 Exhaust Gas Temp 2 (B1) OORH Warning PC 3.x
Gas Bitmap 9
Gas Bitmap 9
Gas Bitmap 9
Gas Bitmap 9
Gas Bitmap 9
Gas Bitmap 9
Gas Bitmap 9
346
Code
Gas Bitmap 9
40440 0 Fault Status 1545 EPS Backup Channel Lost Warning PC 3.x
Gas Bitmap
10
40440 1 Fault Status 1546 EPS Main Channel Lost Warning PC 3.x
Gas Bitmap
10
Gas Bitmap ror_12_(B6) w/Cooldown
10
10
10
Gas Bitmap w/Cooldown
10
Gas Bitmap ror_17_(A9) w/Cooldown
10
10
10
40440 9 Fault Status 1618 Exhaust Gas Temp, Cyl 1 (A1) OORH Warning PC 3.x
Gas Bitmap
10
40440 10 Fault Status 1619 Exhaust Gas Temp, Cyl 4 (B2) OORH Warning PC 3.x
Gas Bitmap
10
40440 11 Fault Status 1636 Intake Manif Press 2 OORH Warning PC 3.x
Gas Bitmap
10
40440 12 Fault Status 1637 Intake Manif Press 2 OORL Warning PC 3.x
Gas Bitmap
10
40440 13 Fault Status 1737 CAN_Throttle_Internal_Failure_Error Shutdown PC 3.x
10
347
Code
40440 14 Fault Status 1738 CAN_Throttle_Internal_Fault_Error Warning PC 3.x
Gas Bitmap
10
40440 15 Fault Status 1739 Engine Throttle Control Condition Ex- Warning PC 3.x
Gas Bitmap ists
10
40441 0 Fault Status 1741 CAN_Throttle_High_Temp_Warn- Warning PC 3.x
Gas Bitmap 11 ing_Error
40441 1 Fault Status 1742 CAN_Throttle_Temp_Limiting_Error Warning PC 3.x
Gas Bitmap 11
40441 2 Fault Status 1743 Throttle Ctrl 2 OOR High Shutdown PC 3.x
40441 3 Fault Status 1744 Throttle Ctrl 2 OOR Low Shutdown PC 3.x
40441 4 Fault Status 1745 Throttle Ctrl 2 Incorrect Shutdown PC 3.x
40441 5 Fault Status 1746 Throttle Ctrl 2 Out of Adjustment Shutdown PC 3.x
40441 6 Fault Status 1747 Throttle Ctrl 2 Bad Device Shutdown PC 3.x
40441 7 Fault Status 1748 Throttle Ctrl 2 Root Unknown Warning PC 3.x
Gas Bitmap 11
40441 8 Fault Status 1749 Throttle Ctrl 2 Condition Exists Warning PC 3.x
Gas Bitmap 11
40441 9 Fault Status 1751 Throttle Ctrl 2 Warning High Warning PC 3.x
Gas Bitmap 11
40441 10 Fault Status 1752 Throttle Ctrl 2 Moderate High Warning PC 3.x
Gas Bitmap 11
40441 11 Fault Status 1753 Fuel Shutoff 2 OOR High Warning PC 3.x
Gas Bitmap 11
40441 12 Fault Status 1754 Fuel Tmp 2 OOR High Warning PC 3.x
Gas Bitmap 11
40441 13 Fault Status 1755 Fuel Tmp 2 OOR Low Warning PC 3.x
Gas Bitmap 11
40441 14 Fault Status 1756 Gas Flow 2 OOR High Warning PC 3.x
Gas Bitmap 11
40441 15 Fault Status 1757 Gas Flow 2 OOR Low Warning PC 3.x
Gas Bitmap 11
40442 0 Fault Status 1758 Gas Flow 2 Incorrect Data Warning PC 3.x
Gas Bitmap
12
348
Code
40442 1 Fault Status 1759 FCV 2 Pos Feedback Incorrect Shutdown PC 3.x
12
40442 2 Fault Status 1761 FCV_Actuator_Error_1761 Shutdown PC 3.x
12
40442 3 Fault Status 1984 Int Man 2 Tmp Moderate High Warning PC 3.x
Gas Bitmap
12
40442 4 Fault Status 1765 FCV 2 In Pr OOR High Warning PC 3.x
Gas Bitmap
12
40442 5 Fault Status 1766 FCV 2 In Pr OOR Low Warning PC 3.x
Gas Bitmap
12
40442 6 Fault Status 1767 FCV 2 Out Pr OOR High Warning PC 3.x
Gas Bitmap
12
40442 7 Fault Status 1768 FCV 2 Out Pr OOR Low Warning PC 3.x
Gas Bitmap
12
40442 8 Fault Status 1769 E_Shutd Indication OORH Warning PC 3.x
Gas Bitmap
12
40442 9 Fault Status 1771 E_Shutd Indication OORL Warning PC 3.x
Gas Bitmap
12
40442 10 Fault Status 1772 Eng Derate Request OORH Warning PC 3.x
Gas Bitmap
12
40442 11 Fault Status 1773 Eng Derate Request OORL Warning PC 3.x
Gas Bitmap
12
40442 12 Fault Status 1774 Oil Priming Pump OORH Warning PC 3.x
Gas Bitmap
12
40442 13 Fault Status 1775 Oil Priming Pump OORL Warning PC 3.x
Gas Bitmap
12
40442 14 Fault Status 3362 Power Conservation Control OORH Warning PC 3.x
Gas Bitmap
12
349
Code
40442 15 Fault Status 3363 Power Conservation Control OORL Warning PC 3.x
Gas Bitmap
12
40443 0 Fault Status 1778 Engine_Heater_Control_Driv- Warning PC 3.x
Gas Bitmap er_High_Error
13
40443 1 Fault Status 1779 Engine_Heater_Control_Driv- Warning PC 3.x
Gas Bitmap er_Low_Error
13
40443 2 Fault Status 1781 Shutd Request OOR High Warning PC 3.x
Gas Bitmap
13
40443 3 Fault Status 1782 Shutd Request OOR Low Warning PC 3.x
Gas Bitmap
13
40443 4 Fault Status 1783 Coolant_Pump_Control_Driv- Warning PC 3.x
Gas Bitmap er_High_Error
13
40443 5 Fault Status 1784 Coolant_Pump_Control_Driv- Warning PC 3.x
Gas Bitmap er_Low_Error
13
40443 6 Fault Status 1785 Oil_Priming_Pump_Manual_Over- Warning PC 3.x
Gas Bitmap ride_Input_On
13
40443 7 Fault Status 1786 Oil_Priming_Pump_Stuck_On_Error Warning PC 3.x
Gas Bitmap
13
40443 8 Fault Status 1787 Post_Lube_Oil_Priming_Error Warning PC 3.x
Gas Bitmap
13
40443 9 Fault Status 1788 Maintenance_Lube_Oil_Priming_Error Warning PC 3.x
Gas Bitmap
13
40443 10 Fault Status 1789 Pre_Start_Lube_Oil_Priming_Error Shutdown PC 3.x
13
40443 11 Fault Status 1791 Failure_To_Meet_Load_Speed_Error Shutdown PC 3.x
13
40443 12 Fault Status 1792 Idle when CB Closed Warning PC 3.x
Gas Bitmap
13
350
Code
40443 13 Fault Status 1793 Speed/Posit sensor out of Adj Warning PC 3.x
Gas Bitmap
13
40443 14 Fault Status 1794 Fire Detected Shutdown PC 3.x
13
40443 15 Fault Status 1795 Compressor_Bypass_Posi- Warning PC 3.x
Gas Bitmap tion_High_Error
13
40444 0 Fault Status 1796 Compressor_Bypass_Posi- Warning PC 3.x
Gas Bitmap tion_Low_Error
14
40444 1 Fault Status 1797 Compressor Bypass ctrl OORH Warning PC 3.x
Gas Bitmap
14
40444 2 Fault Status 1798 Compressor Bypass ctrl OORL Warning PC 3.x
Gas Bitmap
14
40444 3 Fault Status 1799 CB_Position_Err_Status Warning PC 3.x
Gas Bitmap
14
40444 4 Fault Status 1811 HIGH_SIDE_DRV2_High_Control_Er- Warning PC 3.x
Gas Bitmap ror (VPS)
14
40444 5 Fault Status 1812 HIGH_SIDE_DRV2_Low_Control_Er- Warning PC 3.x
Gas Bitmap ror (VPS)
14
40444 6 Fault Status 1813 Valve_Proving_Sys- Warning PC 3.x
Gas Bitmap tem_Test_Failed_Warning_Error
14
40444 7 Fault Status 1814 Valve_Proving_Sys- Shutdown PC 3.x
Gas Bitmap tem_Test_Failed_Shutdown_Error w/Cooldown
14
40444 8 Fault Status 1815 RLY14_High_Control_Error Warning PC 3.x
Gas Bitmap
14
40444 9 Fault Status 1816 Oil PreHtr Ctrl OOR Low Warning PC 3.x
Gas Bitmap
14
40444 10 Fault Status 1817 Oil_Pre−Heater_Tripped_Error Warning PC 3.x
Gas Bitmap
14
351
Code
40444 11 Fault Status 1818 Oil_Pre−Heater_Not_Warming_Error Warning PC 3.x
Gas Bitmap
14
40444 12 Fault Status 1819 Common AC Aux CB tripped Warning PC 3.x
Gas Bitmap
14
40444 13 Fault Status 1821 Min_FSO_Speed_Error Shutdown PC 3.x
14
40444 14 Fault Status 1822 LT Coolant Level Low Shutdown Error Shutdown PC 3.x
14
40444 15 Fault Status 1823 LT Coolant Level Low Warning Error Warning PC 3.x
Gas Bitmap
14
40445 0 Fault Status 1824 Idle_Rated_Trans_Oil_Temp_Low_Er- Warning PC 3.x
Gas Bitmap ror
15
40445 1 Fault Status 1825 Dirty_Oil_Level_Error Warning PC 3.x
Gas Bitmap
15
40445 2 Fault Status 1826 ECM Software incompatible Shutdown PC 3.x
15
40445 3 Fault Status 1827 Fuel_Inlet_Pressure_High_Error Warning PC 3.x
Gas Bitmap
15
40445 4 Fault Status 1828 Fuel_Inlet_Pressure_Low_Error Warning PC 3.x
Gas Bitmap
15
40445 5 Fault Status 1829 Vent_Gas_Valve_Error Shutdown PC 3.x
15
40445 6 Fault Status 1831 Upstream_FSO_Valve_Error Shutdown PC 3.x
15
40445 7 Fault Status 1832 Downstream_FSO_Valve_Error Shutdown PC 3.x
15
40445 8 Fault Status 1833 Engine_Heater_Trip_Error Warning PC 3.x
Gas Bitmap
15
352
Code
40445 9 Fault Status 1834 Coolant_Pump_Trip_Error Warning PC 3.x
Gas Bitmap
15
40445 10 Fault Status 1835 Oil_Priming_Pump_Tripped_Error Warning PC 3.x
Gas Bitmap
15
40445 11 Fault Status 1836 LCP_(LT)_Low_Serious_Error Shutdown PC 3.x
15
40445 12 Fault Status 1837 Permanent_FS_Cam_Sync_Lost_Error Shutdown PC 3.x
15
40445 13 Fault Status 1838 Partial_Engine_Overload_Shut- Shutdown PC 3.x
Gas Bitmap down_Error w/Cooldown
15
40445 14 Fault Status 1839 Fuel_Supply_Pressure_High_Error Warning PC 3.x
Gas Bitmap
15
40445 15 Fault Status 1841 Fuel_Supply_Pressure_Low_Error Warning PC 3.x
Gas Bitmap
15
40446 0 Fault Status 1842 Radiator_Fan_Trip_Error Warning PC 3.x
Gas Bitmap
16
40446 1 Fault Status 1858 Exhaust Aft Inlet O2 OOR High Warning PC 3.x
Gas Bitmap
16
40446 2 Fault Status 1859 Exhaust Aft Inlet O2 OOR Low Warning PC 3.x
Gas Bitmap
16
40446 3 Fault Status 1861 Exhaust Aft Inlet O2 Incorrect Warning PC 3.x
Gas Bitmap
16
40446 4 Fault Status 1862 Exhaust Aft Out O2 OOR High Warning PC 3.x
Gas Bitmap
16
40446 5 Fault Status 1863 Exhaust Aft Outlet O2 OOR Low Warning PC 3.x
Gas Bitmap
16
40446 6 Fault Status 1864 Exhaust Aft Outlet O2 Incorrect Warning PC 3.x
Gas Bitmap
16
353
Code
Gas Bitmap
16
Gas Bitmap
16
40446 9 Fault Status 2111 Coolant_Inlet_Tempera- Warning PC 3.x
Gas Bitmap ture_(LT)_High_Error
16
40446 10 Fault Status 2112 Coolant_Inlet_Tempera- Warning PC 3.x
Gas Bitmap ture_(LT)_Low_Error
16
40446 11 Fault Status 2113 CIT_(LT)_High_Warning_Error Warning PC 3.x
Gas Bitmap
16
40446 12 Fault Status 2114 CIT_(LT)_High_Serious_Error Shutdown PC 3.x
16
40446 13 Fault Status 2115 LT_Coolant_Pressure_High_Error Warning PC 3.x
Gas Bitmap
16
40446 14 Fault Status 2116 LT_Coolant_Pressure_Low_Error Warning PC 3.x
Gas Bitmap
16
40446 15 Fault Status 2117 LCP_(LT)_Low_Warning_Error Warning PC 3.x
Gas Bitmap
16
40447 0 Fault Status 2121 Exhaust_Temp_1_(A1)_High_Warn- Warning PC 3.x
Gas Bitmap ing_Error
17
17
17
17
17
354
Code
17
17
17
17
40447 9 Fault Status 2131 Exhaust_Temp_2_(B1)_High_Warn- Warning PC 3.x
17
17
17
17
17
17
17
18
18
40448 2 Fault Status 2141 Start_Air_Pressure_High_Error Warning PC 3.x
Gas Bitmap
18
355
Code
40448 3 Fault Status 2142 Start_Air_Pressure_Low_Error Warning PC 3.x
Gas Bitmap
18
40448 4 Fault Status 2143 SAP_Overpressure_Error Warning PC 3.x
Gas Bitmap
18
Gas Bitmap Error w/Cooldown
18
Gas Bitmap Error w/Cooldown
18
40448 7 Fault Status 2146 EGT 17 (A9) OOR Low Warning PC 3.x
Gas Bitmap
18
40448 8 Fault Status 2147 EGT 18 (B9) OOR Low Warning PC 3.x
Gas Bitmap
18
40448 9 Fault Status 2154 Oil_Filter_Outlet_Pressure_High_Error Warning PC 3.x
Gas Bitmap
18
40448 10 Fault Status 2155 Oil_Filter_Outlet_Pressure_Low_Error Warning PC 3.x
Gas Bitmap
18
40448 11 Fault Status 2157 Int Man 2 Tmp Abnormal Rate Shutdown PC 3.x
18
18
18
40448 14 Fault Status 2188 Exhaust O2 OOR High Warning PC 3.x
Gas Bitmap
18
40448 15 Fault Status 2191 ST_Throttle_Press_Err_Status Warning PC 3.x
Gas Bitmap
18
40449 0 Fault Status 2192 Exhaust O2 OOR Low Warning PC 3.x
Gas Bitmap
19
356
Code
40449 1 Fault Status 2217 RAM_Image_Word_Error Warning PC 3.x
Gas Bitmap
19
40449 2 Fault Status 2219 Exhaust O2 Moderate High Warning PC 3.x
Gas Bitmap
19
40449 3 Fault Status 2221 Exhaust O2 Moderate Low Warning PC 3.x
Gas Bitmap
19
40449 4 Fault Status 2281 Knock 11 (A6) Moderate High Shutdown PC 3.x
19
40449 5 Fault Status 2282 Knock 11 (A6) Critical High Shutdown PC 3.x
19
40449 6 Fault Status 2298 Fuel Shutoff 2 OOR Low Warning PC 3.x
Gas Bitmap
19
40449 7 Fault Status 2315 Red Lamp OOR High Warning PC 3.x
Gas Bitmap
19
40449 8 Fault Status 2316 Amber Lamp OOR High Warning PC 3.x
Gas Bitmap
19
40449 9 Fault Status 2317 Amber Lamp OOR Low Warning PC 3.x
Gas Bitmap
19
40449 10 Fault Status 2427 Fuel_Outlet_Pressure_High_Error Warning PC 3.x
Gas Bitmap
19
40449 11 Fault Status 2428 Fuel_Outlet_Pressure_Low_Error Warning PC 3.x
Gas Bitmap
19
40449 12 Fault Status 2453 Total Real Power Circuit OORH Warning PC 3.x
Gas Bitmap
19
40449 13 Fault Status 2454 Total Real Power Circuit OORL Warning PC 3.x
Gas Bitmap
19
40449 14 Fault Status 2455 Speed_Bias_Low_Error Warning PC 3.x
Gas Bitmap
19
357
Code
40449 15 Fault Status 2456 Speed_Bias_High_Error Warning PC 3.x
Gas Bitmap
19
40450 0 Fault Status 2457 Max_Total_Misfire_Error Shutdown PC 3.x
20
40450 1 Fault Status 2458 Cylinder_2_(B1)_Total_Misfire_Error Warning PC 3.x
Gas Bitmap
20
Gas Bitmap
20
Gas Bitmap
20
Gas Bitmap
20
Gas Bitmap
20
Gas Bitmap
20
Gas Bitmap
20
Gas Bitmap
20
Gas Bitmap
20
40450 10 Fault Status 2469 Cylinder_1_(A1)_Total_Misfire_Error Warning PC 3.x
Gas Bitmap
20
Gas Bitmap
20
Gas Bitmap
20
358
Code
Gas Bitmap
20
Gas Bitmap
20
Gas Bitmap
20
Gas Bitmap
21
Gas Bitmap
21
Gas Bitmap
21
40451 3 Fault Status 2482 Start_Before_Ready_Error Shutdown PC 3.x
21
40451 4 Fault Status 2483 Continuous_Starter_Failure_Error Shutdown PC 3.x
21
40451 5 Fault Status 2484 Exhaust Temperature 1 (A1) Abnormal Shutdown PC 3.x
Gas Bitmap Rate w/Cooldown
21
21
21
21
21
40451 10 Fault Status 2489 Exhaust Temperature 11 (A6) Abnor- Shutdown PC 3.x
Gas Bitmap mal Rate w/Cooldown
21
359
Code
21
21
21
40451 14 Fault Status 2494 Exhaust Temperature 2 (B1) Abnormal Shutdown PC 3.x
21
21
22
22
40452 2 Fault Status 2498 Exhaust Temperature 10 (B5) Abnor- Shutdown PC 3.x
22
22
22
22
22
40452 7 Fault Status 2517 Compressor_Outlet_Pres- Warning PC 3.x
Gas Bitmap sure_High_Error
22
40452 8 Fault Status 2518 Compressor_Outlet_Pressure_Low_Er- Warning PC 3.x
Gas Bitmap ror
22
360
Code
40452 9 Fault Status 2521 Bank_Id_Error Shutdown PC 3.x
22
40452 10 Fault Status 2522 Continuous_Light_Knock_Error_1_(A1) Shutdown PC 3.x
22
40452 11 Fault Status 2523 Continuous_Light_Knock_Error_2_(B1) Shutdown PC 3.x
22
22
22
22
22
23
23
23
23
40453 4 Fault Status 2544 ECM_Overtemp_Error Shutdown PC 3.x
23
40453 5 Fault Status 2567 DG_Air_Compressor_Trip_Error Warning PC 3.x
Gas Bitmap
23
40453 6 Fault Status 2643 Throttle Pos 2 Feedback OOR High Warning PC 3.x
Gas Bitmap
23
361
Code
40453 7 Fault Status 2644 Throttle Pos 2 Feedback OOR Low Warning PC 3.x
Gas Bitmap
23
40453 9 Fault Status 2724 Gas Supply Pr Moderate High Warning PC 3.x
Gas Bitmap
23
40453 10 Fault Status 2725 Gas Supply Pr Moderate Low Warning PC 3.x
Gas Bitmap
23
40453 11 Fault Status 2737 Exh Gas Tmp Critical High Shutdown PC 3.x
23
40453 12 Fault Status 2766 Bank_A_CCD_Failed_Error Shutdown PC 3.x
23
40453 13 Fault Status 2767 Bank_B_CCD_Failed_Error Shutdown PC 3.x
23
40453 14 Fault Status 2768 CAN Parent Communication Incorrect Shutdown PC 3.x
23
40453 15 Fault Status 2769 CAN Child Com Incorrect Shutdown PC 3.x
23
40454 0 Fault Status 2789 COT_Low_Error Warning PC 3.x
Gas Bitmap
24
40454 1 Fault Status 2793 COT_Low_Serious_Error Shutdown PC 3.x
24
40454 2 Fault Status 2794 Ign Shutd Relay OOR High Warning PC 3.x
Gas Bitmap
24
40454 3 Fault Status 2795 Ign Shutd Relay OOR Low Warning PC 3.x
Gas Bitmap
24
40454 4 Fault Status 2796 Partial_Engine_Overload_Warning_Er- Warning PC 3.x
Gas Bitmap ror
24
40454 5 Fault Status 2797 Inlet Gas Diff Pressure OOR High Warning PC 3.x
Gas Bitmap
24
362
Code
40454 6 Fault Status 2798 Inlet Gas Diff Pressure OOR Low Warning PC 3.x
Gas Bitmap
24
40454 7 Fault Status 2799 IMOP_Compressor_Outlet_Pres- Shutdown PC 3.x
Gas Bitmap ure_Delta_Error w/Cooldown
24
40454 8 Fault Status 2811 IMOP_Compressor_Outlet_Pres- Shutdown PC 3.x
Gas Bitmap sure_Maximum_Error w/Cooldown
24
40454 9 Fault Status 2837 Exhaust_Temp_1_(A1)_Deviation_Er- Warning PC 3.x
Gas Bitmap ror
24
Gas Bitmap ror
24
Gas Bitmap ror
24
Gas Bitmap ror
24
Gas Bitmap ror
24
Gas Bitmap ror
24
Gas Bitmap ror
24
Gas Bitmap ror
25
Gas Bitmap ror
25
40455 2 Fault Status 2847 Exhaust_Temp_2_(B1)_Deviation_Er- Warning PC 3.x
Gas Bitmap ror
25
Gas Bitmap ror
25
363
Code
Gas Bitmap ror
25
Gas Bitmap ror
25
Gas Bitmap ror
25
Gas Bitmap ror
25
Gas Bitmap ror
25
Gas Bitmap ror
25
Gas Bitmap ror
25
40455 11 Fault Status 2857 Turbo_1_Overspeed_Critical_Error Shutdown PC 3.x
25
40455 12 Fault Status 2858 Turbo_2_Overspeed_Critical_Error Shutdown PC 3.x
25
40455 13 Fault Status 2859 Alt Heater Ctrl OOR High Warning PC 3.x
Gas Bitmap
25
40455 14 Fault Status 2861 Alt Heater Ctrl OOR Low Warning PC 3.x
Gas Bitmap
25
40455 15 Fault Status 2862 Gen Alternator 1st Start Cond Exists Warning PC 3.x
Gas Bitmap
25
40456 0 Fault Status 2863 Genset to Engine Com Incorrect Shutdown PC 3.x
26
40456 1 Fault Status 2864 FSO_NON_High_Control_Error Shutdown PC 3.x
26
364
Code
40456 2 Fault Status 3364 Power Conservation Control Cond Ex- Warning PC 3.x
Gas Bitmap ists
26
40456 3 Fault Status 2866 FCV_Position_High_Error Warning PC 3.x
Gas Bitmap
26
40456 4 Fault Status 2867 FCV_Position_Low_Error Warning PC 3.x
Gas Bitmap
26
40456 5 Fault Status 2868 Engine_Heater_Over−Tempera- Warning PC 3.x
Gas Bitmap ture_Alarm_Error
26
40456 6 Fault Status 2869 HT Cool Temp Driver OOR High Warning PC 3.x
Gas Bitmap
26
40456 7 Fault Status 2871 HT Cool Temp Driver OOR Low Warning PC 3.x
Gas Bitmap
26
40456 8 Fault Status 2872 HT Cool Temp Driver Cond Exists Warning PC 3.x
Gas Bitmap
26
40456 9 Fault Status 2873 LT Cool Temp Driver OOR High Warning PC 3.x
Gas Bitmap
26
40456 10 Fault Status 2874 LT Cool Temp Driver OOR Low Warning PC 3.x
Gas Bitmap
26
40456 11 Fault Status 2875 LT Cool Temp Driver Cond Exists Warning PC 3.x
Gas Bitmap
26
40456 12 Fault Status 2876 Comp_Surge_Shutdown_Error Shutdown PC 3.x
26
40456 13 Fault Status 2877 Comp_Surge_Derate_Error Warning PC 3.x
Gas Bitmap
26
40456 14 Fault Status 2994 MC68302_Error Warning PC 3.x
Gas Bitmap
26
40456 15 Fault Status 2995 Int Man Pressure 1 Critical High Shutdown PC 3.x
26
365
Code
40457 0 Fault Status 2996 Int Man Pressure 1 Moderate High Warning PC 3.x
Gas Bitmap
27
40457 1 Fault Status 2997 Exhaust O2 Critical Low Shutdown PC 3.x
27
40457 2 Fault Status 3111 Excessive_Mech_Vibration_1_(A1) Shutdown PC 3.x
27
40457 3 Fault Status 3112 Excessive_Mech_Vibration_2_(B1) Shutdown PC 3.x
27
27
27
27
27
27
27
27
27
27
27
366
Code
27
27
28
28
28
28
Gas Bitmap
28
Gas Bitmap
28
Gas Bitmap
28
Gas Bitmap
28
Gas Bitmap
28
Gas Bitmap
28
Gas Bitmap
28
Gas Bitmap
28
367
Code
Gas Bitmap
28
40459 0 Fault Status 189 HT Coolant Temperature Root Cause Shutdown PC 3.x
Gas Bitmap Unknown w/Cooldown
29
40459 1 Fault Status 229 HT Coolant Pressure Incorrect Warning PC 3.x
Gas Bitmap
29
40459 2 Fault Status 334 HT Coolant Temperature Incorrect Warning PC 3.x
Gas Bitmap
29
40459 4 Fault Status 831 Spark Plug 1 (A1) OORL Warning PC 3.x
Gas Bitmap
29
40459 5 Fault Status 832 Spark Plug 2 (B1) OORL Warning PC 3.x
Gas Bitmap
29
Gas Bitmap
29
Gas Bitmap
29
Gas Bitmap
29
Gas Bitmap
29
Gas Bitmap
29
Gas Bitmap
29
Gas Bitmap
29
Gas Bitmap
29
368
Code
Gas Bitmap
29
Gas Bitmap
29
Gas Bitmap
30
Gas Bitmap
30
Gas Bitmap
30
Gas Bitmap
30
Gas Bitmap
30
Gas Bitmap
30
40460 7 Fault Status 891 Spark Plug 1 (A1) Root Cause Un- Warning PC 3.x
Gas Bitmap known
30
40460 8 Fault Status 892 Spark Plug 2 (B1) Root Cause Un- Warning PC 3.x
Gas Bitmap known
30
Gas Bitmap known
30
Gas Bitmap known
30
Gas Bitmap known
30
Gas Bitmap known
30
369
Code
Gas Bitmap known
30
Gas Bitmap known
30
Gas Bitmap known
30
Gas Bitmap known
31
Gas Bitmap known
31
Gas Bitmap known
31
Gas Bitmap known
31
Gas Bitmap known
31
Gas Bitmap known
31
Gas Bitmap known
31
Gas Bitmap known
31
Gas Bitmap known
31
40461 10 Fault Status 1276 Knock Cyl 10 (B5) OORH Warning PC 3.x
Gas Bitmap
31
40461 11 Fault Status 1278 Knock Cyl 11 (A6) OORH Warning PC 3.x
Gas Bitmap
31
370
Code
40461 12 Fault Status 1279 Knock 12 (B6) High Warning Warning PC 3.x
Gas Bitmap
31
Gas Bitmap
31
40461 14 Fault Status 1284 Knock 13 (A7) High Warning Warning PC 3.x
Gas Bitmap
31
Gas Bitmap
31
Gas Bitmap
32
Gas Bitmap
32
Gas Bitmap
32
Gas Bitmap
32
Gas Bitmap
32
Gas Bitmap
32
Gas Bitmap
32
32
32
Gas Bitmap
32
371
Code
Gas Bitmap
32
Gas Bitmap ror_19_(A10) w/Cooldown
32
32
Gas Bitmap
32
Gas Bitmap
32
Gas Bitmap
33
Gas Bitmap
33
Gas Bitmap
33
Gas Bitmap
33
Gas Bitmap
33
40463 6 Fault Status 2193 HT Coolant Level Moderate High Warning PC 3.x
Gas Bitmap
33
Gas Bitmap
33
Gas Bitmap
33
Gas Bitmap
33
372
Code
Gas Bitmap
33
Gas Bitmap
33
Gas Bitmap
33
Gas Bitmap
33
Gas Bitmap
33
Gas Bitmap
33
Gas Bitmap
34
Gas Bitmap
34
Gas Bitmap
34
Gas Bitmap
34
Gas Bitmap
34
Gas Bitmap
34
Gas Bitmap
34
Gas Bitmap
34
373
Code
Gas Bitmap
34
Gas Bitmap
34
Gas Bitmap
34
34
34
40464 13 Fault Status 2553 Engine Oil Level Low Warning Error Warning PC 3.x
Gas Bitmap
34
40464 14 Fault Status 2568 Gas Supply Pressure Critical High Shutdown PC 3.x
34
40464 15 Fault Status 2569 Gas Supply Pressure Critical Low Shutdown PC 3.x
34
40465 0 Fault Status 2586 Spark Plug 1 (A1) High Warning NONE PC 3.x
Gas Bitmap
35
40465 1 Fault Status 2587 Spark Plug 2 (B1) High Warning NONE PC 3.x
Gas Bitmap
35
Gas Bitmap
35
Gas Bitmap
35
Gas Bitmap
35
Gas Bitmap
35
374
Code
40465 6 Fault Status 2593 Spark Plug 1 (A1) Low Warning NONE PC 3.x
Gas Bitmap
35
40465 7 Fault Status 2594 Spark Plug 2 (B1) Low Warning NONE PC 3.x
Gas Bitmap
35
Gas Bitmap
35
Gas Bitmap
35
Gas Bitmap
35
Gas Bitmap
35
40465 12 Fault Status 2646 HT Coolant Temperature Condition Ex- Warning PC 3.x
Gas Bitmap ists
35
Gas Bitmap
36
Gas Bitmap
36
Gas Bitmap
36
Gas Bitmap
36
Gas Bitmap
36
Gas Bitmap
36
Gas Bitmap
36
375
Code
Gas Bitmap
36
Gas Bitmap
36
Gas Bitmap
36
Gas Bitmap
36
Gas Bitmap
36
Gas Bitmap
36
Gas Bitmap
36
Gas Bitmap
36
Gas Bitmap
36
Gas Bitmap
37
Gas Bitmap
37
Gas Bitmap
37
Gas Bitmap
37
Gas Bitmap
37
376
Code
Gas Bitmap
37
Gas Bitmap
37
Gas Bitmap
37
40467 8 Fault Status 3288 Exhaust Aft Outlet Oxygen Relay Warning PC 3.x
Gas Bitmap OORH
37
40467 9 Fault Status 3289 Exhaust Aft Outlet Oxygen Relay Warning PC 3.x
Gas Bitmap OORL
37
40467 10 Fault Status 3291 Exhaust Aft Inlet Oxygen Relay OORH Warning PC 3.x
Gas Bitmap
37
40467 11 Fault Status 3292 Exhaust Aft Inlet Oxygen Relay OORL Warning PC 3.x
Gas Bitmap
37
40467 12 Fault Status 3293 Exhaust Oxygen Relay OORH Warning PC 3.x
Gas Bitmap
37
40467 13 Fault Status 3294 Exhaust Oxygen Relay OORL Warning PC 3.x
Gas Bitmap
37
40468 3 Fault Status 3365 External Air Pressure Low Warning Er- Warning PC 3.x
Gas Bitmap ror
38
Gas Bitmap sure_2_High_Error
38
Gas Bitmap sure_2_Low_Error
38
40468 6 Fault Status 3392 Int Man Pressure 2 Critical High Shutdown PC 3.x
38
40468 7 Fault Status 3393 Int Man Pressure 2 Moderate High Warning PC 3.x
Gas Bitmap
38
377
Code
40468 9 Fault Status 3397 Low Gearbox Oil Pressure − Condition Shutdown PC 3.x
Gas Bitmap Exists
38
40468 10 Fault Status 3398 High Gearbox Oil Temperature − Con- Shutdown PC 3.x
Gas Bitmap dition Exists w/Cooldown
38
40468 11 Fault Status 3399 Differential Fault − Condition Exists Shutdown PC 3.x
Gas Bitmap
38
40468 12 Fault Status 3411 DC Power Supply Fault − Condition Ex- Warning PC 3.x
Gas Bitmap ists
38
40468 13 Fault Status 3412 GIB Isolator Open Fault − Condition Warning PC 3.x
Gas Bitmap Exists
38
40468 14 Fault Status 3413 Radiator Fan Trip Fault − Condition Ex- Warning PC 3.x
Gas Bitmap ists
38
40468 15 Fault Status 3414 Ventilator Fan Trip Fault − Condition Warning PC 3.x
Gas Bitmap Exists
38
40469 0 Fault Status 3415 Louvres Closed Fault − Condition Ex- Warning PC 3.x
Gas Bitmap ists
39
40469 1 Fault Status 3416 Start System Fault − Condition Exists Warning PC 3.x
Gas Bitmap
39
40469 2 Fault Status 3417 Alternator Heater Trip Fault − Condition Warning PC 3.x
Gas Bitmap Exists
39
40469 4 Fault Status 9971 ECM Derate Fault NONE PC 3.x
Gas Bitmap
39
40469 5 Fault Status 3479 Start−Inhibit Shutdown Fault Shutdown PC 3.x
Gas Bitmap
39
40469 6 Fault Status 3481 Start−Inhibit Warning Fault Event Warning PC 3.x
Gas Bitmap
39
40469 7 Fault Status 3483 High Alternator Temperature 1 Shut- Shutdown PC 3.x
Gas Bitmap down Fault
39
378
Code
39
39
40469 10 Fault Status 3486 High Drive End Bearing Temperature Shutdown PC 3.x
Gas Bitmap Shutdown Fault
39
40469 11 Fault Status 3487 High Non−Drive End Bearing Temp Shutdown PC 3.x
Gas Bitmap Shutdown Fault
39
40469 12 Fault Status 3482 Off Load Running Fault Shutdown PC 3.x
Gas Bitmap
39
40470 0 Fault Status 3491 Oil Filter Restriction High Shutdown PC 3.x
40
40470 1 Fault Status 2313 Fuel Control Valve Error Warning PC 3.x
Gas Bitmap
40
40470 2 Fault Status 3475 Engine Electronic Fuel Valve #2 OORH Warning PC 3.x
Gas Bitmap
40
40470 3 Fault Status 3476 Engine Electronic Fuel Valve #2 OORL Warning PC 3.x
Gas Bitmap
40
40470 4 Fault Status 2812 Throttle Control Actuator Error Shutdown PC 3.x
40
40470 5 Fault Status 3489 Compressor Bypass Actuator Error Warning PC 3.x
Gas Bitmap
40
40470 6 Fault Status 3458 Knock Engine Derate Warning PC 3.x
Gas Bitmap
40
40470 8 Fault Status 3499 Throttle Actuator 2− Special Instruction Shutdown PC 3.x
40
40470 9 Fault Status 3511 Throttle Actuator 2− Shorted High Shutdown PC 3.x
40
379
Code
40470 10 Fault Status 3512 Throttle Actuator 2− Shorted Low Shutdown PC 3.x
40
40470 11 Fault Status 2752 Throttle Actuator − Shorted High Shutdown PC 3.x
40
40470 12 Fault Status 3514 Throttle Actuator − Shorted Low Shutdown PC 3.x
40
40470 13 Fault Status 3515 Throttle Actuator − Special instruction Shutdown PC 3.x
40
40470 14 Fault Status 3521 Throttle Actuator − Temperature low Warning PC 3.x
Gas Bitmap
40
40470 15 Fault Status 3522 Throttle Actuator 2− Temp low Warning PC 3.x
Gas Bitmap
40
380
4. NFPA 110 & Extended Annunciation Bitmap
Table 4-1 NFPA110 bitmap (See Section 1 Reg Table 4-2 Extended Annunciation Bitmap (See Sec-
40016, Section 2 Reg 40716, 40717and Section 5) tion 1 Reg. 40017 and Section 5)
BIT DESCRIPTION
BIT DESCRIPTION
0 (MSB) Common Alarm
0 (MSB) Check Genset
1 Genset Supplying Load
1 Ground Fault
2 Genset Running
2 High AC Voltage
3 Not in Auto
3 Low AC Voltage
4 High Battery Voltage
4 Under Frequency
5 Low Battery Voltage 5 Overload
6 Charger AC Failure 6 Overcurrent
7 Fail to Start 7 Short Circuit
8 Low Coolant Temperature 8 Reverse KW
9 Pre-high Engine Temperature 9 Reverse KVAR
10 High Engine Temperature 10 Fail to Sync
11 Pre-low Oil Pressure 11 Fail to Close
12 Low Oil Pressure 12 Load Demand
13 Overspeed 13 Genset Circuit Breaker Tripped
14 Low Coolant Level 14 Utility Circuit Breaker Tripped
15 (LSB) Low Fuel Level 15 (LSB) Emergency Stop
Table 4-3 NFPA110 bitmap (See Section 6) Table 4-4 Extended Annunciation Bitmap (See Sec-
tion 6)
BIT DESCRIPTION
BIT DESCRIPTION
0 (MSB) Source 1 Connected
0 (MSB) Source 1 Available
1 Source 2 Connected
1 Source 2 Available
2 NA
3 Not in Auto
4 NA
4 ATS Common Alarm
5 NA
5 Not In Auto
6 Charger AC Failure
6 Test / Exercise In Progress
7 NA 7 Low Battery Voltage
8 NA 8 Load Shed
9 NA 9 Transfer Inhibit
10 NA 10 Retransfer Inhibit
11 NA 11 Fail To Close
12 NA 12 Fail To Disconnect
13 NA 13 Fail To Synchronize
14 NA 14 Bypass to Source 1
15 (LSB) NA 15 (LSB) Bypass to Source 2
381
382
5. DMC 1000 Modbus Parametric Data
Addr. System Name Access Specifications Description Function

42001 MB Logical Read/ Multiplier: Unit: Logical address Communica-
Read Address Write 1.000000000000 Lower Limit: .000 to be read via tions
Offset: 0 Upper Limit: Modbus
Size (bits): 16 65535.000
Sign: U Default: 0
42002 MB Logical Read Multiplier: Unit: Logical data to Communica-
Read Data Only 1.000000000000 Lower Limit: be read via Mod- tions
Offset: 0 Upper Limit: bus
Size (bits): 32 Default:
Sign: U
42009 Device Type Read Multiplier: Unit: Hard coded de- Communica-
Only 1.000000000000 Lower Limit: vice type id = 52 tions
Offset: 0 Upper Limit: (0x0034)
Sign: U
42010 Software Ver- Read Multiplier: Unit: Software version Controller In-
sion Only 0.000100000000 Lower Limit: number formation
Offset: 0 Upper Limit:
Sign: U
42012 Current Fault Read Multiplier: Unit: The most recent- Fault and
Status Only 1.000000000000 Lower Limit: ly occurring fault Event Info
Offset: 0 Upper Limit: which is still ac-
Size (bits): 16 Default: tive
Sign: U
42018 Genset L1N Read Multiplier: Unit: Volts Generator set Voltage
Voltage Only 1.000000000000 Lower Limit: L1N voltage
Size (bits): 16 Default
Sign: U
Sign: U
Sign: U
42021 Genset LN Av- Read Multiplier: Unit: Volts Generator set LN Voltage
erage Voltage Only 1.000000000000 Lower Limit: average voltage
Sign: U
383
42022 Genset L1L2 Read Multiplier: Unit: Volts Generator set Voltage
Voltage Only 1.000000000000 Lower Limit: L1L2 voltage
Sign: U
Sign: U
Sign: U
42025 Genset LL Av- Read Multiplier: Unit: Volts Generator set LL Voltage
erage Voltage Only 1.000000000000 Lower Limit: average voltage
Sign: U
42026 Genset L1 Read Multiplier: Unit: Amps Generator set L1 Current
Current Only 1.000000000000 Lower Limit: current
Sign: U
Sign: U
Sign: U
42029 Genset Aver- Read Multiplier: Unit: Amps Generator set av- Current
age Current Only 1.000000000000 Lower Limit: erage current
Sign: U
42030 Genset L1 kW Read Multiplier: Unit: kW Generator set L1 Current
Only 1.000000000000 Lower Limit: kW
Sign: S
42031 Genset L2 kW Read Multiplier: Unit: kW Generator set L2 Current
Sign: S
384
42032 Genset L3 kW Read Multiplier: Unit: kW Generator set L3 Power
Sign: S
42033 Genset Total Read Multiplier: Unit: kW Generator set to- Power
kW Only 1.000000000000 Lower Limit: tal kW
Sign: S
42034 Genset L1 Read Multiplier: Unit: kVAR Generator set L1 Power
kVAR Only 1.000000000000 Lower Limit: kVAR
Sign: S
Sign: S
Sign: S
42037 Genset Total Read Multiplier: Unit: kVAR Generator set to- Power
kVAR Only 1.000000000000 Lower Limit: tal kVAR
Sign: S
42038 Genset Total Read Multiplier: Unit: Generator set to- Power
Power Factor Only 0.010000000000 Lower Limit: tal power factor
Sign: S
42039 Genset L1 Read Multiplier: Unit: kVA Generator set L1 Power
kVA Only 1.000000000000 Lower Limit: kVA
Sign: U
42040 Genset L2 Read Multiplier: Unit: kVA Generator Set L2 Power
Sign: U
Sign: U
385
42042 Genset Total Read Multiplier: Unit: kVA Generator set to- Power
kVA Only 1.000000000000 Lower Limit: kVA tal kVA
Offset: 0 Upper Limit: kVA
Sign: U
42043 MB Genset Read Multiplier: Unit: Hz Generator set Communica-
Frequency Only 0.100000000000 Lower Limit: Hz line frequency tions
Offset: 0 Upper Limit: Hz scaled by 10 =
Size (bits): 16 Default: 1Hz for Modbus
Sign: U
42044 Genset Total Read Multiplier: Unit: kWh Generator set to- Energy
Negative kWh Only 1.000000000000 Lower Limit: kWh tal negative kWh
Offset: 0 Upper Limit: kWh accumulation
Sign: U
Positive kWh Only .100000000000 Lower Limit: kWh tal positive kWh
Sign: U
Net kWh Only 1.000000000000 Lower Limit: kWh tal net kWh accu-
Offset: 0 Upper Limit: kWh mulation
Sign: S
42050 Genset Total Read Multiplier: Unit: kVARh Generator set to- Energy
Negative Only 1.000000000000 Lower Limit: kVARh tal negative
kVARh Offset: 0 Upper Limit: kVARh kVARh accu-
Size (bits): 32 Default: mulation
Sign: U
Positive Only 1.000000000000 Lower Limit: kVARh tal positive
Sign: U
Net kVARh Only 1.000000000000 Lower Limit: kVARh tal net kVARh ac-
Offset: 0 Upper Limit: kVARh cumulation
Sign: S
40056 Genset Total Read Multiplier: Unit: kVAh Generator set to- Energy
kVAh Only 1.000000000000 Lower Limit: kVAh tal kVAh accu-
Offset: 0 Upper Limit: kVAh mulation
Sign: U
386
42058 Genset Avail- Read Multiplier: Unit: Amps Calculated Amps Current
able Current Only 1.000000000000 Lower Limit: which represent
Offset: 0 Upper Limit: 100% generator
Size (bits): 16 Default: set bus current
Sign: U −− used by baro-
graph
42059 Genset L1 Read Multiplier: Unit: % Generator set L1 Current
Current Per- Only 0.100000000000 Lower Limit: current as per-
cent Offset: 0 Upper Limit: cent of generator
Size (bits): 16 Default: set total current
Sign: U capacity−−used
by barograph
by barograph
by barograph
42062 Genset Total Read Multiplier: Unit: % Generator set to- Power
kW Percent Only 0.100000000000 Lower Limit: tal kW as percent
Offset: 0 Upper Limit: of total generator
Size (bits): 16 Default: set capacity −−
Sign: S used by baro-
graph
42063 Genset Fre- Read Multiplier: Unit: % Generator set Frequency
quency Per- Only 0.100000000000 Lower Limit: frequency as per-
cent Offset: 0 Upper Limit: cent of system
Size (bits): 16 Default: frequency −−
Sign: U used by baro-
graph
42064 Genset L1L2 Read Multiplier: Unit: % Generator set Voltage
Voltage% Only 0.100000000000 Lower Limit: L1L2 voltage%
Sign: U
Sign: U
387
Sign: U
42118 Utility L1N Vol- Read Multiplier: Unit: Volts Utility L1N vol- Voltage
tage Only 1.000000000000 Lower Limit: tage
Size (bits): 16 Default: 0
Sign: U
42119 Utility L2N Vol- Read Multiplier: Unit: Volts Utility L2N vol- Voltage
tage Only 1.000000000000 Lower Limit: tage
Sign: U
42120 Utility L3N Vol- Read Multiplier: Unit: Volts Utility L3N volta- Voltage
tage Only 1.000000000000 Lower Limit: ge
Sign: U
42121 Utility LN Av- Read Multiplier: Unit: Volts Utility LN aver- Voltage
erage Voltage Only 1.000000000000 Lower Limit: age voltage
Sign: U
42122 Utility L1L2 Read Multiplier: Unit: Volts Utility L1L2 vol- Voltage
Voltage Only 1.000000000000 Lower Limit: tage
Sign: U
42123 Utility L2L3 Read Multiplier: Unit: Volts Utility L2L3 volta- Voltage
Voltage Only 1.000000000000 Lower Limit: ge
Sign: U
42124 Utility L3L1 Read Multiplier: Unit: Volts Utility L3L1 volta- Voltage
Voltage Only 1.000000000000 Lower Limit: ge
Sign: U
42125 Utility LL Aver- Read Multiplier: Unit: Volts Utility LL average Voltage
age Voltage Only 1.000000000000 Lower Limit: voltage
Sign: U
42126 Utility L1 Cur- Read Multiplier: Unit: Amps Utility L1 current Current
rent Only 1.000000000000 Lower Limit:
Sign: U
388
Sign: U
Sign: U
42129 Utility Average Read Multiplier: Unit: Amps Utility average Current
Sign: U
42130 Utility L1 kW Read Multiplier: Unit: kW Utility L1 kW Power
Only 1.000000000000 Lower Limit:
Sign: S
Sign: S
Sign: S
42133 Utility Total kW Read Multiplier: Unit: kW Utility total kW Power
Sign: S
42134 Utility L1 Read Multiplier: Unit: kVAR Utility L1 kVAR Power
kVARt Only 1.000000000000 Lower Limit:
Sign: S
42135 Utility L2 kVAR Read Multiplier: Unit: kVAR Utility L2 kVAR Power
Sign: S
Sign: S
389
42137 Utility Total Read Multiplier: Unit: kVAR Utility total kVAR Power
kVAR Only 1.000000000000 Lower Limit:
Sign: S
42138 Utility Total Read Multiplier: Unit: Utility total power Power
Power Factor Only .010000000000 Lower Limit: factor
Sign: S
42139 Utility L1 kVA Read Multiplier: Unit: kVA Utility L1 kVA Power
Sign: U
Sign: U
Sign: U
42142 Utility Total Read Multiplier: Unit: kVA Utility total kVA Power
kVA Only 1.000000000000 Lower Limit:
Sign: U
42143 MB Utility Fre- Read Multiplier: Unit: Hz Utility line fre- Communica-
quency Only .100000000000 Lower Limit: quency scaled by tions
Offset: 0 Upper Limit: 10 = 1Hz for
Size (bits): 16 Default: Modbus
Sign: U
42144 Utility Total Read Multiplier: Unit: kWh Utility total nega- Energy
Negative kWh Only 1.000000000000 Lower Limit: tive kWh accu-
Offset: 0 Upper Limit: mulation
Sign: U
42146 Utility Total Read Multiplier: Unit: kWh Utility total posi- Energy
Positive kWh Only 1.000000000000 Lower Limit: tive kWh accu-
Sign: U
42148 Utility Total Read Multiplier: Unit: kWh Utility total net Energy
Net kWh Only 1.000000000000 Lower Limit: kWh accumula-
Offset: 0 Upper Limit: tion
Sign: S
390
42150 Utility Total Read Multiplier: Unit: kVARh Utility total nega- Energy
Negative Only 1.000000000000 Lower Limit: tive kVARh accu-
kVARh Offset: 0 Upper Limit: mulation
Sign: U
42152 Utility Total Read Multiplier: Unit: kVARh Utility total posi- Energy
Positive Only 1.000000000000 Lower Limit: tive kVARh accu-
kVARh Offset: 0 Upper Limit: mulation
Sign: U
42154 Utility Total Read Multiplier: Unit: kVARh Utility total net Energy
Net kVARh Only 1.000000000000 Lower Limit: kVARh accu-
Sign: S
42156 Utility Total Read Multiplier: Unit: kVARh Utility total kVAh Energy
kVAh Only 1.000000000000 Lower Limit: accumulation
Sign: U
42158 System Total Read Multiplier: Unit: kW Sum of generator Power
kW Only 1.000000000000 Lower Limit: set bus and utility
Offset: 0 Upper Limit: bus kW
Sign: S
42159 System Total Read Multiplier: Unit: kVAR Sum of generator Power
kVAR Only 1.000000000000 Lower Limit: set bus and utility
Offset: 0 Upper Limit: bus kVAR
Sign: S
42160 System Total Read Multiplier: Unit: System total Power
Power Factor Only 0.010000000000 Lower Limit: power factor
Offset: 0 Upper Limit: (totalized value of
Size (bits): 8 Default: utility bus plus
Sign: S generator set
bus)
42161 System Total Read Multiplier: Unit: kVA Sum of generator Power
kVA Only 1.000000000000 Lower Limit: set bus and utility
Offset: 0 Upper Limit: bus kVA
Sign: U
42162 Utility L1 Cur- Read Multiplier: Unit: % barograph Current
rent Percent Only .100000000000 Lower Limit:
Sign: U
391
Sign: U
Sign: U
42165 Utility Total kW Read Multiplier: Unit: % Utility total kW as Power

Percent Only .100000000000 Lower Limit: percent of total
Offset: 0 Upper Limit: utility capacity −−
Size (bits): 16 Default: used by baro-
Sign: S graph
42166 Utility Fre- Read Multiplier: Unit: % Utility frequency Frequency

quency Per- Only .100000000000 Lower Limit: as percent of
cent Offset: 0 Upper Limit: System Frequen-
Size (bits): 16 Default: cy −− used by
Sign: U barograph
42167 Utility L1L2 Read Multiplier: Unit: % Utility L1L2 volt- Voltage
Voltage% Only .100000000000 Lower Limit: age%
Sign: U
Sign: U
Sign: U
42200 Total Number Read Multiplier: Unit: NA Number of gener- System Infor-
of Gensets Only 1.000000000000 Lower Limit: ator sets with mation
Offset: 0 Upper Limit: non−zero ratings
Size (bits): 16 Default: entered
Sign: U
42201 Total System Read Multiplier: Unit: kW Sum of the gen- System Infor-
Capacity Only 1.000000000000 Lower Limit: erator set kW ra- mation
Offset: 0 Upper Limit: tings
Sign: S
392
42202 Total Online Read Multiplier: Unit: kW Sum of the gen- System In-
Capacity Only 1.000000000000 Lower Limit: erator set kW rat- formation
Offset: 0 Upper Limit: ings for generator
Size (bits): 16 Default: sets which are
Sign: S online
42203 Programmed Read Multiplier: Unit: seconds Countdown value PTC Timers
Transition Tim- Only .100000000000 Lower Limit: of the pro-
er Offset: 0 Upper Limit: grammed transi-
Size (bits): 16 Default: tion timer
Sign: U
42204 Transfer Timer Read Multiplier: Unit: seconds Countdown value PTC Timers
Only .100000000000 Lower Limit: of the transfer
Offset: 0 Upper Limit: timer
Sign: U
42205 Retransfer Read Multiplier: Unit: seconds Countdown value PTC Timers
Timer Only .100000000000 Lower Limit: of the retransfer
Sign: U
42206 Maximum Par- Read Multiplier: Unit: seconds Countdown value PTC Timers
allel Timer Only .100000000000 Lower Limit: of the maximum
Offset: 0 Upper Limit: parallel timer
Sign: U
42207 kW Load Re- Read Multiplier: Unit: kW kW control refer- Master Load
ference Only 1.000000000000 Lower Limit: ence value for Control
Offset: 0 Upper Limit: utility paralleling
Sign: S
42212 Active Transi- Read Multiplier: Unit: seconds Countdown timer PTC Timers
tion Timer Only .010000000000 Lower Limit: value of active
Sign: U
42213 Hardware Ver- Read Multiplier: Unit: Indicates the Discrete In-
sion Only 1.000000000000 Lower Limit: hardware version puts
Offset: 0 Upper Limit: of the board
Sign: U
42214 Controller On Read Multiplier: Unit: seconds Amount of time in Controller In-
Time Only 1.000000000000 Lower Limit: 0.000 seconds control- formation
Offset: 0 Upper Limit: ler has been
Size (bits): 32 4294967295.000 powered
Sign: U Default: 0.000
42220 kVAR Load Read Multiplier: Unit: kVAR kVAR control ref- Master Load
Reference Only 1.000000000000 Lower Limit: erence value for Control
Offset: 0 Upper Limit: extended paralle-
Size (bits): 16 Default: ling
Sign: S
393
42221 kVAR Load Read Multiplier: Unit: % Engineering units Analog Inputs
Setpoint Engr Only .010000000000 Lower Limit: value for the
Units Display Offset: 0 Upper Limit: kVAR load set-
Value Size (bits): 16 Default point analog in-
Sign: S put
42222 kW Load Set- Read Multiplier: Unit: % Engineering units Analog Inputs
point Engr Only .010000000000 Lower Limit: value for the kW
Units Display Offset: 0 Upper Limit: load setpoint
Value Size (bits): 16 Default: analog input
Sign: S
42223 Power Factor Read Multiplier: Unit: Power factor set- Analog Inputs
Setpoint Only .010000000000 Lower Limit: point analog in-
Offset: 0 Upper Limit: put value (uses
Size (bits): 8 Default: kVAR load set-
Sign: S point analog in-
put)
42226 Sync Phase Read Multiplier: Unit: degrees Utility to genera- Phase
Difference Only .010000000000 Lower Limit: tor set L1 voltage
Offset: 0 Upper Limit: phase angle
Sign: S
42250 Current Add Read Multiplier: Unit: Indicates the next Load Add
Level Only 1.000000000000 Lower Limit: level to add Shed Control
Sign: U
42251 Current Shed Read Multiplier: Unit: Indicates the next Load Add
Level Only 1.000000000000 Lower Limit: level to shed Shed Control
Sign: U
42291 Battery Volt- Read Multiplier: Unit: VDC Engineering units Analog Inputs
age Engr Units Only .010000000000 Lower Limit: value for the bat-
Display Value Offset: 0 Upper Limit: tery voltage ana-
Size (bits): 16 Default log input
Sign: U
42292 kVAR Master Read Multiplier: Unit: VDC Voltage level Analog Out-
Load Control Only .010000000000 Lower Limit: commanded to puts
Output Predic- Offset: 0 Upper Limit: kVAR master
tor Value Size (bits): 16 Default load control ana-
Sign: S log output
42293 kW Master Read Multiplier: Unit: VDC Voltage level Analog Out-
Load Control Only .010000000000 Lower Limit: commanded to puts
Output Predic- Offset: 0 Upper Limit: kW master load
tor Value Size (bits): 16 Default control analog
Sign: S output
394
42294 Master Fre- Read Multiplier: Unit: VDC Voltage level Analog Out-
quency Bias Only .010000000000 Lower Limit: commanded to puts
Output Predic- Offset: 0 Upper Limit: master frequency
tor Value Size (bits): 16 Default bias analog out-
Sign: S put
42295 Master Volt- Read Multiplier: Unit: VDC Voltage level Analog Out-
age Bias Out- Only .010000000000 Lower Limit: commanded to puts
put Predictor Offset: 0 Upper Limit: master voltage
Value Size (bits): 16 Default: bias analog out-
Sign: S put
42305 Genset 01 kW Read/ Multiplier: Unit: kW Sets gen1 kW ra- System In-
Rating Write 1.000000000000 Lower Limit: 0.000 ting formation
Offset: 0 kW
Sign: S 32000.00 kW
Default: 1000.000
Offset: 0 kW
Sign: S 32000.00 kW
Default: 0.000
Offset: 0 kW
Sign: S 32000.00 kW
Default: 0.000
Offset: 0 kW
Sign: S 32000.00 kW
Default: 0.000
Offset: 0 kW
Sign: S 32000.00 kW
Default: 0.000
Offset: 0 kW
Sign: S 32000.00 kW
Default: 0.000
395
Offset: 0 kW
Sign: S 32000.00 kW
Default: 0.000
Offset: 0 kW
Sign: S 32000.00 kW
Default: 0.000
Offset: 0 kW
Sign: S 32000.00 kW
Default: 0.000
42314 Genset 10 kW Read/ Multiplier: Unit: kW Sets gen10 kW System In-

Rating Write 1.000000000000 Lower Limit: 0.000 rating formation
Offset: 0 kW
Sign: S 32000.00 kW
Default: 0.000
42315 Genset 11 kW Read/ Multiplier: Unit: kW Sets gen11 kW System In-

Rating Write 1.000000000000 Lower Limit: 0.000 rating formation
Offset: 0 kW
Sign: S 32000.00 kW
Default: 0.000
42316 Genset 12 kW Read/ Multiplier: Unit: kW Sets gen12 kW System Infor-

Rating Write 1.000000000000 Lower Limit: 0.000 rating mation
Offset: 0 kW
Sign: S 32000.00 kW
Default: 0.000
42317 Programmed Read/ Multiplier: Unit: seconds Sets the pro- PTC Timers
Transition Write 0.100000000000 Lower Limit: 0.000 grammed transi-
Delay (TDPT) Offset: 0 seconds tion time delay
Size (bits): 16 Upper Limit: 60 sec-
Sign: U onds
Default: 3.000
42318 Transfer Delay Read/ Multiplier: Unit: seconds Sets the transfer PTC Timers
(TDNE) Write 0.100000000000 Lower Limit: 0.000 time delay
Offset: 0 seconds
Sign: U onds
Default: 10.000
396
42319 Retransfer Read/ Multiplier: Unit: seconds Sets the retran- PTC Timers
Delay (TDEN) Write 0.100000000000 Lower Limit: 0.000 sfer time delay
Offset: 0 seconds
Sign: U seconds
Default: 600.000
42320 Maximum Par- Read/ Multiplier: Unit seconds Sets the maxi- PTC Timers
allel Time Write 0.000000000000 Lower Limit: 0.000 mum parallel
(TDMP) Offset: 0 seconds time for soft load
Size (bits): 16 Upper Limit: 1800 transfers
Sign: U seconds
Default: 20.000
42321 Genset Bus Read/ Multiplier: Unit: % Sets %kW gener- Master Load
%kW Setpoint Write .010000000000 Lower Limit: -5.000 ator set output Control
Offset: 0 % level for open
Size (bits): 16 Upper Limit: 105.000 loop base load
Sign: S % extended paralle-
Default: 80.000 ling
42322 Genset Nomi- Read/ Multiplier: Unit: Volts Generator set AC Setup
nal Voltage Write 1.000000000000 Lower Limit: 110.000 nominal voltage
Offset: 0 Volts
Sign: U 45000.000 Volts
Default: 480.000
42323 Utility Nominal Read/ Multiplier: Unit: Volts Utility nominal AC Setup
Voltage Write 1.000000000000 Lower Limit: 110.000 voltage
Offset: 0 Volts
Default: 480.000
42324 Genset Center Read/ Multiplier: Unit: Hz Sets the center PTC Sensors
Frequency Write 0.100000000000 Lower Limit: 45.000 frequency for the
Offset: 0 Hz generator set fre-
Size (bits): 16 Upper Limit: 65.000 quency sensor
Sign: U Default: 60.000 bandwidth set-
tings
42325 Utility Center Read/ Multiplier: Unit: Hz Sets the center PTC Sensors
Frequency Write 0.100000000000 Lower Limit: 45.000 frequency for the
Offset: 0 Hz utility frequency
Size (bits): 16 Upper Limit: 65.000 sensor bandwidth
Sign: U Hz settings
Default: 60.000
42327 System Fre- Read/ Multiplier: Unit: Hz Use to define the System Infor-
quency Write 0.100000000000 Lower Limit: 45.000 system nominal mation
Offset: 0 Hz frequency
Sign: U Hz
Default: 60.000
397
42330 Genset Bus Read/ Multiplier: Unit: kW Sets the base Master Load
kW Setpoint Write 1.000000000000 Lower Limit: 0.000 load kW setpoint Control
Offset: 0 kW in closed loop ex-
Size (bits): 16 Upper Limit: tended paralle-
Sign: S 32767.000 kW ling
Default: 0.000
42331 Genset Bus Read/ Multiplier: Unit: kVAR Sets the base Master Load
kVAR Setpoint Write 1.000000000000 Lower Limit: 0.000 load kVAR set- Control
Offset: 0 kVAR point in closed
Size (bits): 16 Upper Limit: 32767 loop extended
Sign: S kVAR paralleling
Default: 0.000
42332 Genset Bus Read/ Multiplier: Unit: % Sets %kVAR Master Load
%kVAR Set- Write .010000000000 Lower Limit: -5.000 generator set Control
point Offset: 0 % output level for
Size (bits): 16 Upper Limit: 105.000 open loop base
Sign: S % load extended
Default: 0.000 paralleling
42333 Genset Bus Read/ Multiplier: Unit: Sets the desired Master Load
Power Factor Write .010000000000 Lower Limit: 0.700 generator set bus Control
Setpoint Offset: 0 Upper Limit: 1.000 power factor in
Size (bits): 8 Default: 1.000 closed loop ex-
Sign: S tended paralle-
ling
42334 Genset Un- Read/ Multiplier: Unit: kW Setpoint for gen- Master Load
loaded Level Write 1.000000000000 Lower Limit: erator set un- Control
Offset: 0 −32768.000 kW loaded level
Sign: S kW
Default: 50.000
42337 Utility Bus kW Read/ Multiplier: Unit: kW Sets the peak Master Load
Setpoint Write 1.000000000000 Lower Limit: shave kW set- Control
Offset: 0 −32768.000 kW point in closed
Size (bits): 16 Upper Limit: 32767 loop extended
Sign: S kW paralleling
Default: 100.000
42338 Utility Bus kW Read/ Multiplier: Unit: kW Sets the utility Master Load
Constraint Le- Write 1.000000000000 Lower Limit: kW constraint Control
vel Offset: 0 -32768.000 kW level for base
Size (bits): 16 Upper Limit: load extended
Sign: S 32767.000 kW paralleling
Default: 100.000
42339 Utility Bus Read/ Multiplier: Unit: kVAR Sets the peak Master Load
kVAR Setpoint Write 1.000000000000 Lower Limit: shave kVAR set- Control
Offset: 0 32768.000 kVAR point in closed
Size (bits): 16 Upper Limit: loop extended
Sign: S 32767.000 kVAR paralleling
Default: 100.000
398
42340 Utility Bus Read/ Multiplier: Unit: Sets the desired Master Load
Power Factor Write .010000000000 Lower Limit: 0.700 utility bus power Control
Setpoint Offset: 0 Upper Limit: 1.000 factor in closed
Size (bits): 8 Default: 1.000 loop extended
Sign: S paralleling
42341 Utility Un- Read/ Multiplier: Unit: kW Setpoint for utility Master Load
loaded Level Write 1.000000000000 Lower Limit: unloaded level Control
Offset: 0 -32768.000 kW
Sign: S 32767.000 kVAR
Default: 50.000
42348 Extended Par- Read/ Multiplier: Unit: seconds Sets ramp load Master Load
allel Ramp Write .100000000000 Lower Limit: 10.000 time for extended Control
Load Time Offset: 0 seconds paralleling
Sign: U seconds
Default: 60.000
42351 Fail To Syn- Read/ Multiplier: Unit: seconds Sets the fail to Master Sync
chronize Time Write .200000000000 Lower Limit: 10.000 synchronize diag- Control
Offset: 0 seconds nostic time delay
Size (bits):16 Upper Limit: 900.000
Sign: U seconds
Default: 120.000
42354 Slip Fre- Read/ Multiplier: Unit: Hz Sets the synchro- Master Sync
quency Write .00100000000 Lower Limit: -3.000 nizer slip fre- Control
Offset: 0 Hz quency (used
Size (bits):16 Upper Limit: 3.000 when sync meth-
Sign: S Hz od is slip)
Default: 0.100
42355 Start Time Read/ Multiplier: Unit: seconds Sets the genera- PTC Operat-
Delay (TDES) Write .10000000000 Lower Limit: 0.000 tor sets start time ing Mode
Offset: 0 seconds delay
Size (bits):16 Upper Limit:
Sign: U 3600.000 seconds
Default: 0.000
42356 Stop Time Read/ Multiplier: Unit: seconds Sets the genera- PTC Operat-
Delay (TDEC) Write .100000000000 Lower Limit: 0.000 tor sets stop time ing Mode
Offset: 0 seconds delay
Size (bits):16 Upper Limit:
Default: 0.000
42364 Genset Bus Read/ Multiplier: Unit: seconds Indicates delay Load Add
Load Add De- Write 1.000000000000 Lower Limit: 0.000 between add lev- Shed Control
lay Offset: 0 seconds els when all gen-
Size (bits): 16 Upper Limit: 60.000 erator sets are
Sign: U seconds online and no uti-
Default: 1.000 lity
399
42365 Utility Bus Read/ Multiplier: Unit: seconds Indicates delay Load Add
Load Add De- Write 1.000000000000 Lower Limit: 0.000 between add lev- Shed Control
lay Offset: 0 seconds els when on utili-
Size (bits): 16 Upper Limit: 60.000 ty
Sign: U seconds
Default: 1.000
42366 Load Shed Read/ Multiplier: Unit: seconds Indicates delay Load Add
Delay Write .100000000000 Lower Limit: 1.000 between shed Shed Control
Offset: 0 seconds levels when on
Size (bits): 8 Upper Limit: 10.000 generator sets
Sign: U seconds
Default: 1.000
42373 Load 1 Add Read/ Multiplier: Unit: Indicates which Load Add
Level Write 1.000000000000 Lower Limit: 1.000 add level load 1 Shed Control
Offset: 0 Upper Limit: 6.000 is assigned to
Size (bits): 8 Default: 1.000
Sign: U
Sign: U
Sign: U
Sign: U
Sign: U
Sign: U
42379 Load 1 Shed Read/ Multiplier: Unit: Indicates which Load Add
Level Write 1.000000000000 Lower Limit: 0.000 shed level load 1 Shed Control
Sign: U
400
Sign: U
Sign: U
Sign: U
Sign: U
Sign: U
42386 Genset Bus Read/ Multiplier: Unit: % Use to set the System In-
%kW Over- Write 1.000000000000 Lower Limit: 80.000 %kW threshold formation
load Threshold Offset: 0 % for gen bus over-
Size (bits): 8 Upper Limit: 140.000 load condition
Sign: U %
Default: 105.000
42387 Genset Bus Read/ Multiplier: Unit: second Sets the delay System In-
kW Overload Write 1.000000000000 Lower Limit: 0.000 time for overload formation
Delay Offset: 0 second based on kW
Sign: U second
Default: 60.000
42388 Genset Bus Read/ Multiplier: Unit: Hz Use to set the System In-
Underfrequen- Write .100000000000 Lower Limit: 0.100 underfrequency formation
cy Overload Offset: 0 Hz offset threshold
Threshold Size (bits): 16 Upper Limit: 10.000 for gen bus over-
Sign: U Hz load condition
Default: 3.000
42389 Genset Bus Read/ Multiplier: Unit: second Sets the delay System Infor-
Underfrequen- Write 1.000000000000 Lower Limit: 0.000 time for overload mation
cy Overload Offset: 0 Hz based on fre-
Delay Size (bits): 8 Upper Limit: 20.000 quency
Sign: U Hz
Default: 3.000
401
42395 Load Demand Read/ Multiplier: Unit: minute Sets the initial Load Demand
Initial Delay Write 1.000000000000 Lower Limit: 1.000 delay time before Control
Offset: 0 minute load demand will
Size (bits): 8 Upper Limit: 60.000 operate
Sign: U minute
Default: 5.000
42396 Load Demand Read/ Multiplier: Unit: % Sets the load de- Load Demand
Restart Per- Write 1.000000000000 Lower Limit: 20 % mand restart Control
cent Offset: 0 Upper Limit: 100 % threshold (make
Size (bits): 8 Default: 80.000 larger than shut-
Sign: U down percent)
42397 Load Demand Read/ Multiplier: Unit: Hours Sets run hours Load Demand
Run Hours Dif- Write 1.000000000000 Lower Limit: 1.000 differential for re- Control
ferential Offset: 0 Hours starting a genera-
Size (bits): 16 Upper Limit: 500 tor set stopped
Sign: S Hours due to load de-
Default: 50.000 mand
42398 Load Demand Read/ Multiplier: Unit: minute Sets the delay Load Demand
Shutdown De- Write 1.000000000000 Lower Limit: 1.000 time between Control
lay Offset: 0 minute stopping genera-
Size (bits): 8 Upper Limit: 60.000 tor sets due to
Sign: U minute load demand
Default: 5.000
42399 Load Demand Read/ Multiplier: Unit: % Sets the load de- Load Demand
Shutdown Per- Write 1.000000000000 Lower Limit: 20 % mand shutdown Control
cent Offset: 0 Upper Limit: 100 % threshold (make
Size (bits): 8 Default: 60.000 smaller than re-
Sign: U start percent)
42400 Genset Fail Read/ Multiplier: Unit: seconds Sets how long to Load Demand
Time Delay Write 1.000000000000 Lower Limit: 10.000 wait for a genera- Control
Offset: 0 seconds tor set to come
Size (bits): 16 Upper Limit: 900.000 online before de-
Sign: U seconds claring it failed
Default: 60.000
42401 Util CB Fail to Read/ Multiplier: Unit: seconds Sets the utility Breaker Con-
Close Delay Write .020000000000 Lower Limit: 0.100 breaker fail to trol
Offset: 0 seconds close time delay
Sign: U seconds
Default: 0.26
Open Delay Write .200000000000 Lower Limit: 0.200 breaker fail to trol
Offset: 0 seconds open time delay
Sign: U seconds
Default: 1
402
42403 Util CB Re- Read/ Multiplier: Unit: seconds Sets the time to Breaker Con-
charge Delay Write .020000000000 Lower Limit: 0.000 allow for utility trol
Offset: 0 seconds breaker recharge
Sign: U onds
Default: 10.000
42404 Gen CB Fail to Read/ Multiplier: Unit: seconds Sets the genera- Breaker Con-
Close Delay Write .020000000000 Lower Limit: 0.100 tor set breaker trol
Offset: 0 seconds fail to close time
Size (bits): 16 Upper Limit: 1.000 delay
Sign: U seconds
Default: 0.260
Open Delay Write 0.200000000000 Lower Limit: 0.200 tor set breaker trol
Offset: 0 seconds fail to open time
Sign: U seconds
Default: 1.000
42406 Gen CB Re- Read/ Multiplier: Unit: seconds Sets the time to Breaker Con-
charge Delay Write .020000000000 Lower Limit: 0.000 allow for genera- trol
Offset: 0 seconds tor set breaker
Size (bits): 16 Upper Limit: 60.000 recharge
Sign: U seconds
Default: 10.000
42407 Permissive Read/ Multiplier: Unit: degrees Sets the permis- Master Sync
Phase Win- Write 0.01000000000 Lower Limit: 0.100 sive +/− phase Control
dow 0Offset: 0 degrees angle window for
Size (bits): 16 Upper Limit: 20.000 the sync check
Sign: S degrees function
Default: 10.000
42408 Permissive Read/ Multiplier: Unit: % Sets the permis- Master Sync
Voltage Win- Write .100000000000 Lower Limit: 0.5000 sive +/− voltage Control
dow Offset: 0 % acceptance win-
Size (bits): 16 Upper Limit: 10.000 dow for the sync
Sign: U % check function
Default: 5.000
42409 Permissive Read/ Multiplier: Unit: seconds Sets the permis- Master Sync
Window Time Write .020000000000 Lower Limit: 0.500 sive acceptance Control
Offset: 0 seconds window dwell
Size (bits): 16 Upper Limit: 5.000 time for the sync
Sign: U seconds check function
Default: 0.500
42410 Permissive Read/ Multiplier: Unit: Hz Sets the maxi- Master Sync
Frequency Write .001000000000 Lower Limit: 0.001 mum frequency Control
Window Offset: 0 Hz difference al-
Size (bits): 32 Upper Limit: 1.000 lowed for permis-
Sign: U Hz sive close
Default: 1.000
403
42412 Sync Phase Read/ Multiplier: Unit: degrees Sets a sync Master Sync
Offset Write 0.010000000000 Lower Limit: -50.000 phase offset to Control
Offset: 0 degrees accommodate
Size (bits): 16 Upper Limit: 50.000 sync across
Sign: S degrees transformer with
Default: 0.000 phase shift
42414 kW Kp Read/ Multiplier: Unit: Proportional gain Master Load
Write 1.000000000000 Lower Limit: 0.000 for kW closed Control
Offset: 0 Upper Limit: loop control in
Size (bits): 16 1000.000 extended paralle-
Sign: U Default: 60.000 ling
42415 kW KI Read/ Multiplier: Unit: Integral gain for Master Load
Write 1.000000000000 Lower Limit: 0.000 kW closed loop Control
Offset: 0 Upper Limit: 255.000 control in ex-
Size (bits): 8 Default: 60.000 tended paralle-
Sign: U ling
42416 kVAR Kp Read/ Multiplier: Unit: Proportional gain Master Load
Write 1.000000000000 Lower Limit: 0.000 for kVAR closed Control
Size (bits): 16 1000.000 extended paralle-
Sign: U Default: 120.000 ling
42417 kVAR KI Read/ Multiplier: Unit: Integral gain for Master Load
Write 1.000000000000 Lower Limit: 0.000 kVAR closed loop Control
Size (bits): 8 Default: 50.000 tended paralle-
Sign: U ling
42418 Scheduler Read/ Multiplier: Unit: Selects which System Sche-
Program Se- Write 1.000000000000 Lower Limit: 1.000 scheduler pro- duler
lect Offset: 0 Upper Limit: 12.000 gram to view or
Size (bits): 8 Default: 1.000 edit
Sign: U
42423 Scheduler Read/ Multiplier: Unit: hour Use to adjust System Sche-
Program x Write 1.000000000000 Lower Limit: 0.000 start hour for the duler
Start Hour Offset: 0 hour selected program
Sign: U hour
Default: 0.000
42424 Scheduler Read/ Multiplier: Unit: minute Use to adjust System Sche-
Program x Write 1.000000000000 Lower Limit: 0.000 start minute for duler
Start Minute Offset: 0 minute the selected pro-
Size (bits): 8 Upper Limit: 59.000 gram
Sign: U minute
Default: 0.000
Program x Write 1.000000000000 Lower Limit: 0.000 duration hours for duler
Duration Offset: 0 hour the selected pro-
Hours Size (bits): 8 Upper Limit: 23.000 gram
Sign: U hour
Default: 0.000
404
42426 Scheduler Read / Multiplier: Unit: minute Use to adjust System Sche-
Program x Write 1.000000000000 Lower Limit: 0.000 duration minutes duler
Duration Minu- Offset: 0 minute for the selected
tes Size (bits): 8 Upper Limit: 59.000 program
Sign: U minute
Default: 0.000
42427 Scheduler Ex- Read/ Multiplier: Unit: Selects which System Sche-
ception Select Write 1.000000000000 Lower Limit: 1.000 scheduler excep- duler
Offset: 0 Upper Limit: 6.000 tion to view or
Size (bits): 8 Default: 1.000 edit
Sign: U
42430 Scheduler Ex- Read/ Multiplier: Unit: month Use to adjust the System Sche-
ception x Write 1.000000000000 Lower Limit: 1.000 month of the se- duler
Month Offset: 0 month lected exception
Sign: U month
Default: 1.000
42431 Scheduler Ex- Read/ Multiplier: Unit: date Use to adjust the System Sche-
ception x Date Write 1.000000000000 Lower Limit: 1.000 date of the se- duler
Offset: 0 date lected exception
Sign: U date
Default: 1.000
42432 Scheduler Ex- Read/ Multiplier: Unit: hour Use to adjust the System Sche-
ception x Hour Write 1.000000000000 Lower Limit: 0.000 start hour of the duler
Offset: 0 hour selected excep-
Size (bits):8 Upper Limit: 23.000 tion
Sign: U hour
Default: 0.000
42433 Scheduler Ex- Read/ Multiplier: Unit: minute Use to adjust the System Sche-
ception x Mi- Write 1.000000000000 Lower Limit: 0.000 start minute of duler
nute Offset: 0 minute the selected ex-
Size (bits): 8 Upper Limit: 59.000 ception
Sign: U minute
Default: 0.000
42434 Scheduler Ex- Read/ Multiplier: Unit: days Use to adjust the System Sche-
ception x Write 1.000000000000 Lower Limit: 0.000 duration days of duler
Duration Days Offset: 0 days the selected ex-
Sign: U days
Default: 0.000
ception x Write 1.000000000000 Lower Limit: 0.000 duration hours of duler
Duration Offset: 0 hour the selected ex-
Hours Size (bits): 8 Upper Limit: 23 hour ception
Sign: U Default: 0.000
405
42436 Scheduler Ex- Read/ Multiplier: Unit: minute Use to adjust the System
ception x Write 1.000000000000 Lower Limit: 0.000 duration minutes Scheduler
Duration Minu- Offset: 0 minute of the selected
tes Size (bits): 8 Upper Limit: 59.000 exception
Sign: U minute
Default: 0.000
42440 Genset PT Pri- Read/ Multiplier: Unit: Volts Generator Set PT AC Setup
mary Voltage Write 1.000000000000 Lower Limit: 110.000 primary voltage
Offset: 0 Volts
Default: 480
42441 Genset PT Read/ Multiplier: Unit: Volts Generator set PT AC Setup
Secondary Write 1.000000000000 Lower Limit: 110.000 secondary volt-
Voltage Offset: 0 Volts Upper Limit: age
Size (bits): 16 500 Volts
Sign: U Default: 120
42442 Genset CT Read/ Multiplier: Unit: Amp Generator set CT AC Setup
Primary Cur- Write 1.000000000000 Lower Limit: 5.000 primary current
rent Offset: 0 Amp
Sign: U 10000.000 Amp
Default: 100
42445 Utility PT Pri- Read/ Multiplier: Unit: Volts Utility PT primary AC Setup
mary Voltage Write 1.000000000000 Lower Limit: 110.000 voltage
Offset: 0 Volts
Default: 480
42446 Utility PT Sec- Read/ Multiplier: Unit: Volts Utility PT secon- AC Setup
ondary Volta- Write 1.000000000000 Lower Limit: 110.000 dary voltage
ge Offset: 0 Volts
Sign: U Volts
Default: 120
42447 Utility CT Pri- Read/ Multiplier: Unit: Amps Utility primary AC Setup
mary Current Write 1.000000000000 Lower Limit: 5.000 current
Offset: 0 Amps
Sign: U 10000.00 Amps
Default: 100
42449 Load Add Read/ Multiplier: Unit: kW Generator set kW Load Add
Shed Re- Write 1.000000000000 Lower Limit: 0.000 capacity that Shed Control
quired Online Offset: 0 kW must be online to
Capacity Size (bits): 16 Upper Limit: start timed load
Sign: S 32000.000 kW add; 0 disables
Default: 0 this
406
42450 Load Demand Read/ Multiplier: Unit: kW Sets how much Load Demand
Minimum On- Write 1.000000000000 Lower Limit: 0.000 capacity must al- Control
line Capacity Offset: 0 kW ways be online
Size (bits): 16 Upper Limit: regardless of
Sign: S 32767.000 kW what the load is
Default: 0
42451 Load Demand Read/ Multiplier: Unit: seconds Sets generator Load Demand
Restart Delay Write 0.100000000000 Lower Limit: 0.000 restart delay time Control
Offset: 0 seconds to avoid nuisance
Size (bits): 8 Upper Limit: 25.000 restarts due to
Sign: U seconds load transients
Default: 1
42452 Utility Avail- Read/ Multiplier: Unit: Amps barograph AC Setup
able Current Write 1.000000000000 Lower Limit: 1.000
Offset: 0 Amps
Default: 1000
42453 Total Utility Read/ Multiplier: Unit: kW Use to set how AC Setup
Capacity Write 1.000000000000 Lower Limit: 1.000 kW = 100% utility
Offset: 0 kW kW −− Used by
Size (bits): 16 Upper Limit: barograph
Sign: S 32000.00 kW
Default: 1000
42455 24 V High Bat- Read/ Multiplier: Unit: VDC Sets 24V high Battery Volt-
tery Voltage Write 0.010000000000 Lower Limit: 28.000 battery voltage age Protec-
Threshold Offset: 0 VDC fault threshold tion
Sign: U VDC
Default: 32
42456 24 V Low Bat- Read/ Multiplier: Unit: VDC Sets 24V low bat- Battery Volt-
tery Voltage Write 0.010000000000 Lower Limit: 22.000 tery voltage fault age Protec-
Threshold Offset: 0 VDC threshold tion
Sign: U VDC
Default: 24
42457 12 V High Bat- Read/ Multiplier: Unit: VDC Sets 12V high Battery Volt-
tery Voltage Write 0.010000000000 Lower Limit: 14.000 battery voltage age Protec-
Sign: U VDC
Default: 16
tery Voltage Write 0.010000000000 Lower Limit: 11.000 tery voltage fault age Protec-
Sign: U VDC
Default: 12
407
42459 High Battery Read/ Multiplier: Unit: second Sets high battery Battery Volt-
Voltage Set Write 1.000000000000 Lower Limit: 2 se- voltage set time age Protec-
time Offset: 0 cond tion
Sign: U ond
Default: 60
42460 Low Battery Read/ Multiplier: Unit: second Sets low battery Battery Volt-
Voltage Set Write 1.000000000000 Lower Limit: 2 sec- voltage set time age Protec-
Time Offset: 0 ond tion
Sign: U ond
Default: 60
42462 Genset Online Read/ Multiplier: Unit: kW Sets the online PTC Sensors
Capacity Sen- Write 1.000000000000 Lower Limit: 0.000 kW threshold at
sor Threshold Offset: 0 kW which generator
Size (bits): 16 Upper Limit: set bus is avail-
Sign: S 32000.000 kW able for loading
Default: 0
42500 Fault Status Read Multiplier: Unit: Bitmapped state Fault and
BitMap 1 Only 1.000000000000 Lower Limit: of utility and oth- Event Info
Offset: 0 Upper Limit: er faults − 32 bits
Sign: U
42502 Fault Status Read Multiplier: Unit: Bitmapped state Fault and
BitMap 2 Only 1.000000000000 Lower Limit: of generator set Event Info
Offset: 0 Upper Limit: and other faults −
Size (bits): 32 Default: 32 bits
Sign: U
42504 Event Status Read Multiplier: Unit: Bitmapped state Fault and
BitMap 1 Only 1.000000000000 Lower Limit: of events − 32 Event Info
Offset: 0 Upper Limit: bits
Sign: U
42506 Genset Meter- Read Multiplier: Unit: Bitmapped word AC Interrupt
ing Fault Sta- Only 1.000000000000 Lower Limit: with status of Service
tus Offset: 0 Upper Limit: generator set AC
Size (bits): 16 Default: metering out of
Sign: U range conditions
42507 Utility Metering Read Multiplier: Unit: Bitmapped word AC Interrupt
Fault Status Only 1.000000000000 Lower Limit: with status of util- Service
Offset: 0 Upper Limit: ity AC metering
Size (bits): 16 Default: out of range
Sign: U conditions
42704 Gen1 Online Read Multiplier: Unit: Hours Total online time System Infor-
Time Only 0.000277778 Lower Limit: 0.000 for Gen1 mation
Offset: 0 Hours
Sign: U 1193046.000 Hours
Default: 0
408
Offset: 0 Hours
Default: 0
Offset: 0 Hours
Default: 0
Offset: 0 Hours
Default: 0
42717 Total Number Read Multiplier: Unit: Indicates how System Infor-
of Gensets Only 1.000000000000 Lower Limit: many of the de- mation
Online Offset: 0 Upper Limit: fined Gen1 thru
Size (bits): 8 Default: Gen4 generator
Sign: U sets are online
42718 Total Spare Read Multiplier: Unit: kW Difference be- System Infor-
Online Capaci- Only 1.000000000000 Lower Limit: tween online ca- mation
ty Offset: 0 Upper Limit: pacity (4 genera-
Size (bits): 16 Default: tor sets) and
Sign: S Genset Bus Total
kW
42719 Next Gen Re- Read Multiplier: Unit: kW Indicates kW Load Demand
start Thre- Only 1.000000000000 Lower Limit: threshold for gen Control
shold Offset: 0 Upper Limit: bus at which the
Size (bits): 16 Default: next generator
Sign: S set will restart
42720 Next Gen Read Multiplier: Unit: kW Indicates kW Load Demand
Shutdown Only 1.000000000000 Lower Limit: threshold for gen Control
Threshold Offset: 0 Upper Limit: bus at which the
Size (bits): 16 Default: next generator
Sign: S set will load de-
mand stop
42727 Genset Bus Read Multiplier: Unit: kW Calculated kW System In-
kW Overload Only 1.000000000000 Lower Limit: overload thresh- formation
Threshold Offset: 0 Upper Limit: old based on on-
Size (bits): 16 Default: line capacity and
Sign: S % setting
42732 Modbus Bus Read Multiplier: Unit: Modbus bus Communica-
Message Only 1.000000000000 Lower Limit: message count tions
Count Offset: 0 Upper Limit:
Sign: U
409
42733 Modbus CRC Read Multiplier: Unit: Modbus CRC Communica-
Error Count Only 1.000000000000 Lower Limit: error count tions
Sign: U
42734 Modbus Ex- Read Multiplier: Unit: Modbus excep- Communica-
ception Count Only 1.000000000000 Lower Limit: tion count tions
Sign: U
42735 Modbus No Read Multiplier: Unit: Modbus no re- Communica-
Response Only 1.000000000000 Lower Limit: sponse count tions
Sign: U
42736 Modbus Slave Read Multiplier: Unit: Modbus slave Communica-
Sign: U
42739 Clock Year Read/ Multiplier: Unit: year Use to set or Real Time
Write 1.000000000000 Lower Limit: .000 read current year Clock
Offset: 0 year
Sign: U year
Default:
42740 Clock Month Read/ Multiplier: Unit: month Use to set or Real Time
Write 1.000000000000 Lower Limit: 1.000 read current Clock
Offset: 0 month month
Sign: U month
Default:
42741 Clock Date Read/ Multiplier: Unit: date Use to set or Real Time
Write 1.000000000000 Lower Limit: 1.000 read current date Clock
Offset: 0 date
Sign: U date
Default:
42742 Clock Hour Read/ Multiplier: Unit: hour Use to set or Real Time
Write 1.000000000000 Lower Limit: .000 read current hour Clock
Offset: 0 hour
Sign: U hour
Default:
42743 Clock Minute Read/ Multiplier: Unit: minute Use to set or Real Time
Write 1.000000000000 Lower Limit: .000 read current mi- Clock
Offset: 0 minute nute
Sign: U minute
Default:
410
42744 Clock Second Read/ Multiplier: Unit: seconds Use to set or Real Time
Write 1.000000000000 Lower Limit: .000 read current se- Clock
Offset: 0 seconds conds
Sign: U seconds
Default:
42746 Start Timer Read Multiplier: Unit: seconds Countdown timer PTC Operat-
Only 0.100000000000 Lower Limit: value for genera- ing Mode
Offset: 0 Upper Limit: tor set start timer
Sign: U
42747 Stop Timer Read Multiplier: Unit: seconds Countdown timer PTC Operat-
Only .100000000000 Lower Limit: value for genera- ing Mode
Offset: 0 Upper Limit: tor set stop timer
Sign: U
42748 Low Battery Read Multiplier: Unit: VDC Battery voltage Battery Volt-
Voltage Thre- Only 0.010000000000 Lower Limit: with respect to age Protec-
shold Offset: 0 Upper Limit: the set low bat- tion
Size (bits): 16 Default: tery threshold
Sign: U
42749 High Battery Read Multiplier: Unit: VDC Battery voltage Battery Volt-
Voltage Thre- Only 0.010000000000 Lower Limit: with respect to age Protec-
shold Offset: 0 Upper Limit: set high battery tion
Size (bits): 16 Default: threshold
Sign: U
411
412
6 DMC 1000 Modbus Enumerated Data

42004 Save Adjust- Read / Size (bits): 8 0: Do Nothing Use to save ad- Controller In-
ments Write Number of Fields: 2 1: Save Trims justments directly formation
Default: Do Nothing in non-volatile
memory
42011 Genset Run Read Size (bits): 8 0: Time Delay Start Indicates state of PTC Operat-
Sequence Only Number of Fields: 4 1: Time Delay Stop the generator set ing Mode
State 2: Stop run sequence
3: Run
Default:
42017 Genset Bus Read Size (bits): 8 0: Unavailable Energization sta- PTC Sensors
Status Only Number of Fields: 3 1: Dead tus of the genera-
2: Live tor set bus
Default:
42117 Utility Bus Sta- Read Size (bits): 8 0: Unavailable Energization sta- PTC Sensors
tus Only Number of Fields: 3 1: Dead tus of the utility
2: Live bus
Default:
42208 Utility Unload Read Size (bits): 8 0: Not Available Indicates utility Master Load
Status Only Number of Fields: 3 1: Not Unloaded unloaded status Control
2: Unloaded
Default:
42209 Genset Un- Read Size (bits): 8 0: Not Available Indicates genera- Master Load
load Status Only Number of Fields: 3 1: Not Unloaded tor set unloaded Control
2: Unloaded status
Default:
42210 System State Read / Size (bits): 8 0: Not Available Indicates what System Infor-
Write Number of Fields: 18 1: TD Start state the control mation
2: TD Stop is currently in
3: TD Programmed
Transition
4: TD Transfer
5: TD Retranfer
6: Synchronizing
7: Sync Check OK
8: Inhibit
9: Unassigned
10: Ramp Unload
11: Ramp Load
12: Manual
13: Utility Failure
14: Test
15: Standby
16: Factory Test
Default: Not Available
413
42211 PTC Operat- Read Size (bits): 8 0: Manual Indicates the cur- PTC Operat-
ing Mode Only Number of Fields: 6 1: Normal rent PTC operating Mode
2: Normal Override ing mode. Read/
3: Test Write in Comp
4: Utility Fail mode
Default:
42216 Genset Avail- Read Size (bits): 8 0: Not Available Indicates avail- Availability
ability Status Only Number of Fields: 3 1: Available ability of genera-
2: Unknown tor set for loading
Default: as determined by
generator set
sensors
42217 Utility Avail- Read Size (bits): 8 0: Not Available Indicates avail- Availability
ability Status Only Number of Fields: 3 1: Available ability of utility for
2: Unknown loading as deter-
Default: mined by utility
sensors
42218 Gen CB Posi- Read Size (bits): 8 0: Open Generator set Breaker Con-
tion Status Only Number of Fields: 3 1: Closed breaker position trol
2: Not Available
Default:
42219 Util CB Posi- Read Size (bits): 8 0: Open Utility breaker Breaker Con-
tion Status Only Number of Fields: 3 1: Closed position trol
2: Not Available
Default:
42224 PTC State Read Size (bits): 8 0: Not Enabled Indicates the PTC State
Only Number of Fields: 5 1: No Source Con- connected state Machine
nected of the power
2: Utility Connected transfer control
3: Genset Connected Read/Write in
4: Paralleled Comp.
Default:
42225 Sync Check Read Size (bits):8 0: Not Allowed Indicates whether Master Sync
Close Allowed Only Number of Fields: 2 1: Allowed any sync check Control
Default: conditions for
have been met
42227 Synchronizer Read Size (bits): 8 0: Synchronizer Off Indicates state of Master Sync
Status Only Number of Fields: 2 1: Synchronizer On the synchronizer Control
Default:
42228 System Lock- Read Size (bits): 8 0: Inactive Faults have oc- System In-
out Status Only Number of Fields: 2 1: Active curred which pre- formation
Default: vent normal sys-
tem operation;
reset faults
414
42229 Breaker 1 Read Size (bits): 8 0: Open Indicates position Load Add
Position Only Number of Fields: 3 1: Closed status of breaker Shed Control
2: Not Available 1
2: Not Available 2
2: Not Available 3
2: Not Available 4
2: Not Available 5
2: Not Available 6
42235 Breaker 1 Trip Read Size (bits): 8 0: Not Available Indicates trip sta- Load Add
Status Only Number of Fields: 3 1: Normal tus of breaker 1 Shed Control
2: Tripped
2: Tripped
2: Tripped
2: Tripped
2: Tripped
415
2: Tripped
42241 ATS 1 Position Read Size (bits): 8 0: Not Available Indicates position Load Add
Only Number of Fields: 5 1: No Source Con- status of ATS 1 Shed Control
nected
2: Source 1 Con-
nected
3: Source 2 Con-
nected
4: Paralleled
nected
2: Source 1 Con-
nected
3: Source 2 Con-
nected
4: Paralleled
nected
2: Source 1 Con-
nected
3: Source 2 Con-
nected
4: Paralleled
42244 ATS 4 Position Read Size (bits):8 0: Not Available Indicates position Load Add
nected
2: Source 1 Con-
nected
3: Source 2 Con-
nected
4: Paralleled
nected
2: Source 1 Con-
nected
3: Source 2 Con-
nected
4: Paralleled
416
nected
2: Source 1 Con-
nected
3: Source 2 Con-
nected
4: Paralleled
42248 PCCNet Com- Read Size (bits): 8 0: Failed Indicates status Communica-
munications Only Number of Fields: 3 1: Good of PCCNet tions
Status 2: Wait
Default: Wait
42249 Expansion Read Size (bits): 8 0: Disabled Indicates the sta- Communica-
Board Com- Only Number of Fields: 2 1: Enabled tus of the SID to tions
munications Default: Disabled expansion board
connection
42252 Add Level 1 Read Size (bits): 8 0: Do Nothing Indicates status Load Add
Command Only Number of Fields: 2 1: Add Level of add level 1 Shed Control
Default: Do Nothing
42253 Add Level 2 Read Size (bits):8 0: Do Nothing Indicates status Load Add
Default: Do Nothing
Default: Do Nothing
Default: Do Nothing
Default: Do Nothing
Default: Do Nothing
42258 Shed Level 1 Read / Size (bits): 8 0: Do Nothing Indicates status Load Add
Command Write Number of Fields: 2 1: Shed Level of shed level 1 Shed Control
Default: Do Nothing
42259 Shed Level 2 Read Size (bits): 8 0: Do Nothing Indicates status Load Add
Command Only Number of Fields: 2 1: Shed Level of shed level 2 Shed Control
Default: Do Nothing
42260 Shed Level 3 Read / Size (bits): 8 0: Do Nothing Indicates status Load Add
Command Write Number of Fields: 2 1: Shed Level of shed level 3 Shed Control
Default: Do Nothing
Default: Do Nothing
417
Default: Do Nothing
42263 Manual add Read / Size (bits): 8 0: Do Nothing Operator input to Load Add
Level 1 Com- Write Number of Fields: 2 1: Add Level add loads as- Shed Control
mand Default: Do Nothing signed to level 1
42269 Manual Shed Read / Size (bits): 8 0: Do Nothing Operator input to Load Add
Level 1 Write Number of Fields: 2 1: Shed Level shed loads as- Shed Control
Default: Do Nothing signed to level 1
Level 4 Write Number of Fields:2 1: Shed Level shed loads as- Shed Control
42274 Restore Shed Read / Size (bits): 8 0: Do Nothing Indicates if shed Load Add
Level 1 Com- Write Number of Fields: 2 1: Restore Level level 1 has been Shed Control
mand Default: Do Nothing restored
418
42279 Add Load 1 Read Size (bits): 8 0: Do Nothing Indicates add Load Add
Command Only Number of Fields: 2 1: Add Load command for Shed Control
Default: Do Nothing load 1
42285 Shed Load 1 Read Size (bits): 8 0: Do Nothing Indicates shed Load Add
Command Only Number of Fields: 2 1: Shed Load command for Shed Control
42296 PTC Genset Read Size (bits):8 0: Manual Indicates the cur- PTC Operat-
Operating Only Number of Fields: 6 1: Normal rent operating ing Mode
Mode 2: Normal Override mode of the gen-
3: Test erator sets
4: Utility Fail
Default:
419
42297 PTC Transfer Read Size (bits):8 0: Manual Indicates the PTC Operat-
Pair Operating Only Number of Fields: 6 1: Normal current operating ing Mode
Mode 2: Normal Override mode of the
3: Test transfer pair
4: Utility Fail
Default:
42298 PTC Operat- Read Size (bits): 8 0: Open Transition Indicates the PTC Operat-
ing Transition Only Number of Fields: 3 1: Hard Closed Tran- transition type ing Mode
Type sition currently applica-
2: Soft Closed Tran- ble to the PTC
sition function opera-
Default: tion
42300 System Topol- Read / Size (bits): 8 0: Master Synchro- Main setting: Application
ogy Write Number of Fields: 6 nize Only Sets system to- Configuration
1: Isolated Bus w/out pology; control
GM must be in manu-
2: Isolated Bus w/GM al to set
3: Common Bus
4: Transfer Pair
5: Component Mode
Default: Master Syn-
chronize Only
42301 Transition Read / Size (bits):8 0: Open Transition Sets the type of Application
Type Write Number of Fields: 3 1: Hard Closed Tran- transition that will Configuration
sition be used
2: Soft Closed Tran-
sition
Default: Open Transi-
tion
42302 Extended Par- Read / Size (bits): 8 0: Disabled Use to enable ex- Application
allel Enable Write Number of Fields: 2 1: Enabled tended parallel- Configuration
Default: Disabled ing operation
42303 Load Demand Read / Size (bits): 8 0: None Sets load de- Load Demand
Type Write Number of Fields: 3 1: Fixed Sequence mand type Control
2: Run Hours
Default: None
42304 Priority Control Read / Size (bits): 8 0: Manual Sets priority con- Priority Con-
Method Write Number of Fields: 2 1: Automatic trol method trol
Default: Manual
42326 Test With Load Read / Size (bits): 8 0: Disabled Use to enable or Application
Enable Write Number of Fields: 2 1: Enabled disable load Configuration
Default: Disabled transfer during a
test
420
42328 Genset Bus Read / Size (bits):8 0: Internal selects where the Master Load
kW Setpoint Write Number of Fields: 2 1: Analog Input generator set kW Control
Source Default: Internal setpoint will
come from for ex-
tended parallel-
ing
42329 Genset Bus Read / Size (bits):8 0: Internal Selects where Master Load
kVAR Setpoint Write Number of Fields: 2 1: Analog Input the generator set Control
Source Default: Internal kVAR setpoint
will come from
extended paral-
leling
42335 Utility Bus kW Read / Size (bits):8 0: Internal Selects where Master Load
Setpoint Write Number of Fields: 2 1: Analog Input the utility kW set- Control
Source Default: Internal point will come
from for extended
paralleling
42336 Utility Bus Read / Size (bits):8 0: Internal Selects where Master Load
kVAR Setpoint Write Number of Fields: 2 1: Analog Input the utility kVAR Control
come from ex-
tended paralle-
ling
42342 Clear Fault Read / Size (bits):8 0: Inactive Use to complete- Fault and
History Table Write Number of Fields: 2 1: Active ly clear the fault Event Info
Default: Inactive history table
42343 Clear Occur- Read / Size (bits):8 0: Inactive Use to complete- Fault and
rence Table Write Number of Fields: 2 1: Active ly clear the Event Info
Default: Inactive counts in faults
and events occu-
rance tables
42344 Genset Reset Read / Size (bits):8 0: Do Nothing Use to perma- Energy
All Energy Me- Write Number of Fields: 2 1: Clear Counters nently clear all
ters Default: Do Nothing generator set en-
ergy meter val-
ues
42345 Utility Reset Read / Size (bits):8 0: Do Nothing Use to perma- Energy
All Energy Me- Write Number of Fields: 2 1: Clear Counters nently clear all
ters Default: Do Nothing utility energy me-
ter values
42346 Extended Par- Read / Size (bits):8 0: Genset % Level Sets how and Master Load
alleling kW Write Number of Fields: 4 (Open Loop) where the kW will Control
Load Control 1: Genset Bus kW be controlled for
Type (Closed Loop) extended parallel
2: Genset Bus kW w/ operation
Utility (open Loop)
3: Utility Bus kW
(Closed Loop)
Default: Genset Bus
% Level (Open Loop)
421
42347 Extended Par- Read / Size (bits):8 0: Genset Controllers Sets how and Master Load
alleling kVAR Write Number of Fields: 7 1: Genset Bus % where the kVAR Control
Load Control Level (Open Loop) will be controlled
Type 2: Genset Bus Power for extended par-
Factor allel operation
3: Genset Bus kVAR
(Closed Loop)
4: Genset Bus Power
Factor (Closed Loop)
5: Utility Bus kVAR
(Closed Loop)
6:Utility Bus Power
Factor(Closed Loop)
Default: Genset
Controllers
42349 Fail To Sync Read / Size (bits):8 0: Disabled Enable if want Master Sync
Lockout En- Write Number of Fields: 2 1: Enabled synchronizing to Control
able Default: Disabled stop if fail to sync
occurs
42350 Fail to Sync Read / Size (bits):16 0: Disabled Use to enable or PTC State
Open Transi- Write Number of Fields: 2 1: Enabled disable an open Machine
tion Retransfer Default: Disabled transition retran-
Enable sfer upon a fail to
sync
42352 Gen CB Read / Size (bits):8 0: Closed Requested In manual mode, Breaker Con-
Manual Con- Write Number of Fields: 3 1: No Command can be used to trol
trol 2: Open Command semi-manually
Default: No Com- control the gener-
mand ator set breaker
42353 Util CB Manu- Read / Size (bits):8 0: Closed Requested In manual mode, Breaker Con-
al Control Write Number of Fields: 3 1: No Command can be used to trol
2: Open Command semi-manually
Default: No Com- control the utility
mand breaker
42357 Synchronizer Read / Size (bits):8 0: Normal Use to invert syn- Master Sync
Polarity Write Number of Fields: 2 1: Invert chronizer polarity Control
Default: Normal
42358 Synchronize Read / Size (bits):8 0: Phase Match Sets the synchro- Master Sync
Method Write Number of Fields: 2 1: Slip Frequency nizing method Control
Default: Phase Match
42359 Port Protocol Read / Size (bits): 8 0: PCCNet Allows protocol Communica-
Selection Write Number of Fields: 2 1: MON CT the PCCNet tions
Default: PCCNet port to be
changed to MON
for troubleshoot-
ing
42360 System Read / Size (bits): 8 0: Disabled Use to enable or System
Scheduler En- Write Number of Fields: 2 1: Enabled disable the sys- Scheduler
able Default: Disabled tem scheduler
422
42361 Load Add Read / Size (bits): 8 0: Disabled Use to enable or Load Add
Shed Enable Write Number of Fields: 2 1: Enabled disable the load Shed Control
Default: Disabled add shed feature
42362 Open Transi- Read / Size (bits): 8 0: Disabled Use to enable or Load Add
tion Retransfer Write Number of Fields: 2 1: Enabled disable the shed- Shed Control
Load Shed Default: Disabled ding of loads dur-
Enable ing open transi-
tion retransfer
42363 Auto/Manual Read / Size (bits): 8 0: Auto Indicates auto- Load Add
Load Add Re- Write Number of Fields: 2 1: Manual matic or manual Shed Control
store Mode Default: Auto load add restore
operation
42367 Load 1 Device Read / Size (bits): 8 0: None Indicates type of Load Add
Type Write Number of Fields: 3 1: Breaker load connection Shed Control
2: ATS to load 1 add
Default: None shed control and
status I/O
status I/O
status I/O
status I/O
status I/O
42372 Load 6 Device Read / Size (bits):8 0: None Indicates type of Load Add
Type Write Number of Fields: 3 1: Breaker load connected Shed Control
status I/O
42385 Genset Bus Read / Size (bits):8 0: Both kW and Fre- Use to choose System Infor-
Overload Write Number of Fields: 3 quency method for deter- mation
Method 1: kW Only mining generator
2: Frequency Only bus overload
Default: Both kW and condition
Frequency
423
42390 Load Demand Read / Size (bits):8 0: Disabled Use to enable or Load Demand
Enable Write Number of Fields: 2 1: Enabled disable the load Control
Default: Disabled demand feature
42391 Load Demand Read / Size (bits): 8 0: Gen1 Sets GenA for Load Demand
GenA Write Number of Fields: 4 1: Gen2 fixed sequence Control
2: Gen3 load demand
3: Gen4
Default: Gen1
42392 Load Demand Read / Size (bits):8 0: Gen1 Sets GenB for Load Demand
GenB Write Number of Fields: 4 1: Gen2 fixed sequence Control
2: Gen3 load demand
3: Gen4
Default: Gen2
42393 Load Demand Read / Size (bits):8 0: Gen1 Sets GenC for Load Demand
GenC Write Number of Fields: 4 1: Gen2 fixed sequence Control
2: Gen3 load demand
3: Gen4
Default: Gen3
42394 Load Demand Read / Size (bits):8 0: Gen1 Sets GenD (first Load Demand
GenD Write Number of Fields: 4 1: Gen2 to stop) for fixed Control
2: Gen3 sequence load
3: Gen4 demand
Default: Gen4
42413 System Phase Read / Size (bits):8 0: L1-L2-L3 Defines what the System Infor-
Rotation Write Number of Fields: 2 1:L1-L3-L2 system phase mation
Default: L1-L2-L3 rotation se-
quence is
42419 Scheduler Read / Size (bits):8 0: Disable Use to enable or System
Program x En- Write Number of Fields: 2 1: Enable disable the se- Scheduler
able Default: Disable lected program
42420 Scheduler Read / Size (bits):8 0: Once Use to adjust re- System Sche-
Program x Re- Write Number of Fields: 11 1: Every Week peat interval for duler
peat Interval 2: Every 2 Weeks the selected pro-
3: Every 3 Weeks gram
4: Every 4 Weeks
5: Every 5 Weeks
6: First Week of
Month
7: Second Week of
Month
8: Third Week of
month
9: Forth Week of the
Month
10: Last Week of the
Month
Default: Once
424
42421 Scheduler Read / Size (bits): 8 0: No Load Use to adjust run System Sche-
Program x Write Number of Fields: 3 1: With Load mode for the se- duler
Run Mode 2: Extended Parallel lected program
Default: No Load
42422 Scheduler Read / Size (bits): 8 0: Sunday Use to adjust System Sche-
Program x Write Number of Fields: 7 1: Monday start day of week duler
Start Day 2: Tuesday for the selected
3: Wednesday program
4: Thursday
5: Friday
6: Saturday
Default: Sunday
42428 Scheduler Ex- Read / Size (bits): 8 0: Disable Use to enable or System Sche-
ception x En- Write Number of Fields: 2 1: Enable disable the se- duler
able Default: Disable lected exception
42429 Scheduler Ex- Read / Size (bits): 8 0: Once Only Use to adjust the System Sche-
ception x Re- Write Number of Fields: 2 1: Every Year repeat setting of duler
peat Default: Once Only the selected ex-
ception
42437 Daylight Sav- Read / Size (bits): 8 0: Disabled Enables the day- Real Time
ing Time En- Write Number of Fields: 2 1: Enabled light savings time Clock
able Default: Disabled feature
42438 Load Demand Read / Size (bits): 8 0: Do Nothing Use to force a re- Load Demand
Refresh Se- Write Number of Fields: 2 1: Refresh Sequence fresh of the ac- Control
quence Com- Default: Do Nothing tive load demand
mand sequence
42439 Genset Con- Read / Size (bits):8 0: Wye Delta or Wye for AC Setup
nection Type Write Number of Fields: 2 1: Delta generator set
Default: Wye connection
42443 Genset CT Read / Size (bits): 8 0: 1 Amp Generator set CT AC Setup
Secondary Write Number of Fields: 2 1: 5 Amp secondary cur-
Current Default: 5 Amp rent
42444 Utility Connec- Read / Size (bits): 8 0: Wye Delta or Wye for AC Setup
tion Type Write Number of Fields: 2 1: Delta utility connection
Default: Wye
42448 Utility CT Sec- Read / Size (bits): 8 0: 1 Amp Utility CT secon- AC Setup
ondary Cur- Write Number of Fields: 2 1: 5 Amp dary current
rent Default: 5 Amp
42454 Nominal Bat- Read / Size (bits): 8 0: 12V DC voltage pro- Battery Volt-
tery Voltage Write Number of Fields: 2 1: 24V vided to the con- age Protec-
Default: 24V trol tion
42461 Genset Online Read / Size (bits): 8 0: Disable Use to enable or PTC Sensors
Capacity Sen- Write Number of Fields: 2 1: Enable disable the gen-
sor Enable Default: Disable erator set online
capacity sensor
425
42472 Gen Bus Base Read Size (bits):8 0: Inactive Indicates that the System Infor-
Load Status Only Number of Fields: 2 1: Active generator bus is mation
Default: on base load ex-
tended paralle-
ling
42473 Util Bus Peak Read Size (bits): 8 0: Inactive Indicates that the System In-
Shave Status Only Number of Fields: 2 1: Active utility bus is on formation
Default: peak shave ex-
tended parallel-
ing
42600 Extended Par- Read / Size (bits): 8 0: Stop State of extended Discrete In-
allel Start Vol Write Number of Fields: 2 1: Start parallel start vol- puts
Default: Stop atile input
42601 Synchronizer Read / Size (bits): 8 0: inactive State of synchro- Discrete In-
Enable Vol Write Number of Fields: 2 1: Active nizer enable vol- puts
Default: inactive atile input
42602 Utility Source Read / Size (bits): 8 0: inactive State of utility Discrete In-
Failure Vol Write Number of Fields: 2 1: Active source failure puts
Default: inactive volatile input
42603 Transfer Inhib- Read / Size (bits):16 0: No Inhibit State of transfer Discrete In-
it Vol Write Number of Fields: 2 1: Inhibit inhibit volatile inputs
Default: No Inhibit put
42604 Retranfer In- Read / Size (bits):8 0: No Inhibit State of retran- Discrete In-
hibit Vol Write Number of Fields: 2 1: Inhibit sfer inhibit vola- puts
Default: No Inhibit tile input
42605 Gen CB Inhibit Read / Size (bits): 8 0: No Inhibit State of genera- Discrete In-
Vol Write Number of Fields: 2 1: Inhibit tor CB inhibit vol- puts
Default: No Inhibit atile input
42606 Util CB Inhibit Read / Size (bits): 8 0: No Inhibit State of utility CB Discrete In-
Vol Write Number of Fields: 2 1: Inhibit inhibit volatile inputs
42607 Auto/Manual Read / Size (bits): 8 0: Auto State of auto/ Discrete In-
Vol Write Number of Fields: 2 1: Manual manual volatile puts
Default: Auto input
42608 Test Start Vol Read / Size (bits): 8 0: Stop State of test start Discrete In-
Write Number of Fields: 2 1: Start volatile input puts
Default: Stop
42609 Fault Reset Read / Size (bits): 8 0: Not Reset State of fault re- Discrete In-
Vol Write Number of Fields: 2 1: Reset set volatile input puts
Default: Not Reset
42610 Override Vol Read / Size (bits): 8 0: No Override State of override Discrete In-
Write Number of Fields: 2 1: Override volatile input puts
Default: No Override
42611 Extended Par- Read Size (bits): 8 0: Start State of extended Discrete In-
allel Start Sw Only Number of Fields: 2 1: Stop parallel start inputs
Default: put
426
42612 Synchronizer Read Size (bits): 8 0: Inactive State of synchro- Discrete In-
Enable Sw Only Number of Fields: 2 1: Active nizer enable inputs
Default: put
42613 Utility Source Read Size (bits): 8 0: Inactive State of utility Discrete In-
Failure Sw Only Number of Fields: 2 1: Active source failure inputs
Default: put
42614 Transfer Inhib- Read Size (bits): 8 0: No Inhibit State of transfer Discrete In-
it Sw Only Number of Fields: 2 1: Inhibit inhibit input puts
Default:
42615 Retransfer In- Read Size (bits): 8 0: No Inhibit State of retran- Discrete In-
hibit Sw Only Number of Fields: 2 1: Inhibit sfer inhibit input puts
Default:
42616 Gen CB Inhibit Read Size (bits): 8 0: No Inhibit Sate of generator Discrete In-
Sw Only Number of Fields: 2 1: Inhibit CB inhibit input puts
Default:
42617 Util CB Inhibit Read Size (bits): 8 0: No Inhibit State of utility CB Discrete In-
Sw Only Number of Fields: 2 1: Inhibit inhibit input puts
Default:
42618 Auto/Manual Read Size (bits): 8 0: Auto State of auto/ Discrete In-
Sw Only Number of Fields: 2 1: Manual manual input puts
Default:
42619 Test Start Sw Read Size (bits): 8 0: Stop State of test Discrete In-
Only Number of Fields: 2 1: Start start input puts
Default:
42620 Fault Reset Read Size (bits): 8 0: No Reset State of fault re- Discrete In-
Sw Only Number of Fields: 2 1: Reset set input puts
Default:
42621 Override Sw Read Size (bits): 8 0: No Override State of override Discrete In-
Only Number of Fields: 2 1: Override input puts
Default:
42622 Master Inhibit Read Size (bits): 8 0: No Inhibit Indicates state of Priority Con-
Only Number of Fields: 2 1: Inhibit master priority in- trol
Default: hibit
42623 Gen CB Read Size (bits): 8 0: Inactive State of genera- Discrete In-
Tripped Sw Only Number of Fields: 2 1: Active tor CB tripped inputs
Default: put
42624 Gen CB Read / Size (bits): 8 0: Inactive State of genera- Discrete In-
Tripped Vol Write Number of Fields: 2 1: Active tor CB tripped puts
Default: Inactive volatile input
42625 Util CB Read Size (bits): 8 0: Inactive State of utility CB Discrete In-
Tripped Sw Only Number of Fields: 2 1: Active tripped input puts
Default:
42626 Util Cb Tripped Read / Size (bits): 8 0: Inactive State of utility CB Discrete In-
Vol Write Number of Fields: 4 1: Active tripped volatile inputs
Default: Inactive put
42627 Genset Phase Read Size (bits): 8 0: L1-L2-L3 Generator set Phase
Rotation Only Number of Fields: 2 1: L1-L3-L2 phase rotation
Default:
427
42628 Utility Phase Read Size (bits): 8 0: L1-L2-L3 Utility phase rota- Phase
Rotation Only Number of Fields: 2 1: L1-L3-L2 tion
Default:
42629 Gen1 CB Read Size (bits): 8 0: Breaker Open State of Gen1 CB Discrete In-
Position Sw Only Number of Fields: 2 1: Breaker Closed position input puts
Default:
42630 Gen1 CB Read / Size (bits): 8 0: Breaker Open State of Gen1 CB Discrete In-
Position Vol Write Number of Fields: 2 1: Breaker Closed position volatile puts
Default: Open input
Default:
Default: Open input
42633 Gen3 CB Read Size (bits):16 0: Breaker Open State of Gen3 CB Discrete In-
Default:
Default: Open input
Default:
Default: Open input
42637 Network Mas- Read / Size (bits): 8 0: No Inhibit Use to manually Priority Con-
ter Inhibit Write Number of Fields: 2 1: Inhibit inhibit the module trol
Default: No Inhibit
42700 Gen1 Avail- Read Size (bits): 8 0: Gen Does Not Ex- For load demand Load Demand
ability State Only Number of Fields: 5 ist use − Indicates Control
1: Offline status of Gen1
2: Waiting for Gen
3: Online
4: Failed
Default:
42701 Gen2 Avail- Read Size (bits): 8 0: Gen Does Not Ex- For load demand Load Demand
ability State Only Number of Fields: 5 ist use − Indicates Control
1: Offline status of Gen2
2: Waiting for Gen
3: Online
4: Failed
Default:
428
42702 Gen3 Avail- Read Size (bits): 8 0:Gen Does Not Exist For load demand Load Demand
ability State Only Number of Fields: 5 1: Offline use − Indicates Control
2: Waiting for Gen status of Gen3
3: Online
4: Failed
Default:
42703 Gen4 Avail- Read Size (bits): 8 0:Gen Does Not Exist For load demand Load Demand
ability State Only Number of Fields: 5 1: Offline use − Indicates Control
3: Online
4: Failed
Default:
42712 GenA Read Size (bits): 8 0: Gen1 Indicates which Load Demand
Only Number of Fields: 4 1: Gen2 generator set is Control
2: Gen3 currently GenA
3: Gen4 for load demand
Default:
42713 GenB Read Size (bits): 8 0: Gen1 Indicates which Load Demand
1: Gen3 currently GenB
Default:
42714 GenC Read Size (bits): 8 0: Gen1 Indicates which Load Demand
1: Gen3 currently GenC
Default:
42715 GenD Read Size (bits): 8 0: Gen1 Indicates which Load Demand
1: Gen3 currently GenD
1: Gen4 (first to stop) for
Default: load demand
42716 Load Demand Read Size (bits): 8 0: Off Indicates operat- Load Demand
State Only Number of Fields: 3 1: Initial Delay Timing ing state of the Control
2: Load Monitor load demand
Default: control
42721 Next Gen To Read Size (bits): 8 0: Gen1 Indicates which Load Demand
Restart Only Number of Fields: 5 1: Gen2 generator set is Control
2: Gen3 next to be re-
3: Gen4 started if load
4: None conditions are
Default: met
42722 Next Gen To Read Size (bits): 8 0: Gen1 Indicates which Load Demand
Shutdown Only Number of Fields: 5 1: Gen2 generator set is Control
2: Gen3 next to be
3: Gen4 stopped if load
4: None conditions are
Default: met
429
42723 Load Demand Read Size (bits): 8 0: Run Status of the load Discrete Out-
Gen1 Driver Only Number of Fields: 2 1: Load Demand demand Gen1 puts
Status Stop driver output
Default:
Default:
Default:
Default:
42728 Genset Bus Read Size (bits): 8 0: No Overload Indicates whether System In-
kW Overload Only Number of Fields: 2 1: Overload generator bus is formation
Status Default: overloaded
based on kW
42729 Genset Bus Read Size (bits): 8 0: No Overload Indicates whether System Infor-
Underfrequen- Only Number of Fields: 2 1: Overload generator bus is mation
cy Overload Default: overloaded
Status based on fre-
quency
42730 Active Sched- Read Size (bits): 8 0: None Indicates the cur- System Sche-
ule Only Number of Fields: 19 1: Program 1 rently active duler
2: Program 2 scheduler pro-
3: Program 3 gram or excep-
4: Program 4 tion
5: Program 5
6: Program 6
7: Program 7
8: Program 8
9: Program 9
10: Program 10
11: Program 11
12: Program 12
13: Exception 1
14: Exception 2
15: Exception 3
16: Exception 4
17: Exception 5
18: Exception 6
Default:
430
42731 Scheduler Run Read Size (bits): 8 0: Off Indicates current System
Command Only Number of Fields: 4 1: No Load run command Scheduler
2: With Load coming from the
3: Extended Parallel scheduler func-
Default: tion
42737 Modbus Clear Read / Size (bits): 8 0: Do Nothing Clears all the Communica-
Counters Write Number of Fields: 2 1: Clear Counters Modbus counters tions
Default: Do Nothing
42738 Clock Mode Read / Size (bits): 8 0: Normal Use to set clock Real Time
Write Number of Fields: 3 1: Set Clock and save setting Clock
2: Save Clock
Default: Normal
42745 Clock Day Read Size (bits): 8 0: Sunday Indicates day of Real Time
Only Number of Fields: 7 1: Monday week for current Clock
2: Tuesday date
3: Wednesday
4: Thursday
5: Friday
6: Saturday
Default:
431
432
7 DMC 1000 Modbus Bitmap Data
Note: If an address or bit is not listed in this table, it is not used.
Addr. Bit# System Name Fault Event Name Response

Code
42500 0 Fault Status Bit- 1455 Utility Main Breaker Position Contact Warning Warning
map 1
42500 1 Fault Status Bit- 2396 Utility Main Breaker Fail To Close Warning Warning
map 1
42500 2 Fault Status Bit- 2397 Utility Main Breaker Fail To Open Warning Warning
map 1
42500 3 Fault Status Bit- 1219 Utility Main Breaker Tripped Warning Warning
map 1
42500 4 Fault Status Bit- 1914 Utility Bus Phase Rotation Warning Warning
map 1
42500 5 Fault Status Bit- 1912 Utility Bus Loss Of Phase Warning Warning
map 1
42500 6 Fault Status Bit- 2331 Utility Bus Undervoltage Warning Warning
map 1
42500 7 Fault Status Bit- 2358 Utility Bus Overvoltage Warning Warning
map 1
42500 8 Fault Status Bit- 1223 Utility Bus Frequency Warning Warning
map 1
42500 24 Fault Status Bit- 2648 Remote I/O Communication Failure Warning Warning
map 1
42500 25 Fault Status Bit- 1689 Real Time Clock Power Interrupt Warning Warning
map 1
42500 26 Fault Status Bit- 1335 AC Metering Out Of Range Warning Warning
map 1
42500 27 Fault Status Bit- 1999 Maximum Parallel Time Warning Warning
map 1
42500 28 Fault Status Bit- 343 Hardware Failure Warning Warning
map 1
42500 29 Fault Status Bit- 1456 Synchronizer Output Limit Warning Warning
map 1
42500 30 Fault Status Bit- 2416 Calibration Checksum Warning Warning
map 1
42500 31 Fault Status Bit- 353 EEPROM Write Error Warning Warning
map 1
433
Code
42502 0 Fault Status Bit- 1454 Genset Main Breaker Position Contact Warning Warning
map 2
42502 1 Fault Status Bit- 1452 Genset Main Breaker Fail To Close Warning Warning
map 2
42502 2 Fault Status Bit- 1453 Genset Main Breaker Tripped Warning Warning
map 2
42502 3 Fault Status Bit- 1328 Genset Bus Phase Rotation Warning Warning
map 2
map 2
42502 5 Fault Status Bit- 1913 Genset Bus Loss Of Phase Warning Warning
map 2
42502 6 Fault Status Bit- 1225 Genset Bus Undervoltage Warning Warning
map 2
42502 7 Fault Status Bit- 1224 Genset Bus Overvoltage Warning Warning
map 2
42502 8 Fault Status Bit- 1226 Genset Bus Frequency Warning Warning
map 2
42502 24 Fault Status Bit- 1541 Genset Failed To Come Online Warning Warning
map 2
42502 25 Fault Status Bit- 2647 Load Demand Setup Warning Warning
map 2
42502 26 Fault Status Bit- 1444 Genset Bus Overload Warning Warning
map 2
42502 27 Fault Status Bit- 1989 kW Load Control Output Limit Warning Warning
map 2
42502 28 Fault Status Bit- 1991 kVAR Load Control Output Limit Warning Warning
map 2
42502 29 Fault Status Bit- 1121 Fail To Disconnect Warning Warning
map 2
42502 30 Fault Status Bit- 1458 Synchronizer Phase Rotation Mismatch Warn- Warning
map 2 ing
42502 31 Fault Status Bit- 1457 Fail To Synchronizer Warning Warning
map 2
42504 0 Event Status Bit- 1222 Not in Automatic Event Event
map 1
42504 1 Event Status Bit- 1483 Common Warning Event Event
map 1
42504 2 Event Status Bit- 2965 Genset Bus Available Event Event
map 1
42504 3 Event Status Bit- 2328 Utility Bus Available Event Event
map 1
434
Code
42504 4 Event Status Bit- 2333 Genset Bus Connected Event Event
map 1
42504 5 Event Status Bit- 2332 Utility Bus Connected Event Event
map 1
42504 6 Event Status Bit- 2971 Test / Extended Parallel Event Event
map 1
42504 7 Event Status Bit- 1916 Synchronized Event Event
map 1
42504 8 Event Status Bit- 1534 Load Control Output Event Event
map 1
435
436
8. DMC 1500 Communication Server 1
Modbus Address: 2 (Slave).

tic counters.
Modbus Address Bit # Alarm Event

40001 0 (LSB) Utility Main Breaker Position Contact Warning
40001 1 Utility Main Breaker Fail To Close Warning
40001 2 Utility Main Breaker Fail To Open Warning
40001 3 Utility Main Breaker Tripped Warning
40001 4 Utility Bus Phase Rotation Warning
40001 5 Utility Bus Loss of Phase Warning
40001 6 Utility Bus Undervoltage Warning
40001 7 Utility Bus Overvoltage Warning
40001 8 Utility Bus Frequency Warning
40001 9 Remote IO Comm Failure Warning
40001 10 Real Time Clock Power Interrupt Warning
40001 11 AC Metering Out Of Range Warning
40001 12 Maximum Parallel Time Warning
40001 13 Unused
40001 14 Synchronizer Output Limit Warning
40001 15 (MSB) Calibration Checksum Warning MCM 3320

40002 0 (LSB) EEPROM Write Error Warning MCM 3320
40002 1 Genset Main Breaker Position Contact Warning
40002 2 Genset Main Breaker Fail to Close Warning
40002 3 Genset Main Breaker Fail to Open Warning
40002 4 Genset Main Breaker Tripped Warning
40002 5 Genset Bus Phase Rotation Warning
40002 6 Genset Bus Loss of Phase Warning
40002 7 Genset Bus Undervoltage Warning
40002 8 Genset Bus Overvoltage Warning
40002 9 Genset Bus Frequency Warning
40002 10 Low Battery Voltage Warning MCM 3320
40002 11 High Battery Voltage Warning MCM 3320
40002 12 Genset Failed to Come Online Warning
40002 13 Load Demand Setup Warning
437
40002 14 Genset Bus Over Load Limit Warning
40002 15 (MSB) kW Load Control Output Limit Warning

40003 0 (LSB) KVAR Load Control Output Limit Warning
40003 1 Fail to Disconnect Warning
40003 2 Synchronizer Phase Rotation Mismatch Warning
40003 3 Fail to Synchronize Warning
40003 4 Normal Operation Lockout
40003 5 Common Warning MCM 3320
40003 6 Common Server 1 to Network ATS Comm Failure
40003 7 Common Server 1 to MCM3320 Comm Failure
40003 8 Common Server 1 Battery Warning
40003 9 Common Server 1 Comm Server 2 Comm Failure
40003 10 Unused
40003 11 Unused
40003 12 Unused
40003 13 Unused
40003 14 Unused
40003 15 (MSB) Unused

40004 0 (LSB) Feeder Breaker 1 Trip
40004 1 Feeder Breaker 2 Trip
40004 10 Unused
40004 11 Unused
40004 12 Unused
40004 13 Unused
40004 14 Unused
Note: 40405 is unused.

40006 0 (LSB) System in Auto−Opened Transition
40006 1 System in Auto−Hard Closed Transition
438
40006 2 System in Auto−Soft Closed Transition
40006 3 System Manual Mode Active
40006 4 System Automatic Mode Active
40006 5 Common Warning Event
40006 6 Genset Bus Available Event
40006 7 Utility Bus Available Event
40006 8 Genset Bus Connected Event
40006 9 Utility Bus Connected Event
40006 10 Synchronized Event
40006 11 Load Control Output Event
40006 12 Genset Source Unloaded Event
40006 13 Utility Source Unloaded Event
40006 14 Genset Bus Load Event
40006 15 (MSB) Utility Bus Peak Shave Event

40007 0 (LSB) Extended Paralleling Enable
40007 1 Extended Paralleling Disable
40007 2 System in Extended Parallel
40007 3 System in Test with Load
40007 4 System in Test without Load
40007 5 System Test Off
40007 6 Load Demand Enable
40007 7 Load Demand Disable
40007 8 Extended Parallel Off
40007 9 Unused
40007 10 Unused
40007 11 Unused
40007 12 Unused
40007 13 Unused
40007 14 Unused
Generator Set Bus Data

Generator Bus Data MB Address Data Type Multiplier Units
Generator Set L1N Volts 40009 16U 1 Volts
Generator Set LN Average Volt 40012 16U 1 Volts
Generator set L1L2 Volts 40013 16U 1 Volts
Generator Set L2L3 Volts 40014 16U 1 Volts
Generator Set L3L1 Volts 40015 16U 1 Volts
Generator Set LL Average Volts 40016 16U 1 Volts
439
Generator Bus Data MB Address Data Type Multiplier Units
Generator Set L1 Current 40017 16U 1 Amps
Generator Set Average Current 40020 16U 1 Amps
Generator Set L1 kW 40021 16S 1 kW
Generator Set Total kW 40024 16S 1 kW
Generator Set L1 kVAR 40025 16S 1 kVAR
Generator Set Total kVAR 40028 16S 1 kVAR
Generator Set Total Power Factor 40029 16S 0.01
Generator Set L1 kVA 40030 16U 1 kVA
Generator Set Total kVA 40033 16U 1 kVA
MB Generator Set Frequency 40034 16U 0.1 Hz
Generator Set Total Negative kWh 40035 32U 1 kWh
40036
Generator Set Total Positive kWh 40037 32U 1 kWh
40038
Generator Set Total Net kWh 40039 32S 1 kWh
40040
Generator Set Total Negative kVARh 40041 32U 1 kVARh
40042
Generator Set Total Positive kVARh 40043 32U 1 kVARh
40044
Generator Set Total Net kVARh 40045 32S 1 kVARh
40046
Generator Set Total kVAh 40047 32U 1 kVAh
40048
Generator Set Available Current 40049 16U 1 Amps
Generator Set L1 Current Percent 40050 16U 0.1 %
Generator Set Total kW Percent 40053 16U 0.1 %
Generator Set Frequency Percent 40054 16S 0.1 %
Generator Set L1L2 Voltage Percent 40055 16U 0.1 %
440
Utility Bus Data
Utility Bus Data MB Address Data Type Multiplier Units
Utility L1N Voltage 40059 16U 1 Volts
Utility LN Average Voltage 40062 16U 1 Volts
Utility L1L2 Voltage 40063 16U 1 Volts
Utility LL Average Voltage 40066 16U 1 Volts
Utility L1 Current 40067 16U 1 Amps
Utility Average Current 40070 16U 1 Amps
Utility L1 kW 40071 16S 1 kW
Utility Total kW 40074 16S 1 kW
Utility L1 kVAR 40075 16S 1 kVAR
Utility Total kVAR 40078 16S 1 kVAR
Utility Total Power Factor 40079 16S 0.01
Utility L1 kVA 40080 16U 1 kVA
Utility Total kVA 40083 16U 1 kVA
MB Utility Frequency 40084 16U 0.1 Hz
Utility Total Negative kWh 40085 32U 1 kWh
40086
Utility Total Positive kWh 40087 32U 1 kWh
40088
Utility Total Net kWh 40089 32S 1 kWh
40090
Utility Total Negative kVARh 40091 32U 1 kVARh
40092
Utility Total Positive kVARh 40093 32U 1 kVARh
40094
Utility Total Net kVARh 40095 32S 1 kVARh
40096
Utility Total kVAh 40097 32U 1 kVAh
40098
System Total kW 40099 16S 1 kW
441
Utility Bus Data MB Address Data Type Multiplier Units
System Total kVAR 40100 16S 0.01 kVAR
System Total Power Factor 40101 16S 1
System Total kVA 40102 16U 1 KVA
ATS 1−5 DATA

ATS Raw Data ATS 1 ATS 2 ATS 3 ATS 4 ATS 5 Multiplier Units
Device Type 40257 40317 40377 40437 40513
Mode (See table 6−2 page 339) 40258 40318 40378 40438 40514
State (See Table 6−1 page 339) 40259 40319 40379 40439 40515
Fault Code 40260 40320 40380 40440 40516
Fault Type (See table 6−3 page 339) 40261 40321 40381 40441 40517
Percent Amps 40262 40322 40382 40442 40518 0.5 %
Total kW 40263 40323 40383 40443 40519
NFPA 110 (See Section 4 Table 1-1 40264 40324 40384 40444 40520
page 26)
NFPA Extended(See Section 4 Table 40265 40325 40385 40445 40521
4-2 page 381)
Frequency Load 40266 40326 40386 40446 40522 0.1 Hz
Total pf Load 40267 40327 40387 40447 40523 0.00005 pf
Total KVA Load 40268 40328 40388 40448 40524 KVA
Total kW Load 40269 40329 40389 40449 40525 kW
Total KVAR Load 40270 40330 40390 40450 40526 kVAR
Volts ab Load 40271 40331 40391 40451 40527 Volts
Volts bc Load 40272 40332 40392 40452 40528 Volts
Volts ca Load 40273 40333 40393 40453 40529 Volts
Volts a Load 40274 40334 40394 40454 40530 Volts
Volts b Load 40275 40335 40395 40455 40531 Volt
Volts c Load 40276 40336 40396 40456 40532 Volts
Amps a Load 40277 40337 40397 40457 40533 Amps
Amps b Load 40278 40338 40398 40458 40534 Amps
Amps c Load 40279 40339 40399 40459 40535 Amps
Percent Amps a Load 40280 40340 40400 40460 40536 0.5 %
Percent Amps b Load 40281 40341 40401 40461 40537 0.5 %
Percent Amps c Load 40282 40342 40402 40462 40538 0.5 %
Frequency SRC1 40283 40343 40403 40463 40539 0.1 Hz
Total pf SRC1 40284 40344 40404 40464 40540 0.00005 PF
Total KVA SRC1 40285 40345 40405 40465 40541
Total kW SRC1 40286 40346 40406 40466 40542
Total KVAR SRC1 40287 40347 40407 40467 40543
Volts ab SRC1 40288 40348 40408 40468 40544
Volts bc SRC1 40289 40349 40409 40469 40545
Volts ca SRC1 40290 40350 40410 40470 40546
Volts a SRC1 40291 40351 40411 40471 40547
442
Volts b SRC1 40292 40352 40412 40472 40548 Volts
Volts c SRC1 40293 40353 40413 40473 40549
Amps a SCR1 40294 40354 40414 40474 40550 Amps
Amps b SCR1 40295 40355 40415 40475 40551
Amps c SRC1 40296 40356 40416 40476 40552
Percent Amps a SCR1 40297 40357 40417 40477 40553 0.5 %
Percent Amps b SCR1 40298 40358 40418 40478 40554 0.5 %
Percent Amps c SCR1 40299 40359 40419 40479 40555 0.5 %
Frequency SRC2 40300 40360 40420 40480 40556 0.1 Hz
Total pf SRC2 40301 40361 40421 40481 40557 0.00005 pf
Total KVA SRC2 40302 40362 40422 40482 40558 KVA
Total kW SRC2 40303 40363 40423 40483 40559 kW
Total KVAR SRC2 40304 40364 40424 40484 40560 KVAR
Volts ab SRC2 40305 40365 40425 40485 40561 Volts
Volts bc SRC2 40306 40366 40426 40486 40562 Volts
Volts ca SRC2 40307 40367 40427 40487 40563 Volts
Volts a SRC2 40308 40368 40428 40488 40564 Volts
Volts b SRC2 40309 40369 40429 40489 40565 Volts
Volts c SRC2 40310 40370 40430 40490 40566 Volts
Amps a SRC2 40311 40371 40431 40491 40567 Amps
Amps b SRC2 40312 40372 40432 40492 40568 Amps
Amps c SRC2 40313 40373 40433 40493 40569 Amps
Percent Amps a SRC2 40314 40374 40434 40494 40570 0.5 %
Percent Amps b SRC2 40315 40375 40435 40495 40571 0.5 %
Percent Amps c SRC2 40316 40376 40436 40496 40572 0.5 %
Word Data (Reference Tables ATS 1-5 and

6-10)
Table 6−2
Table 6−1
Digital Mode
0 Test
Digital State
1 Utility / Genset
0 Neutral
2 Utility / Utility
3 Genset / Genset
3 Source 1 and 2 Connected Table 6−3
Digital Fault Type

0 No Faults
1 Warning
443
ATS 6−10 DATA
Device Type 40573 40633 40693 40769 40829
Mode (See table 6−2 page 339 ) 40574 40634 40694 40770 40830
State (See table 6−1 page 339) 40575 40635 40695 40771 40831
Fault Code 40576 40636 40696 40772 40832
Fault Type (See table 6−3 page 40577 40637 40697 40773 40833
339)
Percent Amps 40578 40638 40698 40774 40834 0.5 %
Total kW 40579 40639 40699 40775 40835
NFPA 110 (See Section 4 Table 1-1 40580 40640 40700 40776 40836
page 26)
NFPA Extended(See Section 4 Table 40581 40641 40701 40777 40837
4-2 page 381)
Frequency Load 40582 40642 40702 40778 40838 0.1 Hz
Total pf Load 40583 40643 40703 40779 40839 0.00005 PF
Total KVA Load 40584 40644 40704 40780 40840 KVA
Total kW Load 40585 40645 40705 40781 40841 kW
Total KVAR Load 40586 40646 40706 40782 40842 kVAR
Volts ab Load 40587 40647 40707 40783 40843 Volts
Volts bc Load 40588 40648 40708 40784 40844 Volts
Volts ca Load 40589 40649 40709 40785 40845 Volts
Volts a Load 40590 40650 40710 40786 40846 Volts
Volts b Load 40591 40651 40711 40787 40847 Volts
Volts c Load 40592 40652 40712 40788 40848 Volts
Amps a Load 40593 40653 40713 40789 40849 Amps
Amps b Load 40594 40654 40714 40790 40850 Amps
Amps c Load 40595 40655 40715 40791 40851 Amps
Percent Amps a Load 40596 40656 40716 40792 40852 0.5 %
Percent Amps b Load 40597 40657 40717 40793 40853 0.5 %
Percent Amps c Load 40598 40658 40718 40794 40854 0.5 %
Frequency SRC1 40599 40659 40719 40795 40855 0.1 Hz
Total pf SRC1 40600 40660 40720 40796 40856 0.00005 PF
Total KVA SRC1 40601 40661 40721 40797 40857 KVA
Total kW SRC1 40602 40662 40722 40798 40858 kW
Total KVAR SRC1 40603 40663 40723 40799 40859 kVAR
Volts a SRC1 40607 40667 40727 40803 40863 Volts
Volts b SRC1 40608 40668 40728 40804 40864 Volts
Volts c SRC1 40609 40669 40729 40805 40865 Volts
Amps a SCR1 40610 40670 40730 40806 40866 Amps
Amps b SCR1 40611 40671 40731 40807 40867 Amps
444
Amps c SRC1 40612 40672 40732 40808 40868 Amps
Percent Amps a SCR1 40613 40673 40733 40709 40869 0.5 %
Percent Amps b SCR1 40614 40674 40734 40710 40870 0.5 %
Percent Amps c SCR1 40615 40675 40735 40811 40871 0.5 %
Frequency SRC2 40616 40676 40736 40812 40872 0.1 Hz
Total pf SRC2 40617 40677 40737 40813 40873 0.00005 pf
Total KVA SRC2 40618 40678 40738 40814 40874 KVA
Total kW SRC2 40619 40679 40739 40815 40875 kW
Total KVAR SRC2 40620 40680 40740 40816 40876 KVAR
Volts ab SRC2 40621 40681 40741 40817 40877 Volts
Volts a SRC2 40624 40684 40744 40820 40880 Volts
Volts b SRC2 40625 40685 40745 40821 40881 Volts
Volts c SRC2 40626 40686 40746 40822 40882 Volts
Amps a SRC2 40627 40687 40747 40823 40883 Amps
Amps b SRC2 40628 40688 40748 40824 40884 Amps
Amps c SRC2 40629 40689 40749 40825 40885 Amps
Percent Amps a SRC2 40630 40690 40750 40826 40886 0.5 %
Percent Amps b SRC2 40631 40691 40751 40827 40887 0.5 %
Percent Amps c SRC2 40632 40692 40752 40828 40888 0.5 %
445
446
9. DMC 1500 Communication Server 2
Modbus Address: 1 (Slave).

tic counters.

40001 0 (LSB) Neutral Earthing 1 Fail to Open Warning
40001 1 Neutral Earthing 2 Fail to Open Warning
40001 8 Neutral Earthing 1 Fail to Closed Warning
40001 15 (MSB) Neutral Earthing 8 Fail to Closed Warning

40002 0 (LSB) Neutral Earthing 1 Tripped Warning
40002 1 Neutral Earthing 2 Tripped Warning
40002 8 Undergrounded Bus Warning
40002 9 Undergrounded Bus Failure − System Shutdown
40002 10 Multiple NECs Connected
40002 11 Multiple System Grounds Connected
40002 12 Unused
40002 13 Unused
447
40002 14 Unused

40003 0 (LSB) Station Battery Power Supply Fault
40003 1 UPS Fault
40003 2 On Station Battery Warning
40003 3 System Manual Mode Active
40003 4 Utility Failure
40003 5 Utility Out of Limits for Extended Parallel
40003 6 Common Server 2 Battery Warning
40003 7 System Emergency Stop
40003 8 Hardware Failure Warning MCM 3320
40003 9 Unused
40003 10 Unused
40003 11 Unused
40003 12 Unused
40003 13 Unused
40003 14 Unused

40004 0 (LSB) Illegal Genset Node Address Assignment
40004 1 Unused
40004 2 Unused
40004 3 Comm Server 2 to Comm Server 1 Comm Failure
40004 4 Manufacturing Test Mode Active
40004 5 Unused
40004 6 Unused
40004 7 Unused
40004 8 Comm Server 2 to Genset 1 Comm Failure
40004 15 (MSB) Comm Server 2 to Genset 8 Comm Failure
Note: 40005 is unused.

40006 0 (LSB) Gen 1 Breaker Closed
40006 1 Gen 2 Breaker Closed
448
40006 8 Gen 1 Breaker Open
40006 15 (MSB) Gen 8 Breaker Open

40007 0 (LSB) Gen 1 Running
40007 1 Gen 2 Running
40007 8 Gen 1 Fault
40007 9 Gen 2 Fault
40007 10 Gen 3 Fault
40007 15 (MSB) Gen 8 Fault

40008 0 (LSB) Gen 1 Shut Down in Load Demand
40008 1 Gen 2 Shut Down in Load Demand
40008 8 Gen Start Signal On MCM 3320
449
40008 9 Gen Start Signal Off MCM 3320
40008 10 Gen Main Breaker Closed
40008 11 Gen Main Breaker Opened
40008 12 Utility Main Breaker Closed
40008 13 Utility Main Breaker Opened
40008 14 Utility Failure
40008 15 (MSB) Return to Utility

40009 0 (LSB) Remote Commands Enable
40009 1 Remote Commands Disable
40009 2 Remote Test On
40009 3 Remote Test Off
40009 4 Remote Extended Parallel On
40009 5 Remote Extended Parallel Off
40009 6 Remote Transfer Inhibit On
40009 7 Remote Transfer Inhibit Off
40009 8 Remote Retransfer Inhibit On
40009 9 Remote Retransfer Inhibit Off
40009 10 Auto Genset Start Inhibit in Manual Mode Enable
40009 11 Auto Genset Start Inhibit in Manual Mode Disable
40009 12 Unused
40009 13 Unused
40009 14 Unused
Generator Raw Data Gen 1-5

Generator Raw Data Gen 1 Gen 2 Gen 3 Gen 4 Gen 5 Multiplier Units
Device Type 40011 40066 40121 40176 40257
Control Switch (See table 6−7 page 40012 40067 40122 40177 40258
338)
State (See table 6−1 page 338) 40013 40068 40123 40178 40259
Fault Code 40014 40069 40124 40179 40260
Fault Type (See table 6−6 page 338) 40015 40070 40125 40180 40261
Percent kW Standby 40016 40071 40126 40181 40262 0.5 %
Total kW 40017 40072 40127 40182 40263
NFPA 110 (See Section 4, Table 4-3 on 40018 40073 40128 40183 40264
page 381)
NFPA Extended (See Section 4, Table 40019 40074 40129 40184 40265
4-4 on page 381)
Frequency 40020 40075 40130 40185 40266 0.1 Hz
Total pf 40021 40076 40131 40186 40267 0.00005 pf
Total KVA 40022 40077 40132 40187 40268 KVA
Total kW 40023 40078 40133 40188 40269 kW
450
Generator Raw Data Gen 1 Gen 2 Gen 3 Gen 4 Gen 5 Multiplier Units
Total KVAR 40024 40079 40134 40189 40270 kVAR
Volts ab 40025 40080 40135 40190 40271 Volts
Volts bc 40026 40081 40136 40191 40272 Volts
Volts ca 40027 40082 40137 40192 40273 Volts
Volts a 40028 40083 40138 40193 40274 Volts
Volts b 40029 40084 40139 40194 40275 Volt
Volts c 40030 40085 40140 40195 40276 Volts
Amps a 40031 40086 40141 40196 40277 Amps
Amps b 40032 40087 40142 40197 40278 Amps
Amps c 40033 40088 40143 40198 40279 Amps
Percent Amps a 40034 40089 40144 40199 40280 0.5 %
Percent Amps b 40035 40090 40145 40200 40281 0.5 %
Percent Amps c 40036 40091 40146 40201 40282 0.5 %
Battery Voltage 40037 40092 40147 40202 40283 0.1 Volts
Oil Pressure 40038 40093 40148 40203 40284 0.1 KPA
Oil Temp 40039 40094 40149 40204 40285 0.1 Deg K
Coolant Temp 40040 40095 40150 40205 40286 0.1 Deg K
Fuel Rate 40041 40096 40151 40206 40287 0.001 GPH
Engine RPM 40042 40097 40152 40207 40288 RPM
Engine Starts 40043 40098 40153 40208 40289 Starts
Engine Runtime High 40044 40099 40154 40209 40290
Engine Runtime Low 40045 40100 40155 40210 40291 0.1 Sec
Total kWH High 40046 40101 40156 40211 40292
Total kWH Low 40047 40102 40157 40212 40293 KWH
Total Fuel High 40048 40103 40158 40213 40294
Total Fuel Low 40049 40104 40159 40214 40295 0.01 GAL
Bus Frequency 40050 40105 40160 40215 40296 0.1 Hz
Bus Volts ab 40051 40106 40161 40216 40297 Volts
Bus Volts bc 40052 40107 40162 40217 40298 Volts
Bus Volts ca 40053 40108 40163 40218 40299 Volts
Bus Volts a 40054 40109 40164 40219 40300 Volts
Bus Volts b 40055 40110 40165 40220 40301 Volts
Bus Volts c 40056 40111 40166 40221 40302 Volts
Customer Faults 40057 40112 40167 40222 40303
Network Faults 40058 40113 40168 40223 40304
Customer Faults 40059 40114 40169 40224 40305
ES State (See Table 7−2 page 338) 40060 40115 40170 40225 40306
Load Share State (See Table 7−3 page 40061 40116 40171 40226 40307
338)
Load Govern State kW (See Table 7−7 40062 40117 40172 40227 40308
page 338)
Load Govern State kVAR (See Table 7−5 40063 40118 40173 40228 40309
Page 338)
451
Word Data (Reference the ATS 6−1 and 6−10 tables
in Section 5)
Table 7−1 Table 7−4
Digital State Digital Load Govern State kW

0 Stopped 0 NA
1 Start Pending 1 Ramp Load
2 Warm−up at Idle 2 Track Target Load
3 Running 3 Ramp Unload
4 Cooldown at Rated 4 Ramp Unload Done
5 Cooldown at idle
Table 7−2
Table 7−5
Digital ES State Digital Load Govern State kVAR

0 Standby 0 NA
1 Dead Bus Close 1 Ramp Load
2 Synchronizing 2 Track Target Load
3 Load Share 3 Ramp Unload
4 Load Govern 4 Ramp Unload Done
Table 7−3 Table 7−6
Digital Load Share State Digital Fault Type

0 Not in Load Share 0 Normal
1 Track Load 1 Warning
2 Ramp Load 2 Derate
3 Ramp Unload 3 Shutdown with Cooldown
4 Load Demand Shutdown 4 Shutdown
Table 7−7
Digital Control Switch

0 Off
1 Manual
2 Automatic
452
Generator Raw Data Gen 6-8
Generator Raw Data Gen 6 Gen 7 Gen 8 Multiplier Units
Device Type 40312 40367 40422
Control Switch (See Table 7−7 page 338) 40313 40368 40423
State (See Table 7−1 page 338) 40314 40369 40424
Fault Code 40315 40370 40425
Fault Type (See Table 7−6 page 338) 40316 40371 40426
Percent kW Standby 40317 40372 40427 0.5 %
Total kW 40318 40373 40428
NFPA 110 (See Section 4, Table 4-3 on 40319 40374 40429
page 381)
NFPA Extended (See Section 4, Table 40320 40375 40430
4-4 on page 381)
Frequency 40321 40376 40431 0.1 Hz
Total pf 40322 40377 40432 0.00005 PF
Total KVA 40323 40378 40433 KVA
Total kW 40324 40379 40434 kW
Total KVAR 40325 40380 40435 kVAR
Volts ab 40326 40381 40436 Volts
Volts bc 40327 40382 40437 Volts
Volts ca 40328 40383 40438 Volts
Volts a 40329 40384 40439 Volts
Volts b 40330 40385 40440 Volts
Volts c 40331 40386 40441 Volts
Amps a 40332 40387 40442 Amps
Amps b 40333 40388 40443 Amps
Amps c 40334 40389 40444 Amps
Percent Amps a 40335 40390 40445 0.5 %
Percent Amps b 40336 40391 40446 0.5 %
Percent Amps c 40337 40392 40447 0.5 %
Battery Voltage 40338 40393 40448 0.1 Volts
Oil Pressure 40339 40394 40449 0.1 KPA
Oil Temp 40340 40395 40450 0.1 Deg K
Coolant Temp 40341 40396 40451 0.1 Deg K
Fuel Rate 40342 40397 40452 0.001 GPH
Engine RPM 40343 40398 40453 RPM
Engine Starts 40344 40399 40454 Starts
Engine Runtime High 40345 40400 40455
Engine Runtime Low 40346 40401 40456 0.1 Sec
Total kWH High 40347 40402 40457
Total kWH Low 40348 40403 40458 KWH
Total Fuel High 40349 40404 40459
Total Fuel Low 40350 40405 40460 0.01 GAL
Bus Frequency 40351 40406 40461 0.1 Hz
453
Generator Raw Data Gen 6 Gen 7 Gen 8 Multiplier Units
Bus Volts ab 40352 40407 40462 Volts
Bus Volts bc 40353 40408 40463 Volts
Bus Volts ca 40354 40409 40464 Volts
Bus Volts a 40355 40410 40465 Volts
Bus Volts b 40356 40411 40466 Volts
Bus Volts c 40357 40412 40467 Volts
Customer Faults 40358 40413 40468
Network Faults 40359 40414 40469
Customer Faults 40360 40415 40470
ES State (See Table 7−2 page 338) 40361 40416 40471
Load Share State (See Table 7−3 page 40362 40417 40472
338)
Load Govern State kW (See Table 7−4 40363 40418 40473
page 338)
Load Govern State kVAR (See Table 7−5 40364 40419 40474
page 338)
454
10. MCM3320 Modbus Register Map
Modbus Communications All data parameters are transmitted as registers. All

registers are two 8 bit bytes in length (16 bits per reg-
This section defines the Modbus communications in- ister). If a register requires more than 16 bits, then,
terface. Serial communications use an RTU (Remote the subsequent registers are also used. Therefore,
Terminal Unit) two-wire RS−485, master/slave multi− with a 32 bit register X and X+1, the X register con-
drop network configuration described in the Modbus tains the upper 16 bits of data and the X+1 register
Protocol Reference Guide. The controller is defined contains the lower 16 bits. A register with 1 bit of data
as a slave. uses the least significant bit of a 16 bit register.
For all discrete data referenced a by bit number, the

Reference Documents
least significant bit for the register is numbered as “0”
and the most significant bit as “15”. For all fault sta-
1. Modicon “Modbus Protocol Reference Guide PI-
tuss and event statuss, a “1” indicates the fault or
MBUS-300 Rev. G” describes the serial transmission
event is active and a “0” indicates inactive.
modes.
2. “Modbus Over Serial Line Specification and Imple-

Modbus Activity LED
mentation Guide v1.0” describes the lower levels of
The modbus activity LED is on when either the con-
modbus protocol.
trol is receiving a modbus packet or sending a mod-
bus packet. It is also on when a protocol timer is in
3. “Modbus Application Protocol Specification v1.1a”
timer mode. This precedes a protocol switch on the
describes the application layer of the modbus proto-
SCI1 port. Otherwise, the LED is off.
col.
Supported Functions
Serial Port Configuration
The controller is only capable of processing the fol-
The port communications occur, by default, at a baud
lowing modbus data and control function queries
rate of 19200 using eight data bits, one stop-bit with
from the master:
even parity, and are configurable via MON and
PCCnet logically.  Read holding registers (Function Code 03)
 Preset single register (Function Code 06)
Device Addresses
 Diagnostics (Function Code 08)
The PLC is the master device in the modbus network.  Preset multiple registers (Function Code 16)
The modbus node address is configurable and is set
to node 1 by default. The control responds to any query containing a func-
tion code, other than codes 03, 06, 08 and 16 #by
Power-Up Time sending an exception response with the exception
code set to “01” (Illegal Function).
The MCM3320 is capable of supporting communica-
tion transactions within 10 seconds following initial The control responds to any read of a single address
power-up. that is not specified in this specification by sending an
exception response with the exception code set to
Response Time “02” (Illegal Address).
The controller responds within 100 ms of a request The control responds to any read of a block of 2 or
for information the master. more addresses containing an address that is not
specified in this specification by returning data of
Data Formatting 0xFF for that address.
The format for each register is defined in the modbus The control responds to Preset Single Register and
register table. Preset
455
Multiple Register functions when the data is out of Register Maps
bounds by sending an exception response with the
exception code set to “03” (Illegal Data Value). Addresses were assigned to maintain compatibility
with the existing Modlon gateway where applicable
The following conventions are followed:
Holding Register Function
40xxx − Genset control registers
The control provides the ability to read all read only 41xxx − Transfer switch control register
and read/write registers in the Modbus Registers
Table via the Holding Register function. From 1 to 40 42xxx − Master control registers (MCM3320)
contiguous registers can be read at a time. If an at-
tempt is made to read a register that’s not available, 4x0xx − General data registers (volts, cur
then an error is returned and none of the data will be rent, etc.) primarily for genset bus
returned. 4x1xx − General data registers (volts, cur
rent, etc.) primarily for utility bus
Preset Single/Preset Multiple Registers
4x2xx − Configuration and status registers −
Function
Block 1
The control provides the ability to write to (preset) 4x3xx − Settings − Block 1
Read/Write registers in the modbus registers table 4x4xx − Settings − Block 2
via both the present single register (Function Code
06) and the preset multiple registers (Function Code 4x5xx − Bitmap
16). A write to a single register can be performed by
the master using the modbus data and control func- 4x6xx − Switch I/O
tion query preset single register (Function Code 06).
4x7xx − Configuration and status registers −
For writes requiring writes to 1 to 40 contiguous reg-
Block 2
isters, the master uses the modbus data and control
function query called preset multiple registers (Func- Application Layer
tion Code 16). If a write attempt is made and any of
the data is invalid or if an attempt is made to write to a The application layer processes the packet. Four
register that’s not available, then an error is returned functions are supported: Read Hold Registers, Set
and none of the data will be written. Single Register, Modbus Loopback, and Set Multiple
Registers. If the request packet specifies an unsup-
ported function, then an illegal function response is
Diagnostic Counters
returned. See the “Modbus Application Protocol
Specification” to see how the request and response
The following diagnostic counters is also available packets are formatted and how each function pro-
via the modbus diagnostic function (Function Code cesses the data.
08). The following parameters are updated and avail-
able via MON and modbus logical access. A single Read Hold Registers
logical is also available to clear all counters.
Given a starting address and the quantity of registers
 Bus Message Count − Total Modbus packets on desired, this function gets the data, formats it if re-
bus quired, and writes it to the TX buffer. If any register in
the range is not supported, then an error is returned.
 CRC Errors Count − Total Modbus packets re-
ceived with a bad CRC Set Single Register
 Exception Count − Total Modbus packets re- Given a register address and data, this function veri-
ceived where an exception was sent back fies that the data is within range; then if OK, writes the
data.
 No Response Count − Total Modbus packets re-
ceived where no response sent back Modbus Loopback
 Slave Message Count − Total Modbus packets This function performs Modbus diagnostic function-
on bus addressed to this node ality. Some of the functionality defined here is also
456
available via MON and PCCnet logicals. See the 0x0F Return Slave No Response Count
“Diagnostic Counters” section of this document for
details. The Loopback function supports: Set Multiple Registers
0x00 Return Query Data
Given a starting address, the quantity of registers,
0x01 Restart and two bytes of data for each register, this function
verifies that all the data is within range; then if OK,
0x04 Force Listen Only Mode writes all data. If any register in the range is not sup-
ported or any of the data is out of range then an error
0x0A Clear Counter is returned and no data is written. A 32-bit parameter
is written using “Write Multiple Register” (Command
0x0B Return Bus Message Count Code 16) only. Using “Write Single Register” (Com-
mand Code 06) returns an exception code 2 − Illegal
0x0C Return Bus Communication Error Address. If both registers are not in the same block,
Count (bad CRC) the control sends an exception code 2−Illegal Ad-
dress.
0x0D Return Bus Exception Error Count
0x0E Return Slave Message Count Modbus Register Table

Note: For bitmapped quantities, refer to table in section 8 on page 425. For 32 bit quantities, the register address
listed (X) is the high 16 bit. The low 16 bits are at register X+1. If an address or bit is not listed in this table, it is not
used.

42001 MB logical Read / Multiplier: Unit: NA Logical address Communica-
Read Address Write 1.000000000000 Lower Limit: .000 to be read via tions
Offset: 0 Upper Limit: modbus
Size (bits):16 65535.000
Sign: U Default: 0
42002 MB Logical Read Multiplier: Unit: NA Logical data to Communica-
Read Data Only 1.000000000000 Lower Limit: be read via mod- tions
Offset: 0 Upper Limit: bus
Sign: U
42004 Save Adjust- Read / 0: Do Nothing Use to save ad- Controller In-
ments Write 1: Save Trims justments directly formation
Default: Do Nothing in non-volatile
memory
42009 Device Type Read Multiplier: Unit: NA Hard coded de- Communica-
Only 1.000000000000 Lower Limit: vice type id= 52 tions
Offset: 0 Upper Limit: (0x0034)
Size (bits):16 Default:
Sign: U
42010 Software Ver- Read Multiplier: Unit: NA Software version Controller In-
sion Only .000100000000 Lower Limit: number formation
Size (bits):16 Default:
Sign: U
42011 Genset Run Read 0: Time Delay Start Indicates state of PTC Operat-
Sequence Only 1: Time Delay Stop the generator set ing Mode
State 2: Stop run sequence
3: Run
Default:
457
42012 Current Fault Read Multiplier: Unit: NA The most recent- Fault and
Status Only 1.000000000000 Lower Limit: ly occurring fault Event Infor-
Offset: 0 Upper Limit: which is still ac- mation
Size (bits):16 Default: tive
Sign: U
42017 Genset Bus Read 0: Unavailable Energization sta- PTC Sensors
Status Only 1: Dead tus of generator
2: Live Set bus
Default:
Voltage Only 1.000000000000 Lower Limit: Volts L1N voltage
Offset: 0 Upper Limit: Volts
Sign: U
Sign: U
Sign: U
42021 Genset LN Av- Read Multiplier: Unit: Volts Generator set LN Voltage
erage Voltage Only 1.000000000000 Lower Limit: Volts average voltage
Sign: U
Voltage Only 1.000000000000 Lower Limit: Volts L1L2 voltage
Sign: U
Voltage Only 1.000000000000 Lower Limit: Volts L2L3 voltage
Sign: U
Voltage Only 1.000000000000 Lower Limit: Volts L3L1 voltage.
Sign: U
42025 Genset LL Av- Read Multiplier: Unit: Volts Generator set LL Voltage
erage Voltage Only 1.000000000000 Lower Limit: Volts Average voltage
Sign: U
458
Current Only 1.000000000000 Lower Limit: Amps current
Offset: 0 Upper Limit: Amps
Sign: U
Sign: U
Sign: U
42029 Genset Aver- Read Multiplier: Unit: Amps Generator set av- Current
age Current Only 1.000000000000 Lower Limit: Amps erage current
Offset: 0 Upper Limit:Amps
Sign: U
Only 1.000000000000 Lower Limit: kW kW
Offset: 0 Upper Limit: kW
Sign: S
Sign: S
Sign: S
kW Only 1.000000000000 Lower Limit: kW tal kW
Sign: S
kVAR Only 1.000000000000 Lower Limit: kVAR kVAR
Offset: 0 Upper Limit: kVAR
Sign: S
Sign: S
459
Sign: S
kVAR Only 1.000000000000 Lower Limit: kVAR tal kVAR
Sign: S
42038 Genset Total Read Multiplier: Unit: NA Generator set L1 Power
Power Factor Only 1.000000000000 Lower Limit: power factor
Sign: S
kVA Only 1.000000000000 Lower Limit: kVA kVA
Sign: U
Sign: U
Sign: U
kVA Only 1.000000000000 Lower Limit: kVA tal kVA
Sign: U
42043 MB Genset Read Multiplier: Unit: Hz Generator set Communica-
Frequency Only .100000000000 Lower Limit: Hz line frequency tions
Offset: 0 Upper Limit: Hz scaled by 10 =
Size (bits): 16 Default: 1Hz for modbus
Sign: U
Negative kWh Only 1.000000000000 Lower Limit: kWh tal negative kWh
Sign: U
Positive kWh Only 1.000000000000 Lower Limit: kWh tal positive kWh
Sign: U
460
Net kWh Only 1.000000000000 Lower Limit: kWh tal net kWh accu-
Sign: S
Negative Only 1.000000000000 Lower Limit: kVARh tal negative
Sign: U
Positive Only 1.00000000000 Lower Limit: kVARh tal positive
kVARh 0Offset: 0 Upper Limit: kVARh kVARh accu-
Sign: U
Net kVARh Only 1.000000000000 Lower Limit: kVARh tal net kVARh ac-
Offset: 0 Upper Limit: kVARh cumulation
Sign: S
kVAh Only 1.000000000000 Lower Limit: kVARh tal kVAh accu-
Offset: 0 Upper Limit: kVARh mulation
Sign: U
42058 Genset Avail- Read Multiplier: Unit: Amps Calculated amps Current
able Current Only 1.000000000000 Lower Limit: Amps which represent
Offset: 0 Upper Limit: Amps 100−% generator
Size (bits): 16 Default: set bus current −
Sign: U used by bargraph

Current Per- Only .100000000000 Lower Limit: % current as per-
cent Offset: 0 Upper Limit: % cent of generator
Size (bits): 16 Default: Set total current
Sign: S capacity − used
by bargraph

Sign: U capacity − used
by bargraph

Sign: U capacity − used
by bargraph
461
42062 Genset Total Read Multiplier: Unit: % Generator set kW Power
kW Percent Only .100000000000 Lower Limit: % as percent of to-
Offset: 0 Upper Limit: % tal generator set
Size (bits): 16 Default: capacity − used
Sign: S by bargraph
42063 Genset Fre- Read Multiplier: Unit: % Generator set Frequency
quency Per- Only .100000000000 Lower Limit: % frequency as per-
cent Offset: 0 Upper Limit: % cent of system
Size (bits): 16 Default: frequency − used
Sign: U by bargraph
Voltage% Only .100000000000 Lower Limit: % L1L2 voltage%
Offset: 0 Upper Limit: %
Sign: U
Voltage% Only .100000000000 Lower Limit: % L2L3 voltage %
Sign: U
Voltage% Only .100000000000 Lower Limit: % L3L1 voltage%
Sign: U
kW_32bit Only 1.000000000000 Lower Limit: kW tal kW in 32 bit
Sign: S
kVAR_32bit Only 1.000000000000 Lower Limit: kVAR tal kVAR in 32 bit
Sign: S
kVA_32bit Only 1.000000000000 Lower Limit: kVA tal kVA in 32 bit
Sign: U
42117 Utility Bus Sta- Read 0: Unavailable Energization sta- PTC Sensors
tus Only 1: Dead tus of the utilitiy
2: Live bus
Default:
42118 Utility L1N Read Multiplier: Unit: Volts Utility L1N volt- Voltage
Voltage Only 1.000000000000 Lower Limit: Volts age
Sign:U
462
42119 Utility L2N Vol- Read Multiplier: Unit: Volts Utility L2N volt- Voltage
tage Only 1.000000000000 Lower Limit: Volts age
Sign: U
42120 Utility L3N Read Multiplier: Unit: Volts Utility L3N volt- Voltage
Sign: U
42121 Utility LN Av- Read Multiplier: Unit: Volts Utility LN aver- Voltage
erage Voltage Only 1.000000000000 Lower Limit: Volts age voltage
Sign: U
42122 Utility L1L2 Read Multiplier: Unit: Volts Utility L1L2 volt- Voltage
Sign: U
Sign: U
Sign: U
42125 Utility LL Aver- Read Multiplier: Unit: Volts Utility LL average Voltage
age Voltage Only 1.000000000000 Lower Limit: Volts voltage
Sign: U
rent Only 1.000000000000 Lower Limit: Amps
Sign: U
Sign: U
Sign: U
463
42129 Utility Average Read Multiplier: Unit: Amps Utility average Current
Sign: U
Sign: S
Sign: S
Sign: S
Sign: S
Only 1.000000000000 Lower Limit: kVAR
Sign: S
Sign: S
Sign: S
42137 Utility Total Read Multiplier: Unit: kVAR Utility total kVAR Power
Sign: S
42138 Utility Total Read Multiplier: Unit: NA Utility L1 power Power
Power Factor Only 1.000000000000 Lower Limit: factor
Sign: S
464
Only 1.000000000000 Lower Limit: kVA
Sign: U
Sign: U
Sign: U
42142 Utility Total Read Multiplier: Unit: kVA Utility total kVA Power
Sign: U
42143 MB Utility Fre- Read Multiplier: Unit: Hz Utility line fre- Communica-
quency Only 1.000000000000 Lower Limit: Hz quency scaled by tions
Offset: 0 Upper Limit: Hz 10 = 1Hz for
Size (bits): 16 Default: modbus
Sign: U
42144 Utility Total Read Multiplier: Unit: kWh Utility total nega- Energy
Negative kWh Only 1.000000000000 Lower Limit: kWh tive kWh accu-
Sign: U
42146 Utility Total Read Multiplier: Unit: kWh Utility total posi- Energy
Positive kWh Only 1.000000000000 Lower Limit: kWh tive kWh accu-
Sign: U
42148 Utility Total Read Multiplier: Unit: kWh Utility total net Energy
Net kWh Only 1.000000000000 Lower Limit: kWh kWh accumula-
Offset: 0 Upper Limit: kWh tion
Sign: S
42150 Utility Total Read Multiplier: Unit: kVARh Utility total nega- Energy
Negative Only 1.000000000000 Lower Limit: kVARh tive kVARh accu-
Sign: U
42152 Utility Total Read Multiplier: Unit: kVARh Utility total posi- Energy
Positive Only 1.000000000000 Lower Limit: kVARh tive kVARh accu-
kVARh Offset: 0 Upper Limit: kVARh mulation
Sign: U
465
42154 Utility Total Read Multiplier: Unit: kVARh Utility total net Energy
Net kVARh Only 1.000000000000 Lower Limit: kVARh kVARh accu-
Sign: S
42156 Utility Total Read Multiplier: Unit: kVAh Utility total Energy
kVAh Only 1.000000000000 Lower Limit: kVAh kVARh accu-
Offset: 0 Upper Limit: kVAh mulation
Sign: U
kW Only 1.000000000000 Lower Limit: kW set bus and utility
Offset: 0 Upper Limit: kW bus kW
Sign: S
kVAR Only 1.000000000000 Lower Limit: kVAR set bus and utility
Offset: 0 Upper Limit: kVAR bus kVAR
Sign: S
42160 System Total Read Multiplier: Unit: NA System total Power
Power Factor Only .010000000000 Lower Limit: power factor
Offset: 0 Upper Limit: (totalized value of
Size (bits): 16 Default: utility bus plus
Sign: S generator set
bus)
kVA Only 1.000000000000 Lower Limit: kVA set bus and utility
Offset: 0 Upper Limit: kVA bus kVA
Sign: U
42162 Utility L1 Cur- Read Multiplier: Unit: % Utility L1 current Current
rent Percent Only .100000000000 Lower Limit: % as % of utility to-
Offset: 0 Upper Limit: % tal current capac-
Size (bits): 16 Default: ity − used by bar-
Sign: U graph
rent Percent Only .100000000000 Lower Limit: % as % of utility to-
Offset: 0 Upper Limit: % tal current capac-
Size (bits): 16 Default: ity − used by bar-
Sign: U graph
rent Percent Only .100000000000 Lower Limit: % as as % of utility
Offset: 0 Upper Limit: % total current ca-
Size (bits): 16 Default: pacity − used by
Sign: U bargraph
466
42165 Utility Total kW Read Multiplier: Unit: % Utility total kW as Power
Percent Only .100000000000 Lower Limit % percent of total
Offset: 0 Upper Limit: % utility capacity −
Size (bits): 16 Default: used by bargraph
Sign: S
42166 Utility Fre- Read Multiplier: Unit: % Utility frequency Frequency
quency Per- Only .100000000000 Lower Limit: % as percent of
cent Offset: 0 Upper Limit: % system frequency
Size (bits): 16 Default: − used by bar-
Sign: U graph
Voltage % Only .100000000000 Lower Limit: % age %
Sign: U
Sign: U
42169 Utility L3L1 Read Multiplier: Unit:% Utility L3L1 volt- Voltage
Sign: U
_32 bit Only 1.000000000000 Lower Limit: kW
Sign: S
42172 Utility total Read Multiplier: Unit: kVAR Utility total kVAR Power
kVAR_32 bit Only 1.000000000000 Lower Limit: kVAR in 32 bit
Sign: S
42174 Utility total Read Multiplier: Unit: kVA Utility total kVA Power
kVA_32 bit Only 1.000000000000 Lower Limit: kVA in 32 bit
Sign: U
kW_32 bit Only 1.000000000000 Lower Limit: kW bus and utility
Offset: 0 Upper Limit: kW bus kW in 32 bit
Sign: S
kVAR_32 bit Only 1.000000000000 Lower Limit: kVAR bus and utility
Offset: 0 Upper Limit: kVAR bus kVAR in 32
Size (bits): 32 Default: bit
Sign: S
467
kVA_32 bit Only 1.000000000000 Lower Limit: kVA set and utility bus
Offset: 0 Upper Limit: kVA kVA in 32 bit
Sign: U
42200 Total Number Read Multiplier: Unit: NA Number of gener- System Infor-
of Gensets Only 1.000000000000 Lower Limit: ator sets with mation
Offset: 0 Upper Limit: non-zero rating
Size (bits): 16 Default: entered
Sign: U
42201 Total System Read Multiplier: Unit: kW Sum of the gen- System Infor-
Capacity Only 1.000000000000 Lower Limit: kW erator set kW rat- mation
Offset: 0 Upper Limit: kW ings
Sign: U
42202 Total Online Read Multiplier: Unit: kW Sum of the gen- System In-
Capacity Only 1.000000000000 Lower Limit: kW erator set kW rat- formation
Offset: 0 Upper Limit: kW ings for generator
Size (bits): 16 Default: sets which are
Sign: S Online
42203 Programmed Read Multiplier: Unit: seconds Countdown value PTC Timers
Transition Tim- Only .100000000000 Lower Limit: seconds of the pro-
er Offset: 0 Upper Limit: seconds grammed transi-
Size (bits): 16 Default: tion timer
Sign: U
42204 Transfer Timer Read Multiplier: Unit: seconds Countdown value PTC Timers
Only .100000000000 Lower Limit: seconds of the transfer
Offset: 0 Upper Limit: seconds timer
Sign: U
42205 Retransfer Read Multiplier: Unit: seconds Countdown value PTC Timers
Timer Only .100000000000 Lower Limit: seconds of the retransfer
Sign: U
42206 Maximum Par- Read Multiplier: Unit: seconds Countdown value PTC Timers
allel Timer Only .100000000000 Lower Limit: seconds of the maximum
Offset: 0 Upper Limit: seconds parallel timer
Sign: U
42207 kW Reference Read Multiplier: Unit: kW kW Control refer- Master Load
Only 1.000000000000 Lower Limit: kW ence value for Control
Offset: 0 Upper Limit: kW utility paralleling
Sign: S
42208 Utility Un- Read 0: Not Available Indicates utility Master Load
loaded Status Only 1: Not Unloaded unloaded status Control
2: Unloaded
Default:
468
42209 Genset Un- Read 0: Not Available Indicates genera- Master Load
loaded Status Only 1: Not Unloaded tor set unloaded Control
2: Unloaded status
Default:
42210 System State Read 0: Not Available Indicates what System Infor-
Only 1: TD Start state the control mation
2: TD Stop is currently IN
3: TD Programmed Transition
4: TD Transfer
5: TD Retransfer
6: Synchronizing
7: Sync Check OK
8: Inhibit
9: Unassigned
10: Ramp Upload
11. Ramp Load
12: Manual
13: Utility Failure
14: Test
15: Standby
16: Factory Test
42211 PTC Operat- Read 0: Manual Indicates the PTC Operat-
ing Mode Only 1: Normal Current PTC Op- ing Mode
2: Normal Override erating mode.
3: Test Read/Write on
4: Utility Fail comp mode.
Default:
42212 Active Transi- Read Multiplier: Unit: seconds Countdown timer PTC Timers
tion Timer Only .100000000000 Lower Limit: seconds value of active
Sign: U
42213 Hardware Ver- Read Multiplier: Unit: NA Indicates the Discrete In-
sion Only 1.000000000000 Lower Limit: hardware version puts
Offset: 0 Upper Limit: of the board
Sign: U
42214 Controller On Read Multiplier: Unit: seconds Amount of time in Controller In-
Time Only 1.000000000000 Lower Limit: .000 seconds the con- formation
Offset: 0 sec. troller has been
Size (bits): 32 Upper Limit: powered
Sign: U 4294967295.000 sec
Default: 0
469
42216 Genset Avail- Read 0: Not Available Indicates avail- PTC Availabil-
ability Status Only 1: Available ability of genera- ity
2: Unknown tor set for Load-
Default: ing, as deter-
mined by the
generator set
sensors
42217 Utility Avail- Read 0: Not Available Indicates avail- PTC Availabil-
ability Status Only 1: Available ability of utility for ity
2: Unknown loading as deter-
Default: mined by the util-
ity sensors
42218 Gen CB Posi- Read 0: Open Generator set Breaker Con-
tion Status Only 1: Closed breaker position trol
2: Not Available
Default:
42219 Util CB Posi- Read 0: Open Utility breaker Breaker Con-
tion Status Only 1: Closed position trol
2: Not Available
Default:
Reference Only 1.000000000000 Lower Limit: kVAR erence value for Control
Offset: 0 Upper Limit: kVAR extended paral-
Size (bits): 16 Default: leling
Sign: S
42221 kVAR Load Read Multiplier: Unit: % Engineering units Analog Inputs
Setpoint Engr Only .010000000000 Lower Limit: % value for the
Units Display Offset: 0 Upper Limit: % kVAR load set-
Value Size (bits): 16 Default: point analog In-
Sign: U put
42222 kW Load Set- Read Multiplier: Unit: % Engineering units Analog Inputs
point Engr Only .010000000000 Lower Limit: % value for the kW
Units Display Offset: 0 Upper Limit: % load setpoint
Value Size (bits): 16 Default: analog input
Sign: S
42223 Power Factor Read Multiplier: Unit: NA Power factor set- Analog Inputs
Setpoint Only .010000000000 Lower Limit: point analog in-
Offset: 0 Upper Limit: put value (uses
Size (bits): 16 Default: kVAR load set-
Sign: S point analog in-
put)
42224 PTC State Read 0: Not Enabled Indicates the PTC State
Only 1: No Source Connected connected state Machine
2: Utility Connected of power transfer
3: Genset Connected control. read /
4: Paralleled write in comp.
Default:
470
42225 Sync Check Read 0: Not Allowed Indicates whether Master Sync
Close Allowed Only 1: Allowed any sync check Control
Default: conditions have
been met
42226 Sync Phase Read Multiplier: Unit: degrees Utility to genera- Phase
Difference Only .010000000000 Lower Limit: degrees tor set L1 voltage
Offset: 0 Upper Limit: degrees phase angle
Sign: S
42227 Synchronizer Read 0: Synchronizer Off Indicates state of Master Sync
Status Only 1: Synchronizer On the synchronizer Control
Default:
42228 System Lock- Read 0: Inactive Faults have oc- System Infor-
out Status Only 1: Active curred which pre- mation
Default: vent normal sys-
tem operation;
reset faults
42229 Breaker 1 Read 0: Open Indicates the Load Add
Position Only 1: Closed position status of Shed Control
2: Not Available breaker 1
42235 Breaker 1 Trip Read 0: Not Available Indicates trip sta- Load Add
Status Only 1: Normal tus of breaker 1 Shed Control
2: Tripped
2: Tripped
471
2: Tripped
2: Tripped
2: Tripped
2: Tripped
42241 ATS 1 Position Read 0: Not Available Indicates position Load Add
Only 1: No Source Connected status of ATS 1 Shed Control
2: Source 1 Connected
4: Paralleled
4: Paralleled
4: ParalleledDefault: Not Available
4: Paralleled
4: Paralleled
472
42246 Position Read 0: Not Available Indicates position Load Add
4: Paralleled
42247 SID1 Status Read 0: Missing Indicates status Communica-

Only 1: Good of SID1 (AUX tions
2: Connecting 101 / 102 module
3: No EXP Board 1)
4: Not Applicable
Default:

Only 1: Good of SID0 (AUX tions
2: Connecting 101 / 102 module
3: No EXP Board 0)
4: Not Applicable
Default:
42249 Expansion Read 0: Disable Indicates the sta- Communica-

Board Com- Only 1: Enable tus of SIDO to tions
munications Default: Disable expansion board
connection
42250 Current Add Read Multiplier: Unit: NA Indicates the next Load Add
Level Only 1.000000000000 Lower Limit: level to add Shed Control
Sign: U
42251 Current Shed Read Multiplier: Unit: NA Indicates the next Load Add
Level Only 1.000000000000 Lower Limit: level to shed Shed Control
Sign: U
42252 Add Level 1 Read 0: Do Nothing Indicates status Load Add
Command Only 1: Add Level of add level 1 Shed Control
Default: Do Nothing

Default: Do Nothing

Default: Do Nothing

Default: Do Nothing

Default: Do Nothing
473
Default: Do Nothing
42258 Shed Level 1 Read 0: Do Nothing Indicates status Load Add
Command Only 1: Add Level of shed level 1 Shed Control
Default: Do Nothing
Default: Do Nothing
Default: Do Nothing
Default: Do Nothing
Default: Do Nothing
42263 Manual Add Read 0: Do Nothing Operator input to Load Add
Level 1 Com- Only 1: Add Level add level 1 Shed Control
mand Default: Do Nothing
42269 Manual Shed Read 0: Do Nothing Operator input to Load Add
Level 1 Com- Only 1: Add Level shed loads as- Shed Control
474
42273 Manual Shed Read 0: Do Nothing Operator Input to Load Add
Level 5 Com- Only 1: Add Level Shed Loads As- Shed Control
mand Default: Do Nothing signed to Level 5
42274 Restored Read 0: Do Nothing Indicates if shed Load Add
Shed Level 1 Only 1: Add Level level 1 has been Shed Control
Command Default: Do Nothing restored


42279 Add Load 1 Read 0: Do Nothing Indicates add Load Add

Command Only 1: Add Level command for Shed Control

Default: Do Nothing load 4.

42285 Shed Load 1 Read 0: Do Nothing Indicates shed Load Add
475
42288 Shed Load 4 Read 0: Do Nothing Indicates Shed Load Add
Command Only 1: Add Level Command for Shed Control
Default: Do Nothing Load 4

42291 Battery Volt- Read Multiplier: Unit: VDC Engineering units Analog Inputs
age Engr Units Only .010000000000 Lower Limit: VDC value for the bat-
Display Value Offset: 0 Upper Limit: VDC tery voltage ana-
Size (bits): 16 Default log Input
Sign: U
42292 kVAR Master Read Multiplier: Unit: VDC Voltage level Analog Inputs
Load Control Only .010000000000 Lower Limit: VDC commanded to
Output Predic- Offset: 0 Upper Limit: VDC kVAR master
tor Value Size (bits): 16 Default load control ana-
Sign: S log output
42293 kW Master Read Multiplier: Unit: VDC Voltage level Analog Inputs
Load Control Only .010000000000 Lower Limit: VDC commanded to
Output Predic- Offset: 0 Upper Limit: VDC kW master load
tor Value Size (bits): 16 Default control analog
Sign: S output
42294 Master Fre- Read Multiplier: Unit: VDC Voltage level Analog Inputs
quency Bias Only .010000000000 Lower Limit: VDC commanded to
Output Predic- Offset: 0 Upper Limit: VDC master frequency
tor Value Size (bits): 16 Default bias analog out-
Sign: S put
42295 Master Volt- Read Multiplier: Unit: VDC Voltage level Analog Inputs
age Bias Out- Only .010000000000 Lower Limit: VDC commanded to
put Predictor Offset: 0 Upper Limit: VDC master voltage
Value Size (bits): 16 Default bias analog out-
Sign: S put
42296 PTC Genset Read 0: Manual Indicates the cur- PTC Genset
Operating Only 1: Normal rent operating Operating
Mode 2: Normal Override mode of the gen- Mode
3: Test erator set
4: Utility Fail
Default
476
42297 PTC Transfer Read 0: Manual Indicates the cur- PTC Genset
Pair Operating Only 1: Normal rent operating Operating Mo-
Mode 2: Normal Override mode of the de
3: Test transfer pair
4: Utility Fail
Default:
42298 PTC Operat- Read 0: Open Transition Indicates the PTC Genset
ing Transition Only 1: Hard Closed Transition transition type Operating Mo-
Type 2: Soft Closed Transition currently applica- de
Default: ble to the PTC
function opera-
tion
42299 Expansion Read 0: Disabled Indicates the sta- Communica-

Board Com- Only 1: Enabled tus of the SID1 to tions
munications 1 Default: Disabled expansion board
connection
42300 System Topol- Read/ 0: Master Synchronize Only Main setting: sets Application
ogy Write 1: Isolated Bus w/ out GM system topology; Configuration
2: Isolated Bus w/GM control must be
3: Common Bus in manual to set
4: Transfer Pair
5: Component Mode
Default: Master Synchronize Only
42301 Transition Read/ 0: Open Transition Sets the type of Application
Type Write 1: Hard Closed Transition transition that Configuration
2: Soft Closed Transition will be used
Default: Open Transition
42302 Extended Par- Read/ 0: Disabled Use to enable ex- Application
allel Enable Write 1: Enabled tended parallel- Configuration
Default: Disabled ing operation
42303 Load Demand Read/ 0: None Sets the load de- Load Demand
Type Write 1: Fixed Sequence mand type Control
2: Run Hours
Default: None
42304 Priority Control Read/ 0: Manual Set the priority Priority Con-
Method Write 1: Automatic control method trol
Default: Manual
42305 Genset 01 kW Read/ Multiplier: Unit: kW Sets generator 1 System Infor-
Rating Write 1.000000000000 Lower Limit: .000 kW kW rating mation
Size (bits): 16 32000.000 kW
Sign: S Default: 1000
42306 Genset 02 kW Read/ Multiplier: Unit: kW Sets generator 2 System In-
Rating Write 1.000000000000 Lower Limit: .000 kW kW rating formation
Size (bits): 16 32000.000 kW
Sign: S Default: 0
477
Size (bits): 16 32000.000 kW
Sign: S Default: 0
42308 Genset 04 kW Read/ Multiplier: Unit: kW Sets generator 4 PC 3.x
Rating Write 1.000000000000 Lower Limit: .000 kW kW rating
Size (bits): 16 32000.000 kW
Sign: S Default: 0
Size (bits): 16 32000.000 kW
Sign: S Default: 0
Size (bits): 16 32000.000 kW
Sign: S Default: 0

Size (bits): 16 32000.000 kW
Sign: S Default: 0
Size (bits): 16 32000.000 kW
Sign: S Default: 0
Size (bits): 16 32000.000 kW
Sign: S Default: 0
42314 Genset 10 kW Read/ Multiplier: Unit: kW Sets generator System In-
Rating Write 1.000000000000 Lower Limit: .000 kW 10 kW rating formation
Size (bits): 16 32000.000 kW
Sign: S Default: 0
Size (bits): 16 32000.000 kW
Sign: S Default: 0
478
42316 Genset 12 kW Read/ Multiplier: Unit: kW Sets generator System Infor-
Rating Write 1.000000000000 Lower Limit: .000 kW 12 kW rating mation
Size (bits): 16 32000.000 kW
Sign: S Default: 0
42317 Programmed Read/ Multiplier: Unit: Seconds Set the pro- PTC Timers
Transition Write .100000000000 Lower Limit: .000 grammed transi-
Delay (TDPT) Offset: 0 Seconds tion time delay
Sign: U Seconds
Default: 3
42318 Transfer Delay Read/ Multiplier: Unit: Seconds Sets the transfer PTC Timers
(TDNE) Write .100000000000 Lower Limit: .000 time delay
Offset: 0 Seconds
Sign: U Seconds
Default: 10
42319 Retransfer Read/ Multiplier: Unit: Seconds Sets the transfer PTC Timers
Delay (TDEN) Write .100000000000 Lower Limit: .000 time delay
Offset: 0 Seconds
Sign: U 1800.000 Seconds
Default: 600
42320 Maximum Par- Read/ Multiplier: Unit: Seconds Sets the maxi- PTC Timers
allel Time Write .100000000000 Lower Limit: .000 mum parallel
(TDMP) Offset: 0 Seconds time for soft load
Size (bits): 16 Upper Limit: transfers
Sign: U 1800.000 Seconds
Default: 20
42321 Genset Bus Read/ Multiplier: Unit: % Generator set Master Load
%kW Setpoint Write .010000000000 Lower Limit: nominal voltage Control
Offset: 0 −5.000%
Sign: S 105.000%
Default: 80
42322 Genset Nomi- Read/ Multiplier: Unit: Volts Generator set AC Setup
nal Voltage Write 1.000000000000 Lower Limit: 100.000 nominal voltage
Offset: 0 Volts
Default: 480
42323 Utility Nominal Read/ Multiplier: Unit: Volts Utility nominal AC Setup
Voltage Write 1.000000000000 Lower Limit: 100.000 voltage
Offset: 0 Volts
Default: 480
479
42324 Genset Center Read/ Multiplier: Unit: Hz Sets the center PTC Sensors
Frequency Write .100000000000 Lower Limit: 45.000 frequency sensor
Offset: 0 Hz bandwidth set-
Size (bits): 16 Upper Limit: 65.000 tings
Sign: U Hz
Default: 60
42325 Utility Center Read/ Multiplier: Unit: Hz Sets the center PTC Sensors
Frequency Write .100000000000 Lower Limit: 45.000 frequency sensor
Offset: 0 Hz bandwidth set-
Size (bits): 16 Upper Limit: 65.000 tings
Sign: U Hz
Default: 60
42326 test With Load Read/ 0: Disable Use to enable or Application
Enable Write 1: Enable disable load Configuration
Default: Disable transfer durning a
Test
42327 System Fre- Read/ Multiplier: Unit: Hz Use to define the System Infor-
quency Write .100000000000 Lower Limit: 45.000 system nominal mation
Offset: 0 Hz frequency
Sign: U Hz
Default: 60
42328 Genset Bus Read/ 0: Internal Selects where Master Load
kW Setpoint Write 1: Analog Input the generator set Control
Source Default Internal kW setpoint will
come from for ex-
tended parallel-
ing
42329 Genset Bus Read/ 0: Internal Selects where Master Load
kVAR Setpoint Write 1: Analog Input the generator set Control
Source Default Internal kVAR setpoint
will come from for
extended paral-
leling
42330 Genset Bus Read/ Multiplier: Unit: kW Set the base load Master Load
kW Setpoint Write 1.000000000000 Lower Limit: .000 kW kW setpoint in Control
Offset: 0 Upper Limit: closed loop ex-
Size (bits): 16 32767.000 kW tended parallel-
Sign: S Default: 0 ing
42331 Genset Bus Read/ Multiplier: Unit: kVAR Sets the base Master Load
kVAR Setpoint Write 1.000000000000 Lower Limit: .000 load kVAR set- Control
Offset: 0 kVAR point in closed
Default: 0
480
42332 Genset Bus % Read/ Multiplier: Unit: % Sets % kVAR Master Load
kVAR Setpoint Write .010000000000 Lower Limit: generator output Control
Offset: 0 −5.000% level for open
Size (bits): 16 Upper Limit: loop base load
Sign: S 105.000% extended paral-
Default: 0 leling
42333 Genset Bus Read/ Multiplier: Unit: NA Sets the desired Master Load
Power Factor Write .010000000000 Lower Limit: .700 generator set bus Control
Setpoint Offset: 0 Upper Limit: 1.000 power factor in
Size (bits): 16 Default: 1.00 closed loop ex-
Sign: S tended parallel-
ing
42334 Genset Un- Read/ Multiplier: Unit: kW Setpoint for gen- Master Load
loaded Level Write 1.000000000000 Lower Limit: erator set un- Control
Offset: 0 −32768.000kW loaded level
Sign: S 32767.000 kW
Default: 50
42335 Utility Bus kW Read/ 0: Internal Selects where Master Load
Setpoint Write 1: Analog Input the utility kW set- Control
Source Default: Internal point will come
from for extended
paralleling
42336 Utility Bus Read/ 0: Internal Selects where Master Load
kVAR Setpoint Write 1: Analog Input the utility kVAR Control
come from for
extended paralle-
ling
42337 Utility Bus kW Read/ Multiplier: Unit: kW Sets the peak Master Load
Setpoint Write 1.000000000000 Lower Limit: Shave kW set- Control
Offset: 0 −32768.000kW point in closed
Default: 100
42338 Utility Bus kW Read/ Multiplier: Unit: kW Sets the utility Master Load
Constraint Write 1.000000000000 Lower Limit: kW constraint Control
Level Offset: 0 −32768.000kW level for base
Size (bits): 16 Upper Limit: load extended
Default: 100
42339 Utility Bus Read/ Multiplier: Unit: kW Sets the peak Master Load
kVAR Setpoint Write 1.000000000000 Lower Limit: shave kVAR set- Control
Offset: 0 −32768.000 kVAR point in closed
Default: 100
481
42340 Utility Bus Read/ Multiplier: Unit: NA Sets the desired Master Load
Power Factor Write .010000000000 Lower Limit: .700 utility bus power Control
Setpoint Offset: 0 Upper Limit: 1.000 factor in loop ex-
Size (bits): 16 Default: 1.00 tended parallel-
Sign: S ing
42341 Utility Un- Read/ Multiplier: Unit: kW Setpoint for utility Master Load
loaded Level Write 1.000000000000 Lower Limit: unloaded level Control
Offset: 0 −32768.000kW
Sign: S 32767.000 kW
Default: 50
42342 Clear Fault Read/ 0: Inactive Use to complete- Fault and
History Table Write 1: Active ly clear the fault Event Info
Default: Inactive history table
42343 Clear Occur- Read/ 0: Inactive Use to complete- Fault and

rence Tables Write 1: Active ly clear the Event Info
Default: Inactive counters in faults
and events oc-
currence tables
42344 Genset Reset Read/ 0: Do Nothing Use to perma- Energy
All Energy Me- Write 1: Clear Counters nently clear all
ters Default: Do Nothing generator set en-
ergy meter val-
ues
42345 Utility Reset Read/ 0: Do Nothing Use to perma- Energy

All Energy Me- Write 1: Clear Counters nently clear all
ters Default: Do Nothing utility energy me-
ter values
42346 Extended Par- Read/ 0: Genset Bus % Level (Open Loop) Sets how and Master Load
alleling kW Write 1: Genset Bus kW (Closed Loop) where the kW will Control
Load Control 2: Genset Bus kW w/ Utility Constraint be controlled for
Type (Closed Loop) extended parallel
3: Utility Bus kW (Closed Loop) operation
Default: Genset Bus % Level (Open Loop)
42347 Extended Par- Read/ 0: Genset Controllers Sets how and Master Load
alleling kVAR Write 1: Genset Bus % Level (Open Loop) where the kVAR Control
Load Control 2: Genset Bus Power Factor (Open Loop) will be controlled
Type 3: Genset Bus kVAR (Closed Loop) for extended par-
4: Genset Bus Power Factor (Closed Loop) allel operation
5: Utility Bus kVAR (Closed Loop)
6: Utility Bus Power Factor (Closed Loop)
Default: Genset Controllers
42348 Extended Par- Read/ Multiplier: Unit: seconds Set ramp load Master Load
allel Ramp Write .10000000000 Lower Limit: 10.000 time for extended Control
Load Time Offset: 0 seconds paralleling
Sign: U seconds
Default:60
482
42349 Fail To Sync Read/ 0:Disabled Enable if want Master Sync
Lockout En- Write 1:Enabled synchronizing to Control
able Default:Disable stop if fail to sync
occurs
42350 Fail To Sync Read/ 0:Disabled Use to enable or PTC State

Open Transi- Write 1:Enabled disable an open Machine
tion Retransfer Default:Disable transition retran-
Enable sfer upon fail to
sync
42351 Fail To Syn- Read/ Multiplier: Unit: seconds Set the fill to syn- Master Sync
chronize Time Write .200000000000 Lower Limit: 10.000 chronize diag- Control
Offset: 0 seconds nostic time delay
Sign: U seconds
Default:120
42352 Gen CB Read/ 0: Closed Requested In manual mode Breaker Con-

Manual Con- Write 1: No Command can be used to trol
trol 2: Open Commanded semi−manually
Default: No Command control the gener-
ator set breaker
42353 Util CB Manu- Read/ 0: Closed Requested In Manual Mode Breaker Con-
al Control Write 1: No Command can be used to trol
2: Open Commanded Semi−Manually
Default: No Command Control the Utility
Breaker
42354 Slip Frequen- Read/ Multiplier: Unit: seconds Sets the Syn- Master Sync
cy Write .001000000000 Lower Limit: −3.000 chronizer Slip Control
Offset: 0 Hz Frequency (used
Size (bits): 16 Upper Limit: 3.000 when Sync Meth-
Sign: S Hz od is Slip)
Default:0.1
42355 Start Time Read/ Multiplier: Unit: seconds Sets the genera- PTC Operat-
Delay (TDES) Write .100000000000 Lower Limit: .000 tor set Start Time ing Mode
Offset: 0 seconds Delay
Default: 0
42356 Stop Time Read/ Multiplier: Unit: seconds Sets the genera- PTC Operat-
Delay (TDEC) Write .100000000000 Lower Limit: .000 tor set Stop Time ing Mode
Offset: 0 seconds Delay
Default: 0
42357 Synchronizer Read/ 0: Normal Use to Invert Master Sync

Polarity Write 1: Invert Synchronizer Po- Control
Default: Normal larity
483
42358 Synchronize Read/ 0: Phase Match Sets the synchro- Master Sync
Method Write 1: Slip Frequency nizing method Control
Default: Phase Match
42359 Port Protocol Read/ 0: PCCNet Allows protocol of Communica-

Selection Write 1: MON the PCCNet port tions
Default: PCCNet to be changed to
MON for trouble-
shooting
42360 System Read/ 0: Disabled Use to enable or System
Scheduler En- Write 1: Enabled disable the sys- Scheduler
able Default: Disabled tem scheduler
42361 Load Add Read/ 0: Disabled Use the enable Load Add
Shed Enable Write 1: Enabled or disable the Shed Control
Default: Disabled load add shed
feature
42362 Open Transi- Read/ 0: Disabled Use to enable or Load Add
tion Retransfer Write 1: Enabled disable the shed- Shed Control
Load Shed Default: Disabled ding of loads dur-
Enable ing open transi-
tion retransfer
42363 Auto/Manual Read/ 0: Auto Indicates auto- Load Add
Load Add Re- Write 1: Manual matic or manual Shed Control
store Mode Default: Auto load add restore
operation
42364 Genset Bus Read/ Multiplier: Unit: second Indicates delay Load Add
Load Add Write 1.000000000000 Lower Limit: .000 between add lev- Shed Control
Delay Offset: 0 second els when all gen-
Size (bits): 16 Upper Limit: 60.000 erator sets are
Sign: U second online and no
Default: 1 utility
42365 Utility Bus Read/ Multiplier: Unit: second Indicates delay Load Add
Load Add Write 1.000000000000 Lower Limit: .000 between add lev- Shed Control
Delay Offset: 0 second els when on util-
Size (bits): 16 Upper Limit: 60.000 ity
Sign: U second
Default: 1
42366 Load Shed Read/ Multiplier: Unit: seconds Indicates delay Load Add
Delay Write 1.000000000000 Lower Limit: 1.000 between shed Shed Control
Offset: 0 seconds levels when on
Size (bits): 16 Upper Limit: 10.000 generator sets
Sign: U seconds
Default: 1
42367 Load 1 Device Read/ 0: None Indicates type of Load Add
Type Write 1: Breaker load connected Shed Control
status I/O
484
status I/O
status I/O
status I/O
status I/O
status I/O
42373 Load 1 Add Read/ Multiplier: Unit: NA Indicates which Load Add
Sign: U
Sign: U
Sign: U
Sign: U
Sign: U
485
Sign: U
42379 Load 1 Shed Read/ Multiplier: Unit: NA Indicates which Load Add
Sign: U
Sign: U
Sign: U
Sign: U
Sign: U
Sign: U
42385 Genset Bus Read/ 0: Both kW and Frequency Use to choose System In-
Overload Write 1: kW Only method for deter- formation
Method 2: Frequency Only mining generator
Default: Both kW and Frequency bus overload
condition
42386 Genset Bus Read/ Multiplier: Unit: % Use to set the % System In-
kW Overload Write 1.000000000000 Lower Limit: kW threshold for formation
Delay Offset: 0 80.000% generator bus
Size (bits): 16 Upper Limit: overload condi-
Sign: U 140.000% tion
Default: 105
486
42387 Genset Bus Read/ Multiplier: Unit: second Sets the delay System In-
kW Overload Write 1.000000000000 Lower Limit: .000 time for overload formation
Delay Offset: 0 second based on kW
Sign: U second
Default: 60
42388 Genset Bus Read/ Multiplier: Unit: Hz Use to set the System In-
Underfrequen- Write 1.000000000000 Lower Limit: .1000 underfrequency formation
cy Overload Offset: 0 Hz offset threshold
Threshold Size (bits): 16 Upper Limit: 10.000 for generator bus
Sign: U Hz overload condi-
Default: 3 tion
42389 Genset Bus Read/ Multiplier: Unit: second Sets the delay System Infor-
Underfrequen- Write 1.000000000000 Lower Limit:.000 sec- time for overload mation
cy Overload Offset: 0 ond based on fre-
Delay Size (bits): 16 Upper Limit: 20.000 quency
Sign: U second
Default: 3
42390 Load Demand Read/ 0: Disable Use enable or Load Demand
Enable Write 1: Enable disable the load Control
Default: Disable demand feature
42391 Load Demand Read/ 0: Gen1 Sets GenA (nev- Load Demand
GenA Write 1: Gen2 er stop) for fixed Control
3: Gen4 demand
4: Gen5
5: Gen6
6: Gen7
7: Gen8
8: Gen9
9: Gen10
10: Gen11
11: Gen12
12: Gen13
13: Gen14
14: Gen15
15: Gen16
Default: Gen1
487
42392 Load Demand Read/ 0: Gen1 Sets GenB (nev- Load Demand
GenB Write 1: Gen2 er stop) for fixed Control
3: Gen4 demand
4: Gen5
5: Gen6
6: Gen7
7: Gen8
8: Gen9
9: Gen10
10: Gen11
11: Gen12
12: Gen13
13: Gen14
14: Gen15
15: Gen16
Default: Gen2
42393 Load Demand Read/ 0: Gen1 Sets GenC (nev- Load Demand
GenC Write 1: Gen2 er stop) for fixed Control
3: Gen4 demand
4: Gen5
5: Gen6
6: Gen7
7: Gen8
8: Gen9
9: Gen10
10: Gen11
11: Gen12
12: Gen13
13: Gen14
14: Gen15
15: Gen16
Default: Gen3
42394 Load Demand Read/ 0: Gen1 Sets GenD (nev- Load Demand
GenD Write 1: Gen2 er stop) for fixed Control
3: Gen4 demand
4: Gen5
5: Gen6
6: Gen7
7: Gen8
8: Gen9
9: Gen10
10: Gen11
11: Gen12
12: Gen13
13: Gen14
14: Gen15
15: Gen16
Default: Gen4
488
42395 Load Demand Read/ Multiplier: Unit: minute Sets the Initial Load Demand
Initial Delay Write 1.000000000000 Lower Limit: 1.000 delay time before Control
Offset: 0 minute load demand will
Size (bits): 16 Upper Limit: 60.000 operate
Sign: U minute
Default: 5
42396 Load Demand Read/ Multiplier: Unit: % Sets load de- Load Demand
Restart Per- Write 1.000000000000 Lower Limit: mand restart Control
cent Offset: 0 20.000% threshold when
Size (bits): 16 Upper Limit: method is %kW
Sign: U 100.000%
Default: 80
42397 Load Demand Read/ Multiplier: Unit: Hours Sets run hours Load Demand
Run Hours Dif- Write 1.000000000000 Lower Limit: 1.000 differential for re- Control
ferential Offset: 0 Hours start a generator
Size (bits): 16 Upper Limit: 500.000 set stopped due
Sign: U Hours to load demand
Default: 50
42398 Load Demand Read/ Multiplier: Unit: minute Sets the delay Load Demand
Shutdown De- Write 1.000000000000 Lower Limit: 1.000 time between Control
lay Offset: 0 minute stopping genera-
Size (bits): 16 Upper Limit: 60.000 tor sets due to
Sign: U minute load demand
Default: 5
42399 Load Demand Read/ Multiplier: Unit: % Sets load de- Load Demand
Shutdown Per- Write 1.000000000000 Lower Limit: 20.000 mand shutdown Control
cent Offset: 0 % threshold when
Size (bits): 16 Upper Limit: 100.000 method is %kW
Sign: U %
Default: 60
42400 General Fail Read/ Multiplier: Unit: seconds Sets how long to Load Demand
Time Delay Write 1.000000000000 Lower Limit: 10.000 wait for a genera- Control
Offset: 0 seconds tor set to come
Size (bits): 16 Upper Limit: 900.000 online before de-
Sign: U second claring it failed
Default: 59
Close Delay Write .020000000000 Lower Limit: .100 breaker fail to trol
Offset: 0 seconds close time delay
Sign: U seconds
Default: 0.26
Open Delay Write .200000000000 Lower Limit: .200 breaker fail to trol
Sign: U seconds
Default: 1
489
42403 Util CB Re- Read/ Multiplier: Unit: seconds Sets time to allow Breaker Con-
charge Delay Write .020000000000 Lower Limit: .000 for utility breaker trol
Offset: 0 seconds recharge
Sign: U seconds
Default: 10
Close Delay Write .020000000000 Lower Limit: .100 se- tor Set breaker trol
Offset: 0 conds fail to close time
Sign: S seconds
Default: 0.26
42405 Gen CB Fail to Read/ Multiplier: Unit: seconds Sets generator Breaker Con-
Open Delay Write .200000000000 Lower Limit: .200 set breaker fail to trol
Sign: U seconds
Default: 1
42406 Gen CB Re- Read/ Multiplier: Unit: seconds Sets the time to Breaker Con-
charge Delay Write .020000000000 Lower Limit: .000 allow for genera- trol
Offset: 0 seconds tor set breaker
Size (bits): 16 Upper Limit: 60.000 recharge
Sign: U second
Default: 10
42407 Permissive Read/ Multiplier: Unit: degrees Sets the permis- Master Sync
Phase Win- Write .010000000000 Lower Limit: .100 de- sive +/− phase Control
dow Offset: 0 grees angle window for
Size (bits): 16 Upper Limit: 20.000 sync check func-
Sign: S degrees tion
Default: 10
42408 Permissive Read/ Multiplier: Unit: % Sets the permis- Master Sync
Voltage Win- Write .100000000000 Lower Limit: .500 % sive +/− voltage Control
dow Offset: 0 Upper Limit: 10.000 acceptance win-
Size (bits): 16 % dow for sync
Sign: U Default: 5 check function
42409 Permissive Read/ Multiplier: Unit: seconds Sets the permis- Master Sync
Window Time Write .020000000000 Lower Limit: .500 sive acceptance Control
Offset: 0 seconds window dwell
Size (bits): 16 Upper Limit: 5.000 time for sync
Sign: U seconds check function
Default: 0.5
42410 Permissive Read/ Multiplier: Unit: Hz Sets maximum Master Sync
Frequency Write .001000000000 Lower Limit: .001 Hz frequency differ- Control
Window Offset: 0 Upper Limit: 1.000 ence allowed for
Size (bits): 32 Hz permissive close
Sign: U Default: 1
490
42412 Sync Phase Read/ Multiplier: Unit: degrees Sets a sync Master Sync
Offset Write .010000000000 Lower Limit: −50.000 phase offset to Control
Offset: 0 degrees accommodate
Size (bits): 16 Upper Limit: 50.000 sync across
Sign: S degrees transformer with
Default: 0 phase shift
42413 System Phase Read/ 0: L1−L2−L3 Defines what the System Infor-
Rotation Write 1: L1−L3−L2 system phase mation
Default: L1−L2−L3 rotation se-
quence is
42414 kW Kp Read/ Multiplier: Unit: NA Proportional gain Master Load
Write 1.00000000000 Lower Limit: .000 for kW closed Control
Size (bits): 16 1000.000 extended paral-
Sign: U Default: 60 leling
42415 kW KI Read/ Multiplier: Unit: NA Integral gain for Master Load
Write 1.00000000000 Lower Limit: .000 kW coled loop Control
Size (bits): 16 Default: 60 tended parallel-
Sign: U ing
42416 kVAR Kp Read/ Multiplier: Unit: NA Proportional gain Master Load
Write .100000000000 Lower Limit: .000 for kVAR closed Control
Size (bits): 16 1000.000 extended paral-
Sign: U Default: 120 leling
42417 kVAR K1 Read/ Multiplier: Unit: NA Integral gain for Master Load
Write 1.00000000000 Lower Limit: .000 kVAR closed loop Control
Size (bits): 16 Default: 50 tended parallel-
Sign: U ing
42418 Scheduler Read/ Multiplier: Unit: NA Selects which System Sche-
Program Se- Write 1.00000000000 Lower Limit: 1.000 scheduler pro- duler
lect Offset: 0 Upper Limit: 12.000 gram to view or
Size (bits): 16 Default: 1 edit
Sign: U
42419 Scheduler Read/ 0: Disable Use to enable or System Sche-
Program En- Write 1: Enable disable the se- duler
able Default: Disable lected program
42420 Scheduler Read/ 0: Once use to adjust re- System Sche-
Program x Re- Write 1: Every Week peat interval for duler
peats Interval 2: Every 2 Weeks the selected pro-
3: Every 3 Weeks gram
4: Every 4 Weeks
5: Every 5 Weeks
6: First Week of the Month
7: Second Week of the Month
8: Third Week of the Month
9: Forth Week of the Month
10: Last Week of the Month
Default: Once
491
42421 Scheduler Read/ 0: No Load Use to adjust run System Sche-
Program x Write 1: With Load mode for the se- duler
Run Mode 2: Extended Parallel lected program
Default: No Load
42422 Scheduler Read/ 0: Sunday Use to adjust System Sche-
Program x Write 1: Monday start day of week duler
Start Day 2: Tuesday for the selected
3: Wednesday program
4: Thursday
5: Friday
6: Saturday
Default: Sunday
Program x Write 1.00000000000 Lower Limit: .000 start hour for the duler
Start Hour Offset: 0 hour selected program
Sign: U hour
Default: 0
42424 Scheduler Read/ Multiplier: Unit: minute Use to adjust System Sche-
Program x Write 1.00000000000 Lower Limit: .000 start minute for duler
Start Minute Offset: 0 minute the selected pro-
Size (bits): 16 Upper Limit: 59.000 gram
Sign: U minute
Default: 0
Program x Write 1.00000000000 Lower Limit: .000 duration hours for duler
Duration Offset: 0 hour the selected pro-
Hours Size (bits): 16 Upper Limit: 23.000 gram
Sign: U hour
Default: 0
42426 Scheduler Read/ Multiplier: Unit: minute Use to adjust System
Program x Write 1.000000000000 Lower Limit: .000 duration minute Scheduler
Duration Min- Offset: 0 minute for the selected
utes Size (bits): 16 Upper Limit: 59.000 program
Sign: U minute
Default: 0
42427 Scheduler Ex- Read/ Multiplier: Unit: NA Selects which System Sche-
ception Select Write 1.000000000000 Lower Limit: 1.000 scheduler excep- duler
Offset: 0 Upper Limit: 6.000 tion to view or
Size (bits): 16 Default: 1 edit
Sign: U
42428 Scheduler Ex- Read/ 0: Disable Use to enable or System Sche-
ception x En- Write 1: Enable disable the se- duler
able Default: Disable lected exception
42429 Scheduler Ex- Read/ 0: Once Only Use to adjust the System Sche-
ception x Re- Write 1: Every Year repeat setting of duler
peat Default: Only Once the selected ex-
ception
492
42430 Scheduler Ex- Read/ Multiplier: Unit: month Use to adjust the System Sche-
ception x Write 1.000000000000 Lower Limit: 1.000 month of the se- duler
Month Offset: 0 month lected exception
Sign: U month
Default: 1
42431 Scheduler Ex- Read/ Multiplier: Unit: date Use to adjust the System Sche-
ception x Date Write 1.000000000000 Lower Limit: 1.000 start date of the duler
Offset: 0 date selected excep-
Size (bits): 16 Upper Limit: 31.000 tion
Sign: U date
Default: 1
ception x Hour Write 1.000000000000 Lower Limit: .000 start hour of the duler
Offset: 0 hour selected excep-
Size (bits): 16 Upper Limit: 23.000 tion
Sign: U hour
Default: 0
42433 Scheduler Ex- Read/ Multiplier: Unit: minute Use to adjust the System Sche-
ception x Write 1.000000000000 Lower Limit: .000 mi- start minute of duler
Duration Min- Offset: 0 nute the selected ex-
ute Size (bits): 16 Upper Limit: 59.000 ception
Sign: U minute
Default: 0
42434 Scheduler Ex- Read/ Multiplier: Unit: days Use to adjust the System Sche-
ception x Write 1.000000000000 Lower Limit: .000 duration days of duler
Duration Days Offset: 0 days the selected ex-
Sign: U days
Default: 0
ception x Write 1.000000000000 Lower Limit: .000 duration hours of duler
Duration Offset: 0 hour the selected ex-
Hours Size (bits): 16 Upper Limit: 23.000 ception
Sign: U hour
Default: 0
42436 Scheduler Ex- Read/ Multiplier: Unit: minute Use to adjust the System
ception x Write 1.000000000000 Lower Limit: .000: duration minutes Scheduler
Duration Min- Offset: 0 minute of the selected
utes Size (bits): 16 Upper Limit: 59.000: exception
Sign: U minute
Default: 0
42437 Daylight Sav- Read/ 0: Disable Enables the day- Real Time
ing Time En- Write 1: Enable light savings time Clock
able Default: Disable feature
42438 Load Demand Read/ 0: Do Nothing Use to force a re- Load Demand
Refresh Se- Write 1: Refresh Sequence fresh of the ac- Control
quence Com- Default: Do Nothing tive load demand
mand sequence
493
42439 Genset Con- Read/ 0: Wye Delta or wye for AC Setup
nection Type Write 1: Delta generator set
Default: Wye connection
42440 Genset PT Pri- Read/ Multiplier: Unit: Volts Generator set PT AC Setup
mary Voltage Write 1.000000000000 Lower Limit: 100.000 primary voltage
Offset: 0 Volts
Size(bits): 16 Upper Limit:
Default: 480
42441 Genset PT Read/ Multiplier: Unit: Volts Generator set PT AC Setup
Secondary Write 1.000000000000 Lower Limit: 100.000 secondary volt-
Voltage Offset: 0 Volts age
Size(bits): 16 Upper Limit: 500.000
Sign: U Volts
Default: 120
42442 Genset CT Read/ Multiplier: Unit: Amps Generator set CT AC Setup
Primary Cur- Write 1.000000000000 Lower Limit: 5.000 primary current
rent Offset: 0 Amps
Default: 100
42443 Genset CT Read/ 0: 1 Amp Generator set CT AC Setup
Secondary Write 1: 5 Amp secondary cur-
Current Default: 5 Amp rent
42444 Utility Connec- Read/ 0: Wye Delta or wye for AC Setup

tion Type Write 1: Delta utility connection
Default: Wye
42445 Utility PT Pri- Read/ Multiplier: Unit: Volts Utility PT primary AC Setup
mary Voltage Write 1.000000000000 Lower Limit: 100.000 voltage
Offset: 0 Volts
Default: 480
42446 Utility PT Sec- Read/ Multiplier: Unit: Volts Utility PT secon- AC Setup
ondary Volt- Write 1.000000000000 Lower Limit: 100.000 dary voltage
age Offset: 0 Volts
Sign: U Volts
Default: 120
42447 Utility CT Pri- Read/ Multiplier: Unit: Amps Utility CT primary AC Setup
mary Current Write 1.000000000000 Lower Limit: 5.000 current
Offset: 0 Amps
Default: 100
42448 Utility CT Sec- Read/ 0: 1 Amp Utility CT secon- AC Setup
ondary Cur- Write 1: 5 Amp dary current
rent Default: 5 Amp
494
42449 Load Add Read/ Multiplier: Unit: kW Generator set kW Load Add
Shed Re- Write 1.000000000000 Lower Limit: .000 kW capacity that Shed Control
quired Online Offset: 0 Upper Limit: must be online to
Capacity Size(bits): 16 32767.000 kW start timed load
Sign: S Default: 0 add : 0 disables
this
42450 Load Demand Read/ Multiplier: Unit: kW Sets how much Load Demand
Minimum On- Write 1.000000000000 Lower Limit: .000 kW capacity must al- Control
line Capacity Offset: 0 Upper Limit: ways be online
Size(bits): 16 32767.000 kW regardless of
Sign: S Default: 0 what the load is
42451 Load Demand Read/ Multiplier: Unit: second Sets generator Load Demand
Restart Delay Write .100000000000 Lower Limit: .000 restart delay time Control
Offset: 0 second to avoid nuisance
Size(bits): 16 Upper Limit: 25.000 restarts due to
Sign: U second load transients
Default: 1
42452 Utility Avail- Read/ Multiplier: Unit: Amps Use to set how AC Setup
able Current Write 1.000000000000 Lower Limit: 1.000 many amps =
Offset: 0 Amps 100% utility kW −
Size(bits): 16 Upper Limit: used by bargraph
Default: 1000
42453 Total Utility Read/ Multiplier: Unit: kW Use to set hoe AC Setup
Capacity Write 1.000000000000 Lower Limit: 1.000 many kW = 100%
Offset: 0 kW utility kW − used
Size(bits): 16 Upper Limit: by bargraph
Sign: S 32000.000 kW
Default: 1000
42454 Nominal Bat- Read/ 0: 12V DC voltage pro- Battery Volt-
tery Voltage Write 1: 24V vided to the con- age Protec-
Default: 24V trol tion
42455 24V High Bat- Read/ Multiplier: Unit: VDC Sets 24V high Battery Volt-
tery Voltage Write .0100000000000 Lower Limit: 28.000 battery voltage age Protec-
Sign: U VDC
Default: 32
42456 24V Low Bat- Read/ Multiplier: Unit: VDC Sets 24V low bat- Battery Volt-
tery Voltage Write .0100000000000 Lower Limit: 22.000 tery voltage fault age Protec-
Sign: U VDC
Default: 24
42457 12V High Bat- Read/ Multiplier: Unit: VDC Sets 12V high Battery Volt-
tery Voltage Write .0100000000 Lower Limit: 14.000 battery voltage age Protec-
Sign: U VDC
Default: 16
495
tery Voltage Write .010000000000 Lower Limit: 11.000 tery voltage fault age Protec-
Sign: U VDC
Default: 12
42459 High Battery Read/ Multiplier: Unit: second Sets high battery Battery Volt-
Voltage Set Write 1.000000000000 Lower Limit: 2.000 voltage set time age Protec-
Time Offset: 0 second tion
Sign: U second
Default: 60
42460 Low Battery Read/ Multiplier: Unit: second Sets low battery Battery Volt-
Voltage Set Write 1.000000000000 Lower Limit: 2.000 voltage set time age Protec-
Time Offset: 0 second tion
Sign: U second
Default: 60
42461 Genset Online Read/ 0: Disable Used to enable PTC Sensors
Capacity Sen- Write 1: Enable or disable the
sor Enable Default: Disable generator set on-
line capacity sen-
sor
42462 Genset Online Read/ Multiplier: Unit: kW Sets the online PTC Sensors
Capacity Sen- Write 1.000000000000 Lower Limit: .000 kW kW threshold at
sor Threshold Offset: 0 Upper Limit: which generator
Size(bits): 16 32000.000 kW set bus is avail-
Sign: S Default: 0 able for loading
42463 Nominal Bat- Read/ 0: Disable Use to enable or Battery Volt-
tery Voltage Write 1: Enable disable the nomi- age Protec-
Check Enable Default: Disable nal battery volt- tion
age monitoring
42464 Configurable Read/ Multiplier: Unit: NA Event or fault Discrete Out-
Output1 Code Write 1.000000000000 Lower Limit: .000 code tied to con- puts
Offset: 0 Upper Limit: figurable output 1
Size(bits): 16 65535.000
Size(bits): 16 65535.000
Size(bits): 16 65535.000
496
Size(bits): 16 65535.000
Size(bits): 16 65535.000

Size(bits): 16 65535.000
Size(bits): 16 65535.000
Sign: U Default: 0
Size(bits): 16 65535.000
42472 Gen Bus Base Read/ 0: None Indicates that the System Infor-
Load Status Write 1: Breaker generator bus is mation
2: ATS on base load ex-
Default: None tended parallel-
ing
42473 Util Bus Peak Read/ 0: None Indicates that the System In-
Shave Status Write 1: Breaker utility bus is on formation
2: ATS peak shave ex-
Default: None tended parallel-
ing
status I/O
status I/O
497
status I/O
42477 Load 10 De- Read/ 0: None Indicates type of Load Add
vice Type Write 1: Breaker load connected Shed Control
status I/O
Level Write 1.000000000000 Lower Limit: .000 add level load 7 Shed Control
Sign: U
Level Write 1.000000000000 Lower Limit: 1.000 add level load 8 Shed control
Sign: U
Sign: U
Sign: U
Level Write 1.000000000000 Lower Limit: .000 shed level load 7 Shed control
Sign: U
Sign: U
Sign: U
Level Write 1.000000000000 Lower Limit: .000 shed level load Shed control
Offset: 0 Upper Limit: 17.000 10 is assigned to
Sign: U
498
42486 Load Demand Read/ 0: %kW Selects whether Load Add
Threshold Write 1: kW to shutdown / re- Shed control
Method Default: %kW start generator
sets based on
%kW or absolute
kW
42487 Load Demand Read/ Multiplier: Unit: kW Sets minimum Load Add
Restart kW Write 1.000000000000 Lower Limit: .000 kW kW reserve ca- Shed control
Threshold Offset: 0 Upper Limit: pacity when
Size (bits): 16 32000.000 kW threshold method
Sign: S Default: 500 is absolute kW
42488 Load Demand Read/ Multiplier: Unit: kW Sets maximum Load Add
Shutdown kW Write 1.000000000000 Lower Limit: .000 kW kW reserve ca- Shed control
Size (bits): 16 32000.000 kW threshold method
Sign: S Default: 1000 is absolute kW
42489 Load Demand Read/ 0: Gen1 Sets GenE for Load Demand
GenE Write 1: Gen2 fixed sequence Control
2: Gen3 load demand
3: Gen4
4: Gen5
5: Gen6
6: Gen7
7: Gen8
8: Gen9
9: Gen10
10: Gen11
11: Gen12
12: Gen13
13: Gen14
14: Gen15
15: Gen16
Default: Gen5
42490 Load Demand Read/ 0: Gen1 Sets GenF for Load Demand
GenF Write 1: Gen2 fixed sequence Control
2: Gen3 load demand
3: Gen4
4: Gen5
5: Gen6
6: Gen7
7: Gen8
8: Gen9
9: Gen10
10: Gen11
11: Gen12
12: Gen13
13: Gen14
14: Gen15
15: Gen16
Default: Gen6
499
42491 Load Demand Read/ 0: Gen1 Sets GenG for Load Demand
GenG Write 1: Gen2 fixed sequence Control
2: Gen3 load demand
3: Gen4
4: Gen5
5: Gen6
6: Gen7
7: Gen8
8: Gen9
9: Gen10
10: Gen11
11: Gen12
12: Gen13
13: Gen14
14: Gen15
15: Gen16
Default: Gen7
42492 Load Demand Read/ 0: Gen1 Sets GenH for Load Demand
GenH Write 1: Gen2 fixed sequence Control
2: Gen3 load demand
3: Gen4
4: Gen5
5: Gen6
6: Gen7
7: Gen8
8: Gen9
9: Gen10
10: Gen11
11: Gen12
12: Gen13
13: Gen14
14: Gen15
15: Gen16
Default: Gen8
42494 Virtual Gen Read/ Multiplier: Unit: second Sets how long to Breaker Con-
Main Fail to Write .200000000000 Lower Limit: 2.000 wait for generator trol
Open Delay Offset: 0 second set paralleling cir-
Size (bits): 16 Upper Limit: 30.000 cuit breakers to
Sign: U second open when no
Default: 5 generator main
42495 Genset 13 kW Read/ Multiplier: Unit: kW Sets generator System Infor-

Rating Write 1.000000000000 Lower Limit: .000 kW 13 kW rating mation
Size (bits): 16 32000.000 kW
Sign: S Default: 0
42496 Genset 14kW Read/ Multiplier: Unit: kW Sets generator System In-
Size (bits): 16 32000.000 kW
Sign: S Default: 0
500
Size (bits): 16 32000.000 kW
Sign: S Default: 0
Size (bits): 16 32000.000 kW
Sign: S Default: 0
42500 Fault Status Read Multiplier: Unit: NA Bitmapped state Fault and
BitMap 1 Only 1.000000000000 Lower Limit: of utility and oth- Event Info
Offset: 0 Upper Limit: er faults − 32
Size (bits): 32 Default: 0 bits
Sign: U
42502 Fault Status Read Multiplier: Unit: NA Bitmapped state Fault and
BitMap 2 Only 1.000000000000 Lower Limit: of generator set Event Info
Offset: 0 Upper Limit: and other faults −
Size (bits): 32 Default: 0 32 bits
Sign: U
42504 Event Status Read Multiplier: Unit: NA Bitmapped state Fault and
BitMap 1 Only 1.000000000000 Lower Limit: of events − 32 Event Info
Offset: 0 Upper Limit: bits
Sign: U
42506 Genset Meter- Read Multiplier: Unit: NA Bit mapped word AC Interrupt
ing Fault Sta- Only 1.000000000000 Lower Limit: with status of Service
tus Offset: 0 Upper Limit: generator set AC
Size (bits): 16 Default: 0 metering out of
Sign: U range conditions
42507 Utility Metering Read Multiplier: Unit: NA Bit mapped word AC Interrupt
Fault Status Only 1.000000000000 Lower Limit: with status of util- Service
Offset: 0 Upper Limit: ity AC metering
Size (bits): 16 Default: 0 out of range con-
Sign: U ditions
42600 Extended Par- Read / 0: Stop State of extended Discrete In-
allel Start Vol Write 1: Start parallel start vol- puts
Default: Stop atile input
42601 Synchronizer Read / 0: Inactive State of synchro- Discrete In-
Enable Vol Write 1: Active nizer enable vol- puts
Default: Inactive atile input
42602 Utility Source Read / 0: Inactive State of utility Discrete In-
Fail Vol Write 1: Active source failure vo- puts
Default: Inactive latile input
42603 Transfer In- Read / 0: No Inhibit State of transfer Discrete In-
hibit Vol Write 1: Inhibit inhibit volatile inputs
42604 Retransfer In- Read / 0: No Inhibit State of retran- Discrete In-
hibit Vol Write 1: Inhibit sfer inhibit vola- puts
Default: No Inhibit tile input
501
42605 Gen CB Inhibit Read / 0: No Inhibit State of genera- Discrete In-
Vol Write 1: Inhibit tor CB inhibit vol- puts
Default: No Inhibit atile input
42606 Util CB Inhibit Read / 0: No Inhibit State of utility CB Discrete In-
Vol Write 1: Inhibit inhibit volatile inputs
42607 Auto/Manual Read/ 0: Auto State of auto/ Discrete In-
Vol Write 1: Manual manual volatile puts
Default: Auto input
42608 Test Start Vol Read/ 0: Stop state of test start Discrete In-
Write 1: Start volatile input puts
Default: Stop
42609 Fault Reset Read/ 0: No Reset state of fault re- Discrete In-
Vol Write 1: Reset set volatile input puts
Default: No Reset
42610 Override Vol Read/ 0: No Override State of override Discrete In-
Write 1: Override volatile input puts
Default: No Override
42611 Extended Par- Read 0: Stop State of extended Discrete In-
allel Start Sw Only 1: Start parallel start inputs
Default: put
42612 Synchronizer Read 0: Inactive State of synchro- Discrete In-
Enable Sw Only 1: Active nizer enable inputs
Default: put
42613 Utility Source Read 0: Inactive State of utility Discrete In-
Failure Sw Only 1: Active source failure inputs
Default: put
42614 Transfer Inhib- Read 0: No Inhibit Status of transfer Discrete In-
it Sw Only 1: Inhibit inhibit input puts
Default:
42615 Retransfer In- Read 0: No Inhibit Status of retran- Discrete In-
hibit Sw Only 1: Inhibit sfer inhibit input puts
Default:
42616 Gen CB Inhibit Read 0: No Inhibit State of genera- Discrete In-
Sw Only 1: Inhibit tor CB inhibit inputs
Default: put
42617 Unitl CB Inhibit Read 0: No Inhibit State of utility CB Discrete In-
Sw Only 1: Inhibit inhibit input puts
Default:
42618 Auto/Manual Read 0: Auto State of auto / Discrete In-
Sw Only 1: Manual manual input puts
Default:
42619 Test Start Sw Read 0: Stop State of test start Discrete In-
Only 1: Start input puts
Default:
42620 Fault Reset Read 0: No Reset State of fault re- Discrete In-
Sw Only 1: Reset set input puts
Default:
502
42621 Override Sw Read 0: No Override State of override Discrete In-
Only 1: Override input puts
Default:
42622 Master Inhibit Read 0: No Inhibit Indicates state of Priority Con-
Only 1: Inhibit master priority in- trol
Default: hibit
42623 Genset CB Read 0: Inactive State of genera- Discrete In-
Tripped Sw Only 1: Active tor CB tripped inputs
Default: put
42624 Genset CB Read/ 0: Inactive State of genera- Discrete In-
Tripped Vol Write 1: Active tor CB tripped puts
Default: Inactive volatile input
42625 Util CB Read 0: Inactive State of Utility CB Discrete In-
Tripped Sw Only 1: Active tripped input puts
Default:
42626 Util CB Read/ 0: Inactive State of Utility CB Discrete In-
Tripped Vol Write 1: Active tripped volatile inputs
Default: Inactive put
42627 Genset Phase Read 0: L1−L2−L3 Generator set Phase
Rotation Only 1: L1−L3−L2 phase rotation
Default:
42628 Utility Phase Read 0: L1−L2−L3 Utility phase rota- Phase
Rotation Only 1: L1−L3−L2 tion
Default:
42929 Gen1 CB Read 0: Breaker Open State of Gen1 CB Discrete In-
Position Sw Only 1: Breaker Closed position input puts
Default: Open
42630 Gen1 CB Read/ 0: Breaker Open State of Gen1 CB Discrete In-
Position Vol Write 1: Breaker Closed volatile input puts
Default: Open
Default:
Default: Open
Default:
Default: Open
Default:
Default: Open
503
42637 Network Mas- Read/ 0: No Inhibit Use to manually Priority Con-
ter Inhibit Write 1: Inhibit inhibit the module trol
Default: No Inhibit
Default:
Position Vol Write 1: Breaker Closed position volatile puts
Default: Open input
Default:
Default: Open input
Default:
Default: Open input
Default:
Default: Open input
4: Paralleled
4: Paralleled
4: Paralleled
504
42649 ATS 10 Posi- Read 0: Not Available Indicates position Load Add
tion Only 1: No Source Connected status of ATS 10 Shed Control
4: Paralleled
42650 Breaker 7 Read 0: Open Indicates position Load Add
Position Only 1: Closed status of breaker Shed Control
2: Not Available 7
2: Not Available 8
2: Not Available 9
2: Not Available 10
2: Tripped
2: Tripped
2: Tripped
42657 Breaker 10 trip Read 0: Not Available Indicates trip sta- Load Add
2: Tripped
Default:
Default: Open input
42660 Gen10 CB Read 0: Breaker Open State of Gen10 Discrete In-
Position Sw Only 1: Breaker Closed CB position input puts
Default:
505
42661 Gen10 CB Read/ 0: Breaker Open State of Gen10 Discrete In-
Position Vol Write 1: Breaker Closed CB position vola- puts
Default: Open tile input
Default:
Default:
Default:
42668 Gen14 CB Read 0: Breaker Open State of Gen 14 Discrete In-
Default:
42669 Gen14 CB Read/ 0: Breaker Open State of Gen 14 Discrete In-
Default:
Default:
4: Paralleled
506
4: Paralleled
4: Paralleled
4: Paralleled
4: Paralleled
4: Paralleled
4: Paralleled
4: Paralleled
2: Not Available 11
2: Not Available 12
507
2: Not Available 13
2: Not Available 14
2: Not Available 15
2: Not Available 16
2: Not Available 17
2: Not Available 18
42690 Breaker 11 Read 0: Not Available Indicates trip sta- Load Add
Trip Status Only 1: Normal tus of breaker 11 Shed Control
2: Tripped
2: Tripped
2: Tripped
2: Tripped
2: Tripped
2: Tripped
508
2: Tripped
2: Tripped
42698 Load Add Read 0: Disabled Indicates the Load Add
Shed Enable Only 1: Enabled overall state of Shed Control
Status 2: Paused the load add
Default: shed function
42699 PCCNet Sta- Read 0: No Connection Indicates overall Communica-
tus Only 1: Connected state of the tions
2: Connecting PCCNet commu-
Default: nications bus
42700 Gen1 Avail- Read 0: Gen Does Not Exist For load demand Load Demand
ability State Only 1: Offline use − indicates Control
2: Waiting For Gen status of Gen1
3: Online
4: Failed
Default:
3: Online
4: Failed
Default:
3: Online 4: Failed
Default:
3: Online
4: Failed
Default:
42704 Gen1 Online Read Multiplier: Unit:Hours Total online time System In-
Time Only .000277777780 Lower Limit:.000 for Gen1 formation
Offset: 0 Hours
Sign:U 1193046.000 Hours
Default:0
509
Time Only .000277777780 Lower Limit: .000 for Gen2 formation
Offset: 0 Hours
1193046.000 Hours
Default:0
Offset: 0 Hours
1193046.000 Hours
Default:0
42710 Gen4 Online Read Multiplier: Unit:Hours Total online time System Infor-
Time Only .000277777780 Lower Limit: .000 for Gen4 mation
Offset: 0 Hours
1193046.000 Hours
Default:0
42712 GenA Read 0: Gen1 Indicates which Load Demand
Only 1: Gen2 generator set is Control
2: Gen3 currently GenA
3: Gen4 (never stops) for
4: Gen5 load demand
5: Gen6
6: Gen7
7: Gen8
8: Gen9
9: Gen10
10: Gen11
11: Gen12
12: Gen13
13: Gen14
14: Gen15
15: Gen16
Default:
510
42713 GenB Read 0: Gen1 Indicates which Load Demand
2: Gen3 currently GenB
4: Gen5
5: Gen6
6: Gen7
7: Gen8
8: Gen9
9: Gen10
10: Gen11
11: Gen12
12: Gen13
13: Gen14
14: Gen15
15: Gen16
Default:
42714 GenC Read 0: Gen1 Indicates which Load Demand
2: Gen3 currently GenC
4: Gen5
5: Gen6
6: Gen7
7: Gen8
8: Gen9
9: Gen10
10: Gen11
11: Gen12
12: Gen13
13: Gen14
14: Gen15
15: Gen16
Default:
42715 GenD Read 0: Gen1 Indicates which Load Demand
Only 1: Gen2 generator sets is Control
2: Gen3 currently GenD
4: Gen5
5: Gen6
6: Gen7
7: Gen8
8: Gen9
9: Gen10
10: Gen11
11: Gen12
12: Gen13
13: Gen14
14: Gen15
15: Gen16
Default:
511
42716 Load Demand Read 0: Off Indicates operat- Load Demand
State Only 1: Initial Delay Timing ing state of the Control
2: Load Monitor load demand
Default control
42717 Total Number Read Multiplier: Unit: NA Indicates how System In-
of Gensets Only 1.000000000000 Lower Limit: many of the gen- formation
Online Offset: 0 Upper Limit: erator sets are
Size (bits): 16 Default: online which are
Sign: U sensed by CB
position
42718 Total Spare Read Multiplier: Unit: kW Difference be- System In-
Online Capac- Only 1.000000000000 Lower Limit: kW tween sensed formation
ity Offset: 0 Upper Limit: kW online capacity
Size (bits): 16 Default: and generator set
Sign: S bus total kW
Shutdown Only 1.000000000000 Lower Limit: kW threshold for gen- Control
Threshold Offset: 0 Upper Limit: kW erator bus at
Size (bits): 16 Default: which next gen-
Sign: S erator set will re-
start
Size (bits): 16 Default: which the next
Sign: S generator set will
load demand
stop
42721 Next Gen Re- Read 0: Gen1 Indicates which Load Demand
start Only 1: Gen2 generator set is Control
2: Gen3 next to be re-
3: Gen4 started if load
4: Gen5 conditions are
5: Gen6 met
6: Gen7
7: Gen8
8: Gen9
9: Gen10
10: Gen11
11: Gen12
12: Gen13
13: Gen14
14: Gen15
15: Gen16
Default:
512
42722 Next Gen Read 0: Gen1 Indicates which Load Demand
Shutdown Only 1: Gen2 generator set is Control
2: Gen3 next to be
3: Gen4 stopped if load
4: Gen5 conditions are
5: Gen6 met
6: Gen7
7: Gen8
8: Gen9
9: Gen10
10: Gen11
11: Gen12
12: Gen13
13: Gen14
14: Gen15
15: Gen16
Default:
42723 Load Demand Read 0: Run Status of the load Discrete Out-
Gen1 Driver Only 1: Load Demand Stop demand Gen1 puts
Status Default: driver output
42727 Genset Bus Read Multiplier: Unit: kW Calculated kW System Infor-
kW Overload Only 1.000000000000 Lower Limit: kW overload thresh- mation
Status Offset: 0 Upper Limit: kW old based on on-
Size (bits): 16 Default: line capacity and
Sign: S % setting
42728 Genset Bus Read 0: No Overload Indicates whether System In-
kW Overload Only 1: Overload generator bus is formation
Status Default: overloaded
based on kW
42729 Genset Bus Read 0: No Overload Indicates whether System In-
Underfrequen- Only 1: Overload generator bus is formation
cy Overload Default: overloaded
Status based on fre-
quency
513
42730 Active Sched- Read 0: None Indicates the cur- System
ule Only 1: Program 1 rently active Scheduler
2: Program 2 scheduler pro-
3: Program 3 gram or excep-
4: Program 4 tion
5: Program 5
6: Program 6
7: Program 7
8: Program 8
9: Program 9
10: Program 10
11: Program 11
12: Program 12
13: Exception 1
14: Exception 2
15: Exception 3
16: Exception 4
17: Exception 5
18: Exception 6
Default:
42731 Scheduler Run Read 0: Off Indicates current System Sche-
Command Only 1: No Load run command duler
2: With Load coming from
3: Extended Parallel scheduler func-
Default: tion
42732 Modbus Bus Read Multiplier: Unit: NA Modbus mes- Communica-
Message Only 1.000000000000 Lower Limit: sage count tions
Sign: U
42733 Modbus CRC Read Multiplier: Unit: NA Modbus CRC er- Communica-
Error Count Only 1.000000000000 Lower Limit: ror count tions
Sign: U
42734 Modbus Ex- Read Multiplier: Unit: NA Modbus excep- Communica-
ception Count Only 1.000000000000 Lower Limit: tion count tions
Sign: U
42735 Modbus No Read Multiplier: Unit: NA Modbus no re- Communica-
Response Only 1.000000000000 Lower Limit: sponse count tions
Sign: U
42736 Modbus Slave Read Multiplier: Unit: NA Modbus slave Communica-
Sign: U
514
42737 Modbus Clear Read/ 0: Do Nothing Clears all mod- Communica-
Counters Write 1: Clear Counters bus counters tions
Default: Do Nothing
42738 Clock Mode Read/ 0: Normal Use to set clock Real Time
Write 1: Set Clock and save setting Clock
2: Save Clock
Default: Normal
42739 Clock Year Read/ Multiplier: Unit: year Use to set or Real Time
Write 1.000000000000 Lower Limit: .000 read current year Clock
Offset: 0 year
Sign: U year
Default: Read from
RTC chip
42740 Clock Month Read/ Multiplier: Unit: month Use to set or Real Time
Write 1.000000000000 Lower Limit: 1.000 read current Clock
Offset: 0 month month
Sign: U month
Default: Read from
RTC chip
42741 Clock Date Read/ Multiplier: Unit: date Use to set or Real Time
Write 1.000000000000 Lower Limit: 1.000 read current date Clock
Offset: 0 date
Sign: U date
Default: Read from
RTC chip
42742 Clock Hour Read/ Multiplier: Unit: hour Use to set or Real Time
Write 1.000000000000 Lower Limit: 1.000 read current hour Clock
Offset: 0 hour
Sign: U hour
Default: Read from
RTC chip
42743 Clock Minute Read/ Multiplier: Unit: minute Use to set or Real Time
Write 1.000000000000 Lower Limit: 1.000 read current min- Clock
Offset: 0 minute ute
Sign: U minute
Default: Read from
RTC chip
42744 Clock Second Read/ Multiplier: Unit: second Use to set or Real Time
Write 1.000000000000 Lower Limit: .000 read current sec- Clock
Offset: 0 second ond
Sign: U second
Default: Read from
RTC chip
515
42745 Clock Day Read 0: Sunday Indicates day of Real Time
Only 1: Monday the week for cur- Clock
2: Tuesday rent date
3: Wednesday
4: Thursday
5: Friday
6: Saturday
Default:
42746 Start Timer Read Multiplier: Unit: seconds Countdown timer PTC Operat-
Only .100000000000 Lower Limit: seconds value for genera- ing Mode
Offset: 0 Upper Limit: seconds tor set start timer
Sign: U
42747 Stop Timer Read Multiplier: Unit: seconds Countdown timer PTC Operat-
Only .100000000000 Lower Limit: seconds value for genera- ing Mode
Offset: 0 Upper Limit: seconds tor set stop timer
Sign: U
42748 Low Battery Read Multiplier: Unit: VDC Battery voltage Battery Volt-
Voltage Only .010000000000 Lower Limit: VDC with respect to age Protec-
Threshold Offset: 0 Upper Limit: VDC set low battery tion
Sign: U
42749 High Battery Read Multiplier: Unit: VDC Battery voltage Battery Volt-
Voltage Only .010000000000 Lower Limit: VDC with respect to age Protec-
Threshold Offset: 0 Upper Limit: VDC set high battery tion
Sign: U
3: Online
4: Failed
Default:
3: Online
4: Failed
Default:
3: Online
4: Failed
Default:
516
3: Online
4: Failed
Default:
42758 GenE Read 0: Gen 1 Indicates which Load Demand
Only 1: Gen 2 generator set is Control
2: Gen 3 currently GenE
3: Gen 4 for load demand
4: Gen 5
5: Gen 6
6: Gen 7
7: Gen 8
8: Gen 9
9: Gen 10
10: Gen 11
11: Gen 12
12: Gen 13
13: Gen 14
14: Gen 15
15: Gen 16
Default:
517
42759 GenF Read 0: Gen 1 Indicates which Load Demand
2: Gen 3 currently GenF
4: Gen 5
5: Gen 6
6: Gen 7
7: Gen 8
8: Gen 9
9: Gen 10
10: Gen 11
11: Gen 12
12: Gen 13
13: Gen 14
14: Gen 15
15: Gen 16
Default:
42760 GenG Read 0: Gen 1 Indicates which Load Demand

2: Gen 3 currently GenG
4: Gen 5
5: Gen 6
6: Gen 7
7: Gen 8
8: Gen 9
9: Gen 10
10: Gen 11
11: Gen 12
12: Gen 13
13: Gen 14
14: Gen 15
15: Gen 16
Default:
42761 GenH Read 0: Gen 1 Indicates which Load Demand

2: Gen 3 currently GenH
4: Gen 5
5: Gen 6
6: Gen 7
7: Gen 8
8: Gen 9
9: Gen 10
10: Gen 11
11: Gen 12
12: Gen 13
13: Gen 14
14: Gen 15
15: Gen 16
Default:
518
Default: Do Nothing
Default: Do Nothing
Default: Do Nothing
Default: Do Nothing
Command Only 1: Shed Level of shed level 6 Shed Control
Default: Do Nothing
Default: Do Nothing
Default: Do Nothing
Default: Do Nothing
Command Only 1: Shed Load command for Shed Control
519
42778 Restore Shed Read 0: Do Nothing Indicates if shed Load Add
Level 6 Com- Only 1: Restore Level level 6 has been Shed Control
42779 Restore Shed Read/ 0: Do Nothing Indicates if shed Load Add
Level 7 Com- Write 1: Restore Level level 7 has been Shed Control
42782 Gen5 Online Read Multiplier: Unit: hours Total online time System Infor-
Offset: 0 hours
Sign: U 1193046.000 hours
Default: 0
42784 Gen6 Online Read Multiplier: Unit: hours Total online time System In-
Offset: 0 hours
Default: 0
Offset: 0 hours
Default: 0
Offset: 0 hours
Default: 0
42790 Manual Add Read/ 0: Do Nothing Operator input to Load Add
Level 7 Com- Write 1: Add Level add loads as- Shed Control
520
42794 Manual Shed Read/ 0: Do Nothing Operator input to Load Add
Level 6 Com- Write 1: Shed Level shed loads as- Shed Control
3: Online4: FailedDefault:
3: Online
4: FailedDefault:
3: Online
4: FailedDefault:
3: Online
4: FailedDefault:
3: Online
4: Failed
Default:
3: Online
4: Failed
Default:
3: Online
4: Failed
Default:
521
3: Online
4: Failed
Default:
42806 Load Demand Read 0: Run Status of load de- Discrete Out-
Gen9 Driver Only 1: Load Demand Stop mand Gen9 driv- puts
Status Default: er output
Gen10 Driver Only 1: Load Demand Stop mand Gen10 puts
42814 GenI Read 0: Gen1 Indicates which Load Demand

2: Gen3 currently GenI for
3: Gen4 load demand
4: Gen5
5: Gen6
6: Gen7
7: Gen8
8: Gen9
9: Gen10
10: Gen11
11: Gen12
12: Gen13
13: Gen14
14: Gen15
15: Gen16
Default:
522
42815 GenJ Read 0: Gen1 Indicates which Load Demand
2: Gen3 currently GenJ
4: Gen5
5: Gen6
6: Gen7
7: Gen8
8: Gen9
9: Gen10
10: Gen11
11: Gen12
12: Gen13
13: Gen14
14: Gen15
15: Gen16
Default:
42816 GenK Read 0: Gen1 Indicates which Load Demand

2: Gen3 currently GenK
4: Gen5
5: Gen6
6: Gen7
7: Gen8
8: Gen9
9: Gen10
10: Gen11
11: Gen12
12: Gen13
13: Gen14
14: Gen15
15: Gen16
Default:
42817 GenL Read 0: Gen1 Indicates which Load Demand

2: Gen3 currently GenL
4: Gen5
5: Gen6
6: Gen7
7: Gen8
8: Gen9
9: Gen10
10: Gen11
11: Gen12
12: Gen13
13: Gen14
14: Gen15
15: Gen16
Default:
523
42818 GenM Read 0: Gen1 Indicates which Load Demand
2: Gen3 currently GenM
4: Gen5
5: Gen6
6: Gen7
7: Gen8
8: Gen9
9: Gen10
10: Gen11
11: Gen12
12: Gen13
13: Gen14
14: Gen15
15: Gen16
Default:
42819 GenN Read 0: Gen1 Indicates which Load Demand

2: Gen3 currently GenN
4: Gen5
5: Gen6
6: Gen7
7: Gen8
8: Gen9
9: Gen10
10: Gen11
11: Gen12
12: Gen13
13: Gen14
14: Gen15
15: Gen16
Default:
42820 GenO Read 0: Gen1 Indicates which Load Demand

2: Gen3 currently GenO
4: Gen5
5: Gen6
6: Gen7
7: Gen8
8: Gen9
9: Gen10
10: Gen11
11: Gen12
12: Gen13
13: Gen14
14: Gen15
15: Gen16
Default:
524
42821 GenP Read 0: Gen1 Indicates which Load Demand
2: Gen3 currently GenP
4: Gen5
5: Gen6
6: Gen7
7: Gen8
8: Gen9
9: Gen10
10: Gen11
11: Gen12
12: Gen13
13: Gen14
14: Gen15
15: Gen16
Default:

Default: Do Nothing

Default: Do Nothing

Default: Do Nothing

Default: Do Nothing

Default: Do Nothing

Default: Do Nothing

Default: Do Nothing

Default: Do Nothing

Command Only 1: Add Load command for Shed Control

525
Default: Do Nothing
Default: Do Nothing
Default: Do Nothing
Default: Do Nothing
Default: Do Nothing
Default: Do Nothing
Default: Do Nothing
Default: Do Nothing
526
Offset: 0 Hours
Default: 0
527
Offset: 0 Hours
Default: 0
42866 Gen11 Online Read Multiplier: Unit: Hours Total online time System In-
Offset: 0 Hours
Default: 0
Offset: 0 Hours
Default: 0
Offset: 0 Hours
Default: 0
Offset: 0 Hours
Default: 0
Offset: 0 Hours
Default: 0
Offset: 0 Hours
Default: 0


528
status I/O
529
status I/O
status I/O
status I/O
status I/O
status I/O
status I/O
status I/O
Sign: U
Sign: U
Sign: U
530
Sign: U
Sign: U
Sign: U
Sign: U
Sign: U
Level Write 1.000000000000 Lower Limit: .000 shed level load Shed Control
Sign: U
42911 Load 12 Shed Read Multiplier: Unit: NA Indicates which Load Add
Level /Write 1.000000000000 Lower Limit: .000 shed level load Shed Control
Sign: U
Sign: U
Sign: U
Sign: U
531
Sign: U
Sign: U
Sign: U
42918 Load Demand Read 0: Gen 1 Sets GenI for Load Demand
GenI /Write 1: Gen 2 fixed sequence Shed Control
2: Gen 3 load demand
3: Gen 4
4: Gen 5
5: Gen 6
6: Gen 7
7: Gen 8
8: Gen 9
9: Gen 10
10: Gen 11
11: Gen 12
12: Gen 13
13: Gen 14
14: Gen 15
15: Gen 16
Default: Gen9
42919 Load Demand Read 0: Gen 1 Sets GenJ for Load Demand
GenJ /Write 1: Gen 2 fixed sequence Shed Control
3: Gen 4
4: Gen 5
5: Gen 6
6: Gen 7
7: Gen 8
8: Gen 9
9: Gen 10
10: Gen 11
11: Gen 12
12: Gen 13
13: Gen 14
14: Gen 15
15: Gen 16
Default: Gen10
532
42920 Load Demand Read 0: Gen 1 Sets GenK for Load Demand
GenK /Write 1: Gen 2 fixed sequence Shed Control
3: Gen 4
4: Gen 5
5: Gen 6
6: Gen 7
7: Gen 8
8: Gen 9
9: Gen 10
10: Gen 11
11: Gen 12
12: Gen 13
13: Gen 14
14: Gen 15
15: Gen 16
Default: Gen11
42921 Load Demand Read 0: Gen 1 Sets GenL for Load Demand
GenL /Write 1: Gen 2 fixed sequence Shed Control
3: Gen 4
4: Gen 5
5: Gen 6
6: Gen 7
7: Gen 8
8: Gen 9
9: Gen 10
10: Gen 11
11: Gen 12
12: Gen 13
13: Gen 14
14: Gen 15
15: Gen 16
Default: Gen12
42922 Load Demand Read 0: Gen 1 Sets GenM for Load Demand
GenM /Write 1: Gen 2 fixed sequence Control
3: Gen 4
4: Gen 5
5: Gen 6
6: Gen 7
7: Gen 8
8: Gen 9
9: Gen 10
10: Gen 11
11: Gen 12
12: Gen 13
13: Gen 14
14: Gen 15
15: Gen 16
Default: Gen13
533
42923 Load Demand Read 0: Gen 1 Sets GenN for Load Demand
GenN /Write 1: Gen 2 fixed sequence Control
3: Gen 4
4: Gen 5
5: Gen 6
6: Gen 7
7: Gen 8
8: Gen 9
9: Gen 10
10: Gen 11
11: Gen 12
12: Gen 13
13: Gen 14
14: Gen 15
15: Gen 16
Default: Gen14
42924 Load Demand Read 0: Gen 1 Sets GenO for Load Demand
GenO /Write 1: Gen 2 fixed sequence Control
3: Gen 4
4: Gen 5
5: Gen 6
6: Gen 7
7: Gen 8
8: Gen 9
9: Gen 10
10: Gen 11
11: Gen 12
12: Gen 13
13: Gen 14
14: Gen 15
15: Gen 16
Default: Gen15
42925 Load Demand Read 0: Gen 1 Sets GenP for Load Demand
GenP /Write 1: Gen 2 fixed sequence Control
3: Gen 4
4: Gen 5
5: Gen 6
6: Gen 7
7: Gen 8
8: Gen 9
9: Gen 10
10: Gen 11
11: Gen 12
12: Gen 13
13: Gen 14
14: Gen 15
15: Gen 16
Default: Gen16
534
Only 1: Good of SID2 tions
2: Connecting (aux101/102
3: No Exp Board module 2)
4: Not Applicable
Default:
Only 1: Good of SID3 tions
2: Connecting (aux101/102
3: No Exp Board module 3)
4: Not Applicable
Default:
munications 2 2: Connecting expansion board
Default: Disabled connection
munications 3 2: Connecting expansion board
Default: Disabled connection
42930 Utility Breaker Read 0: After Transfer Delay PTC − point in PTC Con-
Opening Point /Write 1: Upon Utility Failure time at which nected
Default: After Transfer Delay system opens
utility breaker
42931 Commit To Read 0: Utility Disconnect PTC − sets point PTC Operat-
Transfer Meth- /Write 1: Genset Start at which system ing Mode
od 2: No Commit commits to trans-
Default: Utility Disconnect fer to generator
set
42932 Commit To Read 0: Not Committed PTC − indicates if PTC Operat-
Transfer State Only 1: Committed system is coming Mode
Default: mitted to transfer-
ring to generator
set
42933 Total System Read Multiplier: Unit: kW Sum of the gen- System In-
Capacity 32bit Only 1.000000000000 Lower Limit: kW erator set kW rat- formation
Offset: 0 Upper Limit: kW ings in 32bit
Sign: S
42935 Total Online Read Multiplier: Unit: kW Sum of the gen- System Infor-
Capacity 32bit Only 1.000000000000 Lower Limit: kW erator set kW rat- mation
Offset: 0 Upper Limit: kW ings in 32bit for
Size (bits): 32 Default: generator sets
Sign: S which are online
42937 kW Load Ref- Read Multiplier: Unit: kW kW control refer- Master Load
erence 32bit Only 1.000000000000 Lower Limit: kW ence value in Control
Offset: 0 Upper Limit: kW 32bit for ex-
Size (bits): 3 Default: tended paralel-
2Sign: S ling
535
Reference Only 1.000000000000 Lower Limit: kVAR erence value in Control
32bit Offset: 0 Upper Limit: kVAR 32bit for ex-
Size (bits): 32 Default: tended parallel-
Sign: S ing
42943 Genset Bus Read Multiplier: Unit: kW Sets the base Master Load
kW Setpoint /Write 1.000000000000Off- Lower Limit: .000 kW load kW setpoint Control
32bit set: 0Size (bits): Upper Limit: in 32bit in closed
32Sign: S 2147483647.000 loop extended
kW paralleling
Default:0
42945 Genset Bus Read Multiplier: Unit: kVAR Sets the base Master Load
kVAR Setpoint /Write 1.000000000000 Lower Limit: .000 load kVAR set- Control
32bit Offset: 0 kVAR point in 32bit in
Size (bits): 32 Upper Limit: closed loop ex-
Sign: S 2147483647.000 tended parallel-
kVAR ing
Default:0
42947 Genset Un- Read Multiplier: Unit: kW Setpoint for gen- Master Load
loaded Level /Write 1.000000000000 Lower Limit: erator set un- Control
32bit Offset: 0 −2147483648.000 loaded level in
Size (bits): 32 kW 32bit
Sign: S Upper Limit:
2147483647.000
kWDefault:50
42949 Utility Bus kW Read Multiplier: Unit: kW Sets the peak Master Load
Setpoint 32bit /Write 1.000000000000 Lower Limit: shave kW set- Control
Offset: 0 −2147483648.000 point in 32bit in
Size (bits): 32 kW closed loop ex-
Sign: S Upper Limit: tended parallel-
2147483647.000 ing
kWDefault: 100
42951 Utility Bus kW Read / Multiplier: Unit: kW sets the utility kW Master Load
Constraint write 1.000000000000 Lower Limit: constraint level in Control
Level 32bit Offset: 0 −2147483648.000 32bit for base
Size (bits): 32 kW load extended
Sign: S Upper Limit: paralleling
2147483647.000
kWDefault: 100
42953 Utility Bus Read / Multiplier: Unit: kVAR Sets the peak Master Load
kVAR Setpoint write 1.000000000000 Lower Limit: shave kVAR set- Control
32bit Offset: 0 −2147483648.000 point in 32bit in
Size (bits): 32 kVAR closed loop ex-
Sign: S Upper Limit: tended parallel-
2147483647.000 ing
kVAR
Default: 100
536
42955 Utility Un- Read / Multiplier: Unit: kW Setpoint for utility Master Load
loaded Level write 1.000000000000 Lower Limit: unload level in Control
32bit Offset: 0 −2147483648.000 32bit
Size (bits): 32 kW
Sign: S Upper Limit:
2147483647.000
kWDefault: 50
42957 Load Add Read / Multiplier: Unit: kW generator set kW Load Demand
Shed Re- write 1.000000000000 Lower Limit: .000 kW capacity that Control
quired Online Offset: 0 Upper Limit: must be online to
Capacity 32bit Size (bits): 32 2147483647.000 start timed load
Sign: S kWDefault: 0 add; 0 disables
this
42959 Load Demand Read / Multiplier: Unit: kW Sets how much Load Demand
Minimum On- write 1.000000000000 Lower Limit: .000 kW capacity must al- Control
line Capacity Offset: 0 Upper Limit: ways be online
32bit Size (bits): 32 2147483647.000 regardless of
Sign: S kWDefault: 0 what the load is
42961 Total Utility Read / Multiplier: Unit: kW Use to set how AC Setup
Capacity 32bit write 1.000000000000 Lower Limit: 1.000 many kW (32bit)
Offset: 0 kW =100% utility kW
Size (bits): 32 Upper Limit: −− used by bar-
Sign: S 2147483647.000 graph
kWDefault: 1000
42963 Genset Online Read / Multiplier: Unit: kW Set the online kW PTC Sensors
Capacity Sen- write 1.000000000000 Lower Limit: .000 kW threshold 32bit at
sor Threshold Offset: 0 Upper Limit: which generator
32bit Size (bits): 32 2147483647.000 set but is avail-
Sign: S kWDefault: 0 able for loading
42965 Load Demand Read Multiplier: Unit: kW Set minimum kW Load Demand
Restart kW /Write 1.000000000000 Lower Limit: .000 kW reserve capacity Control
Threshold Offset: 0 Upper Limit: when kW in 32bit
32bit Size (bits): 32 2147483647.000
Sign: S kWDefault: 500
42967 Load Demand Read / Multiplier: Unit: kW Sets maximum Load Demand
Shutdown kW write 1.000000000000 Lower Limit: .000 kW kW reserve ca- Control
32bit Size (bits): 32 2147483647.000 kw threshold method
Sign: S Default: 1000 is absolute kW in
32bit
42971 Total Spare Read Multiplier: Unit: kW Difference be- System In-
Online Capac- Only 1.000000000000 Lower Limit: kW tween sensed formation
ity 32bit Offset: 0 Upper Limit: kW online capacity
Size (bits): 32 Default: and generator
Sign: S Set bus total kW
in 32bit
537
42973 Next Gen Re- Read Multiplier: Unit: kW Shows 32 bit kW Load Demand
start Thresh- Only 1.000000000000 Lower Limit: kW threshold for gen- Control
old 32bit Offset: 0 Upper Limit: kW erator bus at
Size (bits): 32 Default: which next gen-
Sign: S erator set will re-
start
42975 Next Gen Read Multiplier: Unit: kW Shows 32 bit kW Load Demand
32bit Size (bits): 32 Default: which next gen-
Sign: S erator set load
demand stops in
42977 Genset Bus Read Multiplier: Unit: kW Calculated kW System Infor-

kW Overload Only 1.000000000000 Lower Limit: kW overload thresh- mation
Threshold Offset: 0 Upper Limit: kW old in 32bit based
32bit Size(bits): 32 Default: on online capac-
Sign:S ity and % setting
538
11. MCM3320 Modbus Fault Status Bitmaps

Code
42500 0 Fault Status Bit- 1455 Utility Main Breaker Position Contact Warning Warning
map 1
42500 1 Fault Status Bit- 2396 Utility Main Breaker Fail To Close Warning Warning
map 1
42500 2 Fault Status Bit- 2397 Utility Main Breaker Fail To Open Warning Warning
map 1
42500 3 Fault Status Bit- 1219 Utility Main Breaker Tripped Warning Warning
map 1
42500 4 Fault Status Bit- 1914 Utility Bus Phase Rotation Warning Warning
map 1
42500 5 Fault Status Bit- 1912 Utility Bus Loss Of Phase Warning Warning
map 1
42500 6 Fault Status Bit- 2331 Utility Bus Undervoltage Warning Warning
map 1
42500 7 Fault Status Bit- 2358 Utility Bus Overvoltage Warning Warning
map 1
42500 8 Fault Status Bit- 1223 Utility Bus Frequency Warning Warning
map 1
42500 21 Fault Status Bit- 4137 Advanced Grid Protection Warning Warning
map 1
42500 22 Fault Status Bit- 3924 Utility Reverse kW Warning Warning
map 1
42500 23 Fault Status Bit- 2939 Modbus Communication Failure Warning Warning
map 1
42500 24 Fault Status Bit- 2648 Remote IO Communication Failure Warning Warning
map 1
42500 25 Fault Status Bit- 1689 Real Time Clock Power Interrupt Warning Warning
map 1
42500 26 Fault Status Bit- 1335 AC Metering Out Of Range Warning Warning
map 1
42500 27 Fault Status Bit- 1999 Maximum Parallel Time Warning Warning
map 1
42500 28 Fault Status Bit- 343 Hardware Failure Warning Warning
map 1
539
Code
42500 29 Fault Status Bit- 1456 Synchronizer Output Limit Warning Warning
map 1
42500 30 Fault Status Bit- 2416 Calibration Checksum Warning Warning
map 1
42500 31 Fault Status Bit- 353 EEPROM Write Error Warning Warning
map 1
42502 0 Fault Status Bit- 1454 Genset Main Breaker Position Contact Warning Warning
map 2
42502 1 Fault Status Bit- 1452 Genset Main Breaker Fail To Close Warning Warning
map 2
42502 2 Fault Status Bit- 1453 Genset Main Breaker Fail To Open Warning
map 2
42502 3 Fault Status Bit- 1328 Genset Main Breaker Tripped Warning Warning
map 2
map 2
42502 5 Fault Status Bit- 1913 Genset Bus Loss Of Phase Warning Warning
map 2
42502 6 Fault Status Bit- 1225 Genset Bus Undervoltage Warning Warning
map 2
42502 7 Fault Status Bit- 1224 Genset Bus Overvoltage Warning Warning
map 2
42502 8 Fault Status Bit- 1226 Genset Bus Frequency Warning Warning
map 2
42502 22 Fault Status Bit- 441 Low Battery Voltage Warning Warning
map 2
42502 23 Fault Status Bit- 442 High Battery Voltage Warning Warning
map 2
42502 24 Fault Status Bit- 1541 Genset Failed To Come Online Warning Warning
map 2
42502 25 Fault Status Bit- 2647 Load Demand Setup Warning Warning
map 2
42502 26 Fault Status Bit- 1444 Genset Bus Overload Warning Warning
map 2
42502 27 Fault Status Bit- 1989 kW Load Control Output Limit Warning Warning
map 2
42502 28 Fault Status Bit- 1991 kVAR Load Control Output Limit Warning Warning
map 2
42502 29 Fault Status Bit- 1121 Failure To Disconnect Warning Warning
map 2
42502 30 Fault Status Bit- 1458 Synchronizer Phase Rotation Mismatch Warn- Warning
map 2 ing
540
Code
42502 31 Fault Status Bit- 1457 Fail To Synchronize Warning Warning
map 2
42504 0 Fault Status Bit- 1222 Not In Automatic Event Event
map 1
42504 1 Fault Status Bit- 1483 Common Warning Event Event
map 1
42504 2 Fault Status Bit- 2965 Genset Bus Available Event Event
map 1
42504 3 Fault Status Bit- 2328 Utility Bus Available Event Event
map 1
42504 4 Fault Status Bit- 2333 Genset Bus Connected Event Event
map 1
42504 5 Fault Status Bit- 2332 Utility Bus Connected Event Event
map 1
42504 6 Fault Status Bit- 2971 Test / Extended Parallel Event Event
map 1
42504 7 Fault Status Bit- 1916 Synchronized Event Event
map 1
42504 8 Fault Status Bit- 1534 Load Control Output Event Event
map 1
42504 9 Fault Status Bit- 2781 Genset Source Unloaded Event Event
map 1
42504 10 Event Status Bit- 2779 Utility Source Unloaded Event Event
map 1
42504 11 Event Status Bit- 3226 Genset Bus Base Load Event Event
map 1
42504 12 Event Status Bit- 3227 Utility Bus Peak Shave Event Event
map 1
541
542
12. MCM3320 Modbus Address 42506, 42507
Metering Fault Status Bitmaps

Bit (LSB = 0) Parameter Description
0 ZXA Timeout Zero Crossing cannot be detected on L1 voltage signal
1 ZXB Timeout Zero Crossing cannot be detected on L2 voltage signal
2 ZXC Timeout Zero Crossing cannot be detected on L3 voltage signal
3 (See Note 1) Voltage Out o Voltage scaling error due to incompatible combination of
Range settings for Nominal Voltage, PT Primary Voltage, and PT
Secondary Voltage
4 (See Note 1) Current Out of Current Input is saturated; actual current cannot be deter-
Range mined
5 Frequency Out Frequency input is out of range; valid range 24−80 Hz
of Range
6 Loss Phase Out One or more zero crossings of voltage cannot be de-
of Range tected; loss phase cannot be determined
7 Sync Phase Out Synchronizer phase difference cannot be measured due
of Range to any of the following: genset frequency out of range, util-
ity frequency out of range, genset L1 voltage zero cross-
ing not detected, or utility L1 voltage zero crossing not
detected
8 (See Note 1) kW Out of kW is out of range; valid range is − 2147483648 to
Range +2147483647 kW
9 (See Note 1) kVAR Out of kVAR is out of range; valid range is − 2147483648 to
Range +2147483647 kVAR
10 (See Note 1) kVA Out of kVA is out of range; valid range is 0 to 4294867295 kVA
Range
11 (See Note 1) Power Factor Power factor is out of range due to either kW > kVA or
Out of Range kVA = 0; should not normally occur
12 AC Metering Main processor is unable to communicate with metering
Failure processor
13 Not Used
14 Not Used
15 Not Used
Note:
1. If any of bits are active (1), the “AC Metering Out of Range Warning” fault will be active.
2. If Bit 12 is active (1), the “Hardware Failure Warning” fault will be active.
3. Some bits do not generate warning faults because they are a normal occurance (e.g. if a source is dead).
543
544
Cummins Power Generation
1400 73rd Ave. NE
Minneapolis, MN 55432 USA
Phone 1 763 574 5000
Toll-free 1 800 888 6626
Fax 1 763 574 5298
Email ask.powergen@cummins.com
www.cumminspower.com
CumminsR, the “C” logo, and “Our energy working for you.”
are trademarks of Cummins Inc.
E2013 Cummins Power Generation, Inc. All rights reserved.

Modbus Mapping

Uploaded by

Document Information

Original Description:

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Modbus Mapping

Uploaded by

Copyright:

Available Formats

Modbus Register Mapping

FUEL AND FUMES ARE FLAMMABLE

EXHAUST GASES ARE DEADLY

MOVING PARTS CAN CAUSE SEVERE PERSONAL INJURY OR DEATH

DISPOSE OF THIS UNIT PROPERLY

Note: If an address or bit is not listed in this table it is not used.

Addr. Parameter Access Specifications Description Control

40023 Alternator Read Only Multiplier: 1 Generator set PC1.x,

40024 Alternator Read Only Multiplier: 1 Generator set PC1.x,

40040 Alternator Read Only Multiplier: 1 Alternator output PC1.x,

40041 Alternator Read Only Multiplier: 1 Alternator output PC1.x,

40042 Alternator Read Only Multiplier: 1 Alternator output PC1.x,

40043 Alternator Read Only Multiplier: 1 Alternator output PC1.x,

40069 Total Runs Read Only Multiplier: 1 Parameter reflects PC1.x,

NOTE: For PC1.x

43013 AVR Enable Read and 0: Disable Automatic voltage PC1.x,

43023 Maximum Read and Multiplier: 0.1 Electronic governing PC1.x,

43024 Governor Read and Multiplier: 1 Electronic governing PC1.x,

43025 Gov K2 Gain Read and Multiplier: 1 Electronic governor PC1.x,

43026 Gov D Gian Read and Multiplier: 1 Electronic governor PC1.x,

43029 Governor Read and Multiplier: 1 Electronic governing PC1.x,

43030 Governor Read and Multiplier: 1 Engine speed at PC1.x,

43031 Minimum Read and Multiplier: 1 Setting for electronic PC1.x,

43032 Maximum Read and Multiplier: 1 Setting for electronic PC1.x,

43071 Frequency Read and Multiplier: 0.1 PC1.x,

43072 Alternator Read and Multiplier: 0.0001 60 Hz line 1 to neu- PC1.x,

*NOTE: For PS0500

43073 Alternator Read and Multiplier: 0.0001 60 Hz line 2 to neu- PC1.x,

43075 Alternator Read and Multiplier: 0.0001 50 Hz line 1 to neu- PC1.x,

43076 Alternator Read and Multiplier: 0.0001 50 Hz line 2 to neu- PC1.x,

43077 Alternator Read and Multiplier: 0.0001 50 Hz line 3 to neu- PC1.x,

43079 Alternator L2 Read and Multiplier: 0.001 60 Hz line 2 meter- PC1.x,

43080 Alternator L3 Read and Multiplier: 0.001 60 Hz line 3 meter- PC1.x,

43081 Alternator L1 Read and Multiplier: 0.001 50 Hz line 1 meter- PC1.x,

43082 Alternator L2 Read and Multiplier: 0.001 50 Hz line 2 meter- PC1.x,

43083 Alternator L3 Read and Multiplier: 0.001 50 Hz line 3 meter- PC1.x,

43722 AUX101 Read Only Multiplier: 1 AUX101 input as PCC1301

43723 AUX101 in- Read Only Multiplier: 1 AUX101 input 1 PCC1301

43724 AUX101 in- Read Only Multiplier: 1 AUX101 input 2 PCC1301

43725 AUX101 in- Read Only Multiplier: 1 AUX101 input 3 PCC1301

43726 AUX101 in- Read Only Multiplier: 1 AUX101 input 4 PCC1301

43728 AUX101 in- Read Only Multiplier: 1 AUX101 input 6 PCC1301

43729 AUX101 in- Read Only Multiplier: 1 AUX101 input PCC1301

43730 AUX101 in- Read Only Multiplier: 1 AUX101 input 8 PCC1301

43741 AUX101 Ex- Read Only Multiplier: 1 AUX101 input as PCC1301

43745 AUX101 Read Only Multiplier: 1 AUX101 input as PCC1301

Addr. Parameter Access Specifications Description Control

42010 Load Read 0: No Indicates when the current MLD PC 3.x

Note: If an address or bit is not listed in this table it is not used.

Addr. Bit# Name Fault Event Name Response Control

Addr. System Name Access Specifications Description Function

42165 Utility Total kW Read Multiplier: Unit: % Utility total kW as Power

42166 Utility Fre- Read Multiplier: Unit: % Utility frequency Frequency

42314 Genset 10 kW Read/ Multiplier: Unit: kW Sets gen10 kW System In-

42315 Genset 11 kW Read/ Multiplier: Unit: kW Sets gen11 kW System In-

42316 Genset 12 kW Read/ Multiplier: Unit: kW Sets gen12 kW System Infor-

Addr. System Name Access Specifications Description Function

Note: If an address or bit is not listed in this table, it is not used.

Addr. Bit# System Name Fault Event Name Response

Modbus Address: 2 (Slave).

Modbus Address Bit # Alarm Event

Modbus Address Bit # Alarm Event

Modbus Address Bit # Alarm Event
