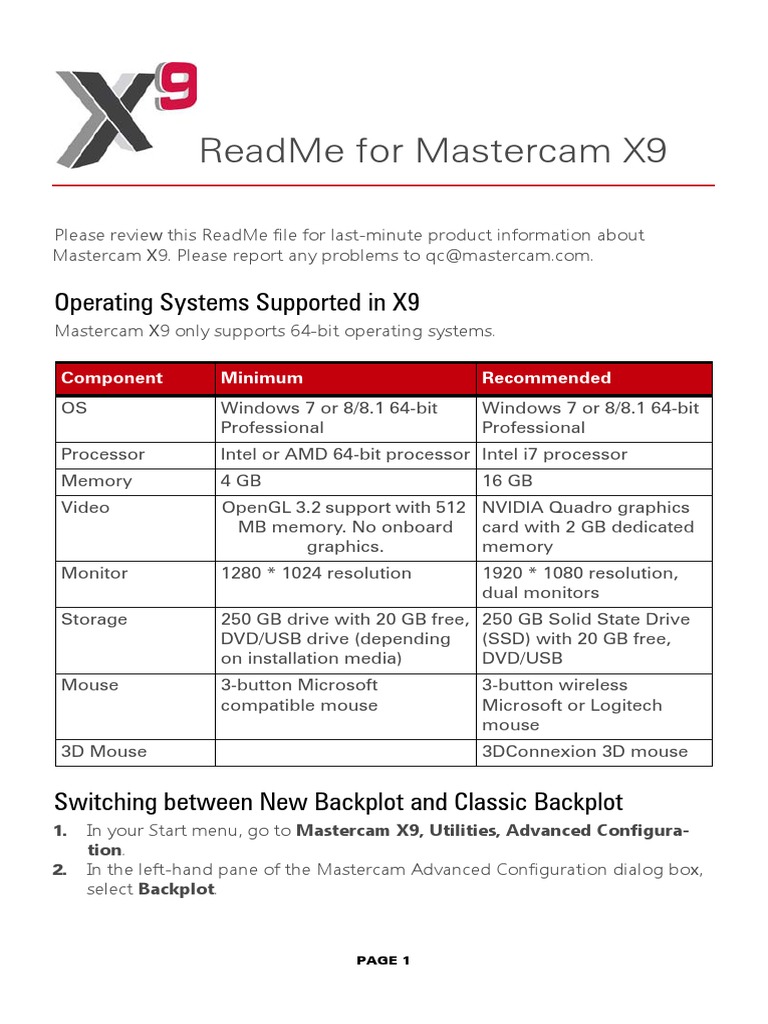

0 ReadMe for Mastercam X9

Please review this ReadMe file for last-minute product information about
Mastercam X9. Please report any problems to qc@mastercam.com.

Operating Systems Supported in X9

Mastercam X9 only supports 64-bit operating systems.

Component Minimum Recommended

OS Windows 7 or 8/8.1 64-bit Windows 7 or 8/8.1 64-bit
Professional Professional
Processor Intel or AMD 64-bit processor Intel i7 processor
Memory 4 GB 16 GB
Video OpenGL 3.2 support with 512 NVIDIA Quadro graphics
MB memory. No onboard card with 2 GB dedicated
graphics. memory
Monitor 1280 * 1024 resolution 1920 * 1080 resolution,
dual monitors
Storage 250 GB drive with 20 GB free, 250 GB Solid State Drive
DVD/USB drive (depending (SSD) with 20 GB free,
on installation media) DVD/USB
Mouse 3-button Microsoft 3-button wireless
compatible mouse Microsoft or Logitech
mouse
3D Mouse 3DConnexion 3D mouse

Switching between New Backplot and Classic Backplot

1. In your Start menu, go to Mastercam X9, Utilities, Advanced Configura-
tion.
2. In the left-hand pane of the Mastercam Advanced Configuration dialog box,
select Backplot.

PAGE 1
3. In the right-hand pane, change the Classic Backplot setting from Disable to
Enable or vice versa.

Deprecated Functions
Following is a list of deprecated functionality for Mastercam X9.
 Tool Holders - The ability to edit holder segments in the tree-style
toolpath dialog was removed (see X9 what’s new for more details).
 C-Hooks - The following C-Hooks were removed. Their functionality is
available in other mainstream features.
 Floor5ax.DLL - Projects and compensates 5-axis toolpaths along the
tool vectors to a set of floor surfaces.
 FloorNCI.DLL - Projects and compensates 5-axis toolpaths from an
NCI file to a set of floor surfaces in the current part.
 Contain5.DLL - Contains the shank of a 5-axis tool inside a chained
boundary or to a point.
 Project5.DLL - Projects a 3-axis toolpath to a set of surfaces and
converts the toolpath to a 5-axis toolpath using the surface normal of
the contact point as the tool axis vector.

PAGE 2
  Design - Xform drag removed because of the improved capabilities of
Dynamic Xform (from X8).
 Design - Xform STL replaced because the P-mesh entity is now fully
supported in Xform functions.
 Design - Quick Nesting for Geometry and Toolpaths has been removed in
favor of full nesting function.
 Design - Xform Template was removed due to limited functionality and
minimal usage.

Issues Addressed in the Mastercam X9 Release

Mastercam X9 release features several bug fixes, including the following list:

Bug
Category Description
Numbers
5-Axis Saving/Loading defaults is broken for R-04013
ModuleWorks toolpaths.
API Restore Missing Tool and Holder SDK R-03991
functionality.
API Re-export makeLayoutView. R-04043
API Re-export critical SDK functions removed from R-04095
X9.
Chaining Partial solid loops not always correct in 3D R-04053
mode.
Converters Update to Support for UniGraphics NX 10. R-04099
Files File takes significantly longer to save in X9. R-04217
Graphics Dynamic Xform corrupts selection. R-03931
Graphics Improved performance when changing surface R-04125
colors.
Graphics Performance issues when drawing large R-04128
quantities of surface UV Lines.
Graphics Create curve, surface, primitives - does not R-04156
work with mill, lathe, Router entry in X9.
Graphics AutoCursor value locking. R-04200
Graphics Delete is much slower in X9. R-04211
Graphics Speed issues with Xform Move. R-04224

PAGE 3
 Bug
Category Description
Numbers
Levels Improved performance when turning off levels R-04038
containing a lot of wireframe geometry.
Licensing Mastercam is pulling and not releasing Net- R-04016
Hasp licenses at startup.
Licensing Always trigger Save As on license disconnect. R-04032
Licensing Using a Router (non-3D) license, the user is R-04100
denied access to the same mill surface
toolpaths that are available to Mill (non-3D)
users.
Localization Machine Simulator has garbled characters in R-04089
Asian languages and untranslatable text.
Machine The encrypted machine not shown in R-04000
Simulator Mastercam X9.
Machine Migration of machine collision files from X8 to R-04055
Simulator X9 does not work any more.
Machine Fix Presentation crash after implementation of R-04056
Simulator TNR toolpaths.
Machine Collisions between revolved jaws and stock R-04057
Simulator and workpiece.
Machine Add "ATC Return" reference position to tool R-04058
Simulator change in simulation.
Multiaxis Spline Node Manager memory allocation R-04074
defect.
Planes Plane Manager crashes Mastercam or locks up R-03975
after losing focus.
Selection Improved performance when selecting a lot of R-04019
chains.
Tool Manager Tool Manager fails to drag last tool or holder in R-03892
data grid when building assembly.
Toolpaths Errors with new Swarf toolpath. R-03627
Toolpaths Incorrect entry feeds/speeds. R-03761
Toolpaths 2D Contour change at point does not keep the R-04004
feed rate change modal.

PAGE 4
 Bug
Category Description
Numbers
Toolpaths Hybrid, Taper tool, check geometry and R-04005
negative stock to leave causing a crash.
Toolpaths OptiRough gouge found in X9. R-04006
Toolpaths Changing surface or solid face selection isn't R-04027
marking toolpath dirty.
Toolpaths 3D HST Rough operations importing into X9 R-04084
and mapping incorrectly.
Toolpaths OptiRough regen failure. R-04120
Toolpaths OptiRough holder gouging. R-04132
Toolpaths Suppress debug warning that appears when R-04143
saving a file after hitting the toolpath preview
numerous times.
Toolpaths Adjust start/end of contour and toolpath R-04144
preview.
Toolpaths Feedrate for tapping not updating when R-04225
changing RPM.
Toolpaths Adding a machine group when you have a lot R-04126
Manager of surfaces takes 10x longer than X8.
Tools Extremely long delay the second time a holder R-04147
is changed, when the Toolpaths Manager
contains Transform operations.
Tools Incorrect toolpath using Chamfer Mill. R-04180
Wire Wirepath Editor is not working. R-03944

PAGE 5
Issues Addressed in Mastercam X9 Beta 4
Mastercam X9 Beta 4 features several bug fixes, including the following list:

Bug
Category Description
Numbers
API C-Hook SDK - Some Solids color functionality D-17706
was no longer exposed.
ATP Custom column support was not working R-03928
properly.
Bounding Box Resolved issues with custom planes and WCS R-03829
support.
Chaining Fixed performance issue when using the R-03404
Change at Point dialog.
Chaining Using Last with linked edges would sometimes R-03941
cause a crash.
Create Bolt Fixed the problem with missing bitmaps on the R-03727
Circle interface buttons.
General The .material-9 file type was missing from D-17570
Machine Definition - General Machine
Parameters.
General Corrected an issue with the wrong center point R-03882
Selection - being calculated.
Tempoary
Center Point
Graphics Drill points added to an existing operation R-03488
were not being immediately displayed.
Lathe Plunge Turn - Roughing passes forces M03 R-03746
when should be M04.
Lathe Tool orientation incorrect for some B-axis R-03842
custom turning tools.
Lathe Extra planes are being created in Lathe. R-03918
Lathe POCO generated plane is not being created on R-03985
face of part.
Licensing Mastercam is sometimes pulling and not D-17676
releasing Nethasp licenses at startup.
Mill Tools Fix to update the XYZ Stepover % from Speed R-03617
and Feed Calculator.

PAGE 6
 Bug
Category Description
Numbers
Mill Tools The text “Undefined” was showing up in the R-03873
Tool Type column of the Material Definition
dialog.
Mill Tools Tool Manager no longer fails to drag last tool R-03892
or holder in data grid when building assembly.
Mill-Turn PostEngine: Need sync points data (ID, R-03993
comment, type) in tool table processing.
Mill-Turn Milling ops plane derived from geometry - tool R-03747
machining from inside solid.
Mill-Turn SpacesOn/Off exception during posting. R-03806
Multiaxis Classic Multiaxis toolpaths not obeying D-17510
“Always use lead in/out.”
Multiaxis Multiaxis Link operations weren’t marked as D-17592
“ghosted.”
Multiaxis Saving Operations Defaults can corrupt D-17608
defaults file.
Multiaxis Changing selection doesn’t mark operation D-17621
dirty.
Operations Using Edit common parameters for some R-03518
operations would sometimes dirty all
operations.
Planes Work offsets for all operations were sometimes D-17148
changing when one operation was changed.
Planes Active planes were sometimes changing when D-17386
opening older files in X9.
Planes Regenerating operations with Planes ALWAYS R-03633
= WCS active would sometimes create
incorrect toolpaths.
Selection In drill point selection, the 'C' (arc center) and R-03522
'O' (origin) hotkeys were not being recognized.
Selection Improved geometry/solid edge selection on R-03695
small parts.
Selection Improved performance when selecting a lot of R-04009
lines for machining.

PAGE 7
 Bug
Category Description
Numbers
Setup Sheet Fixed an issue where geometry was being R-03590
moved to new levels.
Setup Sheet Fixed a regression where the operation data R-03848
for tools had been removed.
Solid The results of a nest were incomplete. R-03521
Disassemble
in Nesting
Solid Draft Resolved several issues with reference faces. R-03390,
Face R-03851
Stock Model Improved stock model associativity. D-09602
Stock Model Fixed incorrect stock model result. D-14289
Stock Model Fixed incorrect stock model result. D-15960
Stock Model Fixed stock model memory leak. D-16286
Stock Model Fixed stock model failure. D-16537
Stock Model Fixed issue with stock model processing false D-16540
moves.
Surface fillet Fixed a problem where a gap was left along R-03568
to curves the selected chain.
System Event log - redundant assert messages are R-03162
now consolidated into a single message,
improving file loading performance in some
cases.
System Improved performance when doing dynamic R-03493
rotation with 3D mouse (Spaceball).
Toolpaths Fixed issue with importing operations. D-06529
Toolpaths Fixed Hybrid toolpath failure. D-07637
Toolpaths Fixed issue with Dynamic Rest mill. D-08917
Toolpaths Improved associativity. D-09028
Toolpaths Fixed change at point issue. D-09058
Toolpaths Fixed modal value override for Drill and Milling D-09078
ops.
Toolpaths Fixed 2D Pocket error. D-09434
Toolpaths Fixed parameter field error. D-09480

PAGE 8
 Bug
Category Description
Numbers
Toolpaths Fixed Contour start point location. D-09718
Toolpaths Fixed 2D Pocket finish pass feeds/speeds D-10057
override.
Toolpaths Added warning message for failed 2D HST D-13284
toolpaths.
Toolpaths Addressed false FBM warning messages. D-13397
Toolpaths Fixed 2D HST region chain issue. D-13400
Toolpaths Fixed last Waterline toolpath location. D-13482
Toolpaths Fixed excessive processing time issue with D-14379
stock model.
Toolpaths Fixed peel mill and negative stock to leave. D-15238
Toolpaths Improved point saturation in Dynamic Facing. D-15747
Toolpaths Fixed issue with tapered Lollipop tool and D-15936
undercut machining.
Toolpaths Fixed Hybrid toolpath issue. D-15961
Toolpaths Fixed 2D Contour motion on arcs. D-16016
Toolpaths Fixed arc/line filter smoothing issue. D-16044
Toolpaths Fixed Dynamic OptiRough issue. D-16203
Toolpaths Fixed issue with tool manager settings. D-16335
Toolpaths Improved Tapered shank support in 3D HST. D-16404
Toolpaths Fixed FBM issue. D-16418
Toolpaths Fixed Dynamic Mill retract issue. D-16471
Toolpaths Fixed Dynamic OptiRough back feed rate D-16482
issue.
Toolpaths Fixed Hybrid toolpath failure. D-16539
Toolpaths Fixed 2D HST region chain issue. D-16552
Toolpaths Fixed drill point location error. D-16553
Toolpaths Fixed toolpath filter full circle issue. D-16554
Toolpaths Fixed issue with Mesh model crash. D-16563
Toolpaths Fixed Dynamic OptiRough failure. D-16681
Toolpaths Fixed FBM dialog issue. D-16705

PAGE 9
 Bug
Category Description
Numbers
Toolpaths Fixed Dynamic Mill motion issue. D-16763
Toolpaths Improved Tapered shank support in 3D HST. D-16816
Toolpaths Fixed NCI issue with Contour flags. D-16817
Toolpaths Improved 3D HST detect limits when geometry D-16872
is on a non-visible level.
Toolpaths Fixed Dynamic mill issue in Router product. D-16964
Toolpaths Fixed default file issue. D-16981
Toolpaths Fixed 3D HST Waterline computation error. D-16985
Toolpaths Fixed Contour tabs issue. D-16986
Toolpaths Fixed FBM redundant toolpath group issue. D-17009
Toolpaths Fixed infinite look ahead issue in Chamfer D-17011
toolpath.
Toolpaths Fixed issue with pre X9 Dynamic OptiRough D-17235
operations.
Toolpaths Fixed OptiRough error. D-17321
Wire Fixed issue where Wirepath Editor was losing R-02699
changes.
Xform Resolved interaction errors between ribbon R-03690
Dynamic bar and gnomon.
Xform Project Fixed a problem with keeping Plane R-03824
support of orientations intact.
associative
geometry

PAGE 10
Issues Addressed in Mastercam X9 Beta 3
Mastercam X9 Beta 3 includes several bug fixes, including the following list:

Bug
Category Description
Numbers
Analyze Fixed an issue with reporting 0.0 for distance R-03646
Distance on parallel lines at different Z depths.
Bounding Box Added AutoCursor support when using R-03571
push\pull to move faces.
Dimensions Addressed a problem with dimensions not R-03630
respecting the Z value of alternate WCS's.
Drafting Fonts Corrected issues with older FNT files and R-03730
(.FNT files) symbol mappings when loaded into X9.
Lathe C-axis cross contour - sub spindle path R-03366
displays on main spindle.
Lathe Plunge Turn - Roughing passes forces M03 R-03647
when should be M04.
Lathe tools Editing a lathe tool in the library, then saving it D-16780
to the library was changing the original tool to
the edited tool.
Mill tools Incorrect tool data was getting passed to UBV. D-14423
Mill tools Change speeds/feeds is no longer marking D-15286
operations dirty.
Mill tools Fixed create tool scalable option. D-15899
Mill tools Changing the tool name in an operation is now D-16607
working properly when creating a new
assembly.
Mill tools Fixed issue where older file was only D-16609
displaying partial tool holder geometry.
Mill tools Reamer validation was not working properly in D-16692
X9.
Mill tools Fixed auto-updating of shank diameter when D-16771
editing tools.
Mill tools Fixed issue where the Tool Manager was not D-16788
detecting the "Tip Treatment or Angle" of a Tap
RH tool after running FBM Drill.

PAGE 11
 Bug
Category Description
Numbers
Mill tools Fixed issue where we were unable to add or D-16877
delete a tool in attached MCX-9 file.
Mill tools Warning is now issued when attempting to D-16961
open an X9 database in X8.
Mill tools Improved performance when opening D-17012
parameters of a no core op with many holes.
Mill tools Reading in a tool library from text was only R-02566
prompting to save as "tools-n". Now defaulting
to TOOLDB.
Mill tools Update control placement in finalize page of R-03243
tool wizard to avoid overwriting previously set
feed / speed fields when changing CS and FPT.
Mill tools Stand-alone Tool Manager was not writing R-03394
offsets into the appropriate table when editing
an assembly.
Mill tools Changing spindle speed was recalculating R-03441
feedrate.
Mill tools Changing coolant or feedrate in tool definition R-03573
no longer causes stock model and 3D HST rest
ops to be marked dirty.
Mill tools Fixed crash when using 'load tool on machine' R-03579
in Mill-Turn.
Mill tools Updated the XYZ Stepover % From Speed and R-03617
Feed Calculator.
Mill tools Clicking through items in the assembly data R-03711
grid of Tool Manager was changing the name
of the selected assembly.
Mill tools Replaced TOOLS-8 extension with TOOLS-9 R-03734
under create new library in Mastercam.
Mill-Turn Milling ops plane derived from geometry - tool R-03675
machining from inside solid.
Setup Sheet Fixed a problem that moved solid bodies from R-03590
level 1 to Level 10000.

PAGE 12
 Bug
Category Description
Numbers
Solid Addressed a problem importing full spheres R-03661
Spherical from previous releases that were being
Primitives modified automatically because of a kernel
upgrade.
Solids Draft Fixed issues with Draft to Plane and Draft to R-03556,
edge. R-03616
Wire Wire 4-Axis direct leads where going in D-16916
opposite directions on skewed part.
Wire Wire Misc Values were being reset after D-16943
regenerating operation.

Issues Addressed in Mastercam X9 Beta 2

Mastercam X9 Beta 2 includes several bug fixes, including the following list:

Bug
Category Description
Numbers
Converters ProE .ASM file causes Mastercam to crash D-17212
when opening as a solid.
Chaining Fixed issue with Chain Feature crashing in D-16850
some instances.
Planes Cancelling the New Plane dialog would reset R-03351
the T/Cplanes to Top.
System Toolpaths Manager - Much improved R-02961
performance of right-click menu when using a
network license.
System Fixed crash when posting subprogram by R-03272
transformation.
System Fixed “CGroupPg1-wrong pointer type R-03331
returned from GetParent()” error that
sometimes appeared in the event log.
System Viewsheet information (view/zoom R-03467
perspective, level states, etc.) was not always
being saved with the file.

PAGE 13
Issues Addressed in Mastercam X9 Beta 1
Mastercam X9 Beta 1 includes several bug fixes, including the following list:

Bug
Category Description
Numbers
5-Axis Curve 5-Axis dropping arcs from (trimmed) D-14838
surfaces when Tool Axis Control is set to
Surfaces.
5-Axis Curve toolpath is not updating the radial offset D-14862
when selecting a tool.
5-Axis Tool Axis control chain is unselectable. D-16359
5-Axis Project Curves - Cutter comp is not being D-16366
applied to ball end mills.
5-Axis All surface selections display "Select Check D-16755
Surface" as the description, even if it's not a
check surface.
5-Axis Parallel Cuts are not respecting the WCS. D-16792
5-Axis Linking OptiRest and Contour plows through D-16923
part.
5-Axis Roughing - Climb and Convention is reversed R-02663
in the Dynamic toolpath.
5-Axis Curve - Tool is not retracting between cuts in R-02959
X8 and X9.
API Nethook API method B-30489
GeometryManipulationManager.CopySel
ectedGeometryToLevel now marks the
Group and Result geometries correctly.
API Nethook API now allows retrieval of timestamp B-30823
data on an operation.
API Nethook API support for new tool types B-30860
HIGHSPEED_MILL and THREAD_MILL,
BARREL_MILL.
API Custom callback methods (from the Toolpaths D-16642
Manager) were not being executed.
C-Axis Support for C-axis face contour (mix up of D-16754
rotary moves and arcs).

PAGE 14
 Bug
Category Description
Numbers
Chaining Improved default reference face detection B-30347
when doing solid loops.
Configuration The Shading > Lighting Mode was not being R-03175
maintained across sessions.
Configuration (Classic) Backplot > Simulate Rotary Axis and R-03311
4-5 Axis tool vectors settings are now set to off
by default.
Converters Some Unigraphics NX 9 files only bring in a D-16384
one-face sheet solid instead of the entire
model.
Create Auto Fixed issues with rails. D-16906,
Sync D-09014,
R-02949
Create Curve Fixed a crash on a specific surface type. D-16544
Flowlines
Create Fence Fixed Workflow broken in X8. D-16669
Surface
Create Fence Resolved an issue where the chain direction R-03134
Surface mattered when creating a Fence surface.
Create Ruled Improved results. D-16545
Surface
Drill 5-Axis Toolpath shows "2 Operations" in its geometry D-15170
branch, rather than "2 Points.”
Dynamic Improved the speed of displaying the gnomon R-02944
Xform on large complex parts.
Graphics Check surfaces were sometimes not displayed D-16993
when being shown from the Toolpaths
Manager.
Graphics Improved performance when showing R-02713
operation geometry.
Graphics In some instances, large toolpath arcs were R-03239,
not being displayed correctly. R-03261,
R-03302
Groups The Group Manager dialog can now be B-30542
resized.

PAGE 15
 Bug
Category Description
Numbers
IOF Sim B axis is not moving to B 0 before POCO. R-03032
Lathe Stock Flip - Geometry is being transferred even D-16436
when the option is not enabled.
Lathe POCO - ID jaws, switch to OD during D-16459
unclamping.
Lathe Stock is deleted but still displays and causes R-02945
errors.
Lathe Rough contour - incorrect regeneration with R-03069
unique X and Z offset.
Lathe POCO - Create Named View does not create R-03132
the view.
Lathe Editing the home position of a Lathe "defaults- R-03196
8" file to User Defined will make it get stuck on
User Defined.
Lathe CView utility is prompting for plane name R-03348
when it should not.
Lathe Lathe rough is skipping passes. R-03278
Level Manager Improved behavior when the main Level D-16880,
Manager has been hidden and then restored. D-16982
MachSim Three Machsim windows open behind D-14872
Mastercam on startup.
Migration Improved migration of read-only files. D-16769
Migration Improved handling of corrupt/invalid files. D-16941
Migration Improved migration of 5-Axis MCX-8 part files. R-02985
Mill tools Fixed issue where the Coolant value in the D-07719
quickview window did not match the coolant
setting in the toolpath.
Mill tools Editing a lathe tool in the library, and then D-15325
saving it to the library was changing the
original tool to the edited tool (duplicating the
new changed tool).
Mill tools Fixed X6 to X8 Holder check issue. D-15795
Mill tools Fixed problem importing custom tool D-15907
geometry from MCX.

PAGE 16
 Bug
Category Description
Numbers
Mill tools “Save to library” button in “Lathe define tool” D-16215
was not retaining changes.
Mill tools "CheckHolder.dll" was crashing Mastercam D-16302
when selecting a tool from library.
Mill tools Exported tool profile was not being displayed. D-16330
Mill tools Corrected failure to migrate X7 lathe TOOLDB D-16445
to X8.
Mill tools Shank and Shoulder diameter were updating D-16576
when in tool edit mode (behavior still exists in
create mode).
Mill tools Importing some tools into X8 (and X9) is no D-16584
longer changing the tool's shape.
Mill tools Dragging and dropping a tool from one D-16691
machine group to another is no longer
"locking" unused tools.
Mill tools Fixed X6 to X8 Holder check issue. D-16781
Mill tools The Coolant in the quickview now matches the D-16782
coolant setting in the toolpath.
Mill tools Fixed crash on tap tool parameter change. D-16787
Mill tools Fixed Tool Manager Crash - Specified cast is D-16876
not valid.
Mill-Turn Lathe comp in control is not displaying D-16139
correctly in backplot and Mill-Turn simulation.
Mill-Turn Axis sub centered arc is not simulated properly D-16636
in sync manager and Mill-Turn simulation.
Mill-Turn Remove 'ApproachStrategy' as sync token for D-16730
null TC operations.
Mill-Turn IOF generation needs to ignore ghosted R-03188
operations.
Mill-Turn Settings are lost when exporting a mill op in R-03202
Mill-Turn.
Multiaxis Drill 5-Axis crashing Mastercam. D-16587
Multiaxis Link crashes Mastercam if you canceled out of D-16601
a prior Multiaxis link.

PAGE 17
 Bug
Category Description
Numbers
Multiaxis Link op is generating some incorrect moves. D-16623
Multiaxis Link ops that warn the user they can not be D-16624
created still are created.
Multiaxis Link - Tool is not rotating as it re-positions to D-16647
the next cut.
Multiaxis Tool holders not updating with a tool change in D-16695
classic backplot.
Multiaxis Failure to link transformed operations. D-16776
Multiaxis Link does a tool change one step too soon. D-16818
Nesting Improved support of drafting entities. R-03206
(General)
Planes When exporting operations, custom plane D-16389
names were sometimes incorrect.
Planes Plane Manager - The 'Update graphics view D-16614
when WCS changes' option was not working.
Planes Modeless Plane Manager stability D-16718
improvements.
Planes Geometry was being created at the wrong Z R-03015
level if using the Grid for snap points.
Planes On File > New, the Start/Exit > Construction R-03058
Plane configuration setting was being ignored.
Planes Lathe planes were sometimes incorrect when R-03116
opening an X7 file.
Planes Plane manipulation (e.g., deleting unused R-03201
planes) would sometimes change viewsheet
layouts.
Selection Improved selection display and behavior R-02815
during Solids > Boolean function.
Simulator Wire comp vectors added to the simulator D-05530
display.
Simulator Center Drill tools defined in Tool Manager not D-14562
supported correctly has been fixed.
Simulator Collision is not reported and parts are not D-16289
shown in red.

PAGE 18
 Bug
Category Description
Numbers
Simulator Lathe Face drilling regression. D-16420
Simulator Simulator - Modify default curve tolerance D-16701
values.
Simulator Color by tool or operation issue - tool will R-02461
maintain color across planes.
Simulator Simulator shows a transformed tap drill with R-02700
peck drill motion.
Simulator Memory errors with Custom Drill operations. R-02884
Solid Boolean Improved Levels List refresh. D-16650
System Analyze > Toolpath now displays spindle B-31008
speed information.
System Lathe tool names were not always displayed in D-16293
the Toolpaths Manager.
System Improved performance with large drafting R-03035
files.
System NCI file - Toolpath group names were not R-03037
always output properly for transform
operations.
System Fixed issue with some V9 (pre-Mastercam X) R-03177,
files not opening in X9. R-03256
Toolpath Fixed a crash with a large 2D contour. R-03136
Nesting
Toolpath In some instances, transformed arcs were D-16973
Transform being inverted.
Toolpath The 'Sort point to point' option was not always R-03167
Transform cutting in a zig-zag pattern.
Trim surface to Fixed regressions. D-14927,
surface D-16556
Viewsheets Using a Space issues last command. R-03108
Wire Fixed Agie no core crash. D-16713

PAGE 19
 Bug
Category Description
Numbers
Wire Fixed crash when editing wire tech parameters D-16822
after regen.
Workspace Resolved issues that could cause corruption of D-16980
Files the workspace.
Xform Fixed an issue where solids were becoming D-16595
(General) deselected and were not being moved or
copied.
Xform Project Corrected issue where Move was making a R-03047
copy.

Issues Addressed in Mastercam X9 TP4

Mastercam X9 Technical Preview 4 includes many bugs fixes, including the
following:

Issue
Category Description
Numbers
API Net-Hook API was not properly initializing data D-15989
for primitive solids.
Chaining When using the "Point" method for contour D-14224
chaining, the user can now select the same
point multiple times within the sequence.
Chaining When rechaining, all existing chains are now D-16249
highlighted.
Chaining In some instances, duplicate entities would get D-16261
chained together, causing some functions to
fail.
Chaining Point sorting was not working with Circle Mill D-16355
and Helix Bore toolpaths.
General When moving the mouse into the drawing D-13445
area, the cursor image would sometimes
"stick" as the splitter image.
General Improved performance when regenerating D-16096
transform operations.

PAGE 20
 Issue
Category Description
Numbers
General Work offsets were not properly renumbered D-16303
when using “Edit selected operations -
Renumber work offsets.”
Lathe Lathe dynamic rough stock problem. D-14789
Lathe Lathe ops getting incorrectly marked dirty R-02601
upon opening.
Lathe Lathe tool rapids through part when working R-02747
on recessed ID feature.
Lathe Lathe does not display stock transferred to R-02792
right spindle.
Lathe Lathe Rough - X3 files to X7 or X8 - Tool R-02876
violates geometry.
Mill-Turn MT - Grooving - tool collision caused by WCS R-02886
problem.
Planes When creating a line between two planes, the D-16251
first point was being moved to the second
plane.
Planes The prompt syntax was incorrect when setting D-16343
the WCS or Cplane by geometry.
Planes The "Analyze - Angle" command was creating D-16451
an unneeded plane when in 3D mode.
Planes Improved performance when getting plane D-16490
information via the Plane Manager.

PAGE 21
Issues Addressed in Mastercam X9 TP3
Mastercam X9 Technical Preview 3 includes several bugs fixes, including the
following list:

Issue
Category Description
Numbers
Analyze Corrected issues when modifying entity R-02744
attributes so they can be propagated among
multiple entities
API VB Scripts - OpenMC and MergeMC functions D-16201
now work properly
Classic Invalid tool definition error if a lathe stock D-15019
Backplot model is selected
Classic Retract height not used in backplot even R-02459
Backplot though it was set in the toolpath
Classic Wrong color shown for rapid moves R-02462
Backplot
Dynamic Corrected issues with AutoCursor overrides R-02740
Xform being unavailable when placing multiple
copies
Dynamic Made prompts clearer when in Gnomon R-02762
Xform manipulation mode
General In toolbar/key mapping customization, the B-29564
"Plane Manipulation" category is now named
"Graphics View”
General When importing operations, tools were D-16116
sometimes incorrectly deleted from existing
operations
General Automatic backup was not appending the D-16124
suffix if periods (.) existed in the original file
name
General Very large files would sometimes fail to open D-16148
Graphics Tangent arc preview now shows the presumed D-15928
arc as a solid line and the optional arcs as
dashed lines
Lathe 3/8 - 16 tap in ltap tool list is not set correctly D-15204

PAGE 22
 Issue
Category Description
Numbers
Lathe Lathe rough operation will not regenerate as it R-02645
did in X4
Lathe Incorrect placement of ASCII NCI 1025 line R-02703
(canned text) for Lathe Cutoff operation
Lathe The toolpath preview is displaying the R-02731
incorrect retract moves
Lathe Contour Rough X Z offset prompts are R-02745
backwards
Lathe Lathe rough TP rapids back to stock R-02785
Lathe Lathe Stock Flip - incorrect display and R-02798
toolpath collision
Lathe Lathe Face Default - Absolute position of face R-02804
can't be zero
Lathe Lathe Rough - violating chained geometry R-02809
MachSim Tool does not do full retract before part rotates, D-15507
causing a gouge
MachSim Classic MachSim does not cut all 4 sides of D-15654
part
MachSim MachSim does not show rotation for a D-16123
transform operation
Mill Tools Block drill is no longer giving error when D-15301,R-
opening tool page in parameters 02718
Mill Tools Radius Mill tool type radius and tip diameter D-15713,
were not updating overall diameter R-02779
Mill Tools Create Tool - Standard size listing is now D-15789,
sorted by diameter in ascending order R-02824
Mill Tools "Save Library" on Holders page only saves one D-15903,
holder when selecting another library path R-02823
Mill Tools Slot mills are not being updated properly D-15917,
during migration R-02667
Mill Tools The "IsScalable" flag was not being set D-15918,
properly when updating prior version TOOLDB R-02818
files with custom tools

PAGE 23
 Issue
Category Description
Numbers
Mill Tools Add Head Number to Property Grid in D-15974
Extensions Tool Manager
Mill Tools The migration utility was causing an issue with D-16015,
the version information in when updating R-02693
TOOLDB files
Mill Tools The Reamer tool type was causing false gouge D-16031,
in stock model R-02707
Mill Tools Chamfer on reamer was updating when D-16062,
changing diameter during edit tool R-02715
Mill Tools Lollipop tool definition from X7 was invalid D-16115,
after updating in X8 R-02737
Mill Tools Updating a tools-6 file to an X8 tooldb was D-16117,
changing Slot mill and Counter bore diameters R-02817
to 1"
Mill Tools Drop profile action on custom tool no longer D-16265,
resets parameter values R-02885
Mill Tools Tool Holder was not working properly in old R-02819
style toolpaths
Mill-Turn Different behavior for collision check, Stop at D-15535
Simulation end of simulation instead of starting over
Multiaxis Clearance area height not persisted, value is B-29686
lost when reentering dialog
Multiaxis Clearance area height precision lost on B-29687
subsequent load and save of parameters
Multiaxis 5Ax - Swarf - X8 can't regenerate some X7 files D-15630
due to "extension length at start field" being
populated
Multiaxis Gap size uses wrong parameter, " % of Tool D-15993
Diameter" wrongly used step size from cut
pattern
Multiaxis Classic Multiaxis safety zone - "Offset from D-16131
Origin" value changing when it should remain
as set

PAGE 24
 Issue
Category Description
Numbers
Printing Printing output has been improved to match D-
X7 output (X8 regression) 16147,D-
16160
Selection When selecting points for drilling, wireframe D-16148
points were being ignore if solid entities were
selected first
Setup Sheet Properly list tool tip angle in reports R-02788
Setup Sheet Fixed issues where all selected geometry R-02839
wasn't being displayed
Simulator Cycle times are incorrect for non-linearized D-13468
helical moves
Solids Move Update of ParaSolids kernel fixed an issue D-14957
causing a crash while dragging the body back
on to itself
Stock Model Fixed stock model issue with rotated plane D-14388
Stock Model Fixed stock model issue with custom tool D-15414
Stock Model Fixed long stock model processing time D-16000
Surfaces Fixed a gap problem with Loft and Ruled D-15594
surfaces with small radii
Surfaces Fixed problem where Ruled surface no longer D-15754
accepted points as an option
Surfaces Corrected the issue where trimmed surfaces D-15901
were losing their original color in favor of the
current system surface color
Surfaces Fixed the problem where syncs were being R-02802
ignored with Loft and Ruled surfaces
Toolapths Fixed 2D HST air region issue D-15048
Toolpaths Fixed C-axis Cross cut NCI output D-15460
Toolpaths Fixed Hybrid negative stock to leave issue D-15931
Toolpaths Fixed 3D HST Waterline issue D-15949
Toolpaths Fixed Blend Mill finish spindle speed override D-15957
Toolpaths Fixed dynamic mill and region chain issue D-15964
Toolpaths Improved Dynamic OptiRough linking D-16084

PAGE 25
Issues Addressed in Mastercam X9 TP2
Mastercam X9 Technical Preview 2 included several bugs fixes, including the
following list:

Issue
Category Description
Numbers
2D Contour 2D Contour supports corner breaking motion B-26602
on the cut parameter page
2D HST Blend 2D HST Blend supports 'first pass feed E-03389
reduction' and new in-->out and out-->in cut
order
2D rest The 2D toolpath stock model processing code B-27390
machining has been made concurrent when rest
machining
2D toolpath Some 2D toolpaths have a new icon located in B-27443
preview the upper left of the toolpath dialog pages to
preview the motion before generating the
toolpath
2D, 3D Milling Stock model operation "NCI extents" push D-03755
& Router button is broken
2D, 3D Milling Trochoidal cuts group box in Pocket toolpaths D-06344
& Router is not properly initialized
2D, 3D Milling With internal corner radius selected with a D-06820
& Router ramp tool path, it is ignored
2D, 3D Milling Rest material page launching another dialog D-06928
& Router
2D, 3D Milling FBM Mill - Bad 2D High Speed Area, Rest D-07765
& Router toolpaths
2D, 3D Milling Causes a crash D-07767
& Router
2D, 3D Milling Surface Finish Parallel setting not sticking D-07783
& Router
2D, 3D Milling FBM Mill - the last operation created when D-07865
& Router regening the FBM Mill op removes ALL the
stock
2D, 3D Milling Island facing producing multiple helix entries D-08058
& Router

PAGE 26
 Issue
Category Description
Numbers
2D, 3D Milling Stock model dialog XYZ labels disappearing D-08276
& Router
2D, 3D Milling Stock model XYZ entry field looks too narrow - D-08277
& Router Stock definition page
2D, 3D Milling Stock model leaving cusps in the attached file D-08310
& Router
2D, 3D Milling 3 to 5 axis max tilt angle - range bubble issue D-08369
& Router
2D, 3D Milling 2D High Speed Dynamic Core Mill does not D-08371
& Router leave correct amount of stock
2D, 3D Milling Keep tool down value gouges - HYBRID D-08491
& Router
2D, 3D Milling The toolpaths (Srf Fin Leftover) in the attached D-08498
& Router MCX-6 file will not regenerate
2D, 3D Milling The "Tapered wall" setting in the "Depth cuts" D-08576
& Router branch in 2D HST Dynamic toolpaths don't
work
2D, 3D Milling Optirest and trim to stock - air cuts D-08764
& Router
2D, 3D Milling Curious Hybrid behavior - start position and D-08766
& Router filter
2D, 3D Milling Surface rough pocket gouging - MU1 D-08786
& Router REGRESSION
2D, 3D Milling Surface HST Area Clearance violates geometry D-08832
& Router
2D, 3D Milling HS Surface Scallop does not compute with D-08994
& Router tolerance set to .0001 (or 0.000086)
2D, 3D Milling Multithreaded operation gets regenerated D-09084
& Router twice
2D, 3D Milling HST Hybrid check surfaces are gouged with D-09272
& Router containment boundary set to Inside
2D, 3D Milling Circle Mill Feedrate Override finish pass D-09286
& Router incorrect
2D, 3D Milling Opti-rest - computation error D-09384
& Router

PAGE 27
 Issue
Category Description
Numbers
2D, 3D Milling Hybrid calculates twice - smoothing settings - D-09431
& Router negative stock
2D, 3D Milling Arc Filter "Smoothing" is being disabled when D-09513
& Router importing operations
2D, 3D Milling Stock model won't calculate - solid model D-09734
& Router
2D, 3D Milling Peel finish pass outputting small rapid move D-09757
& Router
2D, 3D Milling Drill depth calculator reverts back to "add D-09777
& Router depth”
2D, 3D Milling 2D Dynamic core with air region should ignore D-09970
& Router stock but is extended
2D, 3D Milling Stock model incorrect result D-10055
& Router
2D, 3D Milling 2D Dynamic Core Mill - operation marked dirty D-10064
& Router by going into the chain manager and escaping
out with no changes
2D, 3D Milling Stock model incorrect results - opti-core D-10120
& Router
2D, 3D Milling Filter out unnecessary spindle speed changes D-10138
& Router (2D HST)
2D, 3D Milling 2D HST Core Restmill fails to regen D-10186
& Router
2D, 3D Milling 2D HST Placeholder images D-13247
& Router
2D, 3D Milling Micro lift gouge D-13322
& Router
2D, 3D Milling Hybrid - Reporting calculation error - attached D-13333
& Router file
2D, 3D Milling Incorrect lathe stock model result D-13386
& Router
2D, 3D Milling Stock model with form tool fails to regen D-13391
& Router
2D, 3D Milling 2D Area mill with Air chain doesn't look like 2D D-13400
& Router Core mill

PAGE 28
 Issue
Category Description
Numbers
2D, 3D Milling 2D HST tree control display incorrect D-13407
& Router
2D, 3D Milling X7 Peel mill depends on (unavailable) "output D-13427
& Router 3d arcs" checkbox
2D, 3D Milling 2D HST Peel Mill and Comp to Tip/Center not D-13438
& Router working
2D, 3D Milling Turn on High Feed causes toolpath to cut out D-13463
& Router last depth cut
2D, 3D Milling 2D HST extend to stock shape yields D-13467
& Router unexpected result (two tries to fix)
2D, 3D Milling 2D HST stock to leave applied incorrectly D-13478
& Router
2D, 3D Milling Added wireframe geometry created - 2D HST D-13508
& Router Blend
2D, 3D Milling 2D Blend - Toolpath allocation exceeded D-13509
& Router warning
2D, 3D Milling 2D HST Closed Air region fails D-13529
& Router
2D, 3D Milling 2D HST Blend does not retract on last move D-13582
& Router
2D, 3D Milling Hybrid - machining the drive geometry D-13613
& Router multiple times
2D, 3D Milling Can't solid chain with 2D HST Blend D-13619
& Router
2D, 3D Milling Peel finish pass output on wrong side of D-13661
& Router geometry
2D, 3D Milling 2D HST Dynamic - regen causes a lockup D-13695
& Router
2D, 3D Milling Lathe Stock model won't process - lathe D-13714
& Router threads
2D, 3D Milling X5 2D HST operation fails to regenerate in X9 D-13715
& Router (regression)
2D, 3D Milling Long-standing bug - plunge at (0,0) before D-13722
& Router contour path

PAGE 29
 Issue
Category Description
Numbers
2D, 3D Milling Helix Bore for Back Boring not working when D-13773
& Router set to arcs
2D, 3D Milling 2D HST multithreading cannot be stopped D-13787
& Router
2D, 3D Milling Opti-rest regen fails in attached file D-13789
& Router
2D, 3D Milling Micro lift gouge D-13810
& Router
2D, 3D Milling Stock model with lathe source operation - tool D-13815
& Router tolerance not respected
2D, 3D Milling Stock Model regression D-13838
& Router
2D, 3D Milling Stock Model - Lathe Drill - Result doesn't match D-13842
& Router Verify
2D, 3D Milling 2D Contour outputting a plunge move in the Z D-13887
& Router causing a machine gouge
2D, 3D Milling Dynamic Contour dynamic start point on open D-13891
& Router chains doesn't work right
2D, 3D Milling Stock model won't regen D-13908
& Router
2D, 3D Milling X9 crashes when these finish/contour D-13910
& Router toolpaths are regenerated
2D, 3D Milling Stock Model locks up the entire system when D-13934
& Router processing drill op
2D, 3D Milling X7 2D HST dynamic area part loses its solid D-13965
& Router chain
2D, 3D Milling Stock Model does not regen with Slot mill and D-14003
& Router drill ops together
2D, 3D Milling Stock model results incorrect D-14019
& Router
2D, 3D Milling X7 stock model compare doesn't regen in X9 D-14096
& Router
2D, 3D Milling Stock model showing incorrect results with D-14146
& Router transform op

PAGE 30
 Issue
Category Description
Numbers
2D, 3D Milling 2D HST cuts regions multiple times (once is D-14173
& Router enough)
2D, 3D Milling Transforming an operation that has no errors is D-14209
& Router spawning errors
2D, 3D Milling Bad values for force tool change on 1020 lines D-14212
& Router of NCI
2D, 3D Milling MGP/Job Setup & Stock model "all surfaces" D-14226
& Router button not working
2D, 3D Milling Surface Rough Flowline - gouging in the D-14232
& Router attached file
2D, 3D Milling Stock model crashes Mastercam D-14273
& Router
2D, 3D Milling Opti-rest cut order not ideal D-14331
& Router
2D, 3D Milling Optimize cut order within pocket - 2D dynamic D-14365
& Router core mill not working
2D, 3D Milling CheckHolder.dll crashes in X8 when clicking on D-14403
& Router the get from library button
2D, 3D Milling OpitRest operation creates empty toolpath in D-14405
& Router X8/X9
2D, 3D Milling Stock model won't calculate D-14420
& Router
2D, 3D Milling Surface HST Rest Roughing - feeds not output D-14480
& Router correctly without regen
2D, 3D Milling HST-Horizontal with Axial Offsets D-14488
& Router
2D, 3D Milling FBM Mill gouges part D-14500
& Router
2D, 3D Milling FBM milling entire part D-14513
& Router
2D, 3D Milling FBM Mill - Floor finish operation fails D-14569
& Router
2D, 3D Milling Chain Manager assert D-14576
& Router

PAGE 31
 Issue
Category Description
Numbers
2D, 3D Milling FBM Mill "Roughing" is creating an operation D-14595
& Router that wipes out the entire part
2D, 3D Milling 2D HST Rest rough doesn't machine all D-14599
& Router remaining material
2D, 3D Milling X7 file with 2D HST operation with a different D-14603
& Router type toolpath
2D, 3D Milling FBM Mill "Detect..." push button doesn't do D-14607
& Router anything in X9
2D, 3D Milling stock model - lathe stock flip regression D-14630
& Router
2D, 3D Milling HST-Project number of depth cuts spacing D-14664
& Router doesn't wake up
2D, 3D Milling Unchecking Lead In/Out checkbox also D-14688
& Router unchecks Entry & Exit checkboxes
2D, 3D Milling HST-Project number of depth cuts spacing D-14714
& Router doesn't wake up
2D, 3D Milling stock model - lathe stock flip D-14715
& Router
2D, 3D Milling Opti-rest won't regen - computation error - D-14740
& Router regression
2D, 3D Milling Can't rechain 2D HST Blend solid chains D-14745
& Router
2D, 3D Milling Stock model processing of lathe threading D-14767
& Router motion (possible X8 request)
2D, 3D Milling Silhouette boundary takes a long time and D-14776
& Router then yields no result
2D, 3D Milling Surface rest-mill non-related operations going D-14845
& Router dirty
2D, 3D Milling 3 to 5 Conversion drops the last clearance D-14887
& Router from toolpath
2D, 3D Milling Lathe Stock model won't process - lathe D-14921
& Router threads
2D, 3D Milling Surface HST Rest Roughing - feeds not output D-14924
& Router correctly without regen

PAGE 32
 Issue
Category Description
Numbers
2D, 3D Milling FBM crash D-14939
& Router
2D, 3D Milling 2D HST solid chains getting lost when reading D-15016
& Router in X7 file
2D, 3D Milling Surface HST Area Clearance gouging - Not a D-15099
& Router regression
2D, 3D Milling 2D HST chains database problem causes D-15129
& Router chains to be lost
2D, 3D Milling Surface HST Rest Roughing - feeds not output D-15211
& Router correctly without regen
2D, 3D Milling Lathe Stock model won't process - lathe D-15212
& Router threads
2D, 3D Milling 2D HST full tool burial - air region and optimize D-15233
& Router
2D, 3D Milling Start hole toolpath is crashing X8 PC1 D-15255
& Router
2D, 3D Milling X9 Stock Model/Stock Compare doesn't regen D-15327
& Router with multithreading turned off
2D, 3D Milling Erratic Dynamic Mill motion D-15437
& Router
2D, 3D Milling Swarf Stock model crashes Mastercam (X8 & D-15441
& Router X9)
2D, 3D Milling Peel finish pass outputting small rapid move D-15484
& Router
2D, 3D Milling Lathe Stock model won't process - lathe D-15485
& Router threads
2D, 3D Milling X6 part, when regened in X9, posts errant D-15511
& Router warning message about stepover being larger
than tool diameter - it isn't
2D, 3D Milling 3D HST Tool Containment/Material Boundary D-15526
& Router page needs new name
2D, 3D Milling Stock Compare is not quite right - remove D-15545
& Router unnecessary small offset applied to part
2D, 3D Milling HST-Hybrid Drive + Check reuses machining D-15580
& Router model incorrectly (pos stock)

PAGE 33
 Issue
Category Description
Numbers
2D, 3D Milling HST-Hybrid Drive + Check with Big Negative D-15590
& Router stock to leave is incorrect
2D, 3D Milling 2D HST full tool burial - air region and optimize D-15706
& Router (Split 1)
2D, 3D Milling Filter out unnecessary spindle speed changes D-15707
& Router
2D, 3D Milling Dyn Contour finish pass spindle speed D-15731
& Router override not output
3D HST Rest The auto containment boundary generated for B-27030
auto 3D HST rest roughing when a user does not
containment specify a boundary has been hooked up to the
tool containment adjustment controls
3D HST Rough 3D HST Roughing has been renamed and E-03076
Consolidation consolidated for X9 - Area Rough and Dynamic
OptiRough
ATP Fixed issue with reading some Cabinet Vision D-16085
cutlist files
CAM Core 3D HST Area Rough and Dynamic OptiRough D-15049
toolpaths not mapped correctly to X8 styles
Chaining In the chaining dialog, switching between D-15314
solid/wireframe mode then attempting to
remove the last chain would cause a crash
Change Exiting by clicking on a function (instead of R-02720/D-
Recognition checking the 'ok') will leave the toolpath Rapid 16048
and Feed colors incorrect
Converters Save as ACIS .SAT or .SAB is not saving closed D-16006
spheres
Converters STEP importer is creating duplicate edge R-02654/D-
curves 15969
Dynamic cut Dynamic Mill now supports 3 cut order B-27151
order selections
Dynamic Supports cut order for step up and step downs B-27152
OptiRough
Dynamic A dedicated zag feedrate has been added to B-26502
Zigzag Dynamic Mill when set to zigzag cut direction

PAGE 34
 Issue
Category Description
Numbers
General The 'Fit' command was not always working D-15298
with some toolpaths
General Copying/pasting geometry from one instance D-15554
of Mastercam to another was creating invalid
geometry
General Saving a drawing to an invalid location now D-15779
evokes a 'Save As’
General Changing work offset numbers via 'Edit D-15836
common parameters' would sometimes cause
a crash
Help Access to Mastercam tutorials is now available B-29320
from the Help menu within Mastercam
Improved 3D 3D HST Opti and Area rest rough linking has E-03391
HST rest been improved to avoid excessive retract
rough linking heights
Improved 3D HST now considers the actual length of the B-27442
taper tool tapered tool's flute, it is no longer considered
support infinite
Keep canceled You are now prompted to keep a 2D operation B-28887
2D ops when canceling out before processing the op
Lathe Lathe groove toolpath parameters don't update D-15591
properly
Lathe Lathe insert corner radius drop-down menu is D-15767
incorrect
Lathe In Lathe, the Cview utility is not working D-15769
correctly
Lathe Reference points and home position in X8 D-15772
lathe no longer have D values
Lathe Plunge Turn outputs F.2 at various positions D-15786
Lathe Lathe tools do not sort in detail view in the D-15802
operation
Lathe V8 files open with tools flipped and rotated D-15982
Levels In the Level Manager, 'Get Named Levels' and D-15844
'Set Named Levels' now supports names that
contain commas

PAGE 35
 Issue
Category Description
Numbers
Machsim IOF Simulation - Simulate the Jaw move B-27008
distances read from jaw machine component
Machsim IOF Simulation - Collision Detection controls B-28639
Groups added to interface
Machsim IOF Simulation: edit machine delete tree item B-28906
behavior so that list is not refreshed and reset
to top of list after each delete
Machsim Boring bar is showing up as a square holder in D-13781
MachSim
Machsim IOF Simulation: Work piece is not displayed D-15534
properly
Machsim Machsim - Mastercam crash on exit of D-15746
simulation
Machsim IOF: Fix problem with lathe cutter D-15972
compensation
Machsim Mill-Turn -- Simulation won't launch with D-15988
manual entry OPs in MCX-8
Migration Migration Wizard now respects and supports D-15816
post processor file versions
Mill Tools Changing the holder name in an assembly was B-26938
not updating the name in all places
Mill Tools Added warning message to edit holder when B-27403
user deletes all segments
Mill Tools Add missing properties to mill tool wizard B-27426
Mill Tools Corrected case where we would allow users to D-07948
create an invalid dove mill
Mill Tools Creating a dove mill with a 29.8 degree taper D-08459
was spawning errors
Mill Tools "An unnamed file has a bad format" error was D-09881
being raised when trying to open some part
files
Mill Tools Tool Manager gives bogus error message D-13311
based on tool values
Mill Tools Shank diameter was getting erroneously set to D-13937
cutting diameter when wizard loses focus

PAGE 36
 Issue
Category Description
Numbers
Mill Tools Tool Offsets were getting updated when holder D-14035
changed
Mill Tools Updating the X7 tool DB to X8 is dropping D-14135
tools from assemblies
Mill Tools Some Views Looked Incorrect in the Stand D-14287
Alone Tool Manager
Mill Tools Tool Wizard standard tool selection was not D-14400
bringing in correct tool name
Mill Tools Opening some databases in Mastercam Tool D-14433
Manager will no longer result in a crash
Mill Tools Copying op from one machine group to D-14575
another was not using the destination machine
group’s CD tool offset settings
Mill Tools Changing offsets in Mastercam "Classic" Tool D-14618
Manager was not updating the operation
Mill Tools Tool editor Files of Type drop-down works D-14666
properly now
Mill Tools Contour ops saved clean were coming in dirty D-14731
Mill Tools Tool projection was not being set when D-14737
creating a new assembly in the stand-alone
Tool Manager
Mill Tools Percent material FPT and SFM are D-14847
implemented correctly in tool wizard when
editing tool
Mill Tools Fixed Tool Manager graphics window hotkey 'f' D-14870
to FIT (consistent with context menu)
Mill Tools Creating a new holder library (from D-14994
Mastercam) with no holder selected was
crashing Mastercam
Mill Tools When opening an X7 part file in X8, it was D-15038
resetting the tool material back to HSS
Mill Tools Double Tools were being created with D-15329
Multiaxis Toolpaths
Mill Tools Changing holder was causing "Assembly has D-15793
changed" dialog to appear twice

PAGE 37
 Issue
Category Description
Numbers
Mill Tools Localization - long strings in Tool Manager D-15975
were getting truncated and pushing adjacent
controls out of view
Mill-Turn Enhancement: Error message needed for D-15464
clamping on nothing during a cutoff
Mill-Turn Swarf 5-axis toolpath with multi-pass and D-15641
depth cuts posts incorrect angles
Mill-Turn Manual entry Op causes crash with Spindle D-15737
view timeline-tab
Mill-Turn Reference Position GUIDs corrupted on some D-16036
PCs
Multi-Axis toolpath allocation too low warning D-13739
Machining
Multiaxis 5Ax - Tool doesn't retract to clearance plane D-07768
between surface start points
Multiaxis Safety Zone Autofind is not creating the D-15683
correct size shape on custom WCS's
Multiaxis Classic multiaxis - WCS - safety zone autofind D-15780
origin wrong
Planes Fixed D+Z+ display issues when working with D-15701
mixed mill and lathe planes
Planes In the Plane Manager, in some cases, unused D-15811
planes could not be deleted
Planes Unwanted planes were sometimes created D-15997
when reading in older drawing files
Probing Probe - Negative probe tool number not D-15476
allowed
Probing Probe - X8 - Heidanhein Missing macros D-15711
Radial chip Mastercam now supports radial chip thinning E-03399
thinning for selected toolpaths on the tool page
Simulator Simulator - Small UI enhancements - B-19646
wireframe, gnomon and axes visibility added
to Home tab in Simulator

PAGE 38
 Issue
Category Description
Numbers
Simulator Simulator - Warning dialog 'The Workpiece is B-29323
large and will take time to process' message
not necessary every time. Removed from
interface
Simulator Simulator - User wants ability to have 5-Axis B-29436
engine set as the default. Now tied to defaults
file
Simulator Simulator - Improve the Stop Conditions B-29437
function in Simulator
Simulator Simulator - Compare -If the Stock to leave for D-08735
the comparison is set to a negative value
incorrect results are shown
Simulator Verify reports collision where there does not D-14457
appear to be one
Simulator MCAM Simulator graphics issue w/ ATI cards - D-14701
Erratic looking results with precision set to full
Simulator Simulator - Distance and Point labels text D-15113
corrupt in Chinese
Simulator Simulator - repositioning moves (plane D-15135
changes within a toolpath) errantly received as
cut moves
Simulator Simulator - Verify Compare Not Showing D-15333
Overcuts
Simulator Simulator - 5axis Drill crashes through part on D-15810
plane change
Simulator UBVS: Can only back step at the end of a D-15840
session, forward stepping not working
Stock Model General improvements and defect fixes E-03393
User Interface Spinner controls now allow highlighting from D-15100
either the left or right
User Interface Bounding Box and Bolt Circle now have unique D-15335
access keys for navigating with the keyboard

PAGE 39
Issues Addressed in Mastercam X9 TP1
Mastercam X9 Technical Preview 1 included several bugs fixes, including the
following list:

Bug
Category Description
Numbers
API Nethook API method D-14738
GetCurrentMachineType() no longer fails.
API Fixed issue with clearing a Level Set name via D-14973
the Nethook API.
API If displayed, the Level Manager now updates D-15008
to reflect changes made by the Nethook API.
API New before/after posting events in the B-27293
Nethook API.
API New NestingParam NestAsSheet support in B-28150
the Nethook API.
ATP Folder locations can now be copied/pasted via D-15380
the field's right-click menu.
ATP "Set Z zero top of part" setting was now D-15606
working correctly.
ATP New option to post all processed part files B-28145
when not nesting.
Backplot Backplot now working when operation D-14958
compensation type set to control.
Bounding Box Fixed an issue where Bounding Box would R-02429
create a dirty solid.
C-Hook The Arc Multiedit C-Hook (downloadable add- D-15420
on) no longer crashes upon geometry
selection.
Chaining Feature chaining now ignores hidden entities. D-09029
Chaining Chains were sometimes not highlighted D-14271
properly after editing or adding additional
chains.
Configuration Default NC file extension can now be left D-13251
empty.

PAGE 40
 Bug
Category Description
Numbers
Configuration The “Components” feature in Advanced D-14993
Configuration now registers/unregisters
components correctly.
Converters Toleranced dimensions come in correctly from D-13275
DWG files.
Converters "Toolpath Group-1" is no longer deleted when D-13930
importing 3rd party files.
Converters Inventor 2015 files now import correctly. D-14627
Converters Importing a folder of STEP files no longer only D-14903
displays the first level.
Converters Auto highlight and cursor selection are now D-14970
working on certain surfaces from IGES files.
Create, Curve, Fixed issue with bad surface data and location D-15418
One edge of results.
Dynamic Fixed various inactive fields on ribbon bar. Ctrl- D-15408
Xform V now supported in text entry field. D-15728
Edit, Break Fixed issue with splines. D-15126
Many, Splines
FBM Mill Fixed issue where "Roughing" created an D-14595
operation that machined through the part.
Fastpoint entry Fixed issues with Lathe planes. R-02432
method
General Operation comments now support multiple D-09676
line entries.
General Improved performance when re-selecting a D-14152
large number of drill points.
General Fixed issue where start and end angles were D-14454
not being preserved when doing an Xform
Rotate of a circle about the X-axis.
General Fixed issue where McDigitize C-Hook was not D-14470
saving or reading the Parity Bits setting.
General McDigitize C-Hook now saves its configuration D-14471
(*.prm) file to a valid location.
General Improved performance when saving shaded D-14538
models.

PAGE 41
 Bug
Category Description
Numbers
General Improved user feedback when opening, D-14554
saving, and closing large files.
General Fixed issue where coolant setting was not D-14726
being set when importing operations from
another part file.
General Debug message no longer displays when D-15264
working with Wire part files.
General When importing operations, the last used B-28109
source library is now remembered/restored.
Graphics Display Options - Highlight geometry colors D-14706
now displays properly.
Graphics Improved display performance when using D-14708
Display Options - Highlight geometry colors.
Graphics Drawing screen now refreshes when deleting D-14827
point entities.
Graphics Point toolpaths now being drawn during D-14945
creation.
Graphics Wireframe geometry no longer bleeds through D-15146
shaded stock models.
Graphics The color of a solid used in an operation no D-15261
longer reverts to the default when reselected.
Graphics Changing the graphics background color no D-15406
longer affects solid face highlight display.
Graphics Part now displays correctly when simulating D-15426
rotary axis with the origin lines displayed (F9)
in Classic Backplot.
Graphics The gnomon and status bar indicator now D-15604
display during Classic Backplot.
Graphics Additional surface outline display B-28157
improvements.
Graphics Improved (smoother) gradient background B-28635
effect.
Lathe Fixed error when chaining splines. D-09636

PAGE 42
 Bug
Category Description
Numbers
Lathe Lathe now retains automatically generated D-13490
points when Face operation references
remaining stock.
Lathe Stock getting wiped out for no reason. D-13751
Lathe Fixed "Unable to extract lathe profile from D-14109
solid" error.
Lathe "Only between passes" setting now retained in D-14567
Tool Inspection.
Lathe Lead in amount now working correctly. D-15028
Lathe Groove Finish passes now correct with comp D-15373
in control.
Lathe Fixed ThreadC defect. D-15381
Lathe Groove toolpath parameters now update D-15591
properly.
Lathe Tools Lathe custom tool now showing correctly. D-13243
Lathe Tools Fixed issue where Lathe Tool Manager quick D-14733
drill chart values were not sticking.
Lathe Tools Error no longer reported when exporting Lathe D-14765
tooldb file into text format.
Lathe Tools Corrupt tools in Lathe no longer corrupting D-14966
part.
Levels Deleting drawing objects from within the Level D-14709
Manager no longer corrupts solids
information.
Levels In the Level Manager, characters following a D-14100
colon (:) now display.
Levels In the Level Manager, names now update when D-15709
importing from CSV files.
Levels In the Level Manager, the "Only main level is B-28351
visible" option state now persists within a
session.
Localization Improved translation support for the "Save As" D-15152
dialog.

PAGE 43
 Bug
Category Description
Numbers
Localization Improved translation support for the Plane D-15182
Manager context menu.
Localization Improved translation support for Zip2Go. D-15496
Machine Fixed icon display on Cplane, WCS, HTC/VTL D-13636
Definition tab (General Machine Parameters).
Machine The External Post option no longer shows D-14853
Simulation duplicate tools.
Mastercam MCAM Simulator no longer shows negative D-14681
Simulator cycle times when a Lathe Thread operation is
selected.
Mastercam Simulator now retains all custom defaults. D-14742
Simulator
Mastercam Fixed control arc simulation error. D-14234
Simulator
Mastercam Simulation of Xform Rotate (Mill-Turn) now D-14458
Simulator working.
Mastercam Simulator no longer losing display of stock D-15465
Simulator when verifying Lathe Stock Transfer
operations.
Migration Holder files no longer only flagged as metric. D-15666
Migration Consolidated migration (event) log. B-27169
Mill Tools Generating a tool list from the right click menu D-06826
from the Toolpaths Manager was only
generating tools from the last Machine Group.
Mill Tools 20004 NCI Line now gets updated in BNCI. D-06944
Mill Tools Dove tail tool now valid in Simulation. D-08978
Mill Tools Corrected case where a tool edited in X7-MU1 D-09406
(MCX-7) displayed differently than when edited
in X8.
Mill Tools Holder segments are no longer being drawn D-09562
incorrectly.
Mill Tools Refresh button no longer clears the GAF D-09564
window of everything except the selected
item.

PAGE 44
 Bug
Category Description
Numbers
Mill Tools Simulation no longer issuing an invalid tool D-11199
warning on a parametric dove-mill definition.
Mill Tools Corrected failure to produce invalid tool D-13523
warning on face mill.
Mill Tools Fixed issue where changing tool number and D-14076
length offset was not correct.
Mill Tools Fixed problem with custom profile tapered D-14177
endmill tool.
Mill Tools Fixed invalid tool error in Simulator. D-14185
Mill Tools Tool offsets now correct when importing D-14409
operations.
Mill Tools Changing tool number, length and diameter D-14695
offsets now updating the BNCI properly.
Mill Tools Changing a machine definition using "old" style D-14711
coolant to a machine definition using "new"
style coolant is no longer clearing the coolant
settings.
Mill Tools Modifying tool offsets now updating the BNCI D-14716
in all cases.
Mill Tools Fixed issue where creating a tool with the D-14747
some DXF files was not creating the tool
profile properly.
Mill Tools Fixed issue with the corner radius field getting D-14794
re-set when clicking in the Mastercam screen.
Mill Tools Speed and Feed Calculator, percentages of D-14846
material SFM and FPT are now being saved
properly.
Mill Tools Tool number can now be set to 0 in the Mill D-14881
Tool Wizard.
Mill Tools Tool number can now be changed in the stand- D-14882
alone tool manager when multiple items are
selected.
Mill Tools Default extension for holders now set to D-14884
.TOOLDB.

PAGE 45
 Bug
Category Description
Numbers
Mill Tools Added % of CS / FPT and Req. Pilot Diameter D-14889
and Chuck to Tool Wizard.
Mill Tools Improved performance for Recalculate Feed & D-14899
Speeds button in Tool Wizard.
Mill Tools Offsets now correctly updated when selecting D-14940
the Update All option in the Assembly has
Changed dialog.
Mill Tools Create Lollipop tool sets corner radius to zero D-15021
in toolpath parameters.
Mill-Turn Fixed error when using axis substitution on D-07509
pre-rolled geometry.
Mill-Turn Mill-Turn (MP.NET) - Watch variables are now D-13772
cleared when debugging.
Mill-Turn Corrected DrillPtClearance value for hole- D-13962
making operations.
Mill-Turn Fixed defect in POCO operations that caused D-14746
right spindle chuck to flip.
Mill-Turn POCO positions multiple parts now are D-15456
automatically advanced.
Mill-Turn Manual entry operation no longer causes crash D-15737
with Spindle view timeline-tab.
Model Prep, Addressed speed issues introduced with R-02600
Hole Axis ParaSolids update.
Multiaxis 5Ax Classic - Curve - Toolpath no longer D-13312
applies the reference point before the
retraction.
Multiaxis 5Ax Classic - Curve - Now supports Tool Axis D-13390
Control lines that share the same end point.
Multiaxis The Switch to Advanced Interface button in the D-14174
Convert to 5 Axis dialog no longer causes
Mastercam to crash.
Multiaxis 5Ax Classic - Curve - Fixed issue with end of D-14649
the cut.

PAGE 46
 Bug
Category Description
Numbers
Multiaxis 5ax - Surface/Solid Triangular Mesh - Fixed D-14734
issue with Invalid big tool diameter error
message.
Multiaxis 5Ax Classic - Curve 5 Axis no longer exits with D-14818
rapid move.
Multiaxis 5ax Curve - Fixed issue with toolpath not D-14925
following a chained spline.
Nesting Fixed various issues. D-15529
Nesting Fixed minor Onion skin issues. D-13534
D-14515
D-14516
D-15607
D-15838
Planes Column widths in the Plane Selection dialog D-13687
are now re-sizable and remembered.
Planes The Plane Manager now respects the "Planes D-15059
ALWAYS = WCS" option.
Planes With "Planes ALWAYS = WCS" active, the D-15061
default Cplane is no longer being set when
loading a Machine Definition.
Planes Planes can no longer be named "Cplane", D-15197
"Tplane", "WCS", or "Gview”.
Planes The planes information in the status bar no D-15228
longer flickers when changing the Gview if
"Planes ALWAYS = WCS" is active.
Planes The New Plane prompt no longer displays D-15295
when trying to edit a local machine definition.
Planes With "Update Cplane when changing Gview" D-15340
active, Cplane is no longer set to ISO when
Gview is changed to ISO.
Planes Toolpaths Manager text now updates when D-15421
changing plane names in the Plane Manager.
Planes The Z depth in the status bar no longer resets D-15438
to "0" when changing the WCS via the toolbar.

PAGE 47
 Bug
Category Description
Numbers
Planes Improved performance of Plane Manager D-15470
when adding plane information. D-15873
Planes Origin values of custom planes are now D-15472
rounded.
Planes Operation-defined work offsets of X7 (or older) D-15479
part files no longer being changed when
opened.
Planes '"Distance between two points" command now D-15608
returning the selected point values.
Planes Plane Manager no longer crashes on launch. D-15658
Planes "Detect Limits" on the "Steep/Shallow" D-15734
operation parameter page now detects the
proper values from the Tplane.
Planes Plane Manager list is now sortable. B-16872
Planes New option to apply a parent work offset to all B-27215
spawned planes when creating relative planes
from the Plane Manager.
Primitive with Now uses the Surface color. D-15198
Surfaces
Printing Fixed issue with Printing to PDF driver D-15737
outputting multiple instances of the screen
info.
Productivity Probe - Incorrect NCI 1012 data no longer D-09076
Plus written during Probing operations.
Productivity Probe Post errors and warnings now displayed D-14691
Plus in Probe Post dialog.
Productivity Restored missing Heidehain files after D-15376
Plus updating RenMF.
Selection When using Verify Selection, the previewed D-15330
entity was not being highlighted.
Selection Improved selection of wireframe geometry B-22070
that resides "on top of" solid faces.
Selection Auto-highlight color now used for solids and B-28391
surfaces.

PAGE 48
 Bug
Category Description
Numbers
Setup Sheet Fixed issue with NCFile Time- Short. D-15181
D-15819
B-27153
Solids Smart Chains now working with Xform Offset, D-15229
Xform Offset Contour, and Xform Project.
Solids Preview checkbox now stays modal for the D-13611
session.
Solids Fixed rare case of Analyze causing solid to go R-02490
dirty.
Solids, Fixed conflict with Level Manager and target D-15231
Boolean body selection.
Solids, Corrected improper argument when chaining D-15121
Extrude is interrupted.
Solids, Improved Tesselation speed when using the D-15114
Extrude single axis arrow.
Solids, Fixed an issue with disjoint body message B-15874
Extrude when Through all is selected.
Solids, Push/ Corrected Split face issues with Push/Pull. D-14673
Pull
Stock Model Corrected case of Stock model leaving cusps D-08310
in a file.
Stock Model Fixed issue with Stock model not calculating D-09734
solid models.
Stock Model Stock model no longer fails to regenerate D-13391
when the source operation uses a form tool.
Stock Model Fixed issue where Stock model would not D-13908
regenerate.
Stock Model Fixed Stock Model crash when processing a D-13934
drill operation.
Stock Model Corrected case where an incorrect stock model D-14019
was generated.
Stock Model Fixed issue with Stock model not calculating D-14420
solid models.
Surface, Fixed issue with small radii and point selection.
Ruled/Lofted

PAGE 49
 Bug
Category Description
Numbers
Surface, Fixed an issue with the wrong twist on a helical D-15214
Swept curve.
Toolpaths, 2D Pocket - Trochoidal cuts group box now D-06344
properly initialized.
Toolpaths, 2D Toolpath now recognizes internal corner radius D-06820
when contour type set to ramp.
Toolpaths, 2D Operation no longer creates extra plunge D-13722
move.
Toolpaths, 2D Contour no longer outputs a plunge move in D-13887
the Z that causes a machine gouge.
Toolpaths, 2D Island facing no longer producing multiple D-08058
High Speed helix entries.
Toolpaths, 2D Dynamic Mill now leaves correct amount of D-08371
High Speed stock.
Toolpaths, 2D Finish pass spindle speed override now D-10138
High Speed recognized. D-15707
Toolpaths, 2D Fixed issue with Cut Order Optimization. D-14365
High Speed
Toolpaths, 2D 2D HST full tool burial - air region and D-15233
High Speed optimize. D-15706
Toolpaths, 2D Corrected case of erratic Dynamic Mill motion. D-15437
High Speed
Toolpaths, 2D Now filters out unnecessary spindle speed D-15707
High Speed changes.
Toolpaths, 2D Finish pass spindle speed override now D-15731
High Speed recognized.
Toolpaths, Corrected issue with Circle Mill feedrate D-09286
Circle Paths override.
Toolpaths, Fixed issue with Helix Bore not working when D-13773
Circle Paths set to arcs.
Toolpaths, Start hole toolpath no longer causes D-15255
Circle Paths Mastercam to crash.
Toolpaths, Mill Arc Filter "Smoothing" no longer being D-09513
and Router disabled when importing operations.

PAGE 50
 Bug
Category Description
Numbers
Toolpaths, Mill Turning on High Feed no longer causes D-13463
and Router toolpath to omit last depth cut.
Toolpaths, Mill Fixed issue where a forced tool change output D-14212
and Router bad NCI code.
Toolpaths, Parallel setting now being recognized. D-07783
Surface Finish
Toolpaths, Corrected case where Leftover toolpath would D-08498
Surface Finish not regenerate.
Toolpaths, Containment boundaries now support B-29377
Surface High confining tool contact points for Raster, Radial,
Speed Spiral, Scallop, and Waterline toolpaths.
Toolpaths, Hybrid - Fixed issue with regenerated toolpath D-08766
Surface High over-trimming data.
Speed
Toolpaths, Scallop - Now works when tolerance set to D-08994
Surface High .0001 (or 0.000086).
Speed
Toolpaths, Hybrid - Check surfaces no longer gouged D-09272
Surface High when containment boundary set to Inside.
Speed
Toolpaths, Hybrid no longer calculates the toolpath twice. D-09431
Surface High
Speed
Toolpaths, Corrected Stock model results. D-10120
Surface High
Speed
Toolpaths, Hybrid no longer machining the drive D-13613
Surface High geometry multiple times.
Speed
Toolpaths, Micro lift no longer causing a gouge. D-13810
Surface High
Speed
Toolpaths, Cut order improved. D-14331
Surface High
Speed

PAGE 51
 Bug
Category Description
Numbers
Toolpaths, OpitRest operation no longer creating empty D-14405
Surface High toolpath.
Speed
Toolpaths, Corrected case of toolpath gouging the part. D-15099
Surface High
Speed
Toolpaths, Corrected case of Flowline toolpath gouging a D-14232
Surface Rough part.
Toolpaths, Rest Mill no longer causes non-related D-14845
Surface Rough operations to go dirty.
Toolpath Improved placement when translating D-14753
Transform toolpaths between views/planes.
Toolpath Rotation of a translated toolpath no longer D-15359
Transform causes inverted arcs.
Wire Corrected issue where Approach feedrate/ D-06381
power setting was not being output.
Wire Fixed issue where direct 4 axis was linearizing D-14504
an arc.
Wire Fixed issue with "Break Closest entity to thread D-15345
point".
Zip2Go ATP files now being included when requested. D-15814
Zip2Go Workspace files now being included when D-15720
requested.

PAGE 52
