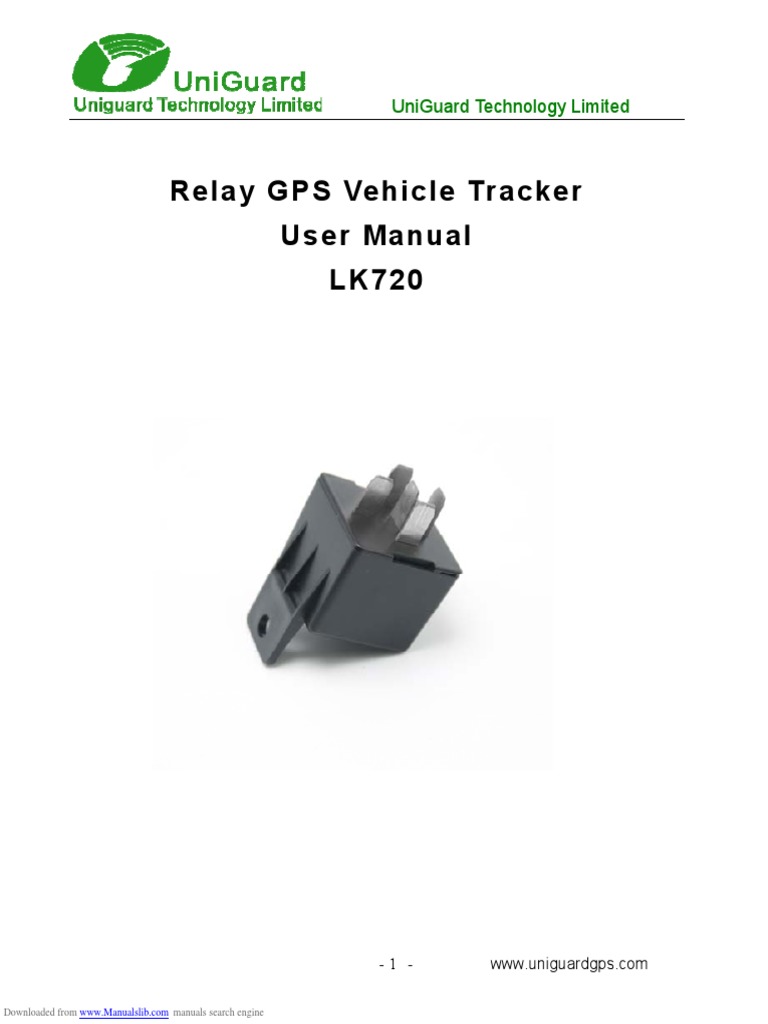

UniGuard Technology Limited

Relay GPS Vehicle Tracker

User Manual
LK720

-1 - www.uniguardgps.com

Downloaded from www.Manualslib.com manuals search engine

 UniGuard Technology Limited

1 Product Instructions

LK720 is a mini GPS Tracker in shape of relay, built-in GPS Antenna

and GSM Antenna, Size: 31*31*57 mm, Weight: 29.3g, it can send vehicle
location and status to mobile and Internet. It can track the vehicles remotely.
Tracker the vehicle on the Internet and Mobile. (Wide working voltage
10V-40V.)

-2 - www.uniguardgps.com

Downloaded from www.Manualslib.com manuals search engine

 UniGuard Technology Limited
1.1 Parameters

Item Descriptions
Dimension 31*31*57 mm
Weight 29.3g
GSM Frequency GSM 850/900/1800/1900Mhz
GPS Module Ulbox
GPS Sensitivity -159dBm
GPS Accuracy 5m
Cold start 35-80s
Time to first fix Warm start 35s
Hot start 1s
Working voltage 10-40V
Battery Built-in 3.7V 80Ma Li-ion battery
Storage Temperature -40°C to +85°C
Working Temperature -20°C to +55°C
Working Humidity 5%--95% non-condensing

-3 - www.uniguardgps.com

Downloaded from www.Manualslib.com manuals search engine

 UniGuard Technology Limited
1.2 Installation Figure

Picture 1 Picture 2

Picture 3

-4 - www.uniguardgps.com

Downloaded from www.Manualslib.com manuals search engine

 UniGuard Technology Limited

(I) Open the cover, Insert a mini SIM card support GSM/GPRS network
into the slot and make sure the chip side is up.
(II) Connect cable follow above picture.
(III) Set admin number, by sending a SMS command to the SIM card
inside device.
For example: admin123456 +86123********
(IV) Set APN: APN123456 CMNET (please use your local APN instead
of CMNET)

-5 - www.uniguardgps.com

Downloaded from www.Manualslib.com manuals search engine

 UniGuard Technology Limited

2 SMS Operation Instruction

Function Command Reply Delete Example

Format
apn123456 apn apn ok Apn123456
APN cmnet
apnuser123456 apnuser
user okay
apnpassword12345 apnpassw
6 pw d ok
Admin admin123456 admin ok noadmin
number number 123456
Time sleep sleep123456 time sleep time
okay
Shock sleep sleep123456 shock sleep
shock ok
No sleep sleep123456 off sleep off
ok
Upload upload123456 time upload ok upload1234
interval 56 10
Cut oil 555 Cut oil OK Resume 666
oil
Arm&Disar 111 or SF Arm delay 000 or CF
m in 0s
Position G123456# or where
Restart rst restart ok
Factory format No reply
restore
-6 - www.uniguardgps.com

Downloaded from www.Manualslib.com manuals search engine

 UniGuard Technology Limited

3 GPRS Settings

3.1 Set APN (APN(Access Point NAME))

SMS command: APN123456 apn (The second APN is SIM card APN)
Example : APN123456 CMNET
REPLY : OK ! APN,CMNET

3.2 Set the IP and Port

SMS Command : adminip123456 104.243.132.242 8000

3.3 Set GPRS Interval

When there is vibration, GPRS interval command : upload123456 time

time=10-180, unit is seconds

e.g. upload123456 10

4 GPS tracking system on website

4.1Login www.demogps.com to start web tracking service with your

own account
4.2 Download wechat, register a wechat account, search
GPSCARTRACK and follow, login the system with your own account.
