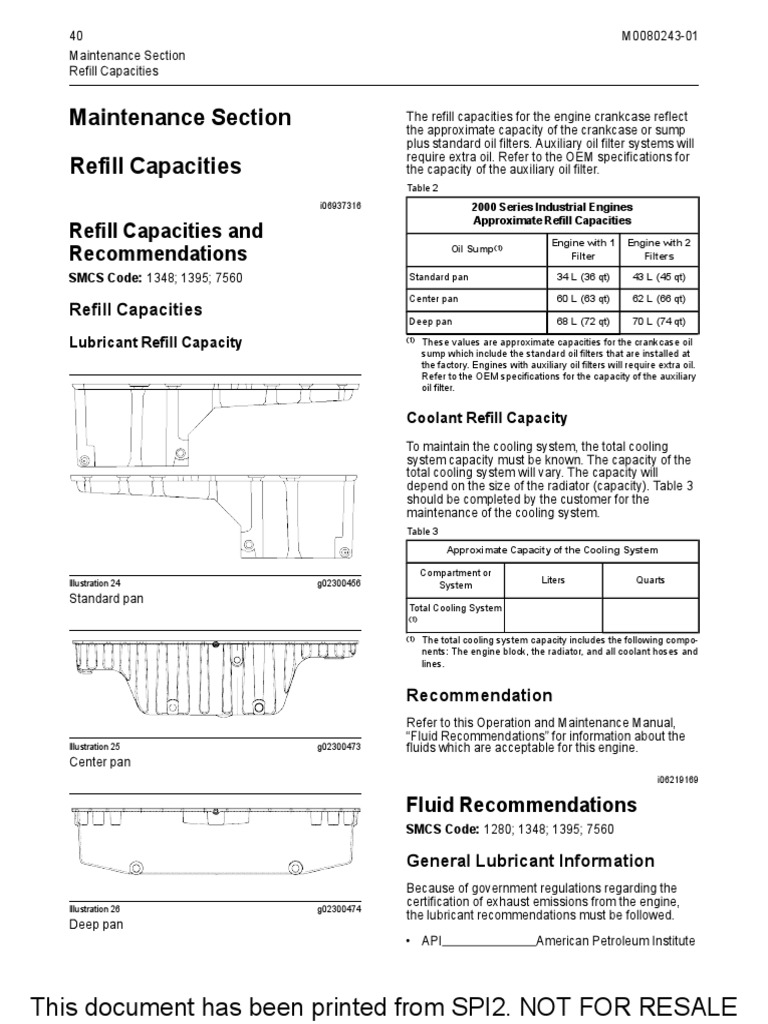

40 M0080243-01

Maintenance Section
Refill Capacities

Maintenance Section The refill capacities for the engine crankcase reflect
the approximate capacity of the crankcase or sump
plus standard oil filters. Auxiliary oil filter systems will
require extra oil. Refer to the OEM specifications for
Refill Capacities the capacity of the auxiliary oil filter.
Table 2
i06937316 2000 Series Industrial Engines
Approximate Refill Capacities
Refill Capacities and Engine with 1 Engine with 2
Recommendations Oil Sump(1)
Filter Filters

SMCS Code: 1348; 1395; 7560 Standard pan 34 L (36 qt) 43 L (45 qt)

Center pan 60 L (63 qt) 62 L (66 qt)

Refill Capacities
Deep pan 68 L (72 qt) 70 L (74 qt)

Lubricant Refill Capacity
(1) These values are approximate capacities for the crankcase oil
sump which include the standard oil filters that are installed at
the factory. Engines with auxiliary oil filters will require extra oil.
Refer to the OEM specifications for the capacity of the auxiliary
oil filter.

Coolant Refill Capacity

To maintain the cooling system, the total cooling
system capacity must be known. The capacity of the
total cooling system will vary. The capacity will
depend on the size of the radiator (capacity). Table 3
should be completed by the customer for the
maintenance of the cooling system.
Table 3
Approximate Capacity of the Cooling System

Compartment or
Illustration 24 g02300456 Liters Quarts
System
Standard pan
Total Cooling System
(1)

(1) The total cooling system capacity includes the following compo-
nents: The engine block, the radiator, and all coolant hoses and
lines.

Recommendation
Refer to this Operation and Maintenance Manual,
“Fluid Recommendations” for information about the
Illustration 25 g02300473 fluids which are acceptable for this engine.
Center pan
i06219169

Fluid Recommendations
SMCS Code: 1280; 1348; 1395; 7560

General Lubricant Information

Because of government regulations regarding the
Illustration 26 g02300474
certification of exhaust emissions from the engine,
the lubricant recommendations must be followed.
Deep pan
• API American Petroleum Institute
