Common Corrugating Problems

23-Mar-20

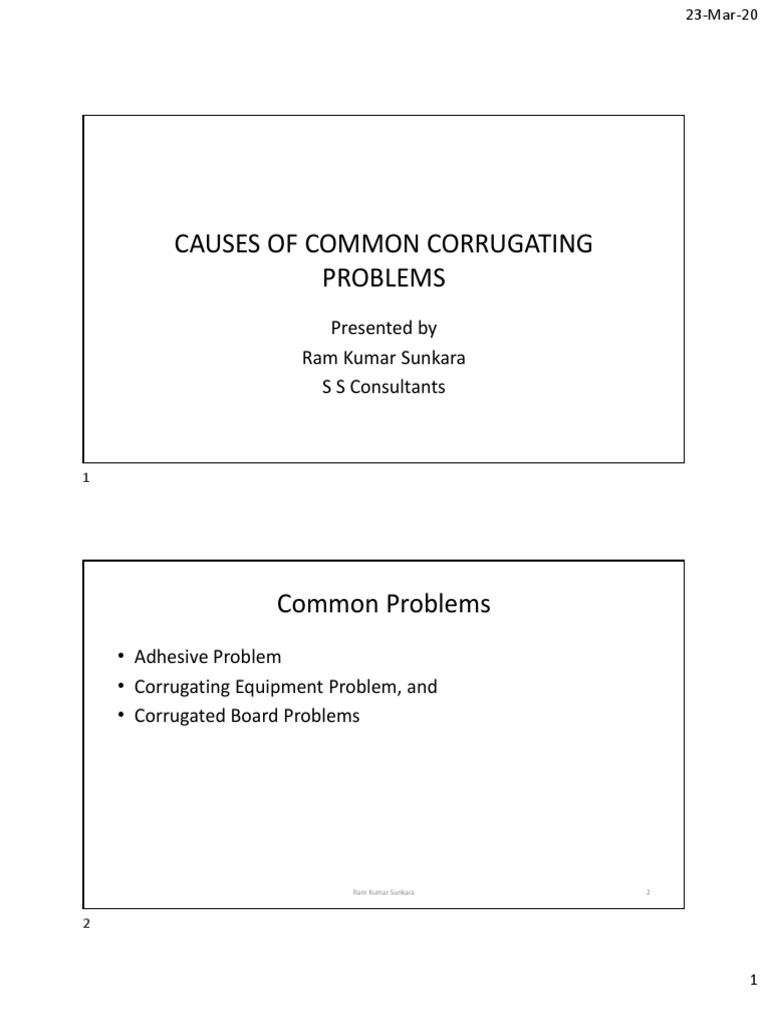

CAUSES OF COMMON CORRUGATING

PROBLEMS
Presented by
Ram Kumar Sunkara
S S Consultants
Common Problems
• Adhesive Problem
• Corrugating Equipment Problem, and
• Corrugated Board Problems
Ram Kumar Sunkara 2
1
23-Mar-20
Adhesive Problems
• Viscosity problems
• Gel Temperature problems
• Adhesive circulation problems.
Ram Kumar Sunkara 3
Adhesive viscosity
• Adhesive viscosity is a critical parameter for quality corrugated
board.
• It is a relatively easy variable to control when the underlying
cause of a problem is understood.
Ram Kumar Sunkara 4
2
23-Mar-20
DIAGNOSING VISCOSITY PROBLEMS

• Low viscosity at the mixer.
• High viscosity at the mixer
• Low viscosity at the storage tanks
• High viscosity at the storage tanks
• Low viscosity at the machine
• High viscosity at machine
• Viscosity decrease after overnight storage
Ram Kumar Sunkara 5
Low Viscosity at the Mixer

• Not enough starch in the cook portion of the formula
• Too much water in the cook portion of the formula
• Too much water in the secondary addition or secondary
mixer
• Cooked portion too hot (+71⁰ C)
• Finished batch too hot
• Too much shearing of the cooked portion of the adhesive
• Finished batch being mixed too long
• Substituting incorrect borax (5 mol vs. 10 mol)
Ram Kumar Sunkara 6
3
23-Mar-20
High Viscosity at the Mixer

• Too much starch in the cook portion of the formula
• Too much starch in the secondary mixer
• Not enough water in the cook portion of the formula
• Cook portion too cold
• Finished batch too cold (optimum temperature 38 to 40 CE)
• Not enough shearing of the cooked portion of the adhesive
• Finished batch not being mixed long enough
• Improper distribution of borax
• Substituted incorrect borax (5 mol vs. 10 mol)
Ram Kumar Sunkara 7
Low Viscosity at the Storage Tanks

• Temperature of the adhesive set too high
• Storage tank agitators running continuously
• Unwanted water in adhesive
• Over shearing of the adhesive
• Old adhesive (stored too long)
• Adhesive treated with resin (WPA) mixed with domestic
paste
• Low solids adhesive formula
• Microbiological contamination of adhesive
Ram Kumar Sunkara 8
4
23-Mar-20
High Viscosity at the Storage Tanks

• High viscosity paste coming from the mixer
• Adhesive viscosity “growing” in storage
• Adhesive cold
• Storage tank agitators not operating properly
Ram Kumar Sunkara 9
Low Viscosity at the Machine

• Adhesive too hot
• Low viscosity adhesive coming from the storage tanks
• Adhesive being sheared
Ram Kumar Sunkara 10
10
5
23-Mar-20
High Viscosity at Machine

• Paste too cold
• High viscosity paste coming from the storage tanks
11
Viscosity Decrease After Overnight or Weekend

Storage
• Cleanup water returned to storage tanks
• Agitators/circulating pumps left running
• Circulation lines full of water
• Neglected extra preservative to compensate for wash up water
or process water
• Bacteria
12
6
23-Mar-20
Adhesives viscosity growing in storage
• Too much caustic in the formula

– Scale not calibrated
– Caustic meter out of calibration
• Not enough borax in the formula
– Scale out of calibration
– Borax timer set improperly
– Wrong type of borax (5 mol vs. 10ml)
13
DIAGNOSING GEL TEMPERATURE PROBLEMS

• Gelatinisation temperature too high
• Gelatinisation temperature too low
14
7
23-Mar-20
Gelatinization Temperature Too High

• Not enough caustic in the adhesive
– Caustic meter set too low
• Too much borax in the adhesive
– Borax timer not working properly
15

• To much starch in the adhesive
• Too much water in the adhesive
– Water meter out of calibration
– Mixer scale out of calibration
16
8
23-Mar-20

• Substituted incorrect borax in formula (5 mol vs. 10 mol vs.
boric acid)
• Borax too old (dry, becomes more concentrated)
• Caustic soda beads too old
• Liquid caustic too cold
17

• Caustic stratified in storage tank sending low concentrations of
caustic
• Wrong concentrations of caustic
• Adhesive stored too long
• Addition of resin into adhesive
18
9
23-Mar-20
Low Gelatinization Temperature

• Too much caustic in the adhesive
– Caustic meter set too low
• Not enough borax in the adhesive
– Borax timer not working properly
– Borax discharge tube plugged
19
Low Gelatinization Temperature

• Not enough starch in the formula
• Problems with caustic soda
– Liquid caustic too cold
– Liquid caustic crystallised in storage tanks, sending high
concentration of caustic
– Using wrong concentration of liquid caustic
• Substituted incorrect borax in the formula (5mol vs. 10 mol vs.
Boric acid)
20
10
23-Mar-20
Adhesive Preparation and

circulation problems
21
Adhesive too hot
• Bad flow through the starch pan

• Cooling jacket problem
– Cooling jacket not installed
– Bad or no water flow (plugged)
– Water not cool enough
• Adhesive supply pipes run next to un-insulated steam pipes
• Ambient air temperature too high (seasonal)
• Long adhesive pipe runs along ceiling
22
11
23-Mar-20
Adhesive being sheared

• High rpm supply and return pumps
• Air pumps operating at too high an air pressure
• Too many elbows in the supply and return lines
• Valves in the supply lines partially open
• Adhesive supply lines reduced in size
23
Over shearing of the adhesive

• High rpm supply and return pumps
• Too many elbows in the supply and return lines
• Supply and return line pipe diameter too small
• Pipe size reductions in supply and return lines.
• Partially open valves in supply and return lines
• Air pressure too high on air diaphragm pumps
24
12
23-Mar-20
Temperature of the adhesive too high

• Temperature set too high
• Adhesive returning from machine at an elevated temperature
• Finished batch temperature too high
• Bad bearings on the agitator, causing the shaft to overheat
• Bad bearings on the supply/return pump
25
Adhesives viscosity growing in storage

• Too much caustic in the formula
– Scale not calibrated
• Not enough borax in the formula
– Borax timer set improperly
– Wrong type of borax (5 mol vs. 10ml)
26
13
23-Mar-20
Adhesive too hot

• Bad flow through the starch pan
• Cooling jacket problem
– Cooling jacket not installed
– Bad or no water flow (plugged)
– Water not cool enough
• Adhesive supply pipes run next to un-insulated
steam pipes
• Ambient air temperature too high (seasonal)
• Long adhesive pipe runs along ceiling
27
Foaming of Adhesive in Pans

• Poor bonding and high starch consumption
• Air in starch lines
• Leak in pumps
• Wrong wiper blade or dirty wiper blade on metering roll
• Wash waste water used for adhesive make up
• Resin in the adhesive
• Low viscosity adhesive
28
14
23-Mar-20
Adhesive Gels on Fingers

• Impact is -
– High starch consumption,
– Poor bonding,
– Low pin adhesion,
– Poor top to bottom compression,
– Low production speeds.
• Gel temperature of adhesive too low
• Adhesive viscosity too high
29
Adhesive Gels on Fingers

• Temperature high in glue pan
• Medium improperly conditioned
• Medium surface temperature too hot
• Paper temperature of medium too high
• Fingers worn
• Cleanout fingers too loose or tight against glue roll
• Taper speed set above 96 percent of paper speed
• Water flow to cooling pan is incorrect
30
15
23-Mar-20
BOARD QUALITY PROBLEMS

• Soft Board
• Washboard
• Dry Board, tipper Board
• Leaning Corrugation
• Slipping Board General
31

• Cracker Board
• Light Glue pattern at Double Backer
• Light Glue pattern at Single Facer
• Foaming of adhesive in pans
• Adhesive Between Flutes
• Dry Streak
• White Glue Line
32
16
23-Mar-20

• Spotty Glue Application - Single Facer
• Adhesive Sets Up on Fingers
• Loose Edge Single Facer Side
• Loose Edge Double Backer Side
• High and Low - Flutes not Glued
• Highs and Lows Corrugation
• Blisters
33

• Normal Warp (Side to Side Up)
• Reverse Warp (Down Warp)
• S Warp
• Machine Direction (End to End Warp)
• End to End A Up ≈ Warp
• End to End A Down ≈ Warp
34
17
23-Mar-20

• Cross Machine Direction - Side to Side
• Twist Warp
• Post Warp
35
Soft Board
• Impact of soft board on performance of the board are:
• Causes poor pin adhesion,
• Low top to bottom compression,
• Poor print quality
36
18
23-Mar-20
Soft Board
• Excessive adhesive application due to floating bearings,
worn bronze bushings
• Too much steam in the Gaylord Showers
• Wet paper - medium or liners.
• Excessive rider roll pressure at double backer glue machine,
crushing flute tips
• Uneven roller pressure in hot plates or cooling section of
double backer
• Board cut off knife pressure too high
37
Washboard Appearance
• Usually occurs once board has cured and causes poor printing
surface,
• Brittle edges during conversion
38
19
23-Mar-20
Washboard Appearance
• Heavy adhesive application at single facer or double backer
• Low solids adhesive
• Wet paper (roll stock stored outside)
• Excessive heat applied to light weight liners
• Glue roll set to wrong paper speed
• Over dried liners
39
Dry Board, Zipper Board

• Creates waste,
• Low pin adhesion,
• Poor top to bottom compression
40
20
23-Mar-20
Dry Board, Zipper Board

• Adhesive application at single facer or double backer too light
• Low viscosity adhesive (water penetrates paper too quickly)
• Too much borax in formula
• Glue roll in double backer at wrong speed (paper comes apart
easily in one direction, but has good fibre pull in the other
direction).
• Too much heat application at single facer or double backer
41
Leaning Corrugation
• Causes low board calliper,
• Poor pin adhesion,
• Poor top to bottom compression,
• Poor printing surface.
42
21
23-Mar-20
Leaning Corrugation
• Misalignment of corrugator rolls
• Excessive wear on corrugator rolls
• Pressure between corrugator rolls too low
• Excessive rider roll pressure at double backer glue station
• Excessive drag on the single face web at the double facer
• Adhesive application at single facer or double backer
43
Slipping Board - General

• Excessive tension on double facer
• Loose or worn belts
• Belt rollers lift
• Top and bottom belts travelling at different speeds
• Treatment or finish of bottom liner causing excessive drag on
the hot plates
44
22
23-Mar-20
Slipping Board – Surface bond only

Delaminates after curing.
• Excessive drag on single face web
• Loose or worn corrugator belts in double facer
• Hot plate rollers are up
• Rollers are up in pulling section of the double facer
• Corrugator belts travelling different speeds
• Coating on bottom liner creating drag
45
Cracker Board
• Generates crackling sound when flexed.
• Slippage between single facer web and double backer liner
• Light glue application
• Use of low solids glue
• Excessive unglued or high-low corrugations
• Excessive borax in formula
• Liners too hot
• Medium too dry
• Too much drag on medium
46
23
23-Mar-20
Light Glue Pattern at Double Backer

• Brittle or zipper board appearance
• Low glue roll setting
• High rider set too high
• Glue roll speed too fast
• Smooth glue roll
• Too much drag on single facer web
47
Light Glue Pattern at the Single Facer

• Glue roll too far from corrugating roll
• Glue roll taper speed too slow
• Smooth glue roll - not transferring enough adhesive
• Glue roll settings too low
• Improper pressure roll setting
48
24
23-Mar-20
Adhesive Between Flutes

• Creates warp problems,
• High starch consumption,
• Poor bonding,
• Poor quality.
• Creates warp problems, high starch consumption, poor
bonding, poor quality.
• Starch setting too high on glue roll
49
Adhesive Between Flutes

• Improper adhesive formula
• Rider roll set too low at double backer
• Improper glue roll speed
• Bad wiper blade on metering roll
• Skip clutch not holding glue roll
50
25
23-Mar-20
Dry Streak
• Poor bonding, low top to bottom compression of finished carton.
• Dirty fingers on the single facer
• Worn fingers-flat spot on tip
• Finger running too close to lower roll
• Dirty clean out prongs
• Water jacket malfunctioning
• High adhesive viscosity
• Poor lateral adjustment of corrugating roll
• Tension on medium too high
51
White Glue Line

• Delaminates after curing, low pin adhesion, poor top to
bottom compression
• Insufficient Gelatinization
• Gel temperature too high
• Temperature incorrect at pressure roll, corrugator rolls or hot
plates
– Low boiler pressure
• Low viscosity
• Wet paper
– Roll stock stored outside
52
26
23-Mar-20
Spotty Glue Application on the Single Face Side

• Poor bonding,
• Low pin adhesion,
• Low top to bottom compression.
53
Spotty Glue Application on the Single Face Side

• Glue roll motor problem
• Finger setting too low
• Worn finger
• Medium not properly conditioned
• Medium not forming properly
• Medium sticking to corrugator roll
• Dirty corrugator rolls
• Water dripping on medium
54
27
23-Mar-20
Loose Edge Single Face Side

• Impact is -
– Poor quality board,
– High waste,
– Low production speeds.
• Wet paper roll
• Adhesive improperly applied to medium
• Not enough brake on medium
• Fingers improperly adjusted
55
Loose Edge Single Face Side

• Dirty corrugating rolls
• Improperly set slitter knife
• Lack of pressure on roll
• Wet liner edge
• Medium wider than liner
• Roll stand out of parallel
56
28
23-Mar-20
Loose Edge on the Double Backer Side

• Impact is -
– High waste,
– Low production speeds,
– Poor print quality.
• Sheet guide compressing flutes
• Wet streak on liner edge
• Worn corrugator belt
• Worn rollers in hot plates
• Wet paper roll
57
Loose Edge on the Double Backer Side

• Dirty hot plates
• Low adhesives solids
• Too much heat
• Low viscosity
• Bridge guides too tight
58
29
23-Mar-20
Flutes not Glued – Single face / Double back side

• Fingers set too low
• Pressure between corrugating rolls too low
• Dirty rolls
• Corrugating medium too wet
• Glue roll angled improperly
• Too much drag on the single face web at the double back glue line
• Excess drag on medium
• Low calliper medium
• Medium surface temperature too high
59
High and Low Corrugation Flutes

• Impact is -
– Poor top to bottom compression,
– Poor print surface,
– Overall poor quality.
• Fingers improperly adjusted, worn, old, dirty.
• Medium improperly conditioned
– Lack of steam
• Improper pressure on corrugating rolls
– Worn or old rolls
60
30
23-Mar-20
High and Low Corrugation flutes

• Glue roll out of parallel
• Rider roll out of parallel at double backer glue station
• Improper pressure on rollers in hot plates
• Improper brake on single face web
• Excess drag on medium
• Low calliper medium
• Medium surface temperature too high
61
Blisters
• Impact is -
– Poor quality,
– Poor print surface,
– Poor top to bottom compression.
• Fingers worn, old dirty
• Fingers adjusted improperly
• Incorrect heat in corrugator rolls, pressure rolls, hot plate
section
62
31
23-Mar-20
Blisters
• Poor quality paper
• Wet paper
• Medium not properly conditioned
• Liner too hot
• Medium too hot
63
Normal Warp (Side-to-Side-Up Warp)

• Caused by moisture in the single facer liner.
• Add more heat (increasing wrap) to the single face web at the
double backer glue machine.
• Reduce heat (decreasing wrap) to the double facer liner at the
double back glue machine.
• Increase single facer liner wrap on the 36 inch preheated at the
single facer
64
32
23-Mar-20

• Increase the wrap on the medium pre-conditioner
• Decrease steam shower into the medium
• Increase the amount of single face web on the bridge
• Increase machine speed
• Reduce the amount of adhesive used at the single facer
• Increase the amount of adhesive used at the double backe
• Lift some ballast rolls in the hot plates
65

• Operating Footnote :
• If the moisture content of the single facer liner roll is greater
than 2 percent over that of the double backer liner roll then
the roll should be changed.
• Pre-heaters on the machine can only remove 1 to 2 percent
moisture from roll stock.
• Should the moisture imbalance be greater than 2 percent,
warp will occur.
66
33
23-Mar-20
Reverse Warp (Down Warp)

• Caused by moisture in the double facer liner.
• Increase heat to the double facer liner (increase wrap on the
36-inch preheater)
• Decrease the heat in the single facer web at the double backer
glue machine (decrease the wrap on the 36-inch preheater).
• Increase the steam shower on the medium
• Lower all rollers in the hot plate section
67
Reverse Warp (Down Warp)

• Check steam pressure in the hot plates and increase if
possible
• Reduce the amount of single face web on the bridge
• Reduce the speed of the machine
• Reduce the amount of adhesive at the glue machine.
• Increase the amount of adhesive at the single facer
• Add small amount of moisture to the top corrugator belt
(use steam spray across the entire belt).
• Use water spray on single face web.
68
34
23-Mar-20
S Warp (Combination of Normal and Reverse

Warp)
• Caused by Variations in moisture (wet streaks) across the web
in a roll of liner or medium, or by machine conditions which
apply variable amounts of heat or paste across the web.
• Wet streak in roll of liner or medium
• Thin streak or edge in roll of liner will warp in opposite
direction to wet streak
• Loose edge in roll of liner does not hug pre-heater
69
S Warp
(Combination of Normal and Reverse Warp)
• Wet edge in liner due to outside storage

• Out of level or out of square machine condition preventing
liner form contacting pre-heater firmly across the web.
• Single face glue roll or Doctor roll (glue roll and transfer roll)
out of parallel
70
35
23-Mar-20
S Warp
• Improper crown between single face glue roll and Doctor roll
(glue roll and transfer roll)
• Scraper blade on single face or double back Doctor roll loose,
worn or dirty in some areas.
• Single face glue or Doctor roll (glue roll and transfer roll) galled
in some areas or pitted on ends.
• Double backer rider roll out of parallel
71
S Warp
• Double back glue roll and Doctor roll out of parallel
• Applicator roll out of parallel to the corrugating roll
• Hydraulic lift of the flue mechanism not functioning correctly
at the single facer; partially blocked steam shower
• Distorted steam chests causing uneven board temperatures
across the machine
72
36
23-Mar-20
S Warp
• Operating Footnote :
• If the machine is equipped with a water spray, this is usually
the best way of controlling the S warp.
• The water spray should be used on the single face side of the
web only.
73
End-to-End “Up” Warp
• Tension greater on the single facer liner than on the double

backer
• Single face liner is pulling back on the sheet
• Drag on the top liner, usually from a drag belt on the bridge
• Pre-heater locked down and not turning, adding tension to
the single face web going into the double backer
74
37
23-Mar-20
End-to-End “Up” Warp
• Running with too much brake on the single face liner at the
single facer
• Running with too much paper on the bridge
• Running with too much brake on the medium, pulling back
on the single face web
75
End- to-End “Down” Warp

• Tension greater on the double back liner than on the single
face liner
• Drag on the bottom liner, usually caused by a bad break on the
roll stand
• Pre-heater locked down and not turning, adding tension to the
bottom liner
• Dirty hot plates adding drag
76
38
23-Mar-20
End-End “Down” Warp

• Operating Footnote:
• The corrugator crew may find the only way to control this type
of warp will be with machine speed.
• The higher the speed, the less drag they see, because at higher
speeds they can operate with less brake.
77
Cross Machine Direction (CD) Warp

Side to Side
• This is a warp that usually is found within a few hours after
the board is run.
• The problem is moisture and tension along with the
temperature in the working area.
• Wrap arm or roller is out of parallel giving uneven pressure on
the double facer
• Out of round glue roll at the single facer, applying adhesive
light and heavy
• Machine speed will from time to time cause the adhesive to
be applied heavy and light
78
39
23-Mar-20
Cross Machine Direction (CD) Warp

Side to Side
• Roll stock with wet streaks or moisture content higher than
normal
– The corrugator crews should have a good understanding of the
adhesive system within their machine and also understand the
use of water sprays.
– Using the adhesive and water sprays properly is the best way to
control this type of warp.
79
Twist Warp (Combination of End-to-

End and Side-to-Side Warp)
• Twist warp is cause by uneven tension or stress across the web
of any or all the components during the combining process.
• Roll stand out of level
• Pre-heater out of level
• Splice Roll out of level
• Roll stand, pre-heater out of square to the machine
80
40
23-Mar-20
Twist Warp (Combination of End-to-

End and Side-to-Side Warp)
• Dirt on wrap roller or pre-heater
• Bridge web guide out of level, out of square or off centre
• Crown breaker roll in double back glue machine out of level
• Double back glue machine rider out of level
• Top double back belt pulls unevenly across web
• Loose or tight edge in roll of liner
• Uneven or diagonal stress in roll liner
81
Twist Warp (Combination of End-to-End and Side-

to-Side Warp)
• Twist warp is seen more often on machines that run a two
piece top corrugator belt.
• One belt will be running faster than the other adding stress to
the web.
• If the twist warp occurs off the machine, a wet streak will be
noticed in one of the liners.
82
41
23-Mar-20
Post Warp (Warp Observed Several

Hours or Days Later)
• The degree of this type of warp will depend greatly on the
way the sheets were stacked and the location of the stack.
• About the surest way to minimise in-storage warping has
proved to be producing as dry as possible a board on the
corrugator, using as little adhesive as possible, and using pre-
heaters to their fullest capacity.
83

• Check liners for wet streaks
• Reduce web tension on the single face side
• Reduce brake drag on all roll stands
• Pre-heaters should be free turning
• Hot plate section should be clean and free of dirt build up
84
42
23-Mar-20

• Adhesive formula should have the proper solids for the mix
within the plant
• If the machine uses a two piece belt, check the speeds of the
belts
• Sheets must be stacked properly
• Board coming off the machine should be dry and firm
• Should have proper storage area for the finished sheets
85

• When sheets warp after they leave the corrugator, moisture
is most likely the problem.
• The sheets coming off the machine will be wet or damp to
the touch.
• Storing finished sheets near open doors or windows, or
loading the sheets into a cold truck before they have
properly cured, will cause warp.
86
43
23-Mar-20
Thank you – have a nice day

e-mail:
ramkumarsunkara@hotmail.com
Mobile: +91 98200 86841
87
44

Common Corrugating Problems

Uploaded by

Document Information

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Common Corrugating Problems

Uploaded by

Copyright:

Available Formats

23-Mar-20

CAUSES OF COMMON CORRUGATING

Ram Kumar Sunkara 2

Ram Kumar Sunkara 3

Ram Kumar Sunkara 4

DIAGNOSING VISCOSITY PROBLEMS

Ram Kumar Sunkara 5

Low Viscosity at the Mixer

Ram Kumar Sunkara 6

High Viscosity at the Mixer

Low Viscosity at the Storage Tanks

High Viscosity at the Storage Tanks

Ram Kumar Sunkara 9

Low Viscosity at the Machine

Ram Kumar Sunkara 10

High Viscosity at Machine

Ram Kumar Sunkara 11

Viscosity Decrease After Overnight or Weekend

Ram Kumar Sunkara 12

Adhesives viscosity growing in storage

• Too much caustic in the formula

Ram Kumar Sunkara 13

DIAGNOSING GEL TEMPERATURE PROBLEMS

Ram Kumar Sunkara 14

Gelatinization Temperature Too High

Ram Kumar Sunkara 15

Gelatinization Temperature Too High

Ram Kumar Sunkara 16

Gelatinization Temperature Too High

Ram Kumar Sunkara 17

Gelatinization Temperature Too High

Ram Kumar Sunkara 18

Low Gelatinization Temperature

Ram Kumar Sunkara 19

Low Gelatinization Temperature

Ram Kumar Sunkara 20

Adhesive Preparation and

Ram Kumar Sunkara 21

Adhesive too hot

• Bad flow through the starch pan

Adhesive being sheared

Ram Kumar Sunkara 23

Over shearing of the adhesive

Ram Kumar Sunkara 24

Temperature of the adhesive too high

Ram Kumar Sunkara 25

Adhesives viscosity growing in storage

Ram Kumar Sunkara 26

Adhesive too hot

Ram Kumar Sunkara 27

Foaming of Adhesive in Pans

Ram Kumar Sunkara 28

Adhesive Gels on Fingers

Ram Kumar Sunkara 29

Adhesive Gels on Fingers

Ram Kumar Sunkara 30

BOARD QUALITY PROBLEMS

Ram Kumar Sunkara 31

BOARD QUALITY PROBLEMS

Ram Kumar Sunkara 32

BOARD QUALITY PROBLEMS

Ram Kumar Sunkara 33

BOARD QUALITY PROBLEMS

Ram Kumar Sunkara 34
