1/ 10

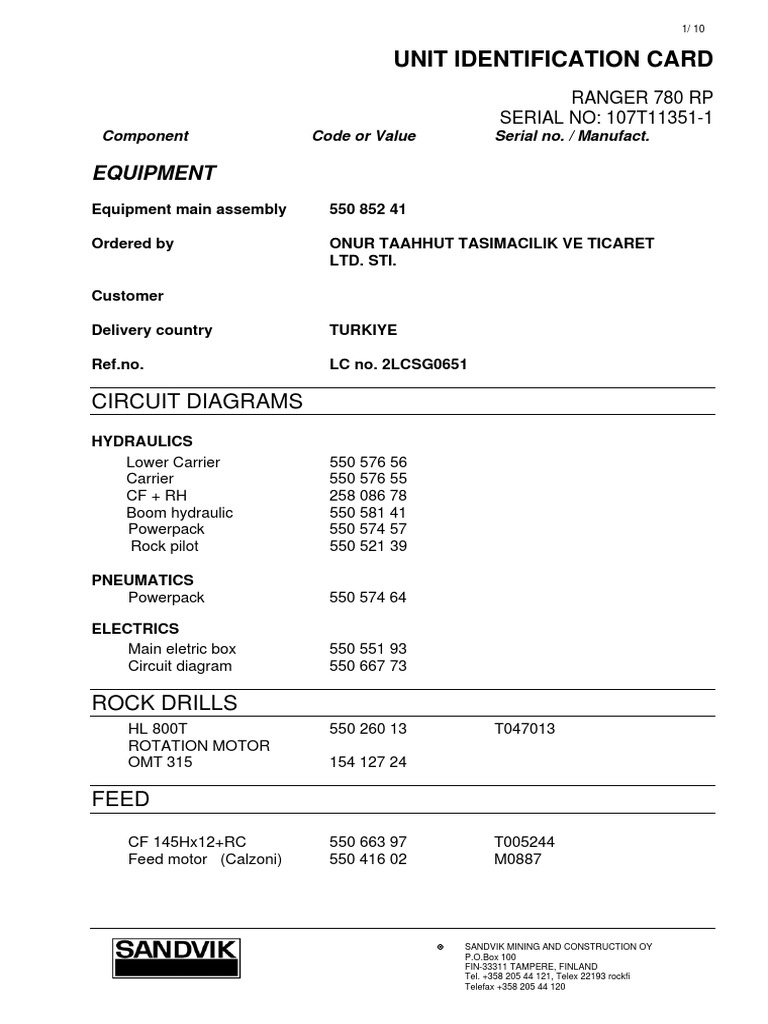

UNIT IDENTIFICATION CARD

RANGER 780 RP
SERIAL NO: 107T11351-1
Component Code or Value Serial no. / Manufact.

EQUIPMENT
Equipment main assembly 550 852 41

Ordered by ONUR TAAHHUT TASIMACILIK VE TICARET

LTD. STI.

Customer

Delivery country TURKIYE

Ref.no. LC no. 2LCSG0651

CIRCUIT DIAGRAMS
HYDRAULICS
Lower Carrier 550 576 56
Carrier 550 576 55
CF + RH 258 086 78
Boom hydraulic 550 581 41
Powerpack 550 574 57
Rock pilot 550 521 39

PNEUMATICS
Powerpack 550 574 64

ELECTRICS
Main eletric box 550 551 93
Circuit diagram 550 667 73

ROCK DRILLS
HL 800T 550 260 13 T047013
ROTATION MOTOR
OMT 315 154 127 24

FEED
CF 145Hx12+RC 550 663 97 T005244
Feed motor (Calzoni) 550 416 02 M0887

© SANDVIK MINING AND CONSTRUCTION OY

P.O.Box 100
FIN-33311 TAMPERE, FINLAND
Tel. +358 205 44 121, Telex 22193 rockfi
Telefax +358 205 44 120
 2/
10

Component Code or Value Serial no. / Manufact.

ROD CHANGER
RC + RETAINING CENTR. 550 606 65

JAWS FOR DRILL STEELS

jaws 550 752 15 2 ” MF-ROD

BOOM

DB 800 H 550 505 88 T013240

HYDRAULIC CYLINDERS
Lift cylinder 550 108 68
Stick cylinder 325 135 28
Feed tilt cylinder 325 132 48
Feed swing cylinder 550 110 18
Feed extension cyl. 239 017 98

POWERPACK
Powerpack Assembly 550 774 40

DIESEL ENGINE
Engine assembly 550 774 42
C7
Serial no. JRA00278
Arrangement. no. 270-7235

Governor
Serial no. -
Group pt.no. -
Starter
Part no. 207-1541cw
Consist 207-1541 24I
Alternator
Part no 185-5294-65A
Pump drive gearbox
Stiebel, 4370, SAE3 550 132 66 569243

© SANDVIK MINING AND CONSTRUCTION OY

P.O.Box 100
FIN-33311 TAMPERE, FINLAND
Tel. +358 205 44 121, Telex 22193 rocfi
Telefax +358 205 44 120
 3/ 10

UNIT IDENTIFICATION CARD

RANGER 780 RP
SERIAL NO: 107T11351-1
Component Code or Value Serial no. / Manufact.

HYDRAULIC PUMPS
Pump assy 550 562 61
1 st. piston pump 550 033 40 31112984
2 st. piston pump 550 033 41 31083931
Gear pump 550 559 07 500610147516004
Side p. for coolers 550 482 96 500610267841001

COMPRESSOR
TAMROTOR 308 349 71 FE025004856
Air receiver 550 166 26 Sn:47612
Manufacturing year 2006 Batch N:o 204

OIL COOLERS
OIL COOLERS 550 171 78
Oil cooler 885 472 79 SLB
Cooler fan motor 550 403 32

CENTRAL OILER
SLU 14L 550 149 14 SARJA NRO: T020108
2006

TRACKS
R.h.tracks 239 838 56
L.h.tracks 239 839 86
Idler wheels & Rollers Berco
Oscillating cyl. right 258 825 02
Oscillating cyl. left 258 825 02

DRIVING GEAR
GFT 17 887 913 09
right 372665/010/1261034
left 372665/010/1261033

© SANDVIK MINING AND CONSTRUCTION OY

P.O.Box 100
FIN-33311 TAMPERE, FINLAND
Tel. +358 205 44 121, Telex 22193 rockfi
Telefax +358 205 44 120
 4/
10

Component Code or Value Serial no. / Manufact.

DRILLING VALVE
DRILLING VALVE 550 524 68 S009008

DUST COLLECTOR
DC 800 H assy 550 521 78
Hydraulic motor 858 570 99 200612120623 Volvo F11-005
Dust collector 550 509 39 T021008

PRIMARY CYCLONE
Cyclone assy 550 577 80

CABIN
Cabin assy 550 699 45 no 1687 Key no 455/14603
+Special seat -

FILTERS (H=oil, F=fuel, A=air)

Drilling hydr./return filter element
867 272 89 H
Drilling hydr./pressure filter element
815 584 79 H
Compressor oil filter element
818 937 49 H
Oil separator/compressor oil receiver
032 677 28 H
Diesel engine/oil filter element
550 727 66 H
Fuel filter cartridge
882 392 39/885 239 79 F
Air filter cartridge/diesel engine
885 468 29/885 466 79 A
Air filter cartidge/compressor
885 469 59/885 467 09 A
Breather/hydr.tank 850 794 09 A
Dust collector's air filter cartidge
880 211 99 A
Cabin's air filter cartridge
550 284 51 A
886 092 99 A
885 918 19 A

© SANDVIK MINING AND CONSTRUCTION OY

P.O.Box 100
FIN-33311 TAMPERE, FINLAND
Tel. +358 205 44 121, Telex 22193 rocfi
Telefax +358 205 44 120
 5/ 10

UNIT IDENTIFICATION CARD

RANGER 780 RP
SERIAL NO: 107T11351-1
Component Code or Value Serial no. / Manufact.

OILS
Diesel engine Shell rimula X oil 15W/40
Hydr.tank (hydr.) Shell universal engine oil 10W/30
Compressor oil tank Shell rimula X oil 10W
Winch Shell spirax AX 80W/90
Track rollers+idler wheels Shell universal engine oil 10W/30
Drive gearings Shell spirax AX 80W/90
Feed gear Shell spirax AX 80W/90
Pump drive gearbox Shell gear HDS 150

OPTIONAL EQUIPMENT
Air conditioning 550 155 93
Rod greasing 550 145 87
Remote control drive -
Fuel filling pump 550 572 21
Hydraulic winch - SN:O -
Hose reel -
Guides for grousers 258 828 92
Flushing control auto. -
Shut down for water holes -
Hydraulic ground support -
Heater for engine -
Heater for hyd. oil -
Power extractor -
Special tool kit for rockdrill -
Tow hook -
Water injec.system -
Water tank - SN:O -
Radio with cd player 888 173 49 -
Horizonal drilling package - -
Central lubrication 550 316 79
Sticker/Symbol assy 550 783 34/550 187 04
Vacuum cleaner for cabin -
Grinding machine -
Water heater assembly -
Water level sensor -
Movable drill steel support -
Turnable supersructure X
Spirit level angle -

© SANDVIK MINING AND CONSTRUCTION OY

P.O.Box 100
FIN-33311 TAMPERE, FINLAND
Tel. +358 205 44 121, Telex 22193 rockfi
Telefax +358 205 44 120
 6/
10

Component Code or Value Serial no. / Manufact.

ANGLE INDICATOR
P&Q 258 424 72
Software version - - -
Display unit - 061229
Aiming unit - -
Boom swing sensor - -
Feed f.angle sensor - M061221
Feed s.angle sensor - M061221
Depth scaling sensor - -
Laser -

JAWS FOR DRILL STEELS

Ext.rods 1 1/2” -
Ext.rods 1 3/4” -
MF.rod 1 1/2” -
MF.rod 2” -
MF.rod 1 3/4” -
Ext.rods 2” -

M10 ( welding )

Gradle assy 550 188 69 V/45/06/279/C

Boom 550 192 95 V/11/06 /287/A
Boom 550 193 28 V/32/06/301/C
Swing piece 550 141 28 V/32/06/272/C
L.h track 239 839 86 LP/06/353/E
R.h track 239 838 56 LP/06/357/E

TOTAL WEIGHT 14 700 kg

NOTES

Date 25.01.2007
Inspector Mikko Turunen

Mechanics: Niiranen Miettinen

© SANDVIK MINING AND CONSTRUCTION OY

P.O.Box 100
FIN-33311 TAMPERE, FINLAND
Tel. +358 205 44 121, Telex 22193 rocfi
Telefax +358 205 44 120
 7/ 10

UNIT IDENTIFICATION CARD

RANGER 780 RP
SERIAL NO: 107T11351-1
Component Code or Value Serial no. / Manufact.

Engine parameters :

Cat Electronic Technician 2006B v1.0

Configuration

4.12.2006 14:06

C7 IND (JRA00278)
Parameter Value
Equipment ID NOT PROGRAMMED
Engine Serial Number JRA00278
ECM Serial Number 22266220JM
Personality Module Part Number 2912153-00
Personality Module Release Date JUL06

Description Value Unit TT

ECM Identification Parameters
Equipment ID NOT PROGRAMMED 0
Engine Serial Number JRA00278 3
ECM Serial Number 22266220JM
Personality Module Part Number 2912153-00
Software Group Release Date Jul2006
Selected Engine Rating
Rating Number 1 0
Rated Power 168 kW at 2200 RPM
Rated Peak Torque 1028 N-m at 1400 RPM
Top Engine Speed Range 1800 - 2420 RPM
Test Spec 0K6802 0K6803
Top Engine Limit 2200 RPM 0
Low Idle Speed 1400 RPM 1
High Idle Speed 2200 RPM 1
Maximum Engine Torque Limit 1028 N-m 0
General Parameters

© SANDVIK MINING AND CONSTRUCTION OY

P.O.Box 100
FIN-33311 TAMPERE, FINLAND
Tel. +358 205 44 121, Telex 22193 rockfi
Telefax +358 205 44 120
 8/
10

Component Code or Value Serial no. / Manufact.

Engine Acceleration Rate 500 RPM/s 0

PTO Mode Set/Resume 1
Intermediate Engine Speed 1402,0 RPM 1
Ether Control Disabled 0
Ether Solenoid Configuration Not Installed 0
Air Inlet Heater Installation Status Unavailable
Air Shutoff Disabled 0
Throttle Position Sensor Installed 1
Coolant Level Sensor Installed 1
Exhaust Valve Actuation System Installation Status Unavailable
Auxiliary Temperature Sensor Installation Status Not Installed
Auxiliary Pressure Sensor Installation Status Not Installed
Throttle Input Low Idle Duty Cycle Setpoint 18,0 % 0
Throttle Input High Idle Duty Cycle Setpoint 83,0 % 0
Engine Governor Primary Mode Configuration Speed Control
Maintenance Parameters
Maintenance Indicator Mode Off
PM1 Interval 0 L
System Parameters
Last Tool to change Customer Parameters
Last Tool to change System Parameters NEVER S
FLS -5 0
FTS -14 0
Passwords
Customer Password #1 ********
Customer Password #2 ********
Security Access Parameters
Total Tattletale 17
Configuration Group 1
Run Out Control Off 2
Runout Spd Droop Off 0
EX OFFSET SPD Unavailable RPM
EX OVR SPD TRIP Unavailable RPM

© SANDVIK MINING AND CONSTRUCTION OY

P.O.Box 100
FIN-33311 TAMPERE, FINLAND
Tel. +358 205 44 121, Telex 22193 rocfi
Telefax +358 205 44 120
 9/ 10

UNIT IDENTIFICATION CARD

RANGER 780 RP
SERIAL NO: 107T11351-1
Component Code or Value Serial no. / Manufact.

Cat Electronic Technician 2006B v1.0

Monitoring System Tool

4.12.2006 14:03

C7 IND (JRA00278)
Parameter Value
Equipment ID NOT PROGRAMMED
Engine Serial Number JRA00278
ECM Serial Number 22266220JM
Personality Module Part Number 2912153-00
Personality Module Release Date JUL06

Description State Trip Point Delay Time

Low Engine Oil Pressure
Warn Operator(1) On None 8 Sec
Engine Derate(2) On None 8 Sec
Engine Shutdown(3) On None 4 Sec

High Engine Coolant Temperature

Warn Operator(1) On 104 Deg C 10 Sec
Engine Derate(2) On 109 Deg C 10 Sec
Engine Shutdown(3) Off 111 Deg C 10 Sec

Engine Overspeed
Warn Operator(1) On 2600 RPM 1 Sec
Engine Shutdown(3) On 2800 RPM 1 Sec

High Engine Inlet Air Temperature

Warn Operator(1) On 75,0 Deg C 8 Sec

© SANDVIK MINING AND CONSTRUCTION OY

P.O.Box 100
FIN-33311 TAMPERE, FINLAND
Tel. +358 205 44 121, Telex 22193 rockfi
Telefax +358 205 44 120
10/ 10

Component Code or Value Serial no. / Manufact.

Engine Derate(2) On 79,0 Deg C 8 Sec

Low Coolant Level

Warn Operator(1) On None 10 Sec
Engine Derate(2) On None 10 Sec
Engine Shutdown(3) On None 10 Sec

High Fuel Pressure

Warn Operator(1) On 758,0 kPa 8 Sec

High Auxiliary Temperature

Warn Operator(1) On 105 Deg C 4 Sec
Engine Derate(2) Off 106 Deg C 4 Sec
Engine Shutdown(3) Off 107 Deg C 4 Sec

High Auxiliary Pressure

Warn Operator(1) On 1500 kPa 4 Sec
Engine Derate(2) Off 1500 kPa 3 Sec
Engine Shutdown(3) Off 1500 kPa 3 Sec
