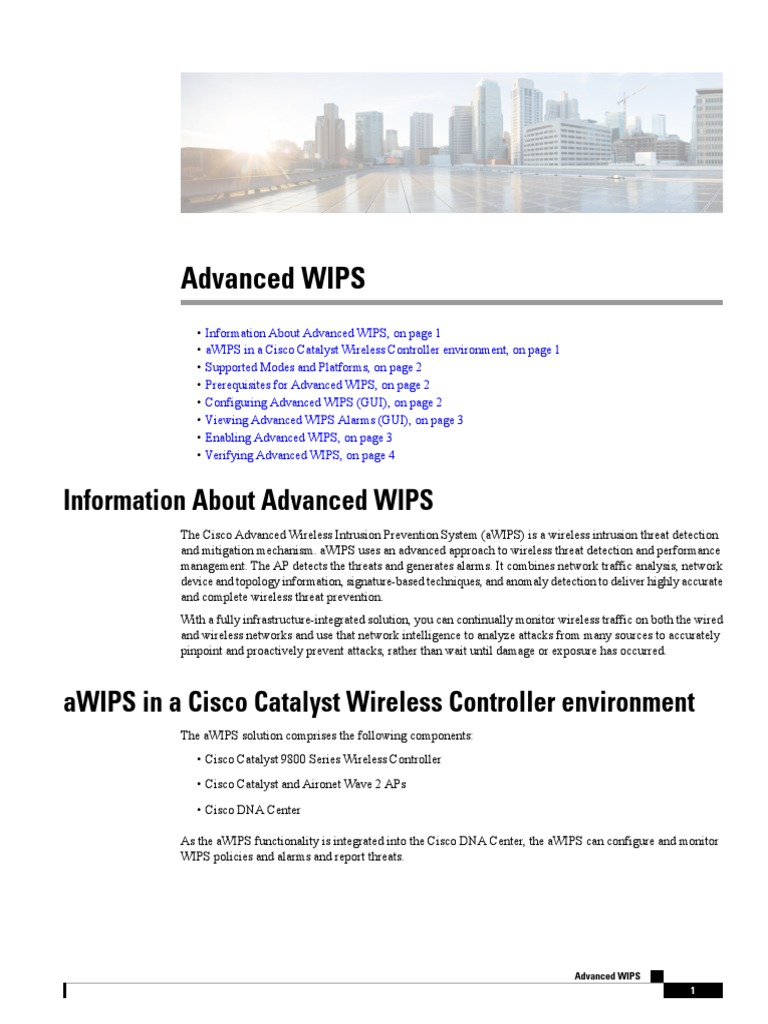

Advanced WIPS

• Information About Advanced WIPS, on page 1

• aWIPS in a Cisco Catalyst Wireless Controller environment, on page 1
• Supported Modes and Platforms, on page 2
• Prerequisites for Advanced WIPS, on page 2
• Configuring Advanced WIPS (GUI), on page 2
• Viewing Advanced WIPS Alarms (GUI), on page 3
• Enabling Advanced WIPS, on page 3
• Verifying Advanced WIPS, on page 4

Information About Advanced WIPS

The Cisco Advanced Wireless Intrusion Prevention System (aWIPS) is a wireless intrusion threat detection
and mitigation mechanism. aWIPS uses an advanced approach to wireless threat detection and performance
management. The AP detects the threats and generates alarms. It combines network traffic analysis, network
device and topology information, signature-based techniques, and anomaly detection to deliver highly accurate
and complete wireless threat prevention.
With a fully infrastructure-integrated solution, you can continually monitor wireless traffic on both the wired
and wireless networks and use that network intelligence to analyze attacks from many sources to accurately
pinpoint and proactively prevent attacks, rather than wait until damage or exposure has occurred.

aWIPS in a Cisco Catalyst Wireless Controller environment

The aWIPS solution comprises the following components:
• Cisco Catalyst 9800 Series Wireless Controller
• Cisco Catalyst and Aironet Wave 2 APs
• Cisco DNA Center

As the aWIPS functionality is integrated into the Cisco DNA Center, the aWIPS can configure and monitor
WIPS policies and alarms and report threats.

Advanced WIPS
1
 Advanced WIPS
Supported Modes and Platforms

Note aWIPS is supported only on Cisco DNA-C.

aWIPS supports the following capabilities:

• Static signatures
• Standalone signature detection only
• Alarms only
• GUI support
• Controller commands to view alarms
• Static signature file packaged with controller and AP image
• Export alarms to Cisco DNA Center through WSA channel

aWIPS alarm details like the AP MAC address, alarm ID, client MAC address, alarm string, and signature
ID are displayed on the Cisco Catalyst 9800 series wireless controller GUI.

Supported Modes and Platforms

aWIPS is supported on the following Cisco Catalyst Controllers:
• Cisco Catalyst 9800 series wireless controllers
• Cisco Embedded Wireless Controller on Catalyst Access Points

aWIPS is supported on all controller and AP modes.

Prerequisites for Advanced WIPS

Set all entities (controller and APs) in an aWIPS deployment to the UTC time zone.

Configuring Advanced WIPS (GUI)

aWIPS initialization is done by the controller. aWIPS initialization could also be triggered via the controller
GUI or CLI. The controller then sends the aWIPS configuration to the APs using CAPWAP.

Procedure

Step 1 Choose Configuration > Tags & Profiles > AP Join.

Step 2 On the AP Join page, click the name of the desired AP join profile.
Step 3 In the Edit AP Join Profile window, click the Security tab.
Step 4 In the aWIPS section, select the aWIPS Enable check box.

Advanced WIPS
2
 Advanced WIPS
Viewing Advanced WIPS Alarms (GUI)

Step 5 Click Update & Apply to Device.

Viewing Advanced WIPS Alarms (GUI)

Procedure

Navigate to Monitoring > Security > aWIPS.

• To view details of the alarms in the last 5 minutes, go to the Current Alarms tab.
• To view the alarm count over an extended period of time, either hourly, for a day (24 hours) or more, go
to Historical Statistics tab.
You can sort or filter the alarms based on the following parameters:
• AP Radio MAC address
• Client MAC address
• Alarm ID
• Time Stamp
• Signature ID
• Alarm Description
• Alarm Message Index

Enabling Advanced WIPS

Procedure

Command or Action Purpose

Step 1 configure terminal Enters global configuration mode.
Example:
Device# configure terminal

Step 2 ap profile profile-name Configures the default AP profile.

Example:
Device(config)# ap profile myprofile

Step 3 aWIPS Enable aWIPS.

Example:

Advanced WIPS
3
 Advanced WIPS
Verifying Advanced WIPS

Command or Action Purpose

Device(config-ap-profile)# aWIPS Note aWIPS is disabled by default on the
controller.

Step 4 end Returns to privileged EXEC mode.

Example: Alternatively, you can also press Ctrl-Z to
Device(config-ap-profile)# end exit global configuration mode.

Verifying Advanced WIPS

To view aWIPS status, use the show awips status radio_mac command:
Device# show awips status 00d7.8f58.2f80
AP Radio MAC AWIPS Status Alarm Message Count
---------------------------------------------------------------------------
00d7.8f58.2f80 ENABLED 3944

The various aWIPS status indicators are listed below:

• ENABLED: aWIPS enabled.
• NOT_SUPPORTED: AP does not support AWIPS.
• CONFIG_NOT ENABLED: aWIPS is not enabled on the AP.

To view details of specific alarm signatures, use the show awips alarm signature signature_id command:
Device# show awips alarm signature 10001
AP Radio MAC Source/Dest MAC AlarmID Timestamp SignatureID
Alarm Description Message Index
--------------------------------------------------------------------------------------------------------------------------------------------------------------------
00d7.8f58.2f80 0023.68b0.235b 1714 11/02/2020 13:02:19 10001
Authentication Flood 3966

To view alarm message statistics, use the below command:

Device# show awips alarm statistics
To view a list of alarms since the last clear, use the below command:
Device# show awips alarm ap ap_mac detailed
To view detailed alarm information, use the show awips alarm detailed command:
Device# show awips alarm detailed
AP Radio MAC Source/Dest MAC AlarmID Timestamp SignatureID
Alarm Description Message Index
--------------------------------------------------------------------------------------------------------------------------------------------------------------------
00d7.8f58.2f80 0023.68b0.235b 1714 11/02/2020 13:02:19 10001
Authentication Flood 3966
00d7.8f58.2f80 0024.d71c.f3cc 1714 11/02/2020 13:02:19 10001
Authentication Flood 3971
…
…
…
00d7.8f58.2f80 0023.68b0.235b 1715 11/02/2020 13:02:20 10001
Authentication Flood 3982
00d7.8f58.2f80 0024.d71c.f3cc 1715 11/02/2020 13:02:20 10001

Advanced WIPS
4
Advanced WIPS
Verifying Advanced WIPS

Authentication Flood 3987

…

To view alarms on a specific AP, use the show awips alarm ap radio_mac detailed command:
Device# show awips alarm ap 00d7.8f58.2f80 detailed
AP Radio MAC Source/Dest MAC AlarmID Timestamp SignatureID
Alarm Description Message Index
--------------------------------------------------------------------------------------------------------------------------------------------------------------------
00d7.8f58.2f80 0023.68b0.235b 1714 11/02/2020 13:02:19 10001
Authentication Flood 3966
00d7.8f58.2f80 0024.d71c.f3cc 1714 11/02/2020 13:02:19 10001
Authentication Flood 3971
…
…
…
00d7.8f58.2f80 0023.68b0.235b 1715 11/02/2020 13:02:20 10001
Authentication Flood 3982
00d7.8f58.2f80 0024.d71c.f3cc 1715 11/02/2020 13:02:20 10001
Authentication Flood 3987
…
