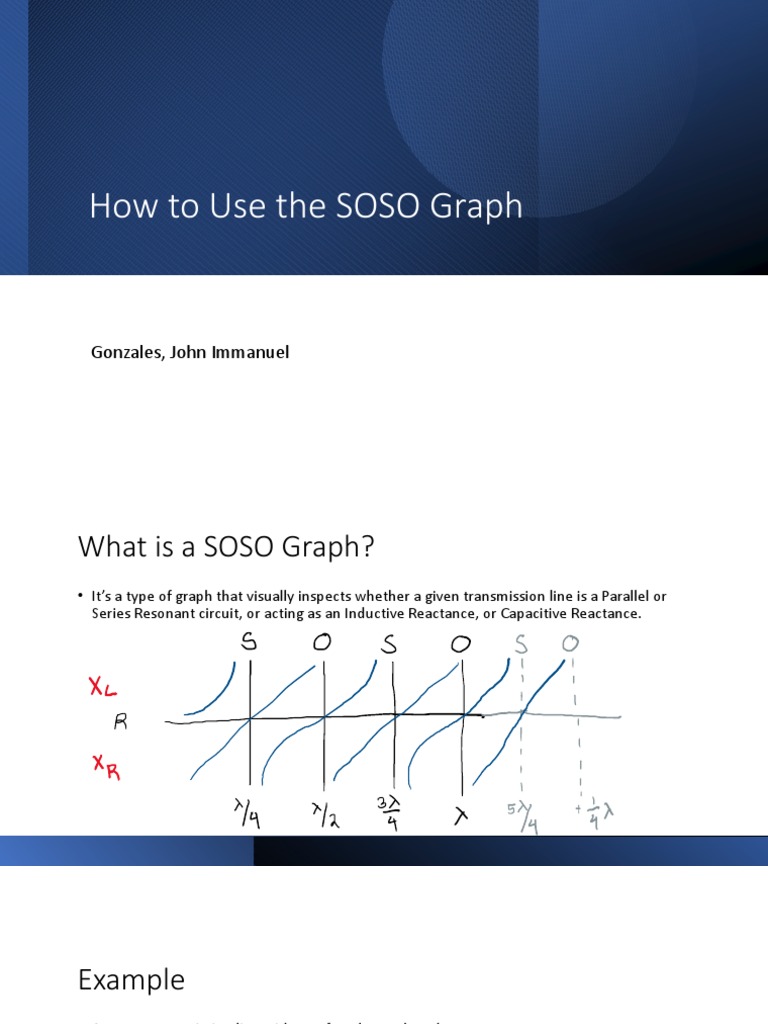

What is a SOSO Graph? • It’s a type of graph that visually inspects whether a given transmission line is a Parallel or Series Resonant circuit, or acting as an Inductive Reactance, or Capacitive Reactance. Example • An open transmission line with one-fourth wavelength acts as an.
A. Parallel resonant circuit
B. Series Resonant circuit C. Inductive reactance D. Capacitive reactance
The “O” line is intersecting the R and
¼ line hence Series Resonant Example • A short transmission line with one-fourth wavelength acts as an.
A. Parallel resonant circuit
B. Series Resonant circuit C. Inductive reactance D. Capacitive reactance
The “S” line is NOT intersecting the R and ¼
line, but the intersection of the R and ¼ line is in between both S lines that are “parallel” with each other hence Parallel Resonant Example • A short transmission line with a length of one wavelength acts as an.
A. Parallel resonant circuit
B. Series Resonant circuit C. Inductive reactance D. Capacitive reactance
The “S” line is intersecting the R and 1
lambda line, if it is intersecting it is a Series Resonant Example • A short transmission line that is greater than one-fourth wavelength but shorter than a half-wavelength acts as an.
A. Parallel resonant circuit
B. Series Resonant circuit C. Inductive reactance D. Capacitive reactance The imaginary line of the given length is drawn, and it is intersecting with the “S” line underneath the R line. Hence the Trans-line acts as a Capacitive Reactance Example • An open transmission line with 0.85 wavelength acts as an.
A. Parallel resonant circuit
B. Series Resonant circuit C. Inductive reactance D. Capacitive reactance
The imaginary line for 0.85 wavelength is
found to be intersecting with the “O” line above the R line. Hence the given Trans-line act as an Inductive Reactance Example • An open transmission line with one-half wavelength acts as an.
A. Parallel resonant circuit
B. Series Resonant circuit C. Inductive reactance D. Capacitive reactance
The “O” line is NOT intersecting the R and ½
line, but the intersection of the R and ½ line is in between both the O lines that are “parallel” with each other hence Parallel Resonant Example • An open transmission line with 0.65 wavelength acts as an.
A. Parallel resonant circuit
B. Series Resonant circuit C. Inductive reactance D. Capacitive reactance
The imaginary line of the given length is
drawn, and it is intersecting with the “O” line underneath the R line. Hence the Trans-line acts as a Capacitive Reactance
