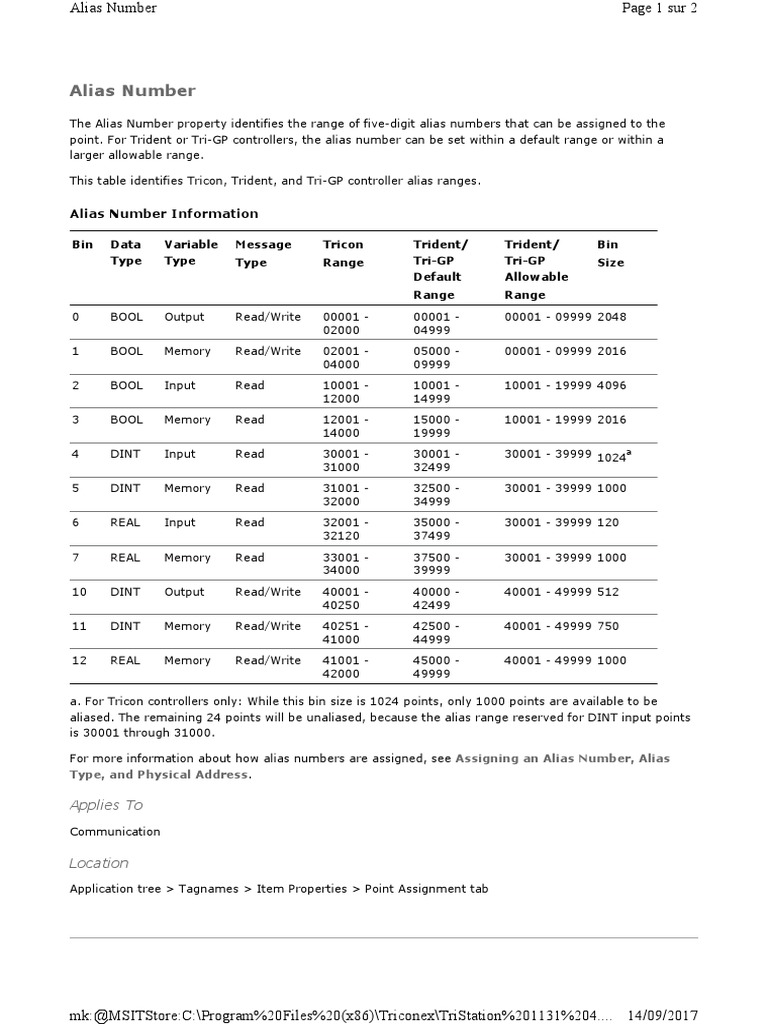

Alias Number

The Alias Number property identifies the range of five-digit alias numbers that can be assigned to the
point. For Trident or Tri-GP controllers, the alias number can be set within a default range or within a
larger allowable range.

This table identifies Tricon, Trident, and Tri-GP controller alias ranges.

Alias Number Information

Bin Data Variable Message Tricon Trident/ Trident/ Bin

Type Type Type Range Tri-GP Tri-GP Size
Default Allowable
Range Range

0 BOOL Output Read/Write 00001 - 00001 - 00001 - 09999 2048

02000 04999
1 BOOL Memory Read/Write 02001 - 05000 - 00001 - 09999 2016
04000 09999
2 BOOL Input Read 10001 - 10001 - 10001 - 19999 4096
12000 14999
3 BOOL Memory Read 12001 - 15000 - 10001 - 19999 2016
14000 19999
4 DINT Input Read 30001 - 30001 - 30001 - 39999 1024a
31000 32499
5 DINT Memory Read 31001 - 32500 - 30001 - 39999 1000
32000 34999
6 REAL Input Read 32001 - 35000 - 30001 - 39999 120
32120 37499
7 REAL Memory Read 33001 - 37500 - 30001 - 39999 1000
34000 39999
10 DINT Output Read/Write 40001 - 40000 - 40001 - 49999 512
40250 42499
11 DINT Memory Read/Write 40251 - 42500 - 40001 - 49999 750
41000 44999
12 REAL Memory Read/Write 41001 - 45000 - 40001 - 49999 1000
42000 49999

a. For Tricon controllers only: While this bin size is 1024 points, only 1000 points are available to be
aliased. The remaining 24 points will be unaliased, because the alias range reserved for DINT input points
is 30001 through 31000.

For more information about how alias numbers are assigned, see Assigning an Alias Number, Alias
Type, and Physical Address.

Applies To
Communication

Location
Application tree > Tagnames > Item Properties > Point Assignment tab
