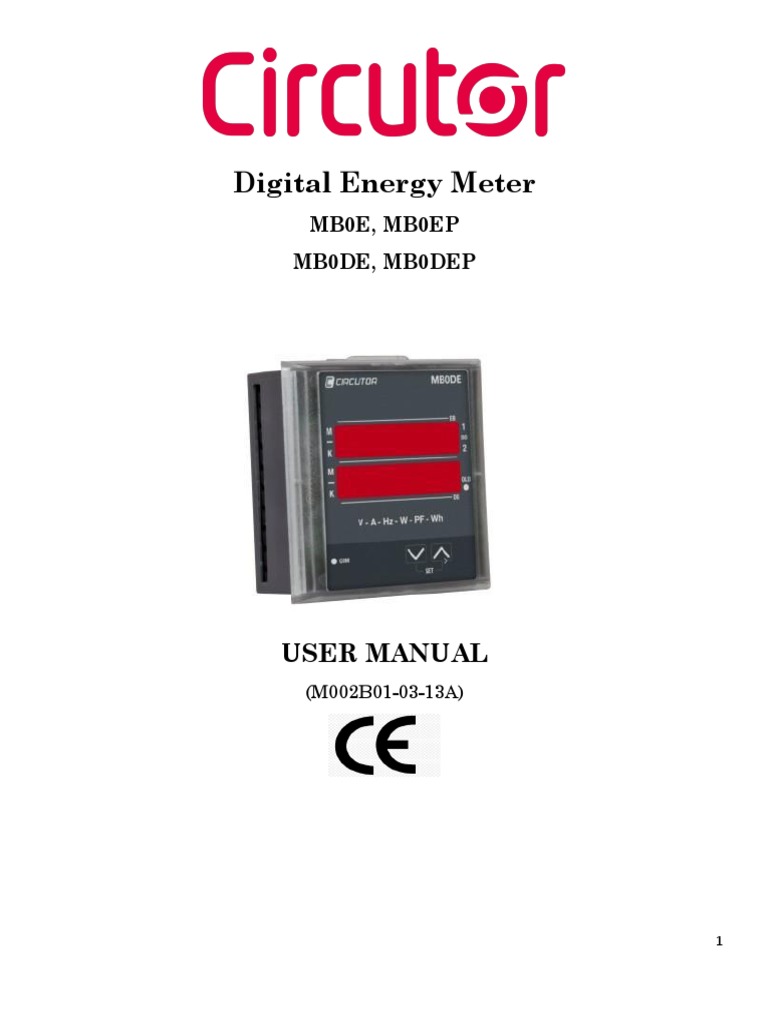

Digital Energy Meter

MB0E, MB0EP
MB0DE, MB0DEP

USER MANUAL
(M002B01-03-13A)

1
Contents:
SR# Parameters Page #
1 Precautionary Measures 02
2 Features 03
3 Unique Features 03
4 Description 03
5 Application 04
6 Technical Features 04
7 Wire Connections 05
8 Key Functions 06
9 Display Parameters 06
10 Configuration 07
11 Parameter’s Default Value and Range 09
12 Communication Register Map 10

Precautionary Measures to be taken while wiring the Circuit:

 Turn OFF the power to the circuit, when wiring the circuit. Connecting or removing measurement cables
while the power is turned ON is dangerous.
 Take special caution not to wire a current measurement circuit to the voltage input terminal or vice-
versa.
 Strip the insulation cover of the measurement cable so that when it is wired to the input terminal, the
conductive parts (bare wires) do not protrude from the terminal. It is recommended to use appropriate
pre lug after crimping the wire. Also, make sure to fasten the input terminal screws securely so that the
cable does not come loose.
 Use cables with safety terminals that cover the conductive parts for connecting to the voltage input
terminals. Using a terminal with bare conductive parts is dangerous if the terminal comes loose.
 After connecting the measurement cable, attach the current input protection cover for your safety. Make
sure that the conductive parts are not exposed from the protection cover.
 Use the suitable star screw driver and apply optimum torque to prevent damage to the meter terminals.

2
Features:
1. STAR (Wye)/ DELTA/1 Phase Programmable
2. Universal Auxiliary (80 - 300 VAC / DC) supply

3. PT ratio / CT ratio programmable including CT secondary

4. True RMS measurement

5. Active energy, positive energy accumulation & reverse Lock
6. 'OLD' register to store the previously cleared energy value
7. User configurable (Editable) password

8. Simultaneous sampling of Volts & Amps

9. Universal Voltage Input (80 - 520 VAC) and Current Secondary (0.5A to 5A) with overload of 20%
10. Energy selection: Wh / Vah

11. Simultaneous sampling of Volts & Amps

Unique Features
1. 3 row 6 digit displays on each row for better readability
2. Optional Programmable relay output maximum 2

3. Two sure selectable parameters from basic (VLL, VLN, A, Hz) or W, VA, or PF (In addition to Wh-MB0E
and MB0EP)

4. Auto scrolling in both upward and downward direction

5. Auto-scaling of kilo, mega & giga decimal point
6. Energy display programmable-counter based or resolution based. Energy resetting at
999999KVAh*Multiplication factor.

Description:
MB0DE is a digital advanced dual source meter for energy (Wh or VAh), power and other relevant

electrical parameters. The device is able to measure and register the energy from two different sources
(Main or generator). MB0DEP also includes a RS-485 Modbus/RTU communication port. In addition,
displays the consumed energy (Wh or VAh) with reverse energy lock option from two different sources.
Those are specially designed to be installed on single or three-phase (delta or star) AC networks.

3
Applications:
MB0DE and MB0DEP are able to distinguish the consumed energy (Wh or VAh) from the main or from a
generator also registering working hours from each one. Furthermore, the devices register the current and
OLD energy stored in its internal memory. MB0DEP offers RS-485 communication with Modbus/RTU
protocol to be connected to any Modbus SCADA software to monitor and control all the electrical
parameters. The devices have a 4-digit (for instantaneous values) or 6-digit (for energy) digital display with
auto scaling and 2 separate rows to indicate the following parameters:

 For electrical parameter measurement in areas whose reduced dimensions require the installation of a
space-saving panel analyzer.
 Instantaneous value measurement of electrical parameters with communications.
 Logging of consumed Active or Reactive Energy.
 Energy measurement of two different sources on 2 separate registers (by auxiliary source).

Technical Features:

4
Wire Connections:

Note: Wiring should be in

accordance with the National
Electrical Code and/or the
Canadian Electrical Code, Part I.

Note: For DC Aux Voltage, +/- ve

can be connected anyway

5
Key Functions:

To select the value and accept To edit the value/ system type
the value (it acts as a Right down -ward in edit mode and
key in programming mode) scroll through the parameters

LED Status Meaning

I/O 1 - ON Relay tripped (programmed parameter is out of range)
Blink Reserved Pulse LED
COM - ON Communication ON

Display Meaning Display Meaning

Voltage Line to Line Load Hour

Voltage Line to Neutral On Time

Voltage RY phase Power Factor R/Y/B

Phase
Voltage YB phase Clear

Voltage BR phase VA - R/Y/B Phase

Current Average Parity

Frequency Identification number

Total VA Voltage R/Y/B Phase

Watts Total Tariff-1 / 1st Source

Power Factor Tariff-2 / 2nd Source

6
CONFIGURATION:

To enter Password
To enter settings, we are to type password.
Default Password is

To clear Parameters

To Configure Parameters Press

To configure STAR, DELTA or To go on next Parameter Press

1-phase Element

To enter primary voltage

To enter Secondary Voltages

Reverse Lock Mode:

To enter Primary Current
Block energy accumulation
in case the CT Polarity
Reverse
To enter Secondary Current

To enter Reverse Lock Mod

(Continue on Next Page)

7
 Value Selection Mode

To define Baud Rate

To Select Even, Odd or No Parity

To select Device ID or Peripheral Number

To configure or RESET password

To Configure Energy Value Format

To Configure Pulse Width

To Save all Parameters

Configured

CIRCUTOR, recommends using the original cables and accessories that are supplied

with the device.

8
Parameter’s Default Value and Range:

Serial# Parameter Default Setup Range

1. Connection Mod Star Star/Delta/ 1-phase
2. PT Primary 415.0 100v-999kv
3. PT Secondary 415 50v-550v
4. CT Primary 5.000 0.5A-99kA
5. CT Secondary 5.000 0.5A-6A
6. VA Selection Arith (Arithmetic) Arith (Arithmetic) /UECt
(Vector) /UEC.H(Vector
Harmonic)
7. Digital Delay 3.000 1 to 180 Seconds
8. Digital O/P dsbl

Parameter (d1 .pr)

9. Digital 1 Threshold Limit (d1.Hi) 1000 0.001 to 9999*106
10. Digital O/P 2 Parameters (d2. Pr) dsbl
11. Digital 2 Threshold Limit (d1.Hi) 1000 0.001 to 9999*106
12. Baud Rate 9600 2400 to 19.2k
13. Parity Even Even/odd/no
14. Device ID (dev.Id) 1.000 1.000 to 9999
15. Reverse Lock (rEU.L) no YES/No
16. Password (PWD) 1000 1000 to 9999
17. Energy (EnEr) rESL rESL/ COUN
18. POP On Time (POP.t) 250.0 50 to 500 milliseconds
19. Energy Selection (E.SEL) wh Wh/ VAh

If any problem is noticed upon reception, immediately contact the transport

company and/or CIRCUTOR's after-sales service.

In order to use the device safely, it is critical that individuals who handle it
follow the
safety measures set out in the standards of the country where it is being used,
using the personal protective equipment necessary (rubber gloves, face
protection and approved
flame-resistant clothing) to prevent injuries due to electric shock or electric arc
as a consequence of exposure to current-carrying conductors and paying
attention to the various warnings indicated in this instruction manual.

9
Communication Register Map:

This Communication map is for MB0EP and MB0DEP. All the parameters declared in the communication
map are either float or unsigned long and follows;

Data type: 32 Bit Real, Little Endian & Byte Swapped Parity: No

Standard: Modbus RTU protocol (Half Duplex) Baud rate: 2400 / 4800 / 9600 / 19200

Stop-bit: 1 / 2 Modbus Function: 03 (Read holding register)

SR# Parameter Data Address SR# Parameters Data Address

Type Type
1. Watts Total Float 101 18. VLL average Float 133
2. Watts R phase Float 103 19. Vry phase Float 135
3. Watts Y phase Float 105 20. Vyb phase Float 137
4. Watts B phase Float 107 21. Vbr phase Float 139
5. VAR Total Float 109 22. VLN average Float 141
6. VAR R phase Float 111 23. V R phase Float 143
7. VAR Y phase Float 113 24. V Y phase Float 145
8. VAR B phase Float 115 25. V B phase Float 147
9. PF Ave.(inst.) Float 117 26. Current Total Float 149
10. PF R phase Float 119 27. Current R phase Float 151
11. PF Y phase Float 121 28. Current Y phase Float 153
12. PF B phase Float 123 29. Current B phase Float 155
13. VA Total Float 125 30. Frequency Float 157
14. VA R phase Float 127 31. EB Wh Received Float 159
15. VA Y phase Float 129 32. EB Vah Received Float 161
16. VA B phase Float 131 33. DG Wh Delivered Float 167
17. DG Vah Float 169 34. Load hour Unsigned 217
Delivered Received Long

10
WARRANTY:

CIRCUTOR guarantees its products against any manufacturing defect for two years after the delivery of the
units.
CIRCUTOR will repair or replace any defective factory product returned during the guarantee period.

No returns will be accepted and no unit will be repaired or replaced if it is not

accompanied by a report indicating the defect detected or the reason for the return.

·The guarantee will be void if the units has been improperly used or the storage,
installation and maintenance instructions listed in this manual have not been
followed. "Improper usage" is defined as any operating or storage condition contrary
to the national electrical code or that surpasses the limits indicated in the technical
and environmental features of this manual.
· CIRCUTOR accepts no liability due to the possible damage to the unit or other
parts of the installation, nor will it cover any possible sanctions derived from a
possible failure, improper installation or "improper usage" of the unit. Consequently,
this guarantee does not apply to failures occurring in the following cases:
- Over voltages and/or electrical disturbances in the supply;
- Water, if the product does not have the appropriate IP classification;
- Poor ventilation and/or excessive temperatures;
- Improper installation and/or lack of maintenance;
- Buyer repairs or modifications without the manufacturer's authorization

TECHNICAL SERVICE

In the case of any query in relation to unit operation or malfunction, please contact the

CIRCUTOR, SA Technical Support Service. Technical Assistance Service

Vial Sant Jordi, s/n 08232 - Viladecavalls (Barcelona)

Tel.: 902 449 459 (Spain) / +34 937 452 900 (outside of Spain)

11
CIRCUTOR, SA
Vial Sant Jordi, s/n
08232 -Viladecavalls (Barcelona)
Tel.: (+34) 93 745 29 00 - Fax: (+34) 93 745 29 14
www.circutor.es central@circutor.es
12
