RESTRICTED

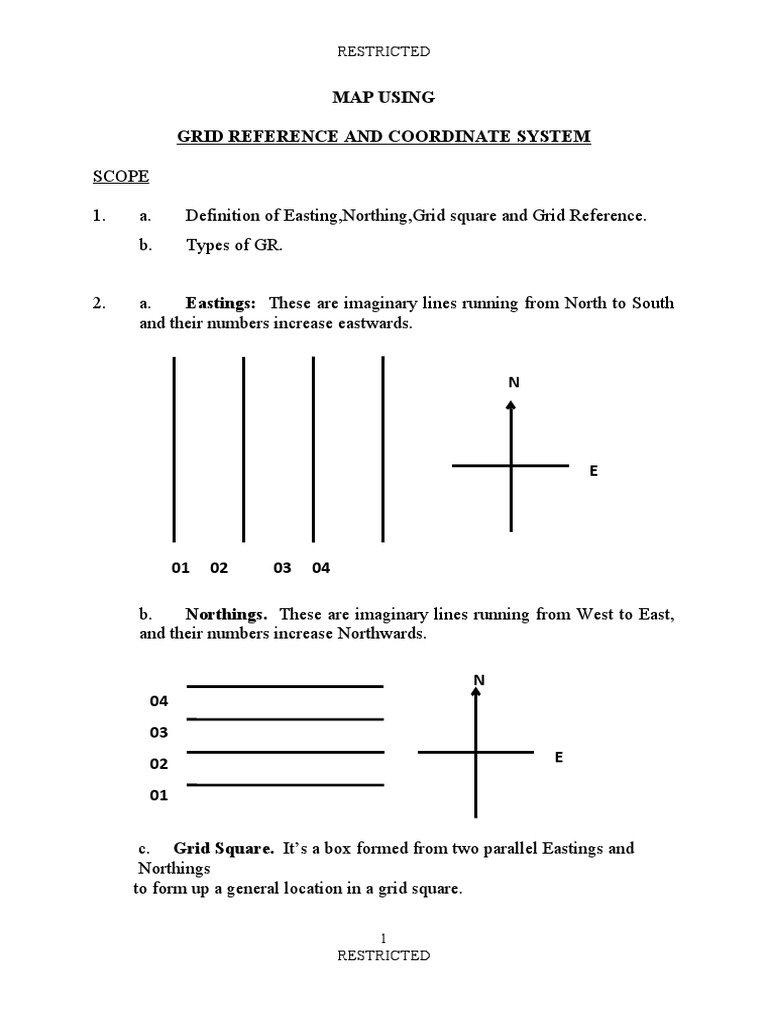

MAP USING

GRID REFERENCE AND COORDINATE SYSTEM

SCOPE

1. a. Definition of Easting,Northing,Grid square and Grid Reference.


b. Types of GR.

2. a. Eastings: These are imaginary lines running from North to South


and their numbers increase eastwards.

01 02 03 04

b. Northings. These are imaginary lines running from West to East,


and their numbers increase Northwards.

N
04
03
02 E

01

c. Grid Square. It’s a box formed from two parallel Eastings and
Northings
to form up a general location in a grid square.

1
RESTRICTED
RESTRICTED

d. Grid Reference. is a method used to pinpoint a position on the map


quickly
and accurately by using numbers on the edge of the map so that you can
report
them or move to a new location when ordered to do so.

3. Method of taking Grid References (GR) Before you give a grid


reference, you should first have to know where to start from by reading the
numbers on the Easting line then the Northing line.

THE UP

READ RIGHT

TYPES OF GR

3. There are three types of GR commonly used:

a. Four figure GR which covers an area of 1000m


b. Six figure GR covers an area to the nearest 100m most commonly
used.
c. Eight figure GR has accuracy to the nearest 10m.

4. A four figure GR is one complete grid square. Identified with at least the
bottom left hand corner of the square.

07
Q
06 O
K
05

01 02 03
2
RESTRICTED
RESTRICTED

Point K readings are; GR Q Equivalent to 0206

10. A six-figure grid reference refers to a point within a grid square and it is
accurate to within 100 squares.

11. Method of taking a six figure GR

a. Mentally divide the squares into tenths both across and upwards.
b. Judge how many tenths across to obtain the third figure.
c. Judge how many tenths upwards to obtain the 6th figure.

76
76

75 50 1 2 3 4 5 6 7 8 9 51 75

Point X is GR 505758

3
RESTRICTED
