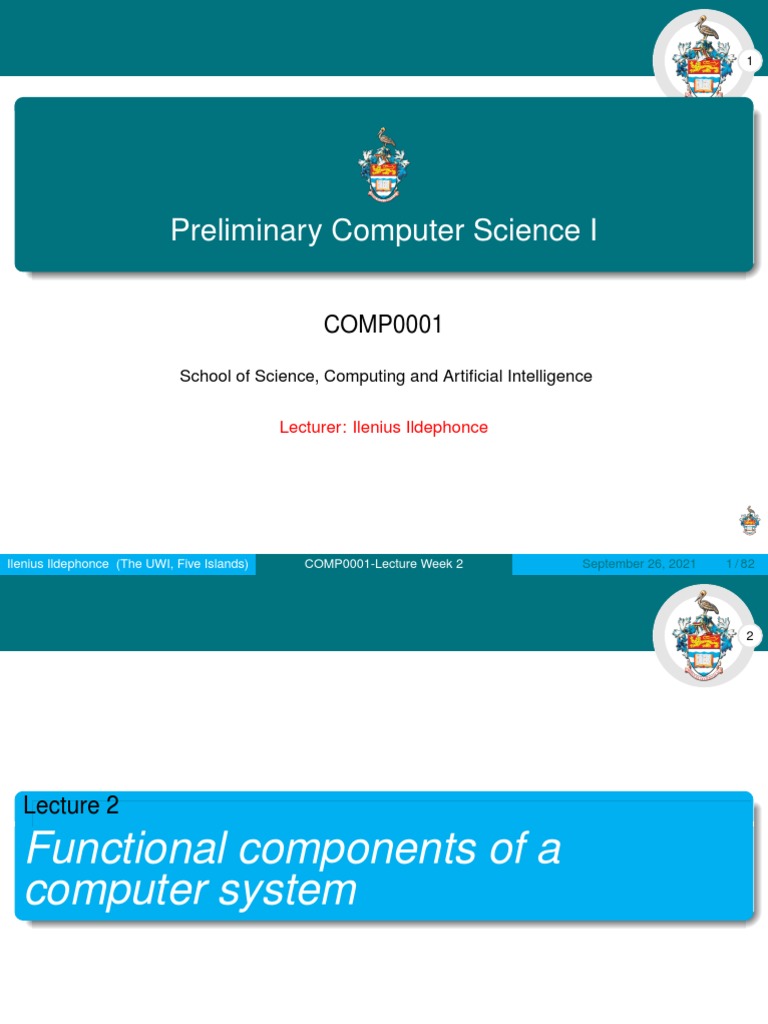

Preliminary Computer Science I: COMP0001

1
Preliminary Computer Science I
COMP0001
School of Science, Computing and Artificial Intelligence
Lecturer: Ilenius Ildephonce
Ilenius Ildephonce (The UWI, Five Islands) COMP0001-Lecture Week 2 September 26, 2021 1 / 82
2
Lecture 2
Functional components of a
computer system
Contents
3
1 Computer memory
2 Processor Fundamentals
3 Processor architectures
4 Logic gates and logic circuits
5 Logic circuits
6 Boolean algebra
Half adder circuit and full adder circuit
7 Advanced logic circuits
Flip-flop circuits
Boolean algebra and logic circuits
8 Karnaugh maps (K-maps)
Content
4
1 Computer memory
5 Logic circuits
6 Boolean algebra
Flip-flop circuits
Types of memory and storage
5
Memory is usually referred to as the internal devices which the

computer can access directly.
This memory can be the user’s workspace, temporary data or data that
is key to running the computer.
Figure: Types of computer memory
Types of memory and storage
5
Memory is usually referred to as the internal devices which the

computer can access directly.
This memory can be the user’s workspace, temporary data or data that
is key to running the computer.
Figure: Types of computer memory
Internal Memory
6
Internal memory includes components such as registers (which are

part of the processor).
There is also memory cache (which is external to the processor); this
is used to store data which the processor will probably need to use
again.
Primary memory
7
Figure: Structure of primary memory
These memory devices are not really random, it refers to the

fact that any memory location can be accessed independent
of which memory location was last used
Primary memory
7
Figure: Structure of primary memory
These memory devices are not really random, it refers to the

fact that any memory location can be accessed independent
of which memory location was last used
Primary memory cont..
8
There are two types of RAM technology, dynamic RAM (DRAM) and
static RAM (SRAM)
Table: differences between DRAM and SRAM

DRAM SRAM
1 consists of a number of transistors and uses flip - flops to hold each bit of mem-
capacitors ory
2 needs to be constantly refreshed does not need to be constantly refreshed
3 less expensive to manufacture than
SRAM
4 has a higher memory capacity than has a faster data access time than
SRAM DRAM
5 main memory is constructed from DRAM processor memory cache makes use of
SRAM
6 consumes more power than SRAM un- if accessed at a high frequency, power
der reasonable levels of access, as it usage can exceed that of DRAM
needs to be constantly refreshed
ROM
9
ROM
Another form of primary memory is the read-only memory (ROM). This
is similar to RAM in that it shares the same random access properties,
but it cannot be written to or changed. As the name suggests, ROM is
a read-only memory device.
Difference between RAM and ROM
10
Table: differences between RAM and ROM

RAM ROM
temporary memory device permanent memory device
volatile memory non-volatile memory device
can be written to and read from data stored cannot be altered
used to store data, files, programs, part sometimes used to store BIOS and other
of OS currently in use data needed at start up
can be increased in size to improve op-
erational speed of a computer
Embedded systems
11
Embedded systems
This involve installing microprocessors into devices to enable
operations to be controlled in a more efficient way.
Devices such as cookers, refrigerators and central heating systems

can now all be activated by a web-enabled device (such as a mobile
phone or tablet)
Secondary memory
12
Secondary Memory
storage devices that are not directly accessible by the CPU.
They are non-volatile devices which allow data to be stored as long as

required by the user.
They are larger than primary memory, but data access time is
considerably slower than RAM and ROM.
All applications, the operating system, device drivers and general files
Hard Disk Drives
13
Hard disk
1 Data is stored in a digital format on the magnetic surfaces of the
disks (or platters, as they are frequently called)
2 Many applications require the read-write heads to constantly seek
for the correct blocks of data; this means a large number of head
movements.
3 The effects of latency then become very significant. Latency is
defined as the time it takes for a specific block of data on a data
track to rotate around to the read-write head.
4 Through time, the HDD will undergo numerous deletions and
editing, which leads to sectors becoming increasingly fragmented,
resulting in a gradual deterioration of the HDD performance.
HDD Cont..
14
Solid State
The most common type of solid state storage devices store data by
controlling the movement of electrons within NAND chips.
They have no moving parts and all data is retrieved at the same rate.
Latency is reduced considerably.
a number of solid state storage devices sometimes use electronically

erasable PROM (EEPROM) technology.
Content
15
1 Computer memory
5 Logic circuits
6 Boolean algebra
Flip-flop circuits
16
Early computers were fed data while the machines were running. It
was not possible to store programs or data;
In 1940, John Von Neumann developed the concept of the stored
program computer.
Components of the processor (CPU)
17
The main components of the processor are:

1 the arithmetic logic unit (ALU)
2 the control unit (CU)
3 the system clock
4 the immediate access store (IAS)
The ALU
18
The ALU
The ALU allows the required arithmetic or logic operations to be
carried out while a program is being run.
It is possible for a computer to have more than one ALU:

one will perform fixed point operations and the other floating-point
operations
The accumulator (ACC) is a temporary register used when carrying
out ALU calculations.
The Control Unit (CU)
19
The CU
The CU reads an instruction from memory (the address of the location
where the instruction can be found is stored in the program counter
(PC)). This instruction is then interpreted. During that process, signals
are generated along the control bus to tell the other components in the
computer what to do.
The Clock
20
The Clock
A system clock is used to produce timing signals on the control bus to
ensure this vital synchronisation takes place - without the clock the
computer would simply crash.
Immediate access store (IAS)
21
The IAS
The IAS holds all the data and programs that the processor (CPU)
needs to access.
This is done because read/write operations carried out using the IAS
are considerably faster than read/write operations to backing store.
The IAS is another name for primary (RAM) memory.
System buses
22
Content
23
1 Computer memory
5 Logic circuits
6 Boolean algebra
Flip-flop circuits
RISC and CISC processors
24
RISC & CISC processor

Two basic philosophies have emerged over the last few years
developers who want the emphasis to be on the hardware used
(hardware should be chosen to suit the high-level language
development) - CISC (complex instruction set computer)
developers who want the emphasis to be on the
software/instruction sets to be used (driven by ever faster
execution times) - RISC (reduced instruction set computer)
CISC
25
CISC processor
CISC architecture is based on single complex instructions which need
to be converted by the processor into a number of sub-instructions to
carry out the required operation.
For example: Adding two numbers A and B, we write assembly code:

ADD A, B - this is a single instruction that requires several
sub-instructions (multi - cycle) to carry out the ADDition operation
This methodology leads to shorter coding (than RISC) but may actually
lead to more work being carried out by the processor.
RISC
26
RISC processor
RISC processors have fewer built-in instruction formats than CISC.
This can lead to higher processor performance. The RISC design
philosophy is built on the use of less complex instructions, which is
done by breaking up the assembly code instructions into a number of
simpler single-cycle instructions. Using the same example as above to
carry out the addition of two numbers A and B (this is the equivalent
operation to ADD A, B): LOAD X, A - this loads the value of A into a
register X LOAD Y, B - this loads the value of B into a register Y ADD

A, B - this takes the values for A and B from X and Y and adds them
STORE Z - the result of the addition is stored in register Z
CISC & RISC Features
27
Figure: The differences between CISC and RISC processors
Content
28
1 Computer memory
5 Logic circuits
6 Boolean algebra
Flip-flop circuits
Logic gates
29
Electronic circuits in computers, many memories and controlling

devices are made up of thousands of logic gates
Logic gates take binary inputs and produce a binary output.
Several logic gates combined together form a logic circuit and these
circuits are designed to carry out a specific function.
The checking of the output from a logic gate or logic circuit can be
done using a truth table
Logic gates
29
Electronic circuits in computers, many memories and controlling

devices are made up of thousands of logic gates
Logic gates take binary inputs and produce a binary output.
Several logic gates combined together form a logic circuit and these
circuits are designed to carry out a specific function.
The checking of the output from a logic gate or logic circuit can be
done using a truth table
Types of Logic Gates
30
Truth tables
31
Truth tables are used to trace the output from a logic gate or logic
circuit.
The NOT gate is the only logic gate with one input; the other five gates
have two inputs.
For logic circuits, the number of inputs can be more than 2:
for example, three inputs give a possible 23 (8) binary combinations.
And for four inputs, the number of possible binary combinations is 24
(16). The number of possible binary combinations is a multiple of the
number 2 in every case.
NOT gate
32
Description The output, X, is 1 if the input A is NOT 1

How to write this
X = NOT A (logic notation)
AND gate
33
Description
The output, X, is 1 if input A is 1 and input B is 1
How to write this
X = A AND B (logic notation) X = A.B (Boolean algebra)
OR gate
34
Description
The output, X, is 1 if input A is 1 or input B is 1
How to write this
X = A OR B (logic notation) X = A + B (Boolean algebra)
NAND gate (NOT AND)
35
Description The output, X, is 1 if input A is NOT 1 or input B is NOT 1
How to write this X = A NAND B (logic notation) X=

(Boolean algebra)
NOR gate (NOT OR)
36
Description The output, X, is 1 if: input A is NOT 1 and input B is NOT

1 How to write this X = A NOR B (logic notation)
X= (Boolean algebra)
XOR gate
37
Description
The output, X, is 1 if (input A is 1 AND input B is NOT 1) OR (input A is
NOT 1 AND input B is 1)
How to write this
X = A XOR B (logic notation)
Content
38
1 Computer memory
5 Logic circuits
6 Boolean algebra
Flip-flop circuits
Logic circuit
39
When logic gates are combined to carry out a particular function, such
as controlling a robot, they form a logic circuit.
The output from the logic circuit is checked using a truth table. The
following three examples show how to:
1 produce a truth table
2 design a logic circuit from a given logic statement/Boolean algebra
3 design a logic circuit to carry out an actual safety function.
Example 1: Produce a truth table
40
Produce a truth table for the following logic circuit (note the use of at
junctions)
Solution 1
41
There are three inputs to this logic circuit; therefore, there will be eight
possible binary values which can be input.
To show step-wise how the truth table is produced, the logic circuit has
been split up into three parts and intermediate values are shown as P,
Q and R.
Part 1
first task is to find the intermediate values P and Q.
Solution Part 1 cont..
42
The value of P is found from the AND gate where the inputs are A and
B.
The value of Q is found from the NOR gate where the inputs are B and
C.
Part II
43
The second part of the logic circuit has P and Q as inputs and the
intermediate output, R.
Part III
44
Final Solution
45
Example 2
46
Example 2
A safety system uses three inputs to a logic circuit. An alarm, X,
sounds if input A represents ON and input B represents OFF, or if input
B represents ON and input C represents OFF. Produce a logic circuit
and truth table to show the conditions which cause the output X to be
1.
Solution
47
The first thing to do is to write down the logic statement representing

the scenario in this example.
To do this, it is necessary to recall that ON = 1 and OFF = 0 and also
that 0 is considered to be NOT 1.
Solution 2 Cont ..
48
The logic circuit is made up of three parts as shown in the logic

statement. We will produce the logic gate for the Part 1 and Part 3,
then join both parts together with the OR gate.
Solution 2 Cont ...
49
Now, combining both parts with Part 2 (the OR gate) gives us:
There are two ways to produce the

truth table.
1 Trace through the logic circuit using the method described in
Example 1.
2 Use the original logic statement; this allows you to check that your
logic circuit is correct.
Solution 2 Cont ....
50
Example 3 is Homework
51
A wind turbine has a safety system which uses three inputs to a logic
circuit. A certain combination of conditions results in an output, X, from
the logic circuit being equal to 1. When the value of X = 1, the wind
turbine is shut down. The following table shows which parameters are
being monitored and form the three inputs to the logic circuit.
The output, X, will have a value of 1 if any of the following combination

of conditions occur:
1 either the turbine speed <=1000rpm and the bearing temperature
>80C
2 or turbin speed > 1000rpm and wind velocity >120kph
3 or bearing temperature >=80C and wind velocity >120kph
Content
52
1 Computer memory
5 Logic circuits
6 Boolean algebra
Flip-flop circuits
Boolean algebra
53
Boolean algebra is named after the mathematician George Boole. It is

a form of algebra linked to logic circuits and is based on the two
statements:
TRUE (1)
FALSE (0)
Figure: The notation used in this course to represent these two Boolean
operators
Rules that govern Boolean algebra
54
Proofs of DeMorgan’s laws
55
Proofs of DeMorgan’s laws
56
Examples
57
Solution 1
58
Solution 2
59
60
Half Harder
The half adder circuit is the simplest circuit. This carries binary
addition on 2 bits generating two outputs
1 the sum bit (S)
2 the carry bit (C)
Consider 1 + 1. It will give the result 1 0 (denary value 2).

The ’1’ is the carry and ’0’ is the sum.
Content
61
1 Computer memory
5 Logic circuits
6 Boolean algebra
Flip-flop circuits
62
Full Harder
The sum shows how we

have to deal with CARRY from the previous column. There are three
inputs to consider in this third column, for example, A = 1, B = 0 and C
= 1 (S = 0).
Flip-flop circuits
63
All of the logic circuits you have encountered up to now are

combination circuits (the output depends entirely on the input
values).
now consider a second type of logic circuit, known as a sequential
circuit (the output depends on the input value produced from a
previous output value).
Examples of sequential circuits include flip-flop circuits.
SR flip-flops
64
SR flip-flops consist of two cross-coupled NAND gates (note: they

can equally well be produced from NOR gates).
The two inputs are labelled ‘S’ and ‘R’, and the two outputs are
labelled ‘Q’ and NOT Q
65
The output from gate ‘X’ is Q and the output from gate ‘Y’ is Q.
The inputs to gate ‘X’ are R and Q (shown in red on Figure above)
the inputs to gate ‘Y’ are S and Q (shown in green on Figure).
The output from each NOR gate gives a form of positive feedback
(known as cross-coupling, as mentioned earlier).
66
consider the truth table to match our SR flip-flop using the initial states
of R = 0, S = 1 and Q = 1. The sequence of the stages in the process
is shown in Figure above
67
68
69
The truth table shows how an input value of S = 0 and R = 0

causes no change to the two output values;
S = 0 and R = 1 reverses the two output values; S = 1 and R = 0
always gives Q = 1 and Q = 0 which is the set value.
The truth table shows that SR flip-flops can be used as a
storage/memory device for one bit; because a value can be
remembered but can also be changed it could be used as a
component in a memory device such as a RAM chip.
JK flip-flops
70
The SR flip-flop has the following problems:

1 Invalid S, R conditions (leading to conflicting output values) need
to be avoided.
2 If inputs do not arrive at the same time, the flip-flop can become
unstable.
To overcome such problems, the JK flip-flop has been developed. A
clock and additional gates are added, which help to synchronise the
two inputs and also prevent the illegal states.
JK flip-flop representation
71
JK flip-flop Truth table
72
73
Use of JK flip-flops
1 Several JK flip-flops can be used to produce shift registers in a
computer.
2 A simple binary counter can be made by linking up several JK
flip-flop circuits (this requires the toggle function).
74
It is possible to use the truth table and apply the sum of products
(SoP), or the Boolean expression can be formed directly from the logic
circuit.
Example 1: Write down the Boolean expression to represent this logic
circuit.
Solution
75
Example 2
76
Write the Boolean expression which represents this logic circuit.
Solution
77
Content
78
1 Computer memory
5 Logic circuits
6 Boolean algebra
Flip-flop circuits
79
Karnaugh maps were developed to help simplify logic

expressions/circuits.
Karnaugh maps make use of Gray codes.
ACTIVITY: Find out the origin of Gray codes and other applications of
the code.
Example
80
Produce a Boolean expression for the truth table for the NAND gate.
Solution
81
82
The values along the top and the bottom follow Gray code rules.
Only cells containing a 1 are taken account of.
Groups can be a row, a column or a rectangle.
Groups must contain an even number of 1s (2, 4, 6, and so on).
Groups should be as large as possible.
Groups may overlap within the above rules.
Single values can be regarded as a group even if they cannot be
combined with other values to form a larger group.
The final Boolean expression can only consider those values
which remain constant within the group (that is, remain a 1 or a 0
throughout the group).

Preliminary Computer Science I: COMP0001

Uploaded by

Document Information

Original Description:

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Preliminary Computer Science I: COMP0001

Uploaded by

Copyright:

Available Formats

1

Preliminary Computer Science I

School of Science, Computing and Artificial Intelligence

Lecturer: Ilenius Ildephonce

Memory is usually referred to as the internal devices which the

Figure: Types of computer memory

Memory is usually referred to as the internal devices which the

Figure: Types of computer memory

Internal memory includes components such as registers (which are

Figure: Structure of primary memory

These memory devices are not really random, it refers to the

Figure: Structure of primary memory

These memory devices are not really random, it refers to the

Table: differences between DRAM and SRAM

Table: differences between RAM and ROM

Devices such as cookers, refrigerators and central heating systems

They are non-volatile devices which allow data to be stored as long as

a number of solid state storage devices sometimes use electronically

The main components of the processor are:

It is possible for a computer to have more than one ALU:

RISC & CISC processor

For example: Adding two numbers A and B, we write assembly code:

register X LOAD Y, B - this loads the value of B into a register Y ADD

Figure: The differences between CISC and RISC processors

Electronic circuits in computers, many memories and controlling

Logic gates take binary inputs and produce a binary output.

Electronic circuits in computers, many memories and controlling

Logic gates take binary inputs and produce a binary output.

Description The output, X, is 1 if the input A is NOT 1

Description The output, X, is 1 if input A is NOT 1 or input B is NOT 1

How to write this X = A NAND B (logic notation) X=

Description The output, X, is 1 if: input A is NOT 1 and input B is NOT

The first thing to do is to write down the logic statement representing

The logic circuit is made up of three parts as shown in the logic

There are two ways to produce the

The output, X, will have a value of 1 if any of the following combination

Boolean algebra is named after the mathematician George Boole. It is

Consider 1 + 1. It will give the result 1 0 (denary value 2).

The sum shows how we

All of the logic circuits you have encountered up to now are

SR flip-flops consist of two cross-coupled NAND gates (note: they

The truth table shows how an input value of S = 0 and R = 0

The SR flip-flop has the following problems:

Write the Boolean expression which represents this logic circuit.

Karnaugh maps were developed to help simplify logic

You might also like
