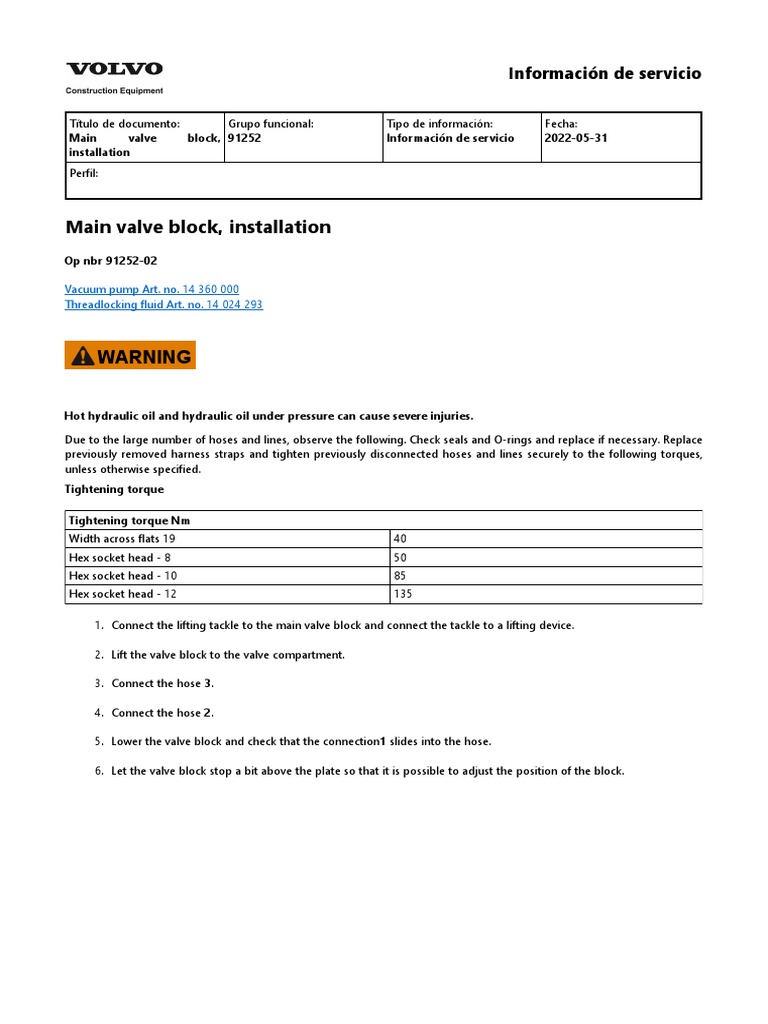

Información de servicio
Título de documento: Grupo funcional: Tipo de información: Fecha:
Main valve block, 91252 Información de servicio 2022-05-31
installation
Perfil:
Main valve block, installation
Op nbr 91252-02
Vacuum pump Art. no. 14 360 000
Threadlocking fluid Art. no. 14 024 293
WARNING
Hot hydraulic oil and hydraulic oil under pressure can cause severe injuries.
Due to the large number of hoses and lines, observe the following. Check seals and O-rings and replace if necessary. Replace
previously removed harness straps and tighten previously disconnected hoses and lines securely to the following torques,
unless otherwise specified.
Tightening torque
Tightening torque Nm
Width across flats 19 40
Hex socket head - 8 50
Hex socket head - 10 85
Hex socket head - 12 135
1. Connect the lifting tackle to the main valve block and connect the tackle to a lifting device.
2. Lift the valve block to the valve compartment.
3. Connect the hose 3.
4. Connect the hose 2.
5. Lower the valve block and check that the connection1 slides into the hose.
6. Let the valve block stop a bit above the plate so that it is possible to adjust the position of the block.
Figure 1
Hose
1. Connection
2. Hose
3. Hose
7. Fit the screws 2(4).
8. Lower the valve block so it is resting on the plate.
9. Remove one screw at a time and apply threadlocking fluid to it and put it back. Tightening torque 190 Nm.
10. Connect the hose and secure it with the pipe retainer1.
Figure 2
Main valve block's fastening screws
1. Pipe retainer
2. Screw
11. Remove the lifting tackle and the lifting eyebolts from the valve block.
12. Connect the hoses 2for the servo hydraulics on the bottom of the block.
13. Tighten the hose clamp for the hose 1on the shunt valve.
Tightening torque 5.5 Nm.
Figure 3
Main valve block, view from behind
1. Hose
2. Hoses
14. fit the hose in the connection 1on the P1 block.
Figure 4
Hose
1. Connection
15. Fit the connection 2.
16. Fit the hose 3 and the hose retainer1.
Figure 5
Hose from pump P3
1. Hose retainer
2. Connection
3. Hose
17. Connect the hoses 1(hidden) and 2to the thermostat valve.
Tightening torque 80 Nm.
Figure 6
Hoses to thermostat valve
1. Hose
2. Hose
18. Connect the hose 4.
Tightening torque 85 Nm.
19. Connect the hose 5 (hidden).
Tightening torque 50 Nm.
20. Connect the hoses 1 and 2to the thermostat valve.
Tightening torque 80 Nm.
21. Connect the hose 3to the shunt [Link] torque 50 Nm.
Figure 7
Hoses to shunt and thermostat valves
1. Hose
2. Hose
3. Hose
4. Hose
5. Hose
22. Connect the hoses 1 for the servo hydraulics.
Figure 8
Hose to valve block's servo hydraulics
1. Hose
23. Connect the hoses 1 (10) for the working hydraulics.
Figure 9
Hoses to valve block's working hydraulics
1. Hose
24. Disconnect the vacuum pump, [Invalid linktarget].
25. Check the hydraulic oil level.
26. Start the engine.
27. Check functions.
28. Detect and remedy any leakage.
29. Shut off the engine.
30. Fit the wall 1.
Figure 10
Wall
1. Wall
31. Fit the service door 2. Tightening torque 28 Nm.
32. Tighten the screws 1 to the [Link] torque 28 Nm.
Figure 11
Service door above valve compartment
1. Grating
2. Service door
33. Fit the partition 1.
Figure 12
Partition
1. Partition
34. Fit the service door 2 and the screws1. Tightening torque 67 Nm.
Figure 13
Service door under valve block
1. Screw
2. Service door
