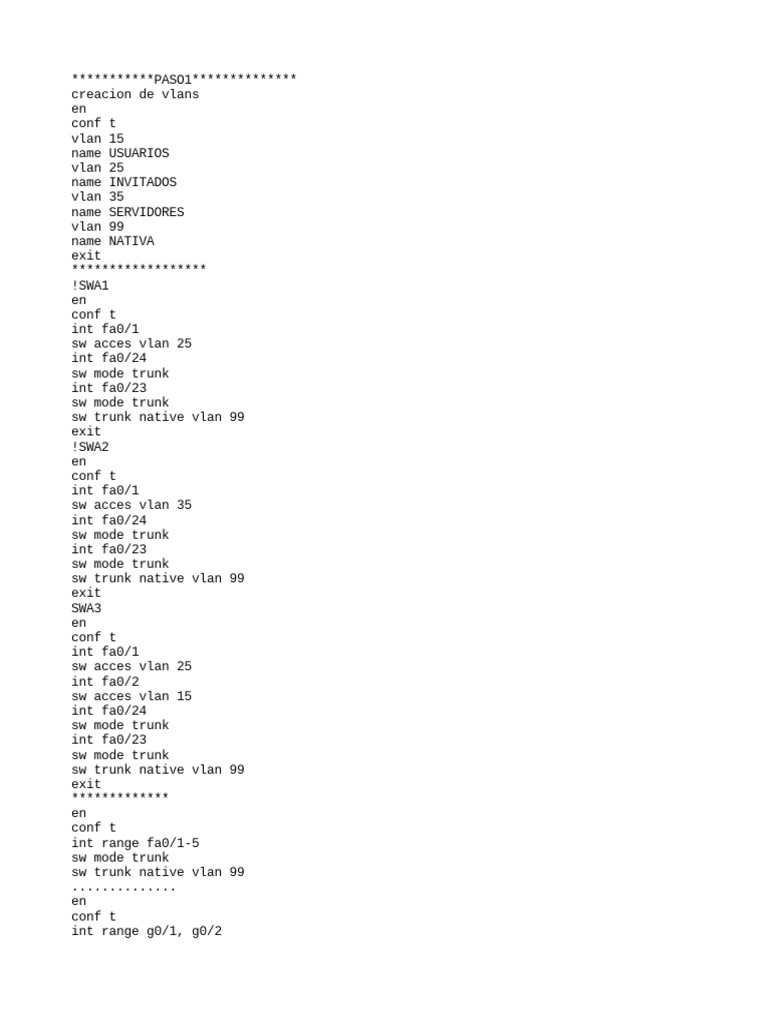

    ***********PASO1**************

    creacion de vlans
    en
    conf t
    vlan 15
    name USUARIOS
    vlan 25
    name INVITADOS
    vlan 35
    name SERVIDORES
    vlan 99
    name NATIVA
    exit
    ******************
    !SWA1
    en
    conf t
    int fa0/1
    sw acces vlan 25
    int fa0/24
    sw mode trunk
    int fa0/23
    sw mode trunk
    sw trunk native vlan 99
    exit
    !SWA2
    en
    conf t
    int fa0/1
    sw acces vlan 35
    int fa0/24
    sw mode trunk
    int fa0/23
    sw mode trunk
    sw trunk native vlan 99
    exit
    SWA3
    en
    conf t
    int fa0/1
    sw acces vlan 25
    int fa0/2
    sw acces vlan 15
    int fa0/24
    sw mode trunk
    int fa0/23
    sw mode trunk
    sw trunk native vlan 99
    exit
    *************
    en
    conf t
    int range fa0/1-5
    sw mode trunk
    sw trunk native vlan 99
    ..............
    en
    conf t
    int range g0/1, g0/2
    sw mode trunk
    int range fa0/1-5
    sw mode trunk
    sw trunk native vlan 99
    -----si bota error=pegar en los 5 switch--------
    en
    conf t
    int fa0/3
    sw mode trunk
    sw trunk native vlan 99
    int fa0/4
    sw mode trunk
    sw trunk native vlan 99
    int fa0/5
    sw mode trunk
    sw trunk native vlan 99
    int fa0/24
    sw mode trunk
    sw trunk native vlan 99
    exit
    ******************paso2************
    1111111switch1111111
    apagar puertos(ether channel PAGP)
    en
    conf t
    int range g0/1-2
    shutdown
    channel-group 1 mode desirable
    exit
    int port-channel 1
    switchport mode trunk
    exit
    222222222switch22222222222
    en
    conf t
    int range g0/1-2
    shutdown
    channel-group 1 mode auto
    exit
    int port-channel 1
    switchport mode trunk
    exit
    PRENDE LOS PUERTOS<<<<<<<<<<<<<<<<<
    en
    conf t
    int range g0/1, g0/2
    no shutdown

    *************PASO3*****************
    Router 0
    en
    conf t
    int g0/0
    no shut
    ip add 209.45.25.133 255.255.255.128
    .................
    Router 1
    en
    conf t
    int g0/0
    no shut
    int g0/0.15
    encap dot1q 15
    ip add 192.168.15.1 255.255.255.128
    int g0/0.35
    encap dot1q 35
    ip add 192.168.35.1 255.255.255.192
    int g0/0.25
    encap dot1q 25
    ip add 192.168.25.1 255.255.255.128
    int g0/0.99
    encap dot1q 99 native
    ip add 192.168.99.1 255.255.255.128
    exit
    .................
    Router 2
    en
    conf t
    int g0/0
    no shut
    int g0/0.15
    encap dot1q 15
    ip add 192.168.15.2 255.255.255.128
    int g0/0.35
    encap dot1q 35
    ip add 192.168.35.2 255.255.255.192
    int g0/0.25
    encap dot1q 25
    ip add 192.168.25.2 255.255.255.128
    int g0/0.99
    encap dot1q 99 native
    ip add 192.168.99.2 255.255.255.128
    exit

    ******************PASO4**************
    R1
    en
    conf t
    int g0/0.15
    standby version 2
    standby 5 ip 192.168.15.126
    standby 5 priority 150
    standby 5 preempt
    int g0/0.25
    standby version 2
    standby 5 ip 192.168.25.126
    standby 5 priority 150
    standby 5 preempt
    int g0/0.35
    standby version 2
    standby 5 ip 192.168.35.62
    standby 5 priority 100
    int g0/0.99
    standby version 2
    standby 5 ip 192.168.99.126
    standby 5 priority 100

    R2
    en
    conf t
    int g0/0.15
    standby version 2
    standby 5 ip 192.168.15.126
    standby 5 priority 100
    int g0/0.25
    standby version 2
    standby 5 ip 192.168.25.126
    standby 5 priority 100
    int g0/0.35
    standby version 2
    standby 5 ip 192.168.35.62
    standby 5 priority 150
    standby 5 preempt
    int g0/0.99
    standby version 2
    standby 5 ip 192.168.99.126
    standby 5 priority 150
    standby 5 preempt
    ******************PASO5**************
    IMPLEMENTANDO PVSTP LOADBALANCED

    DIST 1
    ROOT PRIMARY 1 15 25
    ROOT SECONDARY 35 y 99

    DIST 2
    ROOT PRIMARY 35 y 99
    ROOT SECONDARY 1 15 y 25

    DIST1
    en
    conf t
    spanning-tree vlan 1 root primary
    spanning-tree vlan 15 root primary
    spanning-tree vlan 25 root primary
    spanning-tree vlan 35 root secondary
    spanning-tree vlan 99 root secondary

    DIST2
    en
    conf t
    spanning-tree vlan 1 root secondary
    spanning-tree vlan 15 root secondary
    spanning-tree vlan 25 root secondary
    spanning-tree vlan 35 root primary
    spanning-tree vlan 99 root primary

    ********************
    RSTP
    en
    conf t
    spanning-tree mode rapid-pvst
    -*----*-*-*-*
    en
    conf t
    int fa0/1
    spanning-tree portfast
    spanning-tree bpduguard enable
    **********
    en
    conf t
    int fa0/1
    spanning-tree portfast
    spanning-tree bpduguard enable
    int fa0/2
    spanning-tree portfast
    spanning-tree bpduguard enable
    *************paso 6******************
    !DHCP
    en
    conf t
    ip dhcp excluded-address 192.168.15.1 192.168.15.10
    ip dhcp excluded-address 192.168.25.1 192.168.25.10
    ip dhcp excluded-address 192.168.99.1 192.168.99.10

    !crear pool

    ip dhcp pool LAN15


    network 192.168.15.0 255.255.255.128
    default-router 192.168.15.126
    dns-server 8.8.8.8

    ip dhcp pool LAN25


    network 192.168.25.0 255.255.255.128
    default-router 192.168.25.126
    dns-server 8.8.8.8

    ip dhcp pool LAN99


    network 192.168.99.0 255.255.255.128
    default-router 192.168.99.126
    dns-server 8.8.8.8
