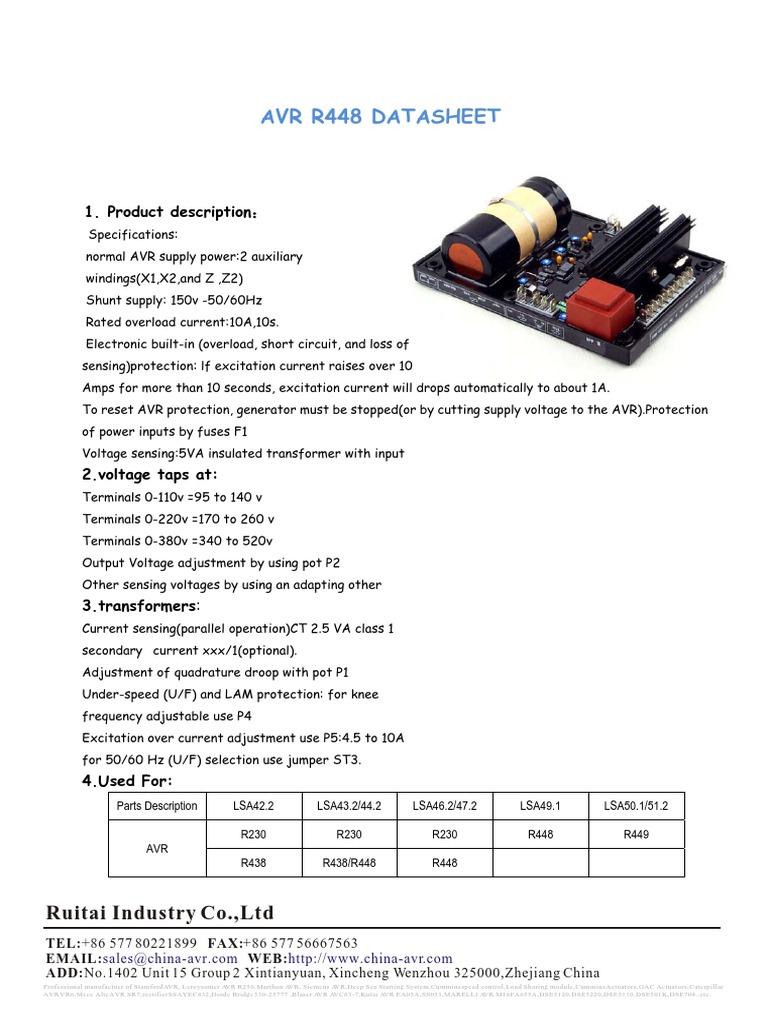

AVR R448 DATASHEET
1. Product description˖
Specifications:
normal AVR supply power:2 auxiliary
windings(X1,X2,and Z ,Z2)
Shunt supply: 150v -50/60Hz
Rated overload current:10A,10s.
Electronic built-in (overload, short circuit, and loss of
sensing)protection: lf excitation current raises over 10
Amps for more than 10 seconds, excitation current will drops automatically to about 1A.
To reset AVR protection, generator must be stopped(or by cutting supply voltage to the AVR).Protection
of power inputs by fuses F1
Voltage sensing:5VA insulated transformer with input
2.voltage taps at:
Terminals 0-110v =95 to 140 v
Terminals 0-220v =170 to 260 v
Terminals 0-380v =340 to 520v
Output Voltage adjustment by using pot P2
Other sensing voltages by using an adapting other
3.transformers:
Current sensing(parallel operation)CT 2.5 VA class 1
secondary current xxx/1(optional).
Adjustment of quadrature droop with pot P1
Under-speed (U/F) and LAM protection: for knee
frequency adjustable use P4
Excitation over current adjustment use P5:4.5 to 10A
for 50/60 Hz (U/F) selection use jumper ST3.
4.Used For:
Parts Description LSA42.2 LSA43.2/44.2 LSA46.2/47.2 LSA49.1 LSA50.1/51.2
R230 R230 R230 R448 R449
AVR
R438 R438/R448 R448
Ruitai Industry Co.,Ltd
TEL:+86 577 80221899 FAX:+86 577 56667563
EMAIL: sales@china-avr.com WEB: http://www.china-avr.com
ADD:No.1402 Unit 15 Group 2 Xintianyuan, Xincheng Wenzhou 325000,Zhejiang China
Professional manufactuer of Stamford AVR, Leroysomer AVR R250,Marthon AVR, Siemens AVR,Deep Sea Starting System,Cummins speed control,Load Sharing module,Cummins Actuators,GAC Actuators,Caterpillar
AVR VR6,Mecc Alte AVR SR7,rectifier SSAYEC432,Diode Bridge 330-25777 ,Blaser AVR AVC63-7,Kutai AVR EA05A,SS053,MARELLI AVR M16FA655A,DSE5120,DSE5220,DSE5110,DSE501K,DSE704..etc.
AVR R230 DATASHEET
1.Product description˖
SHUNT excitation system The alternator with Shunt excitation is self excited with an R 230
voltage regulator. SPECIFICATIONS Voltage regulation: around ± 0.5%. - Voltage
supply/sensing range 85 to 139 V (50/60 Hz) - Rapid response time (500 ms) for a transient
voltage variation amplitude of ± 20% - Voltage setting P1 - Stability setting P2.
2.Used For:
Parts Description LSA42.2 LSA43.2/44.2 LSA46.2/47.2 LSA49.1 LSA50.1/51.2
R230 R230 R230 R448 R449
AVR
R438 R438/R448 R448
Ruitai Industry Co.,Ltd
TEL:+86 577 80221899 FAX:+86 577 56667563
EMAIL: sales@china-avr.com WEB: http://www.china-avr.com
ADD:No.1402 Unit 15 Group 2 Xintianyuan, Xincheng Wenzhou 325000,Zhejiang China
Professional manufactuer of Stamford AVR, Leroysomer AVR R250,Marthon AVR, Siemens AVR,Deep Sea Starting System,Cummins speed control,Load Sharing module,Cummins Actuators,GAC Actuators,Caterpillar
AVR VR6,Mecc Alte AVR SR7,rectifier SSAYEC432,Diode Bridge 330-25777 ,Blaser AVR AVC63-7,Kutai AVR EA05A,SS053,MARELLI AVR M16FA655A,DSE5120,DSE5220,DSE5110,DSE501K,DSE704..etc.
AVR R250 DATASHEET
1.Product description˖
SHUNT excitation system
The SHUNT excitation alternator is auto excited with a R 250 voltage regulator.
The regulator controls the excitation current according to the alternator’s output voltage.
With a very simple conception, the SHUNT excitation alternator does not have a short circuit
capacity.
2.Characteristics:
Voltage regulation: around ± 0,5 %.
Supply range/voltage detection 85 to 139 V (50/60Hz).
Rapid response time (500 ms) for a transient voltage variation amplitude of ± 20 %.
Voltage setting P1.
Stability setting P2.
Supply protected with an 8 A fuse, slow action (supports 10 A for 10 s).
3.Used For:
Parts Description LSA42.2 LSA43.2/44.2 LSA46.2/47.2 LSA49.1 LSA50.1/51.2
R230 R230 R230 R448 R449
AVR
R438 R438/R448 R448
Ruitai Industry Co.,Ltd
TEL:+86 577 80221899 FAX:+86 577 56667563
EMAIL: sales@china-avr.com WEB: http://www.china-avr.com
ADD:No.1402 Unit 15 Group 2 Xintianyuan, Xincheng Wenzhou 325000,Zhejiang China
Professional manufactuer of Stamford AVR, Leroysomer AVR R250,Marthon AVR, Siemens AVR,Deep Sea Starting System,Cummins speed control,Load Sharing module,Cummins Actuators,GAC Actuators,Caterpillar
AVR VR6,Mecc Alte AVR SR7,rectifier SSAYEC432,Diode Bridge 330-25777 ,Blaser AVR AVC63-7,Kutai AVR EA05A,SS053,MARELLI AVR M16FA655A,DSE5120,DSE5220,DSE5110,DSE501K,DSE704..etc.
AVR R438 DATASHEET
1.Product description˖
R438 can be powered by APER OR PMG field excitation system. the circuitry of R438 provides
closed loop control of the generator output voltage by regulating the exciter field current.
2.Specification:
Voltage regulation ±0.5%
Short circuit capability:3Xlrated for 10 seconds (AREP or PMG excitation)
3.Voltage sensing:
95 to 140 volts (50/60 Hz) or
170 to 260 volts (50/60 Hz) or
340 to 520 volts(50/60 Hz)
4.Response time:
Normal(1 sec) for ±20% voltage variation
or Rapid (0.3sec)for ±20% voltage variation
Remote voltage adjustment range of:±5%
5.Used For:
Parts Description LSA42.2 LSA43.2/44.2 LSA46.2/47.2 LSA49.1 LSA50.1/51.2
R230 R230 R230 R448 R449
AVR
R438 R438/R448 R448
