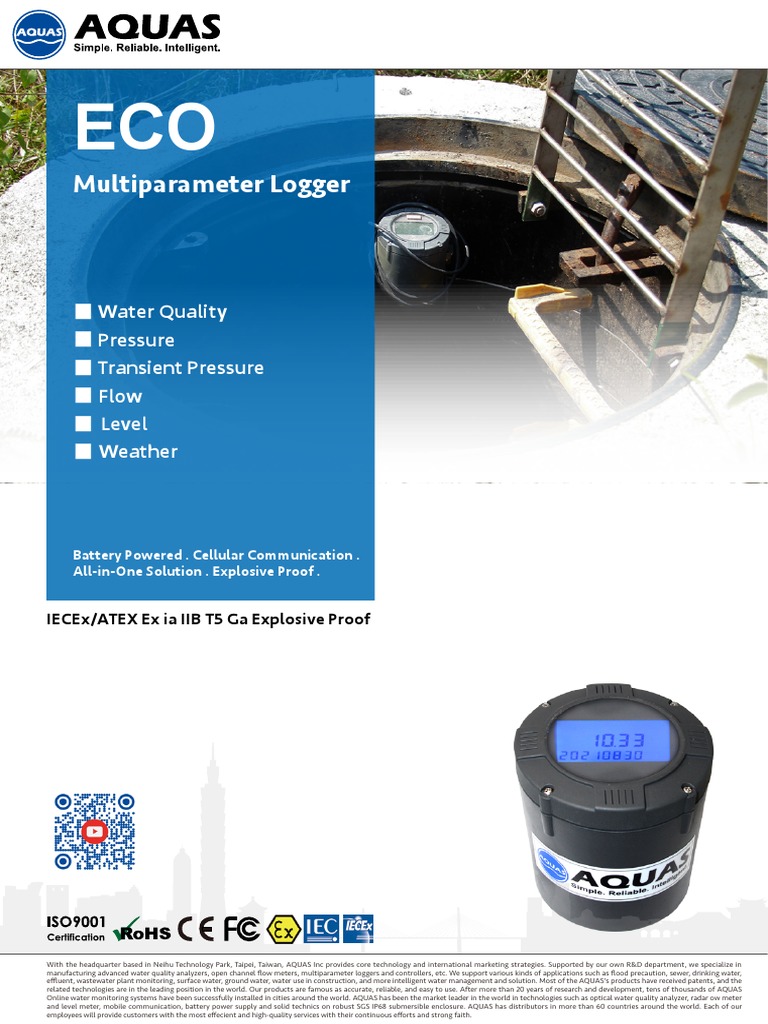

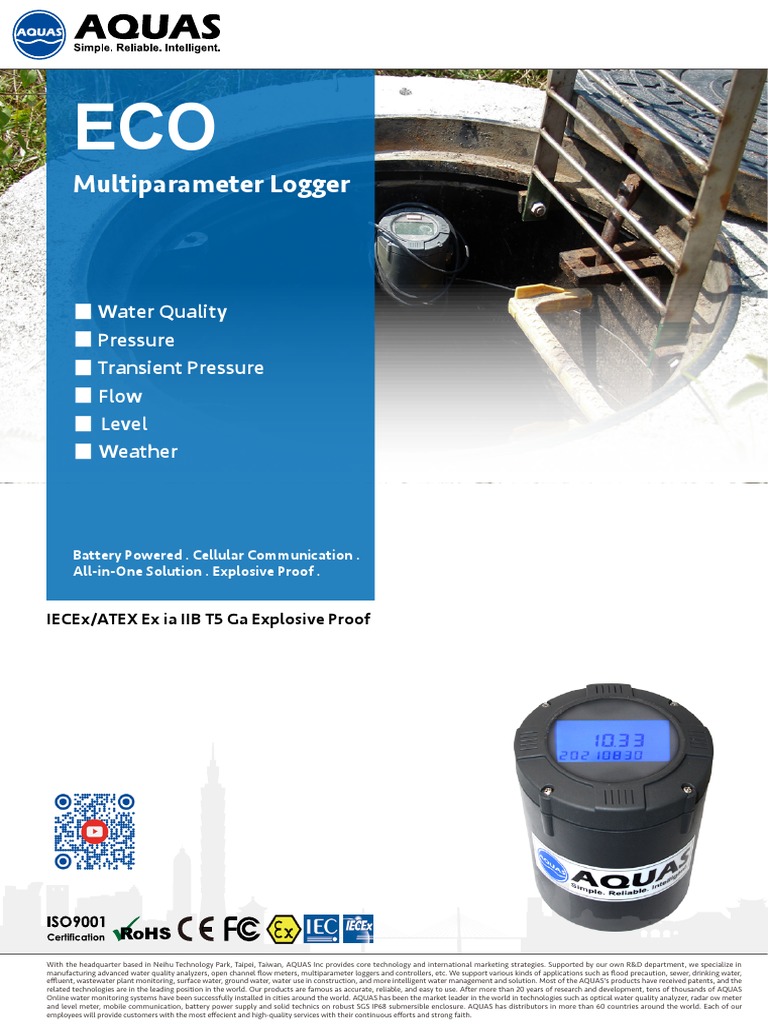

ECO

Multiparameter Logger

■ Water Quality
■ Pressure
■ Transient Pressure
■ Flow
■ Level
■ Weather

Battery Powered . Cellular Communication .

All-in-One Solution . Explosive Proof .

IECEx/ATEX Ex ia IIB T5 Ga Explosive Proof

With the headquarter based in Neihu Technology Park, Taipei, Taiwan, AQUAS Inc provides core technology and international marketing strategies. Supported by our own R&D department, we specialize in
manufacturing advanced water quality analyzers, open channel flow meters, multiparameter loggers and controllers, etc. We support various kinds of applications such as flood precaution, sewer, drinking water,
effluent, wastewater plant monitoring, surface water, ground water, water use in construction, and more intelligent water management and solution. Most of the AQUAS's products have received patents, and the
related technologies are in the leading position in the world. Our products are famous as accurate, reliable, and easy to use. After more than 20 years of research and development, tens of thousands of AQUAS
Online water monitoring systems have been successfully installed in cities around the world. AQUAS has been the market leader in the world in technologies such as optical water quality analyzer, radar ow meter
and level meter, mobile communication, battery power supply and solid technics on robust SGS IP68 submersible enclosure. AQUAS has distributors in more than 60 countries around the world. Each of our
employees will provide customers with the most effecient and high-quality services with their continuous efforts and strong faith.
Product
Description
The ECO series is a reliable and high performance multiparameter logger. It is easily
deployed across a wide range of water and wastewater applications, such as hydrants,
manholes, meter vaults, pump stations, bunkers, etc. It supports built-in pressure, I/O
module, cellular, GPS, barometer and RS485 modules. The RS485 port is able to connect
water quality digital analyzers, transmitters and I/O modules. Ultra low power consumption
allows battery or solar power to ensure 5 years of continuous operation. With robust IP68
water submersible enclosure, the product is designed for frequently flood underground
chamber, harsh temperature and humidity outdoor environment.

Advantages
■ Ultra Low Power Consumption, up to 5 Years of Operation on Internal Battery
■ Robust IP68 Submersible, Anti-Corrosive Enclosure
■ Supports Cellular and Ethernet Hot Backup Redundant Communication
■ Auto Store and Delivery Incomplete Uploads to Ensure No Data Loss
■ Plug and Play Sensors Port, Auto Connects up to 8 Pressure, Level, Flow and
Water Quality Sensors
■ Real-time Detects Digital Inputs Such as Manhole Cover, Level Switch Status and Send
Out Text Message
■ Built-in High Speed Counters, Connects Directly to Flow Meter to Log Flow Along with
Pressure Data
■ 0.001 sec Auto Detect and Log Transient Pressure, Water Hammer, Pipeline Burst
■ IF_THEN_ELSE, Time Table, Alarm and Mannal ON/OFF Control Functions
■ Support FTP, MQTT, RESTful, Modbus TCP, HART Protocols
■ Simultaneously Upload Log and Alarm Files to Two Data Servers
■ Standard OPC Server Software to Seamlessly Connect SCADA Software and Database
■ Remote Data Collection with AQLIB Library for Windows or Linux
■ Cloud Based Platform for Configuration, Operation, Monitoring, Alarm, Control and
Data Analysis
■ AQCFG Software Tool for Data Monitoring, Calibration, Configuration and Diagnosis
■ IECEx/ATEX Ex ia IIB T5 Ga Explosive Proof Certification
■ Wide Operating Temperature Range: - 40 to 85 ℃ (- 40 to 185 ℉ )

Benefits
Borderless Eliminate power/ Seamless connection Easy to install, no Low maintenance
deployment without networking/sensor/IO to public or private need for calibration and troubleshooting.
standard cabin, cabling, network and software and quick connect Minimizes running
signal transmitter, software solutions within seconds. It is and operating cost
communication configuration, Ideal for mobile
module, power engineering and operation
supply, surge isolation infrastructure cost
and lighting arrester

Applications

Pipeline Drinking Water Hydrology Weather Oil & Gas Petrochemical

1
 Features
All-in-One, Autonomous Operation
■ 4G/GPRS five band 800/850/1,700/1,900/2,100 MHz
global coverage cellular communication
■ Integral long life replaceable Lithium battery to
sustain 10 years continuous operation
■ Optimized solar power module, solar panel and
rechargeable lithium battery for 3 years continuous
operation
Robust Outdoor Construction
■ IP68 robust water submersible housing
■ Operating temperature: -40 to 85 °C
■ Anti-corrosive IP68 connectors, ideal for harsh
environment
■ IP68 ground antenna, loading capacity is up to 10
tons truck
Multiparameter Monitoring and
Communication
■ I/O module: 2 digital inputs, 2 analog inputs or 2 digital
inputs, 1 pulse output, 1 analog input
■ Sensors port: connects MAX multiparameter water
quality monitoring sonde, SMR digital sensors and I/O
modules
■ Multiple communication selections: cellular, WiFi, RS485
■ Power supply: external power, internal battery, solar
power and external battery box
■ 2,000,000 log data storage capacity
High Accuracy and Reliability
■ Accuracy of pressure sensor: ±0.1% FS
■ Accuracy of analog input: ±0.025% FS
Transient Pressure Detection and Data
Logging
■ 0.001 sec detection of transient pressure for water
hammer, pipeline rupture, sudden change in demand,
negative pressure, pump and valve malfunction,
faulty operation, etc.
■ 0.01 sec high speed transient pressure log, log interval
is up to 60 seconds per record, total 4,096 records.
Easy Setup and Installation
■ Bluetooth cable-free operation and configuration
■ Cellular/WiFi over the air cloud configuration, log data
download and firmware update
■ Setup log and upload interval, monitor system status,
I/O, cellular/GPS signal and calibrate sensor via AQCFG
configuration software
■ Cloud firmware upgrade via cellular or WiFi communication
■ Superior high gain antenna is ideally used in underground
chamber
Smart Functions
■ Scheduled and alarm communication: data collection,
SMS, alarm notification, data upload, setting download,
store and forward; accelerate upload frequency while
alarming
■ Log: periodical, event, alarm, transient pressure
■ Configurable 4 levels alarm and actions including SMS,
alarm log
■ Arithmetic functions (+, -, x, ÷) for registers to setup
the IF_THEN_ ELSE alarm conditions
■ Peer to peer communication for I/O and data exchange
■ Intelligent battery power management and charge/
discharge protection
■ Forecast of battery operation days and early warning of
low battery to avoid unpredicted breakdown
Auto Data Collection, Cloud Storage, WEB
Operation and Monitoring
■ Standard Modbus TCP protocol
■ Central communication application programming library
for field data collection and database integration
■ Directly upload CSV format log files to user FTP servers
■ Web configuration, operation, monitoring, alarm,
control, Google Map display, statistical analysis,
transient pressure analysis, trend, bar graph and tabular
report functions
■ Automatic registration and synchronization of device ID,
serial number, alias, location and operation settings
■ GPS and time logged together with I/O and sensor
values
■ SQL and MySQL database connection for development
of application software
■ Seamless SCADA software and database connectivity via
OPC server
■ Anytime and anywhere internet operation and
monitoring
■ Simultaneously upload data to 2 servers to build up dual
database and operation centers
Security
■ Battery is of the type proved to meet the requirements
of UN38.3
■ Login password access protection
■ 128 bits cellular AES encryption to prevent unauthorized
access
■ GPS location deviation anti-theft alarm
■ Secure cellular communication via virtual private
network (VPN)
2
System
Architecture
The FLO Series is fully integrated with cellular, Bluetooth, RS485
and Ethernet communication, providing seamless connections
from sensors and I/O to public or private networks.
AQWEB/AQOPC Station
empe
r a t u re ■ Notebook with AQCFG software for configuration
P, T
, OR
so l v e d Oxygen, Lev ■ AQWEB WEB Server software for configuration, automatic data acquisition
ne e
D is ded Solid
y, uspen and storage, remote monitoring, alarming, control, Google Earth fusion
, Sa tivi i
r

l
P
Cond Chlo

m, TDS
S oniu

Va on
t

y, m
display, data analysis, transient pressure analysis, time series trend graph
os
lve
Am
e
uc

iti
Fre

i
li n
y,

and tabular report functions

dit

Turbi
pH

■ Seamless SCADA software and database connectivity via AQOPC OPC

Wi d Dire iation,
n ,

server
e
o

akag
idity,

ai Ba Speed,
i

e
t
all, ometer,
c

N ois
ad

■ Application interface library for developing user customized software

Le
Hum

i rR
a
d

ol
n
n
r

S W
FLO Open Channel Flow Logger and Controller
2
,H
f

CH
n

2
4

,O

P r e s s ure
■ Periodically sample digital transmitters, I/Os and serial devices, logged
R
Flo
w u r e CO
Ve T r a n s i e n t Pr e s s
lo c
it y D i
f f e r e n t i al P r e s s u
r e
with timestamp
■ Borderless cellular and WiFi communication
Multiple Parameters Applications ■ Peer to peer communication
MAX Multiparameter Water Quality Sonde and SMR Digital Sensors
■ RS485 serial communication
■ Standard Modbus RTU protocol

User App AQNET APP

HTTP
Internet
FTP

User Cloud Web Surfing

Alarm SMS Text AQUAS

AQWEB Service
WEB Service Offline Backup
FTP
SQL/mySQL
Alarm Email USER FTP Service
AQFTP
Database
SQL/mySQL
AQCCS
Database
4G/GPRS/WiFi
EIP

AQLIB TCP/IP
User Applications
FTP
iPhone IE

SMS/GSM Safari
Alarm SMS Text

FTP Android iPad

Monitoring & Operation Alarm Flow Chart Trend Data Analysis

3
Specifications
►Main Unit
General
CPU 32 bits, 72 MHz
Dynamic Memory Type: SRAM; Size: 128 KB
Solid state, non-volatile flash, size: 16 MB, expandable up to 64 GB; rotating, no log or setting data loss after power failureexpandable
Memory
up to 64 GB; rotating, no log or setting data loss after power failure
Real-time Clock crystal controlled calendar clock with leap year adjustment; accuracy: 3 seconds per month; GPS and NTP server
auto time synchronization, accuracy: 1 ms (GPS), 1~3 sec (NTP)
Environment Protection: IP68 (NEMA 6P); operating temperature: -40~85 °C; operating humidity: 0 ~100% RH
Safety CE, FCC
Explosive proof Ex nC Ⅱ T6 Gc X
LCD Display
2.4” with backlight
Display: sensor and transmitter values, I/O status, battery and communication status, unit
3 numbers: 9 digits, 4 1/2 digits, 1 1/2 digits
Dimensions: 60(W) x 34(H)
System Communication Port (Port 0)
Function System configuration, diagnosis and data upload/download
Communication RS485, 115,200 bps, 8 data bits, no parity, 1 stop bit
Surge protection 4000 VDC
Protocol Modbus RTU
Housing
Material PC
Dimensions Φ 110X153 mm
Weight approx. 900 g
►Function
Communication data transmittion; SMS alarm notification; data upload/download (always on~24 hours); store and forward; FTP
Log 2,000,000 records, rotating store; periodical; event; alarm; transient pressure
Log interval 1 sec~24 hr (periodical);1 sec~15 min (event)
Alarm HH, H, L, LL 4 level threshold; alarm action: SMS, alarm log
Control IF_THEN_ELSE, PID, set points, time table, alarm output, manual ON/OFF
►Power
External Power
Voltage 12 VDC ±10%, 2 A
ESD line protection 15 KVDC
Internal Battery (BAT01-1) Internal Battery (BAT05-1)
Non-rechargeable 3.6 VDC 26 AH lithium cell Rechargeable 3.6 VDC 13 AH lithium cell
Life: 10 years Life: minimum 300 charge/discharge cycles
External Battery (BAT03-1) External Battery (BAT11-2)
IP68, rechargeable 3.6 VDC 80 AH lithium battery IP68, rechargeable 3.6 VDC 240 AH lithium battery
Life:minimum 300 times charge/discharge cycles Life:minimum 300 times charge/discharge cycles
Dimension: 150(W)X150(H)X100(D)mm Dimension: 242(W)X185(H)X130(D)mm
Weight: approx. 1.8 Kg Weight: approx. 5.7 Kg
►Communication
GPRS Module Ethernet Module 4G Module
Standard GSM/GPRS Data rate 10/100 Mbps Standard LTE
Frquency 700/850/900/1800/1900 MHz Isolation 1500 VDC Frequency 800/850/900/1800/1900/2100/2400/2600 MHz
Antenna dBi (internal); 2 dBi (external) Protocol Proprietary or Modbus TCP Antenna 1 dBi (internal); 1~3 dBi (external)
SIM Card Micro SIM (12x15 mm) SIM Card Micro SIM (12x15mm)
Protocol Proprietary or Modbus TCP Protocol Proprietary or Modbus TCP
WiFiModule NBIoT Module
Standard IEEE 802.11b Standard LPWAN
Data rate Up to 11 M bps Frequency 700/800/850/900 MHz
Frequency 2.412~2.497 GHz Antenna 1 dBi (internal); 1~3 dBi (external)
Modulation DSSS SIM Card Micro SIM (12x15 mm)
Supported topologies Star Protocol Proprietary or Modbus TCP
Transmitter output 18 dBm
Receive sensitivity -83~-92 dBm
Range up to 1 Km
Security WPA/WPA2
Protocol Proprietary or Modbus TCP
► Sensors Port (Port 1)
Function Device data collection, connecting MAX multiparameter water quality sonde, H2O water quality spectrometer,
SMR digital sensors and I/O modules
Interface RS485, 19,200bps, 8 bits, no parity, 1 stop bit
Surge protection 4,000 VDC
Protocol Modbus RTU

4
Specifications

►I/O Module (Port 2)

I/O Module 1: (2 DI, 2 AI)
Digital inputs Analog inputs
Number of channels 2 counter or state inputs Number of channels 2
Type dry contact single ended input Resolution 15 bits
Maximum operating frequency 100 Hz Accuracy 0.025% FS
Minimum pulse width 2m Signal 4 ~ 20 mA
I/O Module 3: (2 DI, 1 PO, 1 AI)
Digital inputs Pulse Output Analog inputs
Number of channels 2 counter or state inputs Number of channels 1 Number of channels 1
Type dry contact single ended input Resolution 15 bits Type ± 9 VDC snap shot output
Maximum operating frequency 100 Hz Accuracy 0.025% FS Load 1A 30 VDC
Minimum pulse width 2 ms Signal 4~20 mA Maximum operating frequency 20 Hz
►Pressure Module (Port 3)
Measurement range -1~20 Kgf/cm²
Operating temperature -40~85 °C
Accuracy ±0.1% FS
Resolution 0.001 Kgf/cm²
Repeatability ±0.025% FS
Stability (annual) ±0.1% FS
Overload 3X
Burst 4X
Connection 1/8” quick fit coupler
Housing SS316L
Optional
►GPS Module ►Transient Pressure (burst, water hammer) Module ►Barometer Module
Frequency 1575.42 MHz Mesasurement range -1~30 Kgf/cm² , -1~105 Kgf/cm² (optional) Mesasurement range 0~1.2 Kgf/cm²
Position accuracy ±5 m Accuracy ±0.5％ FS Accuracy ± 0.1％ FS
Time accuracy 300 nsec Scan time 0.001 sec Resolution 0.001 Kgf/cm²
Antenna 28±3 dBi Log frequency 0.01 sec, 0.1 sec Repeatability ± 0.025％ FS
Log interval 1~60 sec
►Solar Panel
Type Multi-crystalline silicon solar cell
Efficiency 17% (1,000w/m2, 25 ℃ )
Max Power (Pmax) 3 Watts (PAN02, PAN05); 8 Watts (PAN03)
Optimal operating voltage (Vop) Max. 6 VDC ±10%
Optimal operating current (Iop) Max. 400 mA ±10% (PAN02, PAN05); 1 A ±10% (PAN03)
Open circuit voltage (Voc) 6.5 VDC±10%
Short circuit current (Iss) 500 mA±10%
Operating temperature -30~70 ℃
Protection IP67
Housing Back - SS304 or aluminum ; Front - reinforced glass
Dimension PAN01：170(W)X155(H)X10(D) mm
PAN03：370(W)X185(H)X35(D) mm
PAN05：Φ200X75(H)mm
►Bluetooth Module
Functions System configuration, diagnosis and data upload/download
Standard Bluetooth 4.0
Data rate Up to 3 Mbps
Frequency 2.412~2.497 GHz
Range Up to 50 m
Antenna 1 dBi

► Battery Operation Time

Cellular Module
Battery Power I/O, Log, Alarm Interval Data Upload Interval Approximate Battery Life
4 hours 5 + Years
3.6 VDC 26-AH (INR) 5 min
30 min 1 + Year
24 hours 2 + Years
3.6 VDC 13-AH (IR) 5 min
3 hours 1 + Year
3.6 VDC 80-AH (ER) 10 min 10 min 2 + Years
30 min 2 + Years
3.6 VDC 240-AH (ER) 5 min
5 min 1 + Year
3W Solar Panel (w 13-AH(IR)) 5 min 5 min 3 + Years (*)
IR=Internal Rechargeable Battery / INR=Internal Non-rechargeable Battery / ER=External Rechargeable Battery / ENR=External Non-rechargeable Battery
* Continuously operating up to 7 days without sunlight * Varies with sensor type, logging intervals, telemetry and environment.

5
 Ordering

Accessory: Battery and Solar Panel

BAT03-1 BAT11-2 PAN02 PAN03 PAN05 PAN09 BOX02 CAB06 CAB12 BRA02 ANT05 ANT13 MSW01 QFC FSV

Order No. Description

BAT03-1 3.6 VDC 80 AH, rechargeable lithium battery
BAT11-2 3.6 VDC 240 AH, rechargeable lithium battery
PAN02 IP67 3 W solar panel
PAN03 IP67 8 W solar panel
PAN05 IP68 3 W road mount solar panel
PAN09 IP67 20 W solar panel
BOX02 8 ports hub
CAB06 configuration cable (1.5 m, USBinterface)
CAB12 IP68 2 port RS485 cable (20 cm)
BRA02 mounting bracket
ANT05 IP68 outdoor anten
ANT13 IP68 ground antenna
MSW01 magnetic switch
QFC02 pressure hose (1/8" quick fit coupler, 1.5 m)
FSV01 1" Flush Valve
FSV02 1 1/2" Flush Valve
FSV03 2" Flush Valve
Ordering Codes ECO

Main Unit and I/O Module

I/O Module 1 (2 DI, 2 AI) 2
Pressure Module + I/O Module 1 (2 DI, 2 AI) 3
I/O Module 3 (2 DI, 1 PO, 1 AI) 5
Communication (*)
RS485 0
GPRS 1
WiFi 2
Ethernet 5
4G 7
NBIoT 8
Power
External Power 0
Internal Battery (Non-rechargeable, 3.6 VDC 26 AH) 1
Internal Battery (Rechargeable, 3.6 VDC 13 AH) 2
External Battery (Rechargeable, 3.6 VDC 80 AH) 3
External Battery (Rechargeable, 3.6 VDC 240 AH) 4
Antenna
None 0
Internal 1
External 2
Explosive Proof
None 0
Certificated 1
* Communication Redundancy: Addtional 2nd Communication for hot backup
Optionals:
• GPS Module • Transient Pressure Module • Barometer Module • Bluetooth Module
► Dimensions (unit: mm)
110

All performances are subject to the actual performance of the products sold by the company in AQUAS Inc.
the market, and are only applicable to the products of the company's brand sold by the company Taipei Office
or its designated distributors. All the above data are from the internal test of Kaifa Water Add：4F.-2, No. 56, Ln. 321, Yangguang St., Neihu Dist.,
Resources, and the data may be biased due to different test environments. The manufacturer Taipei City 11491, Taiwan. R.O.C.
reserves the right to make changes to product performance, specifications, samples or designs
T : +886-2-8797-5358#240
127 without notice. All information has been carefully checked for accuracy. If there is any printing
F : +886-2-2657-8926
omission or there may be errors in translation, the company will not be responsible for the
153 consequences. service@aquas.com.tw
