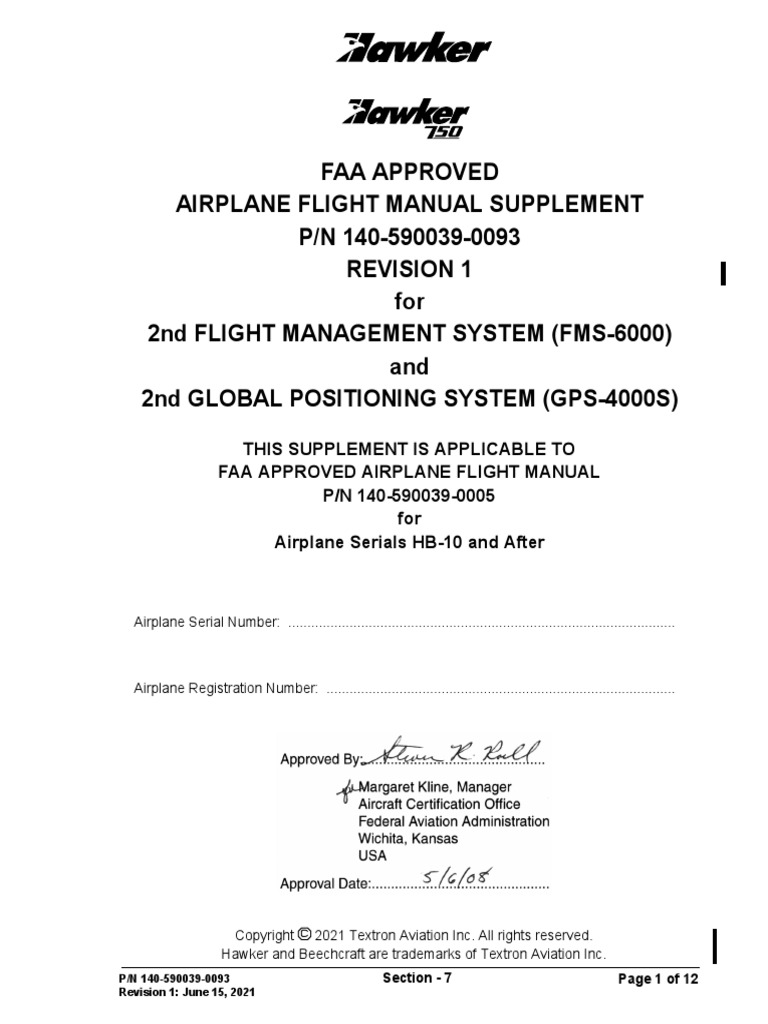

Approval Date: ... ... ... .... ~/~/<?..( ....... ... .... .
Copyright © 2021 Textron Aviation Inc. All rights reserved.
P/N 140-590039-0093
Hawker and Beechcraft are trademarks of Textron Aviation Inc.
Section - 7 Page 1 of 12
I
Revision 1: June 15, 2021
FAA Approved
Airplane Flight Manual Supplement
Use the LIST OF EFFECTIVE PAGES to determine the current status of this supplement.
Pages affected by the current revision are indicated by an asterisk (*) preceding the page
number.
* 1 of 12 Original 1
* 2 of 12 Original 1
* 3 of 12 Original 1
* 4 of 12 Original 1
* 5 of 12 Original 1
* 6 of 12 Original 1
* 7 of 12 Original 1
* 8 of 12 Original 1
* 9 of 12 Original 1
* 10 of 12 Original 1
* 11 of 12 Revision 1 1
* 12 of 12 Revision 1 1
LOG OF REVISIONS
1
2 of 12 and List of Effective Pages to
reflect Revision 1 status
Updated Log of Revisions
1;/1{/z,1 ~µ-tr
3 of 12
with Revision 1 information
5 of 12 Updated Contents
Added FMS General with
6 of 12
Temperature Compensation
thru
Limitations, shifted
7 of 12
subsequent data
8 of 12 Shifted data
thru
12 of 12
CONTENTS
Page
INTRODUCTION ................................................................................................... 5 of 12
SECTION 1 - GENERAL...................................................................................... 6 of 12
AVIONICS .......................................................................................................... 11 of 12
AVIONICS .......................................................................................................... 11 of 12
INTRODUCTION
This supplement applies to Hawker 750 Airplane Serials HB-10 and after that have Kit 149-3423
installed for a 2nd Flight Management System (FMS-6000) and a 2nd Global Positioning System
(GPS-4000S).
The limitations, procedures and information contained in other sections of this Airplane Flight
Manual are applicable except where superseded by the information given in this supplement.
SECTION 1 - GENERAL
No change.
SECTION 2 - LIMITATIONS
AVIONICS LIMITATIONS
5. All input data provided to the VSPEED data must be verified for accuracy and the resulting
data (VSPEEDS, Field Length, Weight Limits, etc.) must be verified against the AFM for use.
6. All FMS navigation operations (with AHRS installed) are approved within the U.S. National
Airspace System and latitudes bounded by 60° North latitude and 60° South latitude at any
longitude. The WGS-84 coordinate reference datum in accordance with the criteria of AC
20-130A, AC 91-49 and AC 120-33 must be used.
Satellite navigation data is based upon use of only the Global Positioning System (GPS)
operated by the United States. The FMS is not approved and does not operate above 73°
North or 60° South latitude.
• Operation to 70° North latitude is acceptable East of 75° West longitude and West of 120°
West longitude.
• Operation to 73° North latitude is acceptable East of 50° West longitude and West of 70°
East longitude.
NOTE: Step down fixes may not be available in the navigation database for certain
approaches and approach segments.
Naviagtion Capabilities
NOTE: The following Navigation Capabilities sub-headings (1 thru 5) supersedes the Nav-
igation Capabilities sub-headings (1 thru 4) in Section 2 - LIMITATIONS of the Air-
plane Flight Manual. All other Navigation Capabilities sub-headings (5 thru 8)
found in Section 2 of the AFM are applicable.
The Collins Flight Management System (FMS-6000 Version 3.3.1) is approved under Technical
Standard Order (TSO) C115b and C129a Class B1/C1.
Provided a second Flight Management System and a second Global Positioning System are
installed and receiving appropriate GPS signals, the systems meet the accuracy specifications
for the following operations requiring FMS:
GPS based primary means of navigation operation in oceanic and remote places. In
accordance with AC 20-130A, and AC 20-138A, two FMS-6000 systems must be operating
and receiving usable signals from two operating Collins GPS sensors and used in
conjunction with the Collins prediction program, CPN 832-3443-008, Rev -, or latest version,
or a single FMS-6000 used in conjunction with the Collins prediction program, CPN 832-
3443-008, Rev -, or latest version, on routes approved for single GPS navigation.
In accordance with the criteria of AC 91-49 and AC 20-138A, two FMS-6000 systems must
be operating and receiving usable signals from two operating Collins GPS sensors and used
in conjunction with the Collins prediction program, CPN 832-3443-008, Rev -, or latest
version, or a single FMS-6000 used in conjunction with the Collins prediction program,
CPN 832-3443-008, Rev -, or latest version, on routes approved for single GPS navigation.
3. RNP-10 Airspace:
In accordance with the criteria of FAA Order 8400.12A without time limitations, the
FMS-6000 meets the minimum requirements for Required Navigation Performance-10
(RNP-10). Two FMS-6000 systems must be operating and receiving usable signals from two
operating Collins GPS sensors and used in conjunction with the Collins prediction program,
CPN 832-3443-008, Rev - or latest version.
In accordance with AC 20-130A, AC 90-96A and JAA AMJ 20 x 2, Leaflet 2, Revision 1, the
FMS-6000 must not be in Dead Reckoning ("FMS DR" displayed on the PFD, MFD or CDU)
and must be receiving usable signals from one or more of the following:
• During pre-flight planning, the crew must confirm for the intended flight (route and time),
the availability of receiver autonomous integrity monitoring (RAIM) with the latest
information from the U.S. Coast Guard giving full details of satellite non-availability
(see http://www.navcen.uscg.gov). The U.S. Notices to Airmen (NOTAM) Office also
provides satellite non-availability data.
• The confirmation of the availability of RAIM should be obtained from the Collins Pre-
Departure GPS Coverage Predictor Program, CPN 832-3443-008, Rev-, or latest
version.
Dispatch should not be made in the event of predicted continuous loss of RAIM for more
than 5 minutes for any part of the intended flight. The use of the EUROCONTROL
AUGUR tool may be used to satisfy this requirement. See http://augur.ecacnav.com/.
It has been demonstrated that the FMS-6000 is capable of PRNAV operations in accordance
with the criteria of JAA TGL-10 and AC 90-96A provided the FMS is not in Dead Reckoning
("FMS DR" displayed on the PFD, MFD or CDU). PRNAV operations in some terminal areas
may require operating dual FMS equipment.
PRNAV operations outside of the U.S. utilizing GPS as the only navigation sensor require
the following pre-flight planning:
• During pre-flight planning, the crew must confirm for the intended flight (route and time),
the availability of receiver autonomous integrity monitoring (RAIM) with the latest
information from the U.S. Coast Guard giving full details of satellite non-availability
(see http://www.navcen.uscg.gov). The U.S. Notices to Airmen (NOTAM) Office also
provides satellite non-availability data.
• The confirmation of the availability of RAIM should be obtained from the Collins Pre-
Departure GPS Coverage Predictor Program, CPN 832-3443-008, Rev-, or latest
version.
Dispatch should not be made in the event of predicted continuous loss of RAIM for more than
5 minutes for any part of the intended flight. The use of the EUROCONTROL AUGUR tool
may be used to satisfy this requirement. See http://augur.ecacnav.com
a. The crew select the PRNAV route from the FMS navigational database.
b. The navigation database supplier has a Type 2 LOA that is currently valid for the
intended operations. Navigation database Alerts and NOTAMS may be associate with
the intended operations and the Type 2 LOA.
Quantity Description
AVIONICS
Radio Equipment Failure
If power failure to individual radio system components is observed or suspected, power may be
regained by operation of the PE, PS 1 and/or PS 2 AVIONICS MASTER BYPASS switches,
located at the lower right corner of the DA-A circuit breaker panel, behind the copilot.
The GPS 2 system is controlled by the PS 2 AVIONICS MASTER BYPASS switch and the
GPS 2 circuit breaker is located on the DA-A circuit breaker panel at location F15.
No change.
SECTION 5 - PERFORMANCE
No change.
